Sime SOLIDA 5 PL User manual

SOLIDA 5 PL
SOLIDA 8 PL+
Fonderie SIME SpA Cod. 6113735B - 05/2017
RUS
IT
ENG
SOLIDA 5 PL cod. 8058541
Kit pellet Sime 5 PL cod. 8075980 (optional)
SOLIDA 8 PL + cod. 8075743
Kit pellet Sime 8 PL + cod. 8075981 (optional)

SOLIDA PL - ENGLISH
INDEX
1 OPERATION WITH PELLETS AND SPECIAL KIT ................................................ 16
2 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
WARNINGS
- In case of failure or malfunction of the equipment, contact authorised technical staff
- Make sure that no external electrical cables can come into contact with hot parts of the water heater
- Duly install a device in the electrical power supply grid that ensures complete omni-polar disconnection
(surge category III)
- During operation of the water heater, the fumes exhaust pipe and the cast iron doors reach high tempera-
tures (do not touch without appropriate protection)
- If the electrical power supply cable is damaged, it must be replaced by the manufacturer or by qualified
technical staff
- To avoid system water backflow, install check valves or valves that are only opened to reintegrate water
into the system.
GENERAL NOTES
- The appliance must be installed by qualified staff who operate in compliance with the national standards in
force and with the instructions in the accompanying manual.
- The appliance is not intended for use by persons, including children, with reduced physical, sensory or
mental abilities. Children must be monitored to ensure they do not play with the appliance.
- A puffer (inertial accumulation) is recommended but not obligatory. Its presence has the advantage of
releasing the water heater from the system’s “sudden” requests and allowing integration with other
sources of heat. Reduces consumption and increases system efficiency.
- Do not use or leave materials that are explosive or easily flammable (e.g. petrol, paint, paper) in the room
where the appliance is installed.
- The user must be instructed on use and operation of the equipment.
SOLIDA 5 PL code 8058541
Kit pellet Sime 5 PL code 8075980 (optional)
SOLIDA 8 PL + code 8075743
Kit pellet Sime 8 PL + cod. 8075981 (optional)

16
1.1 DESCRIPTION
The SOLIDA PL boilers may be trans-
formed to operate with pellets. Accessory
kit containing:
SOLIDA
5 PL
8 PL+
a) front spacers n° 6 n° 10
b) back spacers n° 2 n° 4
c) deflectors n° 3 n° 5
d) cement bricks n° 2 n° 3
e) thermostat
and connectors
n° 1 n° 1
To maximize use of the product, we rec-
ommend the use of pellets with a quality
that is certified by an authorized body
(the quality of the pellets used with the
SOLIDA PL are defined in accordance
with the DIN plus standard).
The boiler complies with Class 3 in
accordance with EN 303-5/2012.
1 OPERATION WITH PELLETS AND SPECIAL KIT
1.1.1 OVERALL DIMENSIONS (with pellets kit code 8079580 for SOLIDA 5 PL /code 8075981 for SOLIDA 8 PL+)
Fig. 1
SOLIDA
5 PL
SOLIDA
8 PL+
L 1202 mm 1502 mm
P 535 mm 835 mm
1080
470
1465
ø 147
L
198 P418
1.1.2 TECHNICAL FEATURES (Kit with pellet)
Model SOLIDA 5 PL SOLIDA 8 PL +
Nominal thermal output kW 26.2 40.0
Minimum thermal output kW 7.4 12.0
Nominal heat input kW 34.7 50.0
Minimum heat input kW 10.4 15.0
Maximum useful efficiency % 75.96 80.00
Minimum useful efficiency % 72.81 80.00
CO mg/Nm3 at 10% of O2 at the nominal thermal input 837.8 28.0
CO mg/Nm3 at 10% of O2 at the minimum thermal input 467.3 1451.0
OGC mg/Nm3 at 10% of O2 at the nominal thermal input 10.0 7.2
OGC mg/Nm3 at 10% of O2 at the minimum thermal input 90.7 25.5
DUST mg/Nm3 at 10% of O2 at the nominal thermal input 42.0 13.4
DUST mg/Nm3 at 10% of O2 at the minimum thermal input - 22.2
C.H. flow/return fittings ø 2” 2”
Fumes flow-rate at nominal/minimum power Kg/s 0,0171/0,0104 0,0188/0,0111
Max/min operating pressure Mpa 0,15/0,05 0,15/0,05
Water content l 31 43
Weight Kg 270 375
Size of a pellet container with a capacity of 200 dm3H 1081 1081
L 440 440
Size of a pellet container with a capacity of 300 dm3H 1381 1381
L 440 440
Size of a container with a capacity of 500 dm3H 1481 1481
L 640 640

17
IT
ENG
RUS
2 INSTALLATION
2.1 MOUNTING ACCESSORIES SUPPLIED SEPARATELY

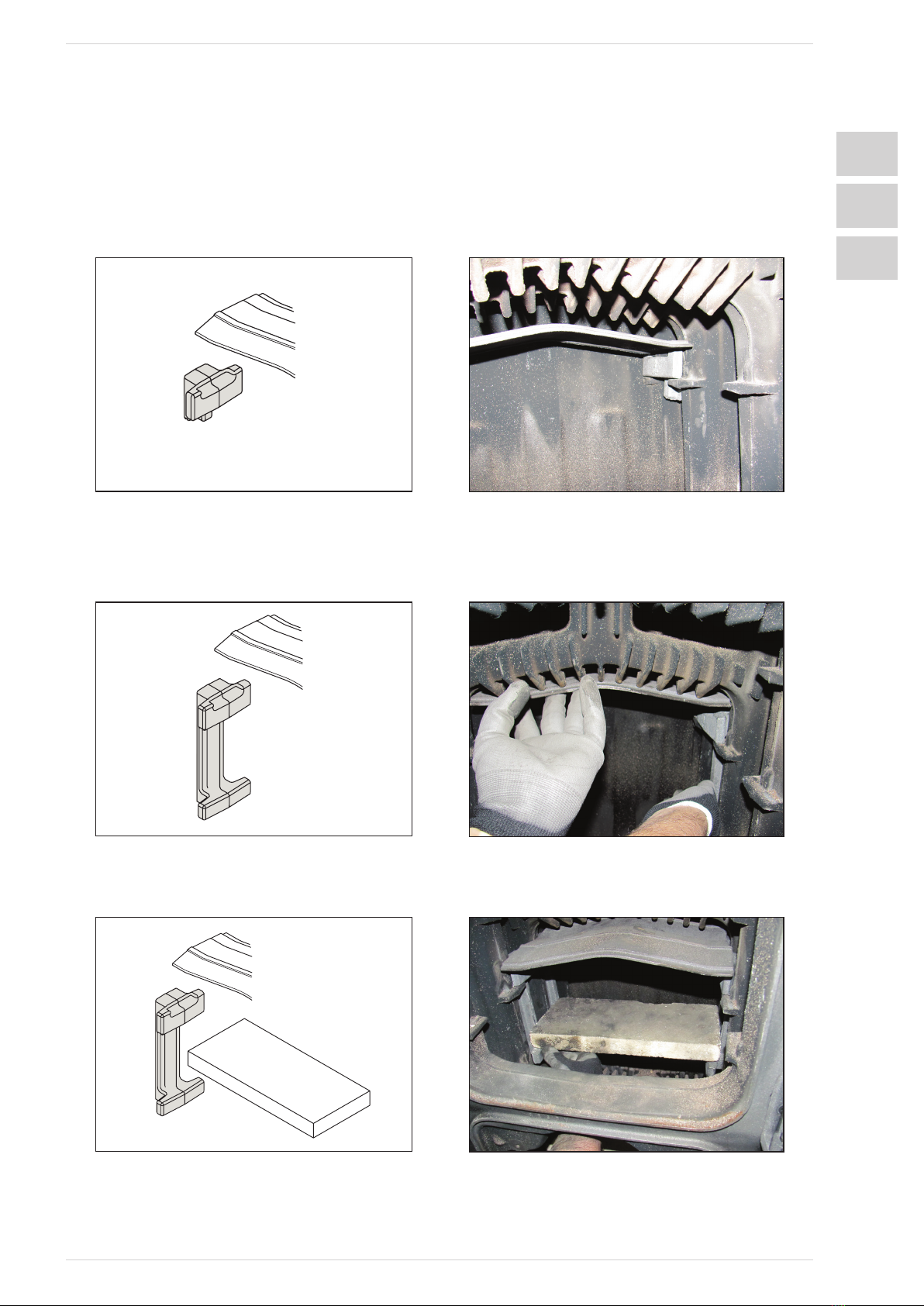

A) Place the cast iron 1st deflector with the rear side supports
Fig. 2 Rear side supports Fig. 3 1st deflector with the rear side supports
B) Place the cast iron 2nd deflector with the front side supports
Fig. 4 Front side supports Fig. 5 2nd deflector with the front side supports
C) Place the remaining front lateral supports and insert the cement bricks
Fig. 6 Lateral supports Fig. 7 Cement bricks
WARNING!
THE CEMENT BRICKS MUST BE ADJACENT TO THE FRONT PART OF THE BOILER

18

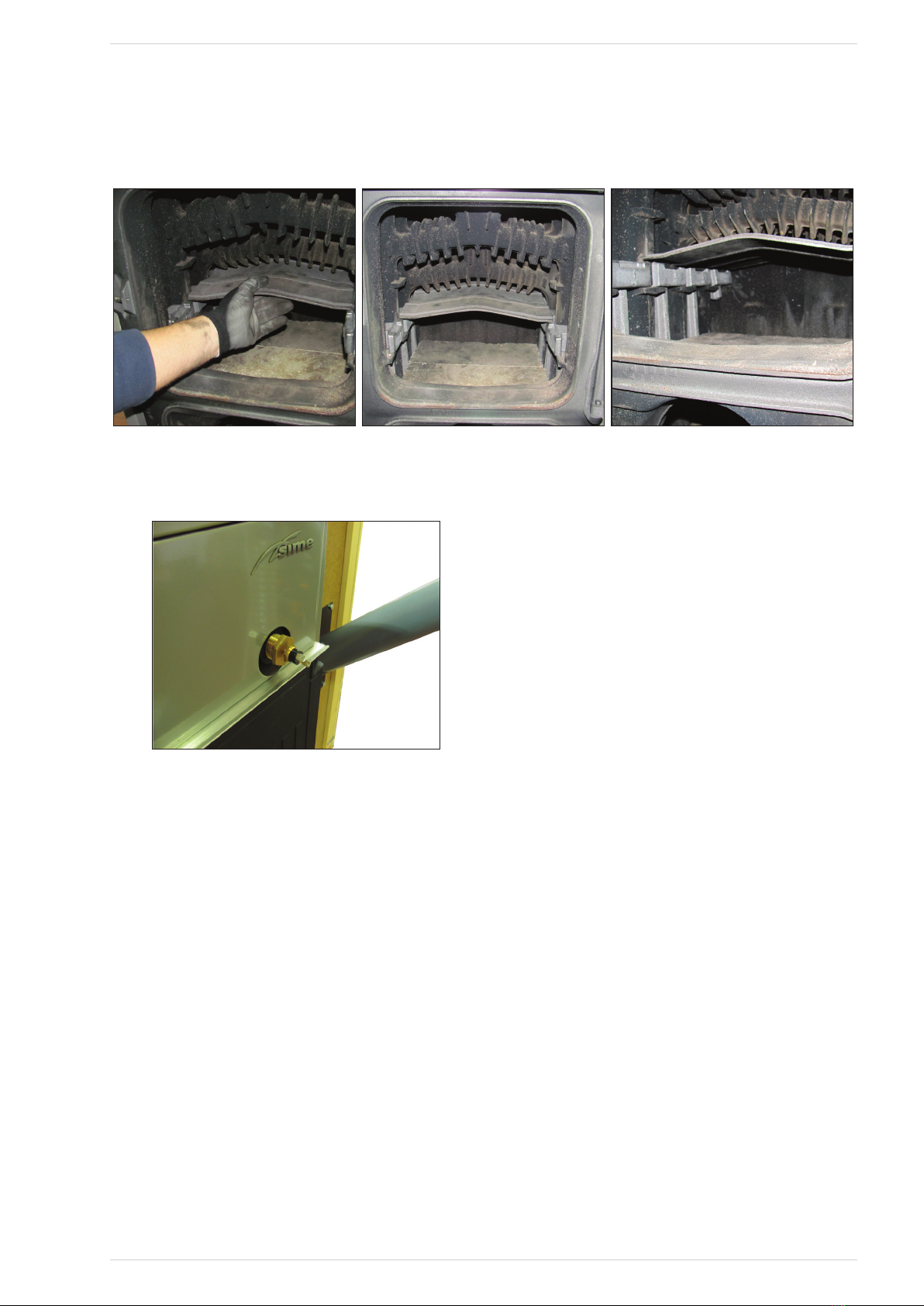

D) Place the last cast iron deflector
Fig. 8 Last deflector
E) Screw the brass reduction by interposing the sealant for the hydraulic seal
F) Screw the safety thermostat to the reduction
CAUTION:
Screw the thermostat by hand or with a fork spanner: tightening
torque of 1.5 Nm
Fig. 9 Safety thermostat

19
IT
ENG
RUS
4 x
TCB M5x12 (66 x)
TCB M6x8 (2 x)
TCB 7SPx3/8” (6 x)
TSP M5x20 (8 x)
Mod. 500 dm
3
TCB M5x12 (54 x)
TCB M6x8 (2 x)
TCB 7SPx3/8” (6 x)
TSP M5x20 (8 x)
Mod. 200-300 dm
3
Tiranti solo per
contenitore
da 500 dm
3
2 x
5 x
8 x (200-300 dm3)
2 x
4 x
4 x
6 x
4 x (200-300 dm3)
6 x (500 dm3)
4 x
5 x
2 x 10 x (500 dm3)
4 x (200-300 dm3)
6 x (500 dm3)
2 x
2 x
2 x
2 x
2 x
8 x (200-300 dm3)
10 x (500 dm3)
2 x

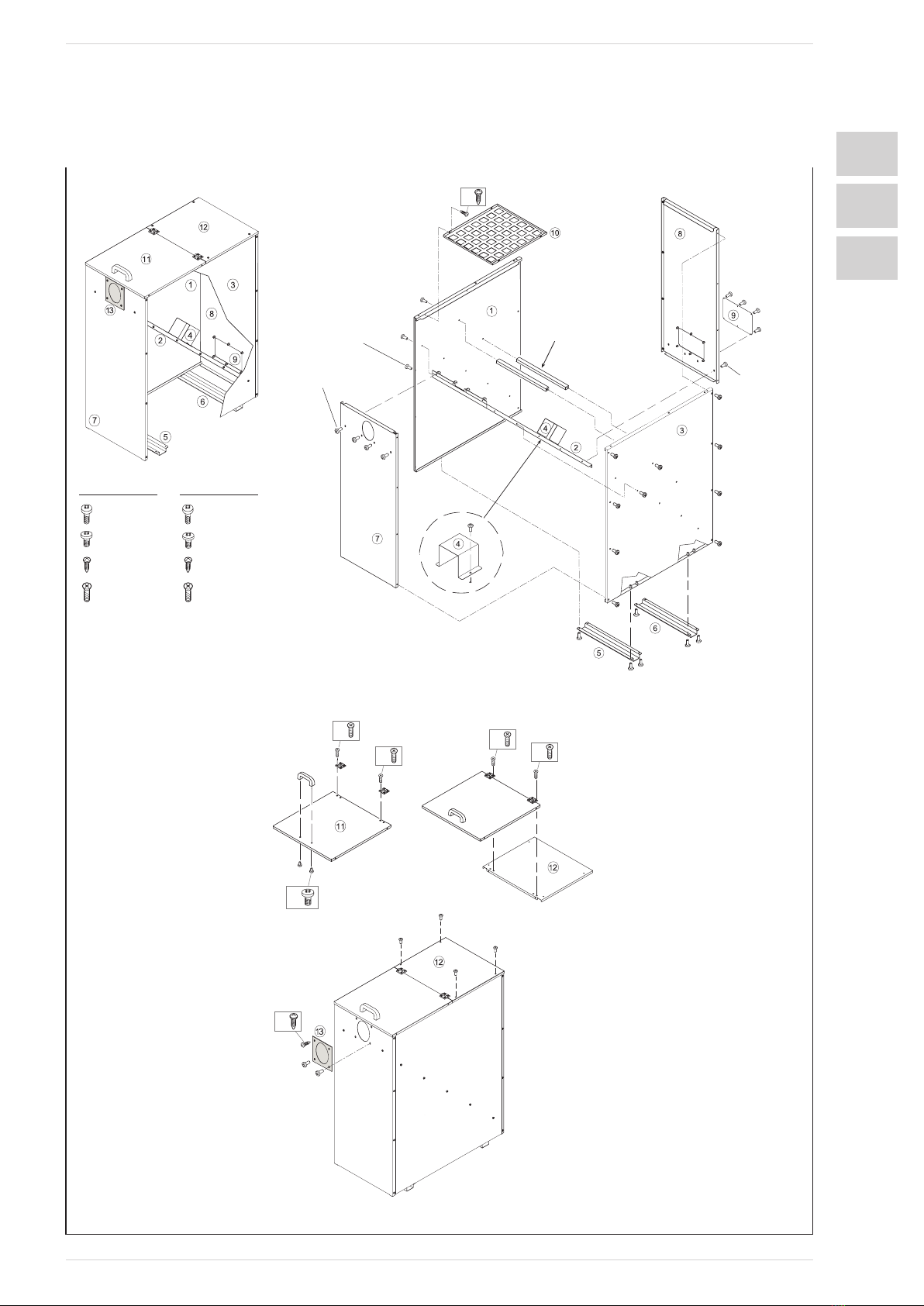

G) Assembly pellets tank (200 to 500 dm3) positioned to the right of the boiler, resting on the flank and aligned at the same.
4 x
TCB M5x12 (66 x)
TCB M6x8 (2 x)
TCB 7SPx3/8” (6 x)
TSP M5x20 (8 x)
Mod. 500 dm
3
TCB M5x12 (54 x)
TCB M6x8 (2 x)
TCB 7SPx3/8” (6 x)
TSP M5x20 (8 x)
Mod. 200-300 dm
3
Tiranti solo per
contenitore
da 500 dm
3
2 x
5 x
8 x (200-300 dm
3
)
2 x
4 x
4 x
6 x
4 x (200-300 dm
3
)
6 x (500 dm
3
)
4 x
5 x
2 x 10 x (500 dm
3
)
4 x (200-300 dm
3
)
6 x (500 dm
3
)
2 x
2 x
2 x
2 x
2 x
8 x (200-300 dm
3
)
10 x (500 dm
3
)
2 x
Only for pellets
tank 500 dm3

20
Fig. 10 - Insertion cochlea
H) Push the cochlea feeder motor in its housing container pellets.
I) Mounting the burner (
B-Home Round 25 for SOLIDA 5 PL and B-Essential Round 50 for SOLIDA 8 PL+) .
Position the seal (4), supplied with the burner, between the flange (5) and the door (2) of the boiler
Push in the 4 screws (6) (M8) but ONLY tighten the two screws which hold the lower split-flange. The two screws of the upper split-
flange must ONLY BE PLACED but not tightened.
Insert the combustion chamber of the burner into the boiler as far as is necessary
Tighten the two semi-flanges with the screws (7) and the screws (6), which were previously just placed in position.
WARNING DANGER
The burner MUST be mounted ONLY in the position shown in the diagram. Any other position is FORBIDDEN.
The flame will propagate in a straight line, through the hole of the burner combustion chamber.
6
7
5
1
4
2
3
Round 25
Round 50
159
159
Ø 172
135
135
Ø 142

21
IT
ENG
RUS
2.2 ELECTRICAL CONNECTIONS
A) Connect the cable connector coming from the screw feeder motor to the burner (3 fig. 11)
B) Connect the safety thermostat connector (7 fig. 12) the seven-pin plug (see WIRING DIAGRAM)
Fig. 11 Screw feeder motor cable Fig. 12 Safety thermostat connector
C) Place the inlet joint (8 fig. 13) in the sheath (9 fig. 14) found on the boiler body
Fig. 13 Inlet joint Fig. 14 Inlet joint
D) Connect the burner power cable to the mains (1 fig. 15).
2134576
BLUE = NEUTRAL
BROWN = PHASE
YELLOW-GREEN = EARTH
1 Power supply socket (230V-50Hz)
2 External cochlea fan power socket
3 External cochlea motor
4 Boiler water temperature probe
5 Connection seven-pin plug
(Safety thermostat / Air pressure switch / Door micro switch)
6 Connection for use with a PC
7 Arrangement for additional applications
Fig. 15 Connection to the mains
7
8
9
a
a

22
2.3 WIRING DIAGRAM
VPC
VCE
RS
230V/50Hz
M1
M2
24 Vdc
N
F
F
F
F
+
–
–
–
–
SA
ARC
FR
PM1
MP
PA
TS
SP
TE
TA
VPC Main combustion valve
VCE External cochlea fan
RS Resistance
PM1 External cochlea button
TE External thermostat
SA Water probe
FR Photoresistance
M1 External cochlea
M2 Internal cochlea
ARC Compressed air
MP Door micro switch
PA Air pressure switch
TS Safety thermostat
SP Seven-pin plug
TE External thermostat
TA Room thermostat
Fig. 16

23
IT
ENG
RUS
2.4 HYDRAULIC DIAGRAM
The hydraulic circuit must be set up by an authorised installer or qualified personnel in compliance with the design specifications
and the technical standards and legislation in force. The temperature of the return water of the water heater should always be
above 55°C. An anti-condensation unit MUST, therefore, be installed, otherwise the warranty is rendered null and void.
WARNING
- The components of the system are the responsibility of the installer, who must observe the legislation in force and release a declara-
tion of conformity upon completion of his work.
- SIME cannot be held liable for harm to people or animals or damage to property attributable to an incorrect choice of components or
improper set-up of the system.
The hydraulic circuit diagram that can be used as a valid reference.
A
B
C
D
EAF
E
1
2
4
5
5
5
5
5555
55
6810
11
12
13
9
7
4
5
LEGEND
A Pellet heater
B Puffer
C Anti-condensation unit
D Filling and emptying of the water heater/system
E Heating system/DHW
EAF Cold water inlet
1 Reverse-acting anti-condensation thermostat (50°C)
2 Control thermostat to be connected to the TE terminal block
4 Automatic relief valve
5 Ball valve
6 Pressure regulator
7 Anti-condensation mixing valve
8 Filter
9 Circulation pump
10 Filling and discharge valve
11 Safety valve (2.5 bar minimum)
12 Pressure gauge
13 Expansion vessel
NOTE: It is advisable to use an open vessel system.
Fig. 17

24

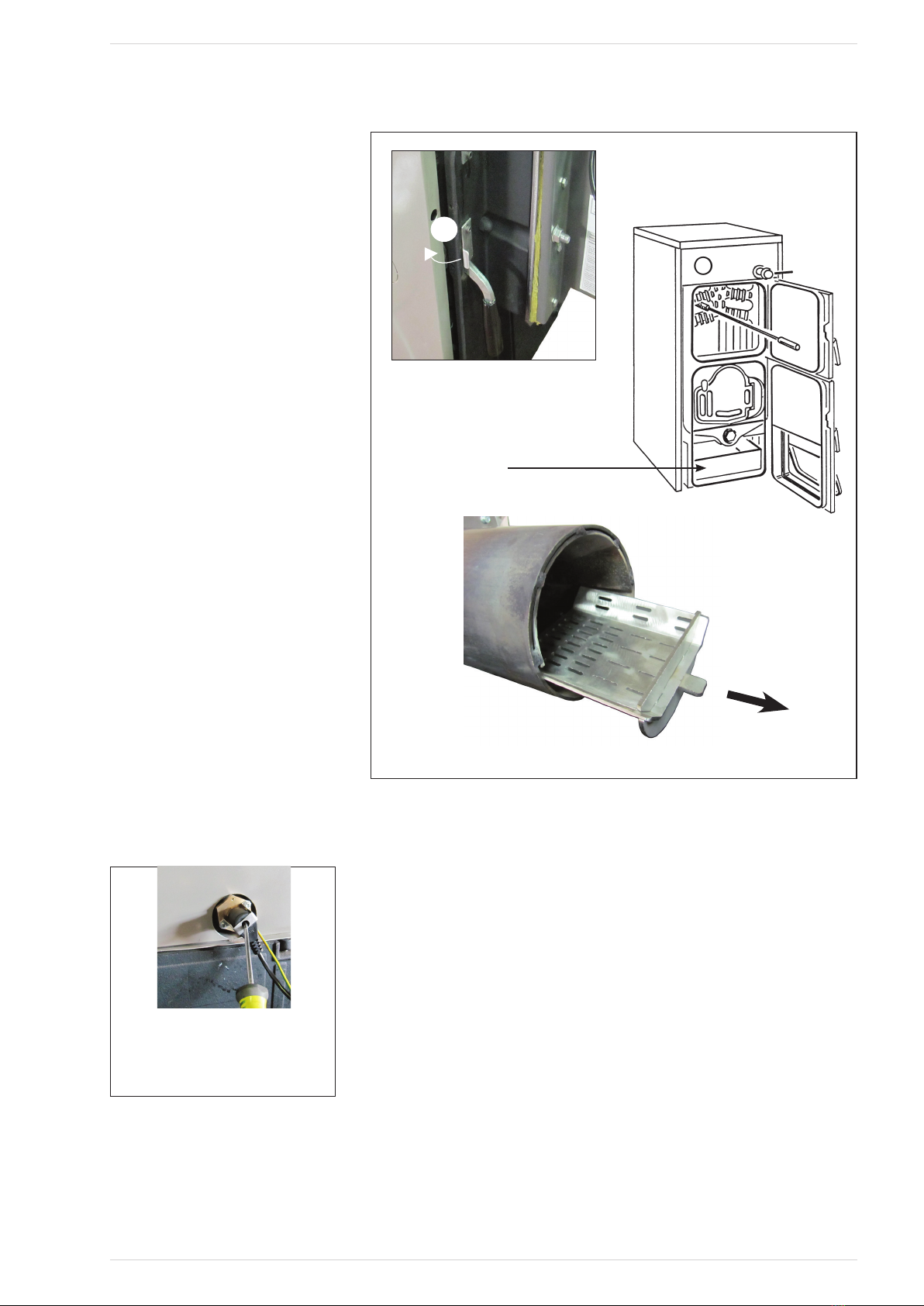

2.5 CLEANING (fig. 18)
Cleaning operations must be carried out
at regular intervals and only when the
boiler is cold.
Combustion residuals collect in the
removable drawer that must be emptied
before starting the boiler.
ATTENTION: To release and open the
bottom door, lift the locking bracket (A).
To remove all combustion residuals, use
an ordinary aspirator and verify that all
the ashes inside the combustion cham-
ber have been completely removed.
The aspirator can also be used to clean
the fuel grille.
To clean the fume ducts inside the boiler
body, use a wiper.
ATTENTION: if the generator is switched
off for long periods of time (above 15
days), it is necessary to empty the pellet
container in order to prevent the pel-
lets from absorbing excessive humidity,
which could affect the operation of the
boiler. A high amount of humidity in the
pellets could cause them to pulverize,
increase the amount of residuals in the
brazier and obstruct the pellet feeding
system.
2.6 SAFETY THERMOSTAT
( fig. 19)
The safety thermostat with manual reset
intervenes automatically, switching off
the burner, when the water heater tem-
perature exceeds 95°C.
To start the water heater back up again,
press the button as shown in the figure.
During the resetting procedure one must
not remove the bracket that protects the
thermostat.
If this event occurs frequently, have
qualified staff inspect the equipment.
2.7 ANNUAL
MAINTENENCE
For optimum performance, it is advis-
able to have the boiler inspected accu-
rately and thoroughly by qualified per-
sonnel at least once every season.
Before performing maintenance opera-
tions, verify that the boiler is cold and
has been disconnected from the mains.
2.7.1 Warnings
In the event of product failure and/or
malfunction, switch it off and do not
attempt to repair or intervene on it.
Any repairs must be carried out by
authorised staff using original spare
parts.
2.8 DEMOLITION
AND DISPOSAL
OF THE APPLIANCE
At the end of its life cycle the appliance
MUST BE DISPOSED AND
RECYCLED, as required by current law.
It MUST NOT be disposed of with dome-
stic waste. It can be taken to waste
recycling centres, where they exist, or to
a dealer providing this service.
Recycling waste prevents potential
damage to the environment and harm
to health. It also allows you to recover
many recyclable materials with signifi-
cant economic and energy savings.
2.9 ACCESSORIES
The available accessories to be ordered
separately:
- code 5197500 200-litre PELLET
TANK (1081 x 440)
- code 5197510 300-litre PELLET
TANK (1381 x 440)
- code 5197520 500-litre PELLET
TANK (1481 x 640)
Removable
drawer
Fuel grille
A
Fig. 18
Fig. 19

Fonderie Sime S.p.A - Via Garbo, 27 - 37045 Legnago (Vr)
Tel. [phone] - Fax [phone] - www.sime.it
Documentation Dpt. Fonderie Sime S.p.A.
