Simplicity 6/25 User manual

0 sziip!c!g
OPERATOR’S
MANUAL
Chipper Vacuum
5125 Series
Mfg. No. Description
1692371
Model 5/25,5HP Chipper Vacuum
1692562 Model 5/25,5HP Chipper Vacuum
5125 Series
Mfg. No. Description
1692373 Model 6/25,6HP Chipper Vacuum
1692564 Model 8/25,6HP Chipper Vacuum
8/25E Series
Mfg. No. .Description
1692466 Model 6/25E, 6HP Chipper Vacuum, Electric Start
1692566 Mddel 6/25E, 6HP Chipper Vacuum, Electric Start

MANUFACTURING, INC.
500 N Spring Street
I PO Box 997
Port Washington, WI 53074-0997
www.simplicitymfg.com
0 Copyright 1998, Simplicity Manufacturing, Inc.
All Rights Reserved. Printed in USA.

Baker
Chipper/Shredder
OPERATOR’S
MANUAL
Chipper Vacuum
5125 Series
Mfg. No. Description
1692372 Model 5/25,5HP Chipper Vacuum
1692583 Model 5/25,5HP Chipper Vacuum
8125 Series
Mfg. No. Description
1692374 Model 8/25,8HP Chipper Vacuum
1692585 Model 8/25,8HP Chipper Vacuum
8/25E Series
Mfg. No., Description
1692467 b Model 8/25E, 8HP Chipper Vacuum, Electric Stalt
1692587 Model 8/25E, 8HP Chipper Vacuum, Electric Start

Baker
500 N. Spring Street \ P.O. Box 997
Port Washington, WI 53074.0997 USA
0 Copyright 1998, Simplicity Manufacturing, Inc.
All Rights Reserved. Printed in USA.

INTRODUCTION NORMAL CARE
Model Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Scheduled Maintenance
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Servicing the Chipper Vacuum
. . . . . . . . . . . . . . . . . . . . . . . 19
Bag Care . :.:.......................................... 21
SAFETY RULES
General Safety
Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Battery
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Safety Decals
................................................... .7 STORAGE
Temporary Storage ........................................
.22
FEATURES & CONTROLS
Term/Seasonal
Major Components..
........................ .22
......................................... .8
Long Storage
Controls.. ...........................................................
g TROUBLESHOOTING & REPAIR
OPERATION
Site Location ................................................... 10
Checks Before Starting.. ................................
.I0
Start-Up.. ........................................................
.I0
Walk Behind Vacuum/Shredding.. .................. .I1
Chipping..
.......................................................
.I2
Flex Hose Vacuum/Shredding .......................
.I3
Shutting Down.. ..............................................
.I4
Material Collection
& Disposal.. ..................... .I5
Operator Adjustments ....................................
.I6
General Troubleshooting ........................................23
Power Drive Troubleshooting .................................24
Electric
Start Troubleshooting.................................24
Optional Vacuum Hose Troubleshooting..
............. .24
Shredding Hammers.. ............................................
.25
Chipping Knives......................................................
23
Drive Belt.. .............................................................
.32
Drive
Chains.. .........................................................
33
Vacuum Nozzle Height Adjustment
........................34
Clutch
Cable.. ......................................................... 35
Seasonal Hints..
............................................. .I7 OPTIONS & ACCESSORIES
Performance Tips.. .........................................
.I7
Vacuum Attachment.......................................
.36
Waste Materials Guide.. ................................. .I8 Technical Manuals .........................................
.36
ADANGER
You must read, understand and comply with all
safety and operating instructions in this manual
before attempting to set-up and operate your
Chipper Vacuum
NOTICE
Failure to comply with all safety and operating Upon start-up and shut down, you may hear the
instructions can result in loss of machine control,
metal-to-metal sound of the triangular hammers posi-
serious oersonal iniurv to vou and /or bvstanders.
tioning themselves on the rotor. This is a normal sound.
and risk equipment and property damage. The tri-
angle in the text signifies important cautions or
warnings which must be followed.
’
If this sound continues after the machine obtains full
speed, please contact your dealer for an inspection of
your unit.
I
I I
0 Copyright 1989 by Simplicity Manufactufing, Inc. All Rights Reserved.
TP L00-2Lb8-02-cv-sB
1

Introduction

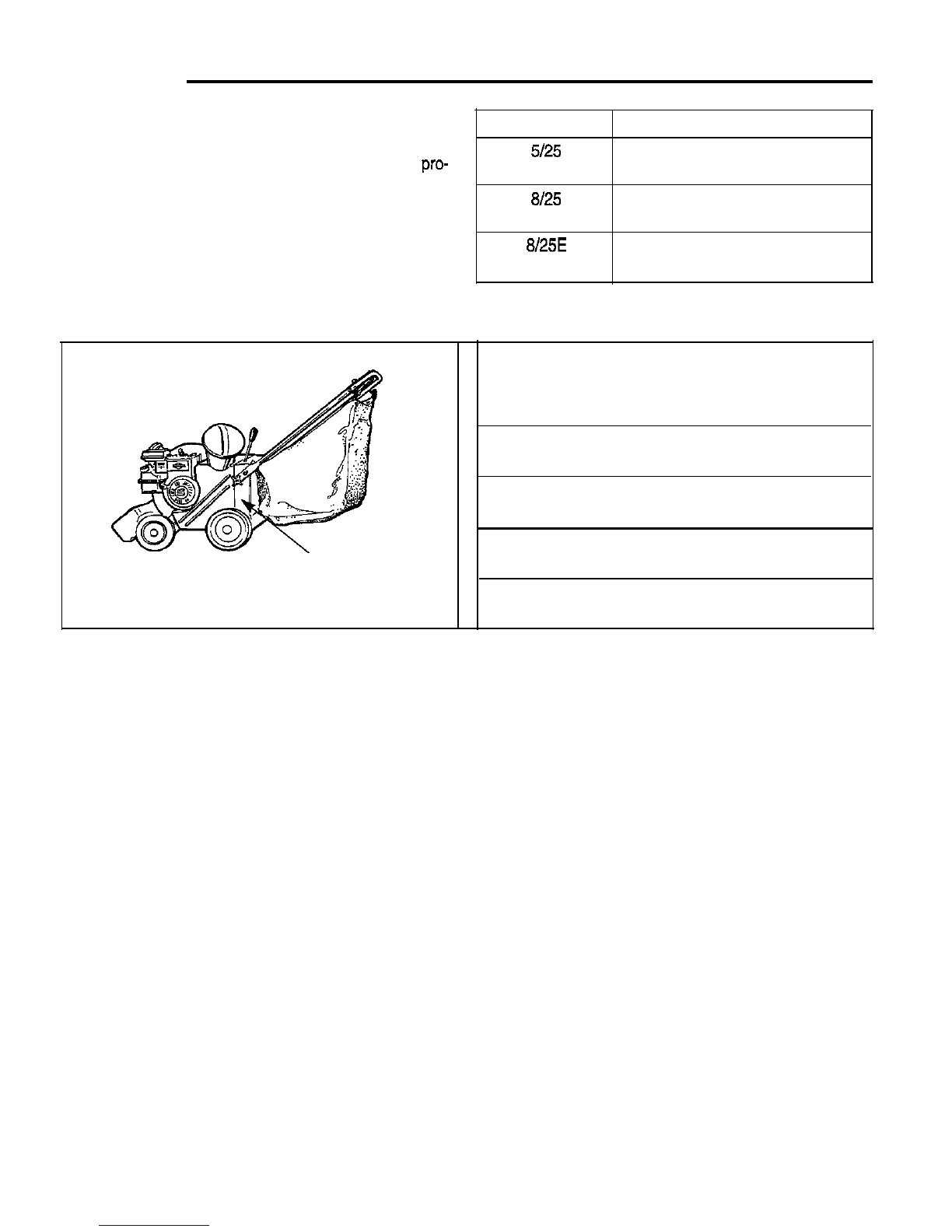

MODEL IDENTIFICATION
l Record your model number, manufacturer number
and serial numberfrom the I.D. tag in the space pro-
vided t for easy reference. The Chipper Vacuum I.D.
tag is located on the side of the unit as shown in the
illustration below.
l Refer to the engine manufacturer’s owner’s manual
for the location of the engine serial number.
l Be sure to fill out and return the Warranty
Registration Card supplied with your unit.
Model
5125
8125
8/25E
Mfg. No.
1692371 1692582
1692372 1692583
1692373 1692584
1692374 1692585
1692466 1692586
1692467 1692587
Identification Tag
Location
MODEL REFERENCE
Model Number:
Manufacturer Number:
Engine I.D. Number:
Dealer Name
Date Purchased:
2

DESCRIPTION
General
The shredding chamber is designed to shred materials
that have been vacuumed directly into the unit through
the extra-wide vacuum intake nozzle or through the flexi-
ble vacuum hose, eliminating the need to manually load
or feed material into the shredder.
Selective vacuum-shredding can be performed with the
optional 20 foot long, large-diameter, quick-connect hose
while the unit is stationary, permitting
precisely-
controlled vacuuming of areas such as flower or shrub
beds, or other confined or landscaped areas.
Large yard, garden, or other open, flat surface areas
can be cleaned up quickly and efficiently using the
Chipper Vacuum’s self-propelled feature, which permits
vacuuming of materials while the unit propels itself.
Shredding Action
Material is drawn into the shredding chamber by the
vacuum action of the spinning rotor, and is pulled into
the path of patented shredding hammers that are rotat-
ing at the same high speed as the rotor. The hammers
cut and grind the material into progressively smaller
pieces, and the flow of air then conveys the fully
shred-
ded,reduced waste into the discharge bag.
Vacuum Action
In addition to the shredding hammers and chipping
knives, the rotor has fan blades integrated into its
design. When the rotor is spinning, a constant, powerful
vacuum action is created, which aggressively pulls
waste into the shredder chamber for shredding.
These spinning fan blades also create a blowing force
that ejects the shredded or chipped material out of the
discharge chute and into the discharge bag, making
room for more material to be pulled in and processed.
Vacuum/Shredding
l Vacuum/Shredding can be performed in confined
areas using the vacuum hose attachment, or on
large, flat areas using the
3-speed power drive and
extra-wide vacuum intake nozzle.
l Areas containing rocks, gravel, or other hard materi-
als should be avoided, as these types of materials
will damage the shredding hammers or reduce their
service life. Use of the unit to vacuum non-organic
materials will void the product warranty.
l Areas to be vacuumed should be inspected for
rocks, gravel, and other debris before use. All mate-
rials and other debris that could damage the shred-
ding hammers should be removed and properly dis-
posed of before starting the unit.
l Se particularly watchful for small, sharp objects such
as old nails, pieces of glass, and small metal objects
such as cans, can lids, bottle tops, etc.
l Review all operating safety instructions in this manu-
al before proceeding.
l Determine where the discharge bag will be emptied,
and if possible, plan a vacuum path that will allow
you to access this area easily while vacuuming.
Chipper Operation
The chipper is designed to handle tree limbs and
branches up to 2-l/2” in diameter on 5 HP models, and
up to 3” diameter on 13 HP models. The unit can also
process tough organic matter such as corn stalks and
berry canes.
Chipping operations should be performed while the unit
is stationary, and positioned so that the operator has
firm footing and easy access to the chipper cone area.
Tree limbs and branches should be inserted “butt end”
first into the chipper cone, and are fed into the chipper
block. The sharp cutting edges and angle of the blades
actually pull the tree limbs and branches into the chipper
block, cutting the material into small chips.
The chips of material then pass through a slot in the
rotor behind the chipper knives, where air flow conveys
them through the fan chamber and into the discharge
bag.
Blower Operation
The vacuum force makes it possible to use the unit as a
large-area, self-driven blower for clean-up of grass clip-
pings or other debris that you may not want to collect for
disposal or recycling.
Using the Chipper Vacuum in this mode requires the
removal of the discharge bag, and the attachment of the
optional deflector elbow. The deflector elbow is needed
to direct the powerful exhaust stream to either side of
the unit.
When used in this manner, the operator walks behind
the unit, allowing the discharge deflector elbow to blow
the lightweight debris toward an area where it can be
easily gathered later for disposal, or, as in the case of
grass clippings or other organic matter, be allowed to
decompose naturally as an added nutrient for the soil.
3

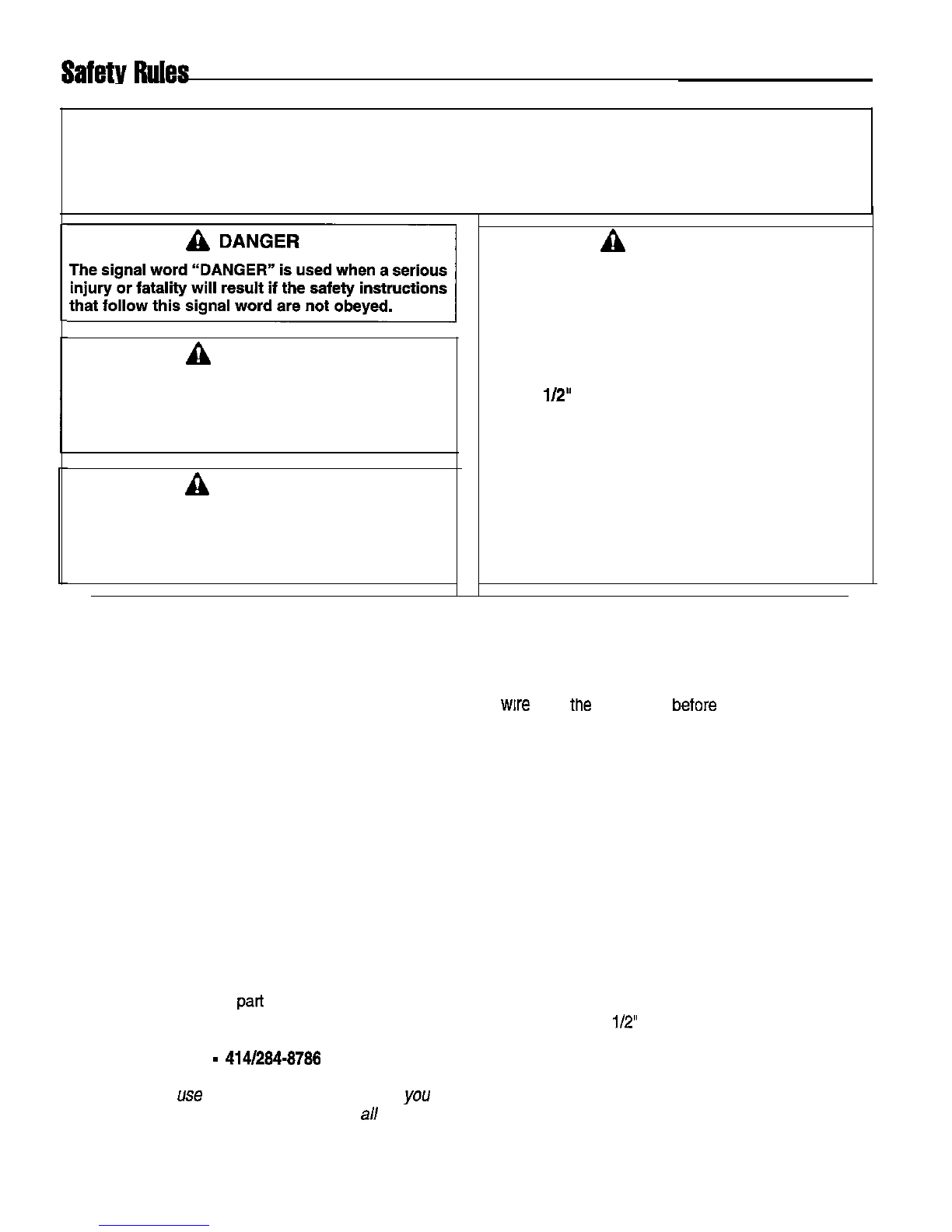

AThe Safety Alert symbol shown to the left is used to alert you to important safety information that must be
read, fully understood, and followed at all times when handling, transporting, operating, servicing, or storing
your Chipper Vacuum. Each safety alert symbol is followed by a “signal word” that advises you of the relative
intensity, or level, of the hazard the safety alert instructions pertain to. The following list of signal words is being
provided to help you understand the hazard levels associated with each signal word used in this manual.
e
The signal word “DANGER” is used when a serious
injury or fatality will result if the safety instructions
that follow this signal word are not obeyed.
A WARNING
The signal word “WARNING” is used when a seri-
ous injury or fatality could result if the safety
instructions that follow this signal word are not
obeyed.
A CAUTION
The signal word “CAUTION” is used when person-
al injury, or property or equipment damage could
result if the safety instructions that follow this sig-
nal word are not obeyed.
A DANGER
You must read and understand this manual and all
safety instructions and labeling completely, before
attempting to assemble, set-up, transport, operate,
service, or install any options or accessories on
this unit.
This Chipper Vacuum is a powerful machine
designed for chipping of tree limbs and branches
up to 2 l/2” in diameter (3” on 8 HP models), and is
capable of amputating or causing serious injury to
fingers, hands, feet, and other extremities if acci-
dental contact with rotating chipper or shredder
blades should occur.
Always keep hands, feet, and other extremities out
of the chipper cone and vacuum intake areas, and
never wear loose fitting clothing or jewelry that
could get caught on tree limbs or branches, and
pull your hands, or other body parts into the rotat-
ing chipper blades.
GENERAL
Safe operation of the Chipper Vacuum requires that all
operating and safety instructions be obeyed by everyone
who uses, services, or otherwise handles the unit.
l Inspect the chipper cone for any debris, or other
BEFORE START-UP
material that may have fallen in during unpacking
and assembly. Always disconnect the spark plug
wire trom me spark plug betOre attempting to remove
any objects from the chipper cone.
l Never fill the fuel tank indoors! Gasoline vapors are
explosive, and can easily travel unnoticed to sources
of ignition, such as pilot lights or open flames on
water heaters, furnaces, stoves, dryers or sparks
from electric motors and other electrical appliances,
or smoking materials. Contact with these or any
other ignition sources will cause an explosion or fire,
serious personal injury, and damage to property and
equipment.
Although the instructions and warnings appearing in
this manual cover most normal operating conditions,
everyone using the Chipper Vacuum must also always
follow safe work practices while operating, servicing, or
handling the Chipper Vacuum unit under any conditions
not specifically covered in this manual.
The primary operator of the Chipper Vacuum must
always be alert for the presence of bystanders, who are
likely to be unaware of the operating and safety require-
ments necessary for safe operation. It is the operator’s
responsibility to prevent bystanders from being exposed
to potential hazards whenever the Chipper Vacuum is
being used.
If you do not understand any portion of these safety
instructions, or any other
part of the instructions in this
manual, contact your local factory-authorized dealer for
help, or request factory assistance by calling: Customer
Service Department
- 414/284-3786
NOTE: DO NOT use the Chipper Vacuum unless you
are sure that you know how to comply with a// safety
and operating instructions.
l Gas cap shall never be removed or fuel added with
the engine running.
l Never overfill the fuel tank. Fuel may run out of the
tank and contact hot engine surfaces and ignite,
causing a fire and/or risk of an explosion. Always fill
the fuel tank to i/2” below bottom of filler neck only.
l Use only an approved container for fuel, and always
handle the container with extreme care. Never
smoke while fueling or transporting the fuel contain-
er.
4

l Never store the fuel container or Chipper Vacuum
indoors where there is a possibility of contact with
any ignition source such as a spark, open flame,
pilot light, heating element, or smoking materials.
l Never attempt to test or operate the unit indoors or in
an enclosed area. Engine exhaust contains carbon
monoxide, an odorless, colorless, and tasteless gas.
If inhaled, carbon monoxide can cause dizziness or
nausea, and if prolonged contact occurs, uncon-
sciousness, brain damage, or death can result.
l Check all parts to ensure that they are properly
attached and that all hardware is secure.
l Make sure the discharge bag is securely attached to
the discharge chute and is properly supported by the
bag supports on the bottom of the handle, and the
sides of the rear frame.
l Make sure you have read and understand the engine
manual accompanying the Chipper Vacuum, and
know the location and function of all operating con-
trols for your model Chipper Vacuum. You must
understand how to start and stop the unit safely
before proceeding.
OPERATING LOCATION
l Always operate the Chipper Vacuum outdoors only,
on a firm, level, earthen or grassy area where the
unit will be stable and will stay in position. Never
attempt to operate the unit on a slope greater than
20 degrees, or on wet or slippery surfaces where
you or someone else could slip and fall toward the
chipper cone opening.
l Never operate the unit on rocky, gravel, or
stone-
covered surfaces, as this material could be sucked in
to the shredder housing through the vacuum intake
openings and cause damage to the shredder.
l This equipment shall not be operated in the vicinity
of bystanders. Never operate the unit where children,
pets, or others who may be unaware of the potential
hazards associated with chipping, shredding, or vac-
uuming operations could enter the area unexpectedly
and be exposed to these hazards.
l Never use the optional hose kit to vacuum up rocky,
gravel, or stone-covered surfaces,, as this material
will cause damage to the shredderand other internal
components.
l Never operate in an area where sparks from the
muffler could ignite surrounding dry brush or other
flammable materials. See following Fire Hazard
Warning!
l Wear hearing protection when the Chipper Vacuum
is to be used for prolonged periods of time, or when-
ever noise reaches an uncomfortable level.
A CAUTION
SPARK/FIRE HAZARD
GAS ENGINES MAY REQUIRE A SPARK
ARRESTER FOR SAFE OPERATION
If the engine on this unit is not equipped with a
spark arrester and is to be used on any forest,
brush, or grass-covered unimproved land, a spark
arrester must be added to the muffler before using
the engine on such land. The arrester must be
maintained in effective working order by the opera-
tor. In the State of California, the above is required
by law (Section 4442 of the California Public
Resources Code.) Other states may have similar
laws. Federal laws apply on federal lands. See your
authorized engine service center for muffler spark
arrester options.
SAFE WEARING APPAREL
l Always wear safety goggles to protect your eyes
from flying debris when operating the Chipper
Vacuum. One pair of safety goggles has been pro-
vided with the unit for your immediate use. All oth-
ers in and around the immediate area must also
wear approved safety glasses to protect their eyes
from flying debris.
l Always wear properly-fitted leather work gloves to
protect your hands from cuts and scratches caused
by tree limbs and branches. Never wear gloves with
pull-ties or straps, as these straps could get entan-
gled with branches and draw your hands into the
chipper cone cutting areas.
l Never wear loose-fitting clothing, hanging jewelry,
ties, scarves, or other items that could get caught on
tree limbs or branches, and draw body parts into the
cutting areas of the chipper cone.
l Always tie up long hair and prevent it from hanging
down, where it could become tangled in branches or
get caught in rotating parts and pull you into the cut-
ting areas.
l Even if you are wearing heavy-duty leather work
gloves, never, ever place your hands in the chipper
cone while the unit is running. If you must reach in
to clear a jam or free up branches, shut the unit off,
allow the rotor to come to a complete stop, discon-
nect the spark plug wire at the spark plug, and care-
fully remove or clear the jammed material.
OPERATING SAFETY
l Always obey the size limitations for tree limbs and
branches stated in the Waste Materials Guide sec-
tion of this manual.
5

Safety Rules
l Never leave the machine running unattended.
Always turn off the engine, wait ior the rotor to come
to a complete stop, and disconnect the spark plug
before leaving the area. Always move the unit to a
safe storage area for prolonged idle periods.
l Never allow children to operate the machine. Do not
allow adults to operate it without proper instruction.
followina:
a. Inspect the unit for any signs of damage or for-
eign material in the chipping or shredding areas.
Remove any solid material that may be prevent-
ing the unit from operating properly.
b. Check for loose parts, and loose or missing hard-
ware, and repair or replace as reauired.
l Always maintain secure footing and solid balance
while starting or operating the Chipper Vacuum.
Never lean directly over the machine.
l Select a speed suitable for operating conditions, and
stay clear‘of hazards such as large bushes, trees,
fences and anything else that could become caught
on or entangled with any part of the unit. Sudden
contact with these obstacles could cause a momen-
tary loss of control of the unit, or cause you to lose
your balance and fall.
c. Check the oil level in the engine crankcase. See
the engine manual for the specific location of the
oil dipstick, the correct checkina procedure. and
the t&e of oil to add if the oil level is low.
l Although the engine is powerful, never attach any
kind of cart or riding attachment to your Chipper
Vacuum. This is a walk-behind unit only, which will
provide years of reliable service when used properly.
Never attempt to clear clogs from the chipper cone
or discharge area while the unit is running. Always
shut the engine off, allow the motor to come to a
complete stop, and remove the spark plug wire from
the spark plug before removing excess materials,
Never fill the fuel tank while the machine is running
or while the engine is hot. An unexpected spillover
of fuel could contact a hot surface and ignite, caus-
ing fire or explosion. Turn off the engine, and allow
the engine to cool before attempting refilling.

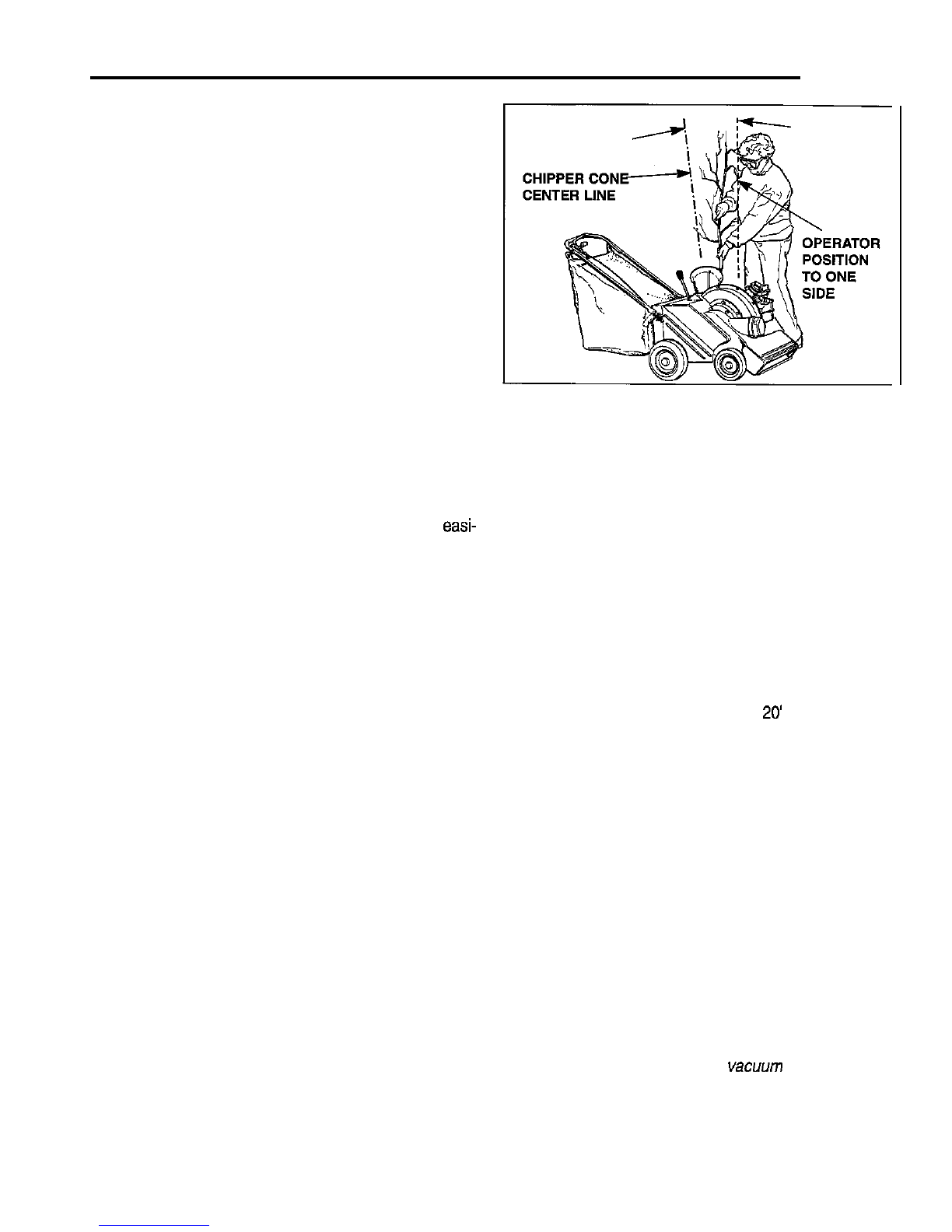

l Always stand to one side of the chipper cone when
feeding tree limbs and branches. They may
occa-
sionally whip around forcefully or “kickback” while
being chipped.
l Always keep hands out of the chipper cone when
sudden inward surge could pull your hands and arms
into the unit.
feeding materials. Never wrap fingers tightly around
branches as you are feeding them into the unit, as a
l Never attempt to perform any maintenance, repairs,
or attachment of accessories while the unit is
run-
.
ning. Always shut the unit off, allow the engine to
l Never remove covers, deflectors, or warning labels
come to a complete stop, and remove the spark plug
wire from the spark plug before beginning these.
from the unit. If any of these are found to be miss-
-
activities. See engine manufacturer’s owner’s
manu-
al for anv exceptions.
* If you are not using the discharge bag to collect
chipped debris, always direct the debris flow away
from yourself and others, and always stay clear of
the discharge area to avoid being struck by ricochets
or material being ejected from the machine.
l Never force material as it is being fed into the
machine, as this may result in a sudden kickback of
the material with sufficient force to injure you or other
bystanders.
l Never allow material to build up around the engine
during Chipper Vacuum operation. This could result
in a fire, or overheating of the engine.
l When using the Chipper Vacuum as a walk-behind,
large-area blower, always make sure the area to be
cleared of debris is free of gravel, stones, and other
hard debris that could be propelled with great force
by the powerful blowing action possible with this unit.
l Never continue to operate the machine if it starts
making unusual noise or vibration. Shut the engine
off immediately, allow the rotor to stop, disconnect
the spark plug wire from the spark plug, and do the
ing, take the unit out of service until the appropriate
repairs can be made. Tag the machine so others do
not mistakenly attempt to use it while awaiting parts
or repairs.
l Always make sure that the chipper cone area is
empty before restarting the unit after it has been idle.
Attempting to start the unit with material in this area
could cause the engine starting cord to jerk or stop
suddenly, causing a risk of injury to your hand or
arm.
l Never tamper with any engine controls to alter or
increase maximum unit running speed. An over-
speeding condition could cause the engine to over-
heat, resulting in risk of fire, permanent engine dam-
age, and voiding of your product warranty.
l Always comply with the engine manual instructions
for operating and periodic maintenance require-
ments. Make sure the oil level is always in the safe
zone, and keep the air filter element clean.
l Never attempt to defeat, bypass, or disable Chipper
Vacuum safety features. Making alterations to this
6

Safety Rules
equipment can result in serious injury, damage to
equipment, and voiding of your warranty. storage preparations before storing the unit for
pro-
longed periods.
TRANSPORTING AND STORAGE
l If you must travel across rock, gravel, or other
debris-covered terrain, set the engine speed control
to Wow”, and close the variable suction control flap
by moving the selector lever to the “closed” position.
l Never lift the unit using the fuel tank, vacuum intake
areas, or covers for support. If the unit must be lifted
for vehicular transportation, always use at least two
people, and always grip the unit securely using the
units rigid steel frame. The power drive feature
should only be used for loading by experienced
operators using ramps designed to ensure that the
unit stays properly positioned on the ramps while the
Chipper Vacuum is moving.
l Always follow the engine manual instructions for
proper pre-use start-up procedures when returning
the unit to service.
SERVICE AND MAINTENANCE
l If the unit must remain tilted for transportation, con-
sult the engine manual for required preparation,
Normally, engine fuel and oil must be drained to pre-
vent dangerous fuel leakage, and unwanted transfer
of the sump oil into the cylinder head area.
l Always refill the oil sump with the recommended oil
before attempting to use the unit again after it has
been drained for transportation.
l Always observe safe refueling and fuel handling
practices when refueling the unit after transportation
or storage.
l Always follow the engine manual instructions for
l Always follow recommended engine and Chipper
Vacuum procedures when performing required ser-
vice and maintenance on the unit.
l Use only factory-authorized replacement parts for
repair along with recommended factory specifications
on all settings and adjustments.
l Never attempt to make major repairs on this unit
unless you have been properly trained and certified
to work on high-capacity gasoline powered Chipper/
Shredder or Chipper Vacuum units. Improper ser-
vice procedures can result in hazardous operation,
equipment damage, and voiding of the product war-
ranty.

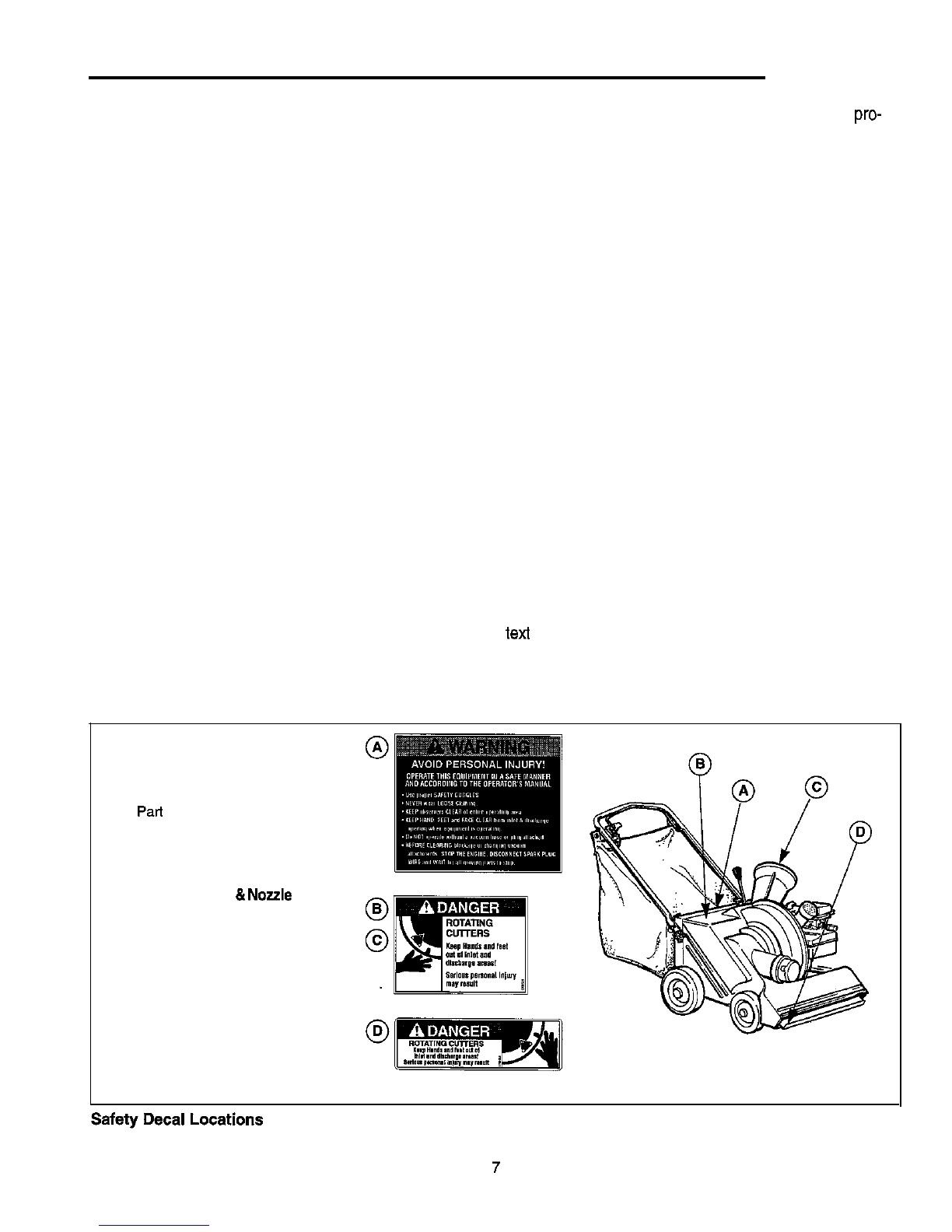

SAFETY DECALS
Important safety labels are shown in the following illus-
tration. Please review these labels and if you have any
questions regarding their meaning or how to comply with
the instructions, re-read the complete safety instruction
text on the preceding pages, or contact your local dealer
or factory Customer Service Department. Use the pan
number information provided to order a replacement
label from your local factory-authorized dealer.
A. Operator Instruction Label
Part No. 1713665
B. Discharge Chute Danger Label
Part No. 5001612
C. Chipper Cone Danger Label
Pad No. 5001612
D. Vacuum Hose & Nozzle Intake
Danger Label
Part No. 1709529

Features &Controls

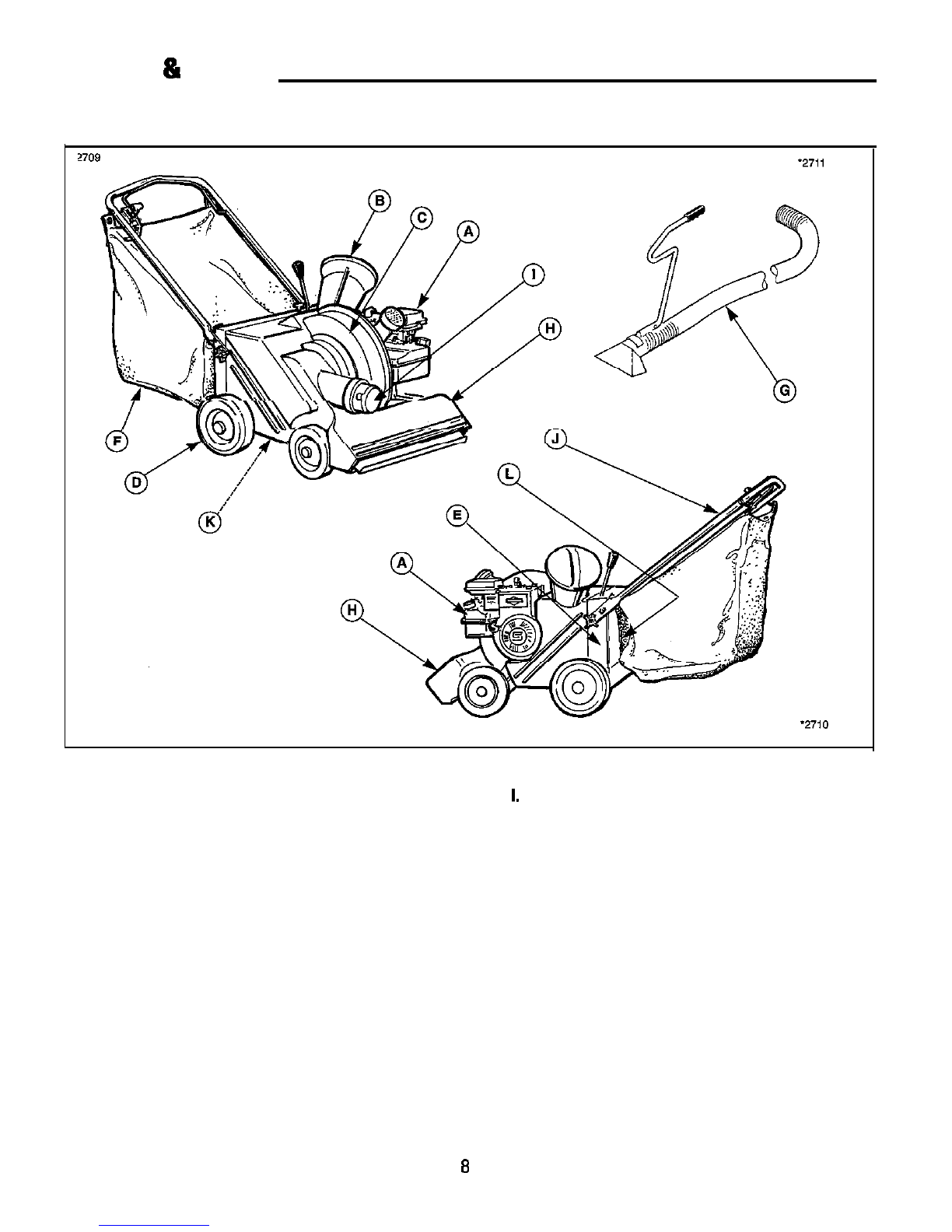

MAJOR COMPONENTS
OPTIONAL HOSE KIT ASSEMBLY
Engine G. Vacuum Hose w/Nozzle (optional)
. Chipper Cone/Chipper Knives
H. Vacuum Nozzle w/Variable Suction Control
. Shredding Chamber
I. Vacuum Hose Intake
. Drive Wheels J. Handle Assembly
E. Frame K. Transmission (not shown)
F. Discharge Bag L. Discharge Tube.
8

CONTROLS
A. Choke
The choke controls the fuel to air ratio, and helps make
cold starts easier by providing a rich, easily-ignited fuel
mixture.
B. Throttle
The throttle controls engine speed, and allows you to
conserve fuel by powering down during idle periods, or
to achieve optimal chipping/shredding/vacuuming power
by running the engine at full speed.
C. Vacuum Nozzle Variable Suction ControW
The vacuum nozzle Variable Suction Controlru is direct-
ly above and behind the vacuum nozzle, and has four
quick-set opening settings for variable nozzle suction
control:
l closed (for vacuuming with the optional hose
attachment)
l 113 open,
* 213 open
l full open.
Smaller nozzle openings provide the necessary vacuum
force for smaller debris, while a larger opening provides
the suction necessary for larger debris like large leaves.
D. Vacuum Nozzle Height Control
The vacuum nozzle height control lever is located at the
rear frame in front of the discharge bag. Three height
settings are available: Low, Medium, and High.
The low setting is suitable for smooth, hard surfaces,
while the medium and high settings are used for differ-
ent terrain conditions. Settings are easily changed by
simply positioning the control lever into one of three dif-
ferent slots.
The height adjustment control may be fine-tuned by
means of an rod adjustment that permits precise posi-
tion control for vacuuming of smooth surfaces. See the
adjustment procedure in the TROUBLESHOOTING
&
REPAIR section.
Operating Controls Locations (5 HP model shown)
E. Drive Speed Control
The Chipper Vacuum is self-propelled, and features
three forward speeds to help match vacuuming action to
surface conditions The drive speed control lever is
mounted on the handle within easy reach of the opera-
tor, permitting quick changes in travel speed. This fea-
ture allows you to rapidly adjust to changing conditions.
F. Power Drive Bail Lever
The power drive bail lever operates the clutch, the
mechanism that transfers power from the drive shaft to
the transmission.
Pulling the bail lever down against the Chipper Vacuum
handle engages the transmission, which drives the unit
forward for vacuum/shredding or moving the unit around
your yard and garden.
Releasing the lever disengages the transmission, stop-
ping the power drive motion, and allowing the unit to
come to a stop to make adjustments, empty the bag, or
perform chipping or hose vacuuming operations.

SITE LOCATION
1. Select an area that will provide stable footing for
both the Chipper Vacuum and the operator. Do not
operate on wet, slippery surfaces, or in areas with
heavy pedestrian traffic that may distract you from
alert operation of the unit.
2. Locate the Chipper Vacuum near the waste materials
to be chipped to reduce unnecessary lifting and
carrying.
3. Trim and stack the materials to be chipped for more
efficient and safe operation of the Chipper Vacuum.
4. Provide sufficient room for maneuvering around the
Chipper Vacuum. Never set up the work area so that
operators must over-reach or have to step over
materials to be processed.
5. Review all operating safety instructions before
proceeding.
6. Determine whether you wish to use the discharge
bag to collect the chipped material, or the discharge
deflector elbow to direct the chipper discharge to a
safe area.
7. The optional discharge deflector elbow should only
be used when the unit is positioned over a sofi
surface such as soft dirt or grass, and should always
be directed to the side and away from the operator.
8. If the discharge bag is to be used, be sure to allow
Operation
adequate access around the Chipper Vacuum for
bag removal and reattachment.
A DANGER
Internal combustion engines produce Carbon
Monoxide, a colorless, odorless, and tasteless gas
that can cause dizziness, nausea, unconscious-
ness, and even brain damage or death if breathed.
Operate the Chipper Vacuum outdoors in a well
ventilated location only.
Keep children, pets, and bystanders away from the
operating and discharge areas.
Failure to follow these instructions may result in
serious injury or death to you or bystanders.
CHECKS BEFORE STARTING
1. Inspect the chipper cone for debris and other objects
that may have fallen into the machine while the unit
was idle, and remove them before starting the unit.
Before reaching into the chipper cone, always
disconnect the spark plug wire first to prevent
accidental starting of the unit.
10
2. Inspect the chipper cone and make sure that it is
firmly attached to the shredder housing.
3. Check all parts to ensure that they are properly
attached and that all fasteners are properly tight-
ened.
4. If a discharge bag is not going to be used to accu-
mulate waste material, make sure the discharge
deflector elbow is directed away from the operator,
and that the area selected for accumulation of
chipped or shredded material will not cause ejected
material to be deflected toward the operator or
bystanders.
5. If a discharge bag is being used, make sure it is
attached to the discharge chute securely, and is
correctly supported by using all four support straps.
6. Open the Variable Suction ControlrM intake flap on
the nozzle, and check to make sure no unwanted
debris or other objects are stuck in the nozzle.
7. Fill the fuel tank to a level no closer than
l/2” from
the bottom of the filler neck. Obey all safety precau-
tions while handling and fueling the unit. Use regular,
unleaded gas only.
8. Check oil level if unit has not been operated since
initial set-up.
9. Before attempting to start the unit, make sure:
l fuel cap is attached securely,
l oil dipstick is fully inserted in dipstick port,
l chipper cone cap is installed over chipper cone
opening if chipping is not to be performed,
l speed control lever is in normal, disengaged posi-
tion, and speed control selector is in position
#l,
iO.To use self-powered vacuum/shredding mode vacu-
um hose intake opening plug must be fully inserted
into intake opening.
Il. To use 20’ flexible hose for vacuuming:
l hose end must be fully inserted in hose intake
opening.
l Variable Suction ControlrM setting is set to closed
position.
l area to be vacuumed is clear of rocks, gravel,
other hard or sharp debris, and small animals and
pets.
START-UP
The controls required to start the Chipper Vacuum are
located on the engine, and are marked “Choke” and
“Throttle” (Figure 1). A more detailed description of
engine operation and all related precautions and proce-
dures can be found in the engine manufacturer’s manual
supplied with each Chipper Vacuum.

Operation
Starting The Engine - Manual Start Units
1. Move choke lever to full choke position.
2. Move throttle lever to “fast”.
3. Place foot on front wheel to hold unit firmly in place,
and adopt a stable stance.
4. Pull starting rope out slowly one time and allow to
return normally.
5. Pull starting rope out with a steady pull, and allow
rope to return normally.
6. When engine starts, gradually move choke lever to
“no choke” position.
7. Maintain throttle speed at ‘fast” for best perfor-
mance.
Starting The Engine - Electric Start Units
I. Move choke lever to full choke position.
2. Move throttle lever to “fast”.
3. Turn key to “stall position
4. Release key when engine starts, allowing key to
return to “on’ position.
5. When engine starts, gradually move choke lever to
“no choke” position.
6. Maintain throttle speed at ‘fast” for best perfor-
mance.
Idle Speed
Use the “idle” position on the throttle lever to reduce
stress on the engine when chipping or vacuumfshred-
ding is not being performed. Lowering the engine speed
to “idle” will help extend engine life, as well as conserve
fuel and reduce the noise level of the equipment.
WALK BEHIND VACUUM/SHREDDING
Normal operator position for power-drive, walk-behind
vacuum/shredding is directly behind the unit holding the
units handle securely with two hands. This position pro-
vides the best combination of unit control, forward and
side
vrsrbrlrty, and overall operator safety (Figure 2).
Choke &
throttle
controls
Figure 1. Typical Choke And Throttle Controls
--&
Bail Lever
Jx-A
Figure 2. Pull Bail Lever Down And Grip Against
Handle To Engage Transmission
The powered wheel drive is engaged by pulling the full-
width bail lever down where it can be comfortably
gripped against the chipper vacuum handle. Releasing
the bail stops the forward movement and disengages
the transmission, making it easier to turn or maneuver
the unit.
11

Operation
Drive Speed Selector
Forward speed is selected using the speed control lever
mounted on the right side of the handle. The speed
control lever has three positions: slow, medium or fast
(Figure 3).
The ability to select different speeds for differing types of
waste material pick-up and varying surface conditions
helps give you precise control over the unit, which is fur-
ther enhanced by the 3-position vacuum height adjust-
ment and 4-position vacuum intake opening adjustment.
(These adjustment features will be covered later.)
SLOW SPEED -POSITION #l
Slow drive speed is selected when the lever is pulled all
the way back toward the operator into position number
one (Figure 3).
Slow speed is recommended for initial use to help the
operator get accustomed to the driving characteristics of
the unit, and to move the unit very short distances, or for
using the flexible vacuum hose.
Slow speed is also recommended for vacuum/shredding
of wet leaves on heavy density ground cover such as
long, wet grass or thick weeds, or wherever heavier
materials or rougher ground covering requires concen-
trated vacuuming action.
MEDIUM SPEED -POSITION #2
Medium drive speed is selected by moving the lever to
position
#2 (Figure 3).
Medium speed is used when vacuuming leaves that may
be moist, or clinging to medium length ground cover.
FAST SPEED -POSITION #3
Fast drive speed is selected by moving the speed selec-
tor lever to position #3 (Figure 3).
Fast speed is recommended for vacuum/shredding of
light, dry leaves or debris on short or light density
ground cover. It may also be used by experienced oper-
ators to move the Chipper Vacuum long distances.
A CAUTION
Changing drive speed should only be done while
the unit is stopped and the bail lever,+ completely
released. Attempting to change drive speed while
the unit is running may damage the transmission or
cause premature wear of transmission and clutch
components.
Speed Selector Lever
Figure 3. Speed Selector Lever And Positions
A WARNING
Release the bail lever immediately to stop the for-
ward travel of the unit if you see, step on, or sus-
pect to encounter any dangerous debris such as
rocks, gravel, glass, or other hard or sharp objects
anywhere in the path of the Chipper Vacuum.
Clear the debris before proceeding, and dispose of
the material properly to prevent contact with it
again later.
Allowing the Chipper Vacuum to vacuum these
types of materials may result in personal injury to
the operator or bystanders, and will damage the
shredding hammers, reducing shredding efficien-
cy, and voiding the warranty.
CHIPPING
General
Variations in the size and hardness of the materials
being chipped will affect how quickly the material is
pulled in to the chipping knives. Small diameter
softwood branches will chip more readily than larger
diameter hardwood tree limbs, so be prepared for
different feeding speeds when changing the type of
material you are chipping. Kiln-dried dimensional
lumber may be too hard to chip properly.
l Always maintain a stable, well-balanced stance to
one side of the unit when operating the chipper
(Figure 4).
l Never stand directly in front of the chipper cone
when performing chipping operations, since occa-
sional kick-backs or twirling of branches and limbs
may occur, resulting in
you being struck by the tree
limb or branches.
12

Operation
l Hold tree limbs and branches carefully as they are
being put into the chipper cone, releasing your grip
as soon as the self-feeding action of the chipper
knives begin to pull the material in.
l Longer pieces may have a tendency to twirl around
forcefully as they are being drawn into the chipping
knives. Hold the material safely away from the chip-
per cone area until the material is properly controlled
by the chipper cone.
l Never wrap your fingers around tree limbs and
branches, or hold so tightly that you can’t let go
quickly if the tree limb or branch is suddenly and
forcefully pulled into the chipper block chipping
knives. Short pieces may be pushed into the chipper
using longer limbs and branches. Stand to the side
when feeding shod pieces, since they may kick back.
Figure 4. Proper Operator Stance For Chipping
Feeding Material
using another means.
1. Prune tree limbs and large branches to limit size to 7. Check the chipper cone periodically to make sure it
the maximum diameter allowed. Pruning tree limbs is securely fastened to the housing. If the chipper
and branches close to the main portion of the limb or cone become loosened, stop the unit, and tighten
branch will make feeding into the chipper cone
easi-
assembly hardware securely.
er, and will help you maintain control as the material
is drawn into the chipper block. FLEX HOSE VACUUM/SHREDDING
2. Large, hard or dried-out tree limbs that tend to resist
chipping can be processed by rotating them manual-
ly as you alternately insert and retract them in the
chipper cone.
3. If the material to be chipped is extremely hard and
kicks back forcefully, or cannot be easily controlled
while it is being fed into the unit, remove the material
immediately and set it aside. You may need to sharpen
the chipper blades to process the material. Consult
the repair section of this manual for sharpening instruc-
tions, or take your unit to an authorized service center.
4. If normal chipping operation begins to require addition-
al feeding force to process material, the chipper
knives may be in need of routine sharpening. See the
repair section of this manual for sharpening instruc-
tions, or take your unit to an authorized service center.
5. Always try to maintain adequate control of the tree
limbs and branches being fed into the chipper cone
to prevent them from whipping around and causing
injury to you or damage to the cone. Larger limbs
and branches may have a tendency to kick back
toward the operator, so always be alert as you feed
materials into the cone. Always, feed the large end of
the limb in first.
6. Avoid chipping limbs or branches that you suspect
may have imbedded objects such as hooks, eyelets,
nails, screws, or other metal items that could dam-
age the chipping knives. If possible dispose of them
Vacuum/shredding of confined areas such as plant beds
and decorative landscaping can be performed quickly
and effectively using the 15’ flexible vacuum hose avail-
able for your Chipper Vacuum.
Changing over to flex hose vacuuming can be done
quickly and requires no tools.
To convert your unit for use with the
20’ flexible vacuum
hose, just follow these easy steps:
1. Shut the unit off if it is running, and allow the rotor to
come to a complete stop. (Make sure any material
being shredded or chipped is completely processed
before stopping the unit.) When the rotor is fully
stopped, no noise or vibration will be noticeable.
2. Set the vacuum intake nozzle flap adjustment to the
closed position.
3. Remove the vacuum hose intake plug from the
vacuum hose opening, and store it where it won’t get
damaged or lost (Figure 5). Placing the plug into the
chipper cone opening will keep it readily available
when you want to resume walk-behind vacuuming.
NOTE: When removing the vacuum hose intake plug or
hose connector end, align the seam on the cap or hose
connector with the seam on the vacuum intake opening,
then pull out to snap it out of the intake opening groove,
and unscrew to remove.
13

Operation
4. lnserl the connector end of the vacuum hose into the
intake opening, using care to fully seat the connector
in the opening. If the connector is not fully inserted,
and electrical interlock switch will keep the unit from
starting or running (Figure 6).
5. Place the hand-held vacuum intake nozzle in the
area to be vacuumed, using care to avoid twisting
and minimize bends in the hose.
6. Visually inspect the area to be vacuumed to make
sure it is clear of small pets, non-shreddable materi-
als, and any other hazards that could damage the
shredding hammers if vacuumed into the unit.
7. Perform the Checks Before Start-Up described earli-
er in this manual.
8. Stan the unit in accordance with standard starting
instructions for the type of unit you have.
9. For maximum vacuum force, set the throttle control
on the engine to the maximum speed setting.
lO.To reduce vacuum force, adjust the moveable ring to
gradually open the vacuum adjustment port
(Figure 7).
11. Using the vacuum intake nozzle, vacuum the area
you wish to clear, using care to avoid vacuuming
rocks, gravel, and other hard or sharp objects that
are not shreddable.
12. Use extra care near landscape borders that may be
separating grassy areas from landscape rock or
stone.
13. Se watchful for small children, pets or other animals
that may enter the area.
A WARNING
The chipper vacuum is equipped with an electrical
safety interlock switch which prevents the unit from
operating when the vacuum intake cap or hose is
removed from the inlet opening. See your dealer if
the safety interlock switch is not operating properly.
A DANGER
Never reach into the shredding chamber area of an
electric start unit unless the start key has been
removed and the spark plug wire has been discon-
nected.
Always wear work gloves to protect your hands
from sharp edges and objects that may have been
vacuumed into the unit.
Figure 5. Remove Vacuum Hose Intake Cap
‘2708
Insert Hose
Figure 6. Insert Vacuum Hose Connector Into Hose
Intake Opening
Vacuum Force
’
Figure 7. Vacuum Force Adjustment
SHUTTING DOWN
When you’re done using the Chipper Vacuum, following
these simple but worthwhile steps will help you shut
down the unit properly so ihat your next use will be
trouble-free.
A DANGER
The engine and surrounding parts become
extremely hot during normal use, and will cause
serious burn injuries if touched before the engine
has cooled. Allow the engine to cool completely
before touching these hot surfaces.
1. When you have completed processing the materials
to be chipped or vacuum/shredded, shut the unit off
and allow the rotor to come to a complete stop
before proceeding
14

Operation
2. Remove the spark plug wire from the spark plug to
prevent the possibility of inadvertent starting. On
electric-start models, remove the key to prevent any-
one from inadvertently activating the electric start
feature. Although the unit won’t start with the spark
plug removed, the rotor will turn, and serious injury
could result if your hands are in the area of the rotor
or chipper knives.
3. Inspect the following areas for any remaining materi-
als that may have built up or become caught during
operations:
l vacuum intake nozzle
l vacuum hose intake opening
l chipper cone
l discharge chute
l engine air intake area
l transmission/clutch area
NOTE: Do not spray water on the transmission to clean
it, A/though it is sealed to protect it during normal use,
doing so may force water into the transmission housing,
causing corrosion or transmission failure. Use a small
brush or air stream to clear debris away from this area.
MATERIAL COLLECTION &DISPOSAL
Direct Bagging
Chipped material may be collected using the discharge
collection bag. Check the bag frequently to make sure it
is filled to a level you can comfortably handle when
removing and emptying the bag.
1. To remove the bag, shut the unit off, and let the
rotor come to a complete stop. Unhook the rear and
front support straps, (Figure 8) then loosen the cinch
strap that holds the bag opening to the discharge
chute. (Figure 9)
2. Pull the bag off and away from the discharge tube
(Figure lo), and using both hands, grip the bag
securely at the front and rear to balance the weight
as you lift it.
3. Place the bag down in the disposal area, and unzip
the zipper opening completely. Lift the bag by the
other end and the contents of the,bag should empty
out easily.
4. Zip the bag closed, and reinstall in the reverse
sequence followed for bag removal. Tighten cinch
strap securely (Figure 11).

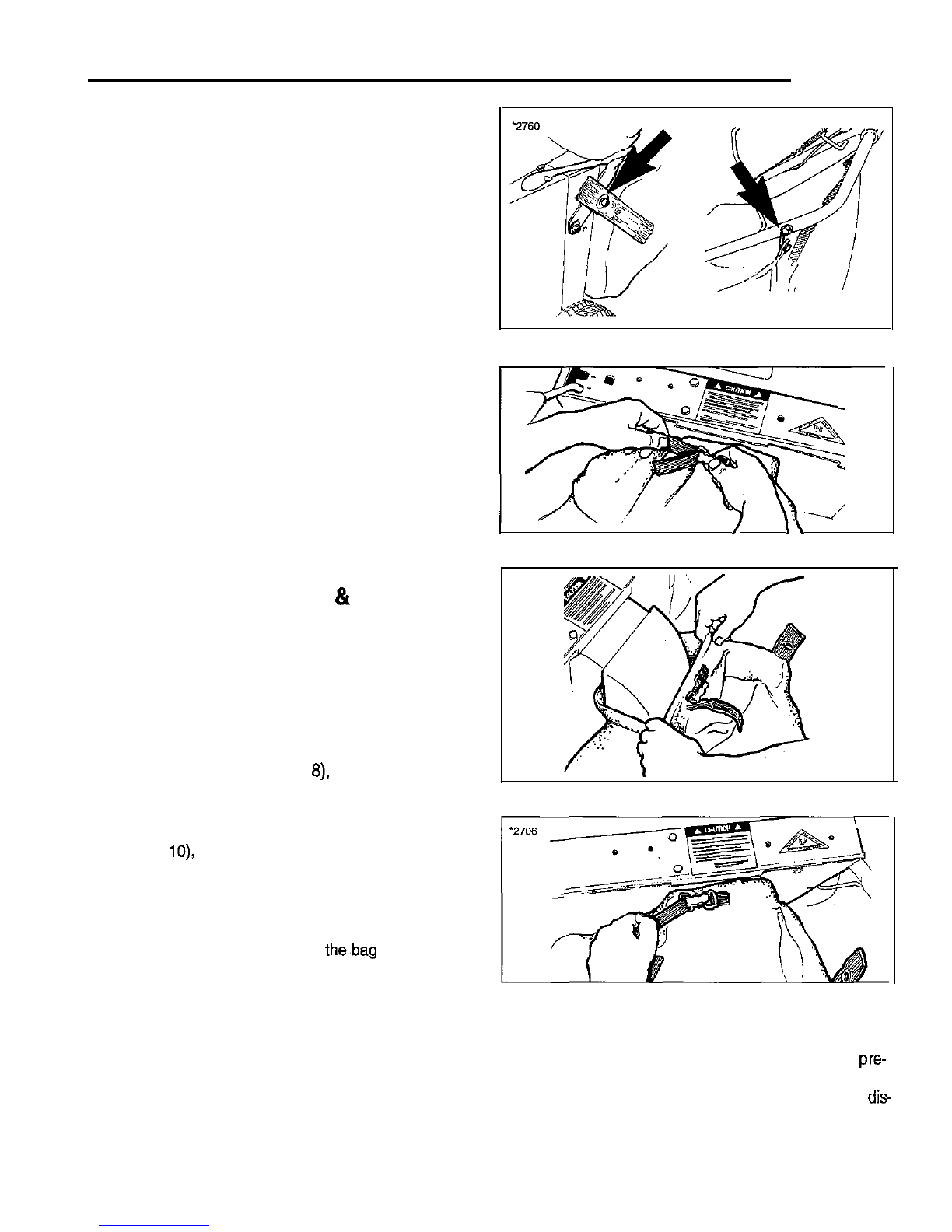

Figure 8. Unhook Support Straps
I
/ I\
Figure 9. Loosen Cinch Strap
Figure IO. Pull Discharge Bag Off Discharge Tube
Figure 11. Tighten Cinch Strap Securely
Direct Discharge
NOTE: The discharge bag may be emptied without Chipped material may be discharged directly into a
pre-
removing the bag from the Chipper Vacuum by simply
unzipping it and raking the material out by hand. This selected collection area by installing the discharge
deflector elbow on the discharge chute. When direct
dis-
method is ideal for heavier debris that may make lifting charge is being used, the deflector elbow must always
and carrying the bag difficult. be directed away from the operator.
15

Operation
A safe collection area should be located where children,
pets, and bystanders will not come into contact with
chipped material as it is being discharged, or be hit by
deflected pieces that may ricochet away from the collec-
tion area with great force.
When using direct discharge, check the discharge area
frequently for accumulation of material near the dis-
charge port, and make sure the material can be safely
ejected away from the unit. Letting material accumulate
directly in front of the units discharge port may cause a
jam.
Direct Discharge Blowing
FIGURE 9. Variable Suction Control Adjustment
The direct discharge method of clearing debris can also
A. Closed Flap Opening - used with flexible hose
be used to clear driveways or other large areas. Make
B. Narrow Flap Opening - light debris
sure the discharge deflector elbow is directed to one
C. Medium Flap Opening - small leaves
side of the unit, then blow debris away from the center
D. Wide Flap Opening - large leaves
of the area toward the outer edges.
Do not discharge against a fence or wall where dis-
charged material may deflect back toward you and pos-
sibly cause injury. If a wall, fence, or other obstacle is
encountered while clearing an area, stop the unit,
change the direction of the discharge stream, and blow
debris away from the obstruction.
Height Adjustment Lever
/;;\ a7
Never attempt to move the unit while material is in
chipper cone being chipped.
Always allow limbs and branches to be completely
processed before engaging the power drive bail
lever.
-.
A WARNING
Failure to obey these instructions may result in Figure 10. Vacuum Intake Nozzle Height Adjustment
jamming of the chipper, or erratic power drive per-
A. High Height Adjustment
formance causing sudden starting and stopping of B. Medium Height Adjustment
the power drive. C. Low Height Adjustment
off and allow the rotor to come to a complete stop.
Selecting the right combination of vacuum nozzle
height and flap opening position may require a little
experimenting to find the settings that work the best for
you.
Variable Suction Control Adjustment
The variable suction control adjustment is located just
above and to the rear of the vacuum intake nozzle. This
adjustment sets the size of the intake opening, allowing
you to match the vacuum suction force to the type of
1..
Never start the unit without securely attaching the
discharge bag or installing the discharge elbow in
a safe direction. Failure to obey these instructions
may result in serious injury.
OPERATOR AU I”-‘l OPERATOR ADJUSTMENTS
aeDnS ana grouna cover Deing vacuumed.
Three different suction
contror senrngs Three different suction control settings and three nozzle The vacuum intake nozzle flap has four easily-set
posi-
height positions provide a total of nine r height positions provide a total of nine different positions tions: closed (for vacuuming using the flexible 20
for handling virtually any type of lawn s for handling virtually any type of lawn surface and yard hose), small, medium, and large. These positions are
1
waste conditions. set and maintained by the vacuum nozzle flap adjust-
ment bracket, using a simple pull-and-place lever that
16
