Simplicity 1694957 Setup guide

Attachment
Illustrated
Parts List
Rev. 04/2007
500 N. Spring Street / PO Box 997
Port Washington, WI 53074-0997 USA
www.simplicitymfg.com
MANUFACTURING, INC.
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved. Printed In USA.2007 TP 400-4571-00-AT-SMA
Mf
g
. No. Descri
p
tion
Attachment
1694957 44" Mulch Kit
1734855
Part No.:

Table Of Content
s

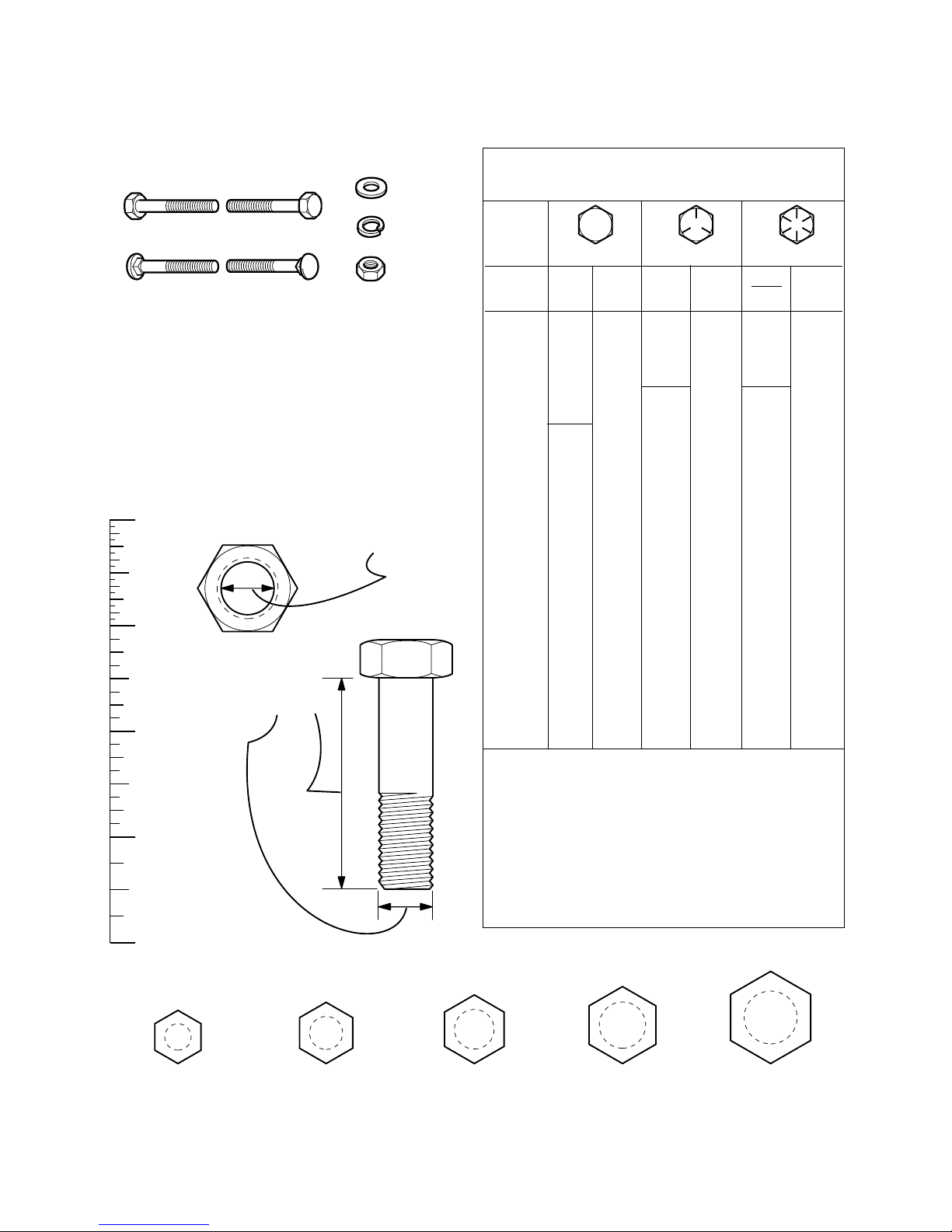

Torque Specification Chart ..................................................................... Inside Back Cover
PRODUCT COMPONENTS PAGES
44 & 50" Grass Mulcher Kit .................................................................................................................................. 4

44 & 50" Grass Mulcher Kit
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
1694957
The above parts group applies to the following Mfg. Nos.:
4
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1694957 - 44" Mulch Kit
TP 400-4571-00-AT-SMA

PART NO. DESCRIPTIONREF NO QTY.
44 & 50" Grass Mulcher Kit
Footnotes
BAFFLE ASSEMBLY, 44"1 1732198ASM 1
BAFFLE ASSEMBLY, 50"1 1732349ASM 1
SCREW, Phillips, #10-24 x 12 1960393SM 1
WASHER3 1960096SM 1
STRAP, Rubber4 2171600SM 1
NUT, Hex, Nylock, #10-245 1933896SM 1
BLADES, Mower 44"6 1716696ASM 3
BLADES, Mower 50"6 1716697ASM 3
CARRIAGE BOLT, 5/16-18 x 5/87 1931332SM 10
BAFFLE & DEFLECTOR, LH 44"8 1721946ASM 1
BAFFLE & DEFLECTOR, LH 50"8 1716150ASM 1
NUT, Push, 5/169 1933988SM 8
NUT, Hex, Flange Lock, 5/16-1810 1927557SM 10
BAFFLE & DEFLECTOR, RH11 1729370ASM 1
BAFFLE & DEFLECTOR, RH 50"11 1726913ASM 1
PLATE, Mounting12 1726578ASM 1
The above parts group applies to the following Mfg. Nos.:
5
2007Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1694957 - 44" Mulch Kit
TP 400-4571-00-AT-SMA
