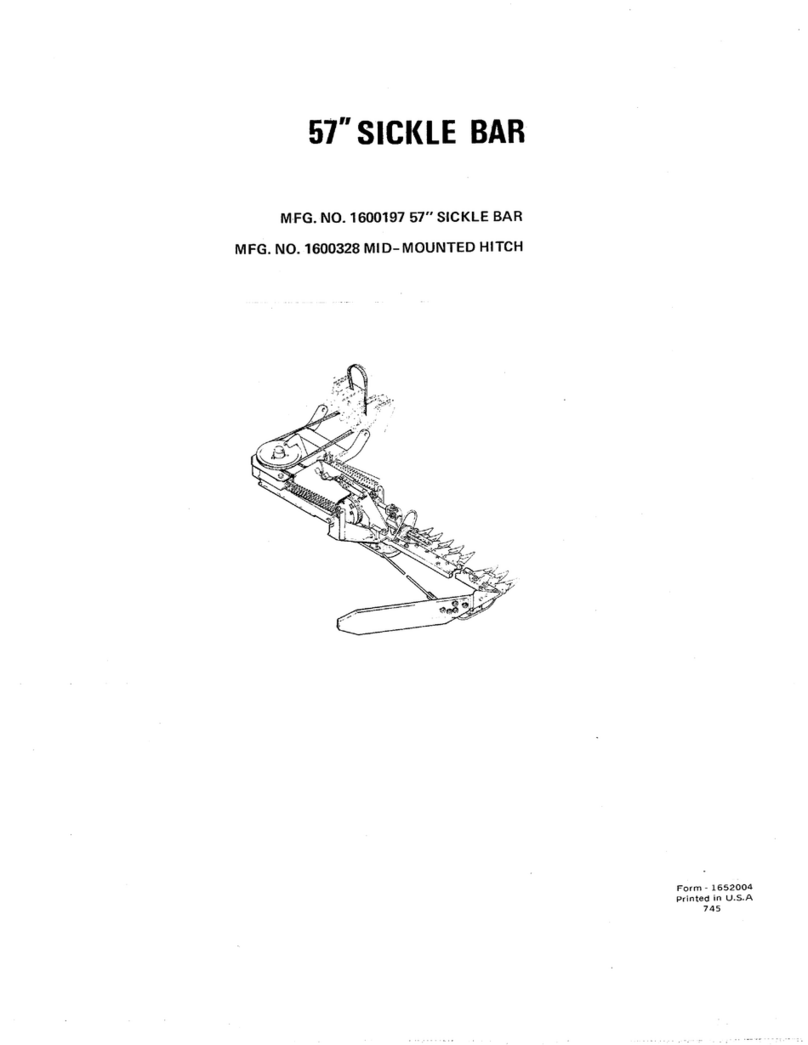

Simplicity 1600197 User manual

Simplicity

Simplicity 1600197 User manual

Simplicity Clean Sweep Twin Catcher User manual

Simplicity

Simplicity Clean Sweep Twin Catcher User manual

Simplicity 1694389 Setup guide

Simplicity

Simplicity 1694389 Setup guide

Simplicity 2000 Series User manual

Simplicity

Simplicity 2000 Series User manual

Simplicity 312 Technical reference manual

Simplicity

Simplicity 312 Technical reference manual

Simplicity 443 User manual

Simplicity

Simplicity 443 User manual

Simplicity 1695151 User manual

Simplicity

Simplicity 1695151 User manual

Simplicity 791 User manual

Simplicity

Simplicity 791 User manual

Simplicity 1690041 User manual

Simplicity

Simplicity 1690041 User manual

Simplicity 5600081 User manual

Simplicity

Simplicity 5600081 User manual

Simplicity 1695163 Setup guide

Simplicity

Simplicity 1695163 Setup guide

Simplicity 1694957 Setup guide

Simplicity

Simplicity 1694957 Setup guide

Simplicity 26" Datasheet

Simplicity

Simplicity 26" Datasheet

Simplicity 1694838 Setup guide

Simplicity

Simplicity 1694838 Setup guide

Simplicity 1695195 User manual

Simplicity

Simplicity 1695195 User manual

Simplicity 1726794 User manual

Simplicity

Simplicity 1726794 User manual

Popular Lawn Mower Accessories manuals by other brands

Toro 147-1660 manual

Toro

Toro 147-1660 manual

Toro 03484 installation instructions

Toro

Toro 03484 installation instructions

Ariens 891008 Operator's manual

Ariens

Ariens 891008 Operator's manual

Rover 108 - 109 owner's manual

Rover

Rover 108 - 109 owner's manual

Toro 112-5803 installation instructions

Toro

Toro 112-5803 installation instructions

Snapper 1690047 Operator's manual

Snapper

Snapper 1690047 Operator's manual

RHINO 800 Operator's manual

RHINO

RHINO 800 Operator's manual

Exmark Quest 126-7506 Operator's manual

Exmark

Exmark Quest 126-7506 Operator's manual

Snapper 1685167 installation instructions

Snapper

Snapper 1685167 installation instructions

Cub Cadet 19B70029100 installation manual

Cub Cadet

Cub Cadet 19B70029100 installation manual

Stihl AMK 043.1 instruction manual

Stihl

Stihl AMK 043.1 instruction manual

MTD 753-0873 Service kit manual

MTD

MTD 753-0873 Service kit manual

Toro 30810 installation instructions

Toro

Toro 30810 installation instructions

Bush Hog RG60 Operator's manual

Bush Hog

Bush Hog RG60 Operator's manual

Scag Power Equipment GC-F4 Operator's manual

Scag Power Equipment

Scag Power Equipment GC-F4 Operator's manual

Land Pride RCF2760 Operator's manual

Land Pride

Land Pride RCF2760 Operator's manual

Peco SPARTAN RZ Series Operator's manual

Peco

Peco SPARTAN RZ Series Operator's manual

Peco 28621206 Operator's manual

Peco

Peco 28621206 Operator's manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.

Rev. 09/2002
TP 400-3544-00-AT-SMA
ATTACHMENT
ILLUSTRATED
PARTS LIST
© Copyright 2002 Simplicity Manufacturing, Inc.All Rights Reserved.
MANUFACTURING, INC.
500 N Spring Street / PO Box 997
Port Washington, WI 53074-0997 USA
www.simplicitymfg.com
ATTACHMENT
Mfg. No. Description
1694304 Turbo - 38”, 44” & 50” Mower
2
TP 400-3544-00-AT-SMA
© Copyright 2002 Simplicity Manufacturing, Inc. All Rights Reserved.
Turbo - 38”, 44”& 50”Mower
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
986208
See Mounting Kit
38" Broadmoor,
Trim Corner
11
17
15
19
12
18
10
14
13
16
20
21
27
27
25
29
22
28
28
24
24
24
26
23
30
31
9
35
32
34
36 33
1
1
1
7
5
5
5
5
10
2
2
2
2
8
8
4
6
3
3
10
9
The above parts group applies to the following Mfg. Nos.:
1694304 Turbo - 38”, 44” & 50” Mower
3
TP 400-3544-00-AT-SMA
Turbo - 38”, 44”& 50”Mower
1 1931333 7 CARRIAGE BOLT, 5/16-18 x 3/4
2 1665982 4 RETAINER, Bearing
3 108202 2 BEARING
4 1933988 6 PUSH NUT, 3/8
5 1930641 10 NUT, Hex, Flange Lock, 1/4-20
6 1925003 1 CAPSCREW, Hex, Taptite, 1/4-20 x 1/2
7 1724441 1 FAN HOUSING (Includes Ref. No. 9)
8 1927557 6 NUT, Flange, Whizlock, 5/16-18
9 1700259 1 DECAL, Danger, Blower
10 1931317 4 CARRIAGE BOLT, 1/4-20 x 3/4
11 1960256 2 CAPSCREW, Washer Head, Plastite, 1/4-18 x 5/8
12 1705267 1 COVER, Bottom
13 1706631 1 FAN ASSEMBLY, 5 Blade
14 1706465 1 PLATE ASSEMBLY
15 1931355 1 CARRIAGE BOLT, 3/8-16 x 2-1/4
16 1678435 1 BELT STOP
17 1924874 1 WASHER, Flat
18 1917356 1 WASHER, Spring Lock, 5/16
19 1917372 1 NUT, Hex, 5/16
20 1924009 2 CAPSCREW, Hex Head, 1/4-20 x 7/8
21 1668500 1 BRACKET, Anchor, Spring
22 1716853 1 SPRING, Tension
23 1920415 1 CAPSCREW, Hex Head, 3/8-16 x 1-1/4
24 1924940 3 WASHER, Plain
25 154534 1 IDLER PULLEY ASSEMBLY
26 1933263 1 WASHER, Flat
27 1960251 2 NUT, Hex, Jam, Center Lock, 3/8-16
28 1676833 2 SPACER
29 1706284 1 LEVER ASSEMBLY, Turbo (Includes Ref. Nos. 30 &31)
30 1704314 1 FITTING, Grease
31 1676148 2 BUSHING
32 1924361 1 WASHER, Flat
33 1706634 1 PULLEY, Driven
34 1960619 2 SETSCREW, Hex, Socket Head, 5/16-18 x 5/16
35 960403 1 KEY, Woodruff, Modified
36 1921959 4 CAPSCREW, Hex Head, 1/4-20 x 5/8
REF NO. PART NO. QTY. DESCRIPTION
Footnotes:
The above parts group applies to the following Mfg. Nos.:
1694304 Turbo - 38”, 44” & 50” Mower
Torque Specification Chart
FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)
Hardware
Grade
SAE Grade 2 SAE Grade 5 SAE Grade 8
Size Of
in/lbs in/lbs
in/lbs
Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.
8-32
19
2.1
30
3.4
41
4.6
8-36
20
2.3
31
3.5
43
4.9
10-24
27
3.1
43
4.9
60
6.8
10-32
31
3.5
49
5.5
68
7.7
1/4-20
66
7.6 810.9 12 16.3
1/4-28
76
8.6 10 13.6 14 19.0
5/16-18 11 15.0 17 23.1 25 34.0
5/16-24 12 16.3 19 25.8 27 34.0
3/8-16 20 27.2 30 40.8 45 61.2
3/8-24 23 31.3 35 47.6 50 68.0
7/16-14 30 40.8 50 68.0 70 95.2
7/16-20 35 47.6 55 74.8 80 108.8
1/2-13 50 68.0 75 102.0 110 149.6
1/2-20 55 74.8 90 122.4 120 163.2
9/16-12 65 88.4 110 149.6 150 204.0
9/16-18 75 102.0 120 163.2 170 231.2
5/8-11 90 122.4 150 204.0 220 299.2
5/8-18 100 136 180 244.8 240 326.4
3/4-10 160 217.6 260 353.6 386 525.0
3/4-16 180 244.8 300 408.0 420 571.2
7/8-9 140 190.4 400 544.0 600 816.0
7/8-14 155 210.8 440 598.4 660 897.6
1-8 220 299.2 580 788.8 900 1,244.0
1-12 240 326.4 640 870.4 1,000 1,360.0
Hex Head Capscrew
Hex Nut
Lockwasher
Washer
Carriage Bolt
NOTES
1. These torque values are to be used for all hardware
excluding: locknuts, self-tapping screws, thread forming
screws, sheet metal screws and socket head setscrews.
2. Recommended seating torque values for locknuts:
a. for prevailing torque locknuts - use 65% of grade 5
torques.
b. for flange whizlock nuts and screws - use 135% of
grade 5 torques.
3. Unless otherwise noted on assembly drawings, all torque
values must meet this specification.
Hardware Identification & Torque Specifications
Common Hardware Types
Screw, 1/2 x 2
Body
Diameter
Body
Length
Inside
Diameter
Nut, 1/2”
No
Marks
3/8” Bolt or Nut
Wrench—9/16”
3/8
5/16” Bolt or Nut
Wrench—1/2”
5/16
1/4” Bolt or Nut
Wrench—7/16”
1/4
1/2” Bolt or Nut
Wrench—3/4”
1/2
DIA.
7/16
DIA.
7/16” Bolt or Nut
Wrench (Bolt)—5/8”
Wrench (Nut)—11/16”
Wrench & Fastener Size Guide
Standard Hardware Sizing
When a washer or nut is identified as 1/2”, this is the
Nominal size
, meaning the
inside diameter
is 1/2 inch; if a
second number is present it represent the
threads per inch
When bolt or capscrew is identified as 1/2 - 16 x 2”, this
means the
Nominal size
, or
body diameter
is 1/2 inch; the
second number represents the
threads per inch
(16 in this
example, and the final number is the
body length
of the
bolt or screw (in this example 2 inches long).
The guides and ruler furnished below are designed to
help you select the appropriate hardware and tools.
01/4 3/4
1/2 11/4 3/4
1/2 21/4 3/4
1/2 31/4 3/4
1/2 4
