Simpson MSV2600 User manual

OPERATOR’S MANUAL
Record all information and attach sales receipt
here for future reference.
Purchase Date:
Serial Number:
Visit us at www.power-washer.us to register
your warranty, find replacement parts, and talk
with our service representatives about your
pressure washer.
Table of Contents
Safety Guidelines / Definitions 2
Important Safety Instructions 2-7
Specifications 7
Carton Contents 8
Assembly Instructions 8-9
Operating Instructions 9-13
Maintenance 14
Storage 15
Repairs 15
Accessories 16
Trouble Shooting Guide 16-17
Warranty 18-19
IMPORTANT
Please make certain that the person who is to use this equipment carefully reads and understands
these instructions before operating. REV. 1 6/10
Pressure Washer Models
MSV2600 & MSV3000
2600 / 3000
2.3 / 2.5

Indicates an potentially hazard
ous situation which, if not avoid-
ed, may result in minor or moderate injury.
Used without the safety alert
symbol indicates a potentially
hazardous situation which, if not avoided, may
result in property damage.
Indicates an potentially hazard
ous situation which, if not avoid-
ed, could result in death or serious injury.
This manual contains information that is important for you to know and understand. This informa-
tion relates to protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you
recognize this information, we use the symbols below. Please read the manual and pay attention to
these symbols.
SAFETY GUIDELINES - DEFINITIONS
Indicates an imminently hazard-
ous situation which, if not avoid-
ed, will result in death or serious injury.
CONSUMER SAFETY INFORMATION
This product may not be equipped with a spark arresting muffler. If the product is not equipped and
will be used around flammable materials, or on land covered with materials such as agricultural
crops, forest, brush, grass, or other similar items, then an approved spark arrester must be installed
and is legally required in the State of California. It is a violation of California statues section 130050
and/or sections 4442 and 4443 of the California Public Resources Code, unless the engine is
equipped with a spark arrester, as defined in section 4442, and maintained in effective working order.
Spark arresters are also required on some U.S. Forest Service land and may also be legally required
under other statutes and ordinances.
This product contains chemicals, known to the State of California, to cause cancer, and birth defects
or other reproductive harm. Wash hands after handling.
IMPORTANT SAFETY INSTRUCTIONS
Do not operate this unit until you have read and understand this Operators Manual and the Engine
Owners Manual for Safety, Operation, and Maintenance Instructions.
READ AND SAVE THESE INSTRUCTIONS
Spilled gasoline and its vapors can become
ignited from cigarette sparks, electrical arcing,
exhaust gases and hot engine components
such as the muffler.
RISK OF EXPLOSION OR FIRE
WHAT CAN HAPPEN HOW TO PREVENT IT
Shut off engine and allow it to cool before add-
ing fuel to the tank.
Use care in filling tank to avoid spilling fuel.
Move pressure washer away from fueling area
before starting engine.
••
•
2

Heat will expand fuel in the tank which could
result in spillage and possible fire explosion.
WHAT CAN HAPPEN HOW TO PREVENT IT
Fill tank to 1/2” (12.7mm) below bottom of filler
neck to provide space for fuel expansion.
••
Operating the pressure washer in an explosive
environment could result in a fire.
Operate and fuel equipment in well-ventilated
areas free from obstructions. Equip areas with
fire extinguishers suitable for gasoline fires.
••
Materials placed against or near the pressure
washer can interfere with its proper ventilation
features causing overheating and possible igni-
tion of the materials.
Never operate pressure washer in an area con-
taining dry brush or weeds.
••
Muffler exhaust heat can damage painted sur-
faces, melt any material sensitive to heat (such
as siding, plastic, rubber, vinyl, or the high
pressure hose) and damage live plants.
Always keep pressure washer a minimum of 4’
(1.2m) away from surfaces (such as houses,
automobiles, or live plants) that could be dam-
aged from muffler exhaust heat.
••
Improperly stored fuel could lead to accidental
ignition. Fuel improperly secured could get
into the hands of children or other unqualified
persons.
Store fuel in an OSHA-approved container, in a
secure location away from your work area.
••
Use of acids, toxic or corrosive chemicals,
poisons, insecticides, or any kind of flammable
solvent with this product could result in serious
injury or death.
Do not spray flammable liquids.
••
RISK TO BREATHING (Asphyxiation)
WHAT CAN HAPPEN HOW TO PREVENT IT
Breathing exhaust fumes will cause serious in-
jury or death! Engine exhaust contains carbon
monoxide, an odorless and deadly gas.
Operate pressure washer in a well ventilated
area. Avoid enclosed areas such as garages,
basements, etc.
Never operate unit in a location occupied by
humans or animals.
••
•
Some cleaning fluids contain substances which
could cause injury to skin, eyes, or lungs.
Use only cleaning fluids specifically recom-
mended for high-pressure washers. Follow
manufacturers recommendations. Do not use
chlorine bleach or any other corrosive com-
pound.
••
3

RISK OF FLUID INJECTION AND LACERATION
WHAT CAN HAPPEN HOW TO PREVENT IT
Your pressure washer operates at fluid pres-
sures and velocities high enough to penetrate
human and animal flesh, which could result
in amputation or other serious injury. Leaks
caused by loose fittings or worn or damaged
hoses can result in injection injuries. DO NOT
TREAT FLUID INJECTION AS A SIMPLE
CUT! See a physician immediately.
Inspect the high-pressure hose regularly. Re-
place the hose immediately if it is damaged,
worn, has melted from contacting the engine,
or shows any signs of cracks, bubbles, pin-
holes, or other leakage. Never grasp a high-
pressure hose that is leaking or damaged.
Never touch, grasp, or attempt to cover a
pinhole or similar water leak on the high pres-
sure hose. The stream of water IS under high
pressure and WILL penetrate skin.
Never place hands in front of nozzle.
Direct spray away from self and others.
Make sure hose and fittings are tightened and
in good condition. Never hold onto the hose or
fittings during operation.
Do not allow the high pressure hose to contact
the muffler.
Never attach or remove wand or hose fittings
while system is pressurized - squeeze trigger
gun (when engine is off) to relieve pressure in
the system.
••
•
Injuries can result if system pressure is not
reduced before attempting maintenance or
disassembly.
To relieve system pressure, shut off engine,
turn off water supply and pull gun trigger until
water stops flowing.
Use only hoses and accessories rated for pres-
sure higher than your pressure washer’s PSI.
••
•
•
•
•
•
•
RISK OF INJURY FROM SPRAY
WHAT CAN HAPPEN HOW TO PREVENT IT
High velocity fluid spray can cause objects to
break, propelling particles at high speed.
Light or unsecured objects can become haz-
ardous projectiles.
Always wear ANSI-approved Z87.1 safety
glasses. Wear protective clothing to protect
against accidental spraying.
Never point wand at, or spray people or ani-
mals.
Always secure trigger lock when wand is not in
service to prevent accidental operation.
Never permanently secure trigger in pull-back
(open) position.
••
•
•
•
•
4

5
RISK OF UNSAFE OPERATION
WHAT CAN HAPPEN HOW TO PREVENT IT
Unsafe operation of your pressure washer
could lead to serious death to you or others.
Do not use chlorine bleach or any other corro-
sive compound.
Become familiar with the operation and con-
trols of the pressure washer.
Keep operating area clear of all persons, pets,
and obstacles.
Do not operate the product when fatigued or
under the influence of alcohol or drugs. Stay
alert at all times.
Never defeat the safety features of this product.
Do not operate machine with missing, broken,
or unauthorized parts.
Never leave wand unattended while unit is run-
ning.
••
•
•
•
•
•
If proper starting procedure is not followed,
engine can kickback causing serious hand and
arm injury.
If engine does not start after two pulls, squeeze
trigger of gun to relieve pump pressure. Pull
starter cord slowly until resistance is felt. Then
pull cord rapidly to avoid kickback and prevent
hand or arm injury.
••
The spray gun/wand is a powerful tool that
could look like a toy to a child
Keep children away from the pressure washer
at all times.
••
Reactive force of spray will cause gun/wand to
kickback, and could cause the operator to slip
and fall or misdirect the spray. Improper control
of gun/wand can result in injuries to self and
others.
Do not overreach or stand on an unstable sup-
port.
Do not use pressure washer while standing on
a ladder.
Grip gun/wand firmly with both hands. Expect
the gun to kickback when triggered
••
•
•

6
RISK OF INJURY OR PROPERTY DAMAGE WHEN
TRANSPORTING OR STORING
WHAT CAN HAPPEN HOW TO PREVENT IT
Fuel or oil can leak or spill and could result
in fire or breathing hazard. Serious injury or
death can result. Fuel or oil leaks will damage
carpet, paint, or other surfaces in vehicles or
trailers.
If the pressure washer is equipped with a fuel
shut-off valve, turn the valve to the OFF posi-
tion before transporting to avoid fuel leaks. If
the pressure washer is not equipped with a
fuel shut-off valve, drain the fuel from the tank
before transporting. Only transport fuel in an
OSHA-approved container. Always place pres-
sure washer on a protective mat when trans-
porting to protect against damage to vehicle
from leaks. Remove pressure washer from
vehicle immediately upon arrival at your desti-
nation.
••
RISK OF BURSTING
WHAT CAN HAPPEN HOW TO PREVENT IT
Over inflation of tires could result in serious
injury and property damage.
Use a tire pressure gauge to check the tires
pressure before each use and while inflating
tires
See the tire sidewall for the correct tire pres-
sure.
NOTE: Air tanks, compressors, and similar
equipment used to inflate tires can fill small
tires similar to these very rapidly. Adjust pres-
sure regulator on air supply to no more than
the rating of the tire pressure. Add air in small
increments and frequently use the tire gauge to
prevent over inflation.
••
RISK OF HOT SURFACES
WHAT CAN HAPPEN HOW TO PREVENT IT
Contact with hot surfaces, such as engine
exhaust components, could result in serious
injury.
During operation, touch only the control sur-
faces of the pressure washer. Keep children
away from the pressure washer at all times.
They may not be able to recognize the hazards
of this product.
••
High velocity fluid spray directed at pneumatic
tire sidewalls (such as found on automobiles,
trailers, and the like) could damage the side-
wall resulting in serious injury.
On pressure washers rated above 1600 PSI
(110 Bar) use the widest fan spray (40º nozzle)
and keep spray a minimum of 8” (20cm) from
the pneumatic tire sidewall. Do not aim spray
directly at the joint between the tire and rim.
••
•
•

7
RISK OF CHEMICAL BURN
WHAT CAN HAPPEN HOW TO PREVENT IT
Use of acids, toxic or corrosive chemicals,
poisons, insecticides, or any kind of flammable
solvent with the product could result in injury or
death.
Do not use acids, gasoline, kerosene, or any
other flammable material in this product. Use
only household detergents, cleaners, and
degreasers recommended for use in pressure
washers.
Wear protective clothing to protect eyes and
skin from contact with sprayed materials.
••
•
RISK OF ELECTRICAL SHOCK
WHAT CAN HAPPEN HOW TO PREVENT IT
Spray directed at electrical outlets or switches,
or objects connected to an electrical circuit,
could result in a fatal electrical shock.
Unplug any electrically operated product before
attempting to clean it. Direct spray away from
electric outlets and switches.
••
RISK OF INJURY FROM LIFTING
WHAT CAN HAPPEN HOW TO PREVENT IT
Serious injury can result from attempting to lift
too heavy an object.
The pressure washer is too heavy to be lifted
by one person. Obtain assistance from others
before lifting.
••
READ AND SAVE THESE INSTRUCTIONS
SPECIFICATIONS
Model MSV2600 MSV3000
Max Pressure* 2600 PSI 3000 PSI
Max Flow* 2.3 GPM 2.5 GPM
* Water flow and maximum pressure ratings determined in accordance with PWMA standard PW101.
NOTE: Photographs and line drawings used in this manual are for reference only and do not repre-
sent a specific model.

8

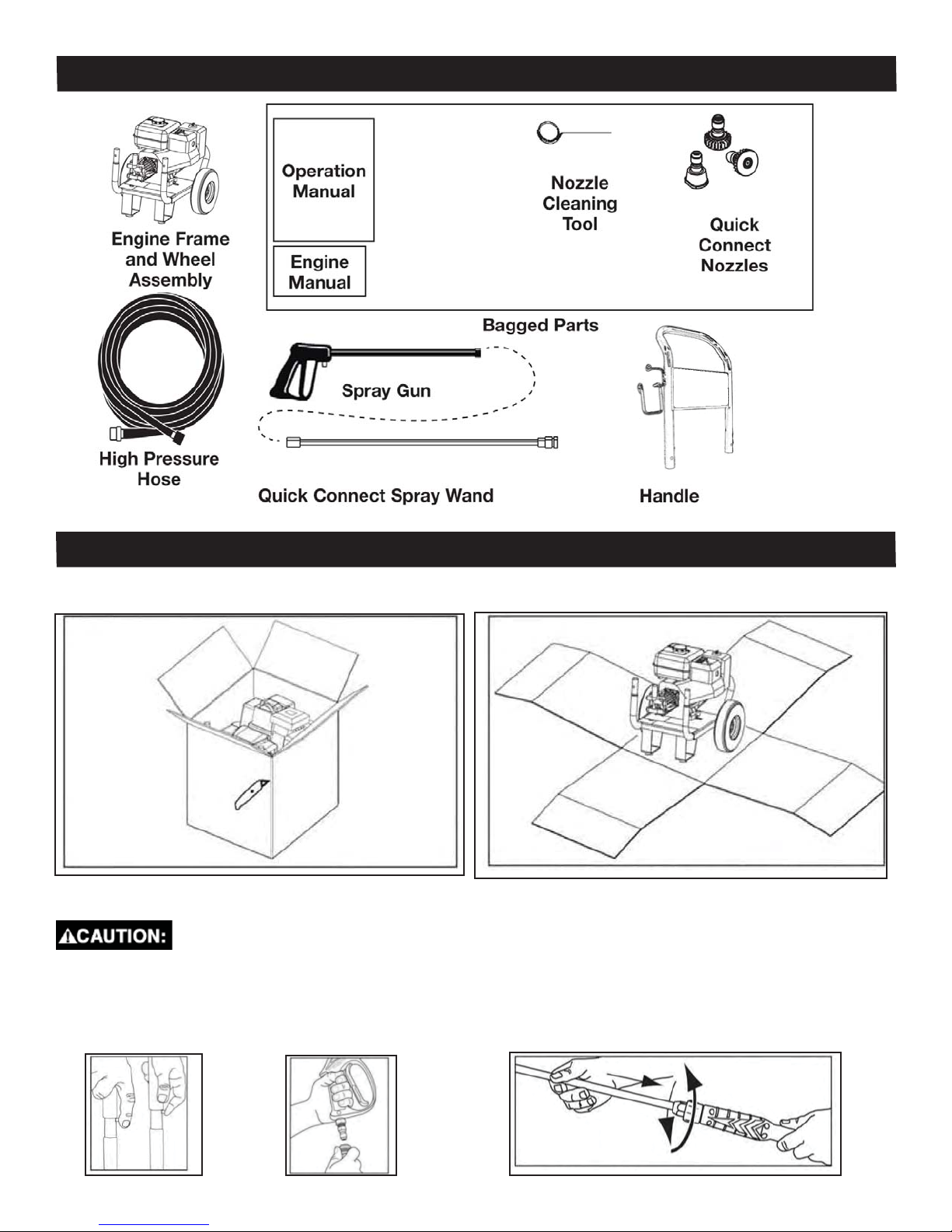

CARTON CONTENTS
ASSEMBLY INSTRUCTIONS
1) Locate and remove all loose parts from the carton.
2) Cut the four corners of the carton from top to bottom and lay the panels flat.
3) Place the handle onto the frame, depress the snap buttons, and slide the handle assembly down
on the frame until snap buttons snap into place.
Risk of Personal Injury. Avoid placing hands between the handle
and frame when assembling to prevent pinching.
4) Connect Gun to Wand. Tighten Securely.
5) Attach high pressure hose to gun. Tighten securely.
6) Remove the colored quick connect nozzled from plastic bag and insert them into grommets on the
nozzle holder.

9
OPERATING INSTRUCTIONS
NOTE: The pump on this unit is maintenance free and requires no oil. If there is a problem with the
pump, contact our Customer Service Group on www.power-washer.us as soon as possible.
Risk of bursting. Use a tire pressure gauge to check the tire pressure before each use
and while inflating tires; see the tire sidewall for the correct tire pressure.
NOTE: Air tanks, compressors, and similar equipment used to inflate tires can fill small tires similar to
these very rapidly. Adjust pressure regulator on air supply to no more than the rating of the tire pres-
sure. Add air in small increments and frequently use the tire gauge to prevent over inflation.
Compare the illustrations with your unit to familiarize yourself with the location of various controls and
adjustments. Save this manual for future reference.

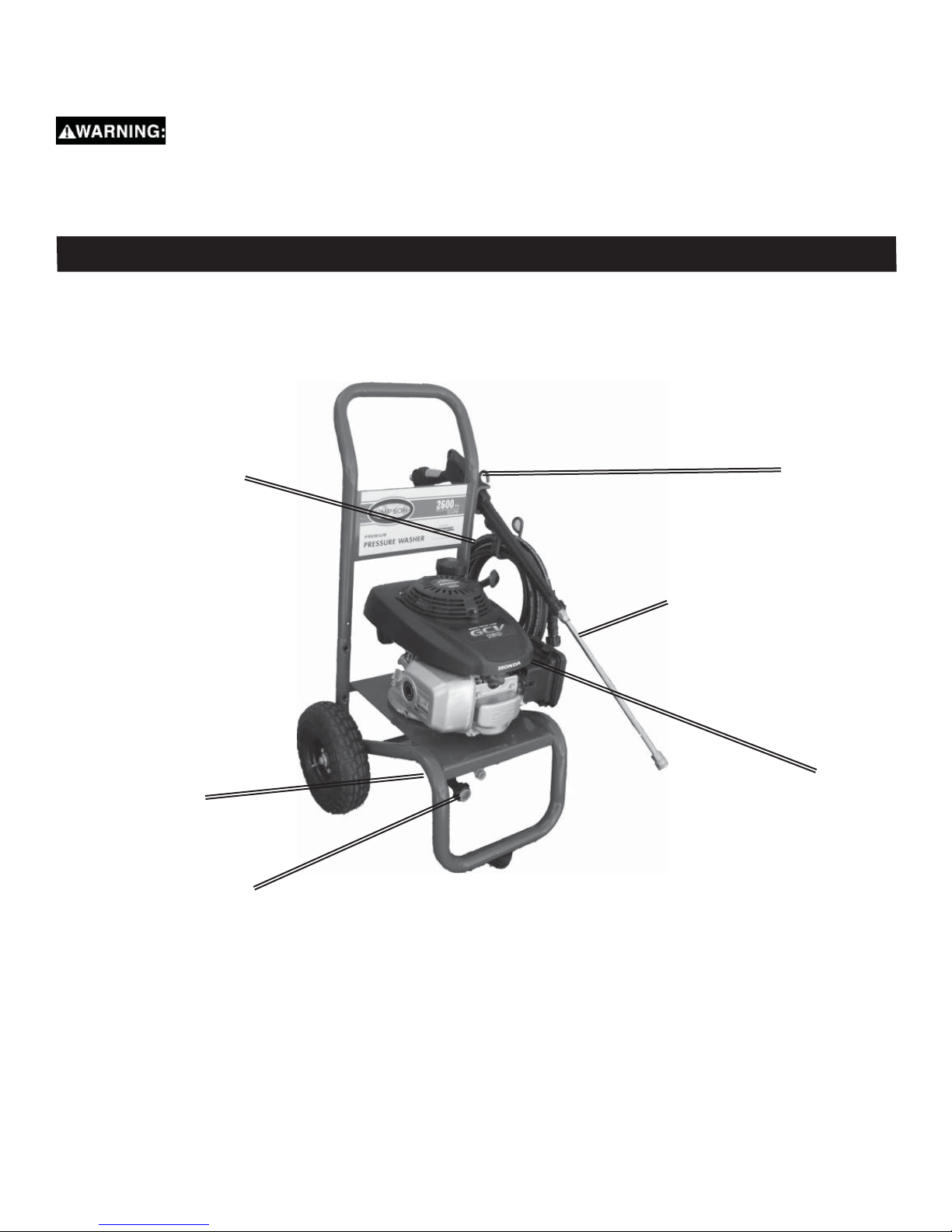

BASIC ELEMENTS OF A PRESSURE WASHER
High Pressure Pump: Increases the pressure of the water supply.
Engine: Drives the high pressure pump. Refer to the engine manual for location and operation of
engine controls
High Pressure Hose: Carries the pressurized water from the pump to the gun and spray wand.
Spray Gun: Connects the spray wand to control water flow rate, direction, and pressure.
Quick Connect Spray Wand: Allows the user to quickly change the spray pattern. See next sections
for more details on your specific Spray Wand included with your machine.
Chemical Hose: Feeds cleaning agents into the pump to mix with the water. See How to Apply
Chemicals / Cleaning Solvents instructions.
High Pressure Pump
Engine
Spray Gun
High Pressure Hose
Chemical Hose
Quick Connect Spray Wand

BASIC ELEMENTS OF AN ENGINE
Refer to the engine manual for location and operation of engine controls.
Choke Control: Opens and closes carburetor choke valve.
Starter Grip: Pulling starter grip operates recoil starter to crank engine.
Engine Switch: Enables and disables ignition system.
PRESSURE WASHER TERMINOLOGY
PSI: Pounds per Square Inch. The unit of measure for water pressure. Also used for air pressure,
hydraulic pressure, etc. Sometimes noted as “Bar”, another unit of measure.
GPM: Gallons per Minute. The unit of measure for the flow rate of water. Sometimes noted as L/min
(Liters per Minute).
CU: Cleaning Units. GPM multiplied by PSI equals CU.
Bypass Mode: Allows water to re-circulate within the pump when the gun trigger is not pulled. This
feature allows the operator to release the trigger gun and reposition themselves without having to turn
the engine off in between cleaning actions.
Allowing the unit to run for more than two minutes without the gun trigger being pulled
could cause overheating and damage to the pump. Do not let the pressure washer run for more than
two minutes in Bypass Mode. Turn off the engine and relieve the pressure in the gun during these
extended situations.
Thermal Relief Valve (not shown): When the temperature inside the pump rises too high, this valve
will open and release a gush of water in an effort to lower the temperature inside the pump. The valve
will then close.
Chemical Injection System: Mixes cleaners or cleaning solvents with the water to improve clean-
ing effectiveness. Depending on your machine, this could either be a Detergent Siphon Tube (which
is inserted into a container of detergent), or a Detergent Tank (which is filled with detergent and is an
integral part of the pressure washer frame).
Water Supply: All pressure washers must have a source of water. The minimum requirements for a
water supply are 20 PSI and 5 Gallons Per Minute.
PRESSURE WASHER OPERATING FEATURES - SPRAY WAND
Spray Wand: There are two types of spray wands that can be included with your pressure washer.
Check Carton Contents section of this manual to see which Wand your pressure washer uses.
1) Variable Spray Wand. This wand includes both high and low pressure settings. The high pres-
sure setting is for cleaning and rinsing, and the low pressure setting is for applying chemicals or
cleaning solutions to surfaces.
For high pressure opera-
tion, pull back the nozzle
of the multi-adjustable
spray wand as shown.
For low pressure opera-
tion and detergent appli-
cation, extend the nozzle
of the variable spray
wand as shown.
The nozzle at the end of the variable
spray wand can be rotated to change
from the high pressure spray pattern
from a 0º pencil stream to a 40º fan
spray, as shown. Markings have been
placed on the nozzle to help you select
the spray pattern.
Risk of fluid injection. Do not direct discharge stream toward persons, unpro-
tected skin, eyes, or any pets or animals. Serious injury will occur.
10

PRESSURE WASHER OPERATING FEATURES - SPRAY WAND
The powerful spray from your pressure washer is capable of causing damage to surfac-
es such as wood, glass, automobile paint, auto striping and trim, and delicate objects such as flowers
and shrubs. Before spraying, check the items to be cleaned to assure yourself that it is strong enough
to resist damage from the force of the spray.

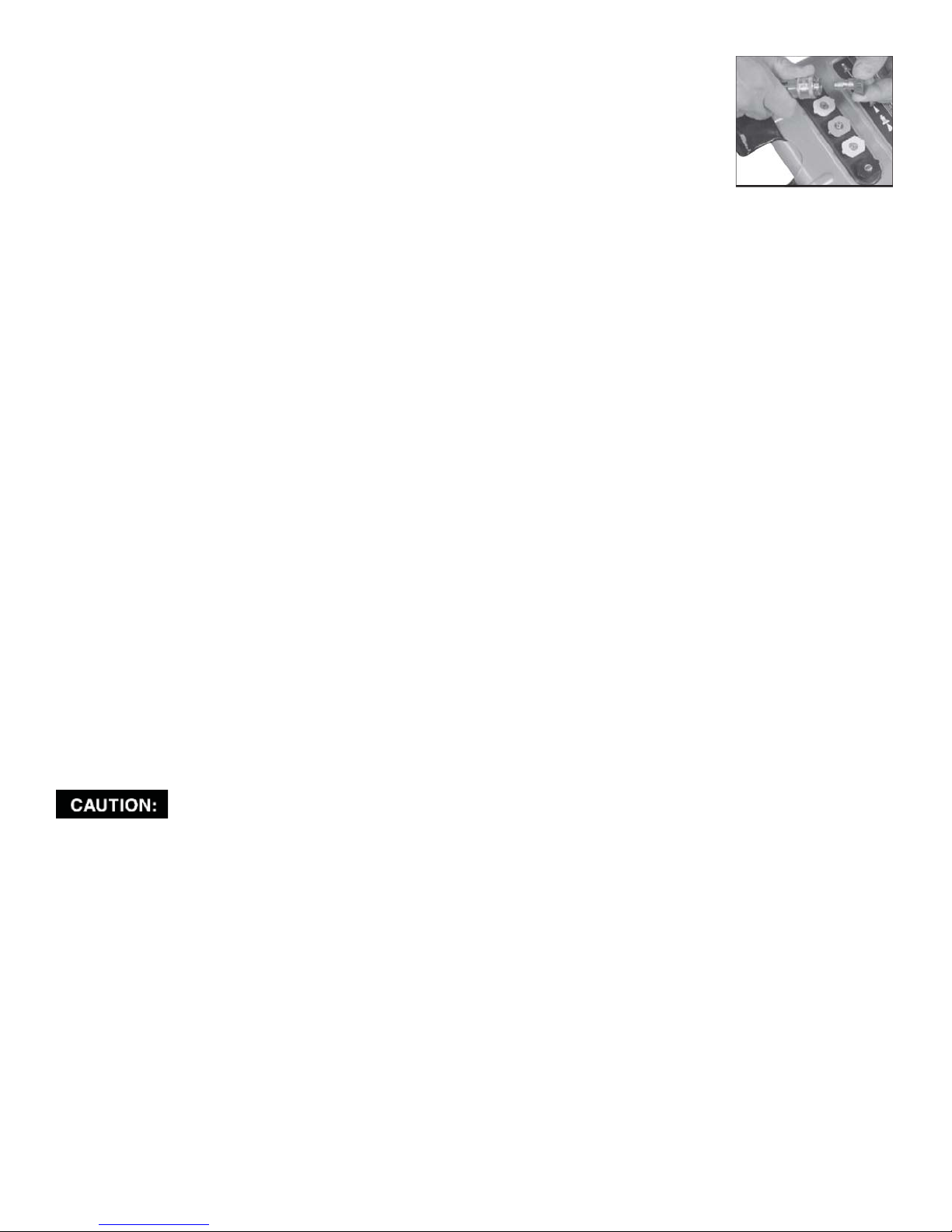

2) Quick Connect Nozzle Wand. This model may include a variety of quick connect nozzles with
different spray patterns. This Wand is commonly found on pressure washers with a PSI rating above
2500 PSI. The chart below explains the differences in the various nozzles. Note that not all machines
are shipped with every nozzle - check Carton Contents section of this manual to see which nozzles, if
any, are included with your pressure washer.
11
Nozzle Color Spray Pattern
0º
15º
25º
40º
Low Pressure
Red
Yellow
Green
White
Black
Uses Surfaces*
Extreme cleaning of
very hard surfaces cov-
ered in grease and oil.
Steel, Undamaged Concrete.
Intense cleaning of un-
painted hard surfaces.
Grills, driveways, concrete or brick walk-
ways, unpainted brick or stucco.
Standard cleaning
nozzle for most applica-
tions.
Yard tools, sidewalks, lawn furniture, un-
painted siding, stucco, gutters and eaves,
concrete, brick surfaces.
Cleaning of painted or
delicate surfaces.
Auto/RV, marine, wood, painted brick and
stucco, vinyl, painted siding.
Applies cleaning solu-
tions.
Low pressure spray is safe on all surfaces.
Always verify compatibility of cleaning solu-
tion prior to use.
* The powerful spray from your pressure washer is capable of causing damage to
surfaces such as wood, glass, automobile paint, auto striping and trim, and delicate objects such as
flowers and shrubs. Before spraying, check the items to be cleaned to assure yourself that it is strong
enough to resist damage from the force of the spray.

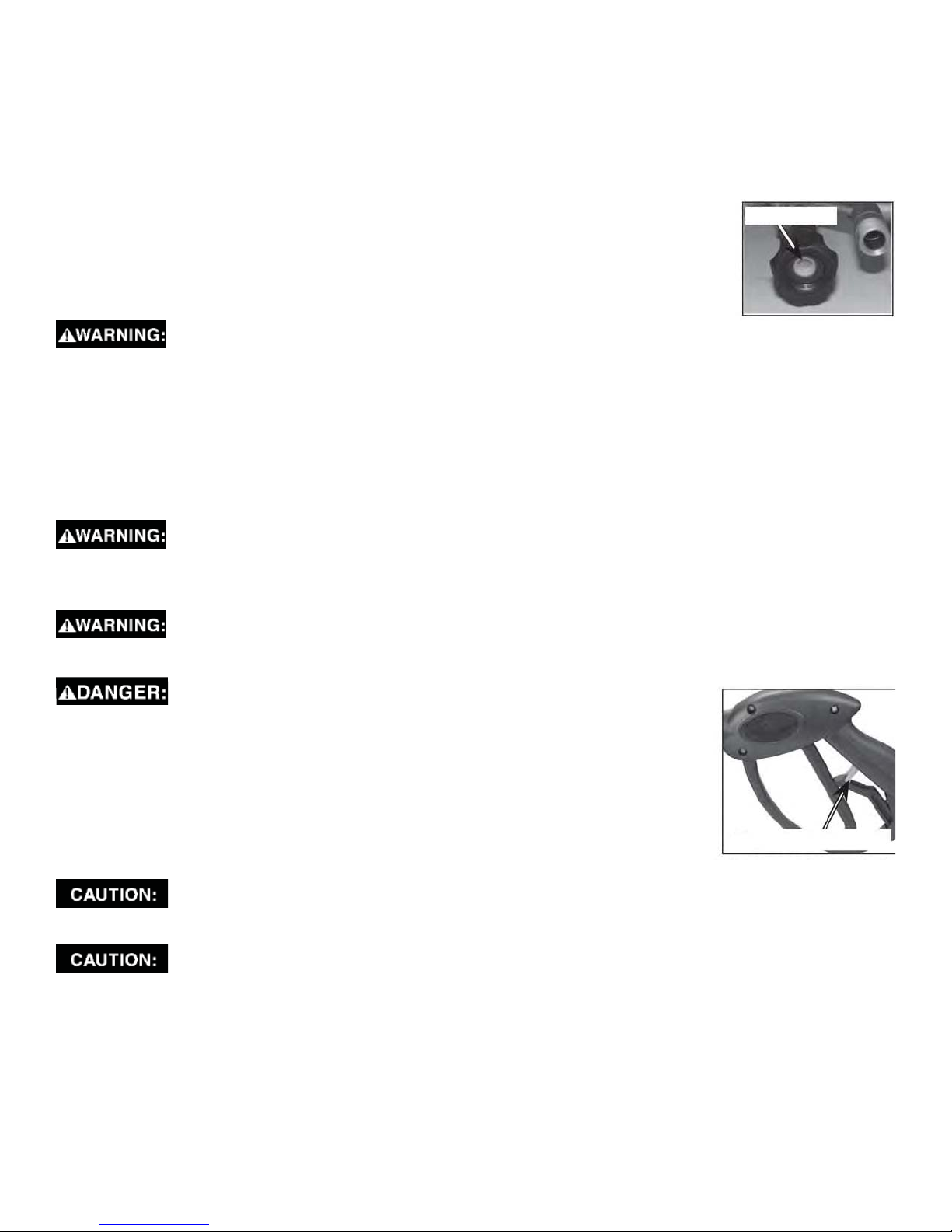

Changing Nozzle on the Spray Wand
Risk of fluid injection. Do not direct discharge stream toward persons, unpro-
tected skin, eyes, or any pets or animals. Serious injury will occur.
Flying objects could cause risk of serious injury. Do not attempt to change nozzles
while pressure washer is running. Turn engine off before changing nozzles.
Flying objects could cause risk of serious injury. Ensure nozzle is completely inserted in
quick connect socket snap ring is fully engaged (forward) before squeezing gun trigger.

12
Changing Nozzles on Spray Wand (continued)
1) Pull quick connect coupler back and insert nozzle.
2) Release quick connect coupler and twist nozzle to make sure it is secure
in the coupler.
How to Apply Chemicals / Cleaning Solvents
Applying chemicals or cleaning solvents is a low pressure operation. If your pressure washer is
equipped with a detergent siphon hose, follow steps 1-4. If your pressure washer is equipped with an
on-board detergent tank, follow steps 5-8:
DETERGENT SIPHON HOSE
1) Press chemical hose onto the barbed fitting located near the high pressure hose connection on the
pump.
2) Place other end of chemical hose with filter on it into container holding chemical/cleaning solution.
NOTE: For every 7 gallons of water pumped, one gallon on chemical/cleaning solution will be used.
3) Set your Wand to Low Pressure Setting either by inserting the Black Nozzle into your Wand or pull-
ing the Variable Wand Nozzle outwards. See How To use Spray Wand section in this owners manual.
4) After use of chemicals, place chemical hose into container of clean water and draw clean water
through chemical injection system to rinse thoroughly. If chemicals remain in the pump it could be
damaged. Pumps damaged due to chemicals will not be covered under warranty.
DETERGENT TANK
5) Fill your detergent tank with pre-mixed cleaning solutions designed for pressure washer use.
6) Check and make sure the “On-Off” valve for the tank is in the “On” position.
NOTE: For every 7 gallons of water pumped, one gallon on chemical/cleaning solution will be used.
7) Set your Wand to Low Pressure Setting either by inserting the Black Nozzle into your Wand or pull-
ing the Variable Wand Nozzle outwards. See How To use Spray Wand section in this owners manual.
8) After use of chemicals, refill your detergent tank with clean water and operate your chemical injec-
tion system to rinse it thoroughly. If chemicals remain in the pump it could be damaged. Pumps dam-
aged due to chemicals will not be covered under warranty.
NOTE: Only use soaps and chemicals designed for pressure washer use. Do not use bleach!
NOTE: Chemicals and soaps will not siphon when Variable Spray Wand is in the High Pressure Set-
ting, or if the Quick Connect Spray Wand is equipped with the Red, Yellow, Green, or White Nozzles.
Risk of property damage. Never pull water supply hose to move pressure washer.
This could damage the hose and/or the pump inlet.
• Do not use Hot water, only use cold water.
• Never turn water supply off while pressure washer engine is running, or damage to the pump will
occur!
• Do not stop spraying water for more than two minutes at a time. Pump operates in bypass mode
when spray gun trigger is not pressed. If pump is left in bypass mode for more than two minutes
internal components of the pump can be damaged.
If you do not understand these precautions, please go to www.power-washer.us
to speak to a service representative for further instructions.

13
Starting Your Pressure Washer
Prior to starting, refer to your Engine Owners Manual for the proper starting procedure.
1) In a well ventilated outdoor area add fresh, high quality, unleaded gasoline with a pump octane rat-
ing of 86 or higher. Do not overfill. Wipe up spilled fuel before starting engine. Refer to Engine
Owners Manual for correct procedure and fuel information.
2) Check engine oil level. See Engine Owners Manual for correct procedure.
3) Connect the water hose to the water source. Turn the water source on to
remove all air from the hose. When a steady stream of water is present, turn
the water source off.
4) Verify the filter screen is in the water inlet of the pump.
5) Connect water source to pump inlet. NOTE: Water Source must provide a
minimum of 5 gallons (18.9 liters) per minute at 20 PSI (137.9kPa).
To reduce the possibility of contamination always protect against backflow when
connected to a potable water system.
6) Connect high pressure hose to pump outlet.
7) If applying a chemical or cleaning solution, see How To Apply Chemicals/Cleaning Solvents
instructions in this manual.
8) Turn water source on.
9) Remove all air from the pump and high pressure hose by depressing trigger until a steady stream
of water is present.
10) Start engine. See Engine Owners Manual for correct procedure.
Risk of unsafe operation. If engine does not start after two pulls, squeeze trigger of
gun to relieve pump pressure. Pull starter cord slowly until resistance is felt, then pull cord rapidly to
avoid kickback and prevent hand or arm injury.
11) Depress trigger on gun to start water flow.
Risk of unsafe operation. Stand on a stable surface and grip gun/spray wand firmly
with both hands. Expect the gun to kick when triggered.
12) Release trigger to stop water flow.
Risk of injury from spray. Always engage the trigger lock when
gun is not in use. Failure to do so can cause accidental spraying.
13) Adjust Variable Spray Wand for task, or change Quick Connect Nozzle
based on the task at hand.
Shutting DownYour Pressure Washer
1) After each use, if you have applied chemicals, clean your chemical system
as described in How to Apply Chemicals / Cleaning Solvents section on
previous page.
Risk of Property Damage. Failure to clean chemical system could result in damage to
the pump.
2) Turn off the Engine. See Engine Owners Manual for complete details.
Risk of property damage. Never turn the water off with the engine running.
3) Turn off the water source.
4) Pull trigger on spray gun to relieve any water pressure in the hose or spray gun.
5) See Storage section in this manual for proper procedures.
Filter Screen
Trigger Lock Engaged

14
Risk of burn hazard. When performing maintenance, you may be exposed to hot
surfaces, water pressure, or moving parts that can cause serious injury or death.
Risk of fire hazard. Always disconnect spark plug wire, let engine cool, and
release all water pressure before performing any maintenance or repair. The
engine contains flammable fuel. Do not smoke or work near open flames while
performing maintenance.
To ensure efficient operation and longer life of your pressure washer, a routine maintenance schedule
should be prepared and followed. If the pressure washer is used in unusual conditions, such as high-
temperatures or dusty conditions, more frequent maintenance checks will be required.
ENGINE
Consult the Engine Owners Manual for the manufacturer’s recommendations for any and all mainte-
nance. NOTE: The engine drain plug is located at the rear of the unit.
PUMP
The pump was filled with oil at the factory. The pump on this unit is maintenance free and requires no
oil. If there is a problem with the pump contact us at www.power-washer.us
NOZZLE CLEANING
If the nozzle becomes clogged with foreign materials, such as dirt, excessive pressure may develop.
If the nozzle becomes partially clogged or restricted, the pump pressure will pulsate. Clean the noz-
zle immediately using the nozzle kit supplied and the following instructions:
1) Shut off the pressure washer and turn off the water supply.
2) Pull trigger on gun handle to relieve any water pressure.
3) Disconnect the spray wand from the gun.
NOTE: If you have a variable Spray Wand, continue with step #4. If you have Quick Connect Noz-
zles, proceed ahead to step #8.
4) Remove the nozzle from the end of the wand with a 2mm Allen
Wrench as shown.
5) Clean the nozzle using the nozzle cleaner provided, or a
straightened paper clip. Insert into the nozzle end and work
back and forth until the obstruction is removed.
6) Direct water supply into nozzle end to backflush loosened
particles for 30 seconds.
7) Insert the nozzle back into the wand using a 2mm Allen Wrench, and tighten securely.
8) Remove the high-pressure nozzle from the spray wand.
Remove any obstructions with the nozzle cleaning tool
provided, or a straightened paper clip, and work back and
forth until the obstruction is removed.
9) Direct water supply into nozzle end to backflush loosened particles for 30 seconds.
10) Reassemble the nozzle to the wand.
MAINTENANCE

15
Filter Screen
CLEAN THE WATER INLET FILTER
This screen filter should be checked periodically and cleaned if necessary.
1) Remove filter by grasping end and removing it from water inlet of pump.
2) Clean filter by flushing it with water on both sides.
3) Re-insert filter into water inlet of pump.
NOTE: Do not operate the pressure washer without filter properly installed.
STORAGE
ENGINE
Consult the Engine Owners Manual for manufacturer’s recommendations for storage.
PUMP
The manufacturer recommends using a pump protector/winterizer when storing the unit for more than
30 days and/or when freezing temperatures are expected. Pump protector/winterizer is usually avail-
able at the store where the pressure washer was purchased. If a pump protector/winterizer is not
available, RV antifreeze needs to be run through the pump as outlined in the steps below.
NOTE: Using a pump protector/winterizer or RV antifreeze is to provide proper lubrication to the inter-
nal seals of the pump regardless of temperature or environment.
1) Obtain a funnel, 6 ounces (170 mL) of RV Antifreeze, and
a 16” to 36” (40-91cm) section of garden hose with a male
hose connector attached to one end.
Risk of Property Damage. Use only RV
Antifreeze. Any other antifreeze is corrosive
and can damage the pump.
2) Disconnect the spark plug wire.
3) Connect the length of garden hose to the water inlet of the
pump.
4) Add RV Antifreeze to hose as shown.
5) Pull starter rope slowly several times until antifreeze comes
out of the high pressure hose connection of the pump.
6) Remove garden hose from water inlet of pump.
7) Reconnect spark plug wire.
PRESSURE WASHER
1) Drain all water from high pressure hose, coil it, and store it in cradle of the pressure washer handle.
2) Drain all water from the spray gun and wand by holding spray gun in a vertical position with nozzle
end pointing down and squeezing trigger. Store in gun holder.
3) Store chemical hose, if so equipped, so it is protected from damage.
REPAIRS
To assure product SAFETY and RELIABILITY, repairs, maintenance, and adjustment should be per-
formed by an Authorized Warranty Service Center. Always use identical replacement parts. For the
location of the nearest Authorized Service Center go to www.power-washer.us

Recommended accessories for use with our pressure washer are available for purchase from your
local retailer or authorized service center. if you need assistance in locating any accessory for your
pressure washer, please go to www.power-washer.us
Risk of fluid injection. When using replacement lances or guns with this pres-
sure washer, DO NOT use a lance and/or lance/gun combination that is shorter in
length than what was provided with this pressure washer as measured from the
nozzle end of the lance to the gun trigger.
The use of any other accessory not recommended for use with this tool could be haz-
ardous. use only accessories rated equal to or greater than the rating of the pressure
washer.
ACCESSORIES
TROUBLE SHOOTING GUIDE
PROBLEM CAUSE CORRECTION
Engine will not
start (see Engine
manual for further
troubleshooting).
No Fuel
Pressure builds up after two pulls on
the recoil starter or after initial use.
Choke level in the “No Choke” position.
Spark plug wire not attached.
Engine Switch in the “OFF” Position.
Choke lever in the “CHOKE” position
on a “hot” engine or an engine that has
been exposed to thermal heat for a
long period of time.
Add fuel.
Squeeze gun trigger to relieve pres-
sure.
Move choke to the “CHOKE” position.
Attach spark plug wire.
Place engine switch in “ON” Position.
Move choke to the “NO CHOKE” posi-
tion.
No or low pressure
(initial use).
Continued on next
page.
Variable Spray Wand not in High Pres-
sure Position.
Low Water Supply.
Leak at high pressure hose fitting.
Nozzle Obstructed.
Water Filter Screen Clogged.
Air in hose.
See How to Use Spray Wand instruc-
tions.
Water Supply must be at least 5 GPM
and 20 PSI.
Repair Leak. Apply sealant tape if
necessary.
See Nozzle Cleaning instructions.
Remove and clean filter.
Turn off the engine, then the water
source. Disconnect the water source
from the pump inlet and turn the water
source on to remove all the air from the
hose. When a steady stream of water
is present, turn the water source off.
Re-connect water source to pump inlet
and turn on water source. Squeeze
trigger to remove remaining air.
16

17
TROUBLE SHOOTING GUIDE (continued)
PROBLEM CAUSE CORRECTION
No or low pressure
(initial use).
Choke in the “CHOKE” Position.
High pressure hose is too long.
Move choke to the “NO CHOKE” posi-
tion.
Use high pressure hose under 100 feet
(30m).
Will not draw
chemicals.
No or low pressure
(after period of
normal use).
Water leaking at
gun/spray wand
connection.
Water leaking at
pump.
Pump pulsates.
Spray wand not in low pressure.
Chemical filter is clogged.
Chemical screen not in cleaning solu-
tion.
Chemical is too thick.
Pressure hose is too long.
Chemical build up in chemical injector.
Worn seal or packing.
Worn or obstructed valves.
Worn unloader piston.
Work or broken o-ring.
Loose Hose Connection.
Loose Connections.
Piston packings worn.
Work or broken o-rings.
Pump head or tubes damaged from
freezing.
Nozzle Obstructed.
See How to Use Spray Wand section.
Clean filter.
Make sure end of chemical hose is
fully submerged into cleaning solution.
Dilute chemical. Chemical should be
the same consistency as water.
Lengthen water supply hose instead of
high pressure hose.
Have parts cleaned or replaced by
Authorized Service Center.
Have parts cleaned or replaced by
Authorized Service Center.
Have parts cleaned or replaced by
Authorized Service Center.
Have parts cleaned or replaced by
Authorized Service Center.
Check and Replace
Tighten.
Tighten.
Have parts cleaned or replaced by
Authorized Service Center.
Have parts cleaned or replaced by
Authorized Service Center.
Have parts cleaned or replaced by
Authorized Service Center.
See Nozzle Cleaning paragraph in
MAINTENANCE section for the correct
procedure.

18
WARRANTY STATEMENT
At SIMPSON CLEANING SYSTEMS, we only distribute top quality industrial / commercial / personal
pressure washers that are designed for light- and heavy-duty use, maximum reliability, durability, and
long life. Our pressure washers are built for their respective duty applications and steady use due to
higher quality levels.
The manufacturer of this product agrees to repair or replace designated parts that prove defective
within the warranty period listed in the chart below. Specific limitations/extensions and exclusions ap-
ply, and are listed in the chart below. This warranty covers defects in material and workmanship and
not parts failure due to normal wear, depreciation, abuse, accidental damage, negligence, improper
use, maintenance, or storage. To make a claim under the terms of the warranty, all parts said to be
defective must be available or returned (if requested) to a SIMPSON CLEANING SYSTEMS desig-
nated Warranty Service Center for warranty inspection. The judgments and decisions of the Warranty
Service Center concerning the validity of warranty claims are final.
These warranties pass through to the end user. As a factory authorized and trained Warranty Service
Center the factory will honor the terms of all component warranties and satisfy claims of the appropri-
ate warranty provisions.
Normal wear items include, but are not limited to, Valves and Seals, which are not covered by this
warranty.
This Warranty replaces all other warranties, express or implied, including without limitation any war-
ranties of merchantability or fitness for a particular purpose and all such warranties are hereby dis-
claimed and excluded by the manufacturer. The Manufacturer’s warranty obligation is limited to repair
and replacement of defective products as provided herein and the Manufacturer shall not be liable for
any further loss, damages, or expenses – including damages from shipping, accident, abuse, acts of
God, misuse, or neglect. Neither is damage from repairs using parts nor purchased from the manu-
facturer or alterations performed by non-factory authorized personnel. Failure to install and operate
equipment according to the guidelines put forth in the instruction manual shall void warranty.
This warranty does not cover the following: machines used for rental purposes, damage resulting from
shipping (claims must be filed with shipping company), accident, abuse, act of God, misuse, or ne-
glect. Neither is damage from repairs or alterations performed by non-factory authorized personnel or
failure to install and operate equipment according to the guidelines put forth in the instruction manual.
The manufacturer will not be liable to any persons for consequential damage, for personal injury, or for
commercial loss.
SIMPSON WARRANTY CONTINUED ON NEXT PAGE

19
Warranty Period and Details for Specific Parts & Components
High Pressure Electric Axial Pumps:
One (1) year on pump & motor workmanship, defects, or material.
Warranty does not apply to failures on other pump parts due to:
• Freight damage
• Freeze damage
• Damage caused by parts or accessories not obtained from / or approved by SIMPSON
CLEANING SYSTEMS
• Normal wear of moving parts or components affected by moving parts
• Unfiltered Hard Water
High Pressure Gas Axial Pump:
One (1) year on pump workmanship, defects, or material.
Warranty does not apply to failures on other pump parts due to:
• Freight damage
• Freeze damage
• Damage caused by parts or accessories not obtained from / or approved by SIMPSON
CLEANING SYSTEMS
• Normal wear of moving parts or components affected by moving parts
• Unfiltered Hard Water
High Pressure Triplex Pump:
Five (5) years on pump workmanship, defects, or material.
Lifetime Warranty on the forged brass manifold.
This warranty is covered by the Triplex Pump Manufacturer’s Warranty (included with Pressure Wash-
er when shipped).
Warranty does not apply to failures on other pump parts due to:
• Freight damage
• Freeze damage
• Damage caused by parts or accessories not obtained from / or approved by SIMPSON
CLEANING SYSTEMS
• Normal wear of moving parts or components affected by moving parts.
Engine:
The engine warranty is covered under the terms and conditions as outlined by the engine manufac-
turer’s warranty (included with the owner’s manual) and is the sole responsibility of the engine manu-
facturer.
Machine Steel Frame:
One (1) year from date of first start up.
Accessories:
Ninety (90) days. Includes tips, guns, wands, injectors, unloaders, hose reel, brushes, foamers, GFCI
units, thermal relief, filters, tanks, wheels, tires, etc.

20
SIMPSON© 2010, a division of The FNA Group. All Rights Reserved. In our effort towards Continu-
ous Improvement, specifications are subject to change without notice.
Part Number 1234567
1825 Greenleaf Avenue Elk Grove Village, IL 60007 www.power-washer.us
2600 / 3000
2.3 / 2.5
