Simrad 200-7F - REV C User manual

TRANSDUCER
Simrad 200-7F
200 kHz Single-beam transducer
(855-164021 Rev.C)
Introduction

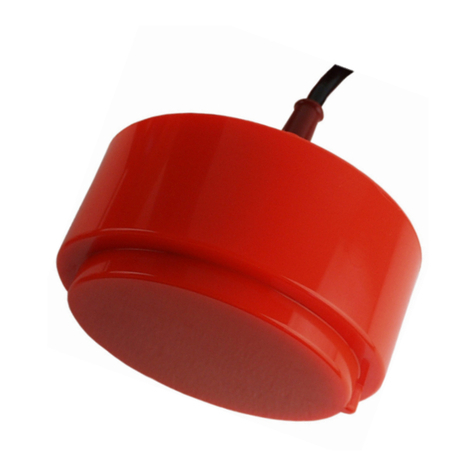

The 200-7F is a compact, single-beam transducer in
a streamlined housing intended for hull mounting
on smaller vessels.
Order number
KSV-065414
Technical specications
Resonant frequency.......................................200 kHz
Circular beamwidth......................................7 deg ±1
Directivity index ............................................28.5 dB
Equivalent two-way beam angle...................-21.0 dB
re 1 steradian
Impedance:
Nominal...................................................60 ohms
Max. variation in |Z| .........................45 - 80 ohms
Max variation in phase angle ...................±30 deg
Transmitting response.............................180.0 dB ±2
re 1µPa per V
Receiving sensitivity, open circuit ........... -185 dB ±2
re 1V per µPa
Electroacoustic efciency:
Typical ............................................................0.75
Minimum........................................................0.50
Maximum input power...................................1000 W
Maximum duty cycle (at max power)..................0.02
Maximum installation depth .............................. 20 m
Cable length ....................................................... 15 m
Weight without cable .......................................1.9 kg
Storage temperature ................................-20 to 70 °C

Manufacturer:
Simrad AS
Strandpromenaden 50
P.O.Box 111
N-3191 Horten
Telephone: [phone]
