Sinclair MV-D BI Series User manual

Contents
1. Safety Precautions ................................................................................................. 1
2. Operation of remote controller................................................................................ 3
3. Error Analysis ....................................................................................................... 10
4. Maintenance..........................................................................................................11
5. S
afety operat. ion of flammable refriger.ant .............................................................. 12

User Notice
◆The total capacity of the indoor units which runs at the same time can not
exceed 150% of that of the outdoor units; otherwise, the cooling (heating) effect of each
indoor unit would be poor.
◆Switch the main power on 8 hours before start the unit, helpful for a successful
startup.
◆It is a normal phenomenon that the indoor unit fan will still run for 20~70
seconds after the indoor unit receives the “stop” signal so as to make full use of
after-heat for the next operation.
◆When the running modes of the indoor and outdoor units conflict, it will be
indicated on the display of the wired controller in five seconds and then the indoor unit
will stop. In this case, they can back to the normal condition by harmonizing their
running modes: the cooling mode is compatible with the dehumidifying mode and the
fan mode can go with any other mode. If the supply power fails when the unit is running,
then the indoor unit will send the “start” signal to the outdoor unit three minutes later
after power recovery.
◆During installation, the communication cable and the power cord must not be
twisted together but instead separated with an interval of at least 2cm; otherwise the
unit is likely to run abnormally.
◆This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the appliance
by a person responsible for their safety. Children should be supervised to ensure that
they do not play with the appliance.
◆If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
◆This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall not be made by children
without supervision.

◆If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
◆The appliance shall be installed in accordance with national wiring regulations.
Correct Disposal of this product
This marking indicates that this product should not be disposed
with other household wastes throughout the EU. To prevent possible
harm to the environment or human health from uncontrolled waste
disposal, recycle it responsibly to promote the sustainable reuse of
material resources. To return your used device, please use the return
and collection systems or contact the retailer where the product was
purchased. They can take this product for environmental safe
recycling.
R32:675
Appliance shall be installed, operated and stored in a room with a floor area
Please notice that the unit is filled with flammable gas R32. Inappropriate
larger than Xm .
treatment of the unit involves the risk of severe damages of people and
material. Details to this refrigerant are found in chapter “refrigerant”.
2(Please refer to table "a" in section of " Safety Operation of
Inflammable Refrigerant" for Space X.)

The Refrigerant
WARNING
To realize the function of the air conditioner unit, a special refrigerant circulates in
the system. The used refrigerant is the fluoride R32, which is specially cleaned.
The refrigerant is flammable and inodorous. Furthermore, it can leads to explosion
under certain conditions. But the flammability of the refrigerant is very low. It can
be ignited only by fire.
Compared to common refrigerants, R32 is a nonpolluting refrigerant with no harm
to the ozonosphere. The influence upon the greenhouse effect is also lower. R32
has got very good thermodynamic features which lead to a really high energy
efficiency. The units therefore need a less filling.
Do not use means to accelerate the defrosting process or to clean, other than those
recommended by the manufacture. Should repair be necessary, contact your nea-
rest authorized Service Centre. Any repairs carried out by unqualified personnel
may be dangerous. The appliance shall be stored in a room without continuously
operating ignition sources. (for example: open flames, an operating gas appliance
or an operating electric heater.) Do not pierce or burn.
Appliance shall be installed, operated and stored in a room with a floor area larger
than Xm .(Please refer to table "a" in section of " Safety Operation of Inflammable
Refrigerant" for Space X.)
Appliance filled with flammable gas R32. For repairs, strictly follow manufacturer’s
instructions only. Be aware that refrigrants not contain odour. Read specialist’s
manual.
2
Appliance filled with flammable gas R32.
Before use the appliance, read the owner’s manual first.
Before repair the appliance, read the service manual first.
Before install the appliance, read the installation manual first.

1
1. Safety Precautions
Please read this manual carefully before use and operate correctly as instructed in
this manual.
Please especially take notice of the following two symbols：
Warning! It indicates improper operation which will lead to human casualty or
sever injury.
Caution! It indicates improper operation which will lead to injury or property
damage.
Warning!
◆The installation should be committed to the appointed service center; otherwise
it all cause water leakage, electric shock or fire etc.
◆Please install the unit where is strong enough to withstand the weight of the unit;
otherwise, the unit would fall down and cause injury or death.
◆The drain pipe should be installed as instructed in the manual to guarantee the
proper drainage; meanwhile it should be insulated to prevent condensing; otherwise the
improper installation would cause water leakage and then wet the household wares in
the room.
◆Do not use or place any inflammable or explosive substance near the unit.
◆Under the occurrence of an error (like burning smell etc.), please cut off the main
power supply of the unit.
◆Keep good ventilation in the room to avoid oxygen deficit.
◆Never insert your finger or any other object into the air outlet/inlet grille.
◆Please take notice of the supporting frame of the unit to see if it is damaged over
the long time period of use.
◆Never refit the unit and contact the sales agent or the professional installation
personnel for the repair or relocation of the unit.
An all-pole disconnection switch having a contact separation of at least 3mm in all
poles should be connected in fixed wiring.
Caution!
◆Before installation, please check if the power supply corresponds with the

2
requirement specified on the nameplate and also check its security.
 ◆Before use, please check if the piping and wiring are correct to avoid water
leakage, refrigerant leakage, electric shock, fire etc.
 ◆The main power supply must be earthed to avoid the hazard of electric shock
and never connect this earth wire to the gas pipe, running water pipe, lightening rod or
phone cable’s earth lead.
 ◆Turn off the unit after it runs at least five minutes; otherwise its service life will be
shortened.
 ◆Do not allow children operate this unit.
 ◆Do not operate this unit with wet hands.
 ◆Cut off the main power supply prior to the cleaning of the unit or the replacement
of the air filter.
 ◆When the unit is not to be used for a long time, please cut off the main power
supply of the unit.
 ◆Do not expose the unit to the moist or corrosive circumstances.
 ◆After the electric installation, please take an electric leakage test.

7
2
1
8
10
12
15
14
13
11
9
6
5
4
3
1ON/OFF button
2MODE button
3+/- button
4FAN button
5I FEEL button
11 X-FAN button
Note: X-FAN is the same with BLOW
12 TEMP button
13 TURBO button
15 LIGHT button
14 SLEEP button
10 TIMER ON/TIMER OFF
button
9CLOCK button
Send signal
Turbo mode
X-fan mode
Set temperature
Set time
TIMER ON / TIMER OFF
Child lock
Up & down swing
Set fan speed
AIR function
I feel
Light
Temp. display type
:Set temp.
:Outdoor ambient temp.
:Indoor ambient temp.
Sleep mode
Clock
Health function
Heat mode
Fan mode
Dry mode
Cool mode
Auto mode
Operation mode
8button
6button
7button
2 Operation of remote controller
2.1 Buttons on remote controller
2.2 Introduction for icons on display screen
3

● After selecting auto mode, air conditioner will operate automatically according to
ambient temperature. Set temperature can’t be adjusted and will not be displayed
as well. Press "FAN" button can adjust fan speed. Press " " button can adjust
fan blowing angle.
● After selecting cool mode, air conditioner will operate under cool mode. Press "+"
or "-" button to adjust set temperature. Press "FN" button to adjust fan speed.
Press " " button to adjust fan blowing angle.
● When selecting dry mode, the air conditioner operates at low speed under dry
mode. Under dry mode, fan speed can’t be adjusted. Press " " button to adjust
fan blowing angle.
● When selecting fan mode, the air conditioner will only blow fan, no cooling and
no heating. All indicators are OFF. Operation indicator is ON. Press "FAN" button
to adjust fan speed. Press
● When selecting heating mode, the air conditioner operates under heat mode.
Press "+" or "-" button to adjust set temperature. Press "FAN" button to adjust
fan speed. Press " " button to adjust fan blowing angle. (Cooling only unit won’t
receive heating mode signal. If setting heat mode with remote controller, press
ON/OFF button can’t start up the unit).
Note:
● For preventing cold air, after starting up heating mode, indoor unit will delay 1~5
minutes to blow air (actual delay time is depend on indoor ambient temperature).
● Set temperature range from remote controller: 16~30℃; Fan speed: auto, low
speed, medium speed, high speed.
Note:
● After putting through the power, the air conditioner will give out a sound.
After that, you can operate the air conditioner by using remote controller.
ON/OFF button
MODE button
1
2
Press this button can turn on or turn off the air conditioner. After turning on the air
conditioner, operation indicator " "on indoor unit’s display is ON (green indicator.
The colour is different for different models), and indoor unit will give out a sound.
Press this button to select your required operation mode.
AUTCOOLO FANDRY HEAT
" " button to adjust fan blowing angle.
● This is a general use remote controller, it could be used for the air conditioners
with multifunction; For some function, which the model doesn't have, if press
the corresponding button on the remote controller that the unit will keep the
original running status.
4
2.3 Introduction for buttons on remote controller

FAN button
I FEEL button
4
5
6
7
Pressing this button can set fan speed circularly as: auto (AUTO), low( ) ,medium
( ), high( ).
Note:
● Under AUTO Speed,IDU fan motor will adjust the fan speed (high, medium or
low speed) according to ambient temperature.
● Fan speed under dry mode is low speed.
Press this button to start I FEEL function and " " will be displayed on the remote
controller. After this function is set, the remote controller will send the detected
ambient temperature to the controller and the unit will automatically adjust the
indoor temperature according to the detected temperature. Press this button again
to close I FEEL function and " " will disappear.
● Please put the remote controller near user when this function is set. Do not put
the remote controller near the object of high temperature or low temperature in
order to avoid detecting inaccurate ambient temperature.
Press this button to set HEALTH function ON or OFF. After the unit is turned on, it
defaults to HEALTH function ON.
Press this button to select AIR function ON or OFF.
button
button
(Only available for some models)
● This function is applicable to partial of models.
Auto
+/- button
3
● Press "+" or "-" button once increase or decrease set temperature 1℃.
Holding "+" or "-" button, 2s later, set temperature on remote controller will
tor on indoor unit will change accordingly. (Temperature can’t be adjusted under
auto mode)
● When setting TIMER ON, TIMER OFF or CLOCK, press "+" or "-" button to
adjust time. (Refer to CLOCK, TIMER ON, TIMER OFF buttons) When setting
TIMER ON, TIMER OFF or CLOCK, press "+" or "-" button to adjust time. (Refer
to CLOCK, TIMER ON, TIMER OFF buttons)
● When I FEEL function is turned on, the remote controller should be put within the
area where indoor unit can receive the signal sent by the remote controller.
5

Press this button to set clock time. " " icon on remote controller will blink. Press
"+" or "-" button within 5s to set clock time. Each pressing of "+" or "-" button, clock
time will increase or decrease 1 minute. If hold "+" or "-" button, 2s later, time will
change quickly. Release this button when reaching your required time. Press
"CLOCK" button to confirm the time. " " icon stops blinking.
Note:
● Clock time adopts 24-hour mode.
●The interval between two operation can’t exceeds 5s. Otherwise, remote contro-
ller will quit setting status. Operation for TIMER ON/TIMER OFF is the same.
CLOCK button
9
TIMER ON / TIMER OFF button
10
●TIMER ON button
"TIMER ON" button can set the time for timer on. After pressing this button, " "
icon disappears and the word "ON" on remote controller blinks. Press "+" or "-"
button to adjust TIMER ON setting. After each pressing "+" or "-" button, TIMER
ON setting will increase or decrease 1min. Hold "+" or "-" button, 2s later, the
time will change quickly until reaching your required time.
Press "TIMER ON" to confirm it. The word "ON" will stop blinking. " " icon
resumes displaying. Cancel TIMER ON: Under the condition that TIMER ON is
8
Press this button can select up&down swing angle. Fan blow angle can be selected
circularly as below:
● When selecting " ", air conditioner is blowing fan automatically. Horizontal
louver will automatically swing up & down at maximum angle.
● When selecting " 、、、、 ", air conditioner is blowing fan at fixed
position. Horizontal louver will stop at the fixed position.
● When selecting " 、、 " , air conditioner is blowing fan at fixed angle.
Horizontal louver will send air at the fixed angle.
● Hold " "button above 2s to set your required swing angle. When reaching your
required angle, release the button.
Note:
● " 、、 " may not be available. When air conditioner receives this signal, the
air conditioner will blow fan automatically.
button
no display
(horizontal louvers stops
at current position)
6

started up, press "TIMER ON" button to cancel it.
●TIMER OFF button
"TIMER OFF" button can set the time for timer off. After pressing this button," "
icon disappears and the word "OFF" on remote controller blinks. Press "+" or "-"
button to adjust TIMER OFF setting. After each pressing "+" or "-" button, TIMER
OFF setting will increase or decrease 1min. Hold "+" or "-" button, 2s later, the
time will change quickly until reaching your required time.
Press "TIMER OFF" word "OFF" will stop blinking. " " icon resumes displaying.
Cancel TIMER OFF. Under the condition that TIMER OFF is started up, press
"TIMER OFF" button to cancel it.
Note:
● Under on and off status, you can set TIMER OFF or TIMER ON simultaneously.
● Before setting TIMER ON or TIMER OFF, please adjust the clock time.
●After starting up TIMER ON or TIMER OFF, set the constant circulating valid.
After that, air conditioner will be turned on or turned off according to setting time.
ON/OFF button has no effect on setting. If you don’t need this function, please
use remote controller to cancel it.
X-FAN button
11
12
Press this button under cool and dry mode to start up x-fan function, and " " icon
on remote controller will be displayed. Press this button again to cancel x-fan
function, and " "icon will disappear.
Note:
● When x-fan function is on, if the air conditioner is turned off, indoor fan will still
operate at low speed for a while to blow the residual water inside the air duct.
● During x-fan operation, press X-FAN button to turn off x-fan function. Indoor fan
will stop operation immediately.

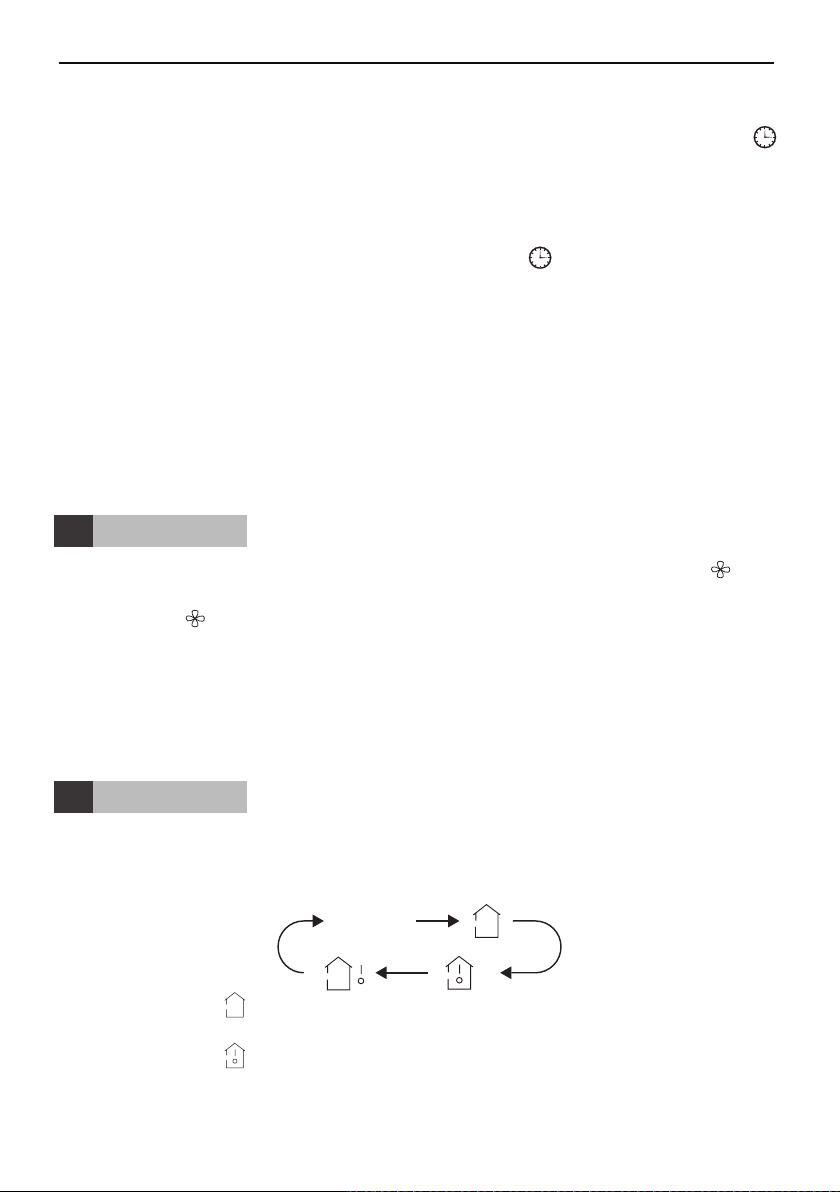

TEMP button
By pressing this button, you can see indoor set temperature, indoor ambient temp-
erature or outdoor ambient temperature on indoor unit’s display. The setting on
remote controlleris selected circularly as below:
no display
● When selecting " " or no display with remote controller, temperature indicator
on indoor unit displays set temperature.
● When selecting " " with remote controller, temperature indicator on indoor unit
displays indoor ambient temperature.
7

TURBO button
13
Under COOL or HEAT mode, press this button to turn to quick COOL or quick
HEAT mode. " " icon is displayed on remote controller. Press this button again
to exit turbo function and " " icon will disappear.
Child lock function
Press "+" and "-" simultaneously to turn on or turn off child lock function. When
child lock function is on, " " icon is displayed on remote controller. If you operate
the remote controller, the " " icon will blink three times without sending signal to
the unit.
Temperature display switchover function
Under OFF status, press "-" and "MODE" buttons simultaneously to switch temp-
erature display between ℃and ℉.
Press this button to turn off display light on indoor unit. " " icon on remote
controller disappears. Press this button again to turn on display light. " " icon is
displayed.
SLEEP button
LIGHT button
14
15
● When selecting " " with remote controller, temperature indicator on indoor unit
displays outdoor ambient temperature.
Note:
● Outdoor temperature display is not available for some models. At that time, indoor
unit receives " "signal, while it displays indoor set temperature.
● It’s defaulted to display set temperature when turning on the unit.There is no
display in the remote controller.
● Only for the models whose indoor unit has dual-8 display.
● When selecting displaying of indoor or outdoor ambient temperature, indoor
temperature indicator displays corresponding temperature and automatically turn
Under COOL, HEAT mode, press this button to start up sleep function. " " icon
is displayed on remote controller. Press this button again to cancel sleep function and
" " icon will disappear.
8
2.4 Function introduction for combination buttons

1. After putting through the power, press "ON/OFF" button on remote controller to
turn on the air conditioner.
2. Press "MODE" button to select your required mode: AUTO, COOL, DRY, FAN,
HEAT.
3. Press "+" or "-" button to set your required temperature. (Temperature can’t be
adjusted under auto mode).
4. Press "FAN" button to set your required fan speed: auto, low, medium and high
speed.
5. Press " " button to select fan blowing angle.
1. Press the back side of remote controller marked
the cover of battery box along the arrow direction.
2. Replace two 7# (AAA 1.5V) dry batteries, and
make sure the position of "+" polar and "-" polar
are correct.
3. Reinstall the cover of battery box.
signal sender battery
Cover of battery box
remove
reinstall
NOTICE
● During operation, point the remote control signal sender at the receiving
window on indoor unit.
●The distance between signal sender and receiving window should be no
more than 8m, and there should be no obstacles between them.
or wireless telephone; remote controller should be close to indoor unit during
operation.
● Replace new batteries of the same model when replacement is required.
● When you don’t use remote controller for a long time, please take out the
batteries.
● If the display on remote controller is fuzzy or there’s no display, please
replace batteries.
9
2.5 Operation guide
3.6 Replacement of batteries in remote controller

10
3Error Analysis
If your conditioning unit runs abnormally, please check the following items before
contact the maintenance serviceman.
Table 9
Errors Possible Causes
Failed startup
There is no power supply.
The breaker opens owing to electrical leakage.
Voltage is too low.
Stop after a short while of
operation
The air inlet/outlet of the indoor/outdoor unit is clogged.
Poor cooling effect
The air filter screen is too dirty or clogged.
There are too much heat sources or people in the room.
The door or window is open.
There are obstacles at the air inlet/outlet.
The set temperature is too high.
poor heating effect
The air filter screen is too dirty or clogged.
The door or window is not closed fully.
The set temperature is too low.
uncontrollable controller
If the remote controller crashes even if the batteries have been
replaced, please open the back cover of it and press the button “ACL”
to let it back to the normal condition.
Is the remoter controller in the signal receiving range? Or is it
blocked by obstacles?
For the duct type unit, operate the remote controller pointing at the
wired controller.
Check if the voltage of the batteries of the wired controller is enough;
or change them.
Note:
If the air conditioner still runs abnormally after the above check and handling,
please contact the maintenance serviceman at the local appointed service
center.

11
4Maintenance
airyourcleanbeforeitemsfollowingtheofnoticeTakeCAUTION!
conditioning unit.
①. Cut off the main power supply before contact any wiring device.
②. Only when the unit is turn off and the main power supply is cut off, can the unit
be cleaned; otherwise it would cause an electric shock or injury.
③. Do not wash the unit with water; or it may cause an electric shock.
④. During the cleaning, remember to use the stable standing platform Daily
Maintenance.
a. How to clean the filter
1) Never dismantle the air filer except for cleaning; otherwise it may cause some
error.
2) When the air conditioning unit is used under the environment with heavy dust,
the air filter should be cleaned often (generally once every two weeks).
b. Maintenance before seasonal use
1) Check if the air inlet/outlet of the indoor unit is clogged.
2) Check if the earthing is in good condition.
3) Check if the wiring is in good condition.
4) Check if the indicating lamp of the wired controller blinks after it is energized.
Note: If someisthere aftertheconsultpleaseabnormal,thing -sales
serviceman.
c. Maintenance after seasonal use
1) Let the air conditioning unit run for half day under the fan mode to dry the
inside of the unit.
2) If the unit is not to be used for a long time, please shut off the main power
supply for energy conservation, at the same time, the power indicating lamp of the
wired control will go off.

Maintenance notes
Check whether the maintenance area or the room area meet the requirement of the
nameplate.
- It’s only allowed to be operated in the rooms that meet the requirement of the
Check whether the maintenance area is well-ventilated.
- The continuous ventilation status should be kept during the operation process.
Check whether there is fire source or potential fire source in the maintenance area.
- The naked flame is prohibited in the maintenance area; and the “no smoking”
warning board should be hanged.
nameplate.
Check whether the appliance mark is in good condition.
- Replace the vague or damaged warning mark.
/
/
/
/14.5 16.8 19.3 22 24.8 27.8 31 34.3 37.8 41.5 45.4 49.4 53.6
7 7.9 8.9 10 11.2 12.4 13.6 15 16.3 17.8 19.35.2 6.1
1.6 1.9 2.1 2.4 2.8 3.1 3.4 3.8 4.2 65.554.6
1.1 1.3 1.4 1.6 1.8 2.1 2.3 2.6 2.8 3.1 3.4 3.7 4
floor location
wall mounted
window mounted
ceiling mounted
Minimum
room 2
area( m )
12
5
Safety operation of flammable refrigerant
Qualification requirement for installation and maintenance man
All the work men who are engaging in the refrigeration system should bear the
valid certification awarded by the authoritative organization and the qualification
for dealing with the refrigeration system recognized by this industry. If it needs
other technician to maintain and repair the appliance, they should be supervised
by the person who bears the qualification for using the flammable refrigerant.
It can only be repaired by the method suggested by the equipment’s manufacturer.
Installation notes
The air conditioner is not allowed to use in a room that has running fire (such as fire
source, working coal gas ware, operating heater).
It is not allowed to drill hole or burn the connection pipe.
The air conditioner must be installed in a room that is larger than the minimum room
area. The minimum room area is shown on the nameplate or following table a.
Leak test is a must after installation.
table a - Minimum room area ( m )
2
Charge amount (kg)
 ≤1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2  2.1 2.2  2.3 2.4  2.5

NOTE CONCERNING PROTECTION OF
ENVIRONMENT
This product must not be disposed of via normal household waste after its service life, but must be
taken to a collection station for the recycling of electrical and electronic devices. The symbol on the
product, the operating instructions or the packaging indicate such disposal procedures. The materials
are recyclable in accordance with their respective symbols. By means of re-use, material recycling or
any other form of recycling old appliances you are making an important contribution to the protection
of our environment. Please ask your local council where your nearest disposal station is located.
INFORMATION CONCERNING USED REFRIGERANT
MEDIUM
This unit is containing fluorinated gases included in the Kyoto protocol. The maintenance and the liquidation must be
carried out by qualified personnel.
Type of refrigerant: R32
The quantity of the refrigerant: please see the unit label.
The value GWP: 675 (1 kg R32 = 0,675 t CO2 eq)
GWP = Global Warming Potential
Appliance filled with flammable gas R32.
In case of quality problem or other please contact your local supplier or authorized service center.
Emergency number: 112
PRODUCER
SINCLAIR CORPORATION Ltd.
1-4 Argyll St.
London W1F 7LD
Great Britain
www.sinclair-world.com
This product was manufactured in China (Made in China).
REPRESENTATIVE
SINCLAIR Global Group s.r.o.
Purkynova 45
612 00 Brno
Czech Republic
TECHNICAL SUPPORT
SINCLAIR Global Group s.r.o.
Purkynova 45
612 00 Brno
Czech Republic
Tel.: [phone]
Fax: [phone]
www.sinclair-solutions.com
[e-mail]
