Sinclair SDV5-HA Series User manual

INDOOR WALL MOUNTED UNITS SDV5-XXHA
COMMERCIAL AIR CONDITIONERS SDV5

Original instructions
IMPORTANT NOTE:
Read this manual carefully before installing or operating
your new air conditioning unit. Make sure to save this
manual for future reference.

3
1 Specifications ........................................................................................ 4
2 Dimensions............................................................................................ 6
3 Unit Placement...................................................................................... 7
4 Piping Diagram ...................................................................................... 8
5 Wiring Diagram...................................................................................... 9
6 Capacity Tables .................................................................................... 12
7 Electrical Characteristics ...................................................................... 20
8 Sound Levels........................................................................................ 21

4
1Specifications
SDV5-22HA / SDV5-28HA / SDV5-36HA / SDV5-45HA
Table 1.1: SDV5-22-28-36-45HA
specifications
Model
SDV5-45HA
SDV5-36HA
SDV5-28HA
SDV5-22HA
Power supply
1 phase, 220-240V, 50Hz
Cooling1
Capacity
kW 2.2 2.8 3.6 4.5
kBtu/h 7.5 9.6 12.3 15.4
Power input
W 28 28 30 40
Heating2
Capacity
kW 2.4 3.2 4.0 5.0
kBtu/h 8.2 10.9 13.6 17.1
Power input
W 28 28 30 40
Fan motor
Model
ZKFP-20-8-6 ZKFP-20-8-6 ZKSP-58-8-1 ZKSP-58-8-1
Type
DC
Indoor coil
Number of rows
1 2 1 2
Tube pitch × row pitch
mm 21×13.37
Fin spacing
mm 1.3
Fin type
Hydrophilic aluminum
Tube OD and type
mm Ф9.53 Inner-groove
Dimensions (L×H×W)
mm 585×315×13.37 585×315×26.74 701×315×13.37 701×315×26.74
Number of circuits
2 3 3 5
Air flow rate3
m3/h 422/411/402/39
3/380/368/356
417/402/386/37
0/353/338/316
656/628/591/57
3/544/515/488
594/563/535/50
7/478/450/424
Sound pressure level4
dB(A) 31/30/30/30/29/
29/29
31/30/30/30/29/
29/29
33/32/32/31/31/
30/30
35/34/33/33/32/
31/31
Sound power level
dB(A) 46/45/45/45/44/
44/44
46/45/45/45/44/
44/44
48/47/47/46/46/
45/45
50/49/48/48/47/
46/46
Unit
Net dimensions5(WxHxD)
mm 835×280×203 990×315×223
Packed dimensions (WxHxD)
mm 935×385×320 1085×420×335
Net/Gross weight
kg 8.4/12.1 9.5/13.1 11.4/15.5 12.8/16.9
Refrigerant type
R410A
Throttle
Type Electronic expansion valve
Design pressure (H/L)
MPa 4.4/2.6
Pipe
connections
Liquid/Gas pipe
mm Ф6.35/Ф12.7
Drain pipe
mm OD Φ16
Notes:
1. Indoor temperature 27°C DB, 19°C WB; outdoor temperature 35°C DB; equivalent refrigerant piping length 7.5m with zero level difference.
2. Indoor temperature 20°C DB; outdoor temperature 7°C DB, 6°C WB; equivalent refrigerant piping length 7.5m with zero level difference.
3. Fan motor speed and air flow rate are from the highest speed to the lowest speed, total 7 rates for each model.
4. Sound pressure level is from highest level to lowest level, total 7 levels for each model. Sound pressure level is measured in a semi-anechoic chamber.
5. Unit body dimensions given are the largest external dimensions of the unit, including hanger attachments.

5
SDV5-56HA / SDV5-71HA / SDV5-80HA / SDV5-90HA
Table 1.2: SDV5-56-71-80-90HA
specifications
Model
SDV5-90HA SDV5-80HA SDV5-71HA SDV5-56HA
Power supply
1 phase, 220-240V, 50Hz
Cooling1
Capacity
kW 5.6 7.1 8.0
9.0
kBtu/h
19.1
24.2
27.3
30.7
Power input
W 45 55 55
82
Heating2
Capacity
kW 6.3 8.0 9.0
10.0
kBtu/h 21.5 27.3 30.7
34.1
Power input
W 45 55 55
82
Fan motor
Model
ZKSP-58-8-1 ZKSP-60-8-3 ZKSP-60-8-3
ZKSP-60-8-3
Type
DC
Indoor coil
Number of rows
2
Tube pitch × row pitch
mm 21×13.37
Fin spacing
mm 1.3
Fin type
Hydrophilic aluminum
Tube OD and type
mm Ф9.53 Inner-groove
Dimensions (L×H×W)
mm 701×315×26.74 825×399×26.74 825×399×26.74
825×399×26.74
Number of circuits
5
Air flow rate3
m3/h 747/713/685/648
/613/578/547
1195/1130/1065/
1005/940/875/80
9
1195/1130/1065/
1005/940/875/80
9
1421/1300/1125/
1067/1005/934/8
67
Sound pressure level4
dB(A) 38/37/36/36/35/3
4/34
44/43/42/39/38/3
7/36
44/43/42/39/38/3
7/36
48/46/45/43/41/4
0/38
Sound power level
dB(A) 53/52/51/51/50/4
9/49
59/58/57/54/53/5
2/51
59/58/57/54/53/5
2/51
63/61/60/58/56/5
5/53
Unit
Net dimensions5(WxHxD)
mm 990×315×223 1194×343×262
Packed dimensions (WxHxD)
mm 1085×420×335 1290×375×460
Net/Gross weight
kg 12.8/16.9 17.0/22.4
Refrigerant type
R410A
Throttle
Type Electronic expansion valve
Design pressure (H/L)
MPa 4.4/2.6
Pipe
connections
Liquid/Gas pipe
mm Ф9.53/Ф15.9
Drain pipe
mm OD Φ16
Notes:
1. Indoor temperature 27°C DB, 19°C WB; outdoor temperature 35°C DB; equivalent refrigerant piping length 7.5m with zero level difference.
2. Indoor temperature 20°C DB; outdoor temperature 7°C DB, 6°C WB; equivalent refrigerant piping length 7.5m with zero level difference.
3. Fan motor speed and air flow rate are from the highest speed to the lowest speed, total 7 rates for each model.
4. Sound pressure level is from highest level to lowest level, total 7 levels for each model. Sound pressure level is measured in a semi-anechoic chamber.
5. Unit body dimensions given are the largest external dimensions of the unit, including hanger attachments.

6
2Dimensions
2.1 Unit Dimensions
Figure 2.1: Wall mounted dimensions (unit: mm)
SDV5-22HA, SDV5-28HA
SDV5-36HA, SDV5-45HA, SDV5-56HA
SDV5-71HA, SDV5-80HA, SDV5-90HA

7
3Unit Placement
3.1 Placement Considerations
Unit placement should take account of the following considerations:
Units should not be installed in the following locations:
Where exposure to direct radiation from a high-temperature heat source or to interference from a source of
electromagnetic radiation may occur.
Where dust or dirt may affect heat exchangers.
Where exposure to oil or to corrosive or harmful gases, such as acidic or alkaline gases, may occur.
Where exposure to salinity may occur, such as seaside locations.
Where highly flammable materials are present.
Where exposure to oily air may occur, such as a kitchen.
Where exposure to very high humidity may occur, such as a laundry.
Units should be installed in positions where:
The ceiling is horizontal and is able to bear the unit’s weight.
There are no obstructions that could impede the airflow into and out of the unit.
The airflow out of the unit can reach throughout the room.
There is sufficient space for access during installation, servicing and maintenance.
The refrigerant piping and drain piping can be easily connected to the refrigerant piping and drain piping
systems.
Short-circuit ventilation (where outlet air returns quickly to a unit’s air inlet) will not occur.
3.2 Space Requirements
Figure 3.1: Wall mounted space requirements (unit: mm)
SDV5-22HA, SDV5-28HA
SDV5-36HA, SDV5-45HA, SDV5-56HA
SDV5-71HA, SDV5-80HA, SDV5-90HA
Shape of indoor unit
440
835
280
45
186
Shape of indoor unit
990
53
315
335
375
Shape of indoor unit
561
1194
55
343
307

8
4Piping Diagram
Figure 4.1: Wall mounted piping diagram
flare nut
flare nut
T2B
gas side
motor
heat exchanger
fan
EXV
liquid side
T2
T1
Legend
T1 Indoor ambient temperature sensor
T2 Indoor heat exchanger mid-point temperature sensor
T2B Indoor heat exchanger outlet temperature sensor

5
W
Fig
u














W

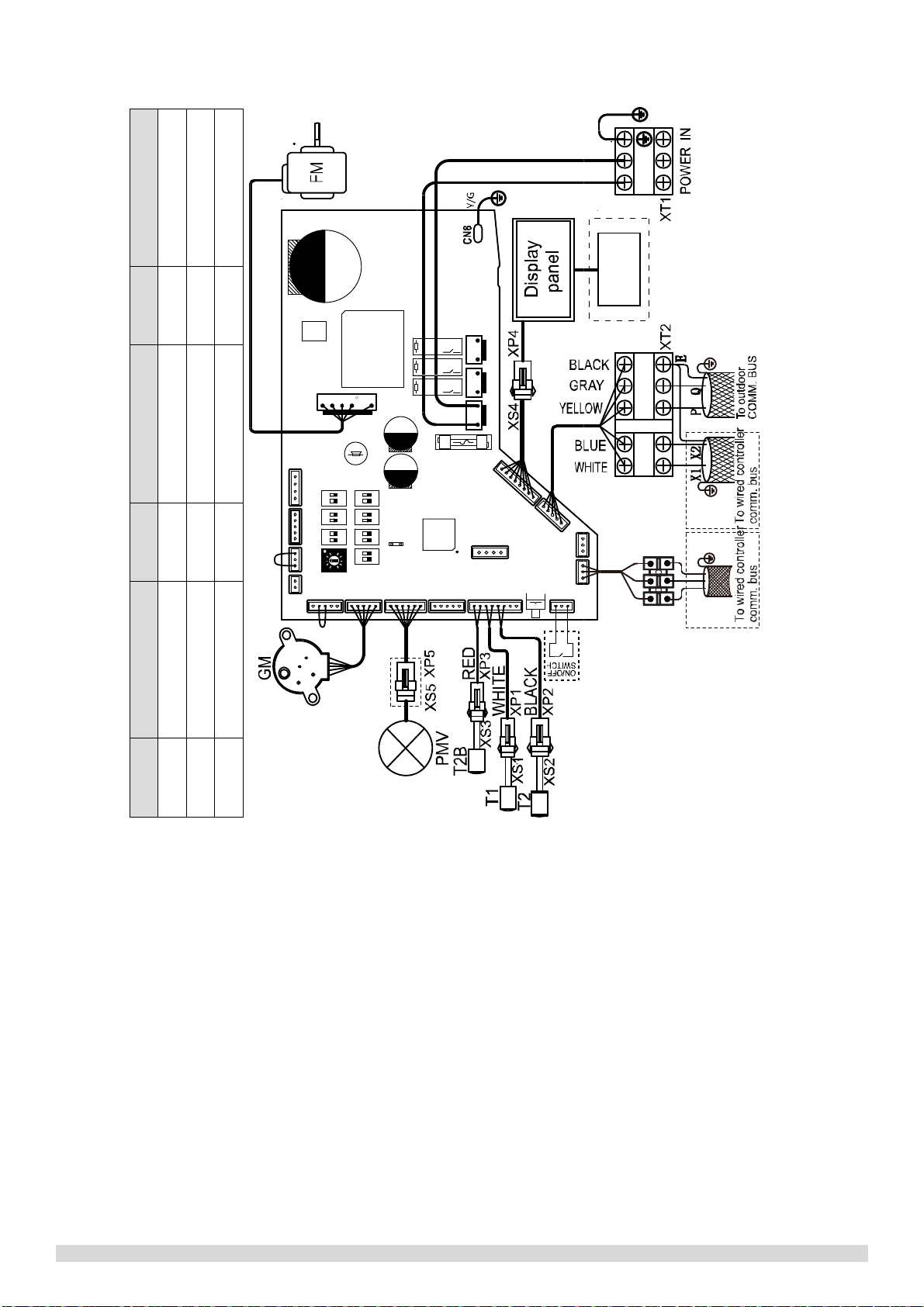

iringDia
u
re5.1:2.2
/
2.
8
NameCode NameCode NameCode
FM
CS
T1
Indoor fan motor
Room temp sensor
W
ater level switch

gram
8
kWWallmou
n
FM
GM
CS
EEV
T2
T2B
XP1-5/XS1-5
T1
Indoor
fan
motor
Swing motor Electronic expansion valve
Room
temp
.
sensor
Mid-pipe temp. sensor Outlet pipe temp. sensor
W
ater
level
switch
Connectors
n
te
d
wiringdia
g

g
ram
CN7
CN30
CN22
CN21
ENC1
CN13
CN4
CN300
CN1CN2 CN3 SW8
CN6CN9
X2
D1 D2
E
X1
J1
 


CN19
CN16 CN20
CN11
LN
X2
X1
PQE
CN5
12
ON
SW1
12
ON
SW2
12
ON
SW3
12
ON
SW4
12
ON
SW5
12
ON
SW6
12
ON
SW7
CN55
 
CN12
CN10CN14CN15
CN17
CN24
 
Wired
controller



9

10
            
Fig
u















 
u
re5.2:3.6/4.
5
NameCode NameCode NameCode
5
/5.
6
kWWall
m
FM
GM
CS
EEV
T2
T2B
XP1-5/XS1-5
T1Indoor fan motor
Swing motor Electronic expansion valve
Room temp. sensor Mid-pipe temp. sensor Outlet pipe temp. sensor
Waterlevel switch Connectors
 
m
ounte
d
wiring
CN12 CN5 CN7 CN30
ON
SW1
ON
SW2ENC1
ON
SW3
CN20
 
diagram
1212 12
12
ON
SW4
12
ON
SW5
12
ON
SW6
12
ON
SW7
CN10 CN13
J1

CN14 CN4 CN300 CN1 CN2 CN3
1
FUSE 50T-250V/5A

SW8 CN55
CN6 CN9
CN17 CN1
1
Wired
controller LN
X1 PQ
X2 E
D1 D2




Fi
g


C
a





N
o

g
ure5.3:7.1/8
.
NameCode NameCode NameCode
a
ution

Allinstall
andaccr
e

Unitssho
shouldb
e

Powers
u
wouldre
p

Afterins
t
electricc
o

SwitchE
N
onlycirc
u
Whenre
p
theunit
c
o
tesforins
t

.
0/9.0kWWall
FM
GM
CS
EEV
T2
T2B
XP1-5/XS1-5
T1Indoor fan motor
Swing motor Electronic expansion valve
Room temp. sensor Mid-pipe temp.sensor Outletpipe temp.sensor
Water level switch Connectors
ation,servic
i
e
ditedprofes
uldbegrou
n
e
insulatedin
u
pplywiring
s
p
resentafir
e
t
allation,ser
v
o
ntrolboxc
o
N
C1(indoor
u
mstancesi
n
p
lacingamai
c
apacitygive
n
t
allersand
mounte
d
wirin
g
Wired
controller
D1 D2
i
ngandmai
n
sionalsandi
n
n
dedinaccor
d
accordance
s
houldbes
e
e
risk.
v
icingormai
n
o
verrisksfire
unitcapacit
y
n
whichas
w
nPCB,ensu
r
n
ontheunit
’
serviceen
g

g
diagram
CN9
1
2
ON
SW1
CN17CN11
SW8 CN18
CN11
N16
CN13
n
tenancemu
n
accordanc
e
d
ancewitha
withallappl
i
curelyfaste
n
n
tenance,th
e
orelectrics
h
y
setting)is
f
w
itchENC1
m
r
ethatthec
a
’
snameplate
g
ineers

 
L1L2
CN5
1
2
12
ON
SW2
CN12
CN3CN2CN1C
N16
CN10
CN14
X1
PQ
X2
E
u
stbecarrie
d
e
withallapp
llapplicable
i
cablelegisla
t
n
edatthep
o
e
electricco
n
h
ock.
f
actory‐seta
n
m
ightneedt
o
a
pacitysettin
.
CN7
J1
CN19
CN14
CN55
d
outbyco
m
licablelegisl
a
legislation.
M
t
ion.
o
wersupply
n
trolboxcov
e
n
ditssettin
g
o
besetint
h
gonswitch
E
 
CN30
12
ON
SW3
12
ON
SW4
12
ON
SW5
12
ON
SW6
12
ON
SW7
CN24
CN4
CN300
CN6
m
petentand
s
a
tion.
M
etalandoth
terminals–
e
rshouldbe
g
shouldnor
m
h
efieldisw
h
E
NC1onthe
 

suitablyqua
l
h
erconducti
v
loosepowe
r
closed.Faili
n
m
allynotbe
henreplacin
g
newPCBis
c

l
ified,certifi
e
v
ecomponen
r
supplywiri
n
n
gtocloset
h
changed.T
h
g
amainPC
onsistentwi
t

11
e
d
ts
n
g
h
e
h
e
B.
t
h

12
6Capacity Tables
6.1 Cooling Capacity Table
Table 6.1: Wall mounted cooling capacity
Capacity
(kW)
Outdoor air
temperature
(°C DB)
Indoor air temperature (°C WB/DB)
14/20
16/23
18/26
19/27
20/28
22/30
24/32
TC SC TC SC TC SC TC SC TC SC TC SC TC SC
kW kW kW kW kW kW kW kW kW kW kW kW kW kW
2.2
10.0
1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.6 1.6 2.9 1.5
12.0
1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.6 1.6 2.8 1.5
14.0
1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.6 1.6 2.8 1.5
16.0
1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.6 1.6 2.8 1.5
18.0
1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.6 1.6 2.8 1.4
20.0
1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.6 1.6 2.7 1.4
21.0
1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.6 1.6 2.7 1.4
23.0
1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.5 1.5 2.7 1.4
25.0
1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.5 1.5 2.6 1.4
27.0
1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.5 1.5 2.6 1.4
29.0
1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.4 1.4 2.5 1.4
31.0
1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.4 1.4 2.5 1.4
33.0
1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.4 1.4 2.4 1.4
35.0
1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.3 1.3 2.4 1.4
37.0
1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.3 1.6 2.3 1.3 2.3 1.4
39.0
1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.2 1.5 2.3 1.3 2.3 1.4
42.0
1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.2 1.5 2.3 1.3 2.3 1.4
44.0
1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.2 1.5 2.3 1.3 2.3 1.4
46.0
1.5 1.3 1.8 1.4 2.1 1.5 2.2 1.5 2.2 1.5 2.3 1.3 2.3 1.4
2.8
10.0
1.9 1.6 2.3 1.8 2.6 1.9 2.8 1.9 3.0 1.9 3.3 2.0 3.7 2.0
12.0
1.9 1.6 2.3 1.8 2.6 1.9 2.8 1.9 3.0 1.9 3.3 2.0 3.6 2.0
14.0
1.9 1.6 2.3 1.8 2.6 1.9 2.8 1.9 3.0 1.9 3.3 2.0 3.6 2.0
16.0
1.9 1.6 2.3 1.8 2.6 1.9 2.8 1.9 3.0 1.9 3.3 2.0 3.5 1.9
18.0
1.9 1.6 2.3 1.8 2.6 1.9 2.8 1.9 3.0 1.9 3.3 2.0 3.5 1.9
20.0
1.9 1.6 2.3 1.8 2.6 1.9 2.8 1.9 3.0 1.9 3.3 2.0 3.4 1.9
21.0
1.9 1.6 2.3 1.8 2.6 1.9 2.8 1.9 3.0 1.9 3.3 2.0 3.4 1.9
23.0
1.9 1.6 2.3 1.8 2.6 1.9 2.8 1.9 3.0 1.9 3.3 2.0 3.4 1.9
25.0
1.9 1.6 2.3 1.8 2.6 1.9 2.8 1.9 3.0 1.9 3.2 1.9 3.3 1.9
27.0
1.9 1.6 2.3 1.8 2.6 1.9 2.8 1.9 3.0 1.9 3.2 1.9 3.3 1.9
29.0
1.9 1.6 2.3 1.8 2.6 1.9 2.8 1.9 3.0 1.9 3.1 1.8 3.2 1.8
31.0
1.9 1.6 2.3 1.8 2.6 1.9 2.8 1.9 3.0 1.9 3.1 1.8 3.2 1.7
33.0
1.9 1.6 2.3 1.8 2.6 1.9 2.8 1.9 3.0 1.9 3.1 1.8 3.1 1.7
35.0
1.9 1.6 2.3 1.8 2.6 1.9 2.8 1.9 2.9 1.9 3.0 1.8 3.1 1.7
37.0
1.9 1.6 2.3 1.8 2.6 1.9 2.8 1.9 2.9 1.9 3.0 1.8 3.0 1.7
39.0
1.9 1.6 2.3 1.8 2.6 1.9 2.8 1.9 2.9 1.9 3.0 1.9 3.0 1.7
42.0
1.9 1.6 2.3 1.8 2.6 1.9 2.8 1.9 2.9 1.9 3.0 1.9 3.0 1.7
44.0
1.9 1.6 2.3 1.8 2.6 1.9 2.8 1.9 2.9 1.9 3.0 1.9 3.0 1.7
46.0
1.9 1.6 2.3 1.8 2.6 1.9 2.8 1.9 2.9 1.9 3.0 1.9 3.0 1.7
Abbreviations:
TC: Total capacity
SC: Sensible capacity
Notes:
1. Shaded cells indicate rating condition.
Table continued on next page …

13
Table 6.1: Wall mounted cooling capacity (continued)
Capacity
(kW)
Outdoor air
temperature
(°C DB)
Indoor air temperature (°C WB/DB)
14/20 16/23 18/26 19/27 20/28 22/30 24/32
TC SC TC SC TC SC TC SC TC SC TC SC TC SC
kW kW kW kW kW kW kW kW kW kW kW kW kW kW
3.6
10.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.3
2.4
4.7
2.5
12.0
2.5 1.9 2.9 2.1 3.4 2.3 3.6 2.4 3.8 2.5 4.3 2.4 4.7 2.5
14.0
2.5 1.9 2.9 2.1 3.4 2.3 3.6 2.4 3.8 2.5 4.3 2.4 4.6 2.4
16.0
2.5 1.9 2.9 2.1 3.4 2.3 3.6 2.4 3.8 2.5 4.3 2.4 4.5 2.4
18.0
2.5 1.9 2.9 2.1 3.4 2.3 3.6 2.4 3.8 2.5 4.3 2.4 4.5 2.4
20.0
2.5 1.9 2.9 2.1 3.4 2.3 3.6 2.4 3.8 2.5 4.3 2.4 4.4 2.3
21.0
2.5 1.9 2.9 2.1 3.4 2.3 3.6 2.4 3.8 2.5 4.3 2.4 4.4 2.3
23.0
2.5 1.9 2.9 2.1 3.4 2.3 3.6 2.4 3.8 2.5 4.1 2.3 4.3 2.2
25.0
2.5 1.9 2.9 2.1 3.4 2.3 3.6 2.4 3.8 2.5 4.1 2.3 4.2 2.2
27.0
2.5 1.9 2.9 2.1 3.4 2.3 3.6 2.4 3.8 2.5 4.0 2.2 4.2 2.2
29.0
2.5 1.9 2.9 2.1 3.4 2.3 3.6 2.4 3.8 2.5 4.0 2.2 4.1 2.2
31.0
2.5 1.9 2.9 2.1 3.4 2.3 3.6 2.4 3.8 2.5 4.2 2.6 4.1 2.2
33.0
2.5 1.9 2.9 2.1 3.4 2.3 3.6 2.4 3.8 2.5 4.2 2.6 3.9 2.1
35.0
2.5 1.9 2.9 2.1 3.4 2.3 3.6 2.4 3.8 2.5 4.2 2.6 3.9 2.1
37.0
2.5 1.9 2.9 2.1 3.4 2.3 3.6 2.4 3.7 2.4 3.8 2.3 3.9 2.1
39.0
2.5 1.9 2.9 2.1 3.4 2.3 3.6 2.4 3.7 2.4 3.8 2.3 3.8 2.1
42.0
2.5 1.9 2.9 2.1 3.4 2.3 3.6 2.4 3.7 2.4 3.8 2.3 3.8 2.1
44.0
2.5 1.9 2.9 2.1 3.4 2.3 3.6 2.4 3.7 2.4 3.8 2.3 3.8 2.1
46.0
2.5 1.9 2.9 2.1 3.4 2.3 3.6 2.4 3.7 2.4 3.8 2.3 3.8 2.1
4.5
10.0
3.1 2.4 3.7 2.6 4.2 2.8 4.5 2.9 4.8 3.0 5.3 3.4 5.9 3.0
12.0
3.1 2.4 3.7 2.6 4.2 2.8 4.5 2.9 4.8 3.0 5.3 3.4 5.9 3.0
14.0
3.1 2.4 3.7 2.6 4.2 2.8 4.5 2.9 4.8 3.0 5.3 3.4 5.8 3.0
16.0
3.1 2.4 3.7 2.6 4.2 2.8 4.5 2.9 4.8 3.0 5.3 3.4 5.6 2.9
18.0
3.1 2.4 3.7 2.6 4.2 2.8 4.5 2.9 4.8 3.0 5.3 3.4 5.7 3.0
20.0
3.1 2.4 3.7 2.6 4.2 2.8 4.5 2.9 4.8 3.0 5.3 3.4 5.7 3.0
21.0
3.1 2.4 3.7 2.6 4.2 2.8 4.5 2.9 4.8 3.0 5.3 3.4 5.6 3.0
23.0
3.1 2.4 3.7 2.6 4.2 2.8 4.5 2.9 4.8 3.0 5.3 3.4 5.5 3.0
25.0
3.1 2.4 3.7 2.6 4.2 2.8 4.5 2.9 4.8 3.0 5.2 3.0 5.4 2.9
27.0
3.1 2.4 3.7 2.6 4.2 2.8 4.5 2.9 4.8 3.0 5.1 3.0 5.2 2.8
29.0
3.1 2.4 3.7 2.6 4.2 2.8 4.5 2.9 4.8 3.0 5.1 2.9 5.2 2.8
31.0
3.1 2.4 3.7 2.6 4.2 2.8 4.5 2.9 4.8 3.0 5.0 2.9 5.1 2.7
33.0
3.1 2.4 3.7 2.6 4.2 2.8 4.5 2.9 4.8 3.0 4.9 2.8 5.1 2.7
35.0
3.1 2.4 3.7 2.6 4.2 2.8 4.5 2.9 4.8 3.0 4.8 2.8 5.0 2.7
37.0
3.1 2.4 3.7 2.6 4.2 2.8 4.5 2.9 4.8 3.0 4.8 2.9 4.9 2.6
39.0
3.1 2.4 3.7 2.6 4.2 2.8 4.5 2.9 4.6 2.8 4.7 2.8 4.8 2.6
42.0
3.1 2.4 3.7 2.6 4.2 2.8 4.5 2.9 4.6 2.8 4.7 2.8 4.8 2.6
44.0
3.1 2.4 3.7 2.6 4.2 2.8 4.5 2.9 4.6 2.8 4.7 2.8 4.8 2.6
46.0
3.1 2.4 3.7 2.6 4.2 2.8 4.5 2.9 4.6 2.8 4.7 3.1 4.8 2.6
Abbreviations:
TC: Total capacity
SC: Sensible capacity
Notes:
1. Shaded cells indicate rating condition.
Table continued on next page …

14
Table 6.1: Wall mounted cooling capacity (continued)
Capacity
(kW)
Outdoor air
temperature
(°C DB)
Indoor air temperature (°C WB/DB)
14/20 16/23 18/26 19/27 20/28 22/30 24/32
TC SC TC SC TC SC TC SC TC SC TC SC TC SC
kW kW kW kW kW kW kW kW kW kW kW kW kW kW
5.6
10.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.6
3.6
7.3
3.5
12.0
3.9 2.7 4.6 3.0 5.3 3.3 5.6 3.4 5.9 3.5 6.6 3.6 7.2 3.5
14.0
3.9 2.7 4.6 3.0 5.3 3.3 5.6 3.4 5.9 3.5 6.6 3.6 7.1 3.5
16.0
3.9 2.7 4.6 3.0 5.3 3.3 5.6 3.4 5.9 3.5 6.6 3.6 7.0 3.4
18.0
3.9 2.7 4.6 3.0 5.3 3.3 5.6 3.4 5.9 3.5 6.6 3.6 6.8 3.4
20.0
3.9 2.7 4.6 3.0 5.3 3.3 5.6 3.4 5.9 3.5 6.6 3.6 6.7 3.3
21.0
3.9 2.7 4.6 3.0 5.3 3.3 5.6 3.4 5.9 3.5 6.6 3.6 6.6 3.3
23.0
3.9 2.7 4.6 3.0 5.3 3.3 5.6 3.4 5.9 3.5 6.6 3.6 6.6 3.3
25.0
3.9 2.7 4.6 3.0 5.3 3.3 5.6 3.4 5.9 3.5 6.6 3.6 6.5 3.2
27.0
3.9 2.7 4.6 3.0 5.3 3.3 5.6 3.4 5.9 3.5 6.4 3.5 6.4 3.2
29.0
3.9 2.7 4.6 3.0 5.3 3.3 5.6 3.4 5.9 3.5 6.3 3.5 6.4 3.3
31.0
3.9 2.7 4.6 3.0 5.3 3.3 5.6 3.4 5.9 3.5 6.2 3.4 6.2 3.2
33.0
3.9 2.7 4.6 3.0 5.3 3.3 5.6 3.4 5.9 3.5 6.2 3.4 6.2 3.2
35.0
3.9 2.7 4.6 3.0 5.3 3.3 5.6 3.4 5.9 3.5 6.0 3.3 6.0 3.1
37.0
3.9 2.7 4.6 3.0 5.3 3.3 5.6 3.4 5.9 3.5 5.9 3.2 6.0 3.1
39.0
3.9 2.7 4.6 3.0 5.3 3.3 5.6 3.4 5.7 3.4 5.8 3.2 6.0 3.1
42.0
3.9 2.7 4.6 3.0 5.3 3.3 5.6 3.4 5.7 3.4 5.8 3.2 6.0 3.1
44.0
3.9 2.7 4.6 3.0 5.3 3.3 5.6 3.4 5.7 3.4 5.8 3.2 6.0 3.1
46.0
3.9 2.7 4.6 3.0 5.3 3.3 5.6 3.4 5.7 3.7 5.8 3.2 6.0 3.1
7.1
10.0
4.9 3.6 5.8 4.0 6.7 4.3 7.1 4.5 7.5 4.4 8.4 4.5 9.2 4.6
12.0
4.9 3.6 5.8 4.0 6.7 4.3 7.1 4.5 7.5 4.4 8.4 4.5 9.1 4.5
14.0
4.9 3.6 5.8 4.0 6.7 4.3 7.1 4.5 7.5 4.4 8.4 4.5 9.0 4.5
16.0
4.9 3.6 5.8 4.0 6.7 4.3 7.1 4.5 7.5 4.4 8.4 4.5 8.9 4.4
18.0
4.9 3.6 5.8 4.0 6.7 4.3 7.1 4.5 7.5 4.4 8.4 4.5 8.7 4.3
20.0
4.9 3.6 5.8 4.0 6.7 4.3 7.1 4.5 7.5 4.4 8.4 4.5 8.5 4.2
21.0
4.9 3.6 5.8 4.0 6.7 4.3 7.1 4.5 7.5 4.4 8.4 4.5 8.4 4.2
23.0
4.9 3.6 5.8 4.0 6.7 4.3 7.1 4.5 7.5 4.4 8.4 4.5 8.3 4.1
25.0
4.9 3.6 5.8 4.0 6.7 4.3 7.1 4.5 7.5 4.4 8.4 4.5 8.2 4.1
27.0
4.9 3.6 5.8 4.0 6.7 4.3 7.1 4.5 7.5 4.4 8.1 4.3 8.2 4.1
29.0
4.9 3.6 5.8 4.0 6.7 4.3 7.1 4.5 7.5 4.5 8.0 4.3 8.1 4.1
31.0
4.9 3.6 5.8 4.0 6.7 4.3 7.1 4.5 7.5 4.5 7.9 4.3 7.8 4.0
33.0
4.9 3.6 5.8 4.0 6.7 4.3 7.1 4.5 7.5 4.5 7.8 4.2 7.8 4.0
35.0
4.9 3.6 5.8 4.0 6.7 4.3 7.1 4.5 7.5 4.5 7.6 4.1 7.7 3.9
37.0
4.9 3.6 5.8 4.0 6.7 4.3 7.1 4.5 7.4 4.4 7.5 4.1 7.6 4.0
39.0
4.9 3.6 5.8 4.0 6.7 4.3 7.1 4.5 7.2 4.3 7.4 4.1 7.6 4.0
42.0
4.9 3.6 5.8 4.0 6.7 4.3 7.1 4.5 7.2 4.3 7.4 4.1 7.6 4.0
44.0
4.9 3.6 5.8 4.0 6.7 4.3 7.1 4.5 7.2 4.3 7.4 4.1 7.6 4.0
46.0
4.9 3.6 5.8 4.0 6.7 4.3 7.1 4.5 7.2 4.3 7.4 4.1 7.6 4.0
Abbreviations:
TC: Total capacity
SC: Sensible capacity
Notes:
1. Shaded cells indicate rating condition.
Table continued on next page …

15
Table 6.1: Wall mounted cooling capacity (continued)
Capacity
(kW)
Outdoor air
temperature
(°C DB)
Indoor air temperature (°C WB/DB)
14/20 16/23 18/26 19/27 20/28 22/30 24/32
TC SC TC SC TC SC TC SC TC SC TC SC TC SC
kW kW kW kW kW kW kW kW kW kW kW kW kW kW
8.0
10.0
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.4
9.4
5.5
10.4
5.6
12.0
5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.4 9.4 5.5 10.2 5.5
14.0
5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.4 9.4 5.5 10.2 5.5
16.0
5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.4 9.4 5.5 10.0 5.4
18.0
5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.4 9.4 5.5 9.8 5.3
20.0
5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.4 9.4 5.5 9.6 5.2
21.0
5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.4 9.4 5.5 9.4 5.1
23.0
5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.4 9.4 5.5 9.4 5.1
25.0
5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.4 9.4 5.5 9.3 5.0
27.0
5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.4 9.1 5.3 9.2 5.1
29.0
5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.5 9.0 5.3 9.1 5.0
31.0
5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.5 8.9 5.2 8.8 4.8
33.0
5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.5 8.8 5.2 8.8 4.8
35.0
5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.5 8.6 5.1 8.6 4.8
37.0
5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.3 5.4 8.4 5.0 8.6 4.9
39.0
5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.1 5.3 8.3 5.0 8.6 4.9
42.0
5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.1 5.3 8.3 5.0 8.6 4.9
44.0
5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.1 5.3 8.3 5.0 8.6 4.9
46.0
5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.1 5.3 8.3 5.0 8.6 4.9
9.0
10.0
6.2 4.9 7.3 5.3 8.4 5.8 9.0 5.9 9.6 6.0 10.6 6.1 11.7 6.0
12.0
6.2 4.9 7.3 5.3 8.4 5.8 9.0 5.9 9.6 6.0 10.6 6.1 11.5 5.9
14.0
6.2 4.9 7.3 5.3 8.4 5.8 9.0 5.9 9.6 6.0 10.6 6.1 11.4 5.9
16.0
6.2 4.9 7.3 5.3 8.4 5.8 9.0 5.9 9.6 6.0 10.6 6.1 11.3 5.8
18.0
6.2 4.9 7.3 5.3 8.4 5.8 9.0 5.9 9.6 6.0 10.6 6.1 11.0 5.8
20.0
6.2 4.9 7.3 5.3 8.4 5.8 9.0 5.9 9.6 6.0 10.6 6.1 10.8 5.7
21.0
6.2 4.9 7.3 5.3 8.4 5.8 9.0 5.9 9.6 6.0 10.6 6.1 10.6 5.6
23.0
6.2 4.9 7.3 5.3 8.4 5.8 9.0 5.9 9.6 6.0 10.6 6.1 10.5 5.5
25.0
6.2 4.9 7.3 5.3 8.4 5.8 9.0 5.9 9.6 6.0 10.6 6.1 10.4 5.5
27.0
6.2 4.9 7.3 5.3 8.4 5.8 9.0 5.9 9.6 6.0 10.3 5.9 10.4 5.4
29.0
6.2 4.9 7.3 5.3 8.4 5.8 9.0 5.9 9.6 6.0 10.1 5.7 10.3 5.4
31.0
6.2 4.9 7.3 5.3 8.4 5.8 9.0 5.9 9.6 6.0 10.0 5.7 9.9 5.3
33.0
6.2 4.9 7.3 5.3 8.4 5.8 9.0 5.9 9.6 6.0 9.9 5.6 9.9 5.3
35.0
6.2 4.9 7.3 5.3 8.4 5.8 9.0 5.9 9.5 6.0 9.6 5.5 9.7 5.3
37.0
6.2 4.9 7.3 5.3 8.4 5.8 9.0 5.9 9.3 5.8 9.5 5.4 9.6 5.3
39.0
6.2 4.9 7.3 5.3 8.4 5.8 9.0 5.9 9.2 5.7 9.4 5.3 9.6 5.3
42.0
6.2 4.9 7.3 5.3 8.4 5.8 9.0 5.9 9.2 5.7 9.4 5.3 9.6 5.3
44.0
6.2 4.9 7.3 5.3 8.4 5.8 9.0 5.9 9.2 5.7 9.4 5.3 9.6 5.3
46.0
6.2 4.9 7.3 5.3 8.4 5.8 9.0 5.9 9.2 5.7 9.4 5.3 9.6 5.3
Abbreviations:
TC: Total capacity
SC: Sensible capacity
Notes:
1. Shaded cells indicate rating condition.

16
6.2 Heating Capacity Table
Table 6.2: Wall mounted heating capacity
Capacity
(kW)
Outdoor air
temperature (°C )
Indoor air temperature (°C DB)
16 18 20 21 22 24
TC TC TC TC TC TC
WB
DB
kW
kW
kW
kW
kW
kW
2.2
-20
-19.8 1.34 1.34 1.34 1.34 1.34 1.34
-19
-18.8 1.44 1.44 1.44 1.44 1.44 1.44
-17
-16.7 1.51 1.51 1.51 1.51 1.51 1.51
-15
-14.7 1.56 1.56 1.56 1.56 1.56 1.56
-13.00
-12.60 1.66 1.66 1.66 1.66 1.66 1.66
-11.00
-10.50 1.68 1.70 1.70 1.70 1.70 1.70
-10.00
-9.50 1.75 1.75 1.75 1.75 1.75 1.75
-9.10
-8.50 1.80 1.80 1.80 1.80 1.80 1.80
-7.60
-7.00 1.82 1.82 1.82 1.82 1.82 1.82
-5.60
-5.00 1.90 1.90 1.90 1.90 1.90 1.90
-3.70
-3.00 1.99 1.99 1.99 1.99 1.99 1.99
-0.70
0.00 2.14 2.14 2.14 2.14 2.14 2.02
2.20
3.00 2.26 2.26 2.26 2.26 2.21 2.02
4.10
5.00 2.33 2.33 2.33 2.33 2.21 2.02
6.00
7.00 2.40 2.40 2.40 2.33 2.21 2.02
7.90
9.00 2.47 2.47 2.40 2.33 2.21 2.02
9.80
11.00 2.54 2.54 2.40 2.33 2.21 2.02
11.80
13.00 2.64 2.59 2.40 2.33 2.21 2.02
13.70
15.00 2.71 2.59 2.40 2.33 2.21 2.02
2.8
-20
-19.8 1.79 1.79 1.79 1.79 1.79 1.79
-19
-18.8 1.92 1.92 1.92 1.92 1.92 1.92
-17
-16.7 2.02 2.02 2.02 2.02 2.02 2.02
-15
-14.7 2.02 2.02 2.02 2.02 2.02 2.02
-13.00
-12.60 2.14 2.14 2.14 2.14 2.14 2.14
-11.00
-10.50 2.24 2.24 2.24 2.24 2.24 2.24
-10.00
-9.50 2.34 2.34 2.34 2.34 2.34 2.34
-9.10
-8.50 2.40 2.40 2.40 2.40 2.40 2.40
-7.60
-7.00 2.43 2.43 2.43 2.43 2.43 2.43
-5.60
-5.00 2.53 2.53 2.53 2.53 2.53 2.53
-3.70
-3.00 2.66 2.66 2.66 2.66 2.66 2.66
-0.70
0.00 2.85 2.85 2.85 2.85 2.85 2.69
2.20
3.00 3.01 3.01 3.01 3.01 2.94 2.69
4.10
5.00 3.10 3.10 3.10 3.10 2.94 2.69
6.00
7.00 3.20 3.20 3.20 3.10 2.94 2.69
7.90
9.00 3.30 3.30 3.20 3.10 2.94 2.69
9.80
11.00 3.39 3.39 3.20 3.10 2.94 2.69
11.80
13.00 3.52 3.46 3.20 3.10 2.94 2.69
13.70
15.00 3.62 3.46 3.20 3.10 2.94 2.69
Abbreviations:
TC: Total capacity
Notes:
1. Shaded cells indicate rating condition.
Table continued on next page …

17
Table 6.2: Wall mounted heating capacity (continued)
Capacity
(kW)
Outdoor air
temperature (°C )
Indoor air temperature (°C DB)
16 18 20 21 22 24
TC TC TC TC TC TC
WB
DB kW kW kW kW kW kW
3.6
-20
-19.8
2.24
2.24
2.24
2.24
2.24
2.24
-19
-18.8 2.40 2.40 2.40 2.40 2.40 2.40
-17
-16.7 2.52 2.52 2.52 2.52 2.52 2.52
-15
-14.7 2.60 2.60 2.60 2.60 2.60 2.60
-13.00
-12.60 2.68 2.68 2.68 2.68 2.68 2.68
-11.00
-10.50 2.80 2.80 2.80 2.80 2.80 2.80
-10.00
-9.50 2.92 2.92 2.92 2.92 2.92 2.92
-9.10
-8.50 3.00 3.00 3.00 3.00 3.00 3.00
-7.60
-7.00 3.04 3.04 3.04 3.04 3.04 3.04
-5.60
-5.00 3.16 3.16 3.16 3.16 3.16 3.16
-3.70
-3.00 3.32 3.32 3.32 3.32 3.32 3.32
-0.70
0.00 3.56 3.56 3.56 3.56 3.56 3.36
2.20
3.00 3.76 3.76 3.76 3.76 3.68 3.36
4.10
5.00 3.88 3.88 3.88 3.88 3.68 3.36
6.00
7.00 4.00 4.00 4.00 3.88 3.68 3.36
7.90
9.00 4.12 4.12 4.00 3.88 3.68 3.36
9.80
11.00 4.24 4.24 4.00 3.88 3.68 3.36
11.80
13.00 4.40 4.32 4.00 3.88 3.68 3.36
13.70
15.00 4.52 4.32 4.00 3.88 3.68 3.36
4.5
-20
-19.8 2.80 2.80 2.80 2.80 2.80 2.80
-19
-18.8 3.00 3.00 3.00 3.00 3.00 3.00
-17
-16.7 3.15 3.15 3.15 3.15 3.15 3.15
-15
-14.7 3.25 3.25 3.25 3.25 3.25 3.25
-13.00
-12.60 3.35 3.35 3.35 3.35 3.35 3.35
-11.00
-10.50 3.50 3.50 3.50 3.50 3.50 3.50
-10.00
-9.50 3.65 3.65 3.65 3.65 3.65 3.65
-9.10
-8.50 3.75 3.75 3.75 3.75 3.75 3.75
-7.60
-7.00 3.80 3.80 3.80 3.80 3.80 3.80
-5.60
-5.00 3.95 3.95 3.95 3.95 3.95 3.95
-3.70
-3.00 4.15 4.15 4.15 4.15 4.15 4.15
-0.70
0.00 4.45 4.45 4.45 4.45 4.45 4.20
2.20
3.00 4.70 4.70 4.70 4.70 4.60 4.20
4.10
5.00 4.85 4.85 4.85 4.85 4.60 4.20
6.00
7.00 5.00 5.00 5.00 4.85 4.60 4.20
7.90
9.00 5.15 5.15 5.00 4.85 4.60 4.20
9.80
11.00 5.30 5.30 5.00 4.85 4.60 4.20
11.80
13.00 5.50 5.40 5.00 4.85 4.60 4.20
13.70
15.00 5.65 5.40 5.00 4.85 4.60 4.20
Abbreviations:
TC: Total capacity
Notes:
1. Shaded cells indicate rating condition.
Table continued on next page …

18
Table 6.2: Wall mounted heating capacity (continued)
Capacity
(kW)
Outdoor air
temperature (°C )
Indoor air temperature (°C DB)
16 18 20 21 22 24
TC TC TC TC TC TC
WB
DB kW kW kW kW kW kW
5.6
-20
-19.8
3.53
3.53
3.53
3.53
3.53
3.53
-19
-18.8 3.78 3.78 3.78 3.78 3.78 3.78
-17
-16.7 3.97 3.97 3.97 3.97 3.97 3.97
-15
-14.7 4.10 4.10 4.10 4.10 4.10 4.10
-13.00
-12.60 4.22 4.22 4.22 4.22 4.22 4.22
-11.00
-10.50 4.41 4.41 4.41 4.41 4.41 4.41
-10.00
-9.50 4.60 4.60 4.60 4.60 4.60 4.60
-9.10
-8.50 4.73 4.73 4.73 4.73 4.73 4.73
-7.60
-7.00 4.79 4.79 4.79 4.79 4.79 4.79
-5.60
-5.00 4.98 4.98 4.98 4.98 4.98 4.98
-3.70
-3.00 5.23 5.23 5.23 5.23 5.23 5.23
-0.70
0.00 5.61 5.61 5.61 5.61 5.61 5.29
2.20
3.00 5.92 5.92 5.92 5.92 5.80 5.29
4.10
5.00 6.11 6.11 6.11 6.11 5.80 5.29
6.00
7.00 6.30 6.30 6.30 6.11 5.80 5.29
7.90
9.00 6.49 6.49 6.30 6.11 5.80 5.29
9.80
11.00 6.68 6.68 6.30 6.11 5.80 5.29
11.80
13.00 6.93 6.80 6.30 6.11 5.80 5.29
13.70
15.00 7.12 6.80 6.30 6.11 5.80 5.29
7.1
-20
-19.8 4.48 4.48 4.48 4.48 4.48 4.48
-19
-18.8 4.80 4.80 4.80 4.80 4.80 4.80
-17
-16.7 5.04 5.04 5.04 5.04 5.04 5.04
-15
-14.7 5.20 5.20 5.20 5.20 5.20 5.20
-13.00
-12.60 5.36 5.36 5.36 5.36 5.36 5.36
-11.00
-10.50 5.60 5.60 5.60 5.60 5.60 5.60
-10.00
-9.50 5.84 5.84 5.84 5.84 5.84 5.84
-9.10
-8.50 6.00 6.00 6.00 6.00 6.00 6.00
-7.60
-7.00 6.08 6.08 6.08 6.08 6.08 6.08
-5.60
-5.00 6.32 6.32 6.32 6.32 6.32 6.32
-3.70
-3.00 6.64 6.64 6.64 6.64 6.64 6.64
-0.70
0.00 7.12 7.12 7.12 7.12 7.12 6.72
2.20
3.00 7.52 7.52 7.52 7.52 7.36 6.72
4.10
5.00 7.76 7.76 7.76 7.76 7.36 6.72
6.00
7.00 8.00 8.00 8.00 7.76 7.36 6.72
7.90
9.00 8.24 8.24 8.00 7.76 7.36 6.72
9.80
11.00 8.48 8.48 8.00 7.76 7.36 6.72
11.80
13.00 8.80 8.64 8.00 7.76 7.36 6.72
13.70
15.00 9.04 8.64 8.00 7.76 7.36 6.72
Abbreviations:
TC: Total capacity
Notes:
1. Shaded cells indicate rating condition.
Table continued on next page …

19
Table 6.2: Wall mounted heating capacity (continued)
Capacity
(kW)
Outdoor air
temperature (°C )
Indoor air temperature (°C DB)
16 18 20 21 22 24
TC TC TC TC TC TC
WB
DB kW kW kW kW kW kW
8.0
-20
-19.8
5.04
5.04
5.04
5.04
5.04
5.04
-19
-18.8 5.40 5.40 5.40 5.40 5.40 5.40
-17
-16.7 5.67 5.67 5.67 5.67 5.67 5.67
-15
-14.7 5.85 5.85 5.85 5.85 5.85 5.85
-13.00
-12.60 6.03 6.03 6.03 6.03 6.03 6.03
-11.00
-10.50 6.30 6.30 6.30 6.30 6.30 6.30
-10.00
-9.50 6.57 6.57 6.57 6.57 6.57 6.57
-9.10
-8.50 6.75 6.75 6.75 6.75 6.75 6.75
-7.60
-7.00 6.84 6.84 6.84 6.84 6.84 6.84
-5.60
-5.00 7.11 7.11 7.11 7.11 7.11 7.11
-3.70
-3.00 7.47 7.47 7.47 7.47 7.47 7.47
-0.70
0.00 8.01 8.01 8.01 8.01 8.01 7.56
2.20
3.00 8.46 8.46 8.46 8.46 8.28 7.56
4.10
5.00 8.73 8.73 8.73 8.73 8.28 7.56
6.00
7.00 9.00 9.00 9.00 8.73 8.28 7.56
7.90
9.00 9.27 9.27 9.00 8.73 8.28 7.56
9.80
11.00 9.54 9.54 9.00 8.73 8.28 7.56
11.80
13.00 9.90 9.72 9.00 8.73 8.28 7.56
13.70
15.00 10.17 9.72 9.00 8.73 8.28 7.56
9.0
-20
-19.8 5.60 5.04 5.60 5.60 5.60 5.60
-19
-18.8 6.00 5.40 6.00 6.00 6.00 6.00
-17
-16.7 6.30 6.30 6.30 6.30 6.30 6.30
-15
-14.7 6.50 6.50 6.50 6.50 6.50 6.50
-13.00
-12.60 6.70 6.70 6.70 6.70 6.70 6.70
-11.00
-10.50 7.00 7.00 7.00 7.00 7.00 7.00
-10.00
-9.50 7.30 7.30 7.30 7.30 7.30 7.30
-9.10
-8.50 7.50 7.50 7.50 7.50 7.50 7.50
-7.60
-7.00 7.60 7.60 7.60 7.60 7.60 7.60
-5.60
-5.00 7.90 7.90 7.90 7.90 7.90 7.90
-3.70
-3.00 8.30 8.30 8.30 8.30 8.30 8.30
-0.70
0.00 8.90 8.90 8.90 8.90 8.90 8.40
2.20
3.00 9.40 9.40 9.40 9.40 9.20 8.40
4.10
5.00 9.70 9.70 9.70 9.70 9.20 8.40
6.00
7.00 10.00 10.00 10.00 9.70 9.20 8.40
7.90
9.00 10.30 10.30 10.00 9.70 9.20 8.40
9.80
11.00 10.60 10.60 10.00 9.70 9.20 8.40
11.80
13.00 11.00 10.80 10.00 9.70 9.20 8.40
13.70
15.00 11.30 10.80 10.00 9.70 9.20 8.40
Abbreviations:
TC: Total capacity
Notes:
1. Shaded cells indicate rating condition.

20
7Electrical Characteristics
Table 7.1: Wall mounted electrical characteristics
Model
Power supply Indoor fan motors
Hz
Volts
Min. volts
Max. volts
MCA
MFA
Rated motor
output (kW)
FLA
SDV5-22HA
50 220-240 198 264 0.32 15 0.02 0.25
SDV5-28HA
50 220-240 198 264 0.32 15 0.02 0.25
SDV5-36HA
50 220-240 198 264 0.45 15 0.058 0.36
SDV5-45HA
50 220-240 198 264 0.47 15 0.058 0.37
SDV5-56HA
50 220-240 198 264 0.58 15 0.058 0.46
SDV5-71HA
50 220-240 198 264 0.90 15 0.06 0.72
SDV5-80HA
50 220-240 198 264 0.90 15 0.06 0.72
SDV5-90HA
50 220-240 198 264 1.10 15 0.06 0.88
Abbreviations:
MCA: Minimum Circuit Amps
MFA: Maximum Fuse Amps
FLA: Full Load Amps
