Sinclair S D V 5 Series User manual

INDOOR CASSETTE UNITS SDV5-56-140CA
COMMERCIAL AIR CONDITIONERS SDV5

Original instructions
IMPORTANT NOTE:
Read this manual carefully before installing or operating
your new air conditioning unit. Make sure to save this
manual for future reference.

3
1Specifications ........................................................................................ 4
2Dimensions............................................................................................ 8
3Unit Placement...................................................................................... 9
4Piping Diagram .................................................................................... 11
5Wiring Diagram.................................................................................... 12
6Capacity Tables .................................................................................... 15
7Electrical Characteristics ...................................................................... 25
8Sound Levels........................................................................................ 26

5
SDV5-56CA / SDV5-71CA / SDV5-80CA
Table 1.2: SDV5-56-80CA specifications
Model
SDV5-56CA SDV5-71CA SDV5-80CA
Power supply
1 phase, 220-240V, 50Hz
Cooling1
Capacity
kW
5.6
7.1
8.0
kBtu/h
19.1
24.2
27.3
Power input
W
31
46
48
Heating2
Capacity
kW
6.3
8.0
9.0
kBtu/h
21.5
27.3
30.7
Power input
W
31
46
48
Fan motor
Model
ZKSP-80-8-2
Type
DC motor
Brand
Nidec/Welling /Yongan
Speed3
r/min 450/440/410/380
/370/360/330
490/470/440/410
/400/380/350
590/560/530/490
/460/430/400
Indoor coil
Number of rows
2
Tube pitch × row pitch
mm 21×13.37
Fin spacing
mm 1.5
Fin type
Hydrophilic aluminum
Tube OD and type
mm Ф7 Inner-groove
Dimensions (L×H×W)
mm 1961×168
Number of circuits
8
Air flow rate3
m3/h
1029/957/899/857/801
/756/704
1200/1132/1065/996
/920/866/748
1264/1195/1117/1055
/975/893/811
Sound pressure level4
dB(A)
43/41/39/38/36/35/34
45/43/41/39/37/35/34
46/44/42/40/38/36/35
Sound power level
dB(A)
56/54/52/51/49/48/47
58/56/54/52/50/48/47
60/58/56/54/52/50/49
Main body
Net dimensions5(W×H×D)
mm
840×230×840
Packed dimensions (W×H×D)
mm
955×260×955
Net/Gross weight
kg
23.2/27.6
Panel
Net dimensions (W×H×D)
mm
950×54.5×950
Packed dimensions (W×H×D)
mm
1035×90×1035
Net/Gross weight
kg
5/8
Refrigerant type
R410A
Throttle
Type
Electronic expansion valve
Model
D20MISZ-1R(L)
Design pressure (H/L)
MPa
4.4/2.6
Pipe connections
Liquid/Gas pipe
mm
Ф9.53/Ф15.9
Drain pipe
mm
OD Φ32
Notes:
1. Indoor temperature 27°C DB, 19°C WB; outdoor temperature 35°C DB; equivalent refrigerant piping length 7.5m with zero level difference.
2. Indoor temperature 20°C DB; outdoor temperature 7°C DB, 6°C WB; equivalent refrigerant piping length 7.5m with zero level difference.
3. Fan motor speed and air flow rate are from the highest speed to the lowest speed, total 7 rates for each model.
4. Sound pressure level is from highest level to lowest level, total 7 levels for each model. Sound pressure level is measured 1.4m below the unit in a
semi-anechoic chamber.
5. Unit body dimensions given are the largest external dimensions of the unit, including hanger attachments.

6
SDV5-90CA / SDV5-100CA
Table 1.3: SDV5-90-100CA
specifications
Model
SDV5-90CA
SDV5-100CA
Power supply
1 phase, 220-240V, 50Hz
Cooling1
Capacity
kW
9.0
10.0
kBtu/h
30.7
34.1
Power input
W
75
75
Heating2
Capacity
kW
10.0
11.0
kBtu/h
34.1
37.5
Power input
W
75
75
Fan motor
Model
ZKSP-170-8-6
Type
DC motor
Brand
Nidec/Welling /Yongan
Speed3
r/min 490/470/450/440/410/380/360 590/560/520/480/450/435/420
Indoor coil
Number of rows
2 2
Tube pitch × row pitch
mm 21×13.37
Fin spacing
mm 1.5
Fin type
Hydrophilic aluminum
Tube OD and type
mm Ф7 Inner-groove
Dimensions (L×H×W)
mm 1955×252
Number of circuits
8
Air flow rate3
m3/h
1596/1477/1365/1239/1154/1087/1034
Sound pressure level4
dB(A)
47/45/43/41/39/37/36
Sound power level
dB(A)
61/59/57/55/53/51/50
Main body
Net dimensions5(W×H×D)
mm
840×300×840
Packed dimensions (W×H×D)
mm
955×330×955
Net/Gross weight
kg
28.4/33.8
Panel
Net dimensions (W×H×D)
mm
950×54.5×950
Packed dimensions (W×H×D)
mm
1035×90×1035
Net/Gross weight
kg
5/8
Refrigerant type
R410A
Throttle
Type
Electronic expansion valve
Model
D20MISZ-1R(L)
Design pressure (H/L)
MPa
4.4/2.6
Pipe connections
Liquid/Gas pipe
mm
Ф9.53/Ф15.9
Drain pipe
mm
OD Φ32
Notes:
1. Indoor temperature 27°C DB, 19°C WB; outdoor temperature 35°C DB; equivalent refrigerant piping length 7.5m with zero level difference.
2. Indoor temperature 20°C DB; outdoor temperature 7°C DB, 6°C WB; equivalent refrigerant piping length 7.5m with zero level difference.
3. Fan motor speed and air flow rate are from the highest speed to the lowest speed, total 7 rates for each model.
4. Sound pressure level is from highest level to lowest level, total 7 levels for each model. Sound pressure level is measured 1.4m below the unit in a
semi-anechoic chamber.
5. Unit body dimensions given are the largest external dimensions of the unit, including hanger attachments.

7
SDV5-112CA / SDV5-140CA
Table 1.4: SDV5-112-140CA specifications
Model
SDV5-112CA SDV5-140CA
Power supply
1 phase, 220-240V, 50Hz
Cooling1
Capacity
kW
11.2
14.0
kBtu/h
38.2
47.8
Power input
W
75
94
Heating2
Capacity
kW
12.5
16.0
kBtu/h
42.7
54.6
Power input
W
75
94
Fan motor
Model
ZKSP-170-8-6
Type
DC motor
Brand
Nidec/Welling /Yongan
Speed3
r/min 590/560/520/480/450/435/420 620/590/550/510/480/465/450
Indoor coil
Number of rows
2 3
Tube pitch × row pitch
mm 21×13.37
Fin spacing
mm 1.5
Fin type
Hydrophilic aluminum
Tube OD and type
mm Ф7 Inner-groove
Dimensions (L×H×W)
mm 1955×252
Number of circuits
8
Air flow rate3
m3/h
1596/1477/1365/1239/1154/1087/1034
1727/1622/1517/1426/1351/1289/1224
Sound pressure level4
dB(A)
47/45/43/41/39/37/36
50/48/46/45/41/39/38
Sound power level
dB(A)
61/59/57/55/53/51/50
64/62/60/59/55/53/52
Main body
Net dimensions5(W×H×D)
mm
840×300×840
Packed dimensions (W×H×D)
mm
955×330×955
Net/Gross weight
kg
28.4/33.8
30.7/35.8
Panel
Net dimensions (W×H×D)
mm
950×54.5×950
Packed dimensions (W×H×D)
mm
1035×90×1035
Net/Gross weight
kg
5/8
Refrigerant type
R410A
Throttle
Type
Electronic expansion valve
Model
D20MISZ-1R(L)
BD24FKS(L)
Design pressure (H/L)
MPa
4.4/2.6
Pipe
connections
Liquid/Gas pipe
mm
Ф9.53/Ф15.9
Drain pipe
mm
OD Φ32
Notes:
1. Indoor temperature 27°C DB, 19°C WB; outdoor temperature 35°C DB; equivalent refrigerant piping length 7.5m with zero level difference.
2. Indoor temperature 20°C DB; outdoor temperature 7°C DB, 6°C WB; equivalent refrigerant piping length 7.5m with zero level difference.
3. Fan motor speed and air flow rate are from the highest speed to the lowest speed, total 7 rates for each model.
4. Sound pressure level is from highest level to lowest level, total 7 levels for each model. Sound pressure level is measured 1.4m below the unit in a
semi-anechoic chamber.
5. Unit body dimensions given are the largest external dimensions of the unit, including hanger attachments.

8
2
D

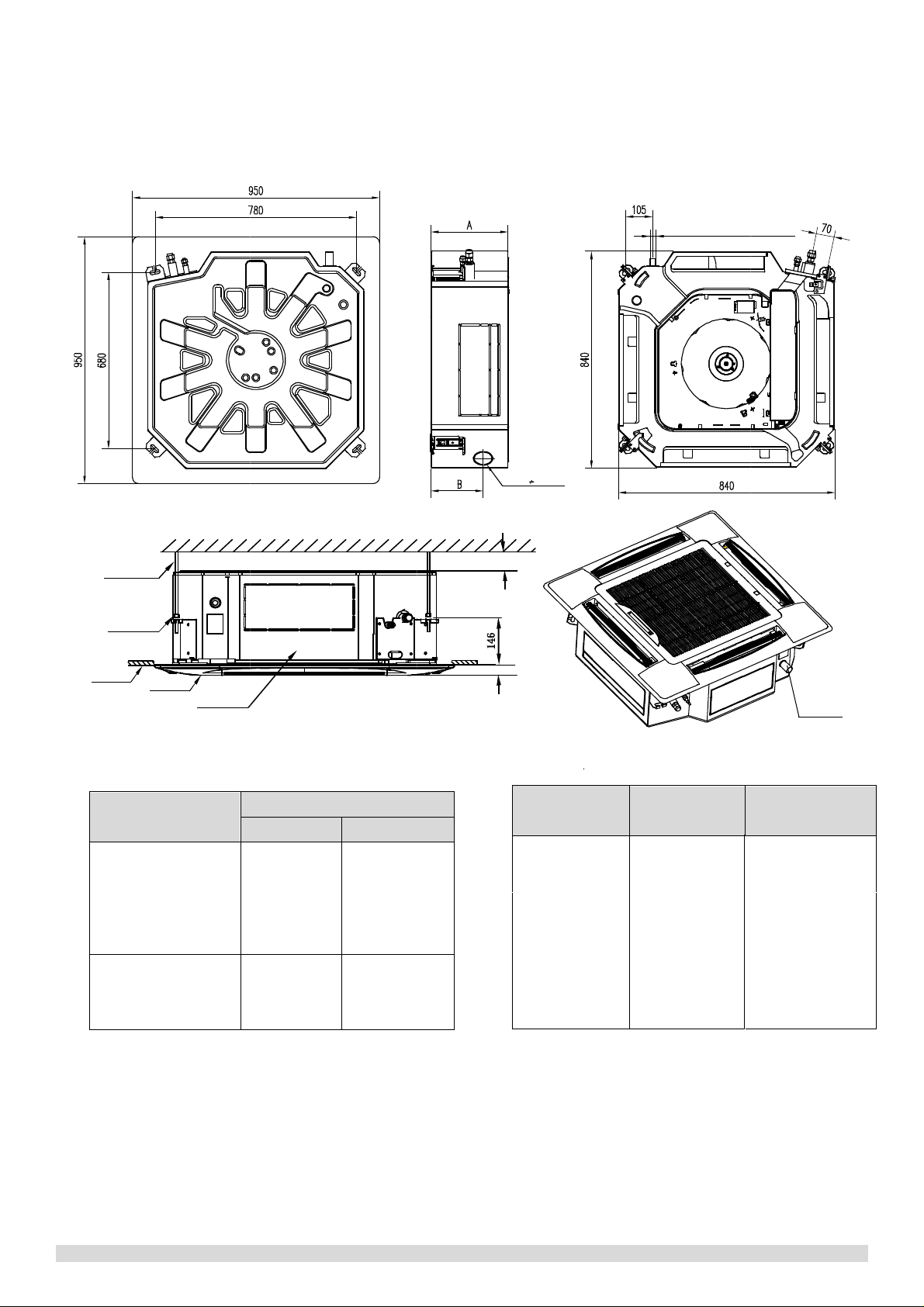

2.1
Figu
r

H
(
A
D
imensio
n
Unit Dime
n
r
e2.1:Four‐wa
y
Install the hanger
P
Ceiling
H
exagon nut
A
djust to balance)
Table2.1:F
o
Model names
SDV5-56CA
SDV5-71CA
SDV5-80CA
SDV5-90CA
SDV5-100CA
SDV5-112CA
SDV5-140CA
n
s
n
sions
y
Cassettedim
e
anel
Main body
o
u
r
‐wayCasset
t










e
nsions(unit:
m
t
edimensions
Dime
n
A
230
300
m
m) 
n
sions (mm)
B
126
197







≥
4
6
Φ75New air
supply orifice
≥
20
6
Table2.2:
F
Model n
a
SDV5-56CA
SDV5-71CA
SDV5-80CA
SDV5-90CA
SDV5-100CA
SDV5-112CA
SDV5-140CA
Φ
F
ou
r
‐wayCasse
mes Ga
s










Φ
32Drain pipe oute
ttepipingconn
s
pipe (mm)

Ф15.9

r diameter
Drain pi
ections
Liquid pipe (
m
Ф9.53


pe
m
m)

3
U
3.1
Uni
t



3.2
Fig
u
U
nit Place
m
Placement
t
placement
s
Unitsshoul
d
Where
electro
Where
Where
Where
Where
Where
Where
Unitsshoul
d
Thecei
There
a
Theair
f
Therei
There
f
system
Short‐
c
Space Req
u
u
re3.1:Four‐
w
>1000
m
>1000mm

m
ent
Considera
t
s
houldtakea
c
d
notbeinst
a
exposuret
o
magneticra
d
dustordirt
m
exposureto
exposureto
highlyflam
m
exposureto
exposureto
d
beinstalled
i
lingishorizo
a
renoobstr
u
flowoutoft
h
ssufficients
p
f
rigerantpi
p
s.
c
ircuitventila
u
irements
w
ayCassettesp
a
m
m
t
ions
c
countofth
e
a
lledinthef
o
o
directradia
d
iationmay
o
m
ayaffecth
e
oilortocorr
salinitymay
m
ablemateri
a
oilyairmay
o
veryhighhu
inpositions
ntalandisa
b
u
ctionsthatc
o
h
eunitcanr
e
p
aceforacc
e
p
inganddra
tion(where
o
a
cerequireme
n
>1
0
>1000mm
e
followingc
o
o
llowingloca
t
tionfroma
o
ccur.
e
atexchange
r
o
siveorhar
m
occur,sucha
a
lsareprese
n
o
ccur,sucha
s
m
iditymay
o
where:
b
letobeart
h
o
uldimpede
e
achthrough
e
ssduringins
t
inpipingca
n
o
utletairret
u
n
ts(unit:mm)
0
00mm
>1000mm
C
o
nsideration
s
t
ions:
high‐tempe
r
r
s.
m
fulgases,s
u
a
sseasideloc
n
t.
s
akitchen.
o
ccur,sucha
s
h
eunit’swei
g
theairflowi
n
h
outtheroo
m
t
allation,ser
v
n
beeasily
u
rnsquickly
t
H
>2500mm
C
onnect to the outl
Floor
Ceiling
s
:
atureheats
u
chasacidic
o
ations.
s
alaundry.
g
ht.
n
toandout
o
m
.
v
icingandm
a
connectedt
o
t
oaunit’sair
et of drain pipe
Air outlet
A
910 mm
o
urceorto
i
o
ralkalinega
o
ftheunit.
a
intenance.
o
therefrig
e
inlet)willn
o
A
A
ir inlet Air o
u
(Ceiling hole)
interference
a
ses,mayoc
c
e
rantpiping
o
toccur.
Conne
c
the ref
r
(
A
(
L
Con
n
of re
f
Panel
u
tlet
fromasour
c
ur.
anddrain
p
c
tive port of
r
igerant pipe
A
ir side)
L
iquid side)
n
ective port
f
rigerant pipe

9
ceof
p
iping

10
Table 3.1: Four-way Cassette dimensions and space requirements
Model name Dimensions / Requirements (mm)
A H
SDV5-56CA
SDV5-71CA
SDV5-80CA
230 ≥260
SDV5-90CA
SDV5-100CA
SDV5-112CA
SDV5-140CA
300 ≥330
10-12mm
Main body of the unit
Ceiling

11
4Piping Diagram

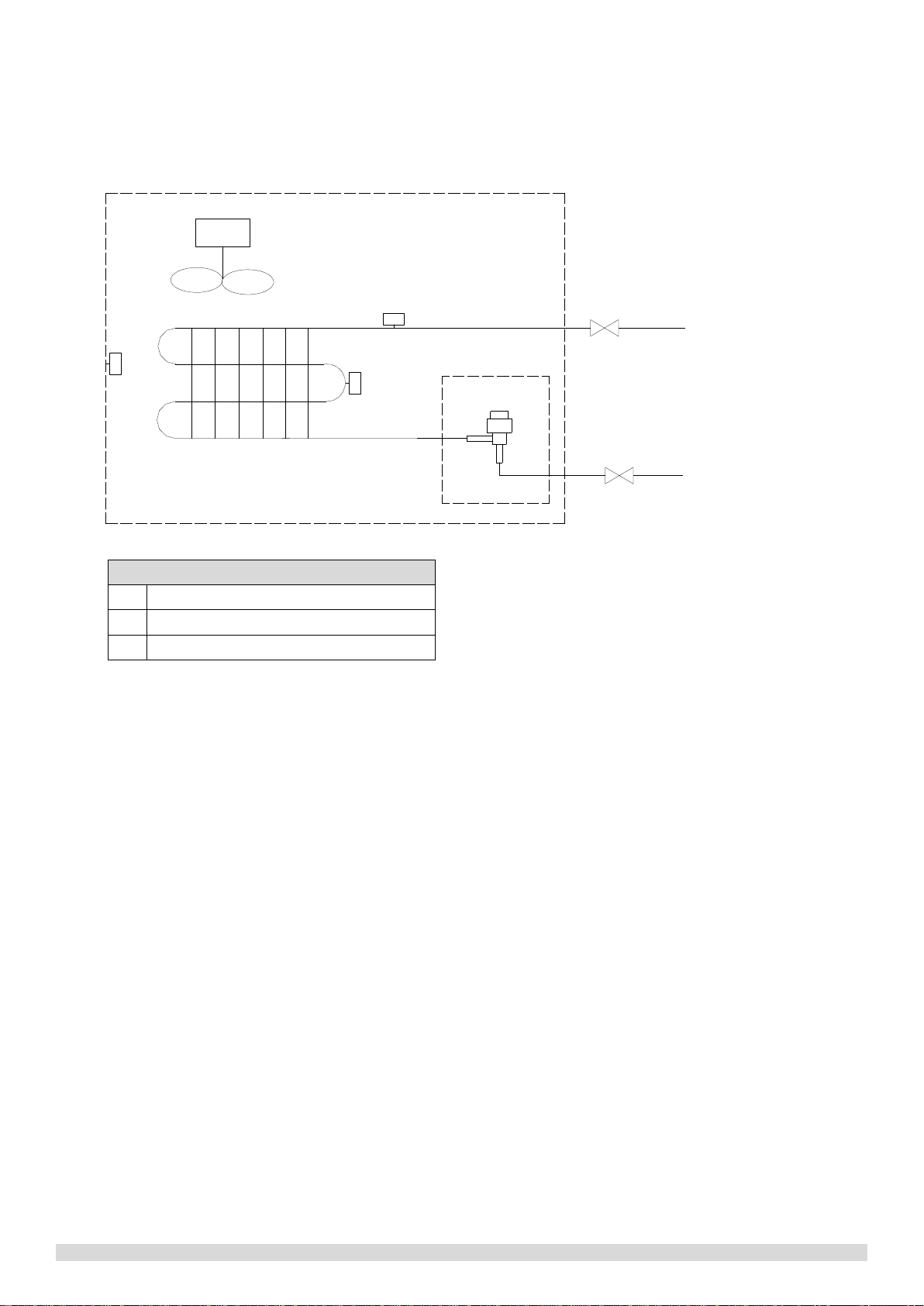

Figure 4.1: Four-way Cassette piping diagram
flare nut
flare nut
T2B
gas side
motor
heat exchanger
fan
EXV
liquid side
T2
T1
Legend
T1 Indoor ambient temperature sensor
T2 Indoor heat exchanger mid-point temperature sensor
T2B Indoor heat exchanger outlet temperature sensor

12
5
W
W
iring Dia

Figurre 5.1: SDV5-56CA, SDV5-71CA , SDV5-80CA

gram

To wired controller comm. bus
Y/G
Wired
controller
S6XP6X

X1
P Q
(E)
CN13
SW1 SW2 SW3 SW4 SW5 SW6 SW7
1
POWER S
CN15(
WHITE
)
CN31
CN3
IndoorMainControlBoard
controller
Display Board
X2

(E)
CN2 CN24 CN4 CN8 CN21
CN20 CN55
ENC1
_
CN5
CS
Tooutdoor/indoor
unitscomm.bus
BLACKRED
CN9
ON/ OFF

P1XS1X
P2XS2X
S3XP3X
EEV
PUMP FM
ENC1
Toggle Switch Set horsepower
Code Capacity
RED
BLACK
Y/G
Y/G
BLACK
WHITE
RED
P4XS4X
P5XS5X
No address when first time power on
Md flit
E0
FE
Error Content Error
Code
D1 D2 E

EEV
4500W 5600W 2200W 2800W 3600W
0 1 2 3 4
GM GM
T2 T1 T2B
XT1
POWER IN
Y/G
M
o
d
e con
fli
c
t
Comm. error with outdoor unit Temp. sensor (T1)) error Temp. sensor (T2) error
E3 E2 E1
E0
Cd
Titl
Cd
Titl
Cd
Titl
To wired controller comm.bus
D1 D2 E

8000W 7100W 9000W 10000W 11200W
5 6 7 9 8
FM
EEV
T1
XP1-6 XS1-6
XT1
PUMP
E6
DC fan error Temp. sensor(T2B) error EEPROM error Outdoor unit error
Ed E4 E7
Indoor fan motor
Electronic expansion valve
Room temp. sensor
O
Connectors
Terminal
Pump motor
C
o
d
e
Titl
e
C
o
d
e
Titl
e
C
o
d
e
Titl
e
GM
Swing Motor
A 12500W
14000WB
T2B
T2
CN15
CS
EEV error
Eb
EE
O
utlet pipe temp. sensor
Middle pipe temp. sensor
New Display Board Terminal
Water level switch



 
Figurre 5.2: SDV5-90CA, SDV5-100CA, SDV5-112CA , SDV5-140CA


X1
CN18
CN15(
WHITE
)
CN31
To wired controller comm. bus
Y/G
Wired
controller
S6XP6X

X1
P Q
(E) CN17 CN13
SW1 SW2 SW3 SW4 SW5 SW6 SW7
1
POWER_S
CN15(
WHITE
)
CN31
CN3
IndoorMainControlBoard
Display Board
X2

CN2 CN24 CN4 CN8 CN21
CN20 CN55
ENC1
CN5
CS
Tooutdoor/indoor
unitscomm.bus
BLACKRED
CN9
ON/ OFF

P1XS1X
P2XS2X
S3XP3X
EEV
PUMP
FM
ENC1
Toggle Switch Set horsepower
Code Capacity
RED
BLACK
Y/G
Y/G
BLACK
WHITE
RED
P4XS4X
P5XS5X
No address when first time power on
FE
Error Content Error
Code
RED
RED
D1 D2 E
EEV
4500W 5600W 2200W 2800W 3600W
0
1 2 3 4
GM GM
PUMP
T2 T1 T2B
XT1
POWER IN
Y/G
Mode conflict Comm. error with outdoor unit Temp. sensor (T1)) error Temp. sensor (T2) error
E3 E2 E1 E0
Reactor
RED
To wired controller comm.bus
D1 D2 E
8000W 7100W 9000W 10000W
11200W
5 6 7
9
8
FM
EEV
T1
XP1-6 XS1-6
XT1
PUMP
E6
DC fan error Temp. sensor(T2B) error
EEPROM
error
Outdoor unit error
Ed E4
E7
Indoor fan motor
Electronic expansion valve
Room temp. sensor
Connectors
Terminal
Pump motor
Code Title Code Title Code Title
GM
Swing Motor
A 12500W
11200W
14000W
9
B
T2B
T2
CN15
CS
EEPROM
error
E7
EEV error
Eb
EE
Outlet pipe temp. sensor
Middle pipe temp. sensor
New Display Board Terminal
Water level switch

13

14
Caution
All installation, servicing and maintenance must be carried out by competent and suitably qualified, certified
and accredited professionals and in accordance with all applicable legislation.
Units should be grounded in accordance with all applicable legislation. Metal and other conductive components
should be insulated in accordance with all applicable legislation.
Power supply wiring should be securely fastened at the power supply terminals –loose power supply wiring
would represent a fire risk.
After installation, servicing or maintenance, the electric control box cover should be closed. Failing to close the
electric control box cover risks fire or electric shock.
Switch ENC1 (indoor unit capacity setting) is factory-set and its setting should normally not be changed. The
only circumstances in which a switch ENC1 might need to be set in the field is when replacing a main PCB.
When replacing a main PCB, ensure that the capacity setting on switch ENC1 on the new PCB is consistent with
the unit capacity given on the unit’s nameplate.
Notes for installers and service engineers


15
6Capacity Tables
6.1 Cooling Capacity Table
Table 6.1: Four-way Cassette cooling capacity
Capacity
(kW)
Outdoor air
temperature
(°C DB)
Indoor air temperature (°C WB/DB)
14/20
16/23
18/26
19/27
20/28
22/30
24/32
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
2.8
10.0
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.3
2.0
3.7
2.0
12.0
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.3
2.0
3.6
2.0
14.0
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.3
2.0
3.6
2.0
16.0
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.3
2.0
3.5
1.9
18.0
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.3
2.0
3.5
1.9
20.0
1.9 1.6 2.3 1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.3
2.0
3.4 1.9
21.0
1.9 1.6 2.3 1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.3
2.0
3.4 1.9
23.0
1.9 1.6 2.3 1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.3
2.0
3.4 1.9
25.0
1.9 1.6 2.3 1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.2
1.9
3.3 1.9
27.0
1.9 1.6 2.3 1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.2
1.9
3.3 1.9
29.0
1.9 1.6 2.3 1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.1
1.8
3.2 1.8
31.0
1.9 1.6 2.3 1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.1
1.8
3.2 1.7
33.0
1.9 1.6 2.3 1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.1
1.8
3.1 1.7
35.0
1.9 1.6 2.3 1.8
2.6
1.9
2.8
1.9
2.9
1.9
3.0
1.8
3.1 1.7
37.0
1.9 1.6 2.3 1.8
2.6
1.9
2.8
1.9
2.9
1.9
3.0
1.8
3.0 1.7
39.0
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
2.9
1.9
3.0
1.9
3.0
1.7
42.0
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
2.9
1.9
3.0
1.9
3.0
1.7
44.0
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
2.9
1.9
3.0
1.9
3.0
1.7
46.0
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
2.9
1.9
3.0
1.9
3.0
1.7
3.6
10.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.3
2.4
4.7
2.5
12.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.3
2.4
4.7
2.5
14.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.3
2.4
4.6
2.4
16.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.3
2.4
4.5
2.4
18.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.3
2.4
4.5
2.4
20.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.3
2.4
4.4
2.3
21.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.3
2.4
4.4
2.3
23.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.1
2.3
4.3
2.2
25.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.1
2.3
4.2
2.2
27.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.0
2.2
4.2
2.2
29.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.0
2.2
4.1
2.2
31.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.2
2.6
4.1
2.2
33.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.2
2.6
3.9
2.1
35.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.2
2.6
3.9
2.1
37.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.7
2.4
3.8
2.3
3.9
2.1
39.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.7
2.4
3.8
2.3
3.8
2.1
42.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.7
2.4
3.8
2.3
3.8
2.1
44.0
2.5 1.9 2.9 2.1
3.4
2.3
3.6
2.4
3.7
2.4
3.8
2.3
3.8 2.1
46.0
2.5 1.9 2.9 2.1
3.4
2.3
3.6
2.4
3.7
2.4
3.8
2.3
3.8 2.1
Abbreviations:
TC: Total capacity
SC: Sensible capacity
Notes:
1. Shaded cells indicate rating condition.
Table continued on next page …

16
Table 6.1: Four-way Cassette cooling capacity (continued)
Capacity
(kW)
Outdoor air
temperature
(°C DB)
Indoor air temperature (°C WB/DB)
14/20
16/23
18/26
19/27
20/28
22/30
24/32
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
4.5
10.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.9
3.0
12.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.9
3.0
14.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.8
3.0
16.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.6
2.9
18.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.7
3.0
20.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.7
3.0
21.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.6
3.0
23.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.5
3.0
25.0
3.1 2.4 3.7 2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.2
3.0
5.4 2.9
27.0
3.1 2.4 3.7 2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.1
3.0
5.2 2.8
29.0
3.1 2.4 3.7 2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.1
2.9
5.2 2.8
31.0
3.1 2.4 3.7 2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.0
2.9
5.1 2.7
33.0
3.1 2.4 3.7 2.6
4.2
2.8
4.5
2.9
4.8
3.0
4.9
2.8
5.1 2.7
35.0
3.1 2.4 3.7 2.6
4.2
2.8
4.5
2.9
4.8
3.0
4.8
2.8
5.0 2.7
37.0
3.1 2.4 3.7 2.6
4.2
2.8
4.5
2.9
4.8
3.0
4.8
2.9
4.9 2.6
39.0
3.1 2.4 3.7 2.6
4.2
2.8
4.5
2.9
4.6
2.8
4.7
2.8
4.8 2.6
42.0
3.1 2.4 3.7 2.6
4.2
2.8
4.5
2.9
4.6
2.8
4.7
2.8
4.8 2.6
44.0
3.1 2.4 3.7 2.6
4.2
2.8
4.5
2.9
4.6
2.8
4.7
2.8
4.8 2.6
46.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.6
2.8
4.7
3.1
4.8
2.6
5.6
10.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.6
3.6
7.3
3.5
12.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.6
3.6
7.2
3.5
14.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.6
3.6
7.1
3.5
16.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.6
3.6
7.0
3.4
18.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.6
3.6
6.8
3.4
20.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.6
3.6
6.7
3.3
21.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.6
3.6
6.6
3.3
23.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.6
3.6
6.6
3.3
25.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.6
3.6
6.5
3.2
27.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.4
3.5
6.4
3.2
29.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.3
3.5
6.4
3.3
31.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.2
3.4
6.2
3.2
33.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.2
3.4
6.2
3.2
35.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.0
3.3
6.0
3.1
37.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
5.9
3.2
6.0
3.1
39.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.7
3.4
5.8
3.2
6.0
3.1
42.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.7
3.4
5.8
3.2
6.0
3.1
44.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.7
3.4
5.8
3.2
6.0
3.1
46.0
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.7
3.7
5.8
3.2
6.0
3.1
Abbreviations:
TC: Total capacity
SC: Sensible capacity
Notes:
1. Shaded cells indicate rating condition.
Table continued on next page …

17
Table 6.1: Four-way Cassette cooling capacity (continued)
Capacity
(kW)
Outdoor air
temperature
(°C DB)
Indoor air temperature (°C WB/DB)
14/20
16/23
18/26
19/27
20/28
22/30
24/32
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
7.1
10.0
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.4
4.5
9.2
4.6
12.0
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.4
4.5
9.1
4.5
14.0
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.4
4.5
9.0
4.5
16.0
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.4
4.5
8.9
4.4
18.0
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.4
4.5
8.7
4.3
20.0
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.4
4.5
8.5
4.2
21.0
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.4
4.5
8.4
4.2
23.0
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.4
4.5
8.3
4.1
25.0
4.9 3.6 5.8 4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.4
4.5
8.2 4.1
27.0
4.9 3.6 5.8 4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.1
4.3
8.2 4.1
29.0
4.9 3.6 5.8 4.0
6.7
4.3
7.1
4.5
7.5
4.5
8.0
4.3
8.1 4.1
31.0
4.9 3.6 5.8 4.0
6.7
4.3
7.1
4.5
7.5
4.5
7.9
4.3
7.8 4.0
33.0
4.9 3.6 5.8 4.0
6.7
4.3
7.1
4.5
7.5
4.5
7.8
4.2
7.8 4.0
35.0
4.9 3.6 5.8 4.0
6.7
4.3
7.1
4.5
7.5
4.5
7.6
4.1
7.7 3.9
37.0
4.9 3.6 5.8 4.0
6.7
4.3
7.1
4.5
7.4
4.4
7.5
4.1
7.6 4.0
39.0
4.9 3.6 5.8 4.0
6.7
4.3
7.1
4.5
7.2
4.3
7.4
4.1
7.6 4.0
42.0
4.9 3.6 5.8 4.0
6.7
4.3
7.1
4.5
7.2
4.3
7.4
4.1
7.6 4.0
44.0
4.9 3.6 5.8 4.0
6.7
4.3
7.1
4.5
7.2
4.3
7.4
4.1
7.6 4.0
46.0
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.2
4.3
7.4
4.1
7.6
4.0
8.0
10.0
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.4
9.4
5.5
10.4
5.6
12.0
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.4
9.4
5.5
10.2
5.5
14.0
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.4
9.4
5.5
10.2
5.5
16.0
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.4
9.4
5.5
10.0
5.4
18.0
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.4
9.4
5.5
9.8
5.3
20.0
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.4
9.4
5.5
9.6
5.2
21.0
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.4
9.4
5.5
9.4
5.1
23.0
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.4
9.4
5.5
9.4
5.1
25.0
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.4
9.4
5.5
9.3
5.0
27.0
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.4
9.1
5.3
9.2
5.1
29.0
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.5
9.0
5.3
9.1
5.0
31.0
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.5
8.9
5.2
8.8
4.8
33.0
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.5
8.8
5.2
8.8
4.8
35.0
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.5
8.6
5.1
8.6
4.8
37.0
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.3
5.4
8.4
5.0
8.6
4.9
39.0
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.1
5.3
8.3
5.0
8.6
4.9
42.0
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.1
5.3
8.3
5.0
8.6
4.9
44.0
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.1
5.3
8.3
5.0
8.6
4.9
46.0
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.1
5.3
8.3
5.0
8.6
4.9
Abbreviations:
TC: Total capacity
SC: Sensible capacity
Notes:
1. Shaded cells indicate rating condition.
Table continued on next page …

18
Table 6.1: Four-way Cassette cooling capacity (continued)
Capacity
(kW)
Outdoor air
temperature
(°C DB)
Indoor air temperature (°C WB/DB)
14/20
16/23
18/26
19/27
20/28
22/30
24/32
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
9.0
10.0
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.6
6.0
10.6
6.1
11.7
6.0
12.0
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.6
6.0
10.6
6.1
11.5
5.9
14.0
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.6
6.0
10.6
6.1
11.4
5.9
16.0
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.6
6.0
10.6
6.1
11.3
5.8
18.0
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.6
6.0
10.6
6.1
11.0
5.8
20.0
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.6
6.0
10.6
6.1
10.8
5.7
21.0
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.6
6.0
10.6
6.1
10.6
5.6
23.0
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.6
6.0
10.6
6.1
10.5
5.5
25.0
6.2 4.9 7.3 5.3
8.4
5.8
9.0
5.9
9.6
6.0
10.6
6.1
10.4 5.5
27.0
6.2 4.9 7.3 5.3
8.4
5.8
9.0
5.9
9.6
6.0
10.3
5.9
10.4 5.4
29.0
6.2 4.9 7.3 5.3
8.4
5.8
9.0
5.9
9.6
6.0
10.1
5.7
10.3 5.4
31.0
6.2 4.9 7.3 5.3
8.4
5.8
9.0
5.9
9.6
6.0
10.0
5.7
9.9 5.3
33.0
6.2 4.9 7.3 5.3
8.4
5.8
9.0
5.9
9.6
6.0
9.9
5.6
9.9 5.3
35.0
6.2 4.9 7.3 5.3
8.4
5.8
9.0
5.9
9.5
6.0
9.6
5.5
9.7 5.3
37.0
6.2 4.9 7.3 5.3
8.4
5.8
9.0
5.9
9.3
5.8
9.5
5.4
9.6 5.3
39.0
6.2 4.9 7.3 5.3
8.4
5.8
9.0
5.9
9.2
5.7
9.4
5.3
9.6 5.3
42.0
6.2 4.9 7.3 5.3
8.4
5.8
9.0
5.9
9.2
5.7
9.4
5.3
9.6 5.3
44.0
6.2 4.9 7.3 5.3
8.4
5.8
9.0
5.9
9.2
5.7
9.4
5.3
9.6 5.3
46.0
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.2
5.7
9.4
5.3
9.6
5.3
10.0
10.0
6.9
5.6
8.1
6.2
9.4
6.9
10.0
7.0
10.6
7.0
11.9
7.3
13.0
7.3
12.0
6.9
5.6
8.1
6.2
9.4
6.9
10.0
7.0
10.6
7.0
11.9
7.3
12.8
7.2
14.0
6.9
5.6
8.1
6.2
9.4
6.9
10.0
7.0
10.6
7.0
11.9
7.3
12.7
7.1
16.0
6.9
5.6
8.1
6.2
9.4
6.9
10.0
7.0
10.6
7.0
11.9
7.3
12.5
7.0
18.0
6.9
5.6
8.1
6.2
9.4
6.9
10.0
7.0
10.6
7.0
11.9
7.3
12.2
6.8
20.0
6.9
5.6
8.1
6.2
9.4
6.9
10.0
7.0
10.6
7.0
11.9
7.3
12.0
6.7
21.0
6.9
5.6
8.1
6.2
9.4
6.9
10.0
7.0
10.6
7.0
11.9
7.3
11.8
6.6
23.0
6.9
5.6
8.1
6.2
9.4
6.9
10.0
7.0
10.6
7.0
11.7
7.3
11.7
6.6
25.0
6.9
5.6
8.1
6.2
9.4
6.9
10.0
7.0
10.6
7.0
11.6
7.2
11.6
6.5
27.0
6.9
5.6
8.1
6.2
9.4
6.9
10.0
7.0
10.6
7.0
11.5
7.1
11.5
6.6
29.0
6.9
5.6
8.1
6.2
9.4
6.9
10.0
7.0
10.6
7.0
11.4
7.1
11.4
6.5
31.0
6.9
5.6
8.1
6.2
9.4
6.9
10.0
7.0
10.6
7.0
11.3
7.0
11.0
6.3
33.0
6.9
5.6
8.1
6.2
9.4
6.9
10.0
7.0
10.6
7.0
11.2
6.9
11.0
6.3
35.0
6.9
5.6
8.1
6.2
9.4
6.9
10.0
7.0
10.5
6.9
10.8
6.7
10.8
6.3
37.0
6.9
5.6
8.1
6.2
9.4
6.9
10.0
7.0
10.4
6.9
10.8
6.7
10.7
6.2
39.0
6.9
5.6
8.1
6.2
9.4
6.9
10.0
7.0
10.2
6.7
10.4
6.6
10.7
6.3
42.0
6.9
5.6
8.1
6.2
9.4
6.9
10.0
7.0
10.2
6.7
10.4
6.6
10.7
6.3
44.0
6.9
5.6
8.1
6.2
9.4
6.9
10.0
7.0
10.2
6.7
10.4
6.6
10.7
6.3
46.0
6.9
5.6
8.1
6.2
9.4
6.9
10.0
7.0
10.2
6.7
10.4
6.6
10.7
6.3
Abbreviations:
TC: Total capacity
SC: Sensible capacity
Notes:
1. Shaded cells indicate rating condition.
Table continued on next page …

19
Table 6.1: Four-way Cassette cooling capacity (continued)
Capacity
(kW)
Outdoor air
temperature
(°C DB)
Indoor air temperature (°C WB/DB)
14/20
16/23
18/26
19/27
20/28
22/30
24/32
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
11.2
10.0
7.7
5.9
9.1
6.5
10.5
7.1
11.2
7.2
11.9
7.4
13.3
7.6
15.5
8.2
12.0
7.7
5.9
9.1
6.5
10.5
7.1
11.2
7.2
11.9
7.4
13.3
7.6
14.4
7.7
14.0
7.7
5.9
9.1
6.5
10.5
7.1
11.2
7.2
11.9
7.4
13.3
7.6
14.2
7.6
16.0
7.7
5.9
9.1
6.5
10.5
7.1
11.2
7.2
11.9
7.4
13.3
7.6
14.1
7.5
18.0
7.7
5.9
9.1
6.5
10.5
7.1
11.2
7.2
11.9
7.4
13.3
7.6
14.0
7.5
20.0
7.7
5.9
9.1
6.5
10.5
7.1
11.2
7.2
11.9
7.4
13.3
7.6
13.9
7.4
21.0
7.7
5.9
9.1
6.5
10.5
7.1
11.2
7.2
11.9
7.4
13.3
7.6
13.8
7.4
23.0
7.7
5.9
9.1
6.5
10.5
7.1
11.2
7.2
11.9
7.4
13.1
7.5
13.7
7.3
25.0
7.7 5.9 9.1 6.5
10.5
7.1
11.2
7.2
11.9
7.4
13.0
7.4
13.6 7.2
27.0
7.7 5.9 9.1 6.5
10.5
7.1
11.2
7.2
11.9
7.4
12.9
7.3
13.4 7.2
29.0
7.7 5.9 9.1 6.5
10.5
7.1
11.2
7.2
11.9
7.4
12.8
7.3
13.3 7.2
31.0
7.7 5.9 9.1 6.5
10.5
7.1
11.2
7.2
11.9
7.4
12.7
7.2
12.8 6.9
33.0
7.7 5.9 9.1 6.5
10.5
7.1
11.2
7.2
11.9
7.4
12.5
7.2
12.5 6.8
35.0
7.7 5.9 9.1 6.5
10.5
7.1
11.2
7.2
11.8
7.4
12.4
7.1
12.3 6.7
37.0
7.7 5.9 9.1 6.5
10.5
7.1
11.2
7.2
11.6
7.3
12.3
7.0
12.1 6.6
39.0
7.7 5.9 9.1 6.5
10.5
7.1
11.2
7.2
11.4
7.1
12.2
7.0
11.9 6.6
42.0
7.7 6.0 9.1 6.6
10.4
7.2
11.2
7.3
11.4
7.1
11.6
6.6
12.0 6.6
44.0
7.7 6.0 9.1 6.6
10.4
7.2
11.2
7.3
11.4
7.1
11.6
6.6
12.0 6.6
46.0
7.7
6.0
9.1
6.6
10.4
7.2
11.2
7.3
11.4
7.1
11.6
6.6
12.0
6.6
14.0
10.0
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.8
9.0
16.7
9.3
18.2
9.4
12.0
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.8
9.0
16.7
9.3
17.9
9.2
14.0
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.8
9.0
16.7
9.3
17.8
9.2
16.0
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.8
9.0
16.7
9.3
17.5
9.0
18.0
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.8
9.0
16.7
9.3
17.1
8.8
20.0
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.8
9.0
16.7
9.3
16.8
8.7
21.0
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.8
9.0
16.7
9.3
16.5
8.5
23.0
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.8
9.0
16.4
9.3
16.4
8.4
25.0
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.8
9.0
16.2
9.3
16.2
8.4
27.0
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.8
9.0
16.1
9.2
16.1
8.4
29.0
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.8
9.0
16.0
9.1
16.0
8.4
31.0
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.8
9.0
15.8
9.0
15.4
8.1
33.0
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.8
9.0
15.7
8.9
15.4
8.1
35.0
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.7
8.9
15.1
8.6
15.1
8.1
37.0
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.6
8.8
15.1
8.6
15.0
8.0
39.0
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.3
8.7
14.6
8.4
15.0
8.1
42.0
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.3
8.7
14.6
8.4
15.0
8.1
44.0
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.3
8.7
14.6
8.4
15.0
8.1
46.0
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.3
8.7
14.6
8.4
15.0
8.1
Abbreviations:
TC: Total capacity
SC: Sensible capacity
Notes:
1. Shaded cells indicate rating condition.

20
6.2 Heating Capacity Table
Table 6.2: Four-way Cassette heating capacity
Capacity
(kW)
Outdoor air
temperature (°C )
Indoor air temperature (°C DB)
16
18
20
21
22
24
TC
TC
TC
TC
TC
TC
WB
DB
kW
kW
kW
kW
kW
kW
2.8
-20
-19.8
1.79
1.79
1.79
1.79
1.79
1.79
-19
-18.8
1.92
1.92
1.92
1.92
1.92
1.92
-17
-16.7
2.02
2.02
2.02
2.02
2.02
2.02
-15
-14.7
2.02
2.02
2.02
2.02
2.02
2.02
-13.00
-12.60
2.14
2.14
2.14
2.14
2.14
2.14
-11.00
-10.50
2.24
2.24
2.24
2.24
2.24
2.24
-10.00
-9.50
2.34
2.34
2.34
2.34
2.34
2.34
-9.10
-8.50
2.40 2.40
2.40
2.40
2.40
2.40
-7.60
-7.00
2.43 2.43
2.43
2.43
2.43
2.43
-5.60
-5.00
2.53 2.53
2.53
2.53
2.53
2.53
-3.70
-3.00
2.66 2.66
2.66
2.66
2.66
2.66
-0.70
0.00
2.85 2.85
2.85
2.85
2.85
2.69
2.20
3.00
3.01 3.01
3.01
3.01
2.94
2.69
4.10
5.00
3.10 3.10
3.10
3.10
2.94
2.69
6.00
7.00
3.20 3.20
3.20
3.10
2.94
2.69
7.90
9.00
3.30 3.30
3.20
3.10
2.94
2.69
9.80
11.00
3.39 3.39
3.20
3.10
2.94
2.69
11.80
13.00
3.52
3.46
3.20
3.10
2.94
2.69
13.70
15.00
3.62
3.46
3.20
3.10
2.94
2.69
3.6
-20
-19.8
2.24
2.24
2.24
2.24
2.24
2.24
-19
-18.8
2.40
2.40
2.40
2.40
2.40
2.40
-17
-16.7
2.52
2.52
2.52
2.52
2.52
2.52
-15
-14.7
2.60
2.60
2.60
2.60
2.60
2.60
-13.00
-12.60
2.68
2.68
2.68
2.68
2.68
2.68
-11.00
-10.50
2.80
2.80
2.80
2.80
2.80
2.80
-10.00
-9.50
2.92
2.92
2.92
2.92
2.92
2.92
-9.10
-8.50
3.00
3.00
3.00
3.00
3.00
3.00
-7.60
-7.00
3.04
3.04
3.04
3.04
3.04
3.04
-5.60
-5.00
3.16
3.16
3.16
3.16
3.16
3.16
-3.70
-3.00
3.32
3.32
3.32
3.32
3.32
3.32
-0.70
0.00
3.56
3.56
3.56
3.56
3.56
3.36
2.20
3.00
3.76
3.76
3.76
3.76
3.68
3.36
4.10
5.00
3.88
3.88
3.88
3.88
3.68
3.36
6.00
7.00
4.00
4.00
4.00
3.88
3.68
3.36
7.90
9.00
4.12
4.12
4.00
3.88
3.68
3.36
9.80
11.00
4.24
4.24
4.00
3.88
3.68
3.36
11.80
13.00
4.40
4.32
4.00
3.88
3.68
3.36
13.70
15.00
4.52
4.32
4.00
3.88
3.68
3.36
Abbreviations:
TC: Total capacity
Notes:
1. Shaded cells indicate rating condition.
Table continued on next page …

21
Table 6.2: Four-way Cassette heating capacity (continued)
Capacity
(kW)
Outdoor air
temperature (°C )
Indoor air temperature (°C DB)
16
18
20
21
22
24
TC
TC
TC
TC
TC
TC
WB
DB
kW
kW
kW
kW
kW
kW
4.5
-20
-19.8
2.80
2.80
2.80
2.80
2.80
2.80
-19
-18.8
3.00
3.00
3.00
3.00
3.00
3.00
-17
-16.7
3.15
3.15
3.15
3.15
3.15
3.15
-15
-14.7
3.25
3.25
3.25
3.25
3.25
3.25
-13.00
-12.60
3.35
3.35
3.35
3.35
3.35
3.35
-11.00
-10.50
3.50
3.50
3.50
3.50
3.50
3.50
-10.00
-9.50
3.65
3.65
3.65
3.65
3.65
3.65
-9.10
-8.50
3.75
3.75
3.75
3.75
3.75
3.75
-7.60
-7.00
3.80 3.80
3.80
3.80
3.80
3.80
-5.60
-5.00
3.95 3.95
3.95
3.95
3.95
3.95
-3.70
-3.00
4.15 4.15
4.15
4.15
4.15
4.15
-0.70
0.00
4.45 4.45
4.45
4.45
4.45
4.20
2.20
3.00
4.70 4.70
4.70
4.70
4.60
4.20
4.10
5.00
4.85 4.85
4.85
4.85
4.60
4.20
6.00
7.00
5.00 5.00
5.00
4.85
4.60
4.20
7.90
9.00
5.15 5.15
5.00
4.85
4.60
4.20
9.80
11.00
5.30 5.30
5.00
4.85
4.60
4.20
11.80
13.00
5.50 5.40
5.00
4.85
4.60
4.20
13.70
15.00
5.65
5.40
5.00
4.85
4.60
4.20
5.6
-20
-19.8
3.53
3.53
3.53
3.53
3.53
3.53
-19
-18.8
3.78
3.78
3.78
3.78
3.78
3.78
-17
-16.7
3.97
3.97
3.97
3.97
3.97
3.97
-15
-14.7
4.10
4.10
4.10
4.10
4.10
4.10
-13.00
-12.60
4.22
4.22
4.22
4.22
4.22
4.22
-11.00
-10.50
4.41
4.41
4.41
4.41
4.41
4.41
-10.00
-9.50
4.60
4.60
4.60
4.60
4.60
4.60
-9.10
-8.50
4.73
4.73
4.73
4.73
4.73
4.73
-7.60
-7.00
4.79
4.79
4.79
4.79
4.79
4.79
-5.60
-5.00
4.98
4.98
4.98
4.98
4.98
4.98
-3.70
-3.00
5.23
5.23
5.23
5.23
5.23
5.23
-0.70
0.00
5.61
5.61
5.61
5.61
5.61
5.29
2.20
3.00
5.92
5.92
5.92
5.92
5.80
5.29
4.10
5.00
6.11
6.11
6.11
6.11
5.80
5.29
6.00
7.00
6.30
6.30
6.30
6.11
5.80
5.29
7.90
9.00
6.49
6.49
6.30
6.11
5.80
5.29
9.80
11.00
6.68
6.68
6.30
6.11
5.80
5.29
11.80
13.00
6.93
6.80
6.30
6.11
5.80
5.29
13.70
15.00
7.12
6.80
6.30
6.11
5.80
5.29
Abbreviations:
TC: Total capacity
Notes:
1. Shaded cells indicate rating condition.
Table continued on next page …
