Sinclair SDV4 series Operating manual

IV
FULL DC INVERTER SYSTEMS
TECHNICAL SERVICE MANUAL
SDV4 - SMALL OUTDOOR UNITS
SDV4-140EAA, SDV4-160EAA
C O M M E R C I A L A I R C O N D I T I O N E R S S D V 4

Original instructions

Contents
Contents
Part 1 General Information......................................... 1
Part 2 Outdoor Units................................................... 9
Part 3 Installation ...................................................... 50
Part 4 Troubleshooting...............................................68
Manufacture reserves the right to discontinue, or change at any time, specifications or designs without
notices and without incurring obligations.

General Information
1
Part 1 General Information
1. Product Lineup ............................................................... 2
2. Nomenclature.................................................................. 3
3. Features........................................................................... 4

Product Lineup
2
1. Product Lineup
Outdoor Units
Model name Dimension body (mm) Net/Gross weight (kg) Power supply
Width: 900
SDV-140EAA Height: 1327 95/103 380-415V-3ph~ 50Hz
Depth:320
Width: 900
SDV-160EAA Height: 1327 102/113 380-415V-3ph~ 50Hz
Depth:320

2.
Nomenclature
SDV4 - 140 E A A
Auto-addressing option
Refrigerant (R410a)
Outdoor unit
Cooling Capacity (×100W)
Sinclair -DC Invertor - Variabilní
3
Nomenclature

3. Features
3.1 Wide application
The Sinclair small outdoor unit is a highly efficient solution for small commercial buildings requiring heating
and cooling of up to 7 zones with one outdoor unit. Such as villa, restaurant, school etc.
Sinclair offers a variety indoor unit, more than 40 models of 7 types. Capacity ranges are from 2.2kW to 16
kW. It is full compliance with residential and light commercial place. Our systems can operate up to 130% of
capacity which allows any system to be designed to the customers and applications needs.
4
Features

Compressor
(Twin Rotary) structure
3.2 High efficient DC inverter compressor
Sinclair small outdoor units adopt highly intelligent inverter-driven compressor. This advanced technology enables the output of
the outdoor unit to be modulated by the real heat load demands. This advanced system ensures precise temperature
regulation and highly efficient energy usage, making a significant contribution to the limiting the impact on the
environment.
3.3 High performance heat exchanger
The new designed window fins enlarge the heat-exchanging area,
which decrease the air resistance, save more power and enhance heat
exchange performance.
Hydrophilic film fins and inner-threaded copper pipes optimize heat
exchange efficiency.
3.4 Low-operating sound design
Optimally design fan shape and new designed discharge air grille and air deflector, making higher air volume
and lower operation sound.
3.5 Quick warm-up & cool-down design and less temperature fluctuation
Utilizing the inverter compressor benefits,
the system can reach full load quickly and
shorten warm-up or cool-down time for an
immediate comfortable air solution.
Less temperature fluctuation will create a
better living environment. Used across entire range of models.
Efficiency improvement by up to 45% especially at low speed.
New fan
Air deflector
New grille
Highly Efficient DC Motor:
- Creative motor core design
- High density neodymium magnet
- Concentrated type stator
-Wider operating frequency range
Better balance and Extremely Low Vibration:
- Twin eccentric cams
- 2 balance weights
Highly Stable Moving Parts:
- Optimal material matching rollers and vanes
-Optimize compressor drive technology
- Highly robust bearings
-Compact structure
Fluctuation of room temperature
Cooling operation
2
1
Temp.
Time
Notn-inverter
Inverter
New design Original design
High efficiency inner-thread pipe,
enhance heat transfer.
Features
5

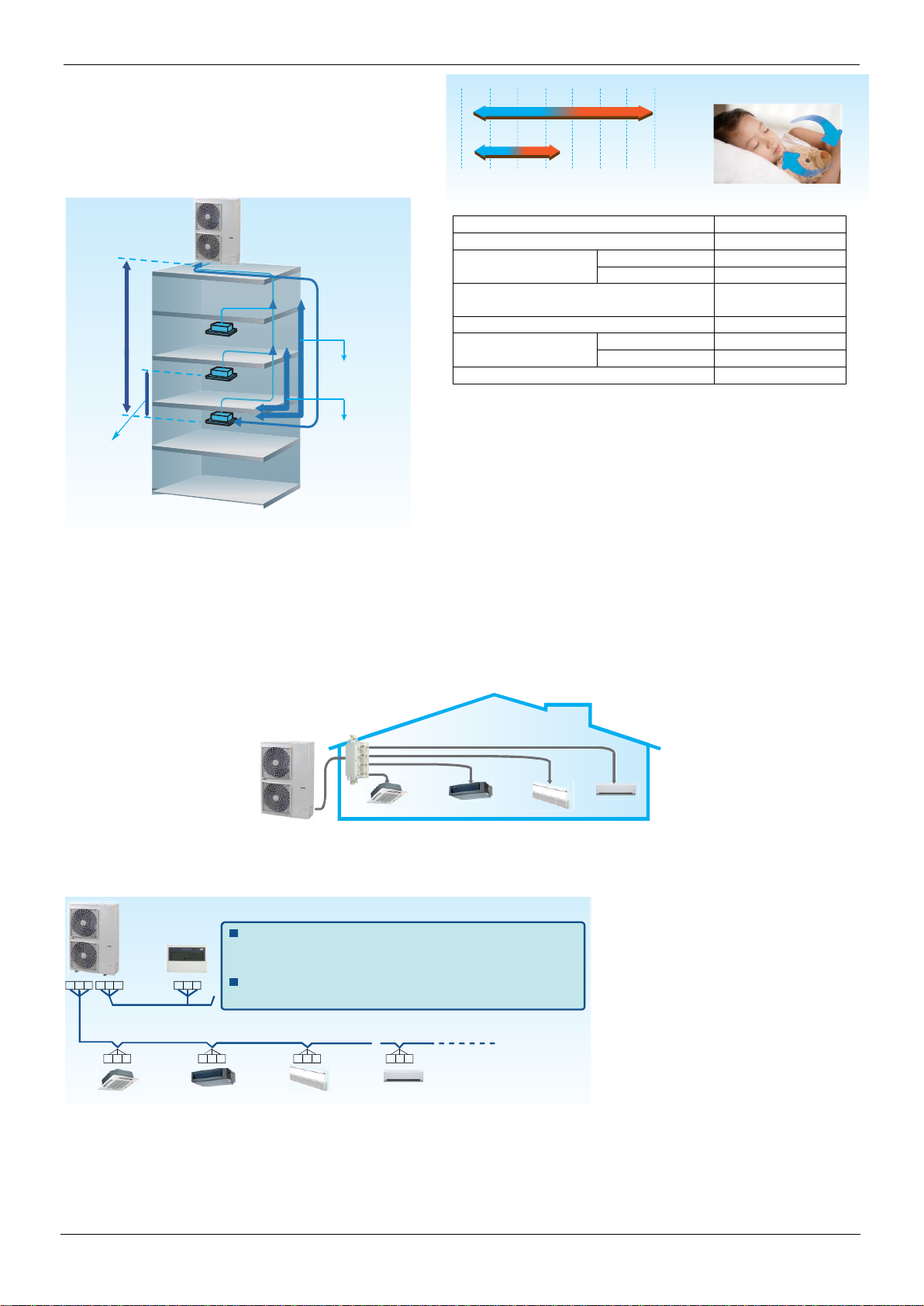

3.6 Wide operation temperature range
No matter in extremely cold winter when outdoor
temperature gets as low as -15°C or in hot summer
when temperature is up to 48°C, the small outdoor
unit will keep stable performance.
3.7 Flexible piping design
3.8 Flexible indoor unit’s connection
Small outdoor unit with intelligent control gives you independent zoning control with maximum flexibility. A
single outdoor unit supports up to nine indoor units, freeing up considerable space outside. Use your
backyard more wisely with much more space available created by less number of outdoor units.
 Max. 9 indoor units for a 18kW outdoor unit installation
3.9 Simple signal line connection
Installation is much easier as the communication wiring between indoor & outdoor units can be shared.
It’s easy for the user to retrofit the existing system with a centralized control by simply connecting to
outdoor units.
3.10 Auto address setting function
The addresses of indoor units can be set automatically by outdoor unit.
Wired controller and wireless controller can enquire and modify the address of each indoor unit.
Longest
piping length
Level
difference
between
IDU~ODU
The IDU to the
nearest branch
pipe
The first branch
joint to the farthest
indoor unit
Level differece
between IDU~IDU
PQE & XYE, just only one group of communication wire of PQE,
achieved both of communication for indoor & outdoor unit and
network.
Reversible communication, central controller can be connected
from indoor side or outdoor side as you wish.
P Q E
P Q E P Q E P Q E P Q E
XY E X Y E
Piping Length Permitted Value
Total piping length (Actual) 100m
Longest piping
length Actual 60m
Equivalent 70m
The first branch joint to the
farthest IDU 20m
The IDU to the nearest branch pipe 15m
Level difference
between ODU~IDU ODU up 30m
ODU down 20m
Level difference between IDU~IDU 8m
010 20 30 40 50-10-20
COOLING MODE
HEATING MODE
Outdoor temp. °C(D.B.)
48°C
27°C
-15°C
-15°C
24 °C
6
Features

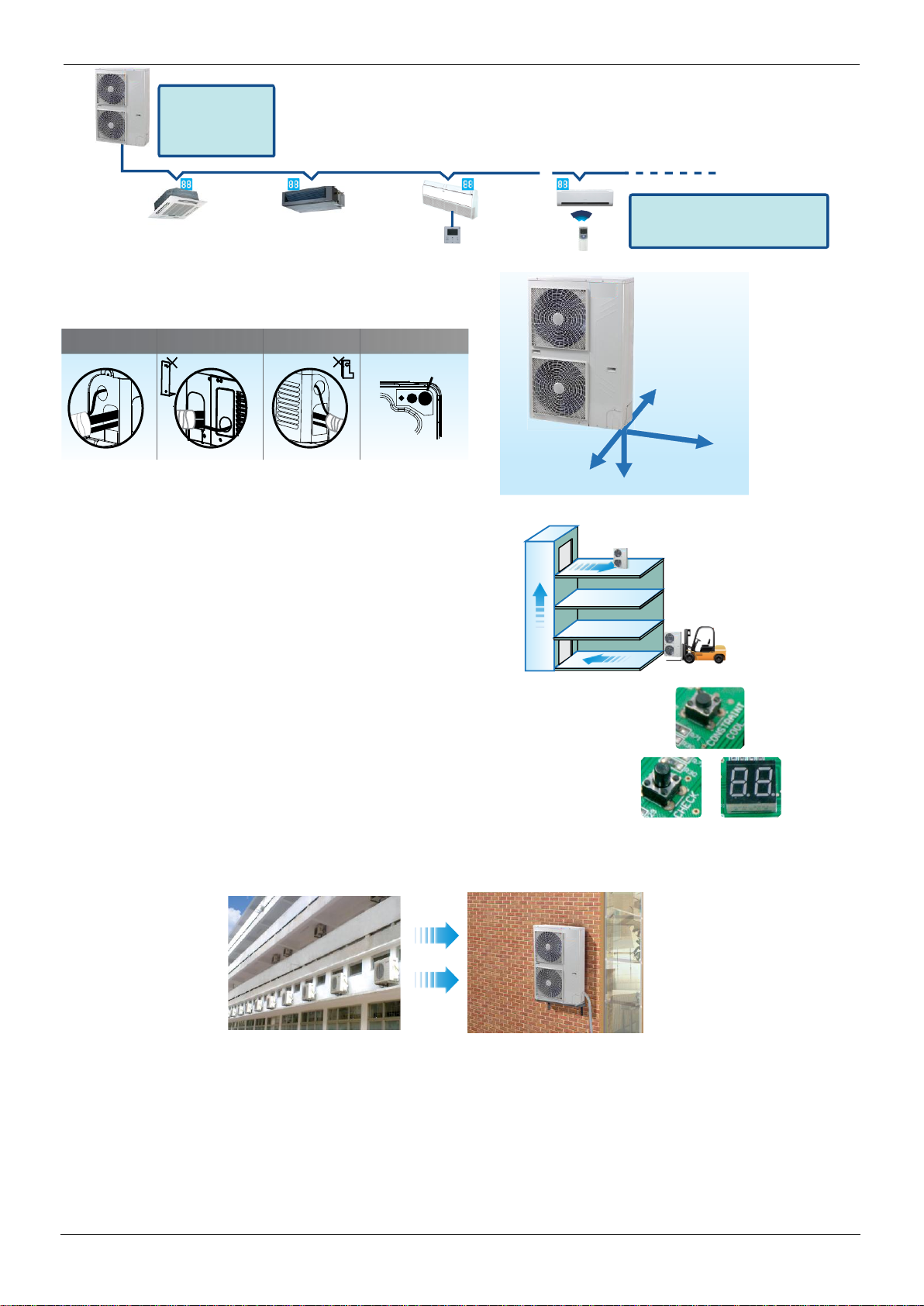

3.11 Easy piping connection
Offering four directions to connect pipes and wirings
to meet various installation requests.
3.12 Easy installation
The small outdoor unit can be transported by elevator
which makes installation dramatically easy, and effectively
reduces time and labor thanks to the small size.
3.13 Easy maintenance
Forced cooling button makes outdoor unit run in cooling mode at
any condition, so it is very easy for you to charge refrigerant to the
system when it needs to be done. The self-diagnosis function
detects malfunctions in major locations in the system and displays
the type of malfunction and location. This allows service and maintenance
to be performed more efficiently.
3.14 Space saving
The small outdoor units are more compact, resulting in significant savings in installation space. It is
particularly suitable for small offices, villas, shops, etc.
Outdoor unit can
distribute address
for indoor unit
automatically Shield signal wire
Wired and wireless controller
can enquire and modify address
of each IDU.
Right side
Upper side
Back side
Front side Bottom side
Front side Back side Right side Bottom side
Fat pipe
Easy to transport
Features
7

4. Notes
If ODU connect only one IDU, the capacity of IDU should be not more than ODU.
If ODU connect more than one IDU, the capacity of each IDU should be not more than 8kW for refrigerant uniform distribution.
Due to continuous improvement, specifications are subject to change without prior notice.
8 Features

Outdoor Units 9
Part 2 Outdoor Units
1. Specifications..................................................................................... 10
2. Dimensions......................................................................................... 12
3. Service Space..................................................................................... 13
4. Piping Diagrams................................................................................. 14
5. Wiring Diagrams................................................................................. 15
6. Field Wiring ........................................................................................ 17
7. Capacity Tables.................................................................................. 18
8. Electric Characteristics ..................................................................... 46
9. Sound Levels...................................................................................... 47
10. Operation Limits................................................................................. 48

10 Specifications

1. Specifications
Sale Model
SDV4-140EAA
SDV4-160EAA
Code
220095102340
220095102370
Power supply V-Ph-Hz
380-415V-3N~50Hz
380-415V-3N~50Hz
Capacity kW
14.0
15.5
Cooling
Input kW 3.95
4.52
EER kW/ kW 3.54
3.43
Capacity kW 15.4
17.0
Heating
Input kW 4.16
4.77
COP kW/ kW 3.7
3.56
Max. input consumption W 6200
7100
Max. current A 11
12
Model TNB306FPNMC
LNB42FSAMC
Type Rotary
Rotary
Brand MITSUBISHI
MITSUBISHI
Capacity Btu/h 33720
47700
Compressor
Input W 3010
4240
Rated current(RLA) A 9.3
12
Crankcase W 27
25
Refrigerant oil ml FV50S 870ml
FV50S 1400ml
Model WZDK100-38G
WZDK100-38G
Type DC motor
DC motor
Brand Panasonic
Panasonic
Insulation class E
E
Outdoor fan
Safe class IP23
IP23
motor
Input W 2 x 100
2 x 100
Output W 2 x 85
2 x 85
Rated current A 2 x 0.9
2 x 0.9
Capacitor uF /
/
Speed r/min 800
800
Material ASG20
Type Axial fan
Outdoor fan
Diameter mm 508
Height mm 170
Number of rows 2
Tube pitch(a)x row
pitch(b) mm 22 x 19.05
Fin spacing mm 1.6
Outdoor coil
 Ф7.94
Tube outside dia.and type mm
Inner groove tube
Coil length x height mm 1276 x 870
Number of circuits 7
Outdoor air flow m3/h
6000
Outdoor sound level(sound pressure level ) dB(A)
57
ASG20
Axial fan
508
170
2
25.4 x 22
1.6
Ф7.94
Inner groove tube
1276 x 870
7
6000
57

Specifications 11




 

Sale Model
SDV4-140EAA
SDV4-160EAA
Code
220095102340
220095102370
Dimension(W x H x D) mm 900 x 1327 x 320
900 x 1327 x 320
Outdoor Unit
Packing (W x H x D) mm 1030 x 1456 x 435
1030 x 1456 x 435
Net/Gross weight kg 95/103
102/113
Type
R410A
R410A
Refrigerant
Charged volume
g
3900
3900
Throttle type
Electronic expansion valve
Design pressure MPa 4.4/2.6
4.4/2.6
Liquid side/ Gas side mm
 Ф9.52/Ф15.9
 Ф9.52/Ф19.1
piping
Refrigerant
Max. refrigerant pipe length
m 100
100
Max. difference in level
m 8
8
Connection
Power wiring mm2
5 core x 2.5
wiring
Signal wiring
mm2
3 core shielded wire x 0.75
 （Cooling -15～48）
 （Cooling -15～48）
Ambient temp
 ℃  （Heating -15～27）
 （Heating -15～27）
Notes:
1. The cooling conditions: indoor temp.: 27℃DB (80.6℉), 19℃WB (60℉) outdoor temp.: 35℃DB (95℉) equivalent pipe length:
5m drop length: 0m.
2. The heating conditions: indoor temp.: 20℃DB (68℉), 15℃WB (44.6℉) outdoor temp.: 7℃DB (42.8℉) equivalent pipe length:
5m drop length: 0m.
3. Sound level: Anechoic chamber conversion value, measured at a point 1 m in front of the unit at a height of *m(0.9m for
80model, 1m for 105 model,1.2m for 120~180 model). During actual operation, these values are normally somewhat higher as a
result of ambient conditions.
4. The aboved datas may be changed without notice for future improvement on quality and performance.

12 Specifications

Dimensions 13

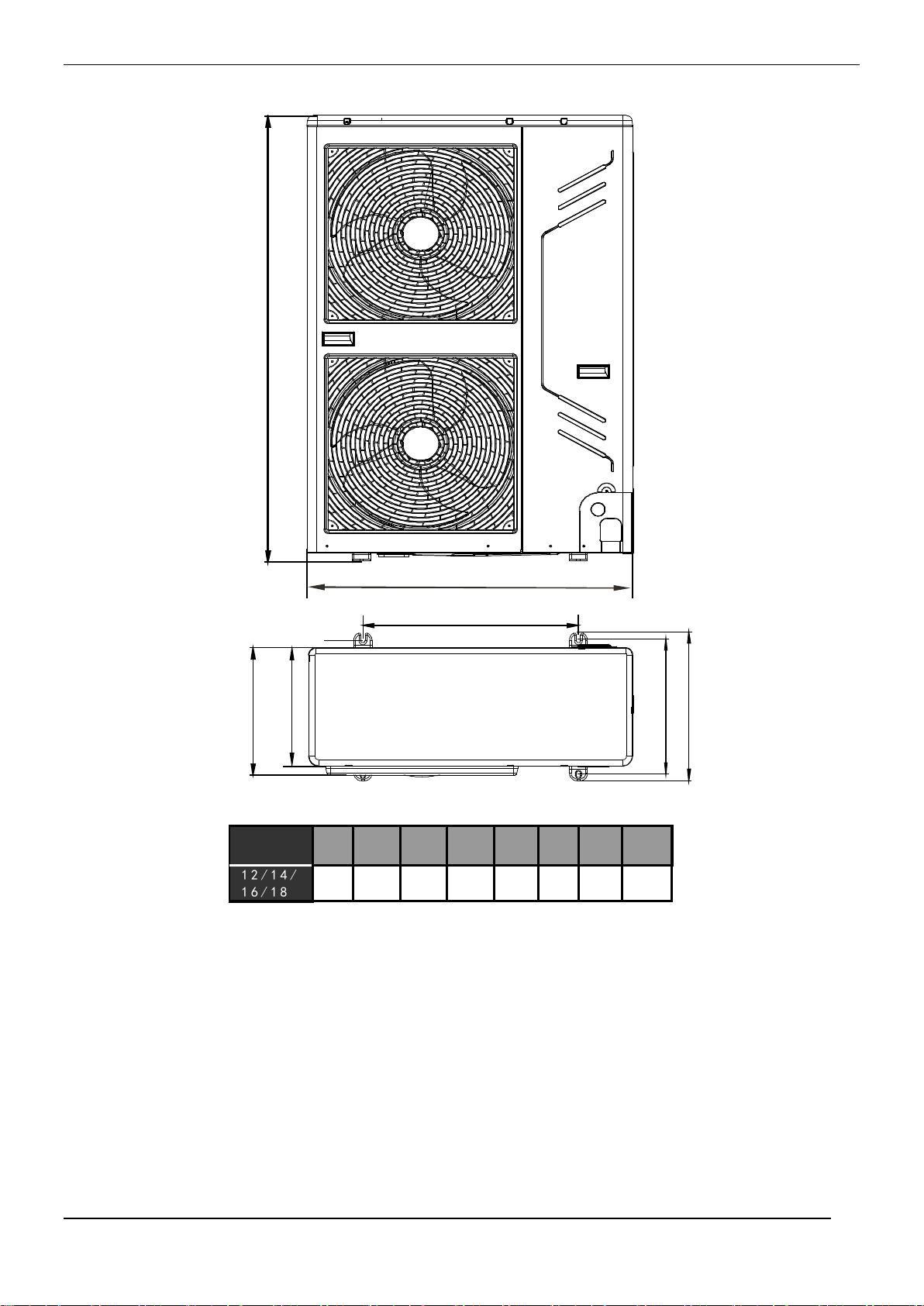

2. Dimensions
H
A
B
C
D
E
F
MODEL
(kW)
900 600 360400 1327
（unit：mm）
348
12/14/
16/18
AB E D GFC
320
H
——

14 Service Sapce
3. Service Space
>300
>600
>300
>
2000
(Wall or obstacle)
Maintain
channel
Air outlet
Air inlet
Air inlet
Single unit installation
>600
>2000
>300
Parallel connect the two units or above
>2000 >500 >3000 >3000 >300
Parallel connect the front with rear sides

Piping Diagram 15
4. Piping Diagrams
Electronic
expansion
valve
Condenser
Oil
separator
Compressor
Low
pressure
switch
Oil return
Capillary
High pressure switch
Low pressure liquid
accumulator can
High pressure liquid
accumulator can
Electronic
expansion
valve
Evaporator

16 Wiring Diagram
5.Wiring Diagram SDV4-140EAA, SDV4-160EAA
