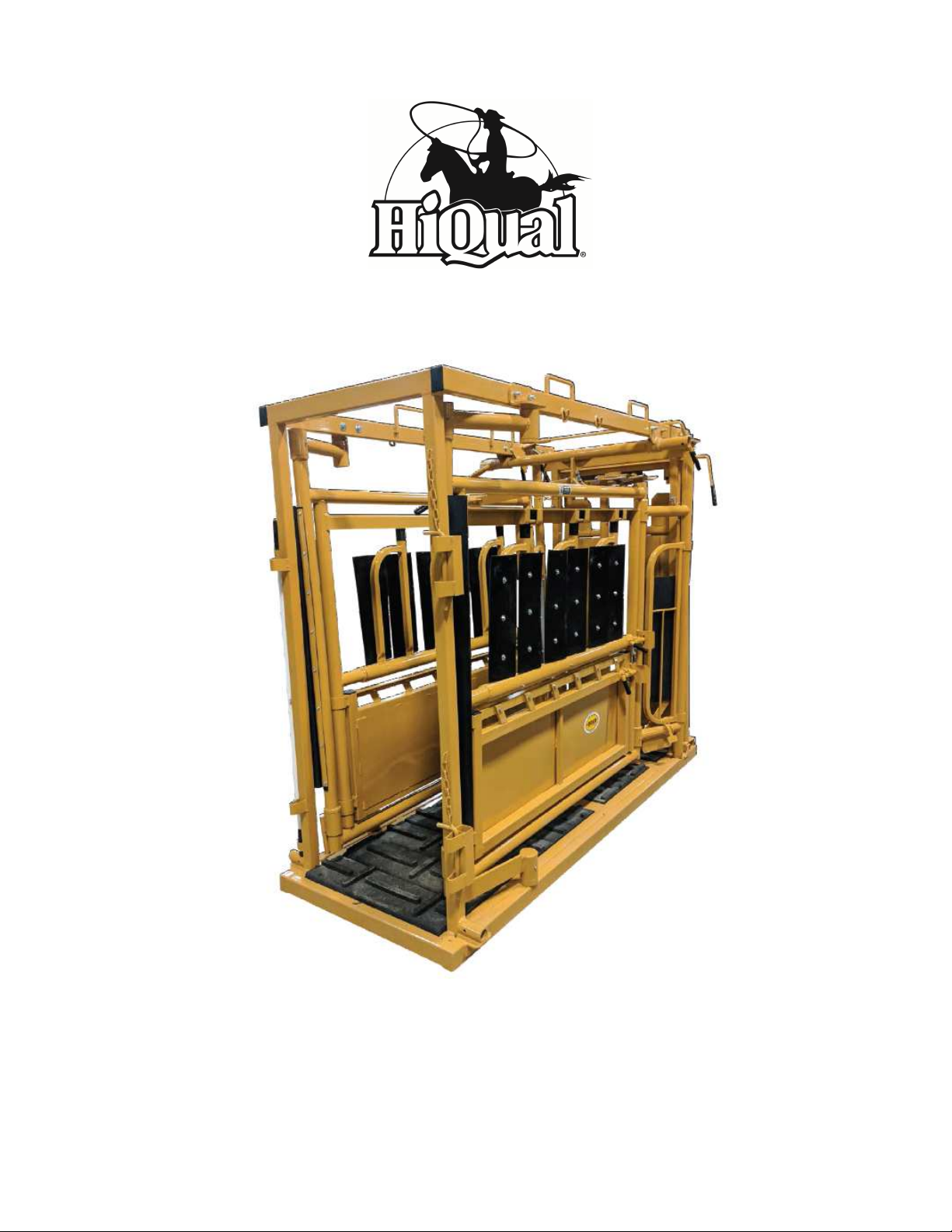

Sioux Tools HiQual S202535BRN User manual

1
Manual No. 224118
Created: 03/06/19 – KG
Rev A: 4/15/19
ECN 19-044, KAG
Short Chute
S202535BRN
WARNING!: Keep hands and fingers away from all hinged
and moving parts during operation.
HI Qual, 196 ½ E 6
th
St, Sioux Falls, South Dakota 57104
844-544-7825

2
CONTENTS
Safety Pg 3
Repair/Replacement Parts Pg 4-5
Fig. A- Main Assembly Breakdown Pg 6
Fig. B- Main Frame Assembly Pg 7
Fig. C- Lh Large Door Assembly Pg 8
Fig. D- Rh Large Door Assembly Pg 9
Ratchet Lock Installation Pg 10
Auto/Manual Head Gate (Optional) Installation Pg 11
Warranty Pg 12
Quality Check Sheet Pg 13

3
SAFETY
Watch for this symbol. It points out important safety
precautions. It means “Attention – Be Alert!”
DEFINITIONS:
CAUTION: Indicates a hazardous situation, which, if not avoided, could result in minor or moderate injury.
WARNING: Indicates a hazardous situation, which, if not avoided, could result in death or serious injury.
DANGER: Indicates a hazardous situation, which, if not avoided, will result in death or serious injury.
If any decals become damaged, detached, or illegible contact your dealer or Hi Qual at (844)-544-7825
for free replacements.
A careful operator is the best operator. To help prevent accidents, read the following precautions before
operating this equipment. Equipment should be operated only by those who are responsible and
knowledgeable of this type of equipment.
Carefully review the procedures given in this manual with all operators. It is important that all operators be
familiar with and follows safety precautions. Improper use of equipment can cause serious injury or death.
1. Read the operator's manual before operating equipment.
2. Keep hands, arms, feet, and legs away from all pinch points.
3. DO NOT remove any safety devices that have been provided for your protection.
4. DO NOT work around the equipment in loose clothing that might catch in any moving parts.
5. DO NOT modify the equipment without consulting a dealer or Hi Qual.
6. Do NOT clean, lubricate, or adjust equipment, while equipment is operating.
7. Inspect the equipment regularly for any damage before and after each use. If damage to
equipment occurs, equipment should not be used until repairs are made. Immediately, contact
your dealer or Hi Qual Warranty Department at [phone]. Repair of damages should be
implemented as soon as practical, with appropriate Hi Qual replacement parts.
REMEMBER: Hi Qual. includes all reasonable means for accident prevention except a safe and
careful operator.

4
Replacement Part List
Notes:
•The Hi Qual Short Chute has been completely assembled at the factory.
•Before operating, install Ratchet Lock per customer preference. Ratchet Lock can be installed on
either side of chute. See Ratchet Lock installation section of manual for additional details.
•Before operating, apply grease to grease zerks. Oil all other hinged and moving parts.
•Grease and oil as needed.
WARNING! Keep hands and fingers away from all hinged
and moving parts during operation.
ITEM
NO.
PART
NUMBER DESCRIPTION QTY.
1 S202534BRN FRAME ASSY- SHORT SQUEEZE CHUTE 1
2 S221254BRN DOOR - SQUEEZE CHUTE LH 1
3 S189 6BRN PIVOT WLDT - SM 1
4 S189 6BRN PIVOT WLDT - SM 1
5 S2212 2BRN DOOR - SQUEEZE CHUTE RH 1
6 S224059BRN RATCHET ASSEMBLY - SQUEEZE CHUTE 1
S191398BRN RATCHET- LOCK HANDLE ASSY 1
8 S19152 W PUSH BAR 1
9 H208454 SERIAL NUMBER DECAL 1
10 S191524 BLINDER 30X10 2
11 S1964 4 PLUG - 2 X 3 PLASTIC RECT 10-14GA TUBE 4
12 S198836 ZERK- 1/4"-28 strght-short thrds 24
13 S19582 WARNING DECAL "PINCH POINT" 3
14 S195828 WARNING DECAL "PINCH POINT" 2
15 S189 38BRN STOP PLATE- BUTT BAR 12
16 S191529 CAP -PLAS HNDL - 1.25SQ X 3.5/BLK 6
1 S191525 SMALL BLINDER x 20 12
18 S166543 NUT- .625 HEX-11 ELASTIC LOCK GR2 ZP 1
19 S196459 Screw - .625 HHC - 11 x 3.5 Gr5 ZP 1
20 S1540 1 Washer - .625 STD Flat 2
21 S189515 NYLOCK NUT- 1/2-13 13
22 S154069 Washer - .500 Flat Type A/W Series BZ 14
23 S191566 NUT - .438-14 ELASTIC LOCK GR2 12
24 S19155 SPRING- EXT. /8 X 4 1
25 S191 50 SCREW- .50 HHC X 4.5 1
26 S191462 Spring- Compression 2. 5 OD x 6.25 1
2 S19153 CAP - PLAS HNDL . 50 RND X 5/BLK 6
28 S191565 RATCHET HANDLE SPACER 2
29 S1 3991 PLUG- BLACK 2.0 SQUARE 14-20GA 4
30 S196489 WASHER - .250 FENDER 1.00 OD ZP 52

5
Replacement Part List
ITEM
NO.
PART
NUMBER DESCRIPTION QTY.
31 S196490 SCREW- SELF DRILLING 1/4-14 X 1.0 HEX ZP 84
32 S198606BRN ANCHOR TUBE WLDT 2
33 S198605 ANCHOR SHACKLE 1
34 S198895 DECAL- STRAP HERE 4
35 S20145 BRN FOOT PEDAL 2
36 S169 0 SCREW- 3/8" -16 HHC X 2.25" 2
3 S159 81 NUT- .3 5 HEX -16 ELASTIC LOCK GR5 ZP 2
38 S208462 SHELBY FLOOR PLANK - 29. 5 10
39 S202559 SCREW - .25-20 X 2.5 THREAD FORMING FLAT
HEAD 40
40 K 00680 SCREW - .500-13 X 3.25 GR 5 HHC 12
41 S169366 SCREW - .43 5 - 14 X 1.5 FHHC 12
42 S224054BRN STRAP - BLINDER SUPPORT 2
43 S224056 BLINDER - REAR CHUTE/1PLY 2
44 S224055BRN STRAP - BLINDER SUPPORT BENT 2
45 H2036 9 DECAL - "HI QUAL" 4" x 5" 2
46 S196552BRN UPPER PIVOT ASSY 2

6

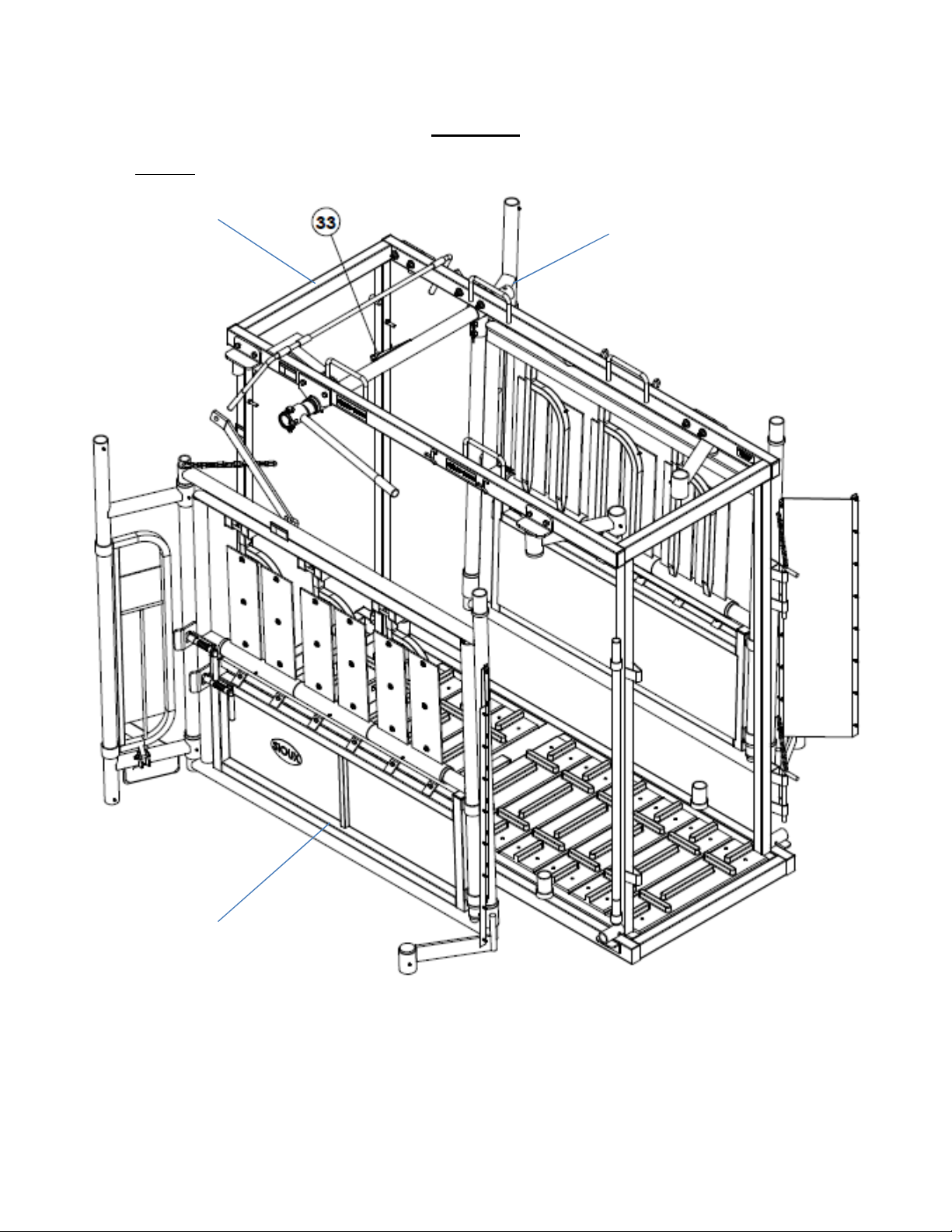

Figure A
Main Assembly Breakdown
Notes:
•See Head Gate installation section for additional details on Auto or Manual Head Gate.
Optional
Auto or Manual
Head Gate
(not shown)
See Notes Below
H Large Door
Assembly
Figure D
LH Large Door
Assembly
Figure C

7

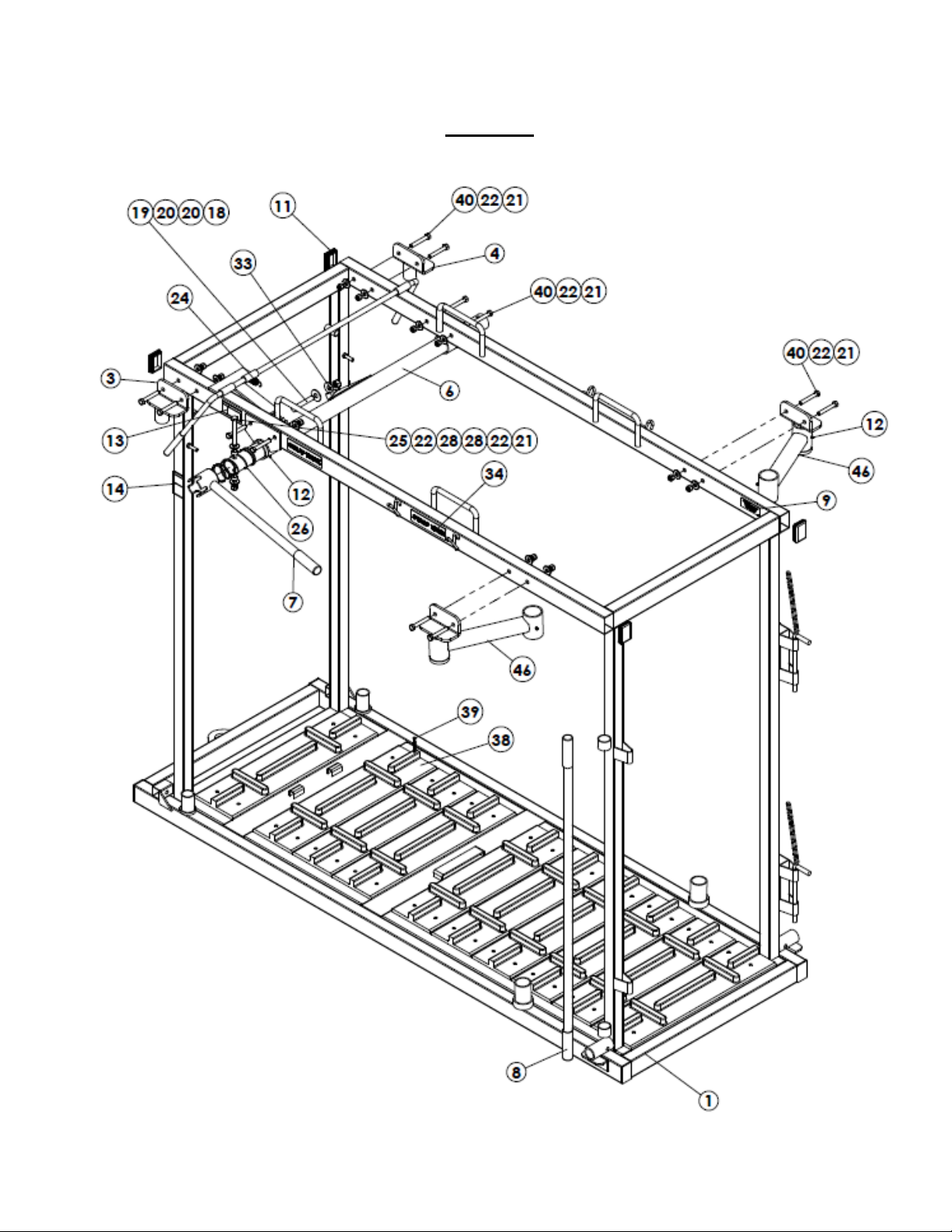

Figure B
Main Frame Assembly

8

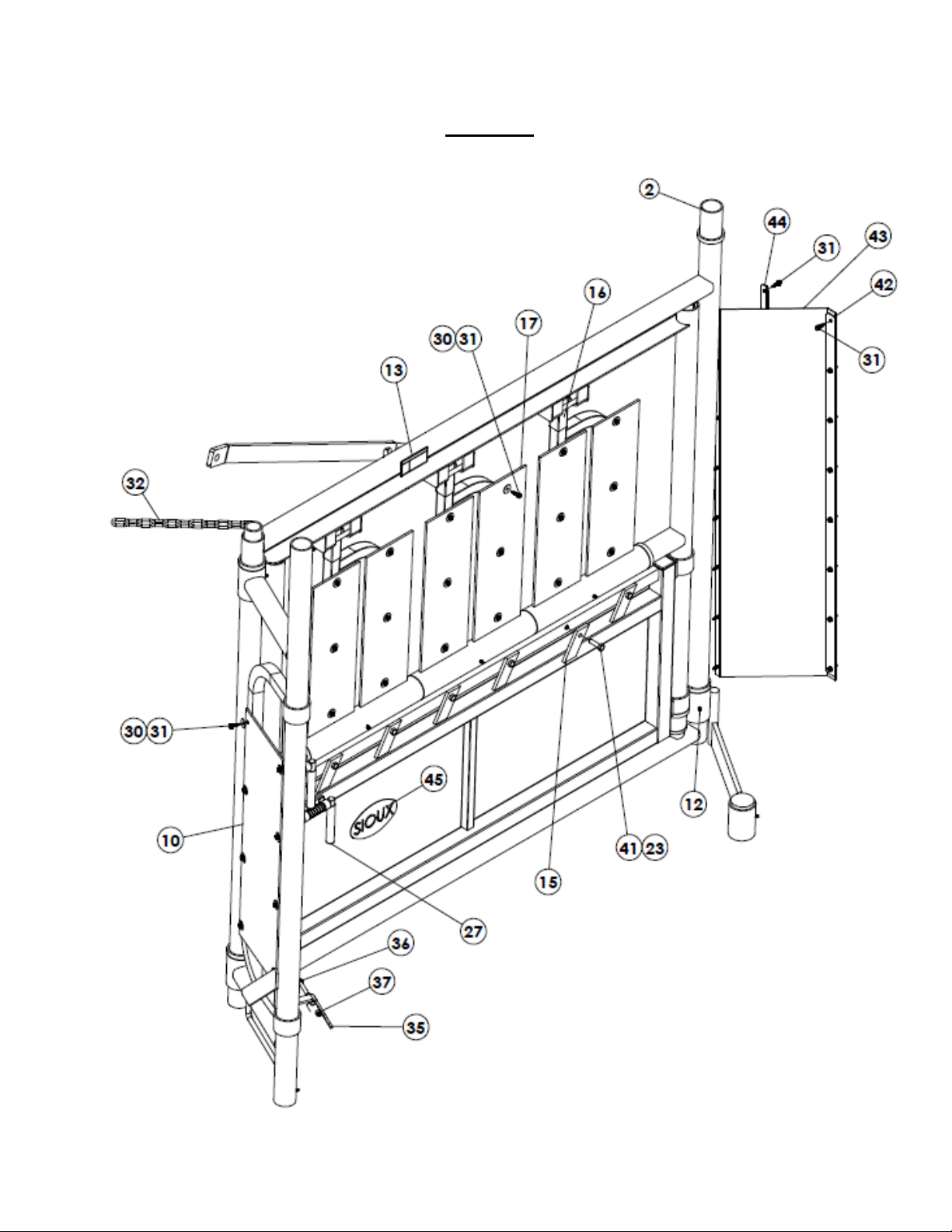

Figure C
LH Large Door Assembly

9

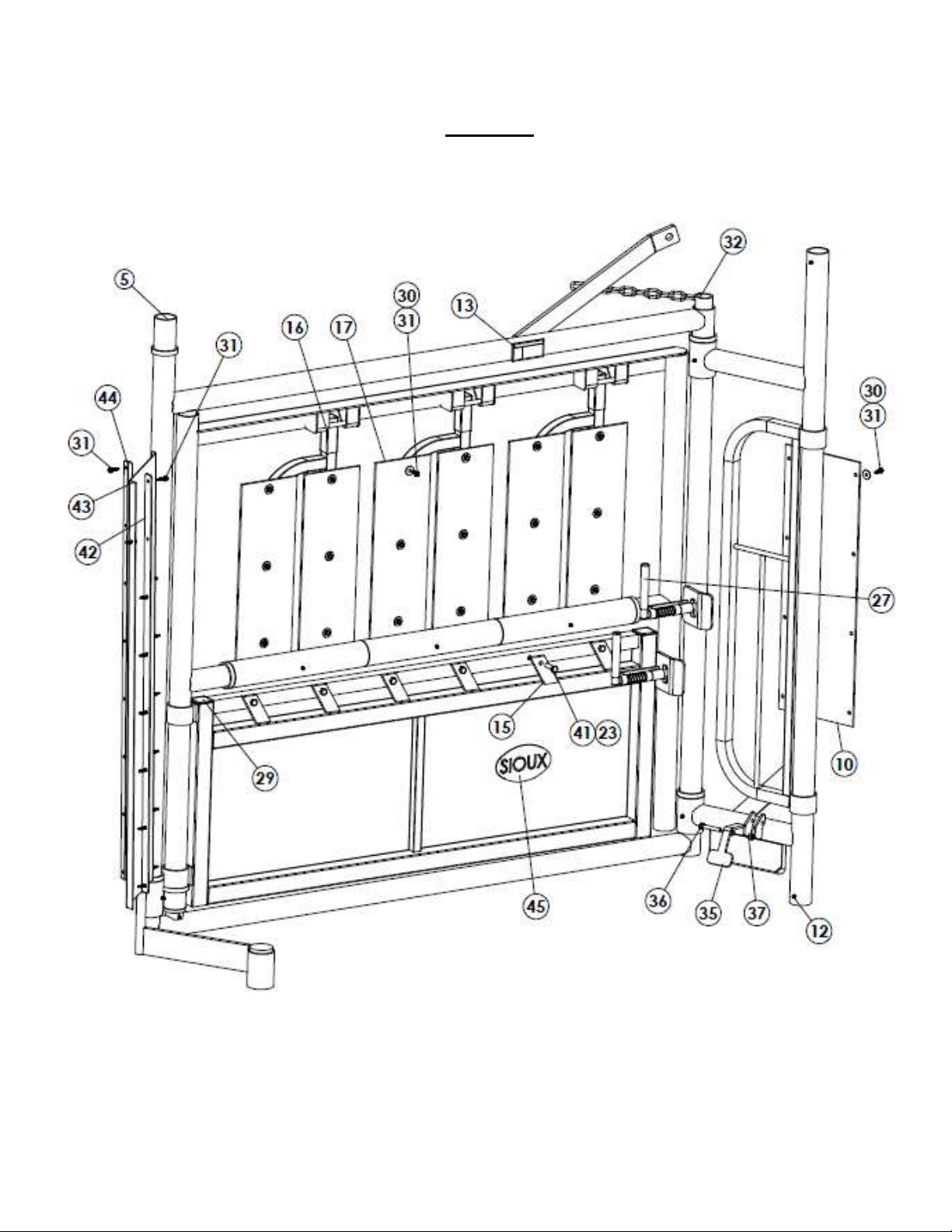

Figure D
RH Large Door Assembly

10

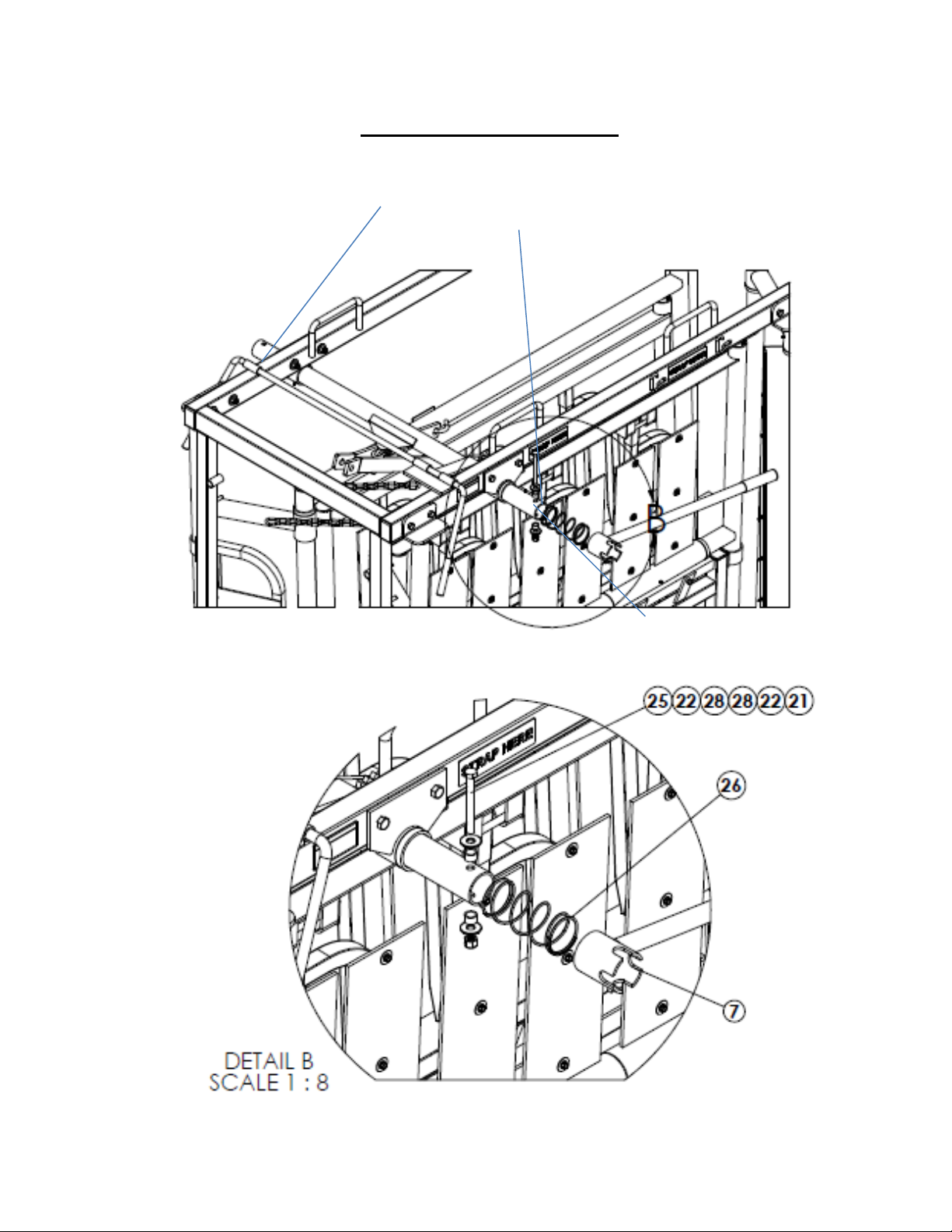

Ratchet Lock Installation
atchet Lock can
Be installed on either
Side of Chute

11

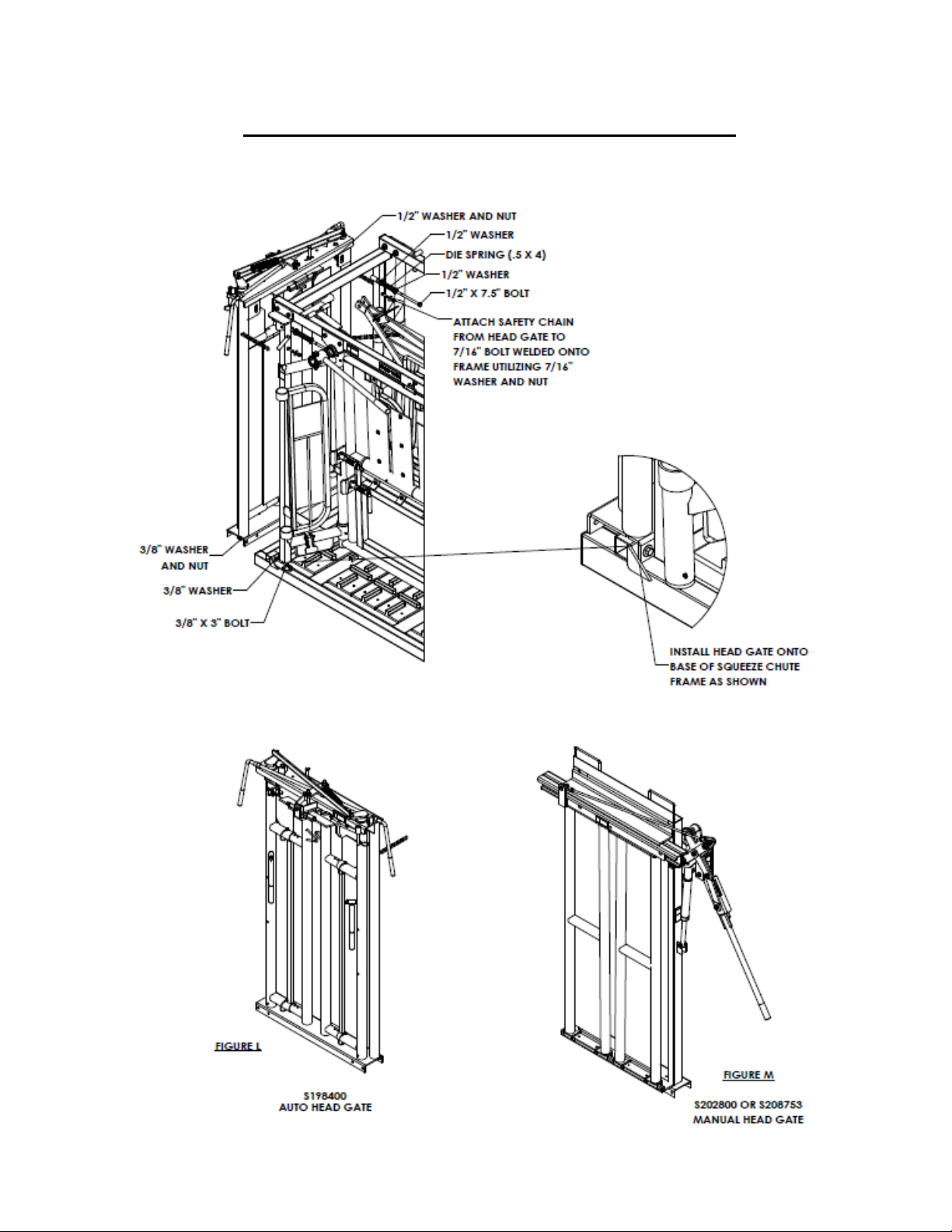

Auto & Manual Head Gate (optional) Installation
Attach Head Gate to Main Frame as shown
Hardware will either come with Head Gate or kit S223020

12
N EW P RODUCT W ARRANTY
H I Q UAL L IVESTOCK E QUIPMENT
LIMITED
WARRANTY
FOR
NEW
HIQUAL
COMPANY
PRODUCTS
A. GENERAL PROVISIONS
. “HiQual” means HiQual Company, 200 N. Cleveland, Lennox, SD 57039. The warranties described below
are provided by HiQual to the original purchasers of new products purchased from HiQual or from an authorized HiQual Dealer (the
“Products”). Under these warranties, HiQual will, at its option, repair or replace at its factory any Product covered under these warranties
which is found to be defective in material and workmanship during the applicable warranty term or refund the purchase price paid for the
defective Product. Customer will be responsible for labor charges for removing the defective Product and reinstalling the repaired or
replacement Product, any premium charge for overtime labor requested of HiQual and shipping charges to and from HiQual’s factory. These
warranties are not transferrable.
B. WARRANTY PERIOD
. Subject to exclusions and limitations set forth herein, each new Product is warranted for the number of years
specified below. Each warranty term begins from the date of purchase regardless of delay in receipt of the Product by Customer due to the
time required to process, handle, ship, assemble, construct and install the Product. Customer must retain proof of the date of purchase.
Replacement parts for and repairs to the Product will be warranted only for the remainder of the original warranty term. The replacement
parts for or repairs to the Product will not extend the warranty term beyond the original warranty term. Products described below include all
parts, components and accessories.
PRODUCTS
All Steel products 1 Year
All Poly Products 2 years
Flex Connectors 5 Years
C. ITEMS COVERED SEPARATELY
. The HiQual
warranties do not cover any parts, components or materials that are part of the Product,
or used in conjunction with the Product, that are not manufactured by Sioux Steel. Such parts, components and materials will be subject to
the warranties provided by the manufacturer, if any.
D. WHAT IS NOT WARRANTED
. HiQual does not warrant and is not responsible for the following: (1) used products; (2) modification or
alteration of the Products; (3) Products that have not been properly installed or not installed in accordance with the instruction manual,
improper assembly, or improper construction by any persons other than HiQual employees; (4) depreciation, damage or loss caused by the
use of parts, components or accessories not provided by HiQual, unauthorized repairs, normal wear, lack of necessary and proper
maintenance, a failure to follow operating instructions/recommendations, misuse, lack of proper protection during storage, vandalism or theft,
exposure to the elements or corrosive materials, accidents or acts of nature including lightning, flooding, hail, straight winds and tornadoes;
and (5) cosmetic damage or damage that does not hinder the functionality of the Products.
E. LIMITATIONS OF WARRANTIES AND CUSTOMER’S REMEDIES
. To the extent permitted
by law, neither HiQual, the Dealer nor any
person or company affiliated with either of them makes any warranties, representations, conditions or promises express or implied as to the
quality, performance or freedom from defects of the Products covered by these warranties other than those set forth herein. THERE ARE
NO IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. NEITHER HIQUAL, THE DEALER,
NOR ANY PERSON OR COMPANY AFFILIATED WITH EITHER OF THEM WILL BE LIABLE FOR ANY DAMAGES, INCLUDING, BUT
NOT LIMITED TO, INCIDENTAL, SPECIAL, EXEMPLARY, CONSEQUENTIAL, LOST PROFITS AND REVENUES, LOST USE OF THE
PRODUCTS OR ANY OTHER PROPERTY, BODILY INJURY OR PROPERTY DAMAGE CLAIMS OF ANY PERSON, LOST
COMMODITIES, REMOVAL OR STORAGE COSTS FOR THE PRODUCTS, OTHER EQUIPMENT AND COMMODITIES, DAMAGE TO
THE ENVIRONMENT ARISING FROM OR IN ANY MANNER RELATED TO ANY RELEASE OF HAZARDOUS MATERIALS, AND
REMEDIATION EXPENSES THEREFORE, WHETHER BASED ON CONTRACT, TORT, STRICT LIABILITY OR ANY OTHER LEGAL
BASIS, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO INSTANCE WILL SIOUX STEEL, THE DEALER OR ANY
PERSON OR COMPANY AFFILIATED WITH EITHER OF THEM BE LIABLE TO CUSTOMER OR ANY PERSON IN AN AMOUNT IN
EXCESS OF THE PURCHASE PRICE PAID BY CUSTOMER FOR THE PRODUCT.
F. NO DEALER WARRANTY
. THE DEALER HAS NO AUTHORITY TO MAKE ANY WARRANTY, REPRESENTATION, CONDITION OR
PROMISE ON BEHALF OF HIQUAL, OR TO MODIFY THE TERMS OR LIMITATIONS OF THIS WARRANTY IN ANY WAY.
G. GOVERNING LAW/VENUE
. These warranties, and all terms set forth herein, are governed by the laws of the State of South Dakota
and, where applicable, the laws of the United States of America. Any and all disputes arising from these warranties, the purchase and use of
the Products, bodily injury and property damage claims or otherwise must be venued in the South Dakota Circuit Court sitting in Minnehaha
County, South Dakota. Customer agrees to such venue and waives any challenge to such court’s jurisdiction based upon lack of personal
jurisdiction or inconvenience.
H. SECURING WARRANTY SERVICE.
In order to receive warranty services, customer must give HiQual written notice of a warranty claim
within 30 days of the date of discovery of the defective materials or workmanship, and customer must complete the following steps.
(1)
Obtain from HiQual a Return Materials Authorization Number (“RMA Number”) by calling the
Customer Service at 1
-
800
-
557
-
4689
and
providing the following information.
An explanation as to why the products being returned.
The name of the territory representative, dealer or HiQual sales person from whom the product was purchased.
The dealers ID number / account number.
The invoice number and date of purchase.
Customers name, phone number and address.
The date the product will be returned.
(2)
Pay the shipping charges to and from the HIQual’s factory.
(3)
Ship the product to HiQual, 200 N. Cleveland, Lennox, SD 57039

13
Quality Check Sheet
-
Short Chute Serial Number:
Circle one
-
Auto LH/RH Manual Less Head gate
Assembler(s)
Initials
Quality
Initials
1 All 4 door latches engage with a minimum of 1/8" past flange:
(See Figure 1)
2 Squeeze chute opens & closes smoothly:
3 Check open measurement to a minimum of 28"
(See Figure 3)
4 Check closed measurement to maximum of 15" on chute:
(See Figure 4)
5 Check collar on atchet Lock Assembly is flush with outside of frame:
(See Figure 8-S191398)
6 Check all double flap handles (S191382) ability to open & close:
7 Check zerk installation and grease entire chute: Total of 34 zerks:
(See Figure 9)
8 Check the function of the advancement bar plates on both sides:
(See Figure 10)
9 Check to make sure all decals and serial #'s are applied:
(See attached decal placement sheet)
10 Verify hole is drilled all the way through:
(See Figure 13)
11 Verify that brisket bars are in correctly:
(See Figure 14)
12 Make sure that blinders are on straight and all self-taping screws are
tight: (See Figure 15)
13 Make sure all nuts are securely fastened:
14 Verify 1/16in ubber on end of squeeze does not pinch and installed
correctly (See Figure 17)
15 Attach Operator's Manual and quality check sheet to the chute3:
Date:
Assembler Name: Signature:
Quality Name:
Signature:
