Sirius Satellite Radio Satellite Radio Plug-n-Play AM/FM SV3 User manual

Satellite Radio Plug-n-Play
SIRIUS STRATUS
SV3 User Guide

Congratulations on the Purchase of your new SIRIUS Stratus SV3
Plug-n-Play Radio
Your new SIRIUS Stratus SV3 Plug-n-Play Radio lets you enjoy SIRIUS®Satellite Radio’s
digital entertainment in any vehicle where you’ve installed the included vehicle docking station.
The Stratus SV3 is also compatible with the SUPH1 SIRIUS Universal Plug and Play Home
Kit, the SUPV1 SIRIUS Universal Plug and Play Vehicle Kit, and the SUBX1 SIRIUS Plug and
Play Universal Boombox (each sold separately).
Use this manual to familiarize yourself with all of the Stratus’ features and capabilities. For the
latest information about this and other SIRIUS products and accessories, visit http://www.
sirius.com.

[Table of Contents ]
2
Table of Contents
TABLE OF CONTENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
WARNING AND SAFETY INFORMATION. . . . . . . . . . . . . . . . . . . . . . 4
FCC Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Canadian Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
General Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
COPYRIGHTS & TRADEMARKS . . . . . . . . . . . . . . . . . . . . . . . . . 7
PACKAGE CONTENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Mounting the Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Installing the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Connecting the Cigarette Lighter Adapter . . . . . . . . . . . . . . . . . . . . . 16
Maximizing Audio Quality From Your SIRIUS Radio. . . . . . . . . . . . . . . . . . 16
Wireless Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Direct Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Subscribing to the SIRIUS Service . . . . . . . . . . . . . . . . . . . . . . . . 20
CONTROLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
SIRIUS Stratus SV3 Reference Guide . . . . . . . . . . . . . . . . . . . . . . . 22
SIRIUS Stratus SV3 Docking Station Reference Guide . . . . . . . . . . . . . . . . 23
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Display Screen Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Changing Channels and Categories. . . . . . . . . . . . . . . . . . . . . . . . 25
Selecting Channels Directly . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
FM Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Jump Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Channel Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
MENU OPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
SIRIUS ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
FM Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Audio Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

[Table of Contents ] 3
Tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Jump Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Channel Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Factory Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
SIRIUS ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

[Warning and Safety Information ]
4
Warning and Safety Information
FCC Information
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
This device may not cause harmful interference, and
This device must accept any interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the limits for
a CLASS B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful inter-
ference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
1.
2.
3.
4.
WARNING
Changes or modifications not expressly approved by the manufacturer could void the user’s
authority to operate the equipment.
1.
2.

[Warning and Safety Information ] 5
Canadian Compliance
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
General Precautions
Liquid Crystal Precautions
If the LCD screen on the radio is damaged, do not to touch the liquid crystal fluid. If any of the
following situations happen, take the action indicated:
If the liquid crystal fluid comes in contact with your skin, wipe the skin area with a cloth
and then wash the skin thoroughly with soap and running water.
If the liquid crystal fluid gets into your eye, flush the eye with clean water for at least 15
minutes. Seek medical care.
If the liquid crystal fluid is ingested, flush your mouth thoroughly with water. Drink large
quantities of water and induce vomiting. Seek medical care.
Safety Precautions
Be sure to observe the following warnings. Failure to follow these safety instructions and
warnings may result in a serious accident.
Do not operate the radio in a way that might divert your attention from driving safely. As a
driver, you alone are responsible for safely operating your vehicle in accordance with traf-
fic safety laws at all times.
Do not install the unit where it may obstruct your view through the windshield, or of your
vehicle’s indicator displays.
Do not install the unit where it may hinder the function of safety devices such as an airbag.
Doing so may prevent the airbag from functioning properly in the event of an accident.
Be sure the unit is installed as described in the installation instructions which accompany
each accessory kit. SIRIUS Satellite Radio is not responsible for issues arising from instal-
lations which were not installed according to the instructions.
1.
2.
3.
•
•
•
•

[Warning and Safety Information ]
6
To avoid short circuits, do not open the unit, and never put or leave any metallic objects
(coins, tools, etc.) inside the unit.
If the unit emits smoke or unusual odors, turn the power off immediately, and disconnect
the unit from any power source.
Do not drop the unit or subject it to strong shocks.
If the unit doesn’t seem to be working properly, turn the unit off, remove the battery from
the unit, wait 10 seconds, replace the battery and then turn it on again.
The installation and use suggestions contained in this manual are subject to any restric-
tions or limitations that may be imposed by applicable law. The purchaser should check
applicable law for any restrictions or limitations before installing and/or operating this unit.
Operating Temperature
The radio is designed to operate between -20° to +85° C (-4° to +185° F). Avoid leaving
the unit in a vehicle or elsewhere where the temperature may fall outside this range. Extreme
temperatures or extreme temperature fluctuations can degrade the performance of the LCD
display screen, and possibly damage it.
Cleaning and Maintenance
If the radio becomes dirty, turn the power off and wipe it clean with a soft cloth. Do not use
hard cloths, strong cleaning fluids, paint thinner, alcohol, or other volatile solvents to clean.
These may cause damage to the unit.
•
•
•
•
•

[Copyrights & Trademarks ] 7
Copyrights & Trademarks
© 2006 SIRIUS Satellite Radio Inc. All Rights Reserved.
® “SIRIUS”, the SIRIUS dog logo, channel names and logos are trademarks of SIRIUS
Satellite Radio Inc. “NFL” and the NFL Shield logo, and the NFL Sunday Drive name and logo
are registered trademarks of the National Football League. “NHL” and the NHL Shield are
registered trademarks of the National Hockey League. “NBA” and the NBA silhouette logo are
registered trademarks of NBA Properties Inc. All other trademarks, service marks, sports team
names, album art, and logos are the property of their respective owners. All Rights Reserved.
Portions of the software on this radio are licensed under the eCos License. Distribution of
eCos requires that the eCos source code be made available to Sirius Satellite Radio custom-
ers. The eCos License and eCos source code are available to the public at http://www.sirius.
com/ecoslicense.
Sirius Satellite Radio reserves all rights to all radio software not covered under the eCos
license. This includes all portions of radio software that were not distributed to Sirius as part
of the eCos operating system.
Hardware, subscription and activation fee required. For full Terms & Conditions, visit
http://sirius.com. Prices and programming are subject to change. Not available in HI and AK.
Equipment and subscription sold separately. Installation required with some equipment.

[Package Contents ]
8
Package Contents

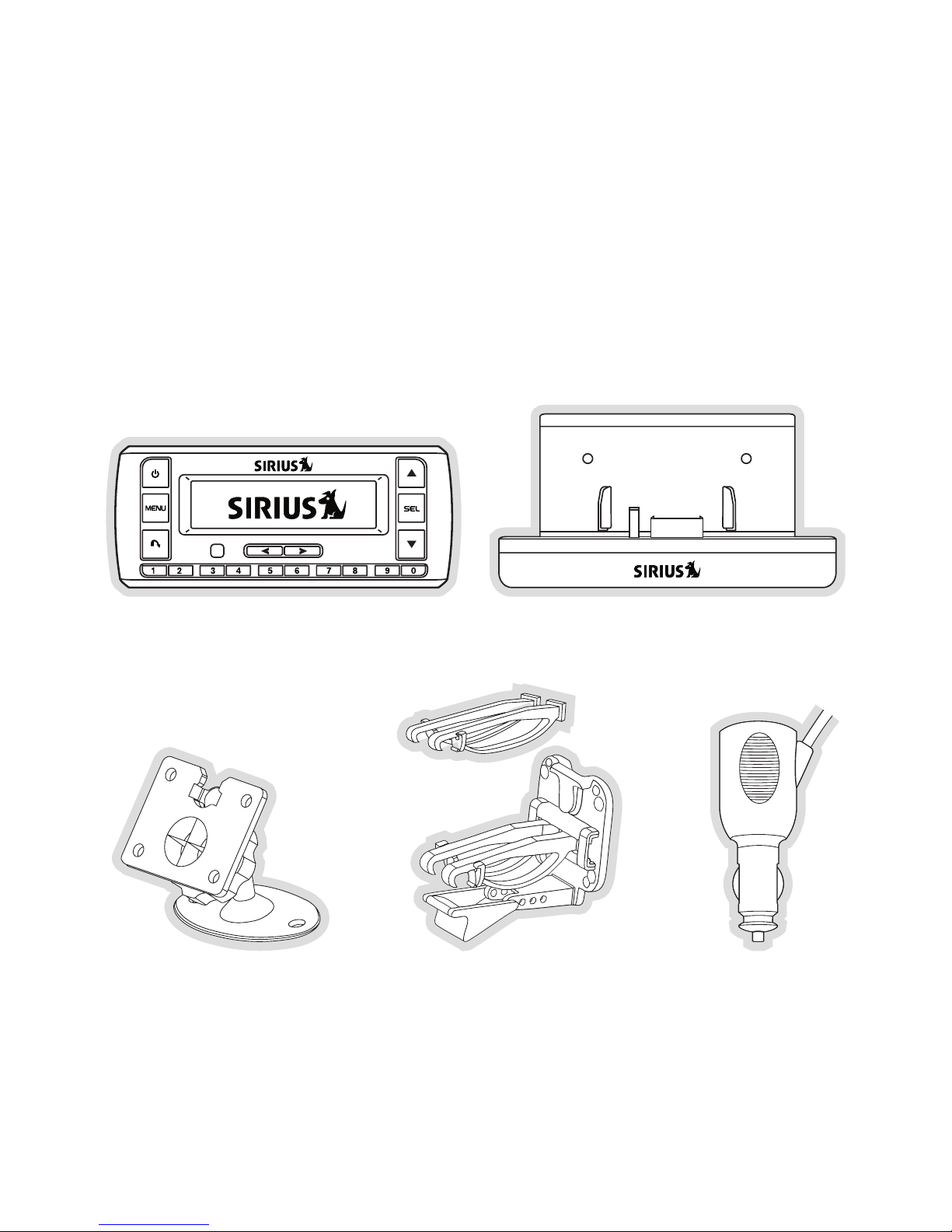

The following items are included with your purchase of the SIRIUS Stratus SV3 radio:
Stratus SV3 RadioStratus SV3 Radio Vehicle Docking StationVehicle Docking Station
Adhesive Dash MountAdhesive Dash Mount Vent Mount &
Extended Vent Hooks
Vent Mount &
Extended Vent Hooks
Cigarette Lighter
Adapter
Cigarette Lighter
Adapter

[Package Contents ] 9
Satellite Radio Plug-n-Play
SIRIUS STRATUS
SV3 User Guide
Unpack your SIRIUS Stratus SV3 radio carefully and make sure that everything shown is pres-
ent. If anything is missing or damaged, or if your the radio fails to operate, notify your dealer
immediately. It is recommended that you retain the original carton and packing materials in
case you need to ship your radio in the future.
Antenna
Cover/Tail
Antenna
Cover/Tail
Alcohol
Swab
Alcohol
Swab
ScrewsScrewsMagnetic
Antenna
Magnetic
Antenna
User GuideUser Guide

[Installation ]
10
Installation
Installation of your SIRIUS Stratus SV3 radio is easy:
Choose a location in your vehicle where you will mount the radio, either on the dash or
the vent.
Mount the radio on the dash using the adhesive mount, or on the vent using the vent
mount.
Install the magnetic antenna on the roof of the vehicle, and route the antenna cable to
the radio.
Connect the power cord for the radio to your vehicle’s cigarette lighter.
Subscribe to the SIRIUS service and begin enjoying the SIRIUS entertainment!
Location
Choose a location in your vehicle where the radio will not block your vision, interfere with the
vehicle controls, or obstruct the air bag. If you are using the adhesive mount, the location
should be a suitable flat, smooth surface. The location should be easily reachable and provide
good visibility of the radio.
Figure 1 illustrates the dash mount option (A), and the vent mount option (B).
A. B.
1.
2.
3.
4.
5.
Figure 1Figure 1

[Installation ] 11
Mounting the Radio
Attach the desired mounting device, dash or vent mount, to the vehicle docking station by
sliding the flat portion of the mount into the slot on the back top edge of the vehicle docking
station. Gently slide the mounting device in until it snaps into place.
Dash Mount Option (A)
If you choose the dash mount option, be sure to select your mounting position carefully. Once
the mount has been adhered to a surface, it will not be possible to remove it and adhere it
again.
Clean the selected mounting surface area in the vehicle with the alcohol swab. Unscrew the
adhesive foot from the mount. Peel the protective material off the adhesive on the foot and
press the foot firmly against the vehicle surface.
The adhesive mount should then be allowed to adhere for a minimum of 2-4 hours before use.
Best adhesion occurs after 24 hours.
Vent Mount Option (B)
To mount the vehicle dock using the vent mount option, install the vent mount as follows:
If the vent louvers in your vehicle are recessed, you may need to use the longer vent
hooks with the vent mount. Refer to Figure 2 and install the longer vent hooks into the
vent mount. Be sure to observe the orientation of the vent hooks as shown.
Slide Short
Vent Hooks Out
Remove
End Cap
Slide Extended
Vent Hooks In
Replace
End Cap
1.
Figure 2Figure 2

[Installation ]
12
Refer to Figure 3 and attach the vent mount to a heating/air conditioning vent in your
vehicle. Position the two tension springs Aagainst a vent louver B. Then push the vent
mount into the vent, far enough so that the hooks Cdrop down and hook the rear of the
vent louver (Figure 4). Once you are sure that the hooks have grasped a vent louver, the
tension springs Awill keep the vent mount hooked to the louver.
C
B
A
D
PUSH
HOOKED
2.
Figure 3Figure 3
Figure 4Figure 4

[Installation ] 13
The angle of the docking station may be changed by changing the position of foot Don
the vent mount (Figure 3) to a different adjustment hole. (Figure 5)
A
DJUSTMENT HOLES
Installing the Antenna
The optimum mounting location for the magnetic antenna is on the roof of the vehicle, with a
minimum unobstructed area of 12 inches by 12 inches, and exactly 6½ inches from the rear
roof edge of the vehicle (the length of the rubber antenna cable cover/tail). It is important to
avoid any obstructions that will block the SIRIUS signal, obstructions such as a roof rack,
a sunroof, roof mounted cargo containers, or other antennas. For convertible vehicles, the
antenna should be installed on the trunk lid.
For best performance, it is recommended that the antenna be installed with the rubber
antenna cable cover/tail. This rubber antenna cable cover/tail provides two benefits: first, it
positions the antenna the recommended distance from the rear window, rear door/hatch, or
trunk edge to give the antenna the best view of the sky. Secondly, it conceals and protects
the exposed antenna cable. The rubber antenna cable cover/tail has adhesive strips that hold
it securely in place.

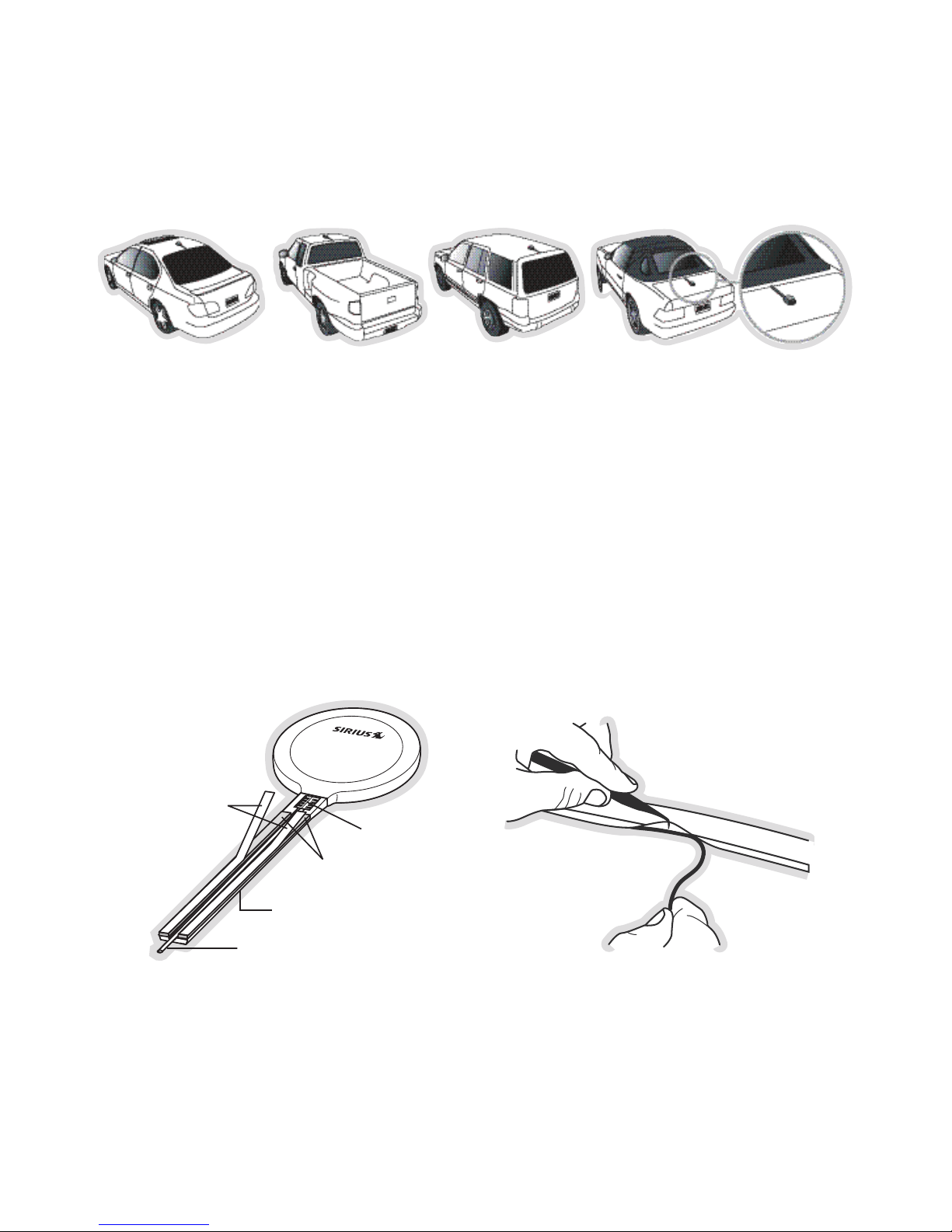

The following illustrations show the recommended mounting locations of the antenna for
several types of vehicles. (Figure 6) Follow these recommendations for best performance from
the antenna.
3.
Figure 5Figure 5

[Installation ]
14
Sedan/Coupe. Mount the antenna along the rear center-line of the vehicle roof, located at the
rear of the roof near the rear window.
Pickup Truck. Mount the antenna along the rear center-line of the cab roof, located at the
rear of the roof near the rear window.
SUV/Mini-Van. Mount the antenna along the rear center-line of the vehicle roof, located at the
rear of the roof near the rear door/hatch.
Convertible. Mount the antenna along the center-line of the trunk lid, with the rubber antenna
cable cover/tail directed toward the rear window.
When you have selected a suitable mounting location, clean the area where the antenna and
rubber antenna cable cover/tail will be mounted with the supplied alcohol swab.
Rubber Antenna
Cover/Tail
Protective
Strips
Adhesive
Strain
Relief
Cable
Figure 6Figure 6
Figure 7Figure 7
Figure 8Figure 8

[Installation ] 15
Connect the rubber antenna cable cover/tail to the antenna cable, making sure that the strain-
relief on the antenna sits into the rubber antenna cable cover/tail groove. (Figure 7) Route the
antenna cable through the wire channel in the rubber antenna cable cover/tail. Do not remove
the protective strips yet.
Temporarily position the antenna and rubber antenna cable cover/tail in the selected mounting
area and route the cable from the antenna to the vehicle’s interior by tucking it underneath the
rubber molding around rear window, as shown in Figure 8.
Route the cable from the lowest point of the rear window into the trunk. Take advantage of
any existing cable channels or wiring conduits. For SUVs, mini-vans and 5-door vehicles, bring
the cable into the vehicle under the rubber molding for the tailgate, and continue under the
interior trim.
From the trunk, or rear of the vehicle, route the cable around the passenger compartment and
to the front of the vehicle, to the radio. Take care not pull the cable across sharp edges that
could damage it, and keep it away from areas where it might entangle feet. Coil any excess
antenna cable in a location where it can be hidden.

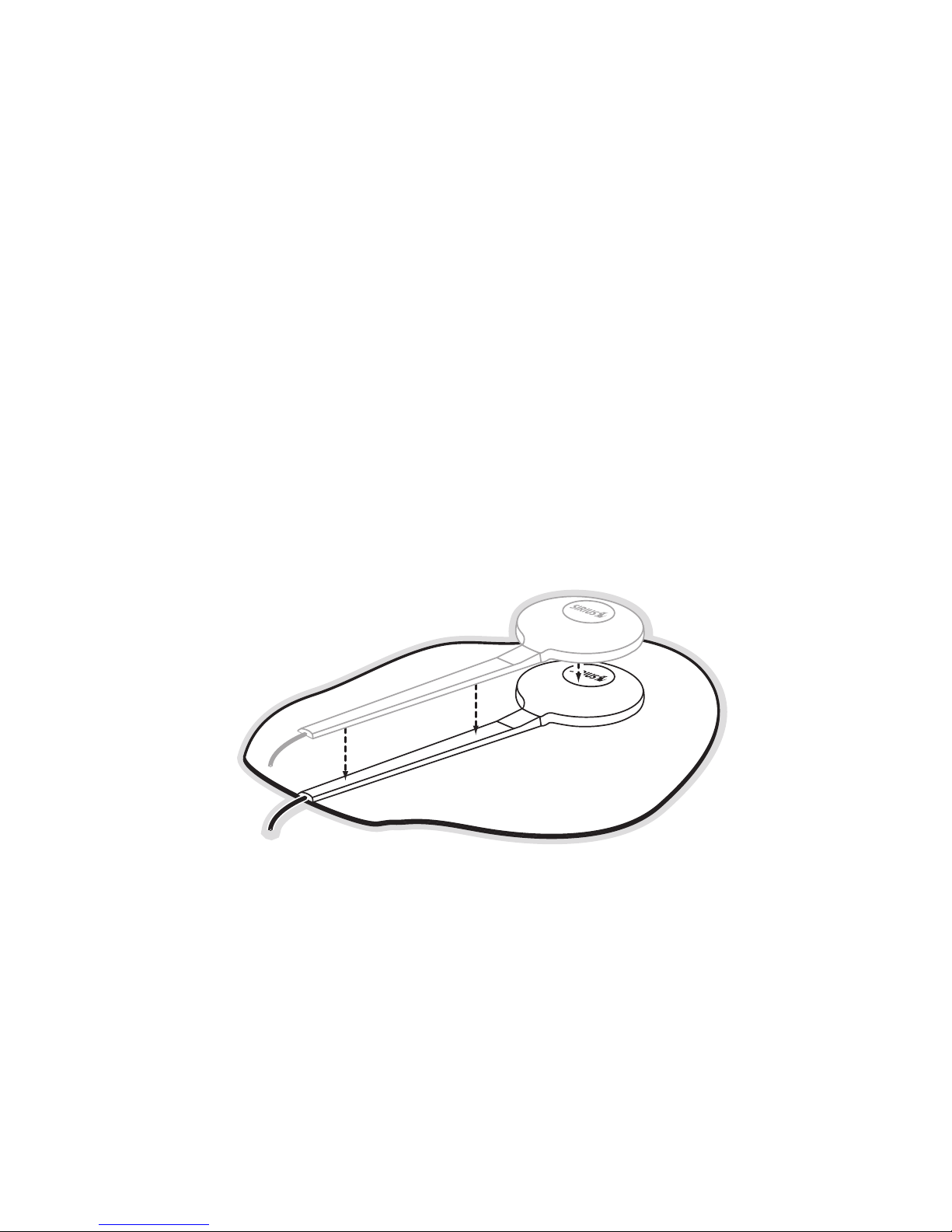

Once the antenna cable is routed through the vehicle, and you are satisfied with the cable
routing, peel the protective material from the adhesive strips and press the rubber antenna
cable cover/tail firmly into place on the vehicle. Double check that the location of the antenna
and rubber antenna cable cover/tail are correct, and continue to press firmly down on rub-
Figure 9Figure 9

[Installation ]
16
ber antenna cable cover/tail for another 30 seconds. (Figure 9) At room temperature (68
degrees), maximum adhesion usually occurs within 72 hours. During this period, avoid car
washes and other contact with the antenna and rubber antenna cable cover/tail.
Connect the antenna cable to the ANT connection at the rear of the dock. (Refer to Figure 21
on page 23 for the location of this connector.)
Connecting the Cigarette Lighter Adapter
Connect the cigarette lighter power adapter to the radio, and plug it into your vehicle. (Refer
to Figure 21 on page 23 for the location of this connector.)
Maximizing Audio Quality From Your SIRIUS Radio
There are two primary ways to connect your SIRIUS satellite radio. The following procedures
will help you obtain the best performance.
Wireless ConneCtion

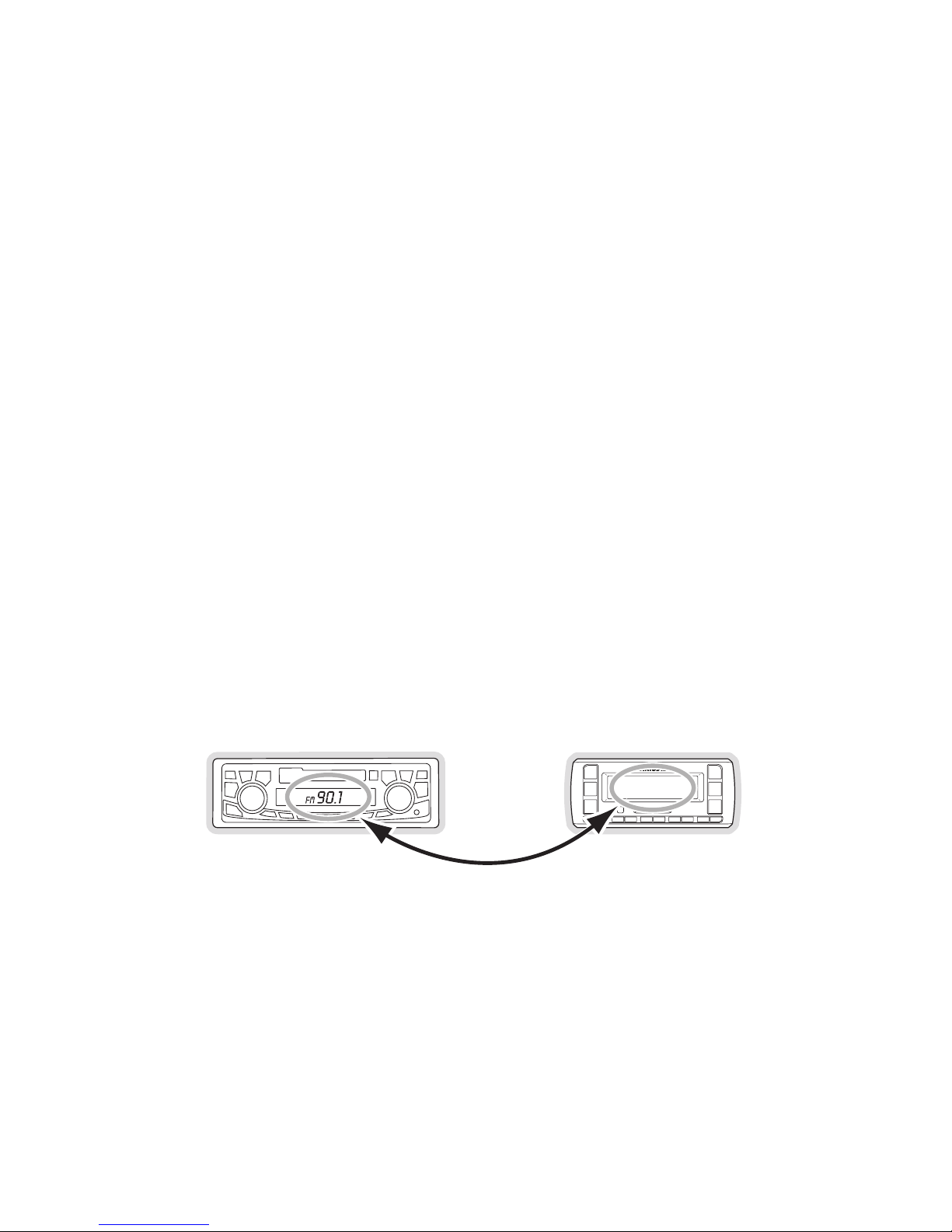

Your SIRIUS radio contains an FM transmitter. The FM transmitter sends the audio from your
SIRIUS radio to your vehicle radio. (Figure 10)
90.1
To tune your transmitter:
Turn off your SIRIUS radio and tune through the FM channels on your vehicle radio to
locate an FM channel that is not broadcasting in your area. If you use an FM channel
that is being used by a local broadcaster, it will interfere with the performance of your
1.
Figure 10Figure 10

[Installation ] 17
SIRIUS radio. Once you have located an FM channel that is not broadcasting in your
area, save it as a preset on your vehicle radio. This will become your SIRIUS preset.
Turn on your SIRIUS radio. Press and hold the Menu button to access the FM
channel number list on your SIRIUS radio. Tune to the channel that matches the SIRIUS
preset on your vehicle radio. Refer to the Menu Options/FM Frequency section of this
manual for more detailed instructions on how to do this.
Note: The FM transmitter in your SIRIUS radio is automatically set to FM channel 88.1. This
may not be the best channel in your area.
Tip: If you regularly travel between cities with different active FM channels, you may need to
find channels that are not broadcasting in each city. Several SIRIUS radio models can store
multiple FM transmit channels, so you can easily switch to the best FM channel for each city.
You will also want to set the FM channels that are not broadcasting in each city as presets on
your vehicle radio.
If you’re not sure which FM channels are not broadcasting in your home or travel cities, you
can also go to http://SIRIUS.com/fmchannel and search for a suggested FM channel based
on your zip code.
DireCt ConneCtions
Direct connection provides better audio performance than a wireless connection and removes
the possibility of interference from local FM broadcasters.
Direct Wired Audio Connection
If your vehicle radio offers an “AUX IN” or “LINE IN” connection, it is the best audio connec-
tion available. If the “AUX IN” or “LINE IN” connector is located on the front of your vehicle
radio, this is also the easiest connection. (Figure 11)
Purchase an audio cable that matches the connection type of your vehicle radio and your
SIRIUS radio at your local electronics retailer. Your SIRIUS radio requires a 1/8” stereo
male connector. Your local electronics retailer can help you determine the proper con-
nection for your car radio.
Plug one end of the cable into the AUDIO jack on your SIRIUS radio. (Refer to Figure 21
on page 23 for the location of this connector.) Plug the other end into your “AUX IN” or
“LINE IN” jack on your vehicle radio.
2.
1.
2.

[Installation ]
18
FM OFF
NOTE: Refer to your vehicle radio manufacturer’s guidelines for correct installation.
NOTE: If the “AUX IN” or “LINE IN” connection is on the back of your vehicle radio, you may
want to consider professional installation. (Figure 12)
FM OFF
Cassette Adapter
If your vehicle radio has a cassette player:
Purchase a Cassette Adapter at your local electronics retailer.
Connect the adapter between the AUDIO jack on your SIRIUS radio (refer to Figure
21 on page 23 for the location of this connector) and the vehicle radio’s cassette slot.
(Figure 13)
FM OFF
NOTE: Refer to the cassette adapter manufacturer’s guidelines for correct use.
1.
2.
Figure 11Figure 11
Figure 12Figure 12
Figure 13Figure 13
