Sirius XM RAdio XHD2H1 User manual

XM Direct Home Tuner
User Guide

3
Table of Contents
Introduction ....................................................5
Features .................................................................... 6
Safety and Care Information .................................................. 7
What’s in the Box? ...........................................................8
XM Direct Home Tuner ....................................................... 9
Home Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Step 1: Connect the XM Direct Home Tuner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Step 2: Install the Indoor/Outdoor Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Step 3: Activate your XM Direct Home Tuner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Troubleshooting ................................................21
Product Specifications ..........................................25
Patent Information ..........................................................27
Environmental Information ...................................................27

4

5
Introduction

6
Introduction
Features
Congratulations on your purchase of the XM Direct Home Tuner!
Your new XM Direct Home Tuner lets you enjoy XM Satellite Radio
on any XM-Ready home audio system. Simply connect the XM
Direct Home Tuner to the XM jack on your home audio system,
place and aim the antenna for optimum reception, and you’re
ready to start enjoying commercial-free music, plus live sports,
news, talk & exclusive entertainment.
And for the latest information about this and other SIRIUSIXM products and
accessories, visit xmradio.com or your favorite retailer.
Please read the entire User Guide before installing your Home Kit!

7
Safety and Care Information
IMPORTANT! Always read and understand all the instructions to avoid
injury to yourself and/or damage to your device. SIRIUS XM Radio Inc.
disclaims all responsibility for damage from data loss due to breakdown,
repair, or other causes.
• Do not expose to extreme temperatures (above 140˚F or below -4˚F, or
above 60˚C or below -20˚C).
• Do not expose to moisture. Do not use device near or in water. Do not
touch the device with wet hands.
• Do not let any foreign matter spill into device.
• Do not store in dusty areas.
• Do not expose to chemicals such as benzene and thinners. Do not use
liquid or aerosol cleaners. Clean with a soft damp cloth only.
• Do not expose to direct sunlight for a prolonged period of time, and do
not expose to fire, flame, or other heat sources.
• Do not try to disassemble and/or repair device yourself.
• Do not drop your device or subject it to severe impact.
• Do not place heavy objects on device.
• Do not subject device to excessive pressure.
WARNING!
• Opening the case may result in electric shock.

8
Introduction

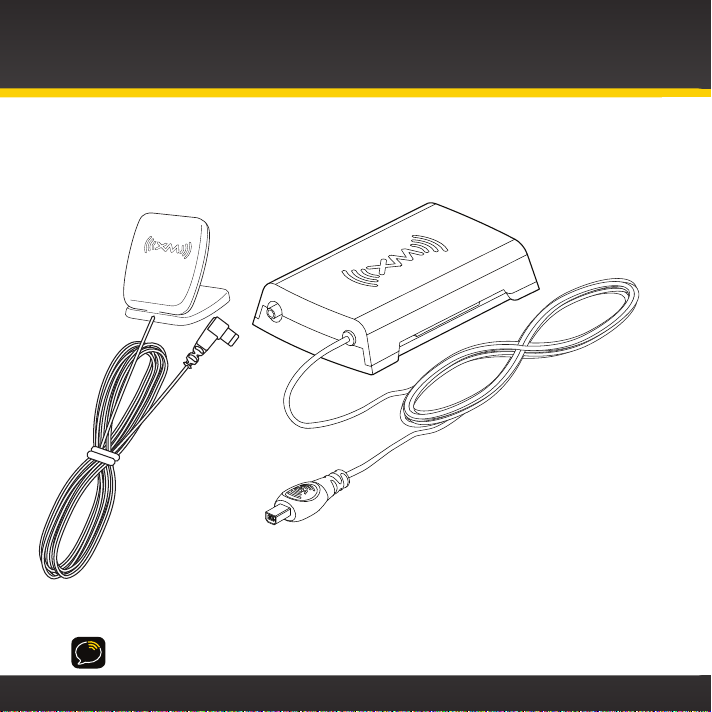

What’s in the Box?
TIP! Use the remote control included with your home audio system to navigate
through the functions of your new XM Direct Home Tuner.
Home Clamshell Antenna XM Direct Home Tuner

9
XM Direct Home Tuner
ANT (Silver)
Connection for the
Home Indoor/Outdoor
Clamshell Antenna
XM-Ready connector for
home audio systems
equipped with XM Direct
feature.

10

11
Home Installation

12
There are two parts to setting up your Home Kit. First, connecting the XM Direct
Home Tuner to your home audio system, then placing and aiming the Home
Antenna. Let’s start with setting up the XM Direct Home Tuner set up.
Step 1: Connect the XM Direct Home Tuner
When installing the XM Direct Home Tuner in your home, choose a location in close
proximity to your home audio system and also where the cable from the Indoor/
Outdoor Antenna can reach the XM Direct Home Tuner. Make sure the location has
proper ventilation to avoid over-heating.
Connect XM Direct Home Tuner to your stereo
Connect your XM Direct Home Tuner to your XM-Ready home audio system. With
power to your XM-Ready home audio system turned off, simply connect the end of
the XM Direct Home Tuner cable to the port on the back panel of your XM-Ready
home audio system labeled “XM.”
Home Installation

13
Connect the Indoor/Outdoor Antenna
Once you have selected a location, connect the antenna to the ANT IN
connector at the rear of the XM Direct Home Tuner. (After completing a few
additional steps, we will work on the location of the antenna.)
Selecting your XM-Ready home audio system’s XM input
Turn on your XM-Ready home audio system and make sure to select the
correct input for your XM Direct Home Tuner. Please refer to your home
audio system’s manual for more information.

14
Step 2: Install the Indoor/Outdoor Antenna
To begin, try experimenting with the Home Antenna to get a feel for the reception
in your location. Move the antenna around the room or from room to room. Aim
it from different windows. In major metropolitan areas, you might find that you
get great reception in several locations without worrying too much about aim and
placement.
Refer to your XM-Ready home audio system’s
User Guide for instructions, and access the
Signal or Signal Indicator screen to see a visual
indication of signal strength. If you’re receiving
a good Satellite and Terrestrial signal strength,
you’re done. If not, try some of the suggestions
which follow.
Other Indoor/Outdoor Antenna Installation Suggestions
If you find you are getting a
signal, but it’s inconsistent,
try moving the Indoor/
Outdoor Antenna closer to
a window, ideally one that is
facing due south.
Not sure which way is south?
Think about where the sun
rises (in the east) and sets (in
the west). Then stand so that
Home Installation
S

15
east is to your left and you’ll be facing south. Is there a window in the direction
you’re facing? Move the antenna closer to the window.
TIP! Still not sure which way is south or where to place your Home
Antenna? Look up your location on an online mapping Web site that offers
satellite views of street addresses where you can easily see which way is
south, and what window may offer an unobstructed view of the sky.
Another easy method is to start at any window, then work from window to
window in a simple pattern to find the window gives the best signal strength.
Note that the antenna must also have an unobstructed view. No trees or
buildings blocking its aim. If the antenna is aimed through a window, be
aware that blinds, screens, or any other non-glass elements such as thermal
insulation can sometimes cause reception issues. If this is the case, you may
want to use another window or place the antenna outside of the window.
If you find a window that gives you good
signal strength, you can place the antenna
on the windowsill. The antenna may need
to be placed on something to raise it above
the level of the window frame.
If you don’t have a window where you
receive a consistent signal, or placing
the antenna in a window is not a practical
solution for you, BETTER reception
can be achieved by placing the antenna
outside on a window ledge, porch, table,
or patio. The location you choose should
SOUTH

16
provide the antenna with a clear view of
the southern sky.
If none of the previous solutions work
for you, then the BEST reception can
be achieved by mounting the antenna
outdoors, with a clear view of the
southern sky.
Note that you will want to consider any
potential hazards when you choose
the mounting location, and possibly
consider professional installation.
SIRIUS XM Radio Inc. is not liable for
any damages.
To mount the antenna, you will
need four screws (not included)
with a 1/4” head (e.g., an M3
screw), and that are suitable
for the material onto which
you are affixing the antenna,
(e.g., wood, metal, etc.). The
screws should be spaced 1-3/8”
apart horizontally and 1-1/8”
vertically. Refer to the template
on “Indoor/Outdoor Antenna
Template” on page 30.
Home Installation
OUTDOORS
SOUTH
SOFFIT
SOUTH

17
Once you have found a suitable location for
the antenna, route the antenna cable to the
XM Direct Home Tuner. Be sure you avoid
any obstructions that could crimp, kink, or
twist the cable. Use protective grommets
wherever rough openings are encountered.
If the antenna is installed outdoors, route
the cable from the antenna location to the
interior of the home, working the cable
through the basement, under a window
sill, etc., and make adjustments to take up
cable slack as necessary.
TIP! If your Indoor/Outdoor Antenna’s cable isn’t long enough, visit xmradio.
com/accessories, or your favorite retailer, and consider a 50 ft. Indoor/
Outdoor Antenna Extension Cable or a Wireless Home Signal Repeater.
If the signal is good for either Satellite or Terrestrial (or both), and you
are hearing the audio from the the home audio system, the installation is
complete.
If the signal reception is low, or intermittent, try another location for the
antenna. Verify that the antenna is pointed south, and that the antenna’s view
of the sky is not blocked by a tree, a building, a bridge, or anything else. Adjust
until you are receiving a good signal.

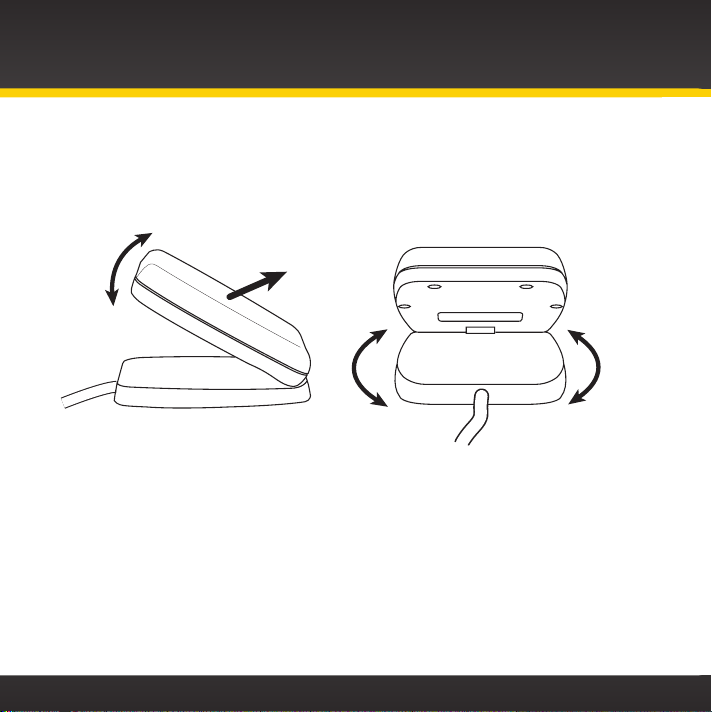

The Indoor/Outdoor Antenna’s reception can also be tweaked by opening or
closing the antenna clamshell, and turning the antenna. While observing the
signal strength, make small adjustments to the angle of tilt of the clamshell
1-3/8 in
1-1/8 in

18
until the highest possible signal strength is achieved. If you have not wall-
mounted the antenna, turn the antenna slightly to the right or left and observe
if the signal strength increases. For each tweak, allow a few seconds in each
position to determine if the signal strength increases.
If the signal reception is good, but there is no audio, verify that the XM Direct
Home Tuner has a good connection to the XM input on the back of your audio
system. Also, be sure that the system is set to the XM tuner input source and the
volume is raised to an audible level.
If you still have questions, for example, ‘Are there any other options/things I
should consider?’, etc., refer to “Troubleshooting” on page 22.
Home Installation
SOUTH

19
Step 3: Activate your XM Direct Home Tuner
Before you can enjoy commercial-free music, plus live sports, news, talk & exclusive
entertainment, you need to activate your XM Direct Home Tuner.
1 Make sure your XM Direct Home Tuner is properly installed,
turned on, and receiving the XM signal so that you can hear the
audio on channel 1.
2 Make a note of your XM Radio ID. You can find it on channel 0, on
a label on the bottom of the gift box, and on the label on
the bottom of your XM Direct Home Tuner.
NOTE! The XM Radio ID does not use the letters I, O, S, or F.
3 Activate your service:
• Online: Go to www.xmradio.com and click on“ACTIVATE
RADIO” in the top right corner
OR
• By phone: Call 1-800-XM-RADIO (1-800-967-2346)

20
4 When your service is activated, your XM Direct Home Tuner will
receive all channels to which you have subscribed. At this time,
if you press the channel up or channel down buttons on your home
audio system, you can scroll and tune other channels. Activation
usually takes 10 to 15 minutes, but may take up to an hour. We
recommend that your home audio system remain on until activated.
