SK magic WPU-B300C User manual

SK magic Cold & Hot Water purier
WPU-B300C/F
WPU-B400C/F
WPU-B300C_EN-MY.indd 1 2018-09-28  5:33:09

2
Contents
Contents
Cautions for Safe use
Please be sure to read this to use the product more safely.
Cautions for Safe use ____________________________________________________________3~6p
Names of each part _____________________________________________________________7~8p
About internal structures ______________________________________________________ 9~10p
What functions does this have? ________________________________________________ 11~12p
How can I use this? ___________________________________________________________ 13~15p
How can I install this? ____________________________________________________________ 16p
Should I nd out water purication system? _________________________________________ 17p
How can I clean this? _________________________________________________________ 18~19p
Failure, How can I do that in this case? __________________________________________ 20~21p
Spesikasi Produk _______________________________________________________________ 22p
Product Warranty _______________________________________________________________ 23p
• Before using, Please be sure to read ‘Cautions for Safe use’ and use it correctly.
• After reading, Please store it in place anyone can see and anywhere.
※
Produk boleh diubah secara luaran tanpa pemberitahuan untuk meningkatkan kualitnya.
WPU-B300C_EN-MY.indd 2 2018-09-28  5:33:09

3
Cautions for Safe use
Cautions for Safe use
Warning
This product should be used only for
alternating 220-240V
• It may cause electric shock and re
Don’t install this in place has a lot of wet
or allow water to come in contact with
the product such as raindrop, rainwater,
bathrooms, shower rooms and outdoors
• It may cause electric shock and re
You shouldn’t install this close to dispaly
• It may cause re
When replacing the lter, Please replace
this after unplugging the power cord.
• It may cause electric shock
Cautions
• Please be sure to keep the following instructions because of cautions related to power, installation and using
to prevent damage from unexpected danger using the product safely and correctly.
• If cautions related to safety is used wrong, they are divided as follows according to expected danger and the
degree of the damage, emergency of occurrence of danger.
• This product is dangerous to use for people who lack body, sense and mental ability or direct and indicate
having little experience, knowledge.
If you don’t read instructions, It may cause serious harm or death
This picture symbol is symbol to call attention to matters and operating to cause danger
This picture symbol is symbol for sign of prohibition you shouldn’t do
This picture symbol is symbol for sign of keeping to be sure to follow
Warning
If you don’t read instructions, It may cause slight harm or damage of the
productthe product
Cautions
WPU-B300C_EN-MY.indd 3 2018-09-28  5:33:10

4
60cm
60cm
Cautions for Safe use
Cautions for Safe use
Warning
Please use this after cleaning dust and foreign
matters on power plug
• It may cause electric shock and re
Don’t use this when the power cord is
broken and shaken
• It may cause electric shock and re
• When the power cord is
broken, Please replace this
with new one at customer
center
Don’t put the sharp steel wire and the driver in the
machine
• It may cause failure of the product and electric shock
Don’t break and twist a water hose
• It may cause water leak short circuit
Please use new hose provided
with the product
• Use of existing old
hose may cause water
leak
Don’t give the product a severe impact
• It may cause failure, damage of
the product and electric shock
When you the plug power cord in or
unplug, please plug in after drying water
on your hands
• It may cause electric shock
Don’t bend, tie and pull a power cord severely
• It may cause re because of electric shock or short circuit
Please use the electric outlet which has
ground terminal more than rating 10A
• Complicated wiring may cause re because
electric outlet is overheated
• If use the electric outlet without ground terminal,
It may cause short circuit and f electric shock
When gas leak such as city gas happens, Please open a window and get some fresh air not to operate
the power cord
• If you operate the power cord, It may cause explosion, re and burn because of ame
Please be careful to put heavy objects on the power cord and not to be pressed on the oor by a cord.
• It may cause electric shock, short circuit and re
Please be careful to put heavy objects on the water hose or not to be stabbed by sharp objects
• It may cause property damage because of electric shock, short circuit and water leak
Don’t connect any pressure abatement device with the vent of the electric hot water purier
WPU-B300C_EN-MY.indd 4 2018-09-28  5:33:12

5
60cm
60cm
Cautions for Safe use
Cautions
Don’t put heavy objects on the product
• It may cause damage of the product
Don’t repair and disassemble the product
carelessly
• It may cause re and electric shock
Please unplug a power cord when tap water is
cut o
• It may cause abnormal water quality and water leak
Don’t use thinner, benzene and wax when
clean
• It may cause damage because of discoloration,
peeling of the product
Please avoid heat of re and direct sunlight
• Exterior of the product may be transformed
Please install it at the hard
and horizontal place
• It may cause failure of the
product
Please be careful not to play the product
for children
• It may cause failure, damage
of the product and water
leak, electric shock
When install the product, Please use the genuine product for installation parts
• It may cause damage of the product and water leak (such as water hose, valve, lter for water purier, etc.)
An expert for lter replacement visits and replaces it.
• Please use the lter of genuine product
• It may cause water leak, electric shock and re
When discarded home appliances and lter for water purier are disposed, please discard them
according to specied process of disposal
• It may cause environmental pollution and injury
Don’t put the water glass on the place for receiving water
• It may cause damage or injury and the water glass fall down
The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given supervision or instruction
Children being supervised not to play with the appliance
This appliance is intended to be used in household and similar applications.
Cautions for Safe use
WPU-B300C_EN-MY.indd 5 2018-09-28  5:33:13

6
45°
ON
45°
ON
Cautions for Safe use
Cautions for Safe use
Cautions
Please be sure to connect the product to the cold
water pipe
• It may cause damage of the product
Installation location should be installed
10cm away from the wall
• It may cause failure of the product
When carrying the product, Please don’t tilt more
than 45 degrees
• It may cause failure of the product
When the product is working, Please
don’t move the product
• It may cause failure of the product
Please Switch on hot water after check water
comes out from sate valve of hot water
• It may cause failure of the product
• Please be careful when hot water switch is on/o because
Heat sink is ho
Please turn o water supply valve when
not using it more than 1 day
• It may cause failure and property damage
• In case of long-term absence
- Within 10 days :Please use it after draining o
saved water 1-2 times
- After 10days: Please ask check at the customer
service center when use it
The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be
reused
Cold water
Heat sink
Water
Supply
Hot water
WPU-B300C_EN-MY.indd 6 2018-09-28  5:33:17

7
45°
ON
45°
ON
Names of each part
Model WPU-B300C/B400C
① Cold water lamp
② Hot water lamp
③ Button of hot water safety
④ Button of HighTemperature
⑤ Button of UV careWater tap
⑥ Button of UV careWater tank
⑦ Constant button
⑧ Water intake tap
⑨ Water intake button
⑩ The place for receiving water
⑪ Top cover
⑫ Top panel
⑬ The slot of water supply
⑭ Cold water switch
⑮ Hot water switch
⑯ Heat sink civer
⑰ Valve of Blocking water supply
⑱ Cord of power connection
⑲ Entrance of draining water
(B400C)
[Desk type]
<Front> <Back>
Names of each part
WPU-B300C_EN-MY.indd 7 2018-09-28  5:33:18

8

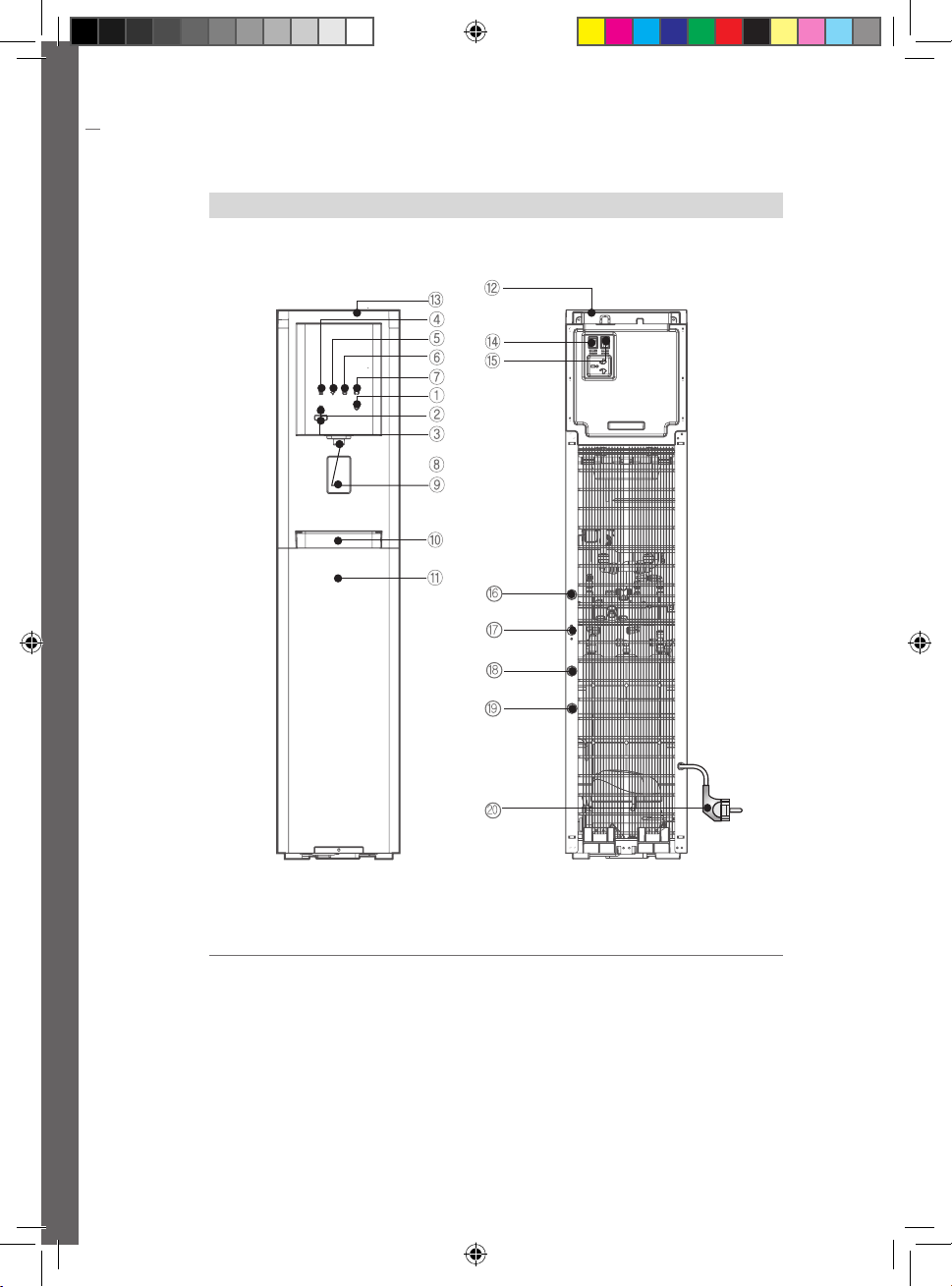

Names of each part
① Cold water lamp
② Hot water lamp
③ Button of hot water safety
④ Button of HighTemperature
⑤ Button of UV careWater tap
⑥ Button of UV careWater tank
⑦ Constant button
⑧ Water intake tap
⑨ Water intake button
⑩ The place for receiving water
⑪ Lower panel
⑫ Top cover
⑬ Front panel
⑭ Cold water switch
⑮ Hot water switch
⑯ The slot of water supply
⑰ Connection of water drain
⑱ Connection of cooking valve
⑲ Connection of drainage
⑳ Cord of power connection
Names of each part
Model WPU-B300F/B400F
[Stand type]
<Front> <Back>
WPU-B300C_EN-MY.indd 8 2018-09-28  5:33:23

9
About internal structure
① Cover of cold water tank
② Button of hot water safety
③ Water intake tap
④ Water intake button
⑤ Sediment lter
⑥ block carbon complex
lter(B300C) RO Filter(B400C)
⑦ Nano tech PAC lter(B300C) block
carbon complex lter(B400C)
⑧ Cold water tank
⑨ Heat sink
⑩ Hot water tank
⑪ Compressor
About internal structure
Model WPU-B300C/B400C
WPU-B300C_EN-MY.indd 9 2018-09-28  5:33:24

10
ྙ
ྡ
ྚ
ྛ
ྜ
ྜྷ
ྞ
ྟ
ྠ
ྣ
ྤ
ྥ
ྡྷ
ྙ
ྡ
ྚ
ྛ
ྜ
ྜྷ
ྞ
ྟ
ྠ
ྣ
ྤ
ྥ
ྡྷ
About internal structure
About internal structure
Model WPU-B300F/B400F
① Button of hot water safety
② Water intake tap
③ Water intake button
④ Sediment lter
⑤ Pre(block carbon) complex lter
⑥ Nano tech PAC lter (B300F) RO
lter (B400F)
⑦ Booster pump
⑧ Post(block carbon) complex
lter(B400F)
⑨ Cover of cold water tank
⑩ Cold water tank
⑪ Hot water tank
⑫ Heat sink
⑬ Compressor
WPU-B300C_EN-MY.indd 10 2018-09-28  5:33:27

11
ྙ
ྡ
ྚ
ྛ
ྜ
ྜྷ
ྞ
ྟ
ྠ
ྣ
ྤ
ྥ
ྡྷ
ྙ
ྡ
ྚ
ྛ
ྜ
ྜྷ
ྞ
ྟ
ྠ
ྣ
ྤ
ྥ
ྡྷ
What functions does this have?
What functions does this have?
Model WPU-B300C/F
Only clean water is provided
through 3-step water purication
method to use Nano tech PAC lter
Model WPU-B400C
Only clean water is provided
through 3-step water purication
method to use RO Membrane lter
Model WPU-B400F
Only clean water is provided
through 4-step water purication
method to use RO Membrane lter
Sediment block carbon
complex lter
Nano tech PAC
lter
Sediment RO(reverse
osmosis) lter
block carbon
complex lter
Sediment Pre(block carbon)
complex lter
RO (reverse
osmosis) lter
Post(block
carbon) complex
lter
Built-in lter
Superior water
purication eect
Operation
part
Convenient
functions
WPU-B300C_EN-MY.indd 11 2018-09-28  5:33:28

12
ྠ
ON
ON
ྠ
ON
ON
What functions does this have?
What functions does this have?
1.Power saving functions
● When using only cold water, Electricity charge will be reduced
If hot water switch is o.
2.Overheat safety device
● If the selected temperature rises above, The temperature is
controlled automatically.
3.Automatic control function of water level
● Extension of lter life and the product durability are
increased by control water level automatically
4.Cleaning function of the cold water tank
● Good water is provided by cleaning tank periodically.
● More fresh water is provided to prevent dust
from outside because the storage structure of
puried water is double
● High eciency compressor lowers the temperature
in the short term and provides fresh and cold water.
Body part
Convenient
functions
Compressor
part
Excellent cooling
eect
WPU-B300C_EN-MY.indd 12 2018-09-28  5:33:32

13
ྠ
ON
ON
ྠ
ON
ON
How can I use this?
How can I use this?
1) Cold water switch (Left side based on product back)
- Used switch when cold water function is On/o
2) Hot water switch (Right side based on product back)
- Switch to use when hot water function is On/o
Front operation/display part

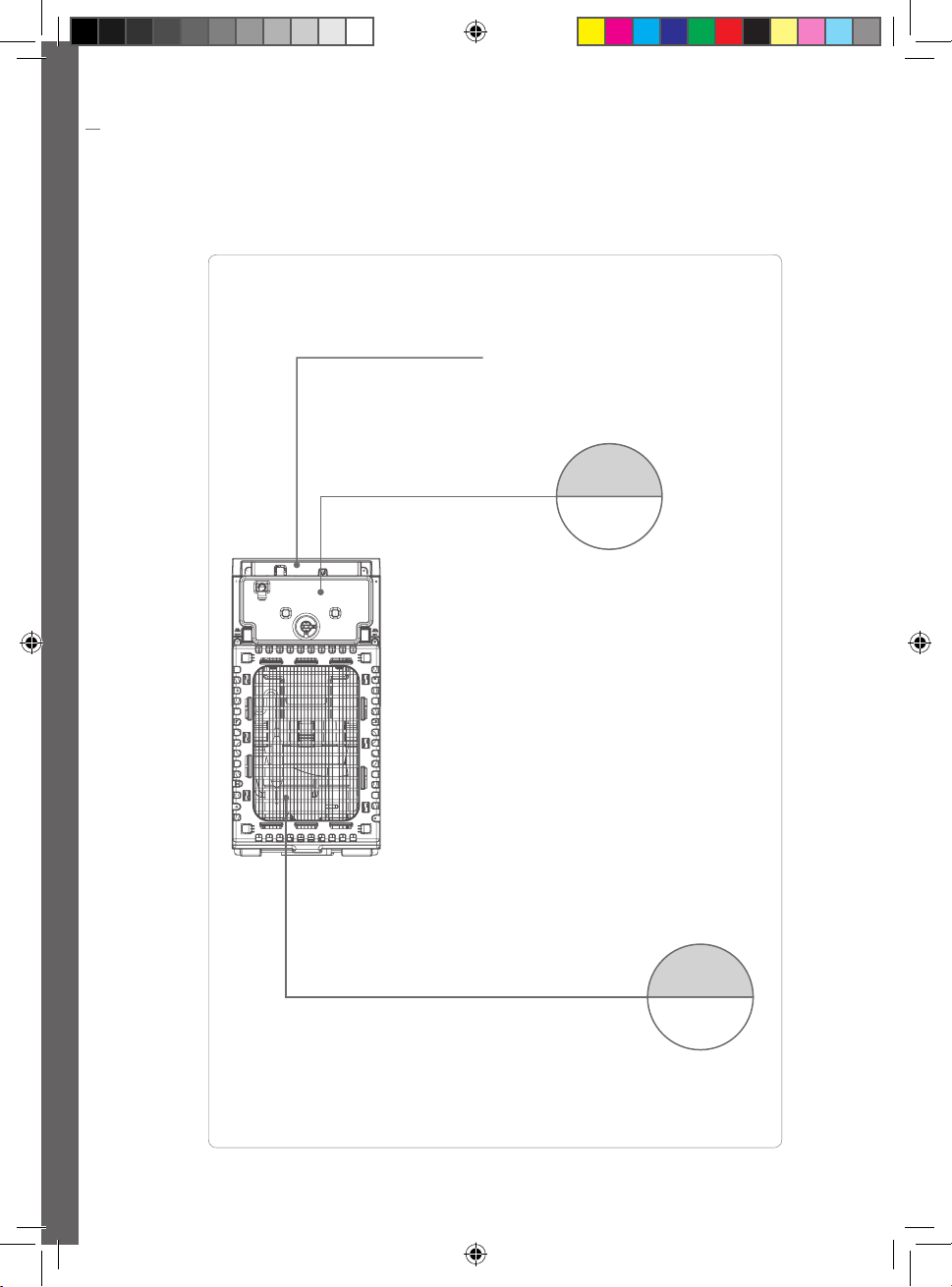

Back operation/display part
※ WPU-B300,400C/F model is the same as display & operation part
※ On/o switch of Cold/hot water is on back of the product
① High Temperature
② UV care water tap
③ UV care water tank
④ Constant
⑤ Hot water LED
⑥ Cold water LED
⑦ Button of hot water
safety
⑧ Cock LED
[Table type] [Stand type]
WPU-B300C_EN-MY.indd 13 2018-09-28  5:33:32

14
220-240V
ON ON
ON ON
220-240V
ON ON
ON ON
How can I use cold • hot water purier?
1Please connect the power plug
• Please connect after checking power
2Please open intermediate valve of water
supply
• If open intermediate valve of the water supply
is closed, the Water purier doesn’t work.
(Please keep it open except for going out for
a long time)
Water supply
(water purier)
3Please press power switch
● Desk type
● Stand type
● Switch on hot water
※ When using only cold water, Electricity charge will
be reduced If hot water switch is o.
● Cold water switch on
※ When using only hot water, Electricity charge will
be reduced If cold water switch is o.
How can I use this?
How to use hot water
How to use hot water
How to use cold water
How to use cold wate
WPU-B300C_EN-MY.indd 14 2018-09-28  5:33:33

15
220-240V
ON ON
ON ON
220-240V
ON ON
ON ON
How can I use this?
How can I use this?
Names
How to operate and explain buttons
High
Temperature
Button to generate hot water of about 90~95ºC
-If you touch button of high temperature water, LED ickers and hot water is heated to
high temperature
-If high temperature water is ready, LED lights on with buzzer.
※ Watch out for burns when taking water
UV Care
Water Tap
Button to operate cock UV LED manually
-If you touch cork sterilization button, LED lights on and function is operated for 15
minutes.
-If you touch during operation, operation stops
-When the product isn’t used for 2 hours, Cork sterilization function is operated for 15
minutes automatically. (When operating automatically., Cork LED ickers)
UV Care
Water Tank
Button to operate tank UV LED manually
-If you touch the tank sterilization button, LED lights on and function is active for 7
minutes.
-Tank sterilization progresses 2 times a day automatically. (When Tank sterilization
progresses automatically, Cork LED ickers.
Constant
Taking cold water continuously
- If you touch continuous taking water button, LED lights on. At this time, If you touch
taking water button, Cold water comes out continuously
-If you stop taking water, Continuous taking water stops when taking water button or
any button is pressed.
※ Watch out for using because Continuous taking water lasts for up to 3 minutes
※ When using, Water leak may happen because of carelessness
※
Hot water doesn’t have continuous taking water because of safety
Hot Water
LED
On/O display of hot water function
-On/O control is possible by switch of back of product
※ When LED is turned o, Hot water function doesn’t work.
Cold Water
LED
On/O display of cold water function
-On/O control is possible by switch of back of product
※ When LED is turned o, Cold water function doesn’t work
Button of hot
water safety
Hot water safety device
-Please take hot water by pressing taking water button after pressing button before
taking hot water,
※ Hot water doesn’t have continuous taking water because of safety
※ Unless you take water within 3 seconds after pressing hot water safety button,
function is canceled.
Taking water
button
If you press taking water button, Cold water is taken
- Taking cold water is possible without any choice because basic setting is cold water
- If you press taking water button after pressing hot water safety button, Hot water
is taken
- If you press taking water button after touching continuous button, Cold water comes
out about for 3 minutes
WPU-B300C_EN-MY.indd 15 2018-09-28  5:33:34

16
[WPU-B400C/F]
䉤
[WPU-B300C/F]
45°
[WPU-B400C/F]
䉤
[WPU-B300C/F]
45°
How can I install this?
1
Don’t move the product tilting more than 45 degrees
When moving the product (First, the product is carried
and after more than 1 hour, connect a power plug )
Don’t move the product while water purier is working
2
Please be sure to x it according to the product
manual. (It may cause danger of injury) Please the
product should be installed to x with a xed wire at
more than 750mm high as shown below
3
Please be sure to connect the cold water piping (If hot
water is connected, It may cause a lter damaged and
life shorten)
4Hose connection should be connected as shown on the
back of the product (When Allowable water pressure is
more than 392kPa, Please use after installing reducing
pressure valve because the product may be damaged)
How can I install this?
More than 1 hour,
Cold water
Hot water
Water supply
hose
Water supply hose
WPU-B300C_EN-MY.indd 16 2018-09-28  5:33:39

17
[WPU-B400C/F]
䉤
[WPU-B300C/F]
45°
[WPU-B400C/F]
䉤
[WPU-B300C/F]
45°
Should I nd out water purication system?
Should I nd out water purication system?
Don’t open it arbitrarily during use
•It may cause property damage, electric shock and short circuit by water leak
Cautions
1. The water purication system is composed as shown
2. When the initial product is installed and a lter is
replaced, Please be sure to conduct Water Flushing by
lter Water Flushing ows water of 15-20liters inside
lter and wash inside lter early At this time, White
or black water comes out but this happens only when
inside lter is washed initially so the function of water
purication is not abnormal.
Water supply Water
purication
Reducing
pressure valve
Intermediate
valve
Blocking
water leak
valve
Water
supply valve
Reducing
pressure valve
Intermediate
valve
Water supply
Blocking
water
leak valve
Water supply valve
Sediment
lter
RO Membrane
lter(B400C)
Pre block carbon
complex lter(B400F)
block carbon complex
lter(B400C)
RO Membrane lter
(B400F)
Post block carbon
complex lter(B400F)
Sediment
lter
block carbon
complex lter
Nano tech
PAC lter
Cold water
tank
Cold water
Hot water
Hot water
tank
Removed Water
Cold
water
tank
Hot water
tank
Cold water
Hot water
Drainage
Drainage
Water supply
WPU-B300C_EN-MY.indd 17 2018-09-28  5:33:40

18
How can I clean this?
How can I clean this?
1. Please Unplug after locking intermediate valve
2. Please Empty out water and drain water fully through drain valve
- Desk type: Please after removing a tray and drain cover, insert provided taking water hose and drain
-
Stand type: Please after removing lower panel, insert taking water hose to drain valve and drain
※ 19 Page Refer to [picture 1, 2, 3]
3. Please loosen right, left screw on back of the product and remove a top plate and inside cold water
tank cover
1) Please connected tubing hoses rst should be arranged not to prevent them from cold water tank cover
2) Please remove the cold water tank cover (When removing, watch out for a rubber packing not being damaged Also,
Watch out for the stainless cold water tank causing your hands injured
4. Please remove a divider inside the cold water tank (Refer to [picture 4] 19 Page )
5.
After preparing a tool to get water on the side of the hot water drain, Please wash it pouring water in the
cold water tank (Please rinse with clean water 2-3 times repeatedly)
6. Please after washing and lling the water, Empty out water inside water purier
7. Please after assembling a divider, Assemble a cold water tank cover (When a cold water tank cover
is assembled, Check a rubber packing condition and adhere to a cold water tank)
8. Please after opening the intermediate valve and a cold water tank is lled with water, Check water
leak status and assemble a top plate
9. Please after cleaning, watch out for operation and water leak status more than 1 day carefully (If
there is any problem, call customer service center)
10. When cleaning, watch out for water not being own inside the product (It may cause short circuit,
electric shock and failure)
11. How to clean cold/hot water valve
1) Please remove turning taking water deco as shown on the right
2) Please turn a taking water pipe (white) by hand and remove it
3) Please after washing clearly, Assemble it again
Caution) When washing a taking water pipe, Watch out for a
rubber packing not being fallen out.
Water intake pip
Water intake deco
WPU-B300C_EN-MY.indd 18 2018-09-28  5:33:51

19
How can I clean this?
How can I clean this?
How to clean
Washing part How to wash
Cold water tank Put warm water on a cloth and wipe it (Watch out for the stainless cold water tank causing
your hands injured)
Outside Wipe it with the cleaner for plastic and a wet cloth (Please don’t use thinner and benzene
because they may cause color the product changed and surface of product damaged)
Barrel receiving water Wipe it with a neutral detergent by checking frequently
Cold,hot water valve After wiping it with a wet cloth, Wipe it with a dried cloth
Cooking valve, intake Wipe it with toothbrush and blush 2 times a month (Cleaning steam: only for the rental
management model)
[Picture 1]
[Picture 4]
※ If a taking water hose of picture 3 is inserted in the hole of marked area, Water is rained
[Picture 2]
Divider
Connector
Please pull up and
remove it
Cold water
tank cover
Cold water
tank
Hot water
tank
[Picture 3]
WPU-B300C_EN-MY.indd 19 2018-09-28  5:33:51

20
Failure, How can I do that in this case?
Phenomenon Possible cause How to solve
Lamp blinking Normal operation • When inputting power initially, the Lamp ickers When
water is full, the Lamp lights on so wait and use it
Lamp o Normal operation • Please make sure that the cold/hot water switch is on and
If it is on, Contact customer service center
Low temperature of hot
water
Low supply power • Please make sure that supply power is 220-240V
Check hot water lamp
• Please make sure that the hot water lamp is on and hot
water switch on back of the product is on Please make
sure that the power switch is on
“No cold water”
Low supply power • Sila pastikan bahawa bekalan kuasanya adalah 220-240V
Check cord water lamp
• Please make sure that the cold/hot water switch is on and
If it is failure, Contact customer service center Please make
sure that the power switch is on
Product installation or
unused for a long time
• Cold water generation time is required after product
installation or when not used for a long time. Please take
cold water after about 1~2 hours.
“No water”
End of lter life
• Please replace a sediment lter Please after unplugging
and locking a water supply valve, Contact customer
service center
Cut o tap water • When unplugging and getting tap water, Please use water
purication
Broken connection hose • If the connection hose is broken, Please spread the part
Yes cold water,
no hot water Bad heater
• Please the hot water switch is o and contact customer
service center (If the hot water tank is over heated, Passive
safety device is operated and power supply of heater is
blocked safely Contact customer service center)
Cold/hot water
temperature is rising
slowly or lowering
Taking a lot of water
• If you take a lot of water continuously, Cold/hot water
temperature is high or low Please wait for a while and use
about after 30 minutes
Failure, How can I do that in this case?
• Before you request repair of disorder, Please check below but if you still have problems, contact
customer service center
WPU-B300C_EN-MY.indd 20 2018-09-28  5:33:52
