SK magic WPUA900C User manual

P.N: M510300006 (REV.00)
WPUA900C/WPUA800C
WPUA900F/WPUA800F
SK
매직 냉정수기/냉온정수기
• Before using the product, please thoroughly read the safety precautions in this manual
to ensure proper use.
• After reading this manual, keep it somewhere where users can readily access it.
• This product is intended for domestic use only. This product cannot be used in other
countries with different power supply and voltage requirements.
• The design and appearance of this product are subject to change without prior notice.
SK
Magic Cold Water Purifier/
Hot & Cold Water Purifier
Water Purifier

2
Safety Information 3
Installation 8
Product Features 9
Product Description 10
Control Panel 12
How to Use 13
Filter Replacement 15
Water Purification System 17
Cleaning 19
Before Cleaning 19
Cleaning the Water Collector 19
Cleaning the Exterior 20
Cleaning the Heat-dissipating Fan Cover and Heat-dissipating Fan 20
Troubleshooting 21
Technical Data 24
Contents

3
• The following instructions are intended to provide information on using the product
safely in order to prevent injury or damage, and they must be followed.
• Safety-related precaution levels are classified as follows, depending on the expected
risk, the magnitude of the damage, and the urgency of the risk situation as a result of
incorrect use.
• This product should not be used by anyone who lacks physical, sensory, or mental
abilities (including children), or by those who lack experience and knowledge about
how to safely use the device without supervision or instruction.
WARNING
If warnings are ignored, there is a possibility of serious injury or death.
CAUTION
If cautions are ignored, there is a possibility of injury or product damage.
WARNINGS
Only use an AC 220 - 240 V power supply.
• Failure to do so may result in an electric shock or fire.
Do not repeatedly insert and remove the power plug.
• Doing so may result in electric shock, fire, or product damage.
Do not use a damaged power cord/plug or a loose power outlet.
• Doing so may result in electric shock or fire due to a short circuit.
• If the power cord is damaged, contact the store you purchased the product from or the
customer service center to get a replacement.
Do not excessively bend, pull, or twist the power cord, and do not tie the power cord.
• Doing so may result in electric shock or fire due to a short circuit.
Do not place any heavy objects on the power cord.
• Doing so may result in electric shock or fire due to a short circuit.
If any foreign materials (dust, water, etc.) are on the terminal or contacts of the power
plug, clean them completely before use.
• Failure to do so may result in an electric shock or fire.
Completely remove water from your hands before inserting or removing the power cord
from the power outlet.
• Failure to do so may result in electric shock.
Use a single outlet with a ground terminal rated at 15 A or greater.
Safety Information

4
Multiple connections to a single power outlet may lead abnormal overheating, which may
result in fire.
• A power outlet without a ground terminal may pose a risk of electric shock due to a
short circuit.
Do not install the product outdoors or in a place exposed to direct sunlight, in a place
near the bathroom, or in front of an air conditioner or heater.
Do not connect the power cord to any other cable or change the cord at your own
discretion.
• Doing so may result in electric shock or fire.
Do not place any heating device or spark-generating device near the product.
• Doing so may result in fire.
Install the product with 10 cm or more of space on all sides for sound airflow.
• Failure to do so may result in fire due to overheating.
Be careful not to damage the refrigerant piping when moving or installing the product.
• Failure to do so may result in sparks resulting in fire and burn injuries.
After installation, check if the source water supply hose has any leaks by opening the
source water supply valve.
• Failure to do so may result in electric shock or a short circuit.
Do not move the product during operation.
• Doing so may result in electric shock or product failure.
Do not disassemble or repair the product at your discretion.
• Doing so may result in fire or electric shock.
Do not insert any wires or tools in the mechanical compartment.
• Doing so may result in electric shock or product failure.
Avoid subjecting the product to any heavy impacts.
• Failure to do so may result in electric shock, product damage, or product failure.
Do not insert fingers or other objects in the heat-dissipating fan (exhaust).
• Doing so may result in electric shock or injury.
Do not obstruct the back and sides of the product with covers, etc.
• If the vent is blocked, the internal temperature will rise, causing a malfunction or
stopping the system.
Do not spray any pesticides or flammable liquids during operation.
• Doing so may result in fire or product failure.

5
Avoid allowing water to enter the product.
• Doing so may result in fire or electric shock.
Do not lean on or hang on the product.
• Doing so may result in product damage, product failure, or injury.
• If the gas (town gas, propane, etc.) leaks, do not touch the product or the power cord.
Immediately open a window for complete ventilation.
• If a spark is created, it may result in an explosion, fire, or burn injuries.
If the gas (refrigerant) leaks, do not touch the product or the power cord. Immediately
open a window for complete ventilation.
If water leaks out of the product or is found around the product, immediately close the
source water supply valve and remove the power plug from the outlet. Then, contact the
customer service center.
• Failure to do so may result in electric shock.
Remove the power plug before cleaning the product.
• Doing so may result in fire or electric shock.
Do not spray water on the product or use thinners, benzene, or alcohol to clean the
product.
• Doing so may result in discoloration, deformation, damage to the product, electric
shock, or fire.
If any abnormal noise, burning smell, or smoke is detected from the product, immediately
close the source water supply valve and remove the power plug from the outlet. Then,
contact the customer service center.
• Failure to do so may result in electric shock or fire.
Do not install in a location exposed to water, such as dripping water or rain; a bathroom;
o
utdoors; a place with high humidity; or a place where the ambient temperature is below
4 °C
.
• Doing so may result in electric shock, fire, or product failure.
Make sure the water supply hose is not kinked or bent.
• Failure to do so may result in poor water supply, water leakage, or a short circuit.
Do not place any heavy objects on the water supply hose or puncture the water supply
hose with sharp objects.
• Doing so may result in electric shock, a short circuit, or water leakage.

6
CAUTION
If the tap water is cut or the product is not in use for a long period, close the source water
supply valve and unplug the power cord.
• Failure to do so may result in abnormal water quality or water leakage.
Do not place the product on a slanted surface or unstable floor.
• Doing so may result in abnormal vibrations, noises, or a malfunction.
Do not place the product on a table in a way that allows it to stick out over the edge of
the table.
• Doing so may result in product damage.
Connect the source water supply hose to the back of the product.
Do not place any heavy objects on the product.
• Doing so may result in product failure or injury.
Do not place any cup or other object on the water collector grill when the product is not
in use.
• The cup could fall and cause damage or injury.
Do not use the water collector grill for any purpose other than water collection.
Do not pull on the power cord or connection hose when moving the product.
• Doing so may result in product damage.
Do not leave the product in subzero conditions.
• Doing so may cause a malfunction or product failure.
Do not remove the hose from the back of the product during use.
• Doing so may result in product failure due to water leakage.
If the product is not in use for a long period, close the source water supply valve and
unplug the power cord.
Do not use the product in a manner not described in the user manual.
Install the product at least 2 m away from electronic products, such as induction heating
(IH) microwave ovens and electric pressure cookers.
• Failure to do so may result in electromagnetic interference.
When installing the product, use genuine SK Magic components for installation.
• Failure to do so may result in water leakage or product damage. (water supply hose,
source water supply valve, water purification filter, etc.)
Use only authentic SK Magic filters in the product.
• Failure to do so may result in abnormal water quality or taste.
Do not let hot water come into contact with your hands or any other part of your body.

7
When dispensing hot water, maintain the correct position.
• Failure to do so may result in burn injuries.
Do not use hot water and auxiliary faucet water at the same time.
• If auxiliary faucet and hot water are used at the same time, the instant hot water will
stop working to protect the product.
• The instant hot water process allows flowing water to be quickly heated and results in
slightly less water being produced.
Make sure to connect the product to the cold water pipe.
• Failure to do so may result in filter damage.
Make sure to replace the filter according to the filter replacement cycle.
• If the filter is used after the filter replacement cycle is over, it may result in abnormal
water quality or water output, the presence of foreign objects, and filter failure.
When transporting the product, do not tilt it at an angle of more than 45 degrees.
• Doing so may result in product failure.
If any water leaks out of the product or is found around the product, close the source
water supply valve and remove the power plug from the outlet. Then, contact the
customer service center.
• Failure to do so may result in electric shock.
• If any abnormal noise, burning smell, or smoke is detected from the product,
immediately close the source water supply valve and remove the plug from the outlet.
Then, contact the customer service center.
• Failure to do so may result in electric shock or fire.
If the product has not been used for a long period, drain 1000 ml of cold water, ambient
temperature water, and hot water.
• The water in pipes may be polluted.
Do not use any water other than tap water.
• Failure to do so may reduce the product life or result in product failure.
Do not lift the product using the water dispenser.
• Doing so may result in product damage, product failure, or injury.
Do not use purified water in the humidifier.
• If purified water is left for a long time, it can be easily contaminated.
After installation, check the hose connection for leaks and check whether the source
water supply valve is open.
• Failure to do so may result in electric shock or water leakage.
This product should not be used by anyone who lacks physical, sensory, or mental
abilities, or by those who lack experience and knowledge (including children) about how
to safely use the device without supervision or instruction.

8
Installation
Wait at least
1 hour!
45°
When moving the product, do not tilt it at an angle of more
than 45 degrees.
• Wait at least 1 hour to connect the power plug after
transporting the product.
Do not move the product while the water purifier is
running.
Make sure to connect the product to the cold water pipe.
• If connected to the hot water pipe, the filter will be
damaged, reducing the product life.
If installing the product in a place where it could fall, install
an auxiliary leg.
• Assemble it according to the groove as shown in the drawing.
–Applicable to WPUA900F/WPUA800F models only.
Cold
water
Hot
water

9
Product Features
Filter
Instant cooling
Instant cooling
module
module
• By adopting the direct water process without a water tank,
the product provides fresher, cleaner water.
• By adopting the instant cooling and heating processes, the
product can continuously supply hot and cold water.
• By adopting the dispenser UV sterilization module, the UV
LED will periodically operate and care for the product.
• The control panel is located on the front of the product,
making it more convenient to check the operation and
status of the product.
• The touch buttons make it easy to select the desired
amount of water.
• The color of the water output button indicates the type of
water selected.
Step 1
Step 1
Sediment
Sediment
Step 2
Step 2
Block
Block
Carbon
Carbon
Composite
Composite
Step 3
Step 3
Nanotech
Nanotech
PAC
PAC
• Step 1's sediment filter has superb ability to remove
floating materials and complex particles from the water
and plays the role of improving the normal functions of
other filters through basic filtering.
• Step 2's block carbon composite filter uses high-pressure
activated carbon so that removing floating materials, as
well as remaining chlorine and chloroform, is maximized
with its small size.
• Step 3's nanotech PAC filter removes particles from the
water.

10
WPUA900C / WPUA800C

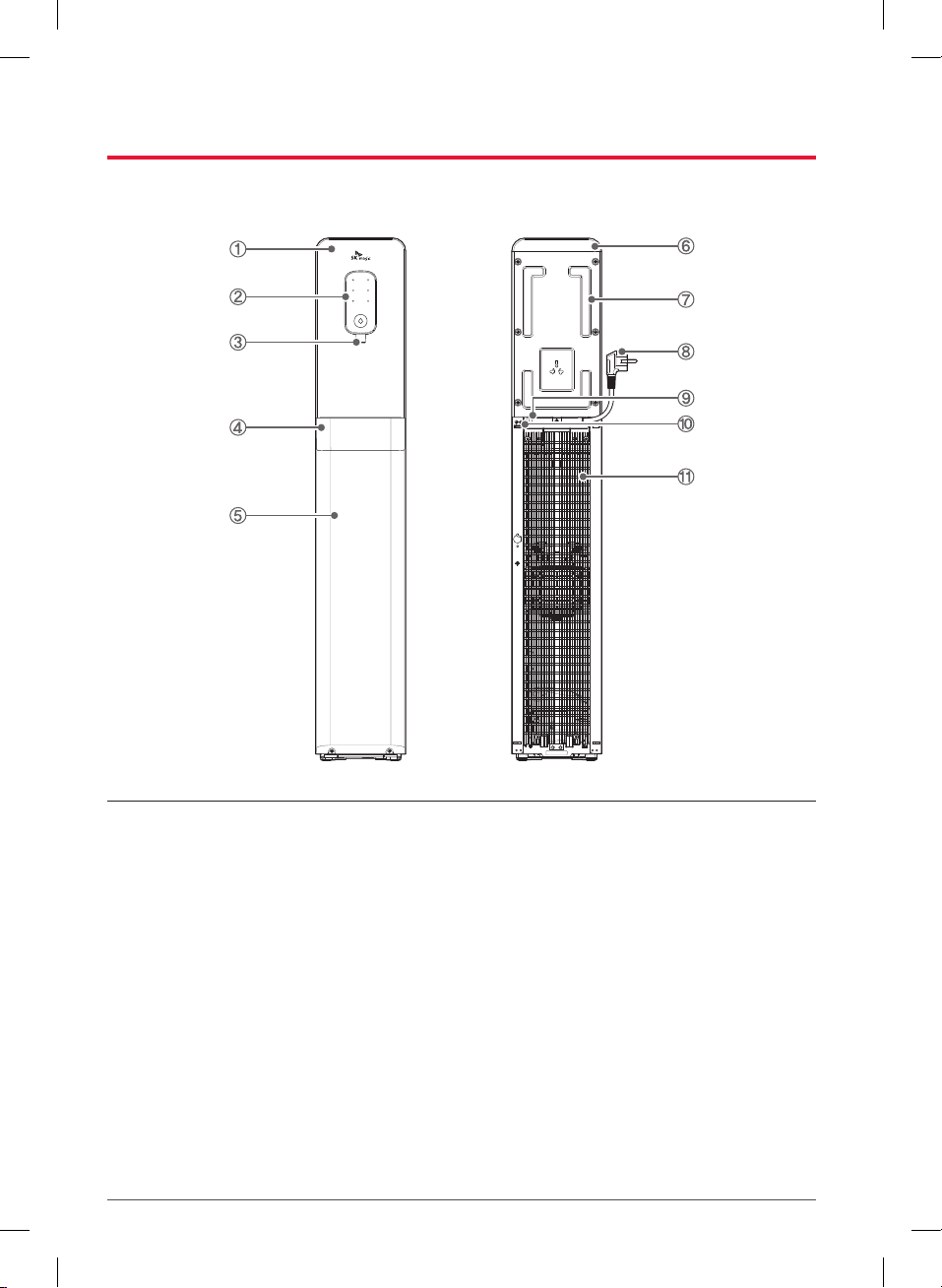

01 Front Panel 02 Display / Control Panel 03 Water Dispenser
04 Drip Tray 05 Top Cover 06 Condenser
07 Rear Cover 08 Heat-Dissipating Fan
Cover 09 Power Cord
10 Water Supply
Connector 11 Auxiliary Faucet Connector
NOTE
• Product images may differ depending on the model.
Product Description

11
WPUA900F / WPUA800F
01 Front Panel 02 Display / Control Panel 03 Water Dispenser
04 Drip Tray 05 Lower Cover 06 Top Cover
07 Rear Cover 08 Power Cord 09 Water Supply Connector
10 Auxiliary Faucet
Connector 11 Condenser

12
Control Panel

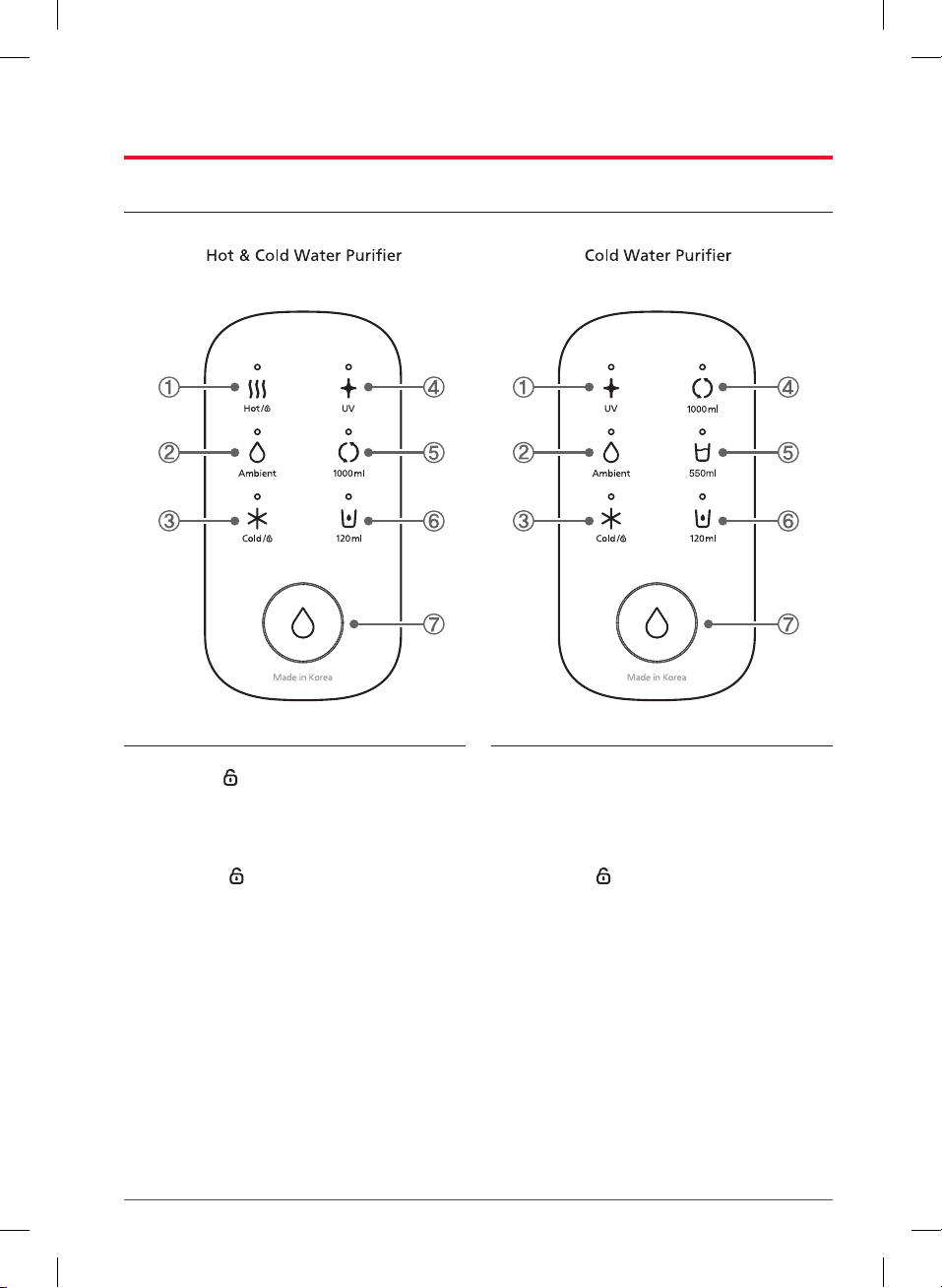

WPUA900C / WPUA900FWPUA800C / WPUA800F
01 Hot / Button 01 UV Button
02 Ambient Button 02 Ambient Button
03 Cold / Button 03 Cold / Button
04 UV Button 04 1000 ml Button
05 1000 ml Button 05 550 ml Button
06 120 ml Button 06 120 ml Button
07 Water Button 07 Water Button

13

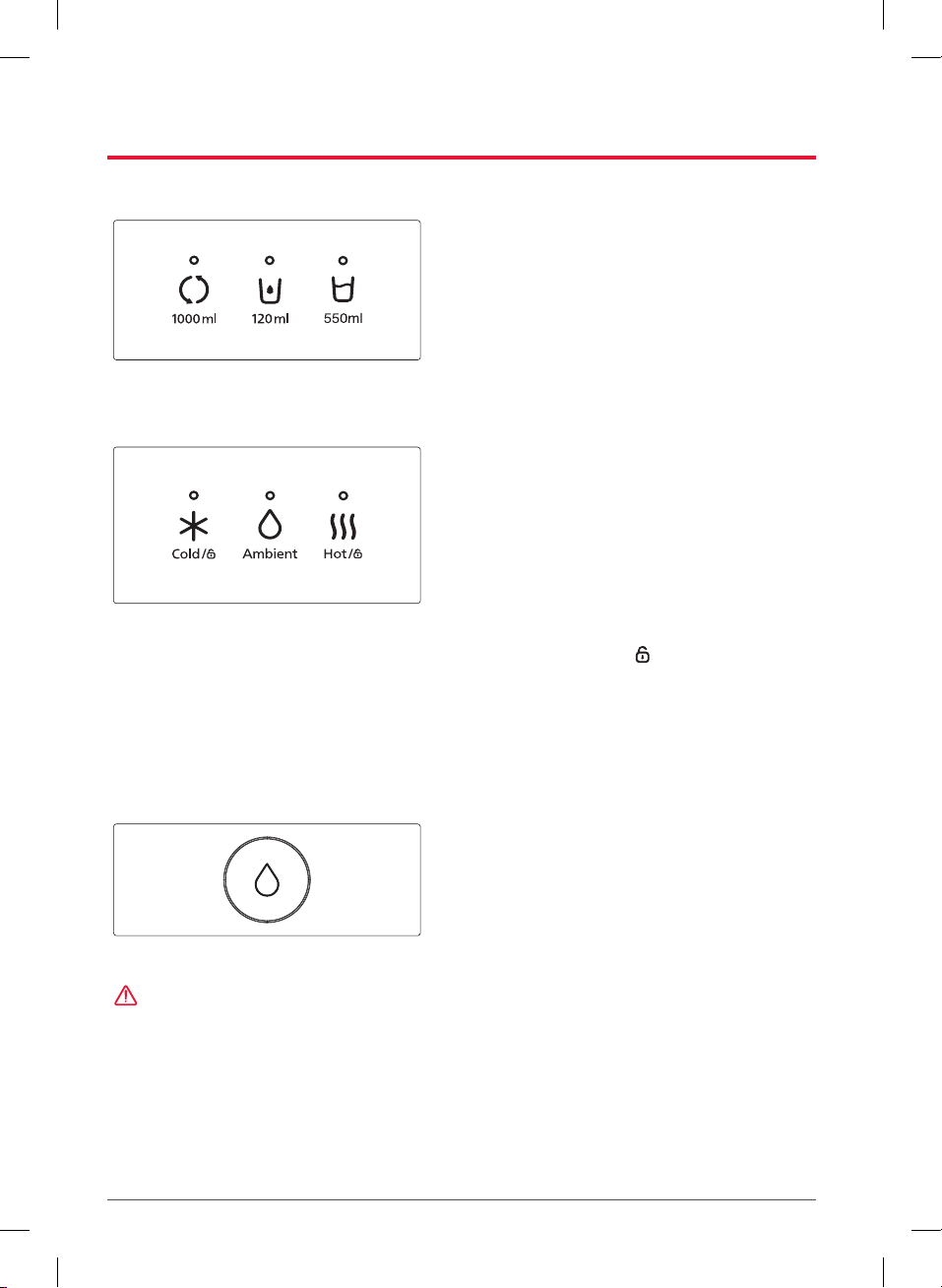

Selecting the Amount of Water
Select the desired water amount.
• If the LED over the button is on, no input is
required.
• After selecting 1000 ml or 550 ml, if there is
no operation for a certain period of time, the
setting will automatically change to 120 ml.
–Only WPUA800C/WPUA800F models (models
without hot water function) have a function of
supplying 550 ml.
Selecting the Water Temperature
Select the desired water temperature.
• If the LED over the button is on, no input is
required.
• Depending on the selected temperature, the
LED of the corresponding temperature button
turns on, and the color of the water button
changes.
–Cold water : Blue
–Ambient temperature water : Green
–Hot water : Red
• After pressing the [Hot/ ] button, if there is
no operation for a certain period of time, the
setting will automatically change to cold water
or ambient temperature water (to the last used
temperature).
–WPUA800C/WPUA800F models do not have a
hot water function.
Water Output
Press the [Water] button.
• When the selected amount of water has
finished dispensing, it will automatically stop.
• While water is being dispensed, if the [Water]
button is pressed again, the water will stop
coming out.
How to Use
CAUTION
Children should be supervised to ensure that they do not play with the appliance.
This appliance is intended to be used in household and similar applications such as
• staff kitchen areas in shops, offices, and other working environments;
• farm houses and by clients in hotels, motels, and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

14
Dispenser UV Safe Care Function
The Dispenser UV Safe Care function operates
automatically and periodically, but it can be
done manually when desired.
• How to manually use the Dispenser UV Safe
Care function.
–When the Dispenser UV Safe Care button is
pressed again, its LED will turn on and the
function will proceed.
–If the Dispenser UV Safe Care button is pressed
once while the Dispenser UV Safe Care function
is in progress, the process will be canceled and
the LED will turn off.
Cold water function on/off
Press and hold the [Cold/ ] button for 5
seconds to activate/deactivate the cold water
function. You will hear a buzzer sound.
• When the [Cold/ ] button is selected, the
cold water function is being activated. At this
time, pressing the button for 5 seconds will
deactivate the cold water function.
• When the [Cold/ ] button is not selected and
the buzzer sounds, it means the cold water
function is being deactivated. At this time,
pressing the button for 5 seconds will activate
the cold water function.
• After the cold water function has been disabled
for a long period, cold water will be available
after about 1 hour after reactivating it.
Hot water button lock/unlock
Press and hold the [Hot/ ] button for 5
seconds to lock/unlock the Hot water button.
You will hear a buzzer sound.
• When the [Hot/ ] button is selected, the hot
water function is being activated. At this time,
pressing the button for 5 seconds will lock the
Hot water button.
• When the [Hot/ ] button is not selected and
the buzzer sounds, it means the hot water
function is being deactivated. At this time,
pressing the button for 5 seconds will unlock
the hot water button.
–WPUA800C/WPUA800F models do not have a
hot water function.
• If hot water is received continuously, the
product may not work for 30 minutes after
receiving more than an appropriate amount
of water, to protect the product. (If hot water
cannot be received, control and operate after
30 minutes.)

15
Filter Replacement
CAUTION
• Replace the filter according to the filter replacement cycle.
-If the filter replacement cycle is delayed, the amount of purified water or the purification effect will
decrease.
90˚
Open
Lock
Source Water
Supply Valve
90°
1. Close the source water supply valve.
2. Remove the power cord.
3. Remove the top cover as shown in the
figure.

16
4. After removing the fittings from the
filters by using the tool for fitting
separation, replace the filters.
5. Assemble the filters, fittings, and filter
cover by reversing the removal order.
Open
Source Water
Supply Valve
Lock
90°
6. Open the source water supply valve and
check for any water leaks in the filter
connections. Then, connect the power
cord.
NOTE
• Contact the customer service center to purchase filters or request the filter change
notification service.
(Customer Service Center : 1800 18 7878)
• The filter change notification will be provided by a phone call 2 ~ 3 days before the
completion of the cycle through our computer management system.
Filter Change Cycle
• Filter Change Cycle refers the expected period when the filter outputs the set performance.
In case of low-quality water supplies or high usage frequencies, the cycle may become
shorter.

17

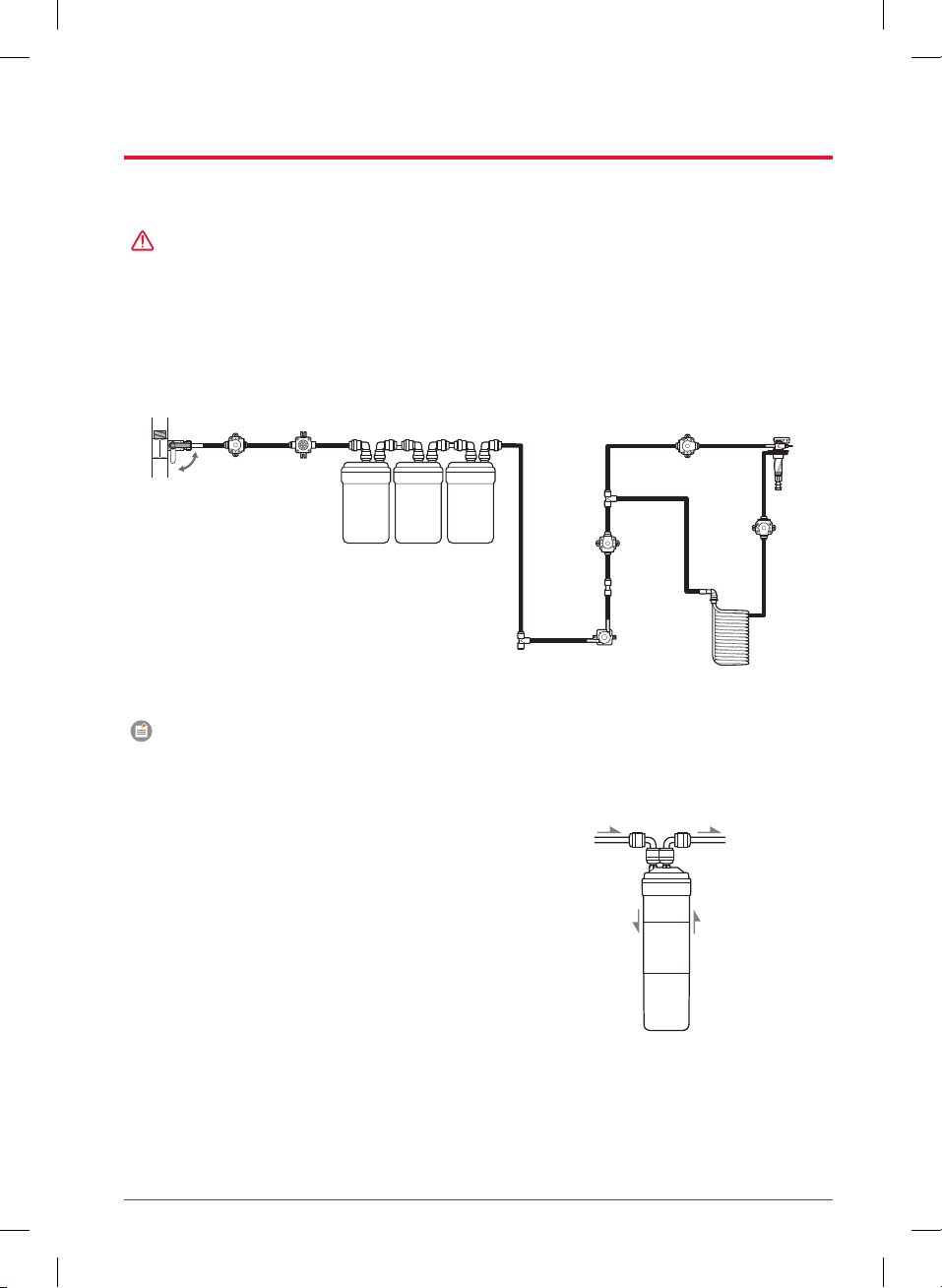

Water Purification System
WPUA900C / WPUA900F
CAUTION
• Do not disassemble the product at your own discretion.
–Doing so may result in fire or electric shock.
• Be sure to use genuine SK Magic components (filters/fittings/tubing) and ask a professional
engineer to replace them.
–Failure to do so may result in product failure or reduce the product life.
Source Water
Supply Valve
NOS Valve Pressure
Reduction
Valve
Instant Hot Water
Module
Step 1
Step 1
Sediment
Sediment
Step 2
Step 2
Block
Block
Carbon
Carbon
Composite
Composite
Step 3
Step 3
Nanotech
Nanotech
PAC
PAC
Flow Sensor
Ambient Temperature
Water Supply Valve
Source Water
Supply Valve
Cold Water
Supply
Valve
Hot Water
Supply
Valve
Direct and
Cold Water Pipe
90°

18
WPUA800C / WPUA800F
CAUTION
• Do not disassemble the product at your own discretion.
–Doing so may result in fire or electric shock.
• Be sure to use genuine SK Magic components (filters/fittings/tubing) and ask a professional
engineer to replace them.
–Failure to do so may result in product failure or reduce the product life.
Direct and Cold
Water Pipe
Cold Water
Supply
Valve
Ambient Temperature
Water Supply Valve
Source Water
Supply Valve
NOS Valve Pressure
Reduction
Valve
Flow Sensor
Source Water
Supply Valve
90°
Step 1
Step 1
Sediment
Sediment
Step 2
Step 2
Block
Block
Carbon
Carbon
Composite
Composite
Step 3
Step 3
Nanotech
Nanotech
PAC
PAC
NOTE
When the product is installed or any filter is
replaced, each filter should be cleaned.
• Based on the initial filter cleaning, let the
water flow for about 10 minutes (based on
the water flow of 20 L at about 1 kg/cm2
water pressure).
According to the nature of each filter, bubbles
or dark water may come out. However, this
only happens during the first cleaning and
does not affect the purification performance.
White Coloring of Purified Water
• For direct water purification products, this is
a temporary scenario that may occur due to
micro bubbles that form during water output.
The micro bubbles will disappear naturally
and they do not affect the water quality. If the
water purified by this product is boiled, white
sediment may appear. These are not foreign
materials, but are the mineral sediments.
Source
water
Purified
water

19
Cleaning
Before Cleaning
Open
Open
Lock
Lock
90°
90°
Source Water
Supply Valve
Ball Valve
1. Close the source water supply valve
connected to the water supply pipe of
the sink or the ball valve on the back of
the product.
2. Remove the power cord.
Cleaning the Water Collector
1. Remove the water collector.
–If any water is inside, the water may spill out.
2. After separating the grill from the water
collector, clean them with running water
or a soft brush.
–If the water collector is cleaned with a sharp
object, the collector may be damaged.
3. Dry the grill and the water collector in a
cool, shaded place, and assemble those
pieces to the product.

20
Cleaning the Exterior
1. Use a cleaning agent made exclusively
for plastic products, or use a wet cloth,
to clean the exterior.
(Do not clean the product with thinners,
benzene, or alcohol.)
Cleaning the Heat-dissipating Fan Cover and Heat-dissipating Fan
1. To clean the heat-dissipating fan blades,
remove the heat dissipation fan cover as
shown in the figure.
–Insert a flat-head screwdriver in the marked
position to remove the heat-dissipating fan
cover, and press it downward.
2. Clean the heat-dissipating fan blades
and cover with a wet wipe or a damp
rag.
–After cleaning, insert the heat-dissipating
fan cover from the bottom and press it to
assemble.
