Impact drill 1021
INTRODUCTION
• This tool is intended for impact drilling in brick as well
as for drilling in wood, metal, ceramic and plastic
• Read and save this instruction manual 2
TECHNICAL SPECIFICATIONS 1
TOOL ELEMENTS 3
ASwitch for on/off and speed control
BButton for switch locking
CWheel for maximum speed control
DSwitch for changing direction of rotation
ESwitch for selecting drilling function
FAuxiliary handle
GDepth gauge
HVentilation slots
SAFETY
GENERAL SAFETY INSTRUCTIONS
WARNING! Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or serious
injury. Save all warnings and instructions for future
reference. The term “power tool” in the warnings refers to
your mains-operated (corded) power tool or battery-
operated (cordless) power tool.
1) WORK AREA SAFETY
a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
c) Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose
control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet.
Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk
of electric shock.
b) Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric
shock.
f) If operating a power tool in a damp location is
unavoidable, use an earth leakage circuit breaker.
Use of an earth leakage circuit breaker reduces the risk
of electric shock.
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do not
use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in
serious personal injury.
b) Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injuries.
c) Prevent unintentional starting. Ensure the switch is
in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on the
switch or energising power tools that have the switch
on invites accidents.
d) Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal
injury.
e) Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long
hair can be caught in moving parts.
g) If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
b) Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
SKIL_IB1021_EU.indd 8 21-04-2010 13:20:27

9
e) Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc.,
in accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations
different from those intended could result in a
hazardous situation.
5) SERVICE
a) Have your power tool serviced by a qualified repair
person using only identical replacement parts.
This will ensure that the safety of the power tool is
maintained.
SAFETY INSTRUCTIONS FOR IMPACT DRILLS
GENERAL
• This tool should not be used by people under the age of
16 years
• Always disconnect plug from power source before
making any adjustment or changing any accessory
• Wear ear protectors (exposure to noise can cause
hearing loss)
• Use auxiliary handle(s), if supplied with the tool (loss
of control can cause personal injury)
• Use completely unrolled and safe extension cords with
a capacity of 16 Amps (U.K. 13 Amps)
• Do not work materials containing asbestos (asbestos
is considered carcinogenic)
• Dust from material such as paint containing lead, some
wood species, minerals and metal may be harmful
(contact with or inhalation of the dust may cause
allergic reactions and/or respiratory diseases to the
operator or bystanders); wear a dust mask and work
with a dust extraction device when connectable
• Certain kinds of dust are classified as carcinogenic
(such as oak and beech dust) especially in conjunction
with additives for wood conditioning; wear a dust
mask and work with a dust extraction device when
connectable
• Follow the dust-related national requirements for the
materials you want to work with
BEFORE USE
• Always check that the supply voltage is the same as the
voltage indicated on the nameplate of the tool (tools
with a rating of 230V or 240V can also be connected to
a 220V supply)
• Avoid damage that can be caused by screws, nails and
other elements in your workpiece; remove them before
you start working
• Use suitable detectors to find hidden utility lines or
call the local utility company for assistance (contact
with electric lines can lead to fire or electrical shock;
damaging a gas line can result in an explosion;
penetrating a water pipe will cause property damage or
an electrical shock)
• Secure the workpiece (a workpiece clamped with
clamping devices or in a vice is held more securely than
by hand)
• Never use the tool when cord is damaged; have it
replaced by a qualified person
ACCESSORIES
• SKIL can assure flawless functioning of the tool only
when original accessories are used
• Use only accessories with an allowable speed matching
at least the highest no-load speed of the tool
DURING USE
• Always keep the cord away from moving parts of the
tool
• If the drill bit becomes unexpectedly jammed (causing a
sudden, dangerous reaction), immediately switch off the
tool
• Be aware of the forces that occur as a result of jamming
(especially when drilling metals); always use auxiliary
handle F 3and take a secure stance
• Hold power tool by insulated gripping surfaces,
when performing an operation where the cutting
accessory may contact hidden wiring or its own
cord (a cutting accessory contacting a “live” wire may
make exposed metal parts of the power tool “live” and
could give the operator an electric shock)
• In case of electrical or mechanical malfunction,
immediately switch off the tool and disconnect the plug
• If the cord is damaged or cut through while working, do
not touch the cord, but immediately disconnect the plug
AFTER USE
• When you put away the tool, switch off the motor and
ensure that all moving parts have come to a complete
standstill
WHEN CONNECTING NEW 3-PIN PLUG (U.K. ONLY):
• Do not connect the blue (= neutral) or brown (= live) wire
in the cord of this tool to the earth terminal of the plug
• If for any reason the old plug is cut off the cord of this
tool, it must be disposed of safely and not left
unattended
USE

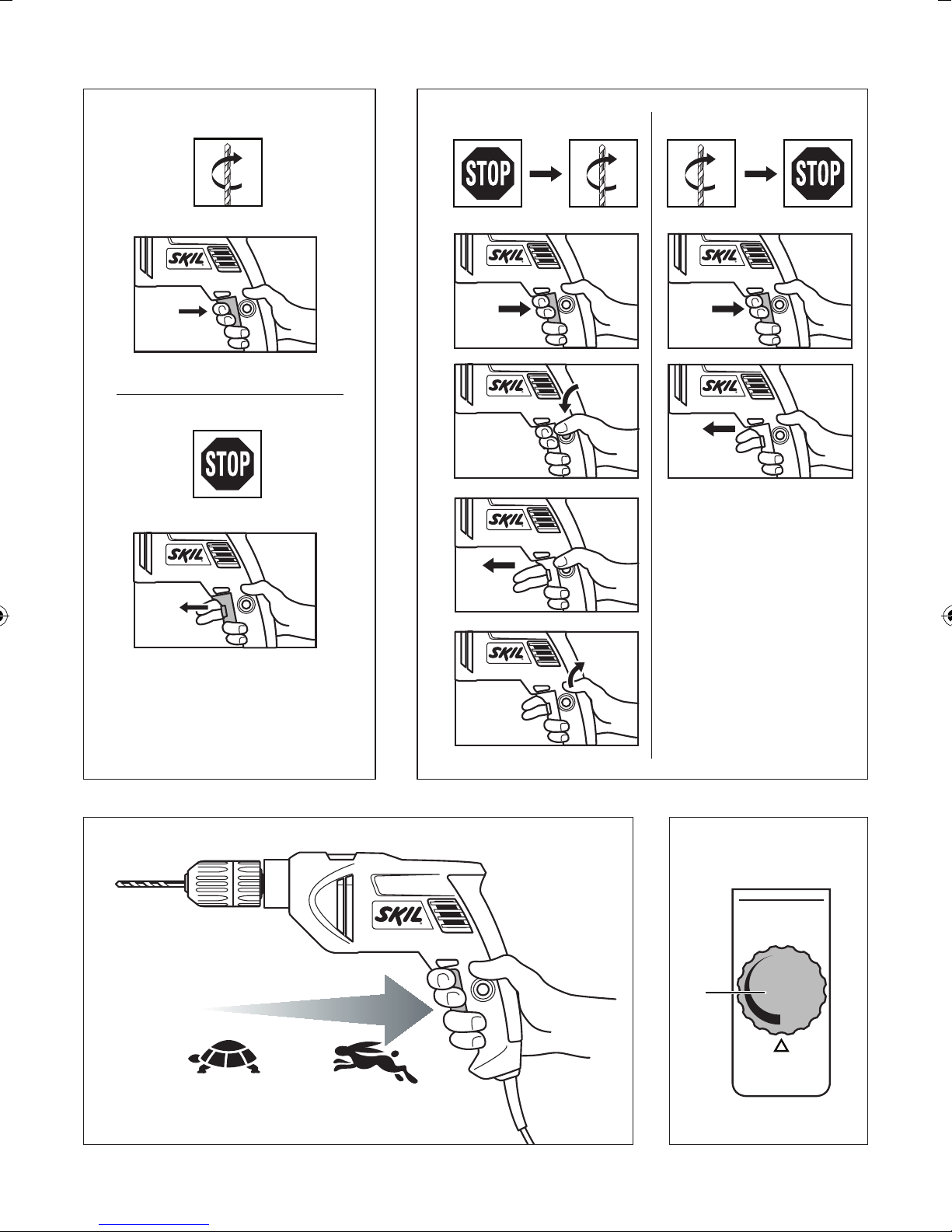

• On/off 4
• Switch locking for continuous use 5
• Speed control for smooth starting 6
• Maximum speed control 7
With wheel C the maximum speed can be adjusted from
low to high
- switch on the tool
- lock the switch
- turn wheel C to select maximum speed

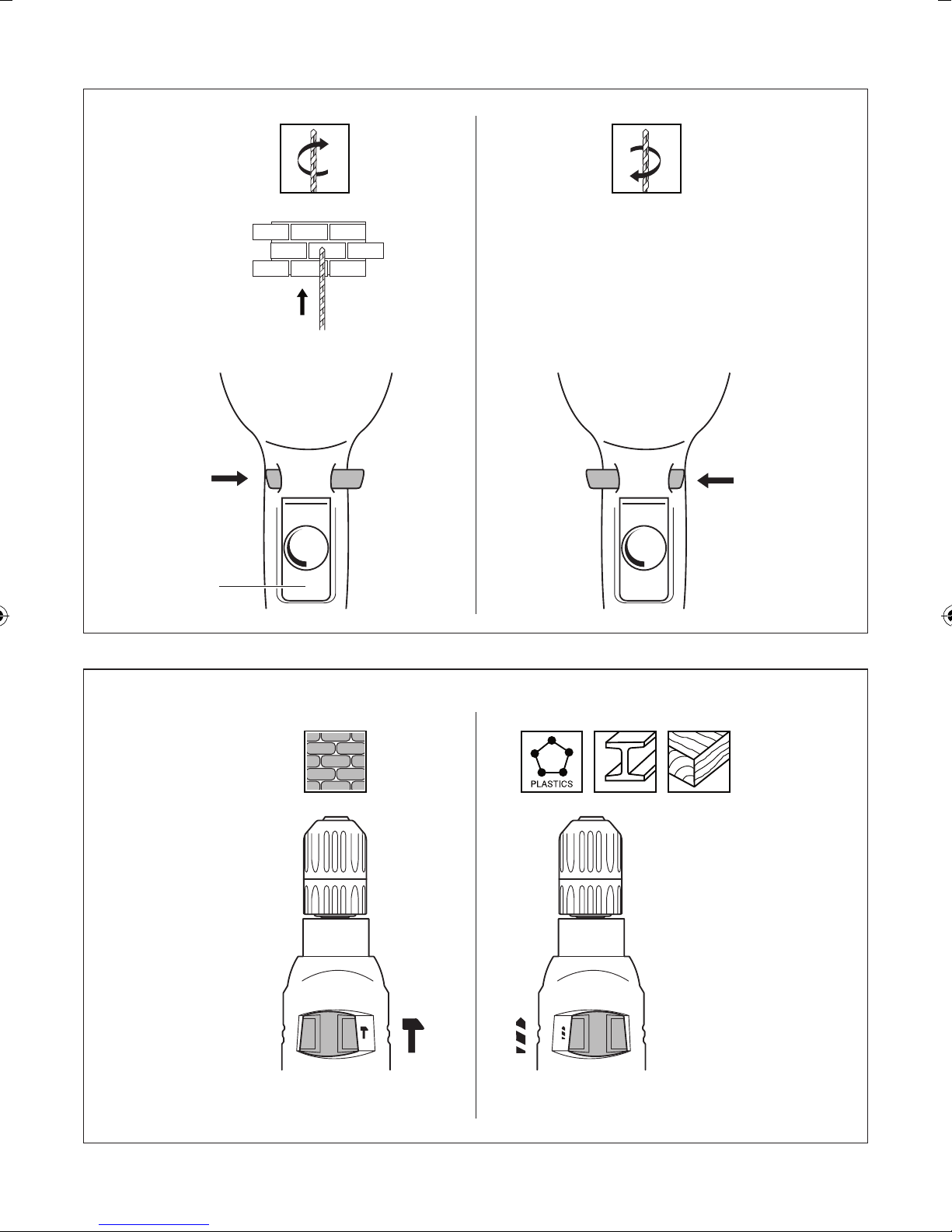

• Changing direction of rotation 8
- when not properly set in left/right position, switch
A 3cannot be activated
! change direction of rotation only when tool is at a
complete standstill
• Normal drilling versus impact drilling 9
! select drilling function only when tool is switched
off and plug is disconnected
• Changing bits 0
- insert the bit as deep as possible in the chuck
! do not use bits with a damaged shank
• Adjusting drilling depth !
SKIL_IB1021_EU.indd 9 21-04-2010 13:20:28

10
• Holding and guiding the tool @
- always use auxiliary handle F 3(can be adjusted
as illustrated)
! while working, always hold the tool at the grey-
coloured grip area(s)
- keep the ventilation slots uncovered
- do not apply too much pressure on the tool; let the
tool do the work for you
APPLICATION ADVICE
• Use the appropriate bits #
! only use sharp bits
• For drilling in concrete or stone a steady pressure on
the drill is required
• When drilling ferrous metals
- pre-drill a smaller hole, when a large hole is required
- lubricate drill bit occasionally with oil
• Splinterfree drilling in wood $
• Dustfree drilling in walls %
• Dustfree drilling in ceilings ^
• Drilling in tiles without skidding &
• For more tips see www.skileurope.com
MAINTENANCE / SERVICE
• Always keep tool and cord clean (especially ventilation
slots H 3)
! disconnect the plug before cleaning
• If the tool should fail despite the care taken in
manufacturing and testing procedures, repair should be
carried out by an after-sales service centre for SKIL
power tools
- send the tool undismantled together with proof of
purchase to your dealer or the nearest SKIL service
station (addresses as well as the service diagram of
the tool are listed on www.skileurope.com)
ENVIRONMENT
• Do not dispose of electric tools, accessories and
packaging together with household waste material
(only for EU countries)
- in observance of European Directive 2002/96/EC on
waste of electric and electronic equipment and its
implementation in accordance with national law,
electric tools that have reached the end of their life
must be collected separately and returned to an
environmentally compatible recycling facility
- symbol *will remind you of this when the need for
disposing occurs
DECLARATION OF CONFORMITY
• We declare under our sole responsibility that this
product is in conformity with the following standards or
standardized documents: EN 60745, EN 55014, in
accordance with the provisions of the directives
2006/95/EC, 2004/108/EC, 2006/42/EC
• Technical file at: SKIL Europe BV (PT-SEU/PJE),
4825 BD Breda, NL
Arno van der Kloot
Vice President
Operations & Engineering
SKIL Europe BV, 4825 BD Breda, NL
Jan Trommelen
Approval Manager
22.04.2010
NOISE/VIBRATION
• Measured in accordance with EN 60745 the sound
pressure level of this tool is 94 dB(A) and the sound
power level 105 dB(A) (standard deviation: 3 dB), and
the vibration ✱(hand-arm method; uncertainty K =
1.5 m/s²)
✱when drilling in metal 3.4 m/s²
✱when impact drilling in concrete 17.5 m/s²
• The vibration emission level has been measured in
accordance with a standardised test given in EN 60745;
it may be used to compare one tool with another and as
a preliminary assessment of exposure to vibration when
using the tool for the applications mentioned
- using the tool for different applications, or with
different or poorly maintainted accessories, may
significantly increase the exposure level
- the times when the tool is switched off or when it is
running but not actually doing the job, may
significantly reduce the exposure level
! protect yourself against the effects of vibration by
maintaining the tool and its accessories, keeping
your hands warm, and organizing your work
patterns
F
Perceuse à percussion 1021
INTRODUCTION
• Cet outil est conçu pour les travaux de perçage à
percussion dans la brique ainsi que le perçage dans le
bois, le métal, la céramique et les matières plastiques
• Lisez et conservez ce manuel d’instruction 2
SPECIFICATIONS TECHNIQUES 1
ELEMENTS DE L’OUTIL 3
AInterrupteur de marche/arrêt et réglage de vitesse
BBouton de blocage de l’interrupteur
CMolette de réglage de la vitesse maximum
DCommutateur pour inverser le sens de rotation
ECommutateur pour sélectionner la fonction de perçage
FPoignée auxiliaire
GJauge de profondeur
HFentes de ventilation
SKIL_IB1021_EU.indd 10 21-04-2010 13:20:29
