DA 1200 - DA 1900
Inlet cover/Light trap/Fly screen
Mounting Guide
English: For other language variants of this document we refer to:
Español: Para otras variantes del idioma de este documento, visite:
Français: Pour les versions dans d'autres langues de ce document veuillez consulter:
http://docs.skov.com/1023

DA 1200 - DA 1900
Product and Documentation Changes
SKOV A/S reserve the right to change this document and the product herein described without further notice.
In case of doubt, please contact SKOV A/S.
Date of change appears from the front and the back page.
Note
•All rights reserved SKOV A/S. No part of this manual may be reproduced in any manner what
soever without the express written permission from SKOV A/S.
•SKOV A/S has made all reasonable efforts to ensure the accuracy of the information contained in
this manual. Should any mistakes or imprecise information occur in spite of this, SKOV A/S would
appreciate being notified thereof.
•Irrespective of the above, SKOV A/S shall not accept any liability with regard to loss or damage
caused or alleged to be caused by reliance on any information contained herein.
•Copyright by SKOV A/S.

4 Mounting Guide
DA 1200 - DA 1900
1PRODUCT DESCRIPTION...............................................................................5
1.1 Inlet cover................................................................................................................. 5
1.2 Light trap.................................................................................................................. 5
1.3 Fly screen................................................................................................................. 6
2MOUNTING GUIDE ..........................................................................................7
2.1 Inlet cover................................................................................................................. 7
2.2 Light trap.................................................................................................................. 8
2.3 Fly screen................................................................................................................. 9
3MAINTENANCE..............................................................................................11
3.1 Icing up/clogging of the fly screen........................................................................11
4DIMENSIONED SKETCH...............................................................................12
4.1 Inlet cover................................................................................................................12
4.2 Light trap.................................................................................................................13
4.3 Fly screen................................................................................................................14

Mounting Guide 5
DA 1200 - DA 1900
1 Product description
1.1 Inlet cover
The DA 1200 / DA 1900 inlet cover is a covering abating the impact on the house environment caused by wind
and solar irradiation.
The inlet cover is made of injection-molded PP (polypropylene) which is dirt-repellent and easy to clean.
The inlet cover is easy to assemble as it only consists of three parts integrating snap locks and assembly marks.
Assembly instructions are printed on the side piece.
1. Inlet cover - center piece
2. Inlet cover - right side piece
3. Inlet cover - left side piece
4. Snap lock
5. Assembly marks
6. Assembly instructions

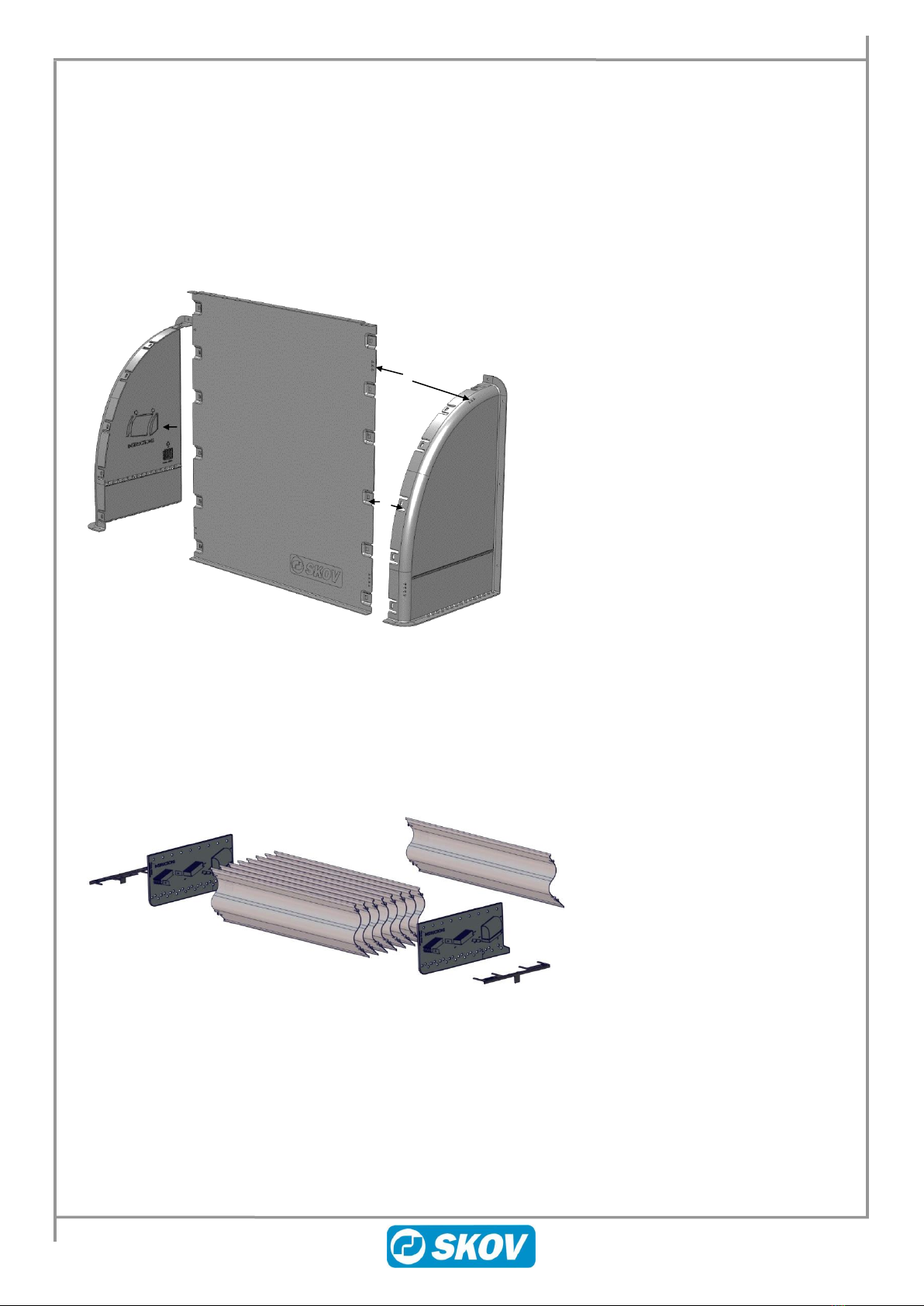

Figure 1: Assembly of DA 1200 and DA 1900 inlet cover
1.2 Light trap
The light trap is used in connection with air intake in livestock houses. The light trap prevents the sunlight from
penetrating the building.
The light trap is made of injection- molded PP (polypropylene) which is dirt-repellent and easy to clean.
The light trap is easily mounted in the DA 1200 / DA 1900 inlet cover.
Assembly instructions are printed on the side piece.
Figure 2: Assembly of DA 1200 and DA 1900 light trap
1. Light trap louvre
2. Spacer for light trap
3. Lock for light trap
1
2
3
6
4
5
1
2
3
1
2
3

6 Mounting Guide
DA 1200 - DA 1900
1.3 Fly screen
You can use the DA 1200 / DA 1900 fly screen in connection with the air intake in livestock houses. The fly
screen prevents the flies from entering the building.
You easily mount the fly screen on the DA 1200/DA 1900 inlet cover and the DA 1200/DA 1900 inlet cover
including a light trap.
You find the assembly instructions printed on the cardboard box.
1. Fly screen frame
2. Fly screen rod, front 670
3. Fly screen rod, back 710
4. Fly screen rod connector
5. Fly screen rod, bottom 660/944
6. Fly screen basket
Figure 1: DA 1200 and DA 1900 fly screen assembly
1
2
4
6
2
4
5
3
3

Mounting Guide 7
DA 1200 - DA 1900
2 Mounting guide
2.1 Inlet cover
Click the right side piece into place on the center piece.
Make sure that:
1. the edge of the center piece is on the top.
2. the snap lock on the side piece is on the top.
Click the left side piece into place on the center piece.
Make sure that:
1. the edge of the center piece is on the top.
2. the snap lock on the side piece is on the top.
Mark up a mounting line 45mm from the existing inlet.
Drill holes according to the dimensioned sketch, Figure 3 and
Figure 4.
(Self-cutting screws can be used for some types of walls).
First you have to fasten a screw where the edge of the center piece
and the side overlap.
Use a spirit level to make sure that the inlet cover is level.
1
2
1
2

8 Mounting Guide
DA 1200 - DA 1900
Use a spirit level in connection with the side pieces to ensure a nice
finish.
Fasten screws in all the screw holes.
2.2 Light trap
Mount the nine light trap louvers into the two spacers.
Lift the assembled louvers up into the inlet cover until you
sense a vague snap.
The light trap lock can now be mounted on both sides of the
inlet cover.

Mounting Guide 9
DA 1200 - DA 1900
2.3 Fly screen
Before assembly start, measure the outer dimensions of the inlet cover.
The outer dimensions of the DA 1200 inlet cover are 669 mm.
The outer dimensions of the DA 1900 inlet cover are 953 mm.
1. Fly screen frame
2. Fly screen rod, front 670
3. Fly screen rod, back 710
4. Fly screen rod connector
5. Fly screen rod, bottom 660/944
6. Fly screen basket
1. Place the frame on a table or the floor.
2. Mount the front rod 670 mm.
3. Mount the rear rod 710 mm.
4. Mount the rod connector on the front and rear rod.
1
3
3
4
4
6
5
2
2
Front
Back
1
2
2
3
3
4
4
4

10 Mounting Guide
DA 1200 - DA 1900

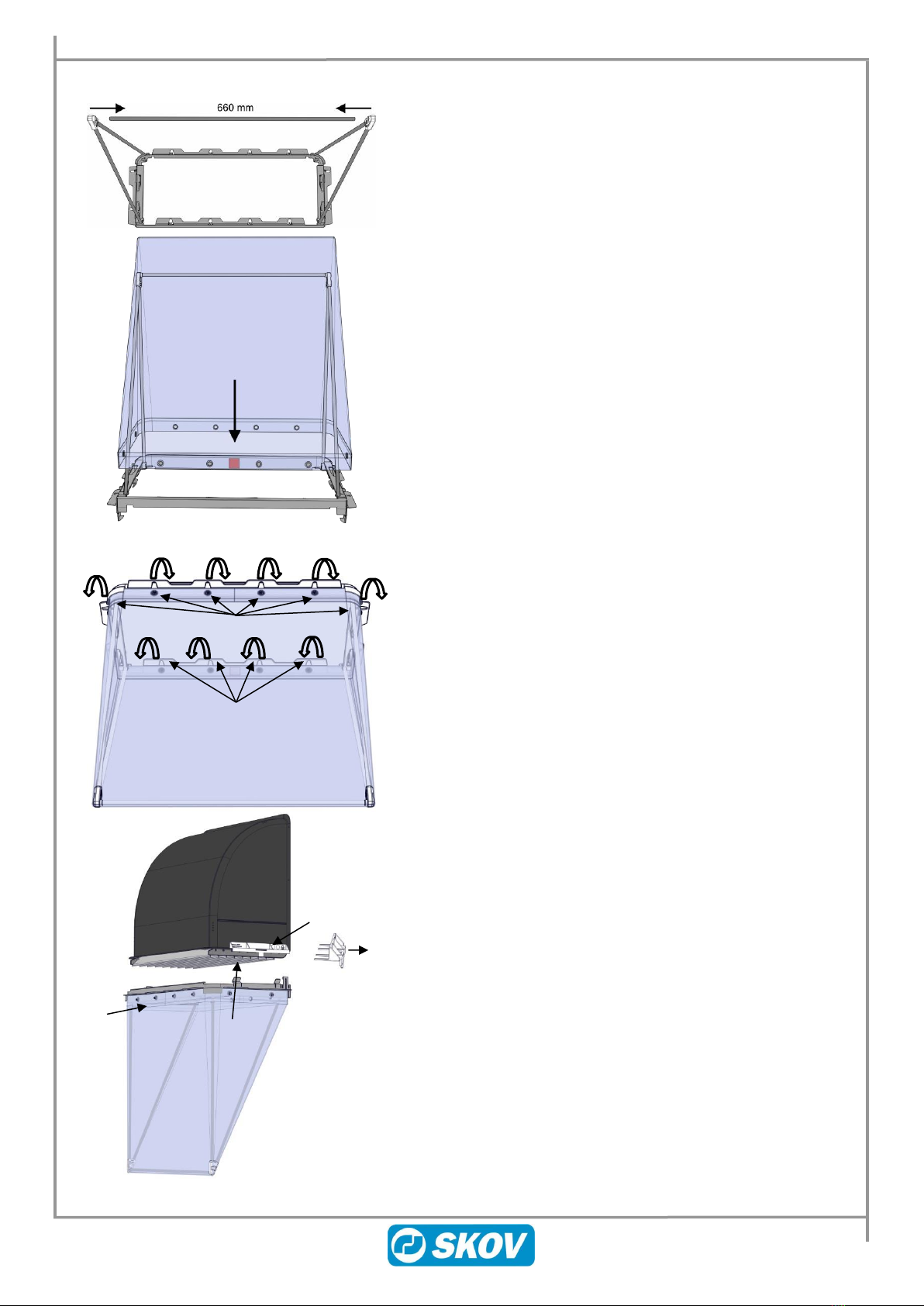

5. Mount the bottom rod 650 / 934 mm in the two-rod
connectors.
Please note that the red mark must be on the rear side.
6. Mount the basket on the rods and the frame
7. Attach the array of holes on the latches in the frame.
8. Fold the locking retainer down over the latches both at
the front and at the back.
9. Dismantle the light trap latches.
10. Mount the fly screen latches.
11. Press the fly screen onto the inlet cover.
12. Press the fly screen inwards, onto the inlet cover
Back
11
12
7
8
9
10
5
6

Mounting Guide 11
DA 1200 - DA 1900
3 Maintenance
The inlet cover, the light trap and the fly screen can be cleaned using a high-pressure cleaner. Dismantle the
light trap locks on both sides and remove the light trap when disinfecting the louvres.
3.1 Icing up/clogging of the fly screen
In case of sudden icing up/clogging of the fly screen, you can
open the fly screen and leave it attached using the inner catch of
the fly screen.

12 Mounting Guide
DA 1200 - DA 1900
4 Dimensioned sketch
4.1 Inlet cover
Figure 3: Dimensioned sketch of DA 1200
Figure 4: Dimensioned sketch of DA 1900

Mounting Guide 13
DA 1200 - DA 1900
4.2 Light trap
Figure 5: Dimensioned sketch of DA 1200 light trap louver
Figure 6: Dimensioned sketch of DA 1900 light trap louver
Figure 7: Dimensioned sketch of lock for light trap

14 Mounting Guide
DA 1200 - DA 1900
4.3 Fly screen
Figure 8: Dimensioned sketch DA 1200 fly screen
Figure 9: Dimensioned sketch DA 1900 fly screen
