Sky Sat Mini HD PVR Ready User manual
Full HD Digital Satellite Receiver
Digital Innovation Life
Sky Sat Mini HD PVR Read
y
User's Manual
www.skysat.bg
www.skysat.bg
INDEX
INDEX..................................................................................................................................... 3
Precautions ........................................................................................................................... 5
1. Important Safety Instructions......................................................................................................5
2. Notice .........................................................................................................................................5
3. Copyright....................................................................................................................................6
4. Disclaimer...................................................................................................................................6
5. Trademarks ................................................................................................................................6
Before You Begin.................................................................................................................. 8
1. Main Features ............................................................................................................................8
2. Accessories................................................................................................................................9
Hardware Description......................................................................................................... 10
1. Front Panel Configuration ........................................................................................................10

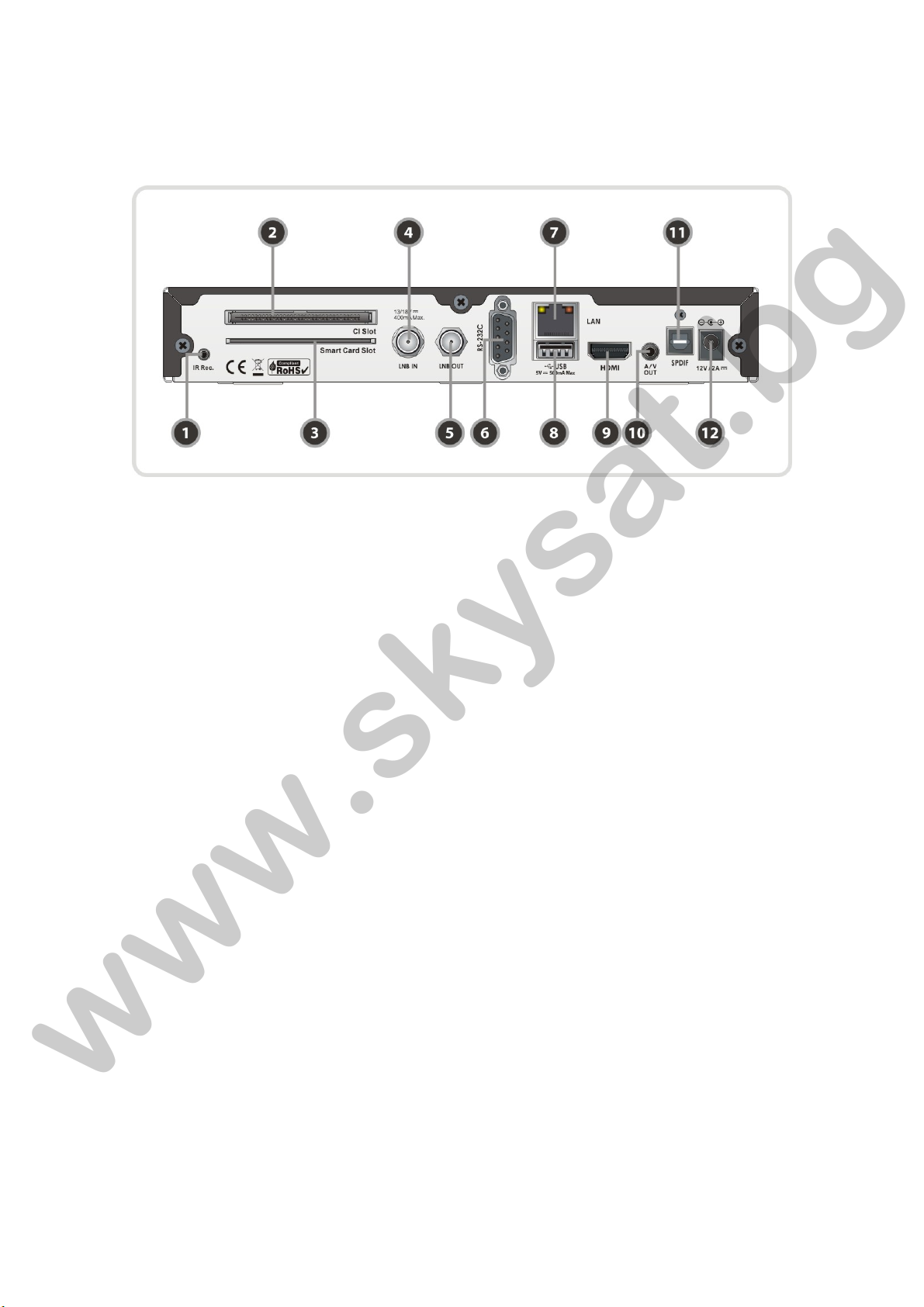

2. Rear Panel Configuration.........................................................................................................11

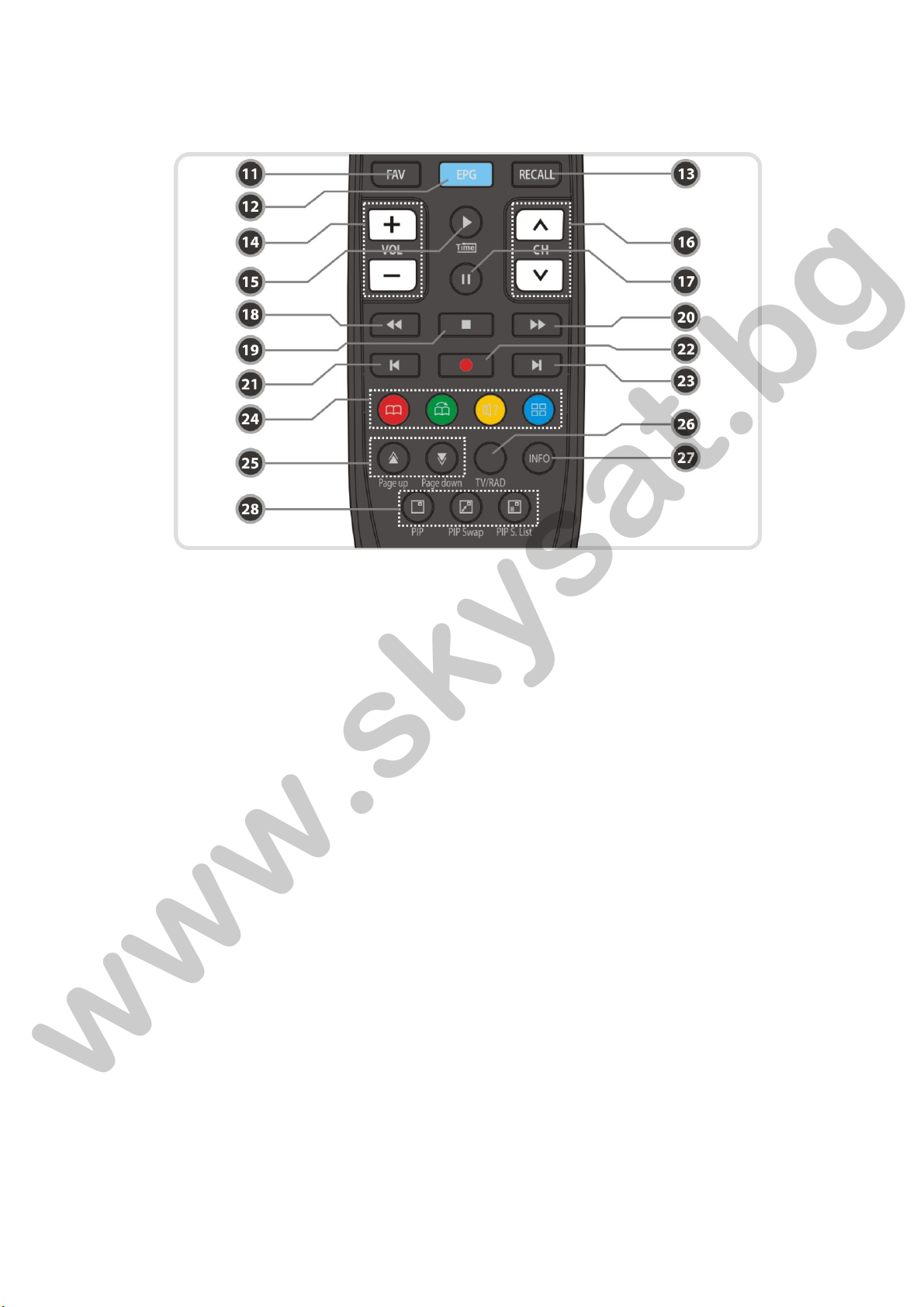

3. Remote Control Unit.................................................................................................................12
Connecting diagram ........................................................................................................... 17

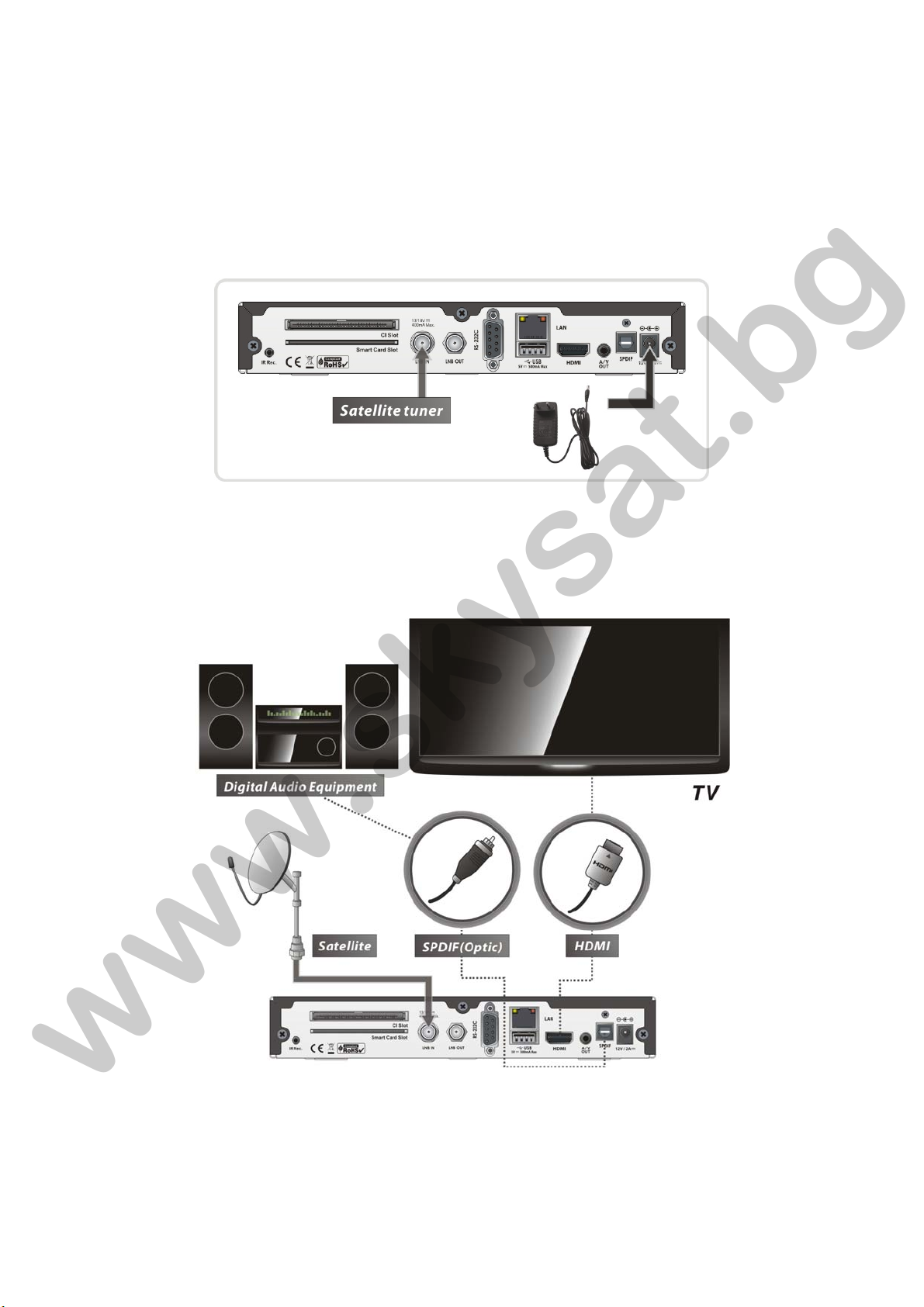

1. Receiver to A/C power..............................................................................................................17
2. Receiver to TV with Digital A/V Output.....................................................................................17

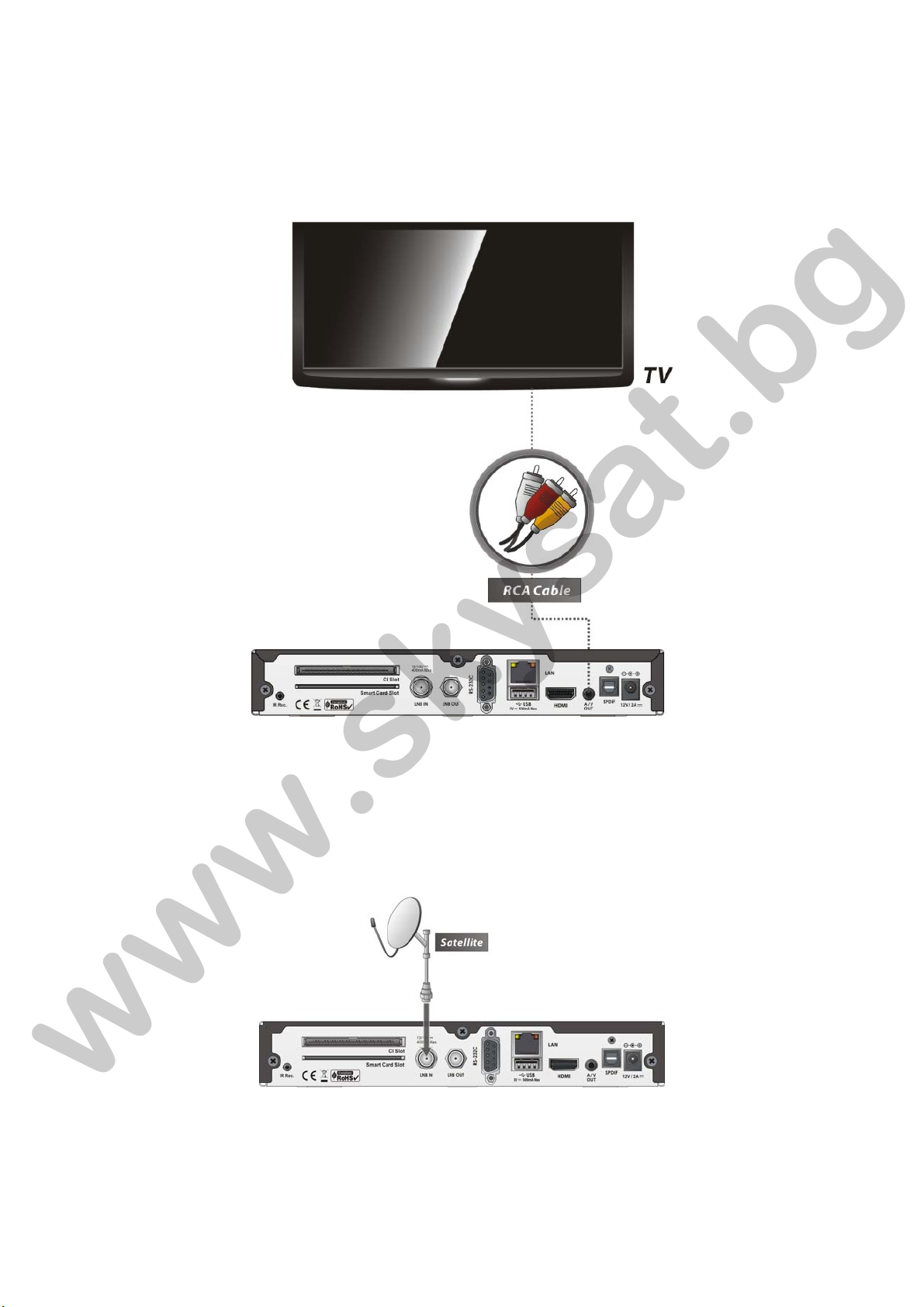

3. Receiver to TV with Analog A/V Output....................................................................................19
4. Connecting to Antenna Cable ..................................................................................................19
5. Guide to mounting an STB on TV back panel (Optional).........................................................21
Guide of Functions ............................................................................................................. 22
1. Selecting a Service...................................................................................................................22
1.1 Using CH UP/DOWN buttons..............................................................................................22
1.2 Using Service List ...............................................................................................................22
1.3 Using Simple Service List ...................................................................................................22
1.4 Using Recent Service List...................................................................................................23
2. Information Window..................................................................................................................23
3. Multi-Picture Display.................................................................................................................23
4. Electronic Program Guide (EPG).............................................................................................23
5. Favorite Group .........................................................................................................................24
6. Volume Control.........................................................................................................................24
7. Pause.......................................................................................................................................24
8. Subtitle .....................................................................................................................................25
9. Audio Control............................................................................................................................25
10.Teletext .....................................................................................................................................26
11. PIP (Picture in Picture).............................................................................................................26
3
www.skysat.bg
PVR (Personal Video Recorder) Function ........................................................................ 28
1. Recording.................................................................................................................................28
1.1 Recording methods.............................................................................................................28
1.2 Recording Edit.....................................................................................................................30
1.3 Long Time recording ...........................................................................................................30
1.4 Pause during recording.......................................................................................................30
2. Time Shifting.............................................................................................................................32
3. Playback (Play List)..................................................................................................................33
3.1 Recorded Files....................................................................................................................33
3.2 Imported Files .....................................................................................................................34
3.3 Music...................................................................................................................................34
3.4 Photo...................................................................................................................................34
4. Bookmark .................................................................................................................................35
5. Trick mode................................................................................................................................36
Menu Map ............................................................................................................................ 37
Main Menu of Guide............................................................................................................ 38
1. System Tools............................................................................................................................38
1.1 Storage Manager.................................................................................................................38
1.2 Timer Settings.....................................................................................................................39
1.3 Service List Manager ..........................................................................................................39
1.4 Data Transfer.......................................................................................................................41
2. Configuration............................................................................................................................42
2.1 Recording Option................................................................................................................42
2.2 Parental Control ..................................................................................................................43
2.3 Display Setting....................................................................................................................43
2.4 Time Setting........................................................................................................................44
2.5 Language Setting................................................................................................................44
2.6 A/V Output Setting ..............................................................................................................45
3. Installation ................................................................................................................................46
3.1 Dish Setting.........................................................................................................................46
3.2 Positioner Setting................................................................................................................46
3.3 Service Search....................................................................................................................48
3.4 Network Setting...................................................................................................................49
3.5 System Recovery................................................................................................................51
3.6 System Information.............................................................................................................52
4. Utility.........................................................................................................................................52
4.1 Calculator............................................................................................................................52
4.2 Calendar..............................................................................................................................52
4.3 CAS (Conditional Access System)......................................................................................52
4.4 Plugin ..................................................................................................................................54
4.5 YouTube ..............................................................................................................................55
Troubleshooting.................................................................................................................. 57
Specifications...................................................................................................................... 58
4
www.skysat.bg
Precautions
1. Important Safety Instructions
zRead these instructions.
zKeep these instructions.
zHeed all warnings.
zFollow all instructions.
zDo not use this apparatus near water.
zClean only with dry cloth.
zDo not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
zDo not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
zDo not reverse the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or third prong is provided for your safety. If the provided plug
does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
zProtect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
zOnly use attachments/accessories specified by the manufacturer.
zUse only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to
avoid injury from tip-over.
zUnplug this apparatus during lightning storms or when unused for long periods of time.
zRefer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
WARNING : To Prevent fire or shock hazard do not expose the set to rain or moisture.
2. Notice
zThese servicing instructions are for use by qualified service personnel only. To reduce the risk of
electric shock, do not perform any servicing other than that contained in the operating
instructions unless you are qualified to do so.
zThe apparatus shall not be exposed to dripping or splashing and that no objects filled with
liquids, such as vases, shall be placed on the apparatus.
5
www.skysat.bg
zThe mains plug is used as the disconnect device. The disconnect device shall remain readily
operable.
To reduce the risk of electric shock, do not remove
the cover (or back).
No user serviceable parts are inside.
Refer servicing to qualified service personnel.
The Lightning Flash with arrowhead symbol
within an equilateral triangle, is intended to
alert the user to the presence of un-
insulated "dangerous voltage" within the
product enclosure that may be of sufficient
magnitude to constitute a risk of shock to
persons
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and
maintenance (servicing) instructions
in the literature accompanying the
product
3. Copyright
This manual is protected by copyright laws.
Copy, use and reproduction of this manual in part or whole without Manufacturer’s prior
written approval are prohibited.
4. Disclaimer
The manufacturers, distributors and agents are not liable to any kind of damage caused by
the use of the information contained in this manual.
The instruction and descriptions which this manual contains are based on the time of this
manual's production.
The manufacturer constantly updates it with new functions and technology.
All the specifications are subject to change without prior notice.
5. Trademarks
HDMI, the HDMI logo and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby
6
www.skysat.bg
Laboratories.
7
www.skysat.bg
Before You Begin
1. Main Features
9Full HD Satellite PVR receiver
9Supports H.264/MPEG4/MPEG-2 (HD/SD), DVB-S2 Compliant
9Powerful Compatibility through Embedded Linux OS
9Time Shifting, Recording & Playback with External Storage Devices ( USB 2.0 )
9Simultaneous Recording of 3 Services and Watching 2 others (PIP)
9USB 2.0 Host ports (MP3 Player & JPEG Viewer)
9Powerful Extended EPG with Event Recording
9Picture-in-Picture (PIP) Supported
9HDMI Video & Audio Output (576i, 576p, 720p, 1080i, 1080p)
910/100 base Tx Ethernet port
9Supports Wi-Fi via external USB device
91 Smart card reader and 1 Common Interface Slots
9Supports Various Media File Format Playback (Xvid file Playback)
9Intelligent Blind scan for both SD and HD TV & Multi Satellite Search
9Multi-LNB Controlled by DiSEqC Control Version 1.0, 1.1, 1.2 and USALS
9Support EPG (Electronic Program Guide)
9High Definition On-Screen Display with Full Color & Resolution
9Favorite Service Groups
9Powerful Service Control by Favorites, Lock, Skip, Move and Delete
9Service Sorting by Alphabet, Transponder and CAS
9Multi-language Supported ( OSD & Menu )
9Teletext / Subtitles Support
9Maximum 10,000 Services Programmable
9Parental Lock / System Lock / Installation Lock
9CVBS Video & Audio Output via RCA
9Optical Output for Digital Audio(SPDIF)
9Software & Service Database update via USB and Ethernet port
8
www.skysat.bg

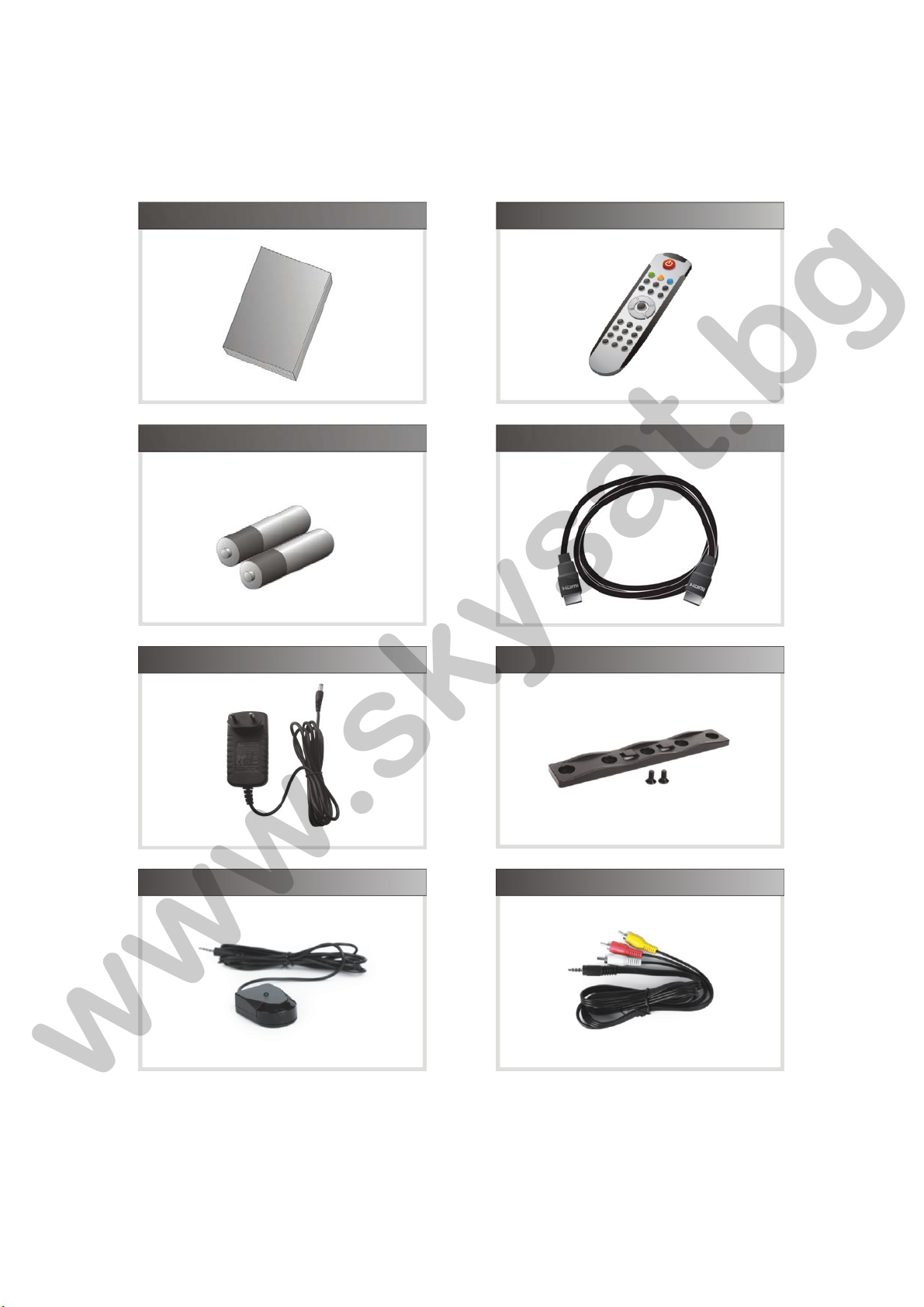

2. Accessories
User's Manual Remote Control
HDMI Cable
AAA size Batteries
X2
ADAPTOR TV mount bracket
(Option)
IR extension (Option) RCA cable (Option)
NOTE : If any accessories listed above are missing, contact the sales representative where you
purchased this unit.
It is ready to be mounted behind of the TV. Use the screws provided to hold the components
in place.
9
www.skysat.bg
Hardware Description

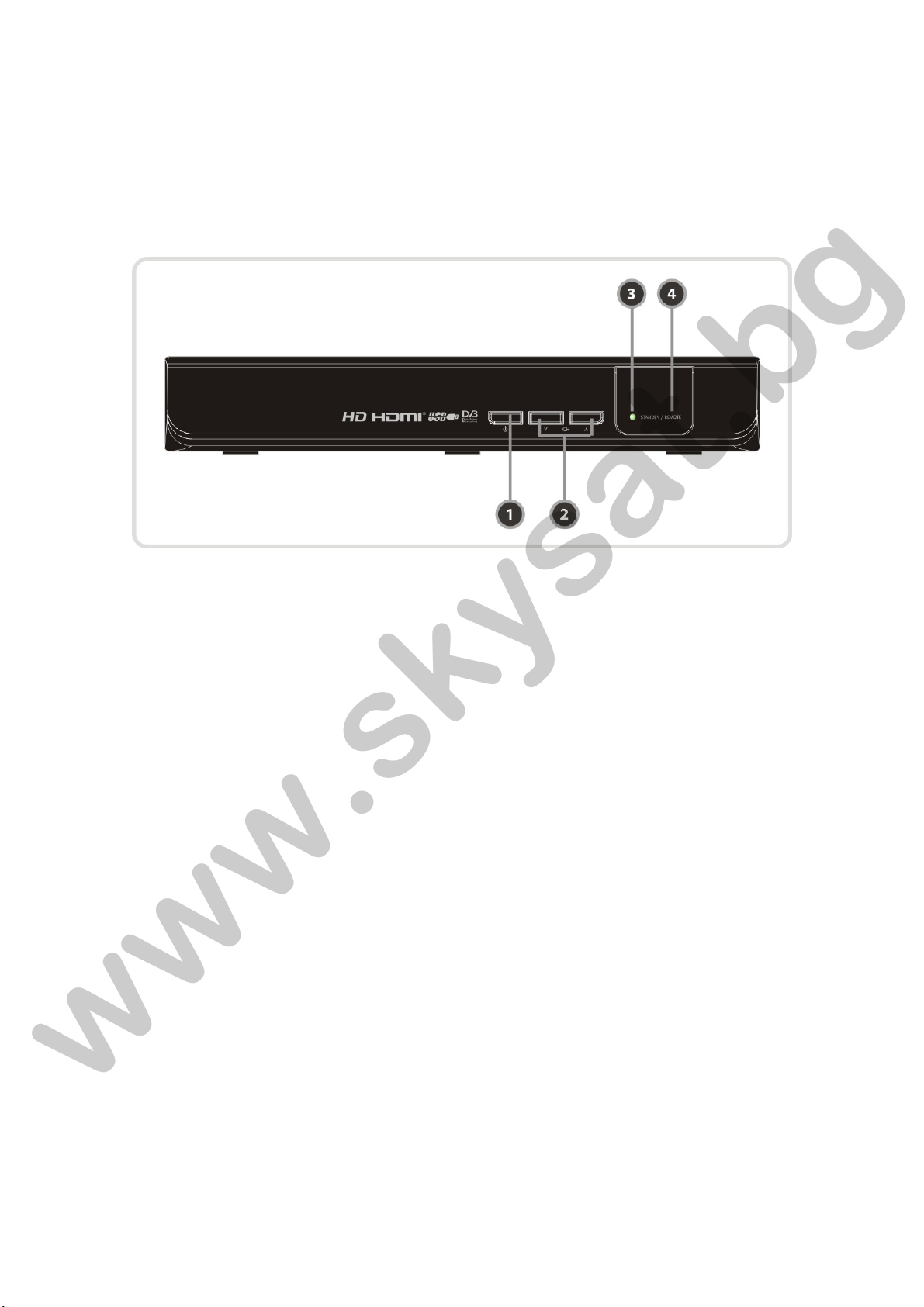

1. Front Panel Configuration
1. POWER Button:
Press to switch between STANDBY and POWER ON modes.
2. CH Up/Down Button:
Press to change services in normal mode, to move the highlighted-bar UP/DOWN in menu
mode.
3. STANDBY / REMOTE Indication LED (RED / GREEN):
The LED (RED) lights on in standby mode. / The LED (GREEN) lights on when a key on the
Remote Control is pressed.
4. Remote Sensor:
Receives signal from remote controller.
10
www.skysat.bg
2. Rear Panel Configuration
1. IR extension : The 2.5mm mini plug is connected to the “IR Rec” jack to use IR extension when
HS 7110 is mounted with optional bracket. (Front remote sensor will not be operated when IR
Extension is connected)
2. PCMCIA : To receive other pay-tv service you need a CA-Module(Viaccess, Irdeto, Nagravison,
etc.) and a smart card from the service provider.
3. SMART CARD READER : Insert smart card for encrypted service access.
4. LNB IN: Use to connect a satellite antenna.
5. LNB OUT: Use it when connecting to another STB for loop-through.
6. RS-232C : Serial port for firmware update and data transfer.
7. Ethernet : Local area network port for direct computer connection.
8. USB : Use it when connecting to external USB storage device.
9. HDMI : Connects to the TV by using a HDMI cable for the best quality picture and audio.
10. A/V OUT : Connects to the TV or VCR using a optional RCA cable (Stereo audio output / White,
Red, Composite video output / Yellow)
11. SPDIF : Connects to the audio system using a S/PDIF cable. (digital audio)
12. A/C power cable socket : Connects to A/C power cord.
11
www.skysat.bg
3. Remote Control Unit
1. POWER : Turns the STB On/Off.
2. MUTE / Resolution : Turns the sound On/Off. / To select the resolution format press and hold
Resolution button. You will see the resolution menu. Each time you press the Resolution
button, the resolution changes in the following sequence: 576i > 576p > 720p > 1080i >
1080p by pressing the Exit button it turns the sound On/Off again.
3. Numeric : Controls the numerical operation and service numbers directly.
4. Subtitle : To show multilingual subtitle.
5. Teletext : To show the digital teletext.
6. OK or Service List : Show the service list in non-menu mode and select an item or confirm in
menu mode.
7. ARROW Buttons
a. Up & Down Buttons : To change the value of a selected item with preprogrammed values in
menu.
b.Left & Right Buttons : To move the cursor left and right in menu.
8. Menu : To enter the main menu or to move to the previous menu.
9. EXIT : Exit from the menu or pop-up window.
10.Play List : To show the file list in the USB Storage Device or Network Storage Device.
12
www.skysat.bg
13
www.skysat.bg
11.Favorite : To display the satellite group and the favorite groups.
12.EPG(Electronic Program Guide) : Show the TV/Radio program guide.
13.Recall : Moves to previous service.
14.Volume Up & Down : To change the Volume.
15.Play / Time shift : Display the progress bar of playback when no progress bar is displayed.
Start playback with normal speed. Return to normal speed from trick mode.
16.Channel Up & Down: To change service channel.
17.Pause : This key is used to pause the video. Press once more to resume the video.
18.Rewind : Rewinds at high speed. Each time you press this button the rewind speed is increased.
19.STOP :To stop time shifting, play back or recording.
20.Fast Forward : Fasts forward at high speed. Each time you press this button the speed is
increased.
21.Previous File : To play the previous MP3 file in MP3 play mode. This button is also used to
jump back to beginning of recording during a playback.
22.Recording : To s ta r t Re c ord in g .
23.Next File : To play the next file. This button is also used to jump to end of recording during a
playback.
14
www.skysat.bg
15
www.skysat.bg
24.Color Buttons
a. RED : Used for special function in menu. RED key is used to sort lists in service list or go to
previous day search in EPG or make/delete the current position as a bookmark.
b.GREEN : Used for special function in menu. Green key is used to set favorites setting in
service list or go to the next bookmark position.
c. YELLOW : Used for special function in menu. Yellow key is used to find service in service list
or change the audio track.
d.BLUE : Used for special function in menu. Blue key is used to set service list option in service
list or display Multi-Picture.
25.Page Up& Down : Move to the next or previous page if more than one page are available. This
button also is change the location of sub picture in PIP.
26.TV/RADIO : Switches between TV and Radio.
27.Information : Shows the information of the current program. If you press one more, detail
information box will be shown.
28.PIP Buttons
a. PIP(Picture in Picture) : To set PIP window.
b.PIP Swap : Switching between main-picture and sub-picture
c. PIP(Picture in Picture) Service List : To shown the sub-picture service list.
16
www.skysat.bg
Connecting diagram
1. Receiver to A/C power
zConnect the A/C power cord between A/C power cord socket of receiver and A/C outlet.
2. Receiver to TV with Digital A/V Output
zConnect the HDMI Cable to the HDMI Connector of the TV.
zConnect SPDIF to Digital audio input of the equipment(Digital Audio)
NOTE : Depending on the A/V equipment you own, there are various ways you can connect
the STB. To choose the best connection option, please refer to the manual of the
equipment you would like to connect to. To get High Definition playback of High
Definition content, we recommend that you connect your high definition display
with a HDMI cable. HDMI supports standard, enhanced or high-definition video
17
www.skysat.bg
and multichannel audio in a single cable.
18
www.skysat.bg
3. Receiver to TV with Analog A/V Output
zConnect the VIDEO and AUDIO L, R to VIDEO IN and AUDIO L, R IN of TV.
NOTE : The composite connection(RCA cable) is recommended for analogue TV
You cannot view high definition video with the composite video connector.
4. Connecting to Antenna Cable
zUsing Single DISH : Connect the Satellite Antenna cable to LNB IN.
19
www.skysat.bg
zUsing DiSEqC switch : Connect the cable of DiSEqC switch to LNB IN.
zUsing DiSEqC motor : Connect the cable of DiSEqC motor to LNB IN.
20
www.skysat.bg
Table of contents
