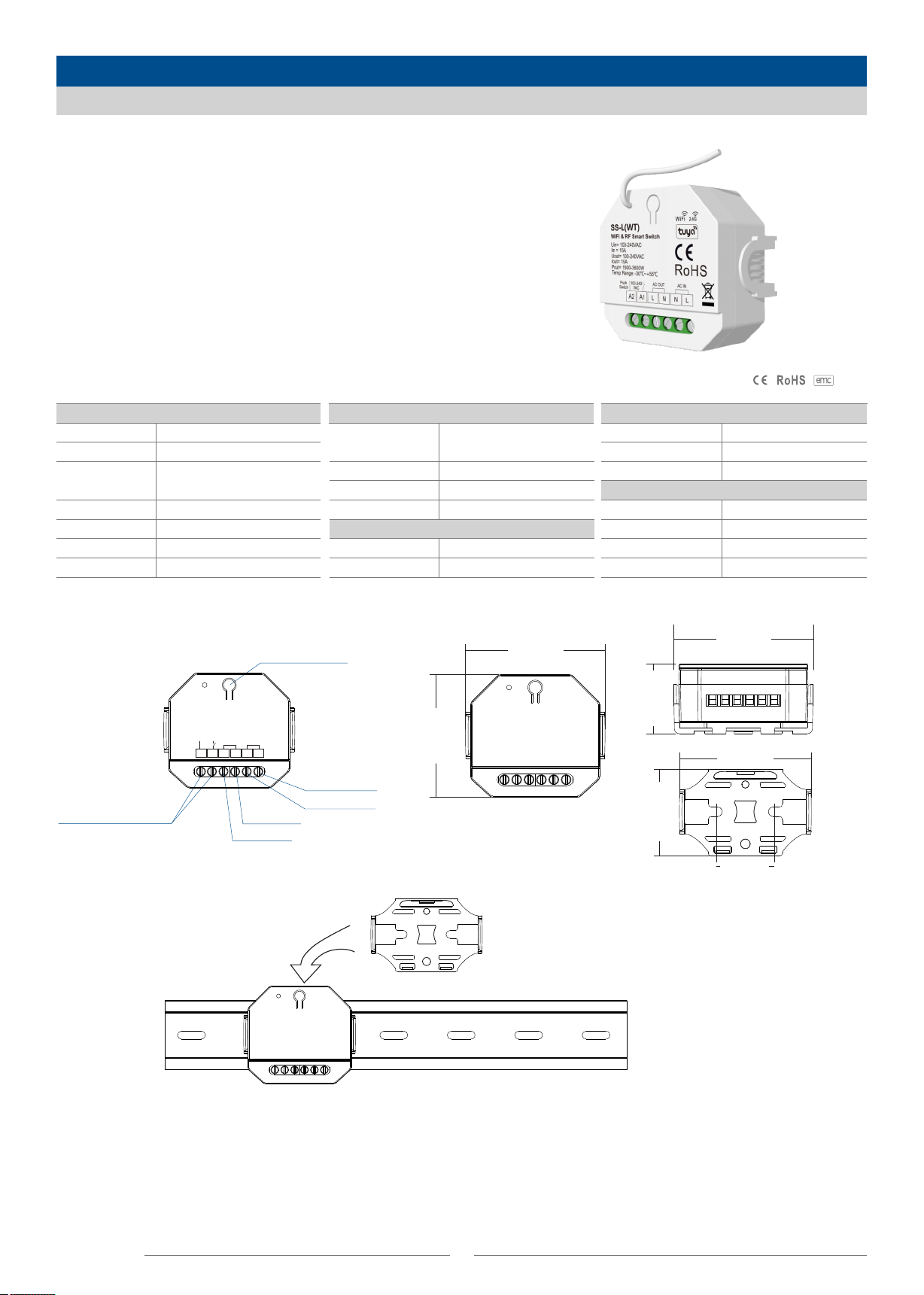

SKYDANCE SS-L(WT) User manual

ModelNo.: SS-L(WT)
WiFi & RF Smart AC Switch
RED
Tuya APP cloud control / Push onoff / Relay output / Zero-crossing detection Voicecontrol /
Features
● WiFi + RF + AC push smart switch, without dimming function.
● To switch single color LED lamps, traditional incandescent and halogen lights.
● Tuya APP cloud control, support on/off, delay turn on/off light and timer run function.
● Voice control, support amazon ECHO, TmallGenie smart speaker and DU smart speaker.
RF 2.4G dimming remote control● Compatibility with .
● Each SS- (WT) controller can also work as WiFi-RF converter, L
then use Tuya APP to control one or more RF switch or controller synchronously.
● Connect with external push switch optional.
● High-inrush specification relays (normally open).
Technical Parameters
Tuya APP+ RF AC switch + RF 2.4GHz
Push swich input
ACLinput
ACNinput
ACNoutput
ACLoutput
MechanicalStructuresandInstallations
Installation method
56.00 mm
49.50 mm
56.00 mm
28.00 mm
56.00 mm
37.00 mm
25.00 mm
Match/set
Note:
1. The installation must be installed or removed by a professional electrician.
2. Please keep the device out of the reach of children.
3. Please keep away from water, humid or hot environment.
4. The device should be kept away from strong signal sources (such as microwave ovens)to avoid signal interruption and cause the device not to work properly.
5. Avoid placing the device close to or near high-density materials (such as metal, concrete walls, etc.), which will reduce or block the wireless signal.
L N N L
A2 A1
Push
Switch
100-240
VAC
AC OUT AC IN
1
User Manual Ver 1.0.0
Installation clip
Outputcurrent
Input voltage EMC standard(EMC)
Certification
Safety standard
Output voltage
ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-17 V3.2.4
CE,EMC,RED
EN 62368-1:2020+A11:2020
Output power
15A (Resistive load)
10A(inductive load)
AC100-240V
AC100-240V
1500-3600W
ETSI EN 300 328 V2.2.2
Warranty 5 years
Input signal
RF Control distance 30m(Barrier-free space)
Relay surge current 120A (20ms)
Input and Output
Operation temperature
Ta: -30
O
C ~ +55
O
C
Case temperature (Max.)
IP rating IP20
Tc: +85
O
C
Gross weight
Size
Package
L60x W60 x H40mm
0.061kg
Safety and EMC Environment
Radio Equipment(RED)
Warranty

APP operating instruction
Note:
1. heT abovedistanceismeasuredinspacious(noobstacle)environment, Pleaserefertotheactualtestdistancebeforeinstallation.
2.PleasecheckiftheWiFi routernetin2.4Gband, the5Gband isnotavailable, and donothideyourrouternetwork.
3. PleasekeepthedistancebetweenSS-L(WT) devicesandrouterclose, andchecktheWiFisignals.
4. WiFi signal strength detection: click , click " " for testing.open the main interface of socials, enter the device interface check device network
Tuya APP
Smart life APP
Please download the corresponding Tuya/Smart life App according to your region.
Press and hold Match/Set key for 2s, or push twice Match/Set key fastly, clear previous network connection,
enter Smart config mode, the blue LED indicator flash fastly.
Press and hold Match/Set key for 5s,clear previous network connection, enter AP config mode,
the blue LED indicator flash slowly. If smart config failed, please try AP config.
If Tuya APP network connection succeed, the blue LED indicator will stop flash,
and in Tuya APP, you can find SWITCH device.
Wiring diagram
Self reset switch:
Short press,turn on the light;
Short press again, turn off the light.
Systemwiring
Wired connection
Wireless connection
2
User Manual Ver 1.0.0
Non dimming LED lamp
Selfresetswitch
L N N L
A2 A1
Push
Switch
100-240
VAC
AC OUT AC IN
WiFiRouter
MobilePhone
RFRemote(Optional)
PanelRFRemote(Optional)
15m
30m
30m
WiFi
3G/4G/5G Tuya Cloud
Amason EHCO
WiFi
SS-L(WT)
Non-dimmable LED light
SS-L(WT)
SS-L(WT)
SS-L(WT)
Non-dimmable LED light
Non-dimmable LED light
Non-dimmable LED light
Note:
The MAX. surge current of the switch is 120A.
When connecting multiple capacitive (LED power supplies) or inductive loads,
the sum of the surge currents can not exceed its maximum value.
Otherwise, long-term use may cause product damage.
Repeat power on and off for 5 consecutive times, also clear previous network connection,
enter Smart config mode, the output LED will flash 10 times.

SS-L(WT) match RF remote control
Use the SS-L(WT)’s Match key
Match:
Short press match key of SS-L(WT),
immediately press on/off key (single zone remote)
or zone key (multiple zone remote) on the remote.
Use Power Restart
Match:
Power on, power off, and then repeat again,
Immediately short press on/off key (single zone remote)
or zone key (multiple zone remote) 3 times on the remote.
The light blinks 3 times means match is successful.
Delete:
Power on,power off, and then repeat again,
Immediately short press on/off key (single zone remote)
or zone key (multiple zone remote) 5 times on the remote.
The light blinks 5 times means all matched remotes were deleted.
Delete:
Press and hold match key of SS-L(WT) for 10s to delete all match,
The light blinks 5 times means all matched remotes were deleted.
User can choose the suitable match/delete ways. Two options are offered for selection:
SS-L(WT) work as WiFi-RF converter to match other RF switch or controller
Use the controller’s Match key
Match:
Short press match key of the controller,
immediately press on/off key on the Tuya APP.
The LED indicator fast flash a few times
means match is successful.
Use Power Restart
Match:
Switch off the power of the controller, then switch on power, repeat again,
Immediately short press on/off key 3 times on the Tuya APP.
The light blinks 3 times means match is successful.
Delete:
Switch off the power of the controller, then switch on power, repeat again,
Immediately short press on/off key 5 times on the Tuya APP.
The light blinks 5 times means match was deleted.
Delete:
Press and hold match key of the controller for 5s,
The LED indicator fast flash a few times
means match was deleted.
User can choose the suitable match/delete ways. Two options are offered for selection:
Switch Interface
Touch on/off key to turn on or off light.
The Timer can be set to automatically turn on or off lights for the next 24 hours
The schedule can be add multiple timers to turn on or off the lights according to different times.
APP interface
3
User Manual Ver 1.0.0
