USER’S MANUAL
USER’S MANUAL
13.3” AC/DC LED HDTV/DVD COMBO
MODEL: SLC-1369A-3S
SKYWORTH ELECTRONICS,INC
Phone: [phone]
FAX: [phone]
Email: [e-mail]
1312 john Reed Court
City of Industry, CA 91745

Warning
To prevent fire and/or electric shock, do not use this plug with an extension
cord, receptacle or other outlet unless the blades can be fully inserted to
prevent blade exposure. Do not expose this appliance to rain or moisture.
Safety Information

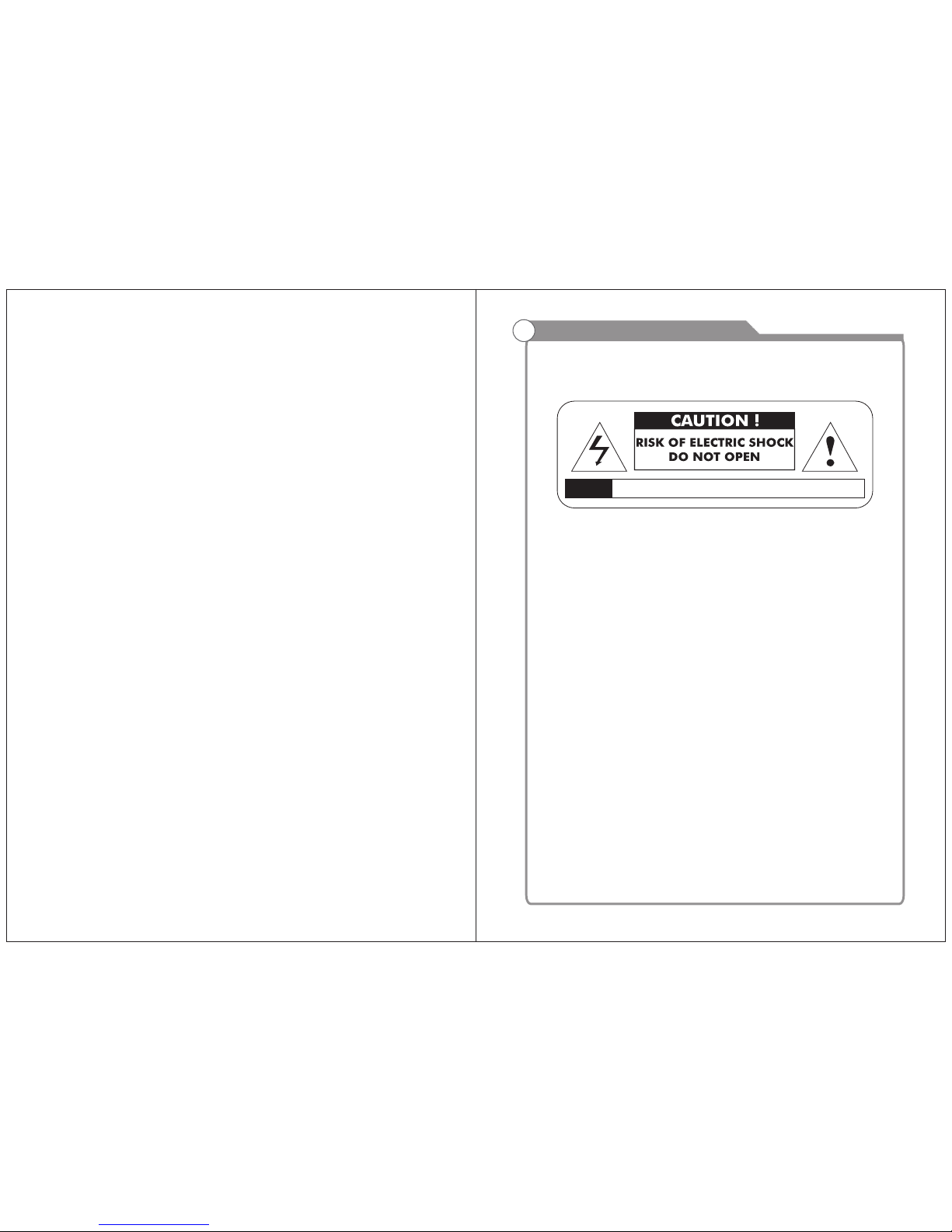

AVIS RISQUE DE CHOC ELEC TRIOUE/NE PAS OUVRIR
Important Safety Instructions
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Please, unplug the TV power cord when the following conditions occur:
-When there is a thunderstorm (Please, pull out the power cord and antenna).
-When cleaning the TV set.
-When the TV set is not used for a long time.
Do not use corrosive depurative when cleaning the TV set.
Do not put the TV set under direct sunlight or near heat.
Do not put a heat source, such as a candle or heater, on top of or near the TV set.
Leave plenty of space (al least 10cm) around the TV set for ventilation.
Place the TV set away from where it can be ruined by rain or water (such as near a
window).
Don't put a container with liquid (such as a vase) on top of the TV set.
Do not move the TV set when the power is on.
Do not touch, push or scratch the surface of the TV set with hard materials or items.
When TV surfaces are dirty, please use a wet cotton cloth or soft cloth with non-
corrosive cleaners
to clean it carefully. Don´t use acetone, toluene or alcohol to clean the TV set.
Be aware and careful of moisture, which can damage inner electronic components.
When condensed
moisture is present, the TV screen may appear blurry or spotty.
It is recommended that a technician install the TV set on a wall, if such placement is
desired.
An incorrect wall installation will be unsafe and hazardous.
Do not let children climb on or play around the TV set to avoid falls, collissions,
damages and injuries.
Do not hit the TV panel with hard objects to prevent damages.
Do not cover the TV set with blankets or other objects when it is connected to a
power source to prevent overheating and fire.
Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
Mains plug is used as disconnect device from the mains, the disconnect
device shall remain readily operate.

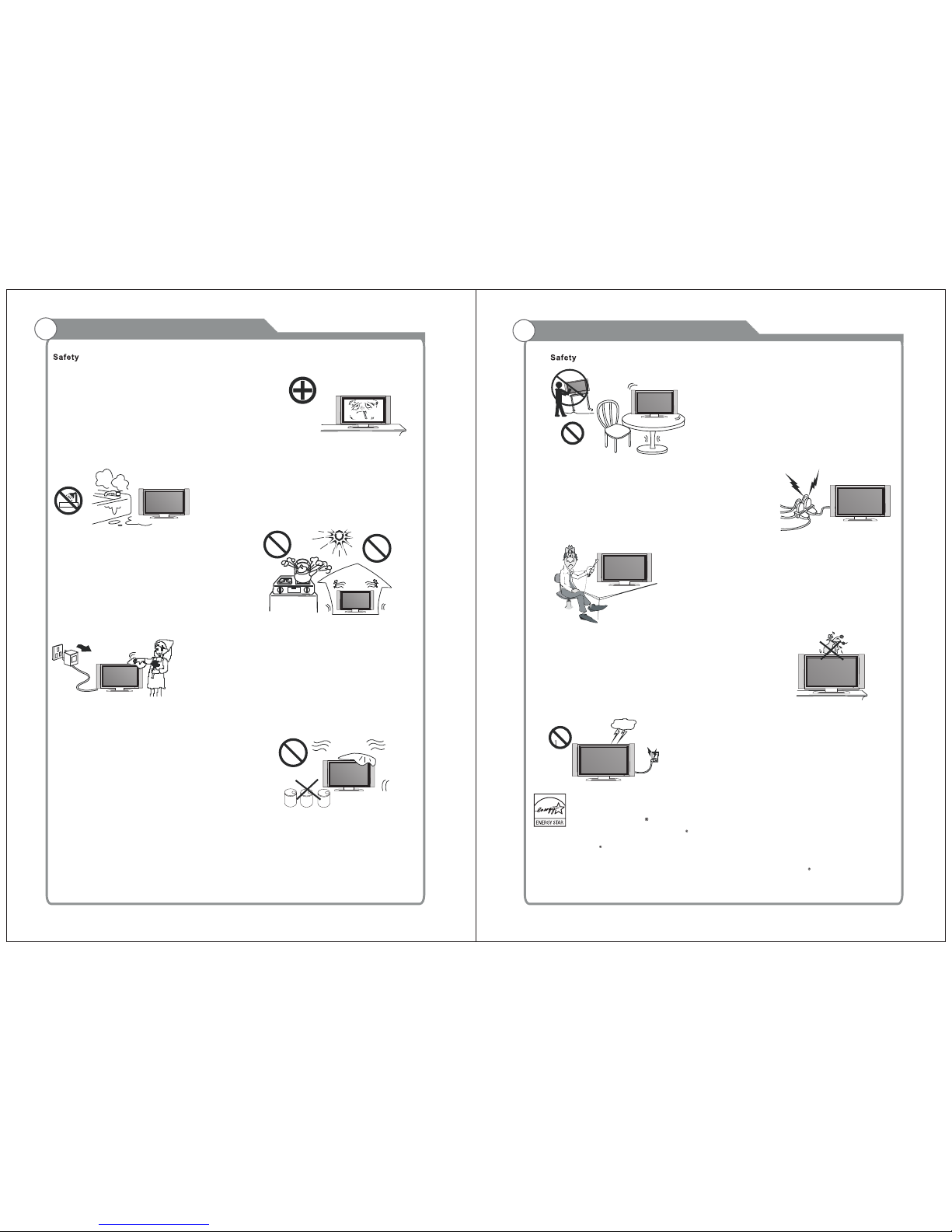

Important Safety PrecautionsImportant Safety Precautions
Do not place the power cord or other cables
across a walkway in case it is trampled on. Do
not overload the power cord or power socket.
When the power plug is used to disconnect and
connect the device, it should easily into the
power source.
Do not place the LED TV on an unstable
surface.
Do not disassemble the back cover, as it
contains high voltages inside and will cause
electric shock. Only qualified professionals
sh oul d co nd uc t in ter na l ad ju stmen ts ,
maintenance, and checks.
The TV set should not be subjected to
water droplets, vapor, or splash. This
equipment should not be placed on objects
filled with liquids. Do not place flame
sources, such as lit candles, on or near the
LED TV. Please, pull out the power plug
and contact after sales support if there are
abnormal objects or water in the TV.
Pull out the power cord and antenna cable
during electrical storms so the LED TV is not
damaged by electrical surges. Keep all
people away from the antenna cable during
electrical storms.
Please, immediately pull out the AC power
plug
from adapter if there is an abnormal sound or
smell or the LED TV has sound but no picture,
and contact after sales support.
The LED TV should be kept free from rain,
moisture and dust to prevent electrical
shock and
short circuits. Do not cover the ventilation
openings with table clothes, curtains,
newspapers, etc.
The LED TV should be kept from high
temperature heating sources or direct
sunlight. Good ventilation is required.
Allow 10 cm. between the LED TV and
other appliances or built-in cabinet walls.
When you wipe the front cabinet, please
make sure the power plug is pulled out and
use a soft, dry, lint-free cloth and handle it
with care. Do not repeatedly wipe the panel,
nor scrape, tap or strike the panel with a hard
object.
Do not wipe the LED TV with any petrol,
chemical or alcohol based solvents as it
will lead to product damage of the panel
and cabinet.
ENERGY STAR Qualification.
This product has earned the ENERGY STAR for meeting U.S. Federal energy efficiency guidelines as set
by the Department of Energy and Environmental protection agency.
The ENERGY STAR program exists to provide energy saving guidelines and help promote energy efficient
products and practices. Changes to certain features, settings and functions of this TV can change and/or
increase its power consumption.
As-shipped mode is the mode in which the product qualifies for ENERGY STAR .

Introduction
Features
Specifications

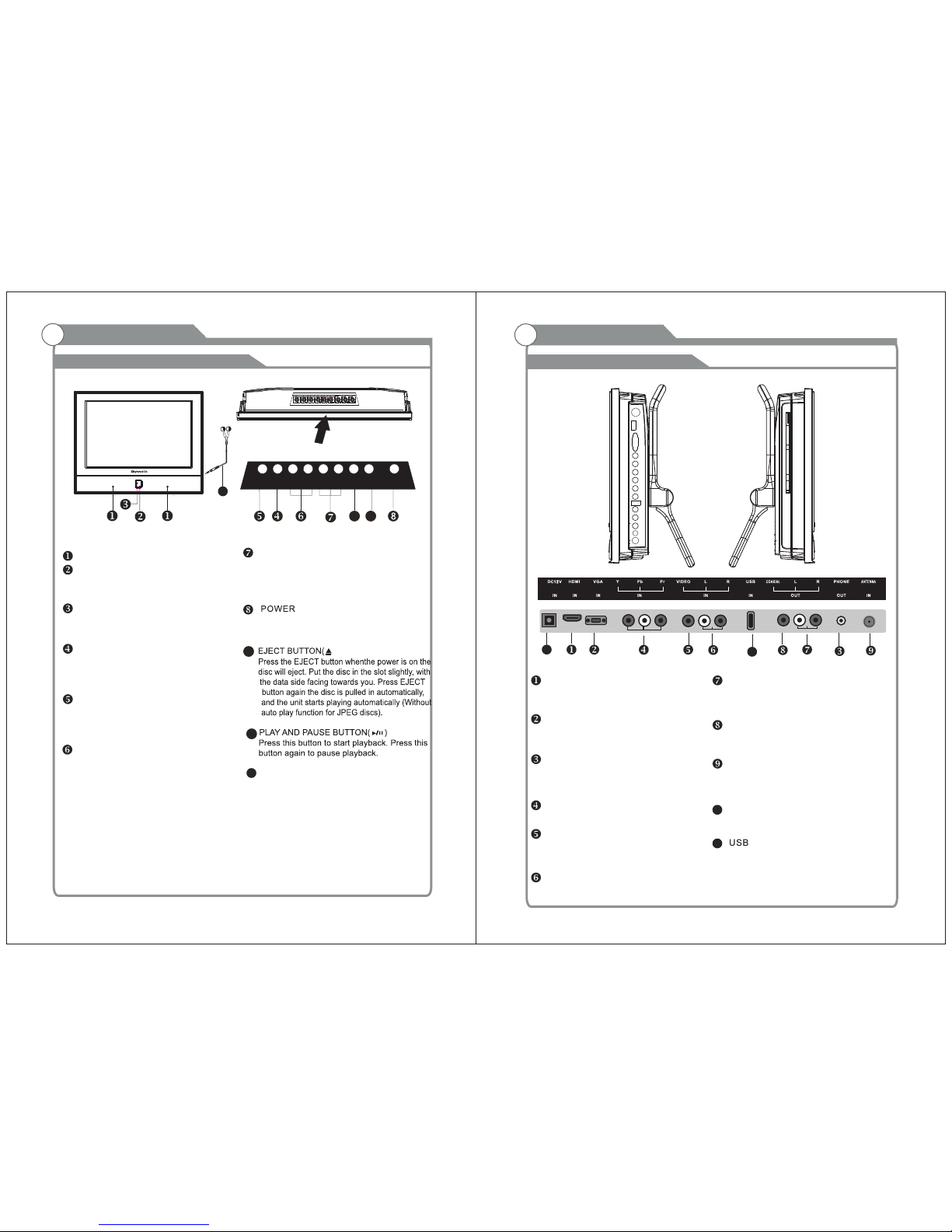

General Description
Overview of front and side panel
Overview of back panel
External Connection

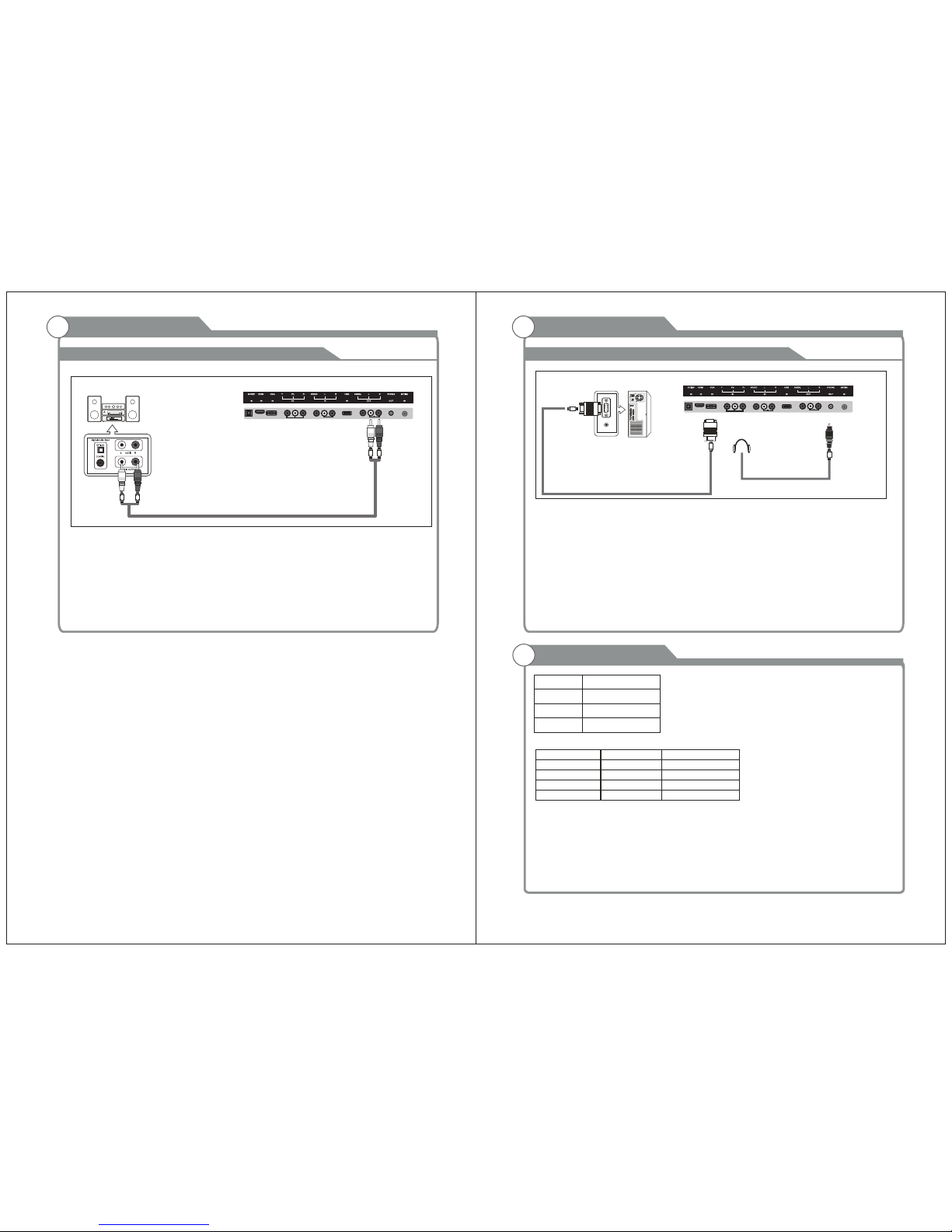

Connecting VCR
Connecting DVD Player/Set-Top Box via HDMI
Connecting PC
Supporting signals

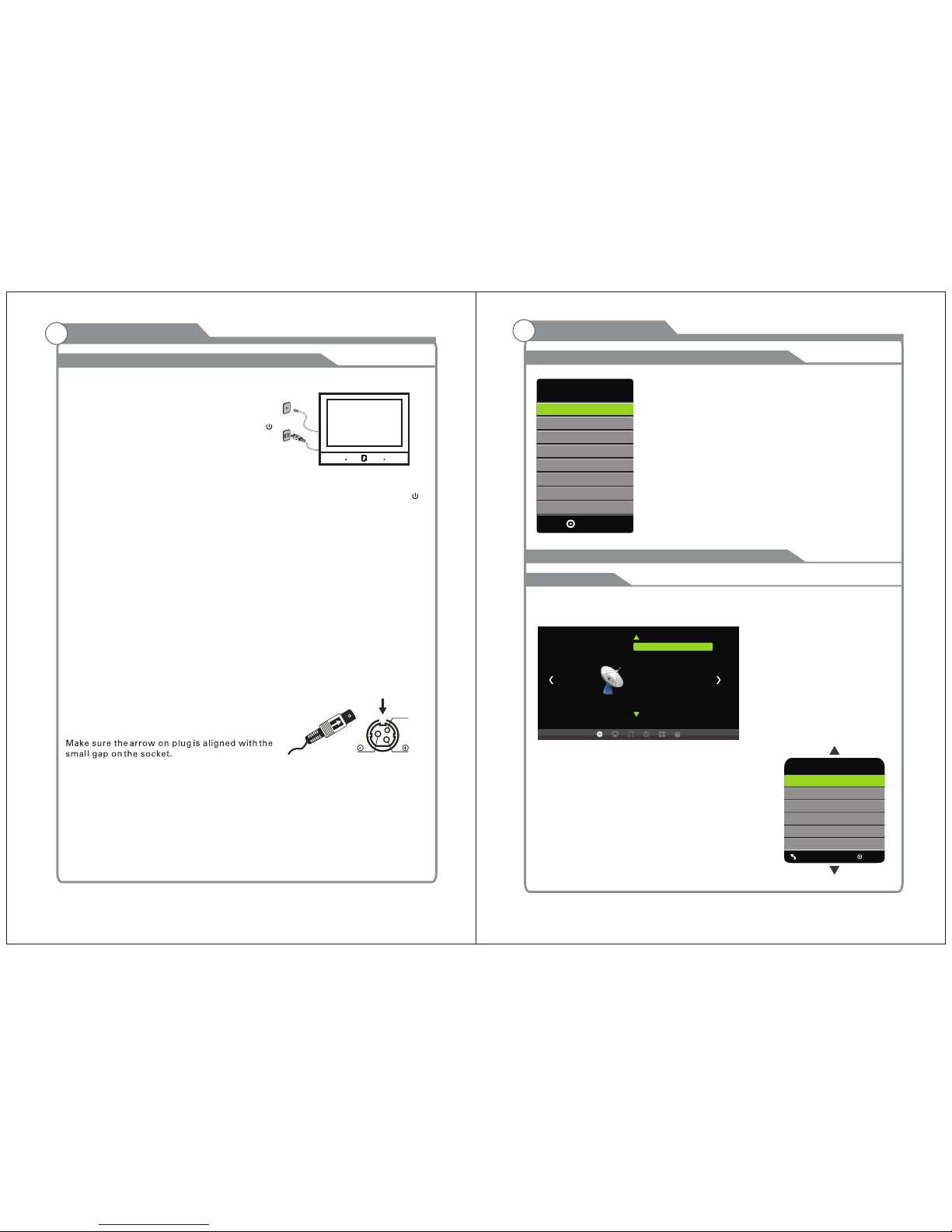

Basic operation
Turning the TV On and Off
3
4
5
5
9
9
15
15
16
16
17
17
Table of Contents Table of Contents
Troubleshooting
18
22
14
6
23

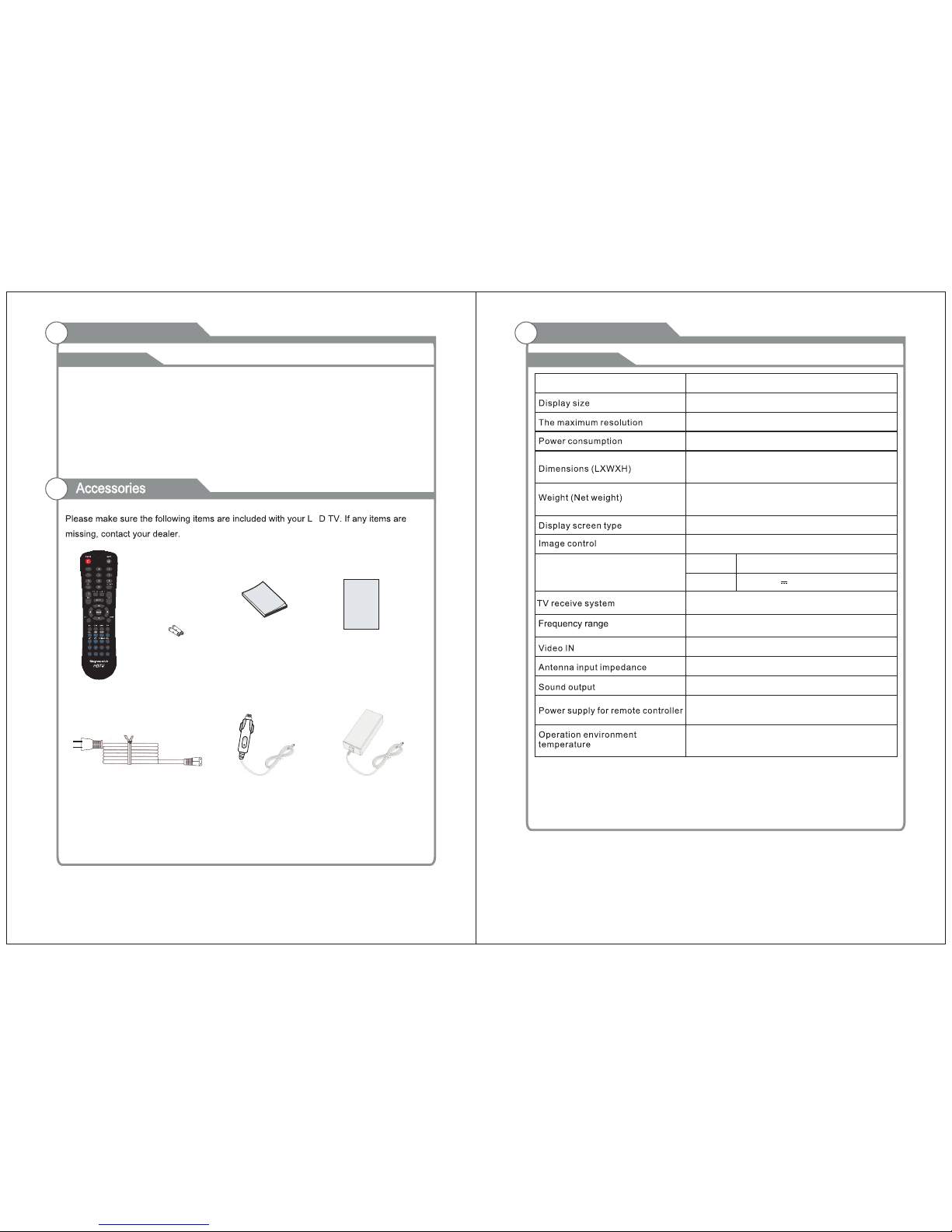

Accessories
3
18
Antenna connection 8
7
8
13
14
11
12
21
Connecting DVD Player/Set-Top Box 10
19-20

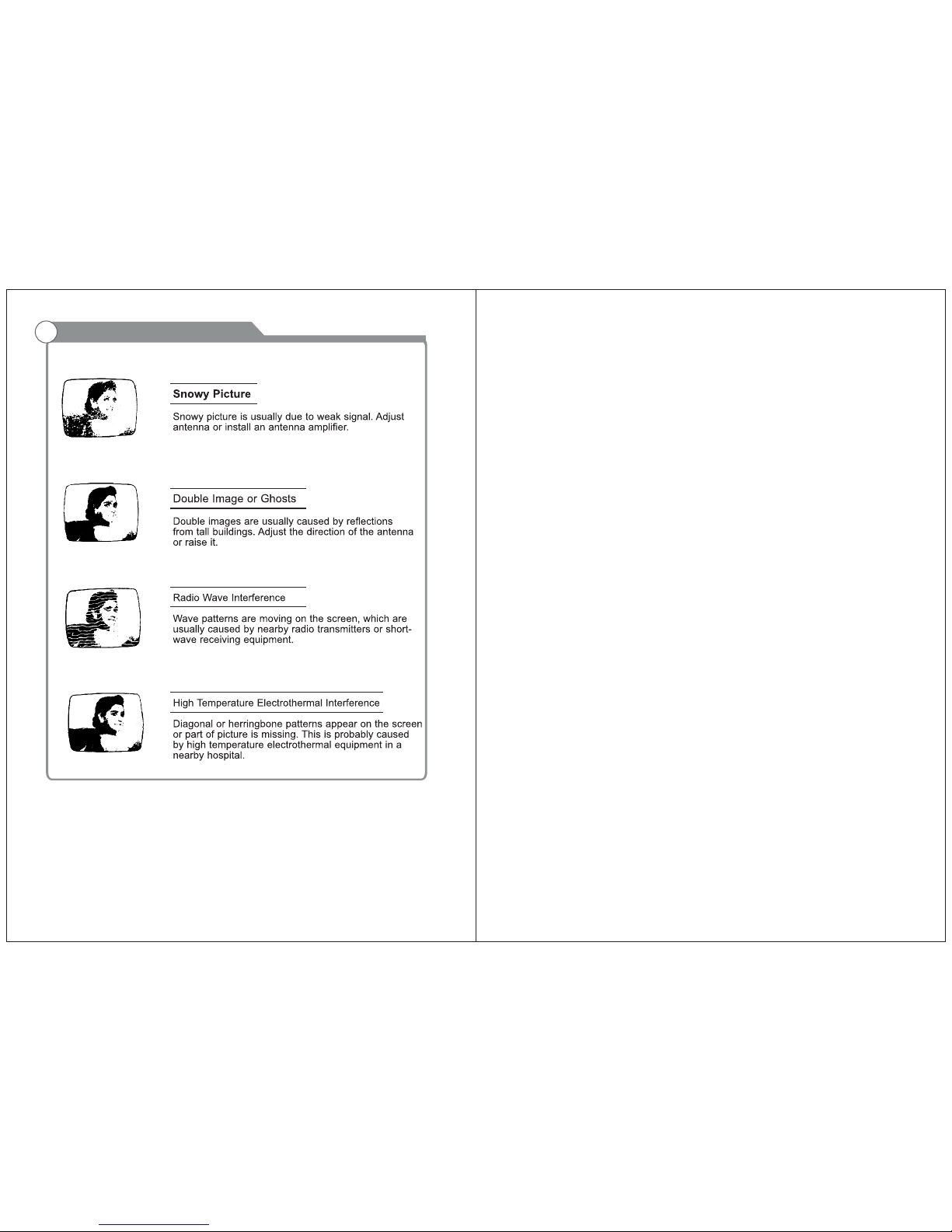

Picture defects and the reason
12
Connecting Digital Audio System
Connecting Amplifier/DVD Home Theater
DVD Setup Menu
BASIC OPERATION
Audio
Time
Setup

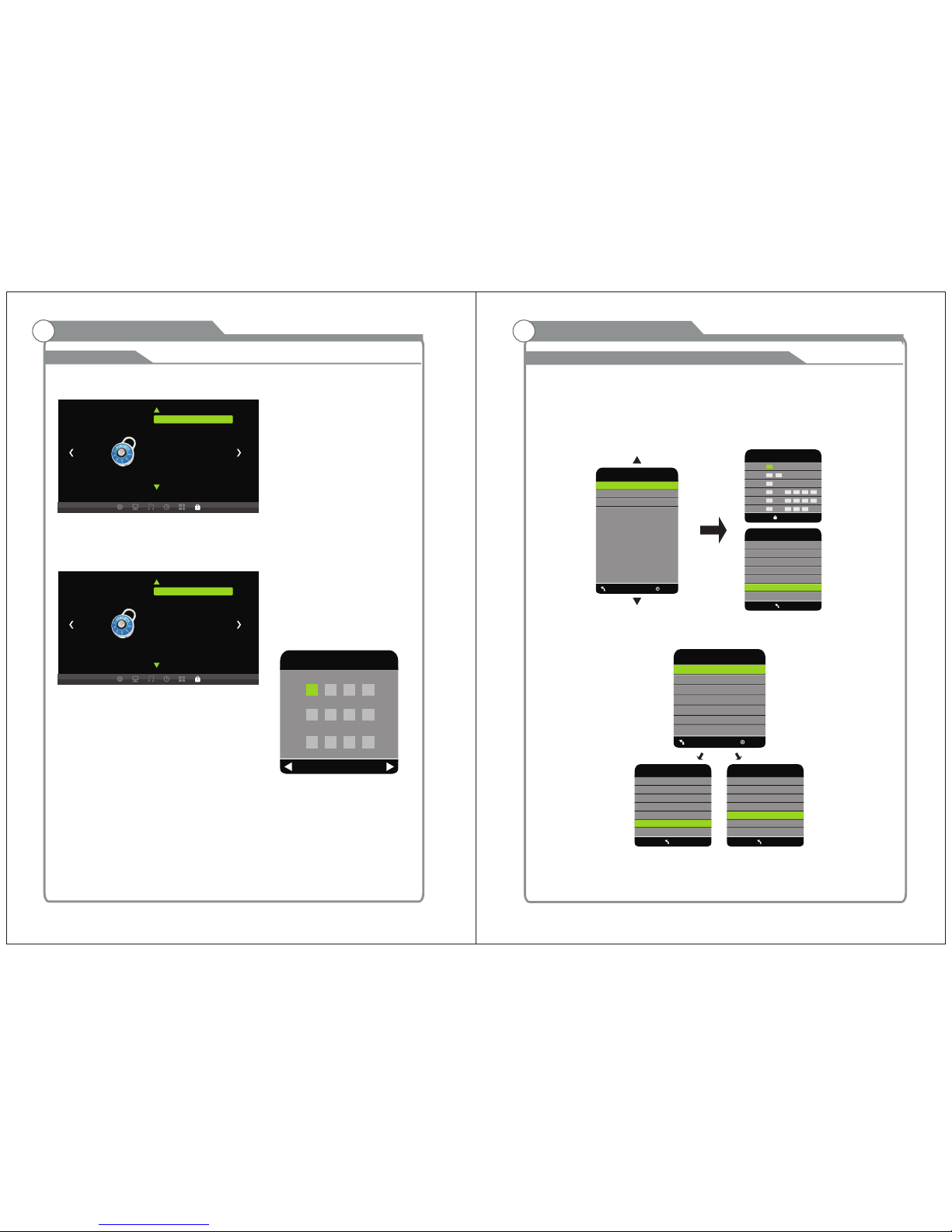

Lock
Menu system introduction

Input terminals used for external equipment connection
Introduction
Features
C
Introduction
W arnings
Specifications
34
Quick Setup Guide
Qui ck setu p Guide
Manual
Instructions
AdapterCar charger cable
Power Cord
Remote Control &
Batteries (AAAx 2)
Fine digital control
NTSC3.58
75 (Unbalance)
5W x 2
18W
1366X768
SLC-1369A-3S
Color active matrix LED display
13.75” x 4.5" x 15” Inch
4.40 lbs
NTSC System, ATSC System
Antenna: 2~69; Cable: 1~135 (Analog: 1-125,
Digital: 1-135)
DC 3V (Two AAA size batteries)
o
0C-40C
o
IN Put
Out Put
Adapter requirement
DC 12V 3A
MODEL
13.3"
(Max)
Note:
2. In case of any design change, a notice will not be released.
1. The above stated weight of 2.0 Kg can vary depending on the type panel
used in production.
One ANTENNA jack
One computer VGA/PC input
One COMPONENT inputs
One AV inputs
One VGA/PC AUDIO input
One PHONE output
One HDMI inputs
One USB input
AC 100-240V, 50/60Hz

General Description
Overview of front and side panel
General Description
Overview of back panel
56
11
11 PHONE OUT
Please access to audio by earphone.
SPEAKER
REMOTE CONTROL SENSOR
Aim the remote control towards this
spot on the TV.
POWER INDICATOR
Green: In power on mode.
Red: In standby mode.
Toggles between all the available input
sources ( TV, AV, Component, DVD,
HDMI, VGA )
Press to see an on-screen menu of your
TV's features.
CH+/-
Press to change channels.
In the on-screen menu, use the CH +/-
buttons as up/down arrow buttons.
VOL+/-
Press to increase or decrease the volume.
In the on-screen menu, use the VOL +/-
buttons as left/right arrow buttons.
button
Press POWER button to toggle between
and standby mode.normal
9
10
10
SOUREC
MENU
SOURCE 9)
POWER
MENU
SOURCE VOL+VOL-
CH+CH- PLAY EJECT
HDMI
Connect to the HDMI jack of a device
with an HDMI output.
VGA/PC IN
Connect to the video output jack on
your PC.
HEADPHONE
COMPONENT
Connect Component video.
COMPOSITE VIDEO
Video input for external devices, such
as a camcorder or VCR.
S-VIDEO COMPOSITE COMPONENT AUDIO
Audio inputs for external devices.
AUDIO OUT
Connect to the audio output jacks
on your amplifier/home theater.
COAXIAL
Connect to a Digital Audio devices.
ANT
Connect to an antenna or cable TV
system.
10 DC12V IN
Connect the supplied power
10
Connect to a set of headphone for
private listning
11
11
For factory use only

78
123
46
5
78
0
VOL PROG
PMODE.S MODE
.
EXIT MENU
POWER
ENTER
EPG
ZOOM
9
SOURCE
RETURN
INFO
LIST
REPEAT
A-B
CC
GOTO SUBTITLE
TITLE
MENU
PBC
SETUP DISPLAY
AUDIO
MTS
TIME
-/--
LOCK FREEZE
FAV ADD/ERASE FAV+/-
SLEEP
MUTE

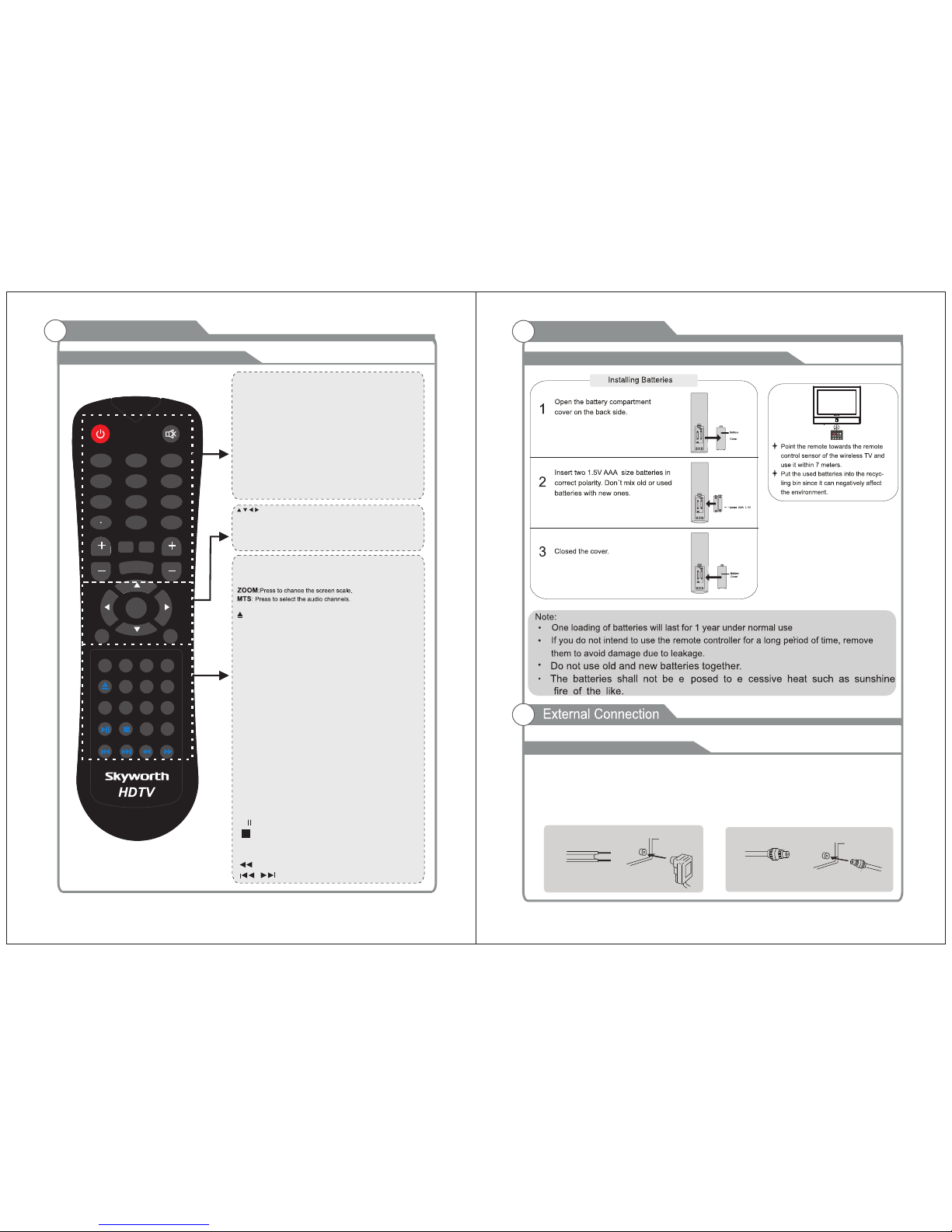

POWER : Turn the TV on or off.
MUTE : Press to mute the sound. Press again
to regain the sound.
P.MODE : Select the picture mode
S.MODE : Select the sound mode
RETURN: Return to the previously viewed program
Press 0~9 to select a TV channel directly
The channel will change after 2 seconds.
entering page number inApplicable for
teletext mode and so on.
0-9 :
-/-- : Press this button firstly when the channel to
be selected is two or three figures(only DVD mode)
SOURCE: Press to select signal source for TV
PROG+/-: Press these two buttons to change channels
sequently.
VOL+/-: Press these two buttons to increase/
decrease the sound volume
/enter: Allows you to navigate the on-screen
menus and adjust the system settings to
your preference.
EXIT : Exit from the menu or sub menu
MENU : Allow you to navigate the on-screen menus.
EPG : Press to display EPG
information
(Electronic Program
Guide)
INFO: Displays the channel information
LOCK: Press to display the parental menu.
Time: Press to display Time menu.
: Open/close in DVD mode
SETUP: DVD system setup
FREEZE: Press to freeze the screen.
DISPLAY: Press to display the program’s infomation.
CC: press to display the closed caption
AUDIO: Press to change the language of the audio in
DTV or DVD mode.
LIST: Press to display the TV program list.
GOTO: Press this button to go to desired position The
player provides 3 search mode.
FAV : Press to display the favorite programs
SUBTITLE : Press to select the subtitle language
ADD:
ERASE:
Add this program to the list .
Delete this program from the favorite
favorite channels
channels list .
REPEAT : Press to change the playing mode
FAV +/-: press this button +/-the favorite program list.
A-B : Repeat play the segment between A and B
REPEAT : Press to change the playing mode
Play fast backward / forward
Play previous /next media file
SLEEP : Set up the time how long the TV will turn off
Time: Press to display Time menu.
MENU: TV system setup.
PBC: Press this button can return to the menu of the disc,
then play the disc from the first track.
: Play /pause
►
/ ►► :
: Stop playing
/ :
A-B : Repeat play the segment between A and B
REPEAT : Press to change the playing mode
x x
Antenna connection
Antenna input impedance of this unit is 75ohm. VHF/UHF 75ohm coaxial cable can be
connected to the antenna jack directly, if the antenna cable is 300ohm parallel flat feeder
cable, you need to use the 300ohm/75ohm converter to connect the antenna cable to the
antenna jack. For details Please refer to the following drawing.
Use a 75ohm - 300ohm converter
300ohm coaxial cable
Antenna feeder
ANT IN
75ohm coaxial cable
Antenna cable
Antennas with 300 ohm flat twins Leads Antennas with 75 Round Leadsohm
General Description General Description
Overview of remote control Installing Batteries in the Remote Control

910
External Connection
Connecting VCR
These instructions assume that you have already connected your TV to an antenna or a
cable TV system. Skip step 1 if you have not yet connected to an antenna or a cable
system.
VCR Rear Panel
Audio Cable (Not supplied)
Video Cable (Not supplied)
RF Cable (Not supplied)
Follow the instructions in Viewing a VCR or Camcorder Tape to view your VCR tape.
Each VCR has a different back panel configuration.
When connecting a VCR, match the color of the connection terminal to the cable.
We recommend the use of cables with a Ferrite Core.
1. Unplug the cable or antenna from the back of the TV.
2. Connect the cable or antenna to the ANT IN terminal on the back of the VCR.
3. Connect an RF Cable between the ANT OUT terminal on the VCR and the ANT IN
terminal on the TV.
4. Connect a Video Cable between the VIDEO OUT jack on the VCR and the VIDEO IN
jack on the TV.
5. Connect Audio Cables between the AUDIO OUT jacks on the VCR and the AUDIO L and
AUDIO R jacks on the TV.
If you have a mono (non-stereo) VCR, use a Y-connector (not supplied) to hook up to
the right and left audio input jacks of the TV. If your VCR is stereo, you must connect
two cables.
TV Rear Panel
and the AUDIO OUT jacks on the DVD player.
the TV and the COMPONENT [Y, PB, PR] jacks on the DVD player.
Connecting DVD Player/Set-Top Box
The rear panel jacks on your TV make it easy to connect a DVD to your TV.
Component video separates the video into Y (Luminance (brightness)), Pb (Blue) and Pr
(Red) for enhanced video quality.
Be sure to match the component video and audio connections.
For example, if connecting the video cable to COMPONENT IN, connect the audio
cable to COMPONENT IN also.
Each DVD player/STB has a different back panel configuration.
When connecting a DVD player/STB, match the color of the connection terminal to the
cable.
We recommend the use of cables with a Ferrite Core.
1. Connect a Component Cable between the COMPONENT IN [Y, PB, PR] jacks on
2. Connect Audio Cables between the COMPONENT IN [R-AUDIO-L] jacks on the TV
TV Rear Panel
Audio Cable (Not supplied)
Component Cable (Not supplied)
DVD Player/Set-Top Box
External Connection

11 12
External Connection
Connecting DVD Player/Set-Top Box via HDMI
This connection can only be made if there is a HDMI Output connector on the external
device.
What is HDMI?
HDMI, or high-definition multimedia interface, is a next-generation interface that enables
the transmission of digital audio and video signals using a single cable without
compression.
Multimedia interface is a more accurate name for it especially because it allows multiple
channels of digital audio (5.1 channels).
The difference between HDMI and DVI is that the HDMI device is smaller in size, has the
HDCP(High Bandwidth Digital Copy Protection) coding feature installed, and supports
multi-channel digital audio.
Each DVD player/STB has a different back panel configuration.
We recommend the use of cables with a Ferrite Core.
1. Connect an HDMI Cable between the HDMI connector on the TV and the
HDMI connector on the DVD player/Set-Top Box.
TV Rear Panel
HDMI Cable (Not supplied)
DVD Player/Set-Top Box
External Connection
Connecting Digital Audio System
The rear panel jacks on your TV make it easy to connect a Digital Audio System to your TV.
5.1 CH audio is possible when the TV is connected to an external device supporting 5.1
CH.
We recommend the use of cables with a Ferrite Core.
1. Connect an COAXIAL Cable between the SPDIF jacks on the TV and the Digital Audio
jacks on the Digital Audio System. When a Digital Audio System is connected to the Input
SPDIF terminal: Decrease the gain (volume) of the TV, and adjust the volume level with
the system's volume control.
TV Rear Panel
COAXIAL Cable (Not supplied)
Digital Audio System

Digital Audio System
13 14
External Connection
Connecting PC
Each PC has a different back panel configuration.
The HDMI jacks do not support PC connection.
We recommend the use of cables with a Ferrite Core.
1. Connect a D-Sub Cable between RGB/PC IN connector on the TV and the PC output
connector on your computer.
TV Rear Panel
D-Sub Cable (Not supplied)
PC
Input Mode
Air
Cable
8VSB
Free 64/256QAM
CVBS NTSC 3.58
External Connection
2.Plug PHONE out connector into PHONE out jack on the TV the TV speaker will
be muted.
Phone Out
Supporting signals
Component
VGA/PC
480p/60Hz
720p/60Hz
1080i/60Hz
HDMI
640x480/60Hz
800x600/60Hz
1024x768/60Hz
480p/60Hz
720p/60Hz
1080i/60Hz
1360x768/60Hz 1080p/60Hz 1080p/60Hz
Connecting Amplifier/DVD Home Theater
Each external input source device has a different back panel configuration.
When connecting an external device, match the color of the connection terminal to the
cable.
We recommend the use of cables with a Ferrite Core.
1. Connect Audio Cables between the AUDIO L and R OUT on the TV and AUDIO IN [R-
AUDIO-L]on the Amplifier/DVD Home Theater.
When an audio amplifier is connected to the AV OUT [R-AUDIO-L] terminals: Decrease
the gain (volume) of the TV, and adjust the volume level with the Amplifier's volume control.
TV Rear Panel
Audio Cable (Not supplied)

Turning the TV On and Off
Basic Operation OSD Menu Operations
15 16
1. Insert the power cord plug into a polarized AC
outlet.
2. Press POWER button on the remote control or
button on the LED TV.
3. Normal picture will be displayed on the screen after
6 seconds. If no signal input, "No Signal" will be
displayed on the screen.
4. If temporary POWER off is required, press POWER button on the remote control or
button on the LED TV.
5. If you want to completely switch off the power for this unit, unplug the power cord plug
for this unit.
6. After switching off the unit, you should turn on the TV again at least 5 seconds later.
Status indication lamp
Green: In power on mode.
Red: In standby mode.
Auto power -off
If there is no signal input in any Mode, the TV will automatically accesses the standby
state in about 15 minutes.
Memory before turning TV off
The settings of picture and the preset channels will be memorized at turning off the unit.
When being started up again, the unit will work according to the mode set before being
turned off.
1. How to turn the TV on or off
To use Car cord
Use the Car Cord provided for operation on 12V DC.
polarized AC outlet, do not
the blade. It is the user s responsibility
to have
an electrician replace the obsolete outlet.
3.If you cause a static discharge when touchingthe unit, and the
unit fails to function, simply unplug the unit from the AC outlet, wait
a few
minutes, and plug it back in. The unit should return to normal
NOTE:
1.AC/ DC adaptor provided can be connected to
the specified
2.If the polarized AC cord does not fit into a non
NC
voltage (AC 120 volts 60 HZ).
attempt to file or cut
operation.
Adjust the OSD Screen
Press SOURCE button to display the input source list.
Press ▼/▲ button to select the input source you want
to watch.
Press ENTER button to enter the input source.
INPUT
AV
HDMI
PC
ENTER
TV
USB
Component
DVD
BASIC OPERATION
L
Channel
Air/Cab le Ai r
Auto Scan
Favorit e
Show/Hi de
Channel N o.
Channel L ab el
DTV Signa l Ba d
Auto Scan
Digital channel only
Analog channel only
MENU ENTER
Scan all channels
Press MENU button to display the main menu.
Press◄ / ► button to select CHANNEL in the main menu, it will highlight the first option.
Air/Cable
press ENTER buttons to select it Cable or Air.
AUTO SCAN
Auto Tuning can find out all effective channel automatically.
Press ▼/▲ to select Auto Tuning, then press ENTER to start
auto searching.
If you want to stop searching, press EXIT.
CHANNEL

OSD Menu Operations OSD Menu Operations
17 18
Adjust the OSD Screen
L
Picture M od e Standar d
Color Mod e No rmal
Zoom Mode Norma l
3DNR We ak
DLC On
PICTURE MENU
Press MENU to display the main menu, and press ◄ /► to select the Picture Menu.
Highlight the item and press ▼/▲ to select corresponding sub-menu.
Picture Mode: Dynamic/Standard/Soft/ Personal.
Color mode:This item can adjust the saturation of the color based on your own like.
Zoom mode: Four selectable Zoom Modes, Normal, Zoom, Cinema, Wide .
3DNR: Used for the noise reduction adjustment to get a better image effects.
DLC: Dynamic brightness control
Press MENU button to display the main menu.
Press◄ / ► button to select PICTURE in the main menu, it will highlight the first option.
AUDIO MENU
Press MENU to display the main menu, and press ◄ /► to select the Sound Menu.
Equalizer : Adjust audio frequency band.
MTS: Set the MTS (ATV mode).
Digital Output: Press ▼ button to highlight Digital Output. then press the enter buton to
select it .
Surround : Surround effect on or off.
Audio Only: Audio Only effect on or off.
AVC: When set the AVC on, quick volume change will be smoothed.
AUDIO
Press MENU button to display the main menu.
Press◄ / ► button to select AUDIO in the main menu, it will highlight the first option.
L
Audio
Equal ize r Pe rso nal
Digit al Ou tp ut PC M
Surro und O ff
Audio O nly O ff
AVC Of f
MTS STE REO
TIME
Press MENU button to display the main menu.
Press◄ / ► button to select TIME in the main menu, it will highlight the first option.
L
Time
Sleep Tim er Off
Time Zo ne At la ntic
DST Off
Time Fo rm at 24-hou r
Auto Sync O n
Clock 201 2/ 1/1 12:0
Wak eUp 2012/1/ 1 12:0
TIME MENU
Press MENU to display the main menu, and press ◄ /►
Sleep Timer: Select the time in minutes(5min,10min,15min,30min,60min,90min,120min,
180min,240min,Personal) that you want the TV to shut off automatically after you set the
time. Cancel by setting it to Off.
Time Zone: Set to choose the time belt.
DST: Press ENTER to select the DST on or off.
Time Format: Set to choose time display format
Auto Sync: Synchronous automatic
Clock:Press ENTER to set time.
Wake Up: Ending the state of sleep
to select the Time Menu.
SETUP
L
Setup
Menu Lang ua ge Englis h
Transpar en cy 25%
Closed Ca pt ion
Restore D ef ault
Setup Wiz ard
Blue Scre en O ff
Press MENU button to display the main menu.
Press◄ / ► button to select SETUP in the main menu, it will highlight the first option.
SETUP MENU
Press MENU to display the main menu , and press◄/► to select the Set p Menu.
Menu Language: Set the OSD display language. (English/ French/ Spanish)
Transparency: Set transparency of OSD.
Closed Caption: Set to hide the caption
Restore Default: Recall the default setting.
Setup Wizard: Installation guide.
Blue Screen: Set the background color to blue or black when no input signal.
u

OSD Menu Operations OSD Menu Operations
19 20
LOCK
Press MENU button to display the main menu.
Press◄ / ► button to select LOCK in the main menu, it will highlight the first option.
L
Lock
Parenta l Co ntrols_ __
Press MENU button to display the main menu.
Press button to select Lock in the main menu. It will highlight the first option.
Enter the code 0000 to enter the parental menu (see the picture below),
or press MENU to cancel.
◄ / ►
L
Lock
Change Pa ss word
System Lo ck O n
Input Blo ck
US
Canada
RRT Setti ng
Reset RRT
CHANGE PASSWORD
Press ENTER button and enter a new 4 digit password.
SYSTEM LOCK
Press ENTER to select the system lock on or off.
Unrated L oc k Off
UNRATED LOCK
Press ENTER to select the Unrated lock on or off.
Enter Old Password
Clear Cancel
Enter New Password
Confirm Password
CANADA
Press ENTER button for to enter to CANADA ratings menu, which contains two sub-menus:
Canada English and Canada French.
Adjust the OSD Screen
US
Press ENTER button for to enter to US ratings menu, which contains two sub-menus:
MPAA Rating and TV Rating.
INPUT BLOCK
HDMI PC )
press◄/►
Press ENTER to display the Input Block , AVPress ▼ / ▲ button to select (TV、 、
Component、 、 、USB
button to select “UnBlock” or “Block”.
MENU ENTER
US
TV
MPAA
Block
TV RATING
TV-Y
TV-Y7
TV-G
TV-PG
TV-14
TV-MA
ALL
ALL
ALL
ALL
ALL
ALL
FV
V S L D
V
V
S
S
L
L
D
MENU
MPAA
G
PG
PG-13
R
N/A
NC-17
X Lock
MENU
Canada Eng
C
MENU ENTER
Canada
Canada Eng
Canada Fre
MENU
Canada Fre
G
C8+
G
PG
14+
18+
EXEMPT
Lock
8 ans+
13 ans+
16 ans+
18 ans+
EXEMPT
Lock

21 22
Troubleshooting
C
C
E
E
E
E
Disconnect the power cord, wait 60 seconds then
reconnect the power cord and restart the TV.
No support for this function.
Increase the volume.
please check sound settings.
1.TV DISPLAY: Set the ratio of output
to the television signal options are:
Normal/PS(4:3 Pan
Scan),Nomal/PS(4:3 Letter Box),Wide
the current default settings is wide.
2.OSD Lang: Set the OSD language
options.
3.CAPTION: Play the enclosed
captions on some DVD titles, Optional
settings: ON/OFF.
4.LAST MEMORY: Save the last to
open with the related options are:
ON/OFF.
INITAL SETTING(DVD)
Multi
MULTI
Default Password is 8888.
5.
6.
7.Default: This option will resume the
original settings of this player.

Picture defects and the reason
23
