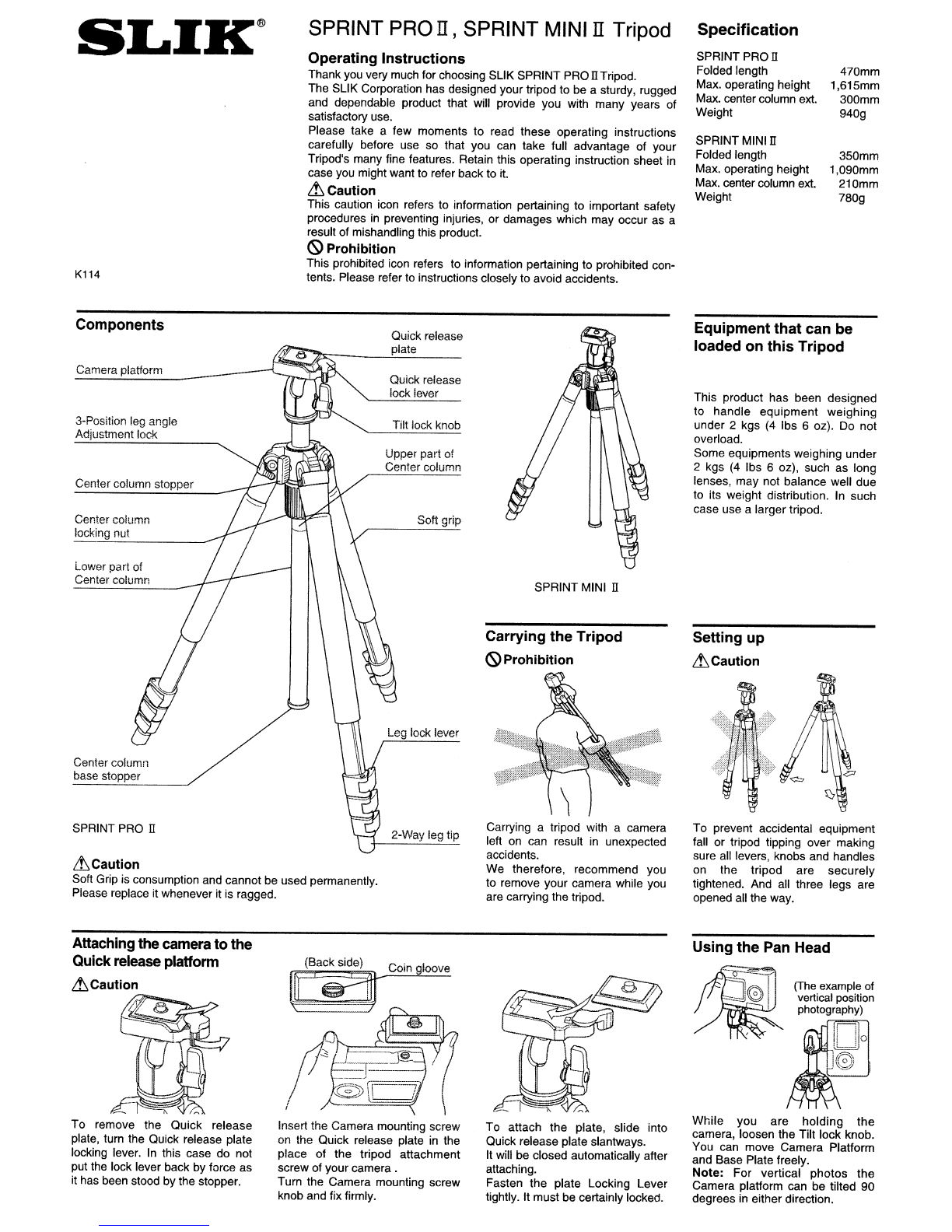

K114
SPRINT PRO II ISPRINT MINI II Tripod
Operating Instructions
Thank you very much for choosing SLiK SPRINT PRO IITripod.
The SLiK Corporation has designed your tripod to be asturdy, rugged
and dependable product that will provide you with many years of
satisfactory use.
Please take afew moments to read these operating instructions
carefully before use
so
that you can take full advantage of your
Tripod's many fine features. Retain this operating instruction sheet in
case you might want to refer back to it.
LtCaution
This caution icon refers to information pertaining to important safety
procedures
in
preventing injuries, or damages which may occur
as
a
result of mishandling this product.
<S>
Prohibition
This prohibited icon refers to information pertaining to prohibited con-
tents. Please refer
to
instructions closely to avoid accidents.
Specification
SPRINT PRO II
Folded length
Max. operating height
Max. center column
ext.
Weight
SPRINT MINI II
Folded length
Max. operating height
Max. center column
ext.
Weight
470mm
1,615mm
300mm
940g
350mm
1,090mm
210mm
780g
LtCaution
Soft Grip is consumption and cannot
be
used permanently.
Please replace it whenever it
is
ragged.
Setting up
LtCaution
To prevent accidental equipment
fall or tripod tipping over making
sure all levers, knobs and handles
on the tripod are securely
tightened. And all three legs are
opened all the way.
This product has been designed
to handle equipment weighing
under 2kgs
(4
Ibs 6oz). Do not
overload.
Some equipments weighing under
2kgs (4 Ibs 6oz), such as long
lenses, may not balance well due
to its weight distribution.
In
such
case use alarger tripod.
EqUipment that can be
loaded on this Tripod
SPRINT MINI II
Carrying atripod with acamera
left
on
can result
in
unexpected
accidents.
We therefore, recommend you
to remove your camera while you
are carrying the tripod.
Carrying the Tripod
<S>
Prohibition
Soft grip
2-Way leg tip
Tilt lock knob
Quick release
lock lever
Leg lock lever
Upper part
of
Center column
Quick release
plate
Camera platform
Center column stopper
3-Position
leg
angle
Adjustment lock
Lower part of
Center column
Center column
base stopper
Components
Center column
locking nut
SPRINT
PRO
II
(The
example
of
vertical position
photography)
Using the Pan Head
While you are holding the
camera, loosen the Tilt lock knob.
You can move Camera Platform
and Base Plate freely.
Note:
For vertical photos the
Camera platform can be tilted 90
degrees in either direction.
To attach the plate, slide into
Quick release plate slantways.
It will be closed automatically after
attaching.
Fasten the plate Locking Lever
tightly. It must be certainly locked.
Insert the Camera mounting screw
on the Quick release plate
in
the
place of the tripod attachment
screw of your camera.
Turn the Camera mounting screw
knob and fix firmly.
Attaching the camera to the
Quick release platfonn
LtCaution
~
To remove the Quick release
plate, turn the Quick release plate
locking lever.
In
this case do not
put the lock lever back by force
as
it has been stood by the stopper.
