Before Starting Installation:
Check rough-in height to achieve 24" rim height (17" rim height for ADA).
Check slope. Downhill slope, per code, is essential because waterfree urinals
depend on gravity flow.
Check DWV material. Suitable materials include cast iron, PVC, ABS, and
galvanized steel. Do not install on copper DWV due to copper’s susceptibility
to corrosion.
Shut off water supply and cap the nipple with the 3/4" chrome cap (provided).
2" side cutter blade
1 2 3
456
10 11 12 13
14
78
15 16 17 18
Use utility knife to cut caulk, then use
a putty knife and mallet to remove the
bowl. Remove hanger brackets, scrape
off caulk, and clean the wall.
Important: Use a drain machine to
remove build-up inside pipes. Clean
25-35 feet deep then flush with water
to remove cutting debris.
Clean face of existing wall flange then
install the brass flange with the clear
inspection disc. Slowly pour water into
the drain.
Use a flashlight to check pitch/slope.
There should be no water present in
the inspection disc or nipple. Remove
flange after inspection.
If standing water is present, adjust drain
to achieve pitch (code requires 1/4" drop
per foot of drain line for proper pitch).
Seal wall according to code.
Measure and mark the rough-in. Use
a 5/16" masonry bit to drill hole, then
install the hanger bracket with one
plastic anchor and screw.
Determine the drain nipple depth by
measuring the distance between the
back of the sanitary tee (or elbow) to
the front edge of the brass flange.
Find the drain nipple depth on the
cutting chart (left) and mark the
specified trim length on the insert tube
at the nearest 1/4" groove.
Cut the tube at the groove using a
sharp utility knife to ensure a square,
flat cut. Clean burrs from the cut end
with emery paper.
Apply lubricant to the outside of the rub-
ber bushing and ribbed inside area. Insert
the tube and bushing with the arrow tab
at the top. Lube tailpipe of housing.
Place the seal into the flange with
the ribs facing out. Install the flange
with washers and hex nuts, but do not
tighten completely.
Install the gear clamp with the screw
head at the bottom, but do not tighten.
Hang the bowl on the bracket and
check tail pipe alignment, then remove
the bowl and adjust the bracket as
needed.
Re-hang and re-check bowl alignment
with the drain line. Mark anchor holes
then remove the bowl without moving
the hanger bracket.
Hang the bowl, inserting tailpipe into
bushing, then install anchor screws
with washers. Tighten flange bolts and
gear clamp.
Pour 5 gallons of water as rapidly as
possible into housing to ensure good
flow and no leaks or standing water.
Caulk bowl to the wall. Install the
cartridge per the cartridge instruction
sheet.
Incorrect Correct
Arrow Tab UP
Cut away wall
Lift drain line and
brace with a mending plate
Tail pipe should
align with center
of drain line
The information in this document is subject to change without notice. © 2007 Sloan Valve Company. All rights reserved. 0816498, Rev 2b (07/07)
Retrofit
Installation
Instructions
WES-4000
Waterfree
Urinal
Install plastic
anchor and
screw here
17" from finished floor for
standard 24" rim height (10" for ADA)
14 1/4"
9
Drill two more holes for the hanger
bracket, install screws, and tighten.
Also drill holes for the lower anchor
screws and insert plastic anchors.
Install two
additional screws
Insert Tube Cutting Chart
Drain Nipple Depth Trim
13 7/8" or greater.... Do not cut
13 3/4" or less ...... 1/4"
13 1/2" or less ...... 1/2"
13 1/4" or less ...... 3/4"
13" or less ...... 1"
12 3/4" or less ...... 1 1/4"
12 1/2" or less ...... 1 1/2"
12 1/4" or less ...... 1 3/4"
12" or less ...... 2"
11 3/4" or less ...... 2 1/4"
11 1/2" or less ...... 2 1/2"
11 1/4" or less ...... 2 3/4"
11" or less ...... 3"
10 3/4" or less ...... 3 1/4"
10 1/2" or less ...... 3 1/2"
10 1/4" or less ...... 3 3/4"
10" or less ...... 4"
9 3/4" or less ...... 4 1/4"
9 1/2" or less ...... 4 1/2"
9 1/4" or less ...... 4 3/4"
9" or less ...... 5"
8 3/4" or less ...... 5 1/4"
8 1/2" or less ...... 5 1/2"
8 1/4" or less ...... 5 3/4"
8" or less ...... 6"
7 3/4" or less ...... 6 1/4"
7 1/2" or less ...... 6 1/2"
7 1/4" or less ...... 6 3/4"
7" or less ...... 7"
6 3/4" or less ...... 7 1/4"
6 1/2" or less ...... 7 1/2"
6 1/4" or less ...... 7 3/4"
6" or less ...... 8"
5 3/4" or less ...... 8 1/4"
5 1/2" or less ...... 8 1/2"
5 1/4" or less ...... 8 3/4"
5" or less ...... 9"
4 3/4" or less ...... 9 1/4"
4 1/2" or less ...... 9 1/2"
4 1/4" or less ...... 9 3/4"
4" or less ...... 10"
3 3/4" or less ...... Do not
use tube
Customer Service:
Toll Free 888-SLOAN-14 (888-756-2614) • Fax [phone] • www.sloanvalve.com

1 1/8"
2 1/4"
1"
14 1/4"
Drain
1/2to 3/4"
17" to
finished floor
(10" for ADA
installations)
Correct
Tail pipe should
align with center
of drain line
Incorrect
2
3 4 567
10 11 12
13 14 15
89
16 17
Clean face of existing wall flange then
install the 2" compression nut with
the clear inspection disc. Slowly pour
water into the drain.
Use a flashlight to check pitch/slope.
There should be no water present in
the inspection disc or nipple. Remove
compression nut after inspection.
If standing water is present, adjust drain
to achieve pitch (code requires 1/4" drop
per foot of drain line for proper pitch).
Seal the wall according to code.
If in-wall carrier is not used, measure and
mark the rough-in. Use a 5/16" masonry
bit to drill hole, then install the hanger
bracket with one plastic anchor and screw.
Hang the bowl on the bracket and
check tail pipe alignment, then remove
the bowl and adjust the bracket as
needed.
Find the drain nipple depth on the
cutting chart (left) and mark the
specified trim length on the insert tube
at the nearest 1/4" groove.
Cut the tube at the groove using a
sharp utility knife to ensure a square,
flat cut. Clean burrs from the cut end
with emery paper.
Apply lubricant to the outside of the
rubber bushing and ribbed inside area.
Insert the tube and bushing with the
arrow tab at the top.
Place the gear clamp and compression
nut onto the housing tailpipe. Apply
lubricant to the tailpipe.
Drill two more holes for the hanger
bracket, install screws and tighten.
Also drill holes for the lower anchor
screws and insert plastic anchors.
Hang the bowl, inserting tailpipe into
bushing, then install anchor screws
with washers.
Re-hang and re-check bowl alignment
with the drain line. Mark anchor holes
then remove the bowl without moving
the hanger bracket.
Determine the drain nipple depth by
measuring the distance between the
back of the sanitary tee (or elbow) to
the front edge of the nipple.
Pour 5 gallons of water as rapidly as
possible into housing to ensure good
flow and no leaks or standing water.
Caulk bowl to the wall. Install the
cartridge per the cartridge instruction
sheet.
Arrow Tab UP
Before Starting Installation:
Check rough-in height to achieve 24" rim height (17" rim height for ADA).
Check slope. Downhill slope, per code, is essential because waterfree
urinals depend on gravity flow.
Check DWV material. Suitable materials include cast iron, PVC, ABS,
and galvanized steel. Do not install on copper DWV due to copper’s
susceptibility to corrosion.
The information in this document is subject to change without notice. © 2007 Sloan Valve Company. All rights reserved. 0816498, Rev 2b (07/07)

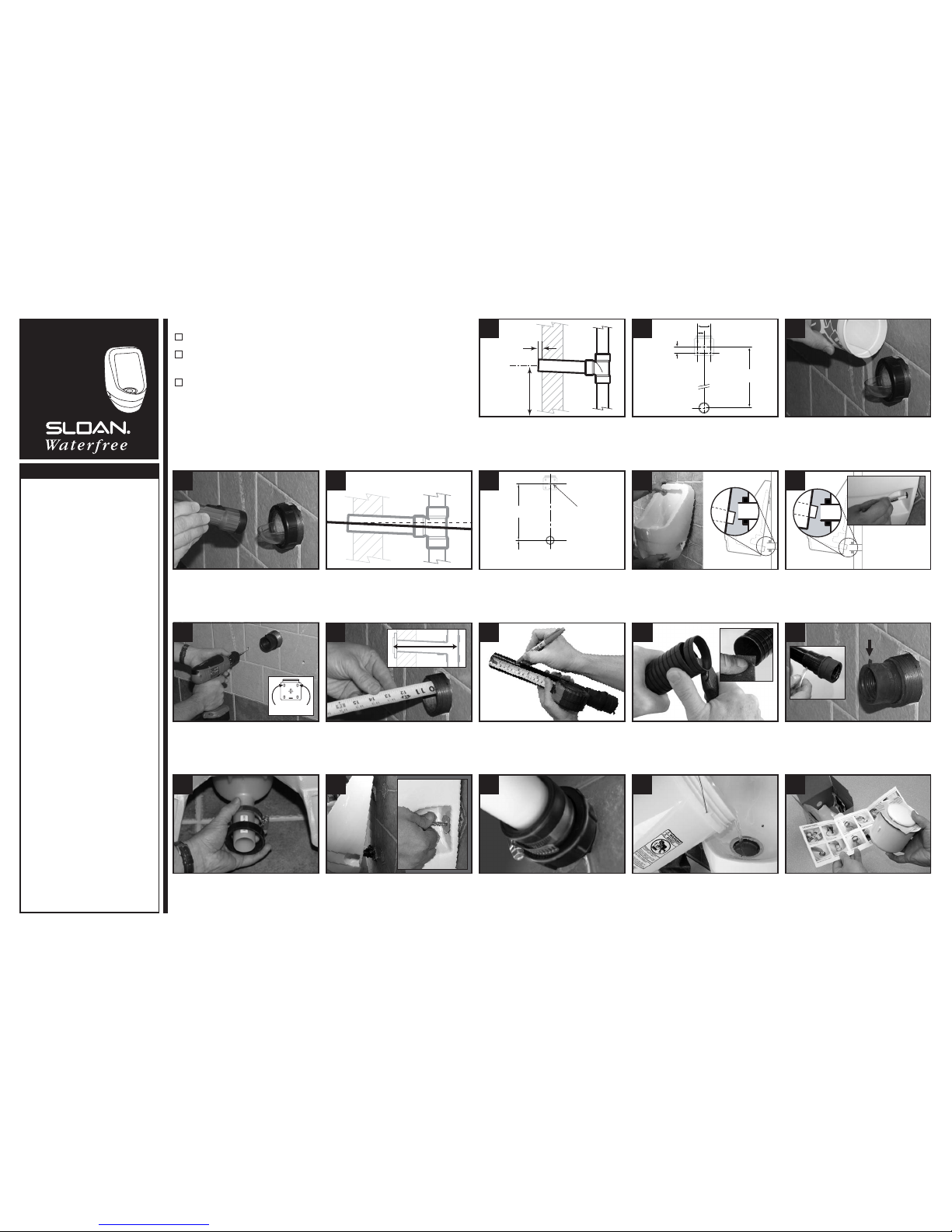

New Construction
Installation
Instructions
WES-4000
Waterfree
Urinal
1a
Set drain line height at 17" from finished
floor (standard 24" rim) or 10" for ADA
installation. Threaded nipple should
extend 1/2to 3/4" from wall.
1b
Carrier stud placement: If using in-
wall carrier, set bearing rods as shown
above.
Install plastic
anchor and
screw here
17" from finished floor for
standard 24" rim height (10" for ADA)
14 1/4"
Tighten the compression nut and gear
clamp.
Install two
additional screws
Insert Tube Cutting Chart
Drain Nipple Depth Trim
13 7/8" or greater.... Do not cut
13 3/4" or less ...... 1/4"
13 1/2" or less ...... 1/2"
13 1/4" or less ...... 3/4"
13" or less ...... 1"
12 3/4" or less ...... 1 1/4"
12 1/2" or less ...... 1 1/2"
12 1/4" or less ...... 1 3/4"
12" or less ...... 2"
11 3/4" or less ...... 2 1/4"
11 1/2" or less ...... 2 1/2"
11 1/4" or less ...... 2 3/4"
11" or less ...... 3"
10 3/4" or less ...... 3 1/4"
10 1/2" or less ...... 3 1/2"
10 1/4" or less ...... 3 3/4"
10" or less ...... 4"
9 3/4" or less ...... 4 1/4"
9 1/2" or less ...... 4 1/2"
9 1/4" or less ...... 4 3/4"
9" or less ...... 5"
8 3/4" or less ...... 5 1/4"
8 1/2" or less ...... 5 1/2"
8 1/4" or less ...... 5 3/4"
8" or less ...... 6"
7 3/4" or less ...... 6 1/4"
7 1/2" or less ...... 6 1/2"
7 1/4" or less ...... 6 3/4"
7" or less ...... 7"
6 3/4" or less ...... 7 1/4"
6 1/2" or less ...... 7 1/2"
6 1/4" or less ...... 7 3/4"
6" or less ...... 8"
5 3/4" or less ...... 8 1/4"
5 1/2" or less ...... 8 1/2"
5 1/4" or less ...... 8 3/4"
5" or less ...... 9"
4 3/4" or less ...... 9 1/4"
4 1/2" or less ...... 9 1/2"
4 1/4" or less ...... 9 3/4"
4" or less ...... 10"
3 3/4" or less ...... Do not
use tube
Customer Service:
Toll Free 888-SLOAN-14 (888-756-2614) • Fax [phone] • www.sloanvalve.com
