SLV Rotoball Floor User manual


SLV GmbH
BETRIEBSANLEITUNG FÜR
AUSSENLEUCHTE
OPERATING MANUAL FOR
OUTDOOR LUMINAIRE
MODE D’EMPLOI POUR
LUMINAIRE EXTÉRIEUR
INSTRUCCIONES DE SERVICIO PARA
LUMINARIA EXTERIOR
ISTRUZIONI DI FUNZIONAMENTO PER
LAMPADA ESTERNO
GEBRUIKSHANDLEIDING VOOR
BUITENLAMP
INSTRUKTIONSVEJLEDNING FOR
UDENDØRS LYSET
INSTRUKCJA OBSŁUGI DLA
LAMPA ZEWNTRZNA
  
  Щ
BRUKSANVISNING FÖR
UTOMHUSLAMPA
DІŞ ALAN LAMBASI
IÇIN KULLANMA KILAVUZU
KEZELÉSI ÚTMUTATÓ
KÜLTÉRI LÁMPATEST
ROTOBALL FLOOR
art.-no. 227220 / 227221 11.05.2018 © SLV GmbH, Daimlerstr. 21-23, 52531 Übach-Palenberg, Germany, Tel. [phone] Technische Änderungen vorbehalten. Technical Details are
subject to change. Les détails techniques sont sujet à des changements. Nos reservamos el derecho a modificaciones técnicas. Modifiche tecniche riservate. Behoudens technische wijzigingen. Ret til
tekniske ændringer forbeholdes. Zmiany techniczne zastrzeżone. Схаяея ав а веее ехчех ее. Tekniska ändringar kan förekomma. Teknik değişiklik yapma hakkı
saklıdır. A technikai részletek termékenként változhatnak. Made in China.
227220 TC-(D,H,T,Q)SE, E27, 24W max. Ø40cm 2,2kg
227221 Ø50cm 3,1kg
230V~
IP44

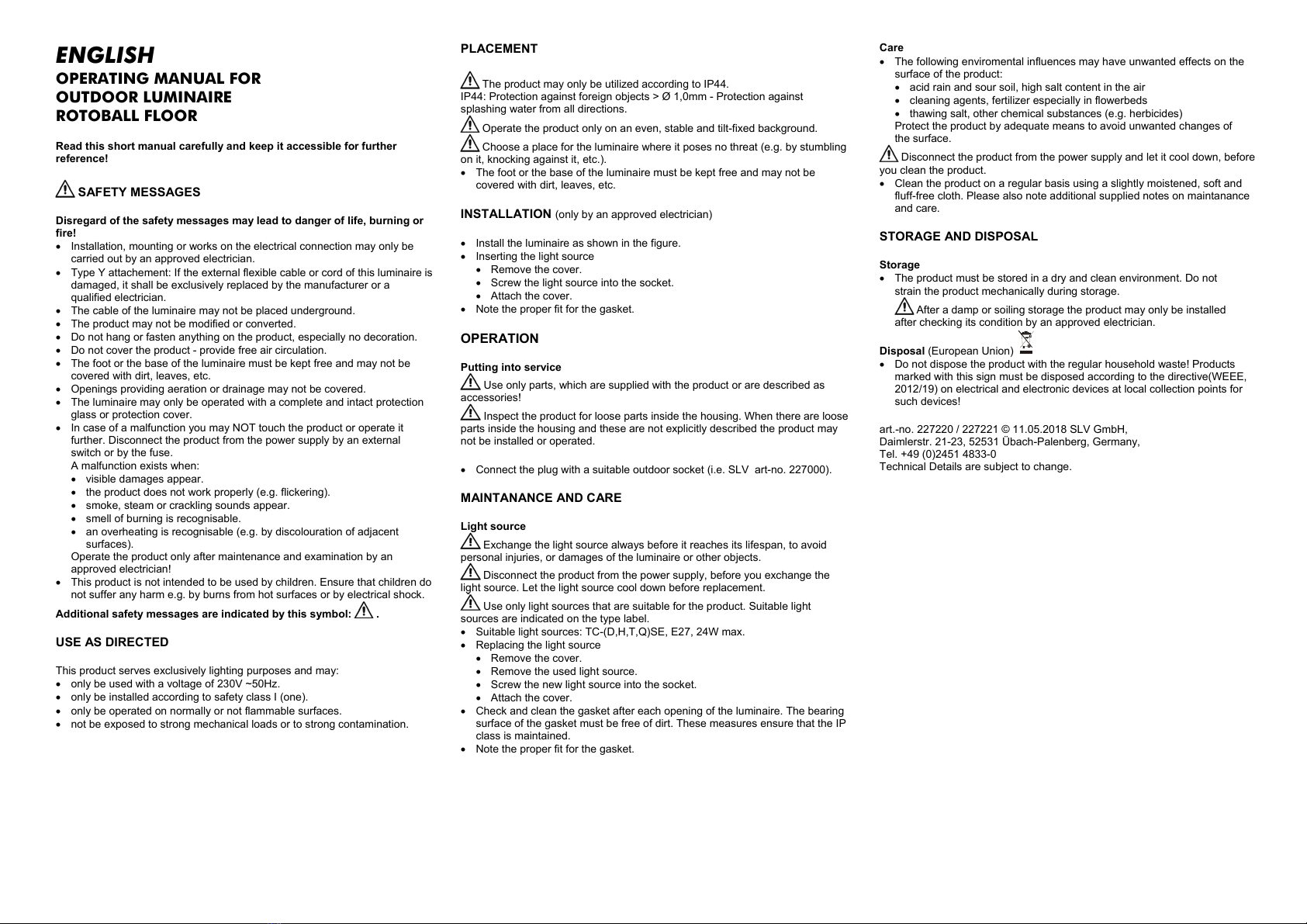

ENGLISH
OPERATING MANUAL FOR
OUTDOOR LUMINAIRE
ROTOBALL FLOOR
Read this short manual carefully and keep it accessible for further
reference!
SAFETY MESSAGES
Disregard of the safety messages may lead to danger of life, burning or
fire!
Installation, mounting or works on the electrical connection may only be
carried out by an approved electrician.
Type Y attachement: If the external flexible cable or cord of this luminaire is
damaged, it shall be exclusively replaced by the manufacturer or a
qualified electrician.
The cable of the luminaire may not be placed underground.
The product may not be modified or converted.
Do not hang or fasten anything on the product, especially no decoration.
Do not cover the product - provide free air circulation.
The foot or the base of the luminaire must be kept free and may not be
covered with dirt, leaves, etc.
Openings providing aeration or drainage may not be covered.
The luminaire may only be operated with a complete and intact protection
glass or protection cover.
In case of a malfunction you may NOT touch the product or operate it
further. Disconnect the product from the power supply by an external
switch or by the fuse.
A malfunction exists when:
visible damages appear.
the product does not work properly (e.g. flickering).
smoke, steam or crackling sounds appear.
smell of burning is recognisable.
an overheating is recognisable (e.g. by discolouration of adjacent
surfaces).
Operate the product only after maintenance and examination by an
approved electrician!
This product is not intended to be used by children. Ensure that children do
not suffer any harm e.g. by burns from hot surfaces or by electrical shock.
Additional safety messages are indicated by this symbol: .
USE AS DIRECTED
This product serves exclusively lighting purposes and may:
only be used with a voltage of 230V ~50Hz.
only be installed according to safety class I (one).
only be operated on normally or not flammable surfaces.
not be exposed to strong mechanical loads or to strong contamination.
PLACEMENT
The product may only be utilized according to IP44.
IP44: Protection against foreign objects > Ø 1,0mm - Protection against
splashing water from all directions.
Operate the product only on an even, stable and tilt-fixed background.
Choose a place for the luminaire where it poses no threat (e.g. by stumbling
on it, knocking against it, etc.).
The foot or the base of the luminaire must be kept free and may not be
covered with dirt, leaves, etc.
INSTALLATION (only by an approved electrician)
Install the luminaire as shown in the figure.
Inserting the light source
Remove the cover.
Screw the light source into the socket.
Attach the cover.
Note the proper fit for the gasket.
OPERATION
Putting into service
Use only parts, which are supplied with the product or are described as
accessories!
Inspect the product for loose parts inside the housing. When there are loose
parts inside the housing and these are not explicitly described the product may
not be installed or operated.
Connect the plug with a suitable outdoor socket (i.e. SLV art-no. 227000).
MAINTANANCE AND CARE
Light source
Exchange the light source always before it reaches its lifespan, to avoid
personal injuries, or damages of the luminaire or other objects.
Disconnect the product from the power supply, before you exchange the
light source. Let the light source cool down before replacement.
Use only light sources that are suitable for the product. Suitable light
sources are indicated on the type label.
Suitable light sources: TC-(D,H,T,Q)SE, E27, 24W max.
Replacing the light source
Remove the cover.
Remove the used light source.
Screw the new light source into the socket.
Attach the cover.
Check and clean the gasket after each opening of the luminaire. The bearing
surface of the gasket must be free of dirt. These measures ensure that the IP
class is maintained.
Note the proper fit for the gasket.
Care
The following enviromental influences may have unwanted effects on the
surface of the product:
acid rain and sour soil, high salt content in the air
cleaning agents, fertilizer especially in flowerbeds
thawing salt, other chemical substances (e.g. herbicides)
Protect the product by adequate means to avoid unwanted changes of
the surface.
Disconnect the product from the power supply and let it cool down, before
you clean the product.
Clean the product on a regular basis using a slightly moistened, soft and
fluff-free cloth. Please also note additional supplied notes on maintanance
and care.
STORAGE AND DISPOSAL
Storage
The product must be stored in a dry and clean environment. Do not
strain the product mechanically during storage.
After a damp or soiling storage the product may only be installed
after checking its condition by an approved electrician.
Disposal (European Union)
Do not dispose the product with the regular household waste! Products
marked with this sign must be disposed according to the directive(WEEE,
2012/19) on electrical and electronic devices at local collection points for
such devices!
art.-no. 227220 / 227221 © 11.05.2018 SLV GmbH,
Daimlerstr. 21-23, 52531 Übach-Palenberg, Germany,
Tel. [phone]
Technical Details are subject to change.
