Small Potatoes Pastel Cozy Kitchen User manual

Please retain this information
for future reference
To order replacement parts,
please visit www.kidkraft.com
1
Wash all food/drink playthings thoroughly before use. Not dishwasher, oven, stove or microwave safe.
WARNING: CHOKING HAZARD
Unassembled parts may be a choking
hazard to children 3 years and younger.
CAUTION: Adult assembly required.
Hardware contains small screws with
sharp points. Keep unassembled parts
out of the reach of small children.
USE AND MAINTENANCE:
-Use on level surfaces only
-Please check assembly at regular intervals,
and frequently tighten hardware if necessary.
If maintenance is not carried out, the product
could cease to function properly.
Customer Service
1-800-933-0771
www.kidkraft.com
Item# 53176
Pastel Cozy Kitchen
Assembly Instructions
16
4
29
30
8
20
16
x 2
x 2
22
15
27
25
11
9
19
24
2
5
31
10
7

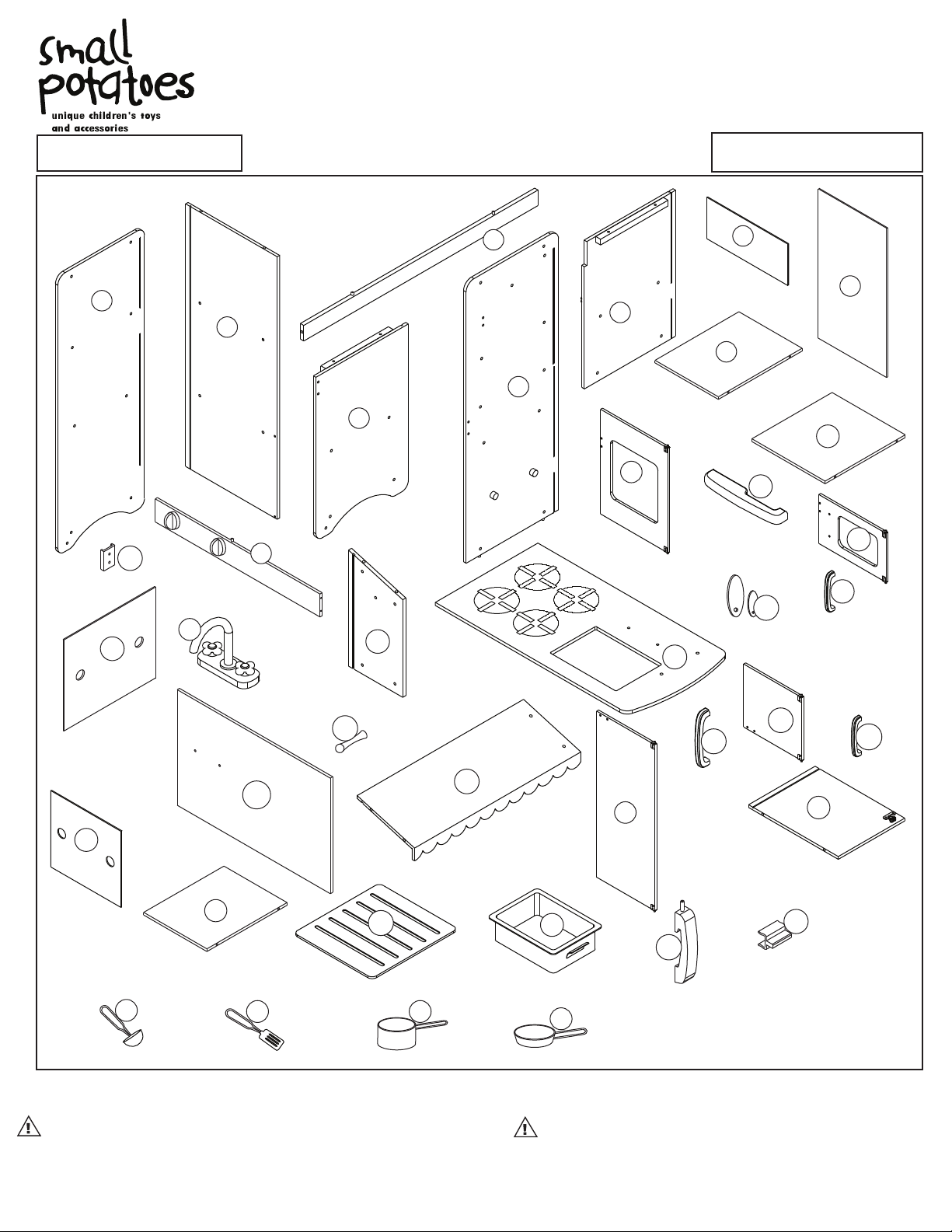

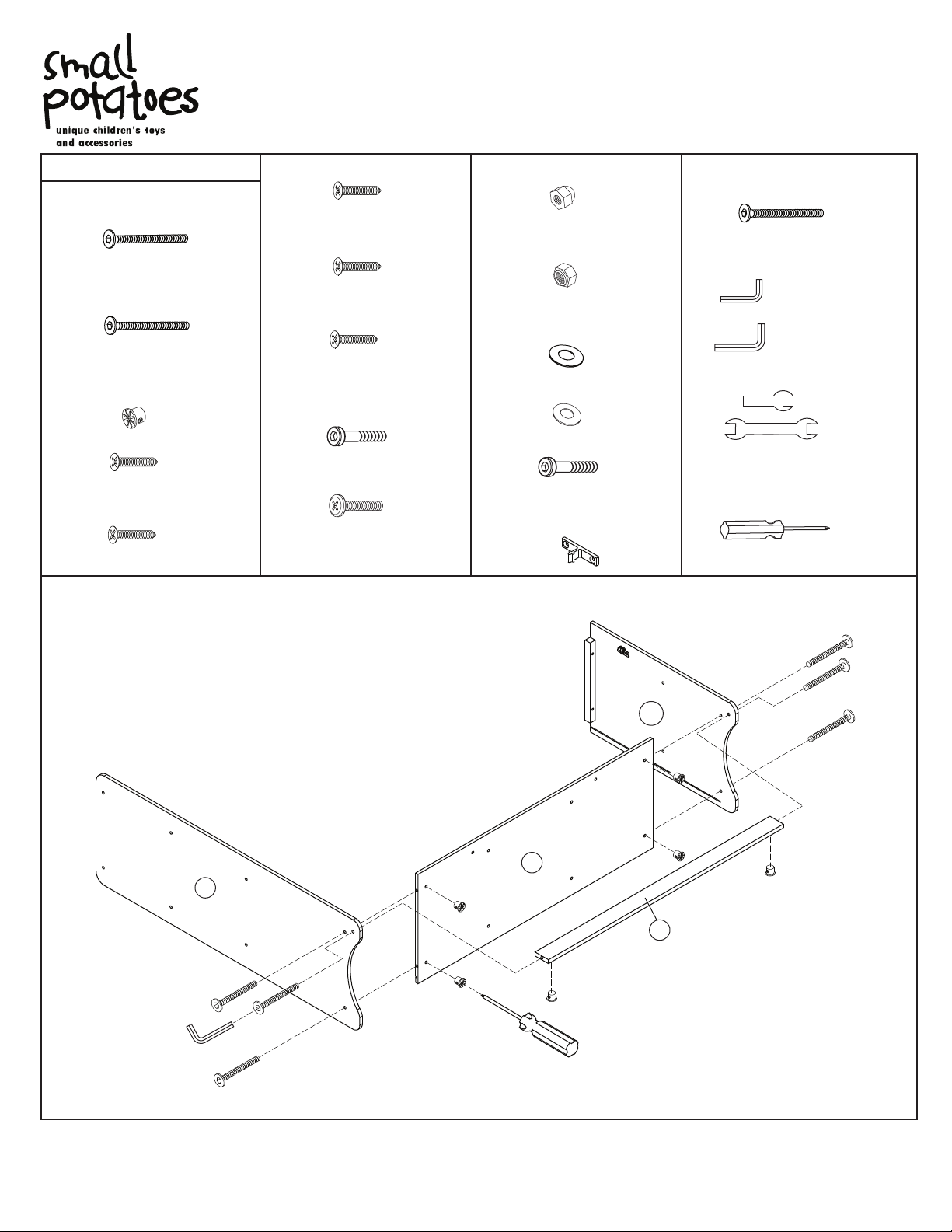

Parts List
36 37 38 39
17
12
32
3
18
21
x 2
x 2
13
35
23
34
26 28
14
33

A. White Cross Dowel
Bolt x 32 pcs
1 7/16 in / 37 mm
C. Cross Dowel Nut
x 38 pcs
HARDWARE
D. Screw x 6 pcs
1 in / 25 mm
F. Pink Screw x 2 pcs
1 in / 25 mm
H. Screw x 8 pcs
5/16 in / 8 mm
G. Blue Screw x 4 pcs
1 in / 25 mm
I. Blue Hex Bolt
x 1 pc
7/8 in / 22 mm
Wrench x 2 pcs

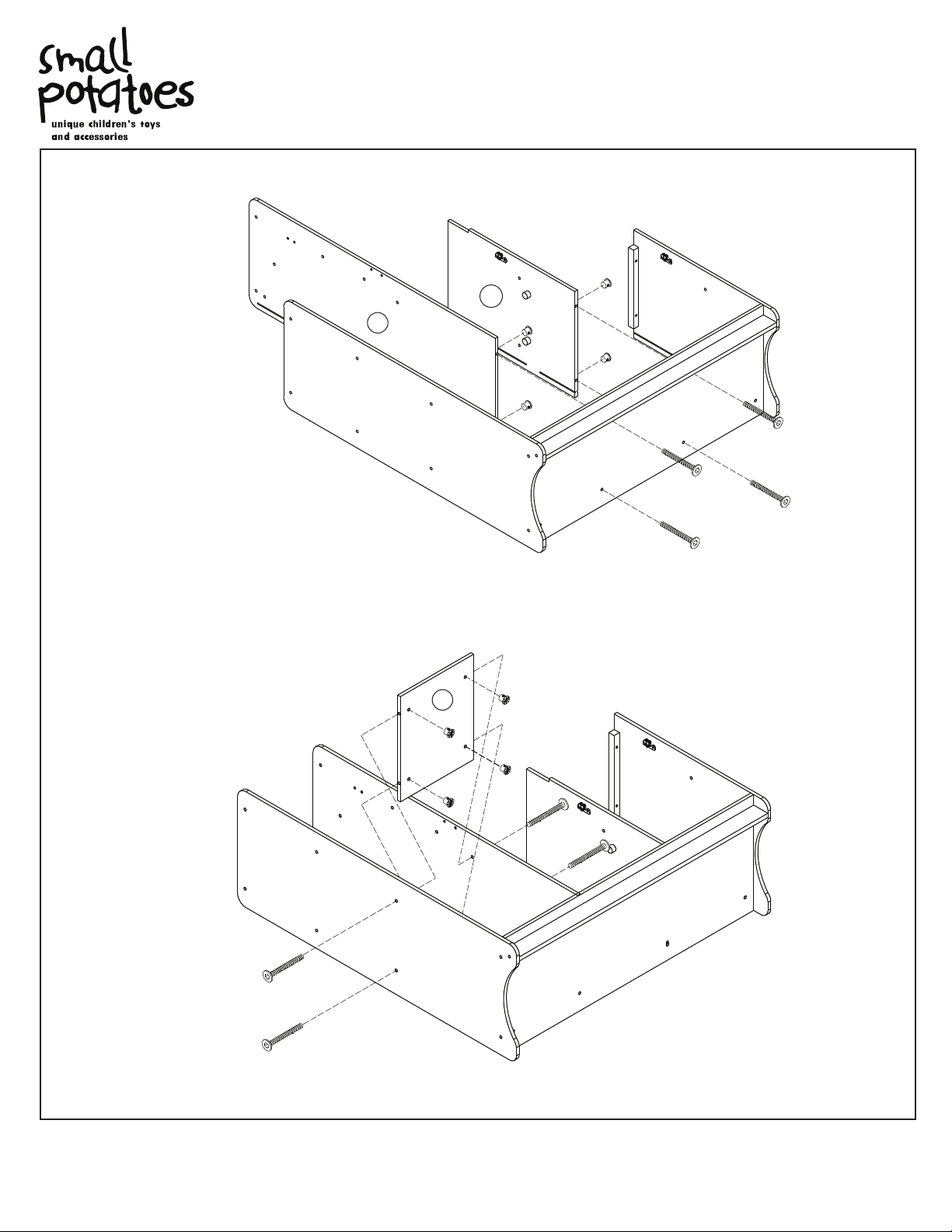

Step 1
Allen Wrench x 2 pc
2
C
C
C
C
C
C
The following tool (not
included) is required
for assembly:
Phillips®screwdriver
B. Pink Cross Dowel
Bolt x 2 pcs
1 7/16 in / 37 mm
Q. Cross Dowel Bolt
x 4 pcs
1 7/16 in / 37 mm
J. Pink Bolt x 2 pcs
7/8 in / 22 mm
O. Hex Bolt x 2 pcs
13/16 in / 20 mm
K. Cup Nut x 2 pcs
3 mm
4 mm
E. Yellow Screw x 2 pcs
1 in / 25 mm
1
4
2
3
Customer Service
1-800-933-0771
www.kidkraft.com
L. Nylon Nut
x 1 pc
M. Large Washer
x 2 pcs
N. Washer x 3 pcs
P. Latch x 4 pcs
A
A
A
A
A
Item# 53176
Pastel Cozy Kitchen
Assembly Instructions
Before calling customer service, please
locate the batch code number
(example: 2693/65006/04) found on the
bottom or back of your product.

Step 2
Step 3
3
Q
Q
C
C
C
C
Q
Q
C
C
C
C
5
6
7
Customer Service
1-800-933-0771
www.kidkraft.com
A
A
A
A
Item# 53176
Pastel Cozy Kitchen
Assembly Instructions

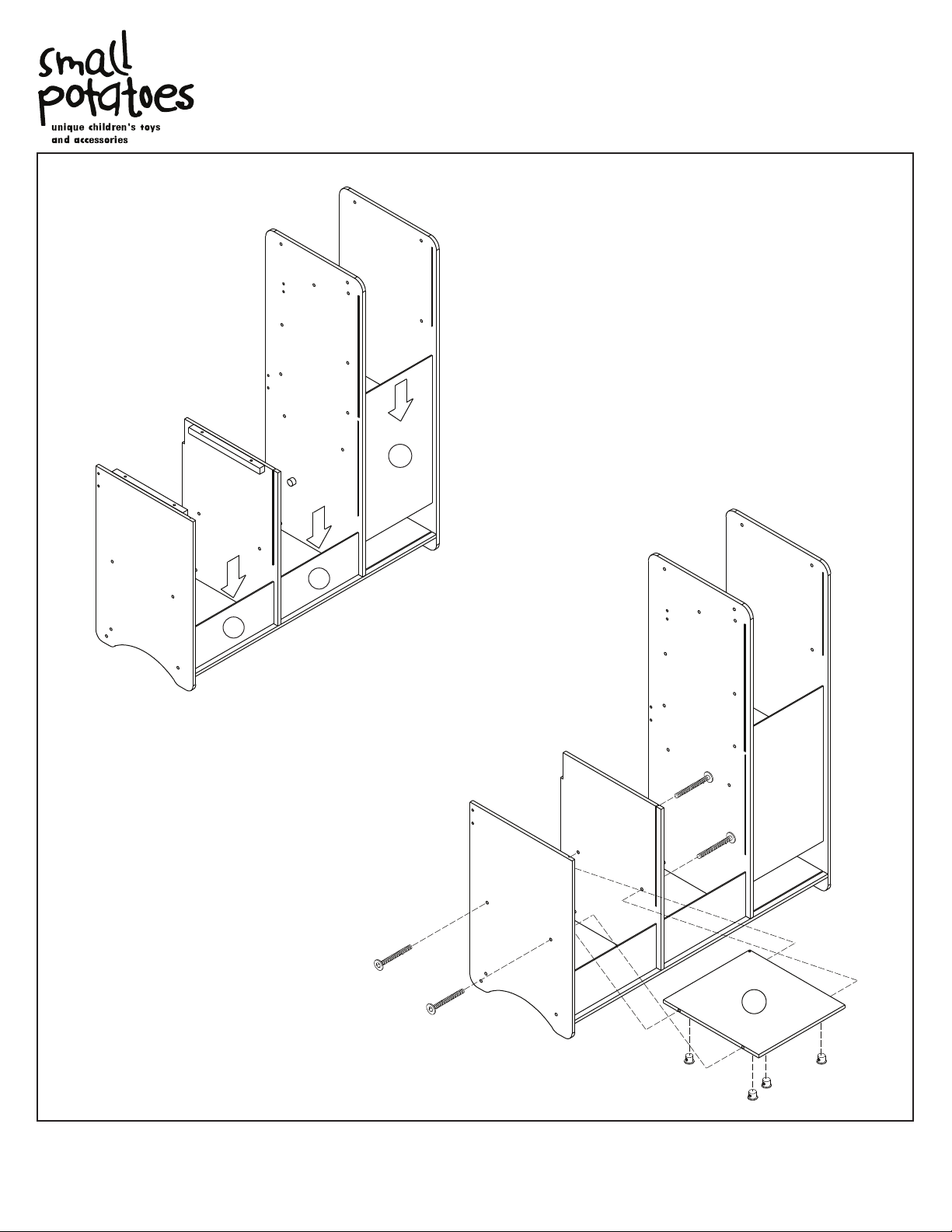

Step 4
Step 5
4
9
8
8
Customer Service
1-800-933-0771
www.kidkraft.com
C
CC
C
A
A
B
B
10
Item# 53176
Pastel Cozy Kitchen
Assembly Instructions

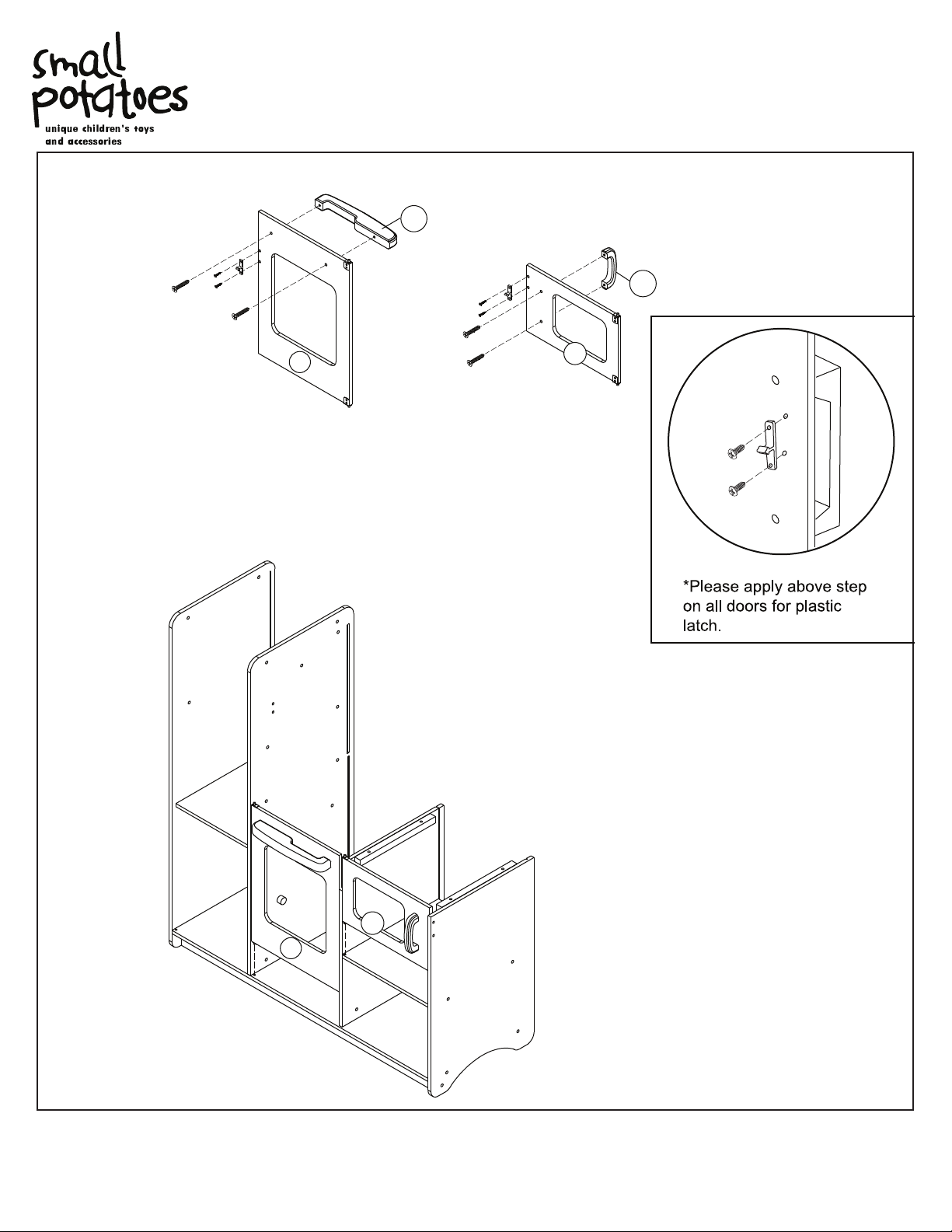

Step 6
Step 7
5
Customer Service
1-800-933-0771
www.kidkraft.com
11 13
11
13
F
F
H
H
H
HP
P
P
12
E
E14
Item# 53176
Pastel Cozy Kitchen
Assembly Instructions

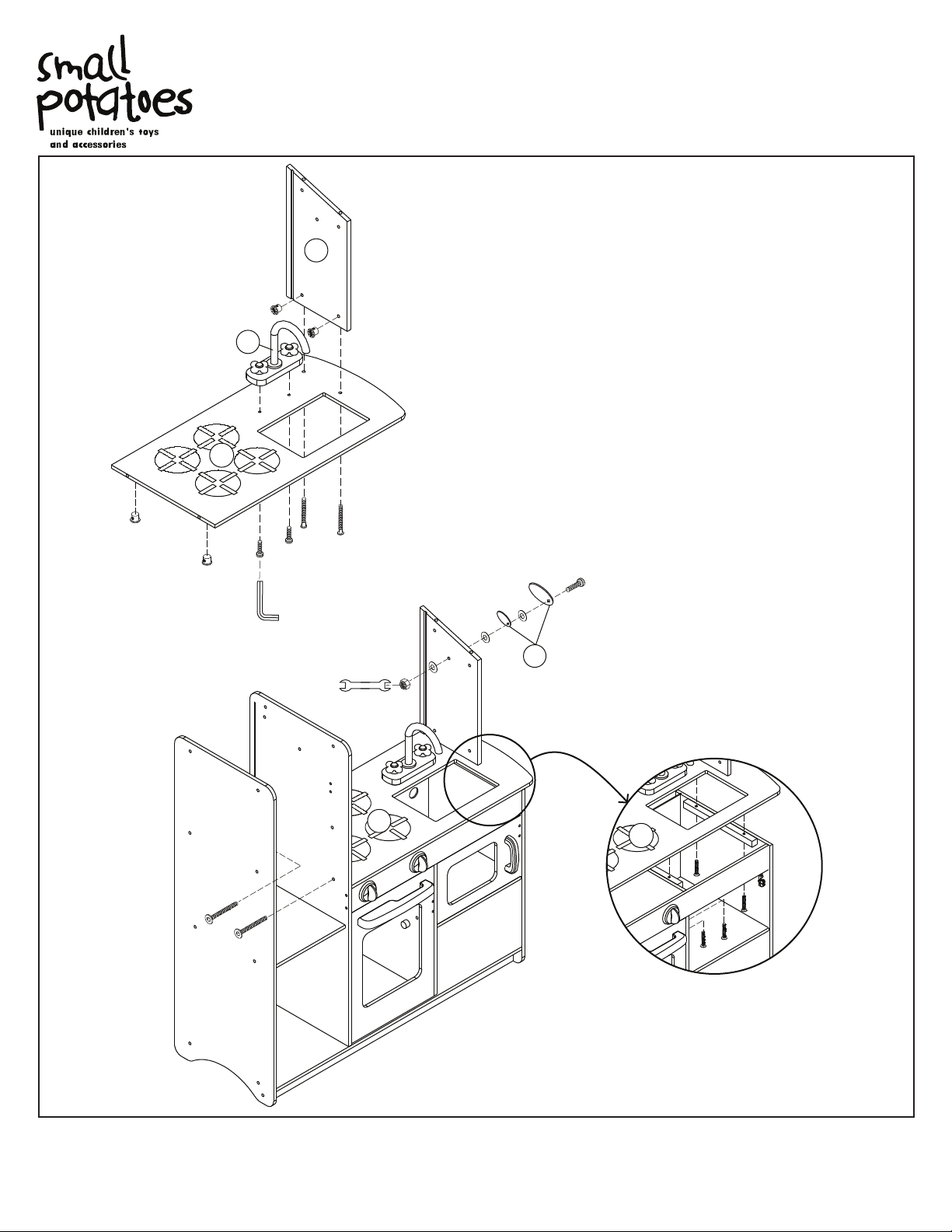

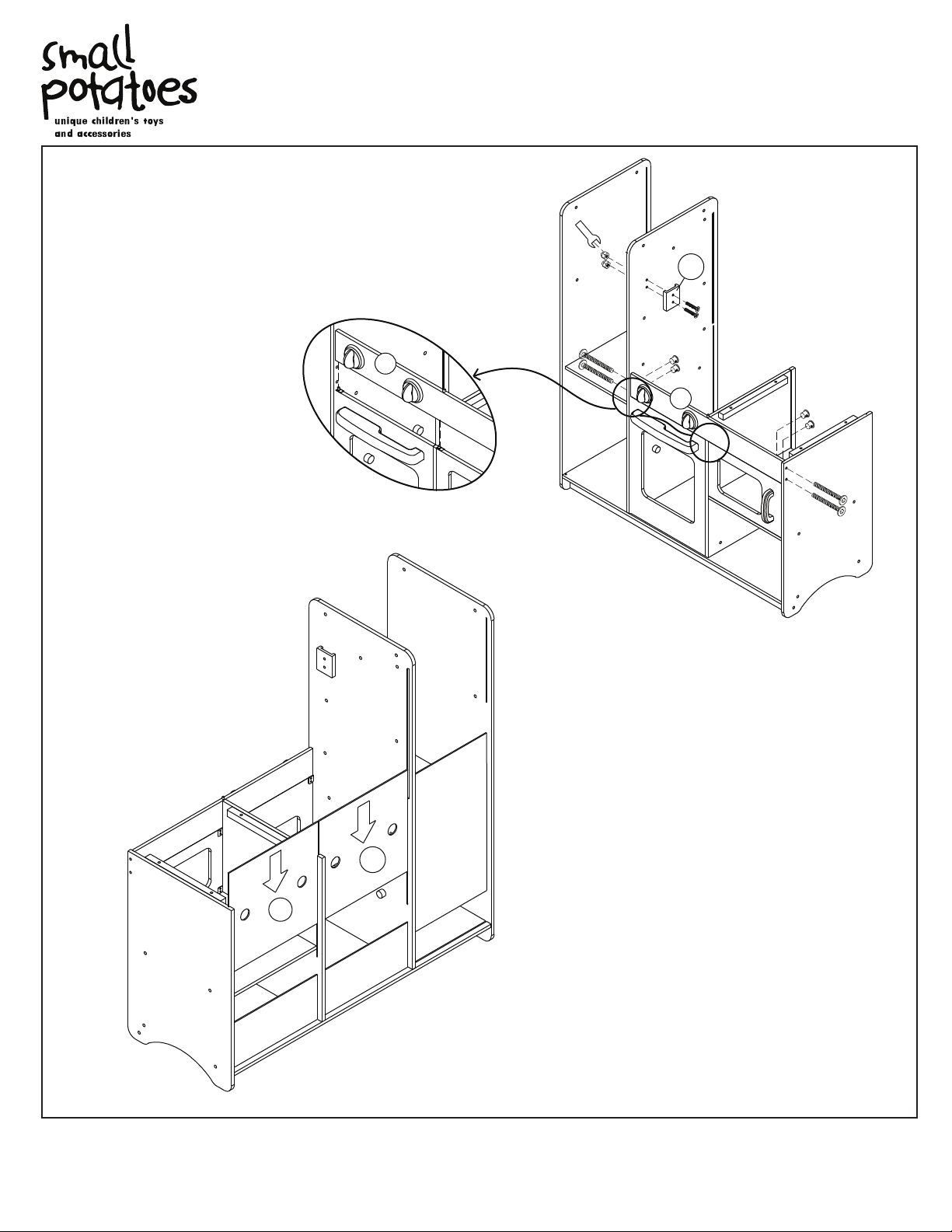

Step 8
Step 9
6
Customer Service
1-800-933-0771
www.kidkraft.com
15
15
K
J
A
A
C
C
17
17
Item# 53176
Pastel Cozy Kitchen
Assembly Instructions

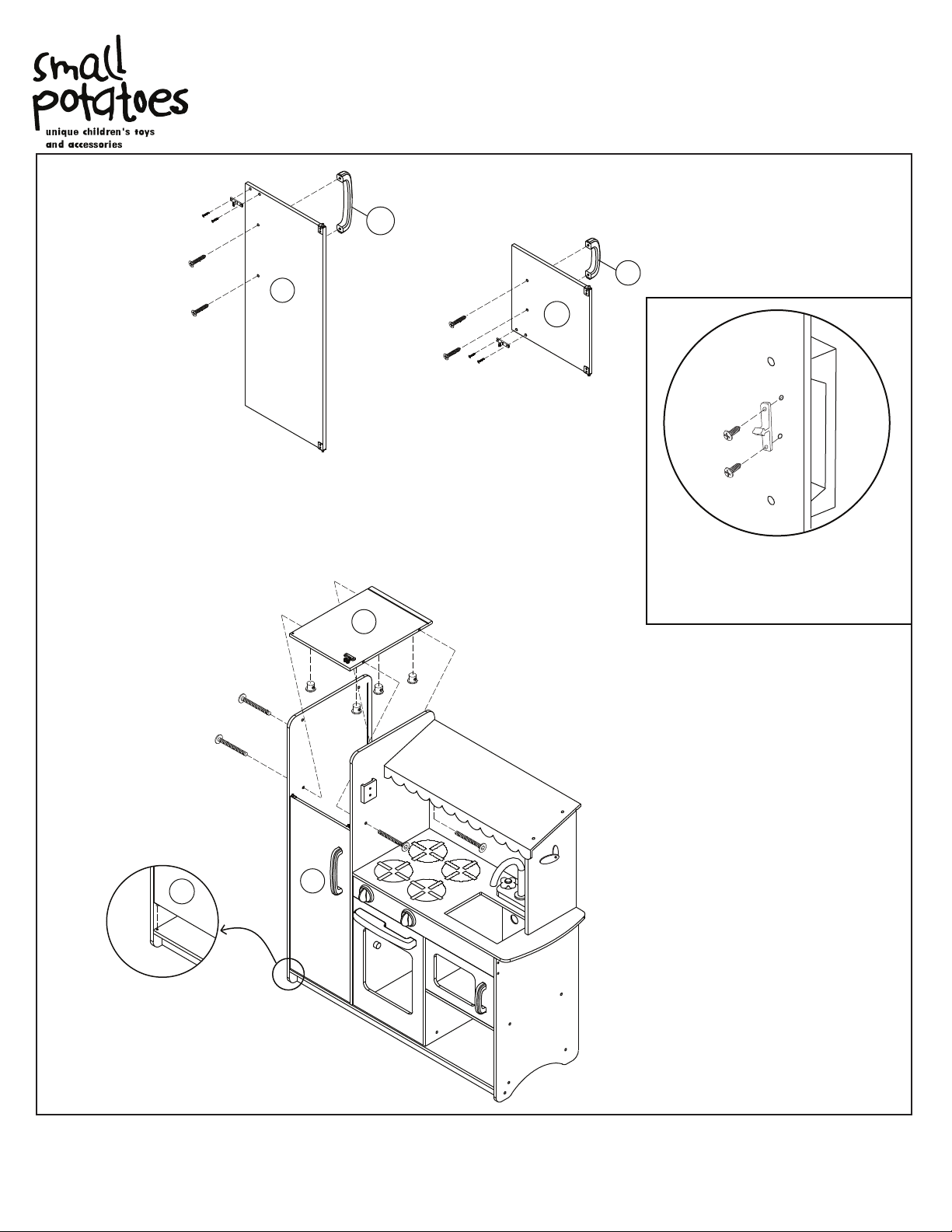

16

Step 10
Step 11
7
Customer Service
1-800-933-0771
www.kidkraft.com
21
N
N
N
L
I
D
D
D
D
A
A
AA
OO
C
C
C
C
18
19
20
20 20
Item# 53176
Pastel Cozy Kitchen
Assembly Instructions

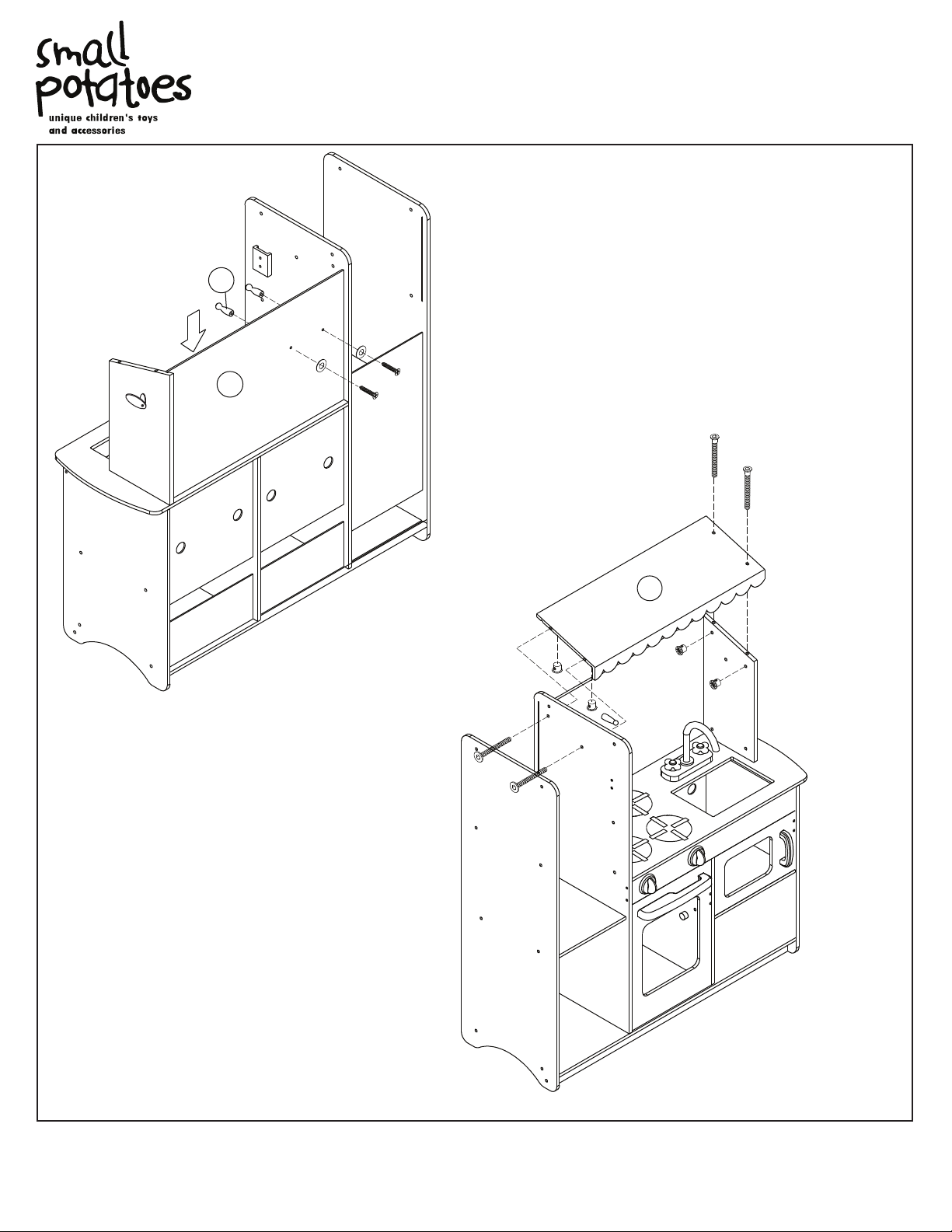

Step 12
Step 13
8
Customer Service
1-800-933-0771
www.kidkraft.com
22
23
D
D
M
M
A
A
24
C
C
C
C
A
A
Item# 53176
Pastel Cozy Kitchen
Assembly Instructions

Step 14
Step 15
9
Customer Service
1-800-933-0771
www.kidkraft.com
*Please apply above step
on all doors for plastic
latch.
29
25
25
A
A
A
A
C
C
C
C
25
26
28
27
G
G
G
G
H
H
H
H
P
P
P
Item# 53176
Pastel Cozy Kitchen
Assembly Instructions

Step 16
Step 17
10
Customer Service
1-800-933-0771
www.kidkraft.com
30
A
A
A
AC
C
CC
27
27
31
Item# 53176
Pastel Cozy Kitchen
Assembly Instructions

Step 18
Step 19
11
Customer Service
1-800-933-0771
www.kidkraft.com
33
32
35
35
35
Item# 53176
Pastel Cozy Kitchen
Assembly Instructions
33

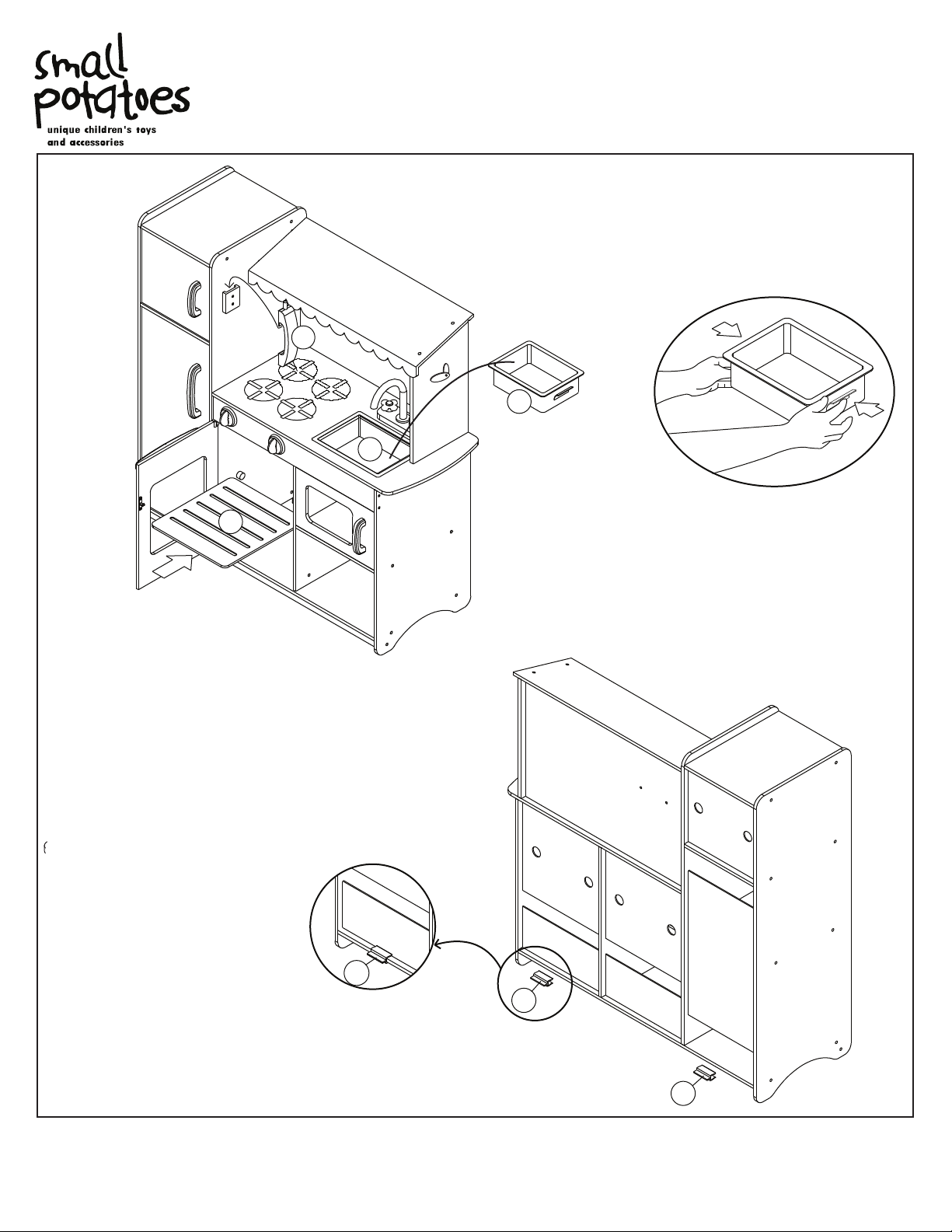

To Remove Sink: The sink
may only be removed by an
adult. Hold the tabs and lift
through the hole to release.
Push sink (part 33)
down until it clicks
into place.
34

12
Step 20
Wash all food/drink playthings thoroughly before use.
Not dishwasher, oven, stove or microwave safe.
Customer Service
1-800-933-0771
www.kidkraft.com
36
37
39
38
Item# 53176
Pastel Cozy Kitchen
Assembly Instructions

IMPORTANT INFORMATION - PLEASE READ FIRST
CLEANING INSTRUCTIONS
SOLE AND LIMITED WARRANTY
ALL OF OUR WOODEN ITEMS ARE HANDCRAFTED, HAND ASSEMBLED, AND HAND PAINTED. EACH
ONE IS UNIQUE. SLIGHT IMPERFECTIONS MAY OCCUR AND ARE NOT MANUFACTURING DEFECTS.
Parental supervision required.
This toy is intended for children of a specific age or above.
Parents should supervise the play area so that children
younger than the intended age range do not interact with
this toy. Use this toy on the floor. Do not allow children
to climb on or around or in the toy.
Wall anchor kit
Now that you've assembled your kitchen, will it be placed
against a wall? For additional stability, KidKraft offers a
Wall Anchor Kit giving you the option of attaching the
kitchen to your wall. The kit is free of charge plus $2.00 for
shipping and handling. Just call customer service at
1-800-933-0771 or go to www.kidkraft.com to order.
PLEASE NOTE THAT WE DO NOT WARRANTY AGAINST THE USE OF PERMANENT MARKERS, NON-
WATER-BASED PAINTS, CRAYONS, OR WASHABLE MARKERS. SOME OF THESE ITEMS CONTAIN
PERMANENT COLOR DYES THAT COULD DAMAGE THE SURFACE.
CLEAN THE SURFACE USING A SLIGHTLY DAMP CLOTH AND MILD DISH WASHING LIQUID IF
NECESSARY. DO NOT USE ANY CLEANING PRODUCT CONTAINING ALCOHOL OR AMMONIA. THESE
WILL DULL THE SHINY SURFACE OF THE PRODUCT. FURNITURE POLISH WILL ALSO WORK TO CLEAN
AND DUST OFF THE SURFACE.
THIS TOY IS WARRANTED SOLELY AGAINST MANUFACTURING DEFECTS FOR A PERIOD OF 90 DAYS
FROM THE DATE OF PURCHASE, WHICH RUNS ONLY TO THE ORIGINAL USER OF THE TOY. IN THE
EVENT OF A MANUFACTURING DEFECT, PARTS WILL BE REPLACED OR THE ENTIRE PRODUCT WILL
BE REPLACED OR THE PURCHASE PRICE WILL BE REFUNDED, AT THE ELECTION OF THE
MANUFACTURER. TO ACTIVATE AND PROTECT THIS WARRANTY, PRESERVE EVIDENCE OF
ORIGINAL PURCHASE AND CAREFULLY INSPECT THE CONDITION OF THE TOY PRIOR TO AND AFTER
ASSEMBLY, LOOKING FOR MISSING, DEGRADED, BROKEN OR HAZARDOUS PARTS, INCLUDING
PARTS WHICH CAN BE SWALLOWED BY A CHILD, CAUSE A CHILD TO CHOKE, OR OTHERWISE CAUSE
INJURY. SUCH PARTS MAY INCLUDE MAGNETS, WHEELS, HUBS, FASTENERS, AND CONNECTORS.
SHOULD YOU OBSERVE ANY DEFECTS, DO NOT USE THE TOY AND IMMEDIATELY NOTIFY THE
MANUFACTURER. FAILURE TO DO SO SHALL CONSTITUTE MISUSE. MISUSE, IMPROPER ASSEMBLY,
FAILURE TO HONOR A WARNING, FAILURE TO SUPERVISE, INSPECT OR MAINTAIN THE TOY, OR
DAMAGE TO THE TOY, WHETHER INTENTIONAL OR INADVERTENT, SHALL INVALIDATE THIS WARRANTY.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH
VARY FROM STATE TO STATE.
TO SUBMIT A WARRANTY CLAIM PLEASE CONTACT KIDKRAFT CUSTOMER SERVICE AT 1-800-933-0771
FOR INSTRUCTIONS ON HOW TO PROVIDE PROOF OF PURCHASE AND HOW TO RETURN THE ITEM
FREIGHT PRE-PAID.
WE RECOMMEND THAT YOU TEST ALL CLEANING MATERIALS ON THE UNDERSIDE OF ANY SURFACE
THAT WOULD NOT BE SEEN DURING NORMAL USE OF THE PRODUCT. IF YOU HAVE QUESTIONS
REGARDING THE MAINTENANCE OF THIS PRODUCT PLEASE FEEL FREE TO CALL US.
