CONTENTS
SOLAR POWERED
Pump, Panel and Remote Kit
(2150PKD-G)
BATTERY DISPOSAL
GB Dispose of batteries according to local regulations.
GB If your remote control stops working you can replace the internal battery. Remove the 3 screws as
shown and replace with the same battery type 23A 12V Battery (A23/MN21)
GB 1. Check the fountain is positioned correctly, receiving sunlight and not in shade.
2. Check water level and ensure the pump is submerged.
3. Check connections between the pump and panel and battery.
4. Clean all parts as shown and change water.
5. Check tubes are connected and bung is securely fitted.
6.
7.
Check battery and boost charge it as described.
If problems persist contact customer services.
PROBLEM SOLVING
www.sgpuk.
Smart Garden Products Ltd, 2 Pentagon South, Barton Lane, Abingdon, Oxfordshire, OX14 3PZ
9 Rue de Condé, 33000 Bordeaux, France.
1 YEAR WARRANT

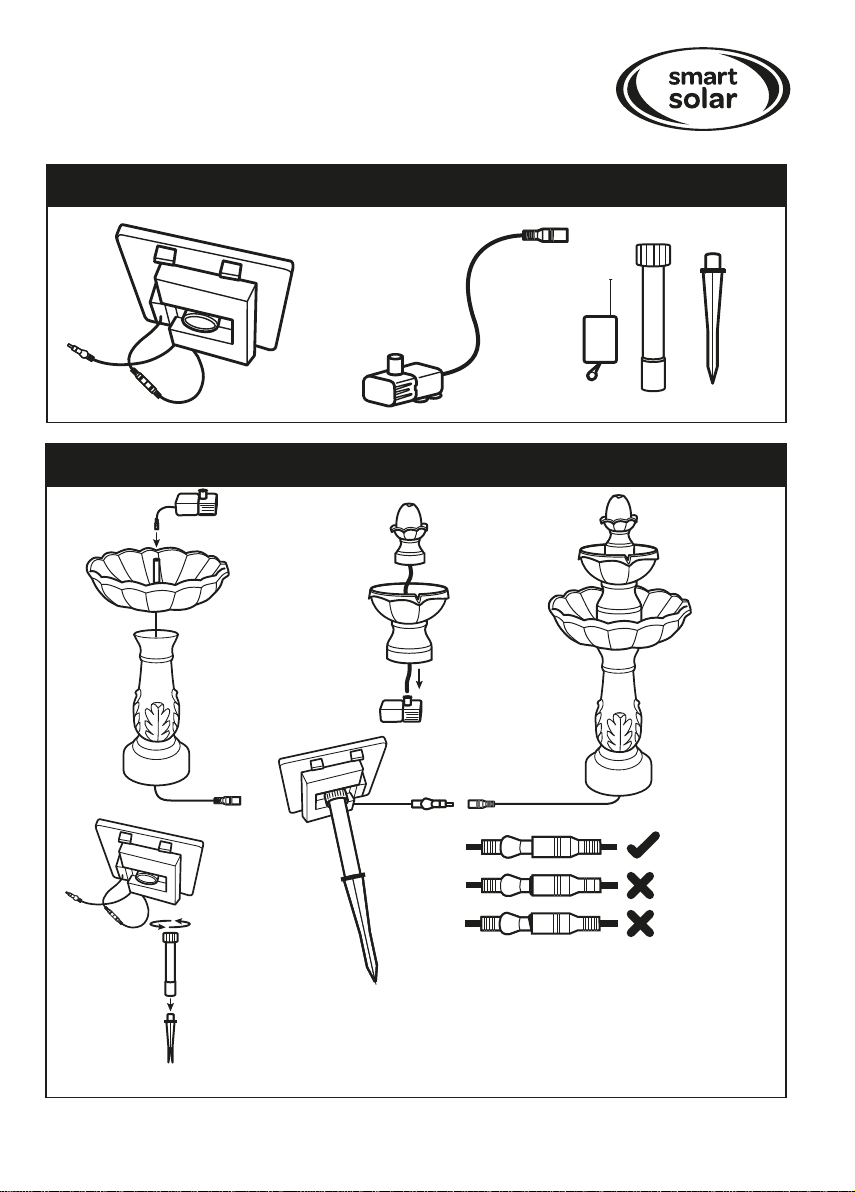

1. Run pump cable through the water feature.
2. Fit the tube from the finial to the pump.
3. Screw the post to bottom of the solar panel.
4. Fit spike to the post.
5. Connect panel to the pump
INSTALLATION
Ensure connectors are water tight.
Downloaded from www.watergardeningdirect.com

GB Position the solar panel to
receive the maximum amount of
direct sunlight
GB Panel is supplied with the switch in the OFF position to protect the internal rechargeable battery.
The switch can be used to select between BATTERY and SOLAR modes or to switch the unit OFF.
GB When switched to SOLAR mode the pump will only work when the solar panel is receiving direct
sunlight. Performance is directly related to the amount and strength of sunlight received. Remote
control will not function and indicator lights will not illuminate when switched to this mode. We
recommend this mode if you are at home during the day and want to enjoy your fountain with
minimum interaction.
OPERATION
POSITION
ON 4H
24H TIMER
BATTERY OFF SOLAR
BATTERY OFF SOLAR
SOLAR MODE
BATTERY OFF SOLAR
GB When switched to BATTERY mode the solar panel will charge the internal battery so that power is
stored for when you want to use it. The pump can now be activated using the remote control or
the push button switches on the back of the panel. We recommend that you charge the battery
for 2 days before first using the pump to ensure optimum performance; simply leave the solar
panel in the sun for 2 days with the switch in the BATTERY or OFF position.
BATTERY MODE
Downloaded from www.watergardeningdirect.com

BATTERY MODE - MODE BATTERY - BATTERIE MODUS

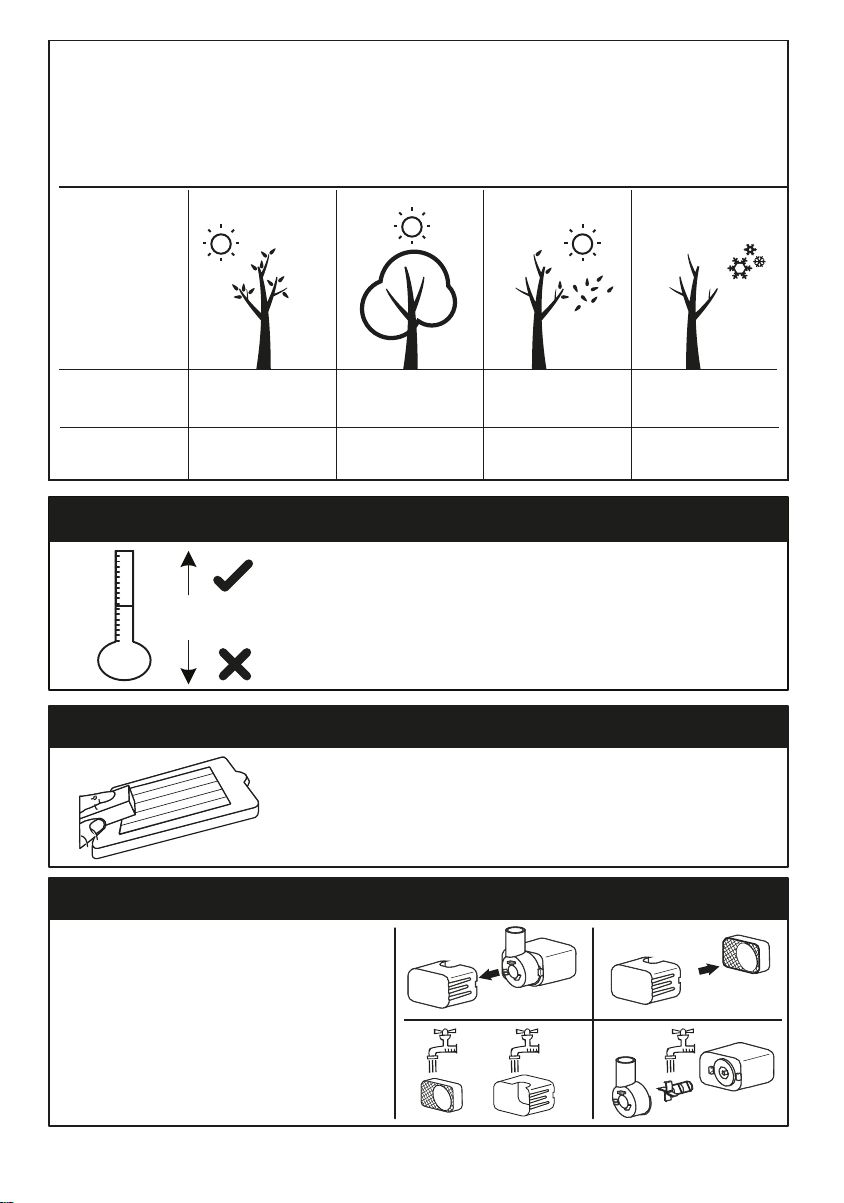

GB The battery has capacity for up to 8 hours of operation, 2 cycles of 4 hours. The table below shows
how long on average it will take to fully charge from flat. In most cases it will not take this long as
there will be charge left in the battery.
To fully charge 3-4 days 2 days
Spring Summer
3-4 h
Charge per day
6
FROST
0°C/32°F
GB Frost causes damage, so we recommend that you store
the whole fountain inside during cold weather.
MAINTENANCE
GB Regularly clean the solar panels using water or
glass cleaner, in conjunction with a non-abrasive sponge.

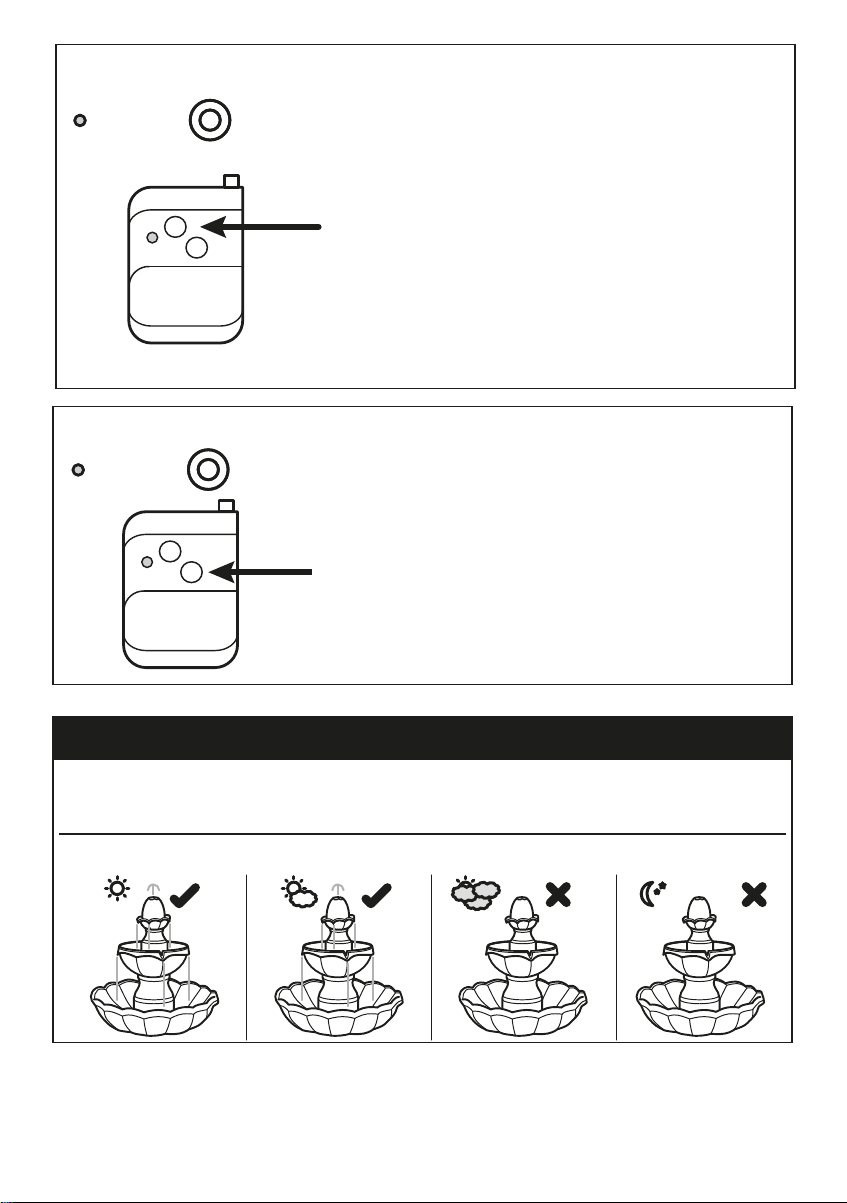

GB Press button A on the remote control or ON 4H on the
back of the solar panel to switch the pump on. Press again
and the pump will switch off. The red indicator light on the
back of the panel will illuminate and remain on whilst the
pump is operating. The red indicator light on the remote
control will illuminate when you press the button to
confirm a signal has been sent. The pump will
automatically switch off after 4 hours to conserve battery
power. We recommend this mode if you want total
control to switch on and off when required and even
operate in the evening when it is dark.
ON 4 HOURS
ON 4H
B
A
24 HOUR TIMER
24H TIMER GB Press button B on the remote control or 24H TIMER on
the back of the solar panel to activate the 24 hour timer.
The pump will switch on and work for 4 hours before
switching off. On subsequent days the pump will switch
on automatically at the same time and run for 4 hours.
This timer function will continue until you press button B
again. You can reset the on time by simply switching off
and then on again at your desired time. The red indicator
light on the back of the panel will illuminate and remain on
whilst the unit is in timer mode. We recommend this
mode if you prefer to have a regular daily cycle.
B
A
SOLAR MODE - MODE SOLAR - SOLAR MODE
GB This product is designed primarily to operate in summer months but the battery function will allow
it to work in spring/autumn and even winter provided there is strong sunshine. Performance is
directly related to the amount and strength of sunlight received.
PERFORMANCE
Downloaded from www.watergardeningdirect.com

BATTERY MODE - MODE BATTERY - BATTERIE MODUS
GB The battery has capacity for up to 8 hours of operation, 2 cycles of 4 hours. The table below shows
how long on average it will take to fully charge from flat. In most cases it will not take this long as
there will be charge left in the battery.
To fully charge 3-4 days 2 days 3-4 days
Spring Summer Autumn Winter
12+ days
3-4 h 5-6 h 3-4 h 0.5-1 h
Charge per day
FROST
0°C/32°F
GB Frost causes damage, so we recommend that you store
the whole fountain inside during cold weather.
MAINTENANCE
GB Regularly clean the solar panels using water or
glass cleaner, in conjunction with a non-abrasive sponge.
PUMP CLEANING
Filter
GB Use water or glass cleaner.
Downloaded from www.watergardeningdirect.com

2
GB Rechargeable battery packs become less efficient with repeated charge and discharge cycles. The
capacity of the battery may also reduce over time and you may not achieve the 12 hour operation. If
you find that the battery appears less efficient or does not run as long, we first suggest you try to
boost charge it. To do this leave off for 3 to 5 sunny days to allow the maximum charge to the battery.
We suggest you do this occasionally anyway to help prolong the battery life. If after this boost charge
your battery still does not perform to expectations you should seek a replacement from Smart Solar
(available via our website www.sgpuk.com). All our battery packs are covered by a 1 year warranty.

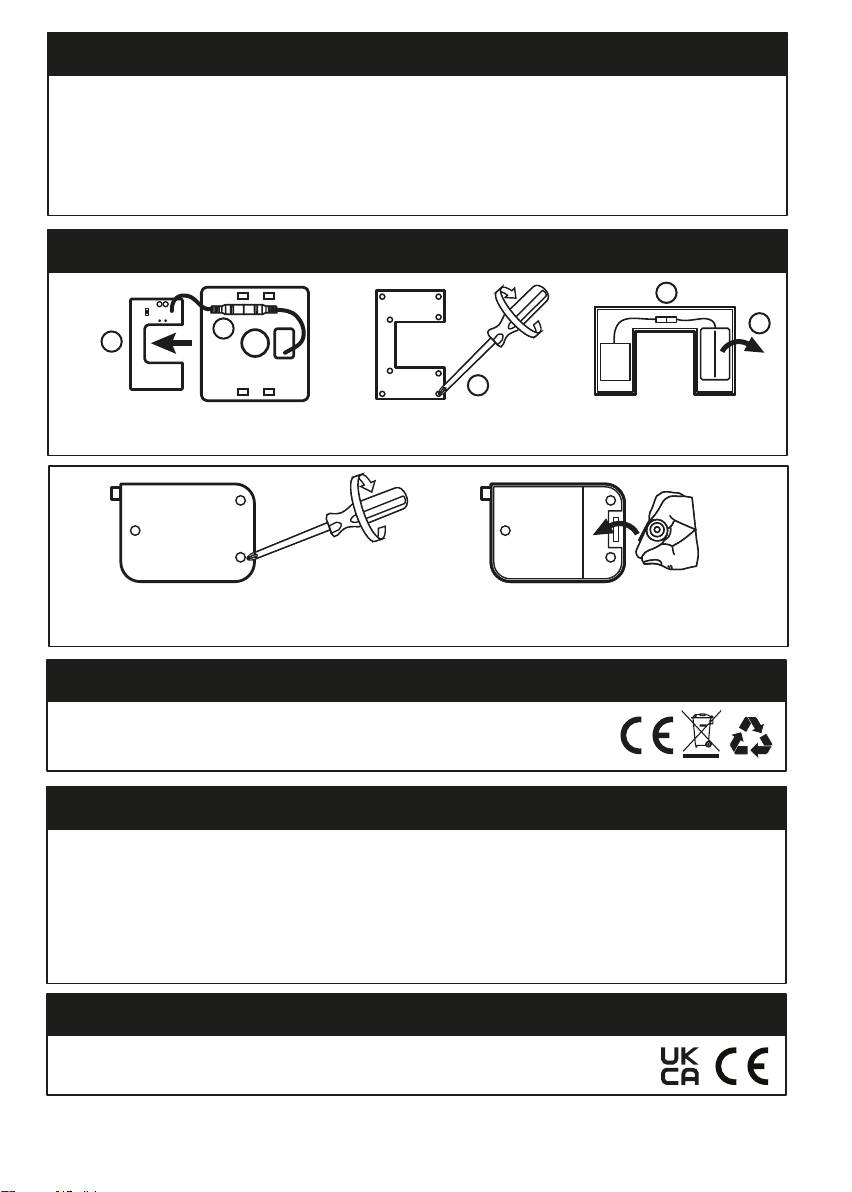

GB Unplug the battery connector (1) and slide out the battery case (2). Undo the 8 screws (3) and
remove the cover. Disconnect the battery connector (4), replace the battery (5) and reconnect.
BATTERY
CHANGE BATTERY - CHANGEMENT DE BATTERIE - BATTERIEWECHSEL
1
2
3
4
5
x8
BATTERY DISPOSAL
GB Dispose of batteries according to local regulations.
GB If your remote control stops working you can replace the internal battery. Remove the 3 screws as
shown and replace with the same battery type 23A 12V Battery (A23/MN21)
GB 1. Check the fountain is positioned correctly, receiving sunlight and not in shade.
2. Check water level and ensure the pump is submerged.
3. Check connections between the pump and panel and battery.
4. Clean all parts as shown and change water.
5. Check tubes are connected and bung is securely fitted.
6.
7.
Check battery and boost charge it as described.
If problems persist contact customer services.
x3
PROBLEM SOLVING
www.sgpuk.com
Smart Garden Products Ltd, 2 Pentagon South, Barton Lane, Abingdon, Oxfordshire, OX14 3PZ
9 Rue de Condé, 33000 Bordeaux, France.
1 YEAR WARRANTY
GB Tel: +44(0)1443 843306
