Page 1 of 5 2 Light T8 Wall Mount Semi-Indirect
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier a Genlyte Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2005 Genlyte Group LLC • 0205 Rev.1
Ordering Information
Family
T= T8
8 = Wall Mount
02 LN
T
8
BSL
02 = 2 Light 04 = 4’
08 = 8’
12 = 12’
C= Custom Color
W= Standard
White
Distribution Lamp Type No. of Lamps Housing Module Length Wiring Voltage Ballast Finish
Weight = 3.0 lb./ft
LN = Perforated 1= 120V
2= 277V E = Standard
<20% THD
F = Standard
<20% THD
w/fusing
G = <10% THD,
Instant Start
H = <10% THD,
Instant Start
w/fusing
J = <10% THD,
Program Start
K = <10% THD,
Program Start
w/fusing
1= 1cct.
2= 2cct.
3 = 1cct. w/EC/NL
4 = 2cct. w/EC/NL
5= 1cct. w/EM Battery
6= 2cct. w/EM Battery
7= 1cct. w/Dimming
8 = 1cct. w/1cct.
Thru wire
9= 2cct. w/1cct.
Thru wire
Note: Please consult
wiring section of spec
sheets for more
wiring options.
Specifications
Features
1. Housing: die-formed 20ga. cold rolled steel
2. End Set: die-cast metal with baked powder coat finish
3. Lamping: two T8 lamps
4. Configuration: 4’, 8’ and 12’ module lengths or continuous rows
5. Ballasts: electronic 120V or 277V
Finish
High-quality white powder coat with textured matte finish.
Custom colors available. Consult factory.
Mounting
Flexible mounting locations.
Electrical
All luminaires are factory pre-wired to module ends with quick-wire
connectors.
Joints & Intersections
Self-aligning joining system with hands-free pre-joining wire access.
Labels
UL, CSA standards.
Individual Fixtures
1. Determine the number of individual modules required
2. Order one end set per module
3. Order one non-power mount per module
4. Order one power mount per module
Continuous Rows*
1. Determine run length
2. Order the appropriate number and length of modules for complete run
3. Order one end set for each run
4. Order one non-power mount for each module
5. Order one power mount per run
6. Order one joiner per module minus one (e.g. 3 modules requires 2 joiners)
*Note: Some runs may require additional power mounts. Please see the
‘Run Configuration’ table on the next page for more details.
Ordering Instructions



Lighting Systems Baselyte-BSL19
Page 2 of 5 2 Light T8 Wall Mount Semi-Indirect
Lightolier a Genlyte Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2005 Genlyte Group LLC • 0205 Rev.1
Job Information Type:

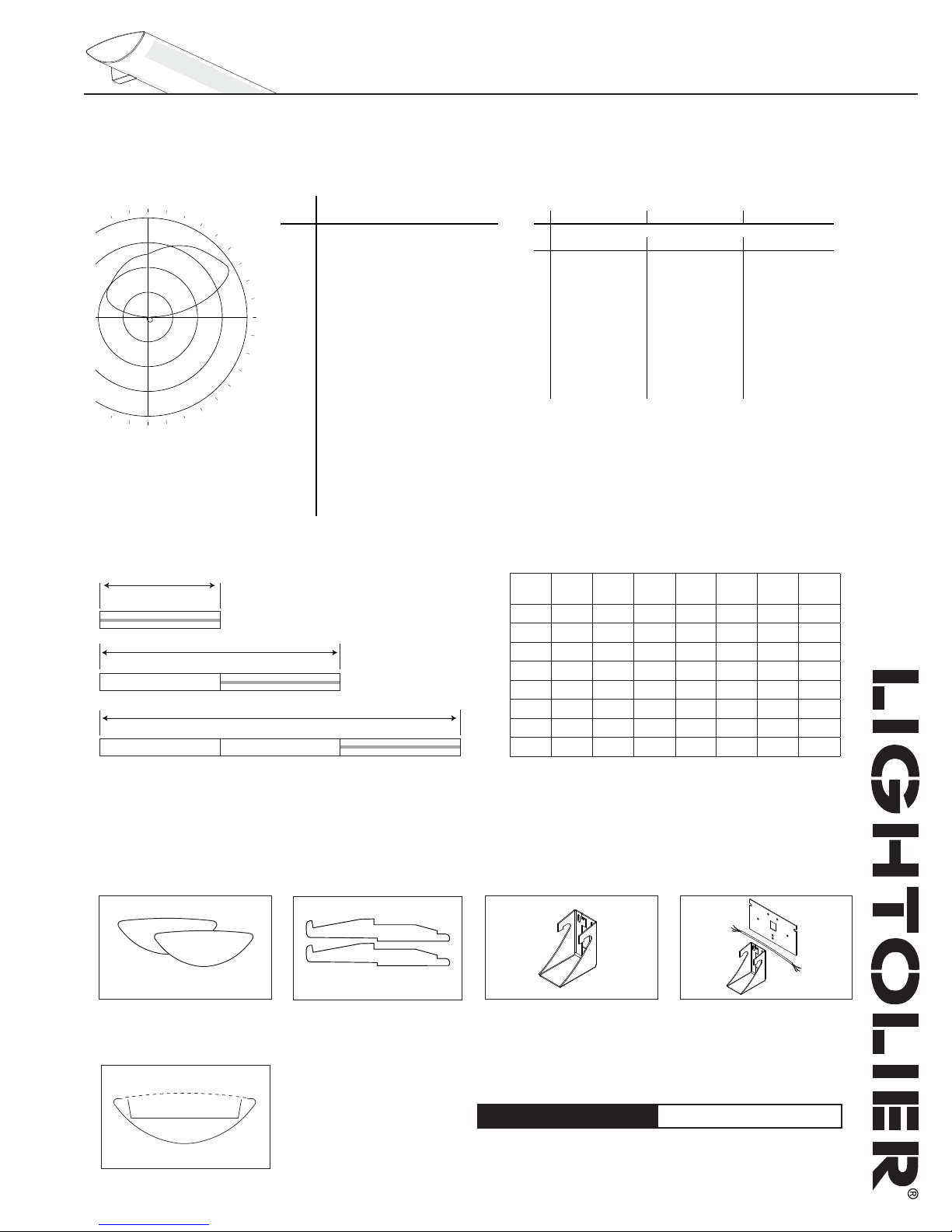

Performance
Candlepower Curve Candlepower Summary Coefficients of Utilization
Report No: 9900043
Lamps: F32T8
Lumens per Lamp: 2950
Efficiency: 69.8%
Up: 95.6% Down: 4.4%
Zonal Lumen Summary
ZONE LUMENS %BARE LAMP %LUMINAIRE
CANDLEPOWER SUMMARY
ZONE CANDLEPOWER
DEG. 0 45 90 135 180
180 889 889 889 889 889
175 928 915 884 880 879
165 1023 965 856 851 854
155 1113 1004 798 800 807
145 1188 1017 719 728 758
135 1245 1002 613 651 714
125 1314 993 488 577 688
115 1196 974 343 522 636
105 761 700 194 413 457
95 276 231 47 115 110
90 38 20 2 4 3
85 42 23 4 4 3
75 56 35 8 4 3
65 68 47 11 5 4
55 77 57 19 8 6
45 82 63 27 11 8
35 82 66 36 19 14
25 77 66 43 29 24
15 68 61 48 39 35
5 57 55 51 47 46
0 51 51 51 51 51
COEFFICIENTS OF UTILIZATION
% EFFECTIVE CEILING CAVITY REFLECTANCE
80 70 50
% WALL REFLECTANCE
50 30 10 50 30 10 50 30 10
0 67 67 67 58 58 58 40 40 40
1 58 56 53 50 48 46 35 34 32
2 51 47 43 44 40 38 30 28 27
3 44 40 36 38 34 31 27 24 22
4 39 34 30 34 29 26 23 21 19
5 34 29 25 30 25 22 21 18 16
6 31 25 22 26 22 19 18 16 13
7 27 22 19 24 19 16 17 14 12
8 25 20 16 21 17 14 15 12 10
9 22 17 14 19 15 12 13 11 9
10 20 15 12 17 13 11 12 10 8
ZONAL LUMEN SUMMARY
ZONE LUMENS % BARE LAMP %LUMINAIRE
0-90
90-180
0-180 4138
3955.5
182.5 4.4
95.6
100.0
3.1
67.0
70.1
COEFFICIENTS OF UTILIZATION
% EFFECTIVE CEILING CAVITY REFLECTANCE
80 70 50
% WALL REFLECTANCE
50 30 10 50 30 10 50 30 10
0 67 67 67 58 58 58 40 40 40
1 58 56 53 50 48 46 35 34 32
2 51 47 43 44 40 38 30 28 27
3 44 40 36 38 34 31 27 24 22
4 39 34 30 34 29 26 23 21 19
5 34 29 25 30 25 22 21 18 16
6 31 25 22 26 22 19 18 16 13
7 27 22 19 24 19 16 17 14 12
8 25 20 16 21 17 14 15 12 10
9 22 17 14 19 15 12 13 11 9
10 20 15 12 17 13 11 12 10 8
ZONAL LUMEN SUMMARY
ZONE LUMENS % BARE LAMP %LUMINAIRE
0-90
90-180
0-180 4138
3955.5
182.5 4.4
95.6
100.0
3.1
67.0
70.1








































Module Lengths & Mounting Distances Run Configuration
Run
Length
4’
Module
8’
Module
12’
Module Joiner End Set Mount Power Mount*
4’ run 1 1 1 1
8’ run 1 1 1 1
12’ run 1 1 1 1
16’ run 2 1 1 2 1
20’ run 1 1 1 1 2 1
24’ run 2 1 1 2 1
28’ run 2 1 2 1 3 1
32’ run 1 2 2 1 3 1
-ODULE,ENGTH
-OUNTING$ISTANCE
-ODULE,ENGTH-OUNTING$ISTANCE
-ODULE,ENGTH-OUNTING$ISTANCE
@
@
@
Note: Shaded area indicates locations of emergency sections (emergency wiring
controls all lamps or optional battery pack controls one or two lamps).
*Note: Additional power mounts may be required for some runs with T5 HO
lamping options, longer runs, and runs with wiring options that are more complex.
Please consult factory for assistance.
Joiner
BSLEWW = wall mount standard white
Dust Cover
End Set
BSLJW = wall mount joiner
BSLDCW = 4’ wall mount dust cover
System Components & Accessories
Non-Power Wall Mount Power Wall Mount
BSLWP1 = 1-power mount
BSLWP2 = 2-power mount
BSLWN = non-power wall mount

Lighting Systems Baselyte-BSL19
Page 3 of 5 2 Light T8 Wall Mount Semi-Indirect
Lightolier a Genlyte Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2005 Genlyte Group LLC • 0205 Rev.1
Job Information Type:
Wiring Options: 1 Circuit
1 Circuit with Emergency Circuit/Night Light (EC/NL)
One 4’ section in a one circuit fixture to be wired on a separate thru circuit. Leads for both normal
circuit and EC/NL circuit wired to fixture ends. All lamps in EC/NL section to be wired together.
Type 3: 1cct. w/EC/NL
All lamps wired on one circuit.
1 Circuit
Type 5: Chloride standard
C700A
Type M: Bodine standard
B70A
Type E: Chloride high performance
C1400
Type P: Bodine high performance
B50
All lamps wired on one circuit, plus a battery pack is wired to one lamp. A hot lead is connected
to the battery pack and would function as a ‘trigger’ wire when connected to a constant hot by
installer. Leads for both normal circuit and battery pack are wired to fixture ends.
1 Circuit with Emergency Battery Pack (EM)
One 4’ section in a one circuit fixture to be wired on a separate thru circuit, in addition, a battery
pack is wired to one lamp. Installer can connect ‘trigger’ wire to EC hot lead if controlled together
or wire separately if controlled independently. Leads for normal circuit, EC/NL and EM wired to
fixture ends. All lamps in EC/NL section to be wired together.
1 Circuit with Emergency Circuit/Night Light and Emergency Battery Pack
Type J: Chloride standard
C700A










%#.,
%#.,
� �
� ��
%-




%#.,
%#.,%-
Type 1: 1cct.
Type 8: 1cct. w/1cct. thru wire
Type H: 1cct. w/2cct. thru wire
Type 7: 1cct. w/dimming
*Note: Multi-lamp battery packs are also available.
*Note: Multi-lamp battery packs are also available.

Lighting Systems Baselyte-BSL19
Page 4 of 5 2 Light T8 Wall Mount Semi-Indirect
Lightolier a Genlyte Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2005 Genlyte Group LLC • 0205 Rev.1
Job Information Type:
Wiring Options: 2 Circuit Left/Right Switching
Type 6: Chloride standard
C700A
Type N: Bodine standard
B70A
Type F: Chloride high performance
C1400
Type Q: Bodine high performance
B50
Fixture wired for two circuits (left/right switching), plus a battery pack is wired to one lamp. A
hot lead is connected to the battery pack and would act as a ‘trigger’ wire when connected to a
constant hot by installer. Leads for both normal circuit and battery pack are wired to fixture ends.
2 Circuit Left/Right Switching with Emergency Battery Pack (EM)
2 Circuit Left/Right Switching with Emergency Circuit/Night Light (EC/NL)
One 4’ section in two circuit fixture (left/right switching) to be wired on a separate thru circuit.
Leads for both normal circuit and EC/NL circuit wired to fixture ends. All lamps in EC/NL section to
be wired together.
Type 4: 2cct. w/EC/NL
Fixture wired for two circuit. Lamps wired for left/right switching.
2 Circuit Left/Right Switching
Type 2: 2cct.
Type 9: 2cct. w/1cct. thru wire
Type I: 2cct. w/2cct. thru wire
One 4’ section in a two circuit fixture (left/right switching) to be wired on a separate thru circuit, in
addition, a battery pack is wired to one lamp. Installer can connect ‘trigger’ wire to EC hot lead if
controlled together or wired separately if controlled independently. Leads for normal circuit, EC/NL
and battery pack are wired to fixture ends. All lamps in EC/NL section to be wired together.
2 Circuit Left/Right Switching with Emergency Circuit/Night Light and Emergency Battery Pack
Type K: Chloride standard
(C700A for T8, CTP700 for T5 HO)










%#.,
%#.,



%-




%#.,
%#.,%-
*Note: Multi-lamp battery packs are also available.
*Note: Multi-lamp battery packs are also available.

Lighting Systems Baselyte-BSL19
Page 5 of 5 2 Light T8 Wall Mount Semi-Indirect
Lightolier a Genlyte Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2005 Genlyte Group LLC • 0205 Rev.1
Job Information Type:
Wiring Options: 2 Circuit A/B Switching (alternate 4’ sections)
Type D: Chloride standard
C700A
Type O: Bodine standard
B70A
Type G: Chloride high performance
C1400
Type R: Bodine high performance
B50
Fixture wired for two circuits (A/B switching), plus a battery pack is wired to one lamp. A hot lead
is connected to the battery pack and would act as a ‘trigger’ wire when connected to a constant hot
by installer. Leads for both normal circuit and battery pack are wired to fixture ends.
2 Circuit A/B Switching (alternate 4’ sections) with Emergency Battery Pack (EM)
Fixture wired for two circuit. Lamps wired for A/B switching in alternate 4’ sections.
2 Circuit A/B Switching (alternate 4’ sections)
2 Circuit A/B Switching (alternate 4’ sections) with Emergency Circuit/Night Light (EC/NL)
One 4’ section in a two circuit fixture (A/B switching) to be wired on a separate thru circuit. Leads
for both normal circuit and EC/NL circuit wired to fixture ends. All lamps in EC/NL section to be
wired together.
Type C: 2cct. w/EC/NL
One 4’ section in a two circuit fixture (A/B switching) to be wired on a separate thru circuit, in
addition, a battery pack is wired to one lamp. Installer can connect ‘trigger’ wire to EC hot lead if
controlled together or wired separately if controlled independently. Leads for normal circuit, EC/NL
circuit and battery pack are wired to fixture ends. All lamps in EC/NL section to be wired together.
2 Circuit A/B Switching (alternate 4’ sections) with Emergency Circuit/Night Light and Emergency Battery Pack
Type L: Chloride standard
C700A











%-




%#.,
%#.,%-




%#.,
%#.,
Type B: 2cct. A/B
Type A: 2cct. A/B w/1cct. thru wire
Type S: 2cct. A/B w/2cct. thru wire
*Note: Multi-lamp battery packs are also available.
*Note: Multi-lamp battery packs are also available.
