Smart view INTELLIGENT DS-818F User manual

DVI
SPLITTER
(DS-818F)
1 In 8 Out
USER MANUAL
DS-818F
Package Contents-
 1 Smart View DS-818F DVI Splitter
 1 user manual
 1 AC power cord
 2 rack rails, 6 screws
Any thing missed, please contact with your vendor.
Introduction
Through the DVI (Digital Visual Interface) splitter DS-818F,
you can use one PC to display identical image on 8
monitors or even more.
DVI splitter is ideal for:
 Test bench facilities
 Data Center
 Help desks
Features
 Use PanelLink digital technology.
 Supports high-resolution display up to UXGA
(25-165MHz).
 Can be cascaded.
 Compliant with the specification of DVI 1.0.
 1U rack design.
Specifications
Function DS-818F
Video Input Connector
(DVI Female) 1
Video Output Connector
(DVI Female) 8
Max. Resolution 1600x1200 60Hz
Cable Distance
(Device to Monitor) 10 m (Max.)
Signal Type Standard DVI Signal
Power Adapter (Min.) AC 100V~240V/50~60Hz
Housing Metal
Weight 2530 g
Dimensions (LxWxH) mm 440x185x42
-1-

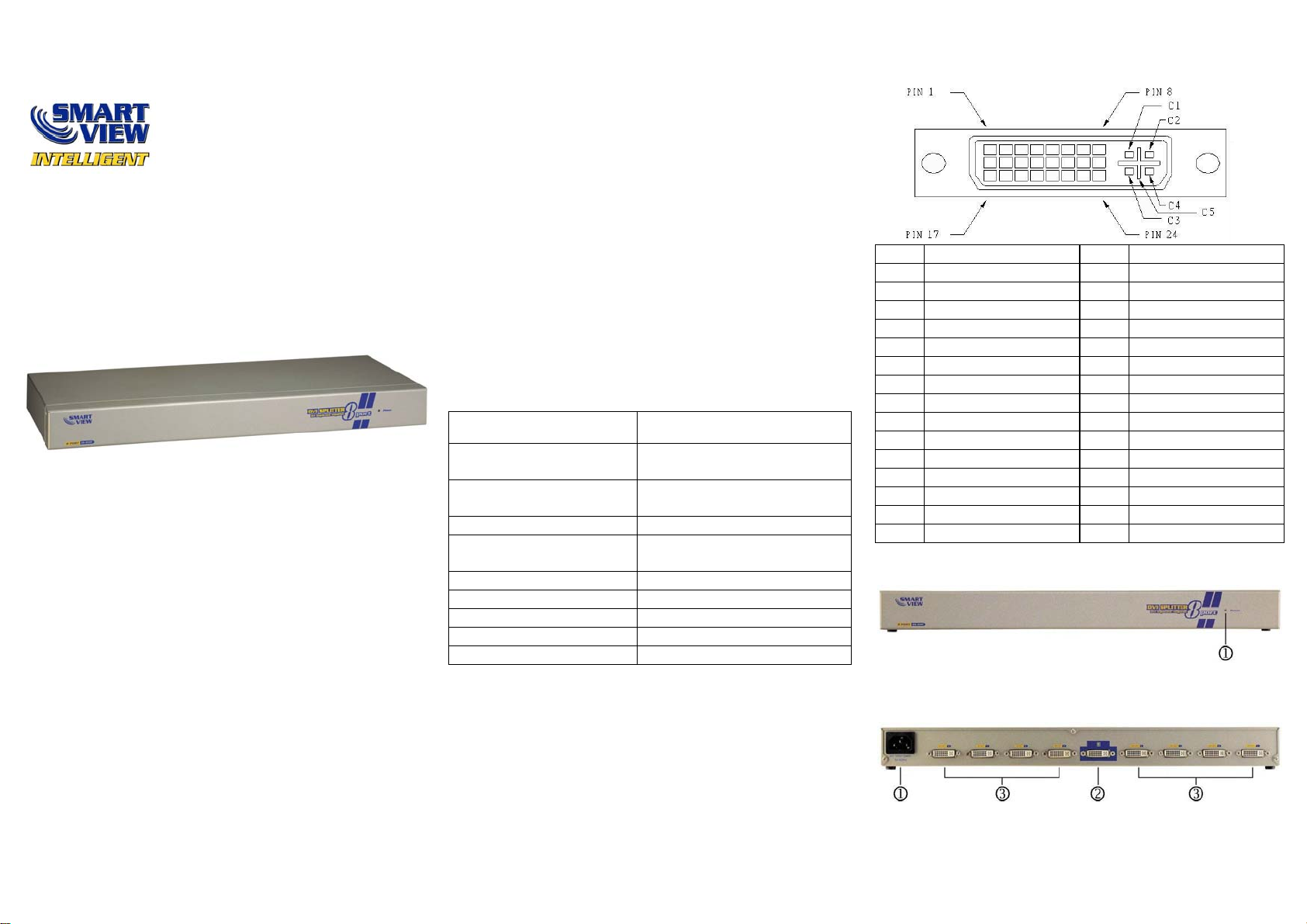

Technical Specifications
Input/Output Signal
Pin # Signal Pin # Signal
1 T.M.D.S Data 2- 16 Hot Plug Detect
2 T.M.D.S Data 2+ 17 T.M.D.S Data 0-
3 T.M.D.S Data 2/4 Shield 18 T.M.D.S Data 0+
4 T.M.D.S Data 4- 19 T.M.D.S Data 0/5 Shield
5 T.M.D.S Data 4+ 20 T.M.D.S Data 5-
6 DDC Clock 21 T.M.D.S Data 5+
7 DDC Data 22 T.M.D.S Clock Shield
8 Analog Vert. Sync 23 T.M.D.S Clock+
9 T.M.D.S Data 1- 24 T.M.D.S Clock-
10 T.M.D.S Data 1+
11 T.M.D.S Data 1/3 Shield C1 Analog Red
12 T.M.D.S Data 3- C2 Analog Green
13 T.M.D.S Data 3+ C3 Analog Blue
14 +5V Power C4 Analog Horz Sync
15 GND C5 Analog Ground
FRONT VIEW
1. Power LED
REAR VIEW
1. Input AC Power Socket
2. “Video In” Port
3. “DVI Out” Port
-2-

Installation
1. Turn off the PC and monitors.
2. Connect the DVI male extension cable between the PC
and the “video in” port of splitter.
3. Connect the DVI male/female extension cables between
the monitors and the “DVI out” ports of splitter.
4. Connect the power cord and turn on the splitter.
5. Turn on the PC and monitors.
Note:
 If you install the DDC monitor for the splitter, the rest of
monitors must be the same resolution as the DDC
monitor.
Operation for cascade:
1. The function to display identical image on more
monitors, you request to attach another splitter.
2. Connect the DVI male/female extension cable
between the former splitter of the “DVI out 1” port and
the latter splitter of the “video in” port.
Note:
Even though you are allowed to cascade the splitter with
varied ports, the image might become unstable if cascade
too many tiers of splitters.
P.S.: The example cascades the 8 ports splitters; however,
you can cascade the DVI splitter with demanded
Port.
© C&C TECHNIC TAIWAN CO., LTD. All rights reserved.
Trademarks:
All the companies, brand names, and product names
referred to this manual are the trademarks or
registered trademarks belonging to their respective
companies.
-3-
