Smart Witness CP2-LTE User manual

R
CP2-LTE
2 Channel HD Recorder
Installation Guide
smartwitness.com
Version 1.0

CP2-NA-LTE -Table of Contents
Warning: 3
Safety Alert: 4
Introduction: 5
Recording 5
Playback & Analysis 5
Package Contents: 6
Hardware Overview: 7
Front View 7
Left Side View 7
Driver-Facing View 8
Top View 8
Installation: 9
First Steps 9
Power Adapter and Wiring: 11
Secondary Camera Connection: 12
Troubleshooting: 13
LED Status: 14

smartwitness.com | 1016 Lunt Ave. Schaumburg, Illinois U.S.A. | Tel: [phone] | [email protected]
3
THIS IS VIDEO TELEMATICS
CP2-NA-LTE
2 Channel HD Recorder
Installation Guide
MODEL: CP2-NA-LTE
Version: 1.0
Warning
SmartWitness installations should be performed by a qualied individual or
installation professional only. Working with a vehicle’s power system can be
dangerous to both you and your vehicle. This installation is intended only to be a
guide since vehicle designs and power/input sources can vary signicantly from
vehicle to vehicle.
If you need to schedule a professional installation service in the USA for your
SmartWitness device(s), please visit smartwitness.com/scheduleinstall and submit
the online form.
All cellular-enabled CP2 devices must use the installation wizard for proper
onboarding and activation, please visit install.smartwitness.com to register, login,
and use the SmartInstall wizard.

smartwitness.com | 1016 Lunt Ave. Schaumburg, Illinois U.S.A. | Tel: [phone] | [email protected]
4R
Safety Alert
Please make sure you follow the safety advice and instructions given in the user guide.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK,
DO NOT REMOVE COVER.
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Caution
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED
BATTERIES ACCORDING TO THE INSTRUCTIONS. Battery for Real Time Clock (RTC) inside.
Caution
Install the product where it does not block driver’s visibility and where there is no airbag
installed. This could cause an accident or might injure passengers in case of accident.
Caution
Damages due to production malfunction, loss of data, or other damages occurring
while using this product shall not be the responsibility of the manufacturer. Although
the product is a device used for recording videos, the product may not save all
videos in the case of a malfunction. In the case of an accident, the sensor may not
recognize the shock when the impact is light and as a result it may not begin recording
automatically.
Warning
TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.

smartwitness.com | 1016 Lunt Ave. Schaumburg, Illinois U.S.A. | Tel: [phone] | [email protected]
5
THIS IS VIDEO TELEMATICS
Introduction
The SmartWitness CP2-LTE is the world’s most advanced incident camera with powerful LTE video
transmission, built-in GPS tracking and drive data. CP2-LTE will record exactly what happened before,
during and after an incident. It does this by recording the following information: Drivers view of
the road, Vehicle Location, Impact Force of Accident, Audio, and Driving Style (speed, acceleration,
braking, and steering). This evidence can protect a driver from many of the issues faced on the roads
today: Insurance fraud, Staged Accidents, False/Exaggerated Whiplash Claims, Conicting Reports of
Actual Events, Driving Oence Allegations (speeding, trac signal violations, swerving, etc.).
When a SIM card is inserted, CP2-LTE is able to send video and driving data via a cellular network
(T-Mobile or AT&T in USA, Bell or Rogers in Canada). North American customers can use the CP2-
LTE to transmit safety critical video directly to a server (SmartWitness server software required), or
integrate with Telematics Software (Please contact us for a list of compatible telematics software).
CP2-LTE can also be used as a stand-alone system utilizing only the SD cards to review video and data
with SmartWitness’ free PC analysis software.
Recording
• View 170° Wide Angle Lens
• Record Full HD 1920x1080 (720p and VGA also supported)
• Record 30 frames per second (FPS is adjustable)
• Record dual mode (Continuous + Event)
• Connect directly to vehicle ignition power, automated operation
• Tamper-Resistant Design, secure cover encloses SD card and SIM card
• Built-in G-Shock Sensor and Gyro (adjustable sensitivity)
• Built-in temperature monitor and intelligence in high-temp environments
• Delay power shutdown feature enables recording for up to 24 hours after ignition o
• Integrated LTE/3G Cellular Modem (2FF SIM size)
Playback and Analysis
• Mac & PC Analysis Software Included
• Compatible with , , and Solutions
• Compatible with SmartWitness for AVL/Telematics Integration (RESTful/JSON API)
• Real-time notication of events and images during road incidents
• Live tracking location and live streaming video available
• Google maps integration for route tracking
• Filter data search by time/date, event, vehicle speed, G-Force level, save/print event reports
• MP4 conversion tool and data is watermarked
• Privacy masking feature for blurring out faces or license plate numbers.
• Advanced driver behavior analysis and reporting software
• OTA software & rmware updates.

smartwitness.com | 1016 Lunt Ave. Schaumburg, Illinois U.S.A. | Tel: [phone] | [email protected]
6R
Package Contents
Product Name Image
CP2-LTE Vehicle Recorder
SD and SIM cards pre-inserted
(If applicable)
Power Adapter
Locking SD/SIM Cover (x1)
Keys (x2)
3M VHB Pads (x2)
(Double sided adhesive for Windshield
mounting)
Alcohol Prep Pads (2)
Wiring Harness
Power Cable
Cord Zip Ties

smartwitness.com | 1016 Lunt Ave. Schaumburg, Illinois U.S.A. | Tel: [phone] | [email protected]
7
THIS IS VIDEO TELEMATICS
Hardware Overview
Watch the SmartWitness CP2-LTE - 360° Hardware Overview here.
Front View
Left Side View
Bracket
GPS/GLONASS
(inside) Cable
Camera Lens
SD Memory Card Slot
SIM Slot
(Mini SIM)
Locking Cover

smartwitness.com | 1016 Lunt Ave. Schaumburg, Illinois U.S.A. | Tel: [phone] | [email protected]
8R
Driver-Facing View
Top View
Communication
Green LED
Warning
Red LED
Panic
Button
Record
Blue LED
G-Sensor
Calibration Button
Windsheild Mount
Pivoting Bracket
Camera Lens
Locking Cover

smartwitness.com | 1016 Lunt Ave. Schaumburg, Illinois U.S.A. | Tel: [phone] | [email protected]
9
THIS IS VIDEO TELEMATICS
Installation
First Steps
1. The SD card and SIM is usually pre-inserted. If it’s not, turn power to the unit o. Then insert
card(s) in the unit, as shown below. Make sure the yellow SD lock is set in the “unlocked position”
2. Then insert the provided SIM card into the second, smaller slot as seen below
3. After inserting the SD & SIM cards, attach the side cover plate as seen below. Use the key provided
to secure the side cover plate to the CP2-LTE:
Note: Step 1 and 2 is applicable only if customer did not order the SIM and SD from SmartWitness
IMPORTANT: The unit’s power must be OFF to insert and/or remove SD snd SIM cards. Failure to turn
the power o will result in damaging the cards.

smartwitness.com | 1016 Lunt Ave. Schaumburg, Illinois U.S.A. | Tel: [phone] | [email protected]
10 R
4. Peel the cover paper from the 3M adhesive on the CP2-LTE top. Mount the fully assembled unit to
the windshield. Holding the camera in position with rm pressure for 30 seconds.
5. Secure the CP2-LTE to the windscreen behind the rear view mirror, below the AS1 line. The camera
lens should be as high on the windshield as possible, but still within the windshield wiper zone.
If installing CP2-LTE into a truck, FMCSA mandates that the camera portion of the device should
reside in the top 2 inches of the vehicle wiper sweep.
6. To adjust the camera angle, you can use the key to unlock and remove the cover plate. Pull or slide
the camera unit to the right of the bracket and rotate to the desired angle. The SmartWitness logo
is parallel to the camera lens. It can be used to rotate the camera lens into proper position as
shown below.
The camera lens should
be in the top 2” of
windshield wiper zone for
optimal placement.
Windsheild
Camera Lens
Note: Make sure that the glass is clean and dry before attaching. The glass temperature should not be
too hot or cold. Please install in moderate temperature (recommended between 50°F ~ 80°F).

smartwitness.com | 1016 Lunt Ave. Schaumburg, Illinois U.S.A. | Tel: [phone] | [email protected]
11
THIS IS VIDEO TELEMATICS
7. When the angle is set, slide the unit to the left, locking the angle of the camera to the windshield
bracket. Connect the power cable before replacing the cover (see ”Power Adapter and Wiring”).
Power Adapter and Wiring
1. To connect the CP2-LTE lead cable to the power adapter (INT1-T), lining up the arrows on the silver
cable connectors and then push together. The power adapter switch can be turned to the “ON”
position.
2. After connecting the power cable to the CP2-LTE power lead, lay out the power cable roughly
where it will run once hidden behind the vehicle’s interior panels. This gives you an idea of where
to route the cable and how much slack to leave on the way down to the vehicle’s power source.
3. Secure the power cable extension into the headliner and down the A-Pillar. Route the power cable
around the side and behind the rest of the interior panels down towards the fuse box / power
source. Make sure the vehicle is o. Connect the 3 required wires from the wire harness to the
vehicle, shown below in the diagram.
OPTIONAL: Remote switch installation (your CP2-LTE may not include this accessory).
CP2-LTE Video Input
(Ch2)
Adapter Plug
DC 5V Out
ON/OFF Switch
Serial Input
RS232
Power Specifications
Input: DC 10~32V, 2A
Output: DC 5V, 3A
Optional
Required
Power (BAT+)
Ground (BAT-)
ACC In (V)
Alarm In, (V)
Alarm In, NC/NO(+)
Alarm Out 1
Alarm In , NC/NO(-)
Red
Black
White
Orange
Green
Yellow
Black
Model: SW-PB
SW-PB Power
SW-PB Ground
Alarm In NC/NO (+)
Alarm In, NC/NO (-)

smartwitness.com | 1016 Lunt Ave. Schaumburg, Illinois U.S.A. | Tel: [phone] | [email protected]
12 R

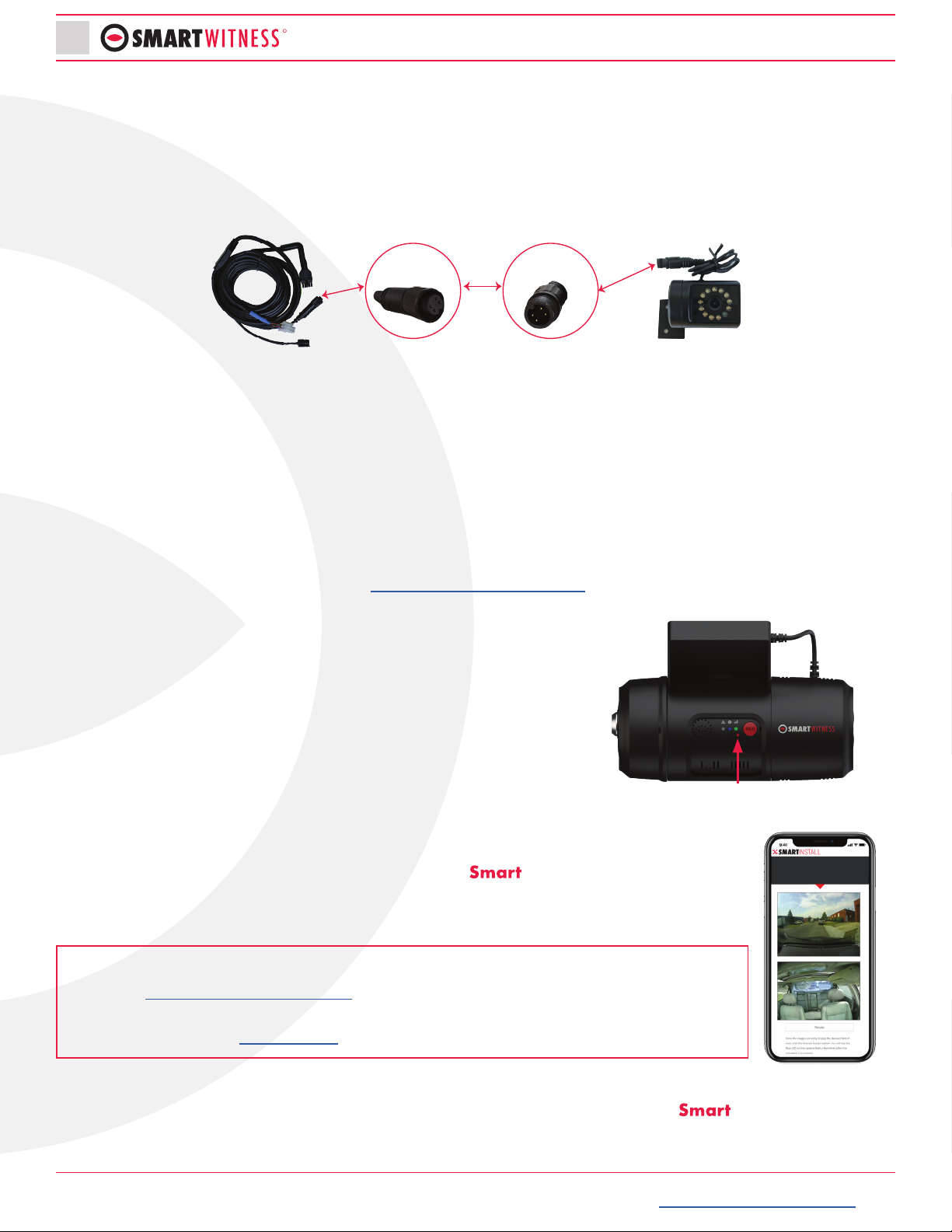

Secondary Camera Connection
A optional secondary camera can also be added to the CP2-LTE via Channel 2 input. The CP2-LTE is
equipped with a simple plug & play connection. Simply connect the male end connector of the into
the female end input on the CP2-LTE and mount the camera to the customer-specied location in the
vehicle. The most common installation of the secondary camera is inside the main cabin and facing
the driver.
Completion & Power-up
After installation of the CP2-LTE and accessories into the vehicle you can turn on the ignition and
CP2-LTE recorder will power on.
1. There will be a sequence of red, blue & green LED lights during the boot-up process.
2. Once boot-up is complete, there will be a solid blue light. This means proper operation and
recording. Shortly after, the green light should become steady, indicating connectivity. If blue and
green LEDs are not both solid after 5 minutes, there is an error, please see “LED Status” on page
14 or contact your supplier or visit support.smartwitness.com to create a support ticket.
3. After the camera has been booted completely, press the
G-Sensor calibration button once (small red button to the
left of the panic button). The vehicle should be parked and
on a at surface when pressing the G-Sensor Calibrate
button.
4. There will be a beep and the CP2-LTE LED light will blink
briey to indicate the G-Sensor calibration has registered.
5. All cellular-enabled SmartWitness recorders must use the
installation wizard for proper onboarding and activation. Please visit
install.smartwitness.com to login to launch the Install wizard in order
to validate and generate the installation report. For installation support
please email [email protected]
6. Give the provided keys, extra parts and a copy of the installation report to the
eet owner/administrator. Also forward the email you received from the Install wizard to the
customer.
Female
Connector
Male
Connector
G-Sensor Calibration
Confirm
NOTE: You must rst go through mandatory training with SmartWitness
to access install.smartwitness.com. One you complete the training (about a
30-minute webinar), you will be provided login credentials. To schedule training,
please complete the online form at (smartwitness.com/become-installer)

smartwitness.com | 1016 Lunt Ave. Schaumburg, Illinois U.S.A. | Tel: [phone] | [email protected]
13
THIS IS VIDEO TELEMATICS
Troubleshooting
1. The CP2-LTE has a solid red light on as well as solid green and blue.
• Solid red LED indicates that the 2nd camera is not receiving video signal.
»Please check the camera’s connection.
2. The CP2-LTE blue light is solid but the green LED is blinking or o.
• Remove, swipe clean, re-insert the SIM card and verify the SIM is inserted correctly.
• If CP2-LTE green LED is still blinking, it may be a camera conguration issue or server issue.
Please contact SmartWitness.
3. The CP2-LTE red LED is blinking
• There is an SD card error/corruption. Please replace/repair the SD card after contacting
SmartWitness Support for instructions at support.smartwitness.com.
4. The CP2-LTE red LED is solid
• There may not be enough voltage/amperage. Check the power source or the ground connection
may be bad.

smartwitness.com | 1016 Lunt Ave. Schaumburg, Illinois U.S.A. | Tel: [phone] | [email protected]
14 R
LED Status
Status / Step LED Sound
Warning Record Network
Red Blue Green
Startup
Booting step1 On O O
Booting step 2 On On and O O
Booting step 3 On On On and O
Booting nished On On On Beep No. 2
Power O During power o O Fast Simultaneous On and
O
Power o nished O O O
Record
Continuous Record Recording On
Event Record
Stand By On
Recording Fast On and
O
Dual Record
Continuous
Recording On
Event Recording Fast On and
O
No Record Not Recorded O
Communication 3G Network Device Ready On
Communication On
Function
SD Initialize (format) O Sequence On and O Continuous
Beep No. 2
G-Sensor Calibration Beep No. 2
FW Upgrade Double Sequence On and
O
Warning System Warning SD card full
Flashing
(blink rate:
fast)
O Beep No. 3
Video loss On
Error Record Error SD error, No SD,
Write Fail
Slow On and
O
O Beep No.3
Communication
Error
3G Network
device error, SIM
error
O
Data Network
connection error
Slow On and
O
DMS
communicate
error
Slow On and
O
Event Trigger G-Sensor, Panic Button, Alarm-In Beep No. 1
Over Speed Beep No. 4
(2 times)

smartwitness.com | 1016 Lunt Ave. Schaumburg, Illinois U.S.A. | Tel: [phone] | [email protected]
15
THIS IS VIDEO TELEMATICS
Notes

smartwitness.com
SmartWitness is a world leading designer, manufacturer, and
supplier of in-vehicle cameras, recorders, and software. Our lineup
of IOT dash cameras and accompanying REST API have allowed
SmartWitness’ video and data to be seamlessly integrated with
GPS tracking, telematics and eet management software, ushering
in the new era of Video Telematics. Our industry-leading safety
technology has produced exceptional results for our clients
and solutions which undeniably redene the way vehicle risk is
analyzed.
R
Video Evidence Capture
High-Resolution cameras capture
images of the road, inside and
outside the vehicles’ sides and rear
views.
GPS Location Recorded
Built-in GPS/Glonass provides precise
event location, route, vehicle speed
and direction.
Network Connected
Cellular connectivity provides real-
time images, live-location, and on-
demand HD video upload.
Events & Driver Analyzed
Detailed telemetry data enables
accurate scoring for the purpose of
driver coaching and reducing claims.
SmartWitness UK
2 Valley Point, Beddington Farm Rd.
Croydon CRO4WP
E: sales @smartwitness.com
T: [phone]
T: [phone]
SmartWitness USA
1016 Lunt Ave., Schaumburg, IL 60193
E: [email protected]
T: [phone]
