This manual will guide you through the process of installing and conguring
your Smartpods Pulse unit for use with your desk.
Before Installing:
It is strongly suggested to move the desk to its minimum and maximum heights
using the original desk handset before beginning the installation. This ensures
the desk is functional, no obstructions are present and that no cable issues are
present (e.g. no cables are too short, getting caught/binding when desk moves).
You should also ensure there is a 1” gap around all edges of the desk to prevent
collisions.
Tools needed:
Congratulations
on your purchase of Smartpods Pulse.
1. #2 Philips screwdriver/drill
2. #1 Philips screwdriver/drill
3. Measuring tape (centimetres)
4. Optional: Additional cable ties/Velcro wrap for wire management

4 5
1
2
3
Fig 1-1
Contents
Step One: Unboxing
Pulse Installation Kit:
1 – 12V Wall Adapter
1 – Pulse Height Sensor
1 – Pulse Communication Cable
1 – Pulse Tower Headphone Hook
6 - #10 Wood screws (Philips)
2 – ½” Cable Clamp
2 - #4 Wood screws (Philips)
Included in the box:
1. Pulse Control Tower
2. Pulse Control Box
3. Pulse Installation Kit

6 7
Step Two: Setting up the Pulse Control Box
Step Three: Setting up Height Sensor
Fig 2-1
Fig 2-2
Fig 3-1
Control Box Parts
Secure Control Box to the Desk
Bottom Right: Side View
Remove or reposition the original
hand controller on the desk.
Remove the Pulse Control Box and
four (4) of the #10 wood screws
(large) from the Installation Kit.
Attach the Control Box under the
front-right side of the desk, within
12” of the right edge.
NOTE: Must be mounted on
the right to properly detect
presence of the user.
1.
2.
Locate the Pulse Height Sensor
and two (2) #4 wood screws
(small). Plug the Height Sensor into
the Control Box and attach under
the desk. Place sensor over the
foot of the desk (if available) and
at least 3” in front of the desk leg/
column.
3+“
Height Sensor
Side View
Leg
3.

6 7
Fig 4-1
Fig 4-3
Fig 4-2
Tower Connections
Placing the Earphone Hook
21
3 4
Step Four: Setting up the Pulse Tower
Place the Pulse Tower on the desk
surface, roughly above the Control
Box. Unwrap the cabling of the
Tower and hang over the rear edge
of the desk (or through nearby
grommet).
Plug the connectors of the Tower
cabling into the rear of the Control
Box.
Control Box Ports:
1. USB
2. Tower Power
3. Activity light
4. Task light
Locate the Tower Headphone
Hook and slot it into the rear panel
of the Pulse Tower.
Tower Placement
4.
6.
5.

8 9
Locate the Pulse Communication
Cable. Plug one end of the cable
into the rear of the Control Box;
plug the other end into the original
desk controller, using the same
port the original handset was
plugged into
NOTE: If Comm cable has a
colored or specialized connector
on one end, plug this end into
the original desk controller.
Remove the two (2) ½” cable
clamps and remaining #10 wood
screws from the installation kit.
Clamp the cables attached to the
Control Box roughly 4-6” behind
the box, ensuring nothing hangs
near or below the Height Sensor.
Place the second clamp near the
rear edge of the desk to ensure no
cables are left hanging.
Using the 12V wall adapter, plug
the circular connector into the
Control Box and the other end into
an available power outlet.

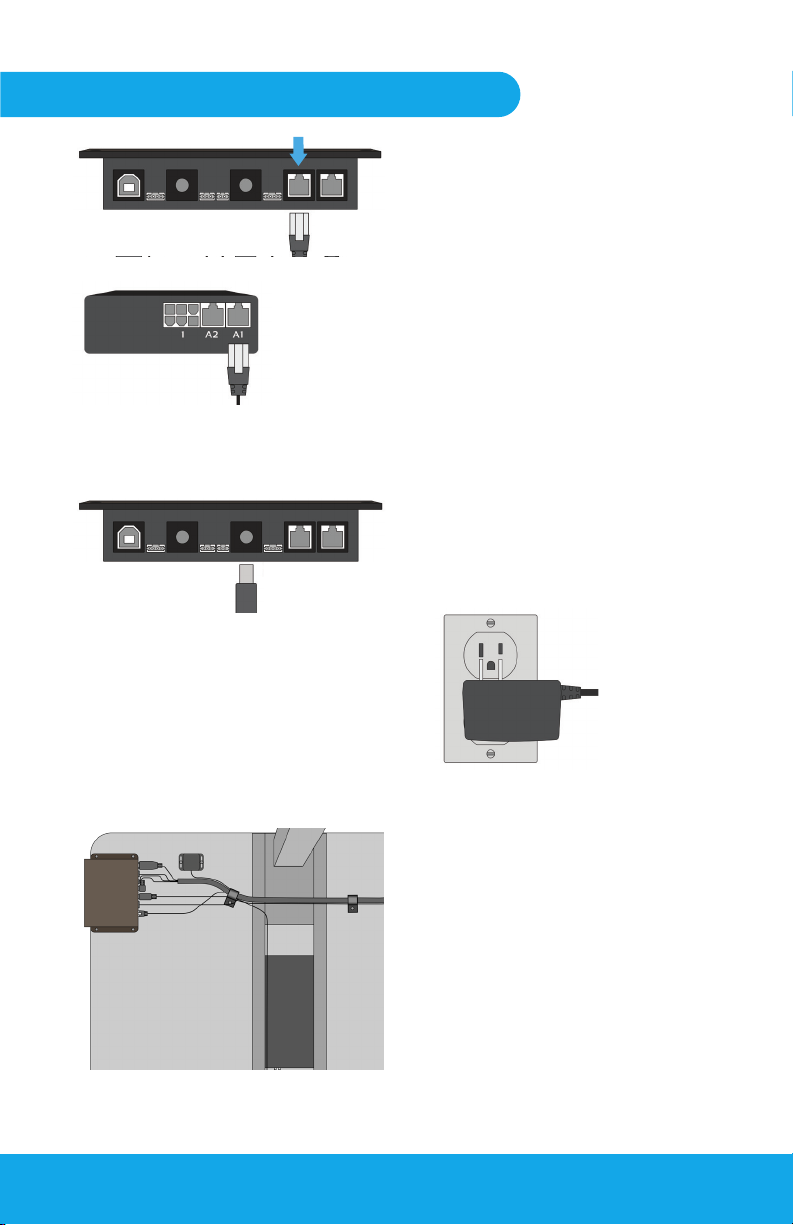

Fig 5-2
Desk Column Box
Height Sensor / COM Cable
Fig 5-1
Securing Cables
Fig 5-4
Fig 5-5
Step Five: Finalizing setup
Bottom View
Powering the Pulse
Fig 5-3
7.
X
8.
9.

8 9
Plug the rectangular
end of the USB cable
into a free USB slot of
your Desktop, Laptop or
docking station.
Pulse Control Box to Computer
Pulse Control Box to Computer
Plug USB into an empty port.
Fig 6-1
Fig 7-1
Fig 6-2
Plug the USB-B end of the USB cable
into port 1 of the Control Box.
1. Cog button - (On the Tower = Task Light; on a PC = unassigned)
2. Up button
3. Down button
4. Power button (O = Manual; On = Automated/Semi-automated)
5. Indicator light (Indicates movement, safety, hoteling and absence)
21 43
5
The Control Box: Button functions
PC or Laptop Installation: USB connect

10 11
Commissioning Location
Fig 8-1
*Administration rights required.
10 pin connector
(Blue)
8 pin connector
(Black)
Circular connector
The connectors may vary per desk. For example:
1. 10 pin connector (Fig 9-2)
2. 8 pin connector (Fig 9-3)
3. Circular connector (Fig 9-4)
Administrative Setup: Commissioning
For update & commissioning please
refer to document :
Update & Commissioning
If any issues arise during the
commissioning process, please
contact us at one of the following:
[e-mail]
Customer Service: 1-855-888-6858
Other Sit/Stand Desk: Dierent connectors
Fig 9-2
Fig 9-1
Fig 9-3 Fig 9-4
