Congratulations for having our SmartPro Optimum-I (SPO-I).
The very first and unique handheld diamond multi-tester using a special UV LEDs with fiber optic
technology that designed for identifying between Natural Diamond, CVD/HPHT, all types of
Moissanite, various shapes and carat weight from 0.015 carat to 10 carat for polished diamonds
Colorless to Faint (D-M) Loose diamonds or Jewelry (with or without under hole)
04

2.DISCLAMERS, EXCLUSIONS AND LIMITATIONS OF LIABILITY
2.DISCLAMERS, EXCLUSIONS AND LIMITATIONS OF LIABILITY
Please read and note SMARTPRO WARRANTY TERMS AND CONDITIONS as stated in the warranty
card. SmartPro warranty for its subject to proper use by its user in accordance with all the terms and
conditions as stated in the relevant user manual and shall cover only manufacturing defects.
Due to continued product improvement, SmartPro reserves the right to revise all documents
including the right to make changes to the user manual without notice and without obligation to
notify any person of such revisions or changes. Users are advised to check SmartPro’s website
http://www.smartproinstrument.com
05

2.DISCLAMERS, EXCLUSIONS AND LIMITATIONS OF LIABILITY
SmartPro shall not be responsible for any damage or loss resulting from the use of the product or user
manual, and under no circumstances shall SmartPro, its manufacturer or any of its subsidiaries,licensors,
distributors, resellers, servants and/or agents be liable for any direct or indirect damages resulting from
the use of this product.
To maximum extent permitted by applicable law, under no circumstances shall SmartPro, its manufacturer
or any of its subsidiaries, licensors, distributors, resellers, servants and/or agents be liable for any
special, incidental, consequential or indirect damages howsoever caused.
Smartpro Optimum I referred to in this user manual is provided and/or sold on “as is” basis. Except as
required by applicable law, no warranties of any kind, expressed or implied, including, but not limited to,
the implied warranties of merchantability and fitness for a particular purpose.
06

3. QUICK START GUIDE
3.1) Turn ON/Turn OFF

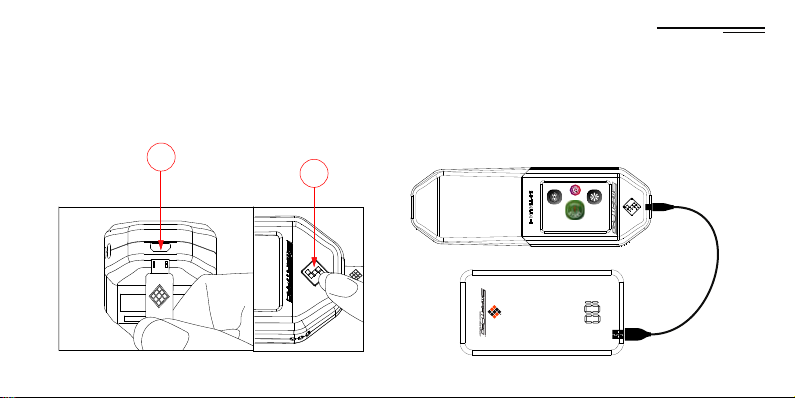

1. Plug the USB cable from to Output port of Power bank /Adaptor to an Input port of SPO-I
2. Press and hold the Switch for 3 seconds to turn ON/OFF
12
3. QUICK START GUIDE
Bluetooth UV Torch
Press Start!
07

1. Cover the Probe tip
2. Click at “START” to begin the calibration
T
A
R
T
S
CLOSE the tester's PROBE
with its PROTECTOR
the press START for calibration
3.2) Calibration
3. QUICK START GUIDE
12
08

2
13
54
Press Start!
3.3) Functions
T
A
R
T
S
3. QUICK START GUIDE
Bluetooth UV Torch
09

No.
1
2
3
4
5

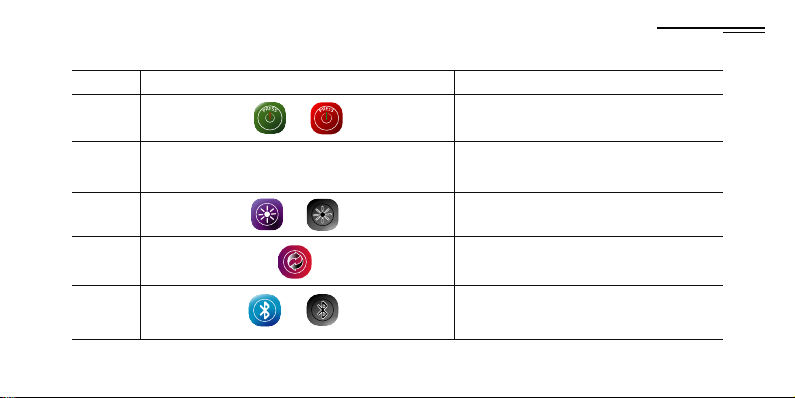

Item display Meaning
Testing START/ STOP
UV Torch ON / OFF
Information&Test results
Press Start!
Ready!
Rotate Display
Bluetooth ON/OFF
DIAMOND MOISSANITE
CVD/HPHT
T
A
R
T
S
T
O
P
S
3. QUICK START GUIDE
10

3.4) Test Setup
Ready!
NOTE: Don’t move probe away from Gem.
T
O
P
S
Bluetooth UV Torch
3. QUICK START GUIDE
11

1. Detected Natural Diamond (Type Ia)
1 2 3
2. Detected Synthetic Moissanite
3. Detected Synthetic Diamoud (CVD or HPHT)
Don’t move probe away from Gem.
Testing...
DIAMOND MOISSANITE CVD/HPHT
Bluetooth UV Torch
T
O
P
S
Bluetooth UV Torch
T
O
P
S
Bluetooth UV Torch
T
O
P
S
Bluetooth UV Torch
T
O
P
S
3. QUICK START GUIDE
3.5) Testing Result
12

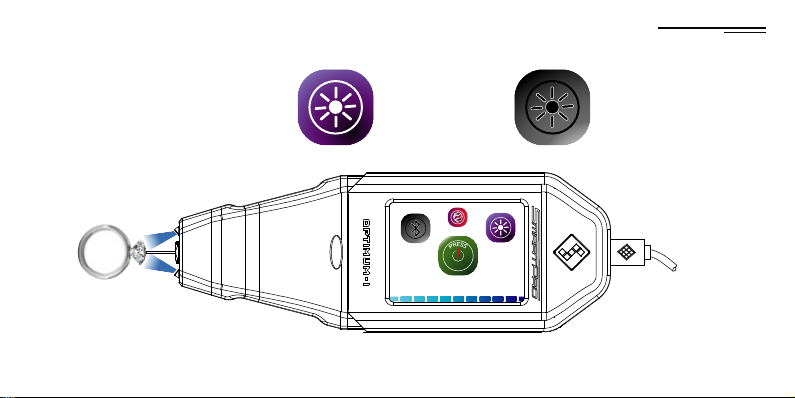

3.6) Torch mode.
Torch ON!
UV Torch ON UV Torch OFF
Bluetooth UV Torch
T
A
R
T
S
3. QUICK START GUIDE
13

Left-handed Right-handed
Screen rotation button
3.7) Rotate display
Ready!
Bluetooth UV Torch
Ready!
Bluetooth UV Torch
for the display rotationPress
3. QUICK START GUIDE
14

3.8) Bluetooth
15
SPO-I can connect to Smartpro App just need active the Bluetooth!
Bluetooth ON Bluetooth OFF
Download the Smartpro App using these QR Code:
3. QUICK START GUIDE

3 in 1 Distinguisher:
Natural Diamonds
All types of Synthetic Moissanites
Synthetic CVD / HPHT Diamonds
NOTE: CZ ,GGG ,YAG ,Glass, and other Simulants can’t be tested.
Colorless to Faint ( D to M ) Color
4. FEATURES AND ADVANTAGES
4.1) FEATURES
Designed for:
0.015 ct. up to 10 ct.
Round brilliant cut and almost all fancy cut
Capable in checking loose and mounted stones
in jewelry (with or without under hole)
4. FEATURES AND ADVANTAGES
Beep sound indicator
Auto Testing Function
No warm up time before testing
Automatic Power OFF
(after 5 minutes inactive)
Powered by USB adaptor or
Power Bank
16

4. FEATURES AND ADVANTAGES
4.2) Advantages :
Torch mode for diamond fluorescent test
Display by 2.4" colorful Touch LCD
LED light source mercury-free
Right and Left-hand user-friendly
Easy to operate with Touch screen
Bluetooth connectivity
17

5.PRODUCT SPECIFICATIONS
Power Bank Dimension 65.5x133x10.1 mm.
Weight 120 g.
Capacity 5000 mAh.
Input 5 V/ 2.0 A.
Output 5 V/ 2.1 A.
Life test 24 hours Approx.
:
:
:
:
:
:
Device Input 5 V / 1-2 A.
Device Display 240x320pixels LCD 2.4 inches Touchscreen
Device Weight 160 g.
Device Dimensions 57 (W)x177.5(L)x30(H) mm.
USB Power Adaptor Input 100~240 V,50/60 Hz,0.3A.
Output 5 V / 2.4 A.
USB Cable Type USB 2.0 type A To Micro USB type B
Loose Stone Tray support gems size 0.015 to 10 Carat
Testing Results Natural Diamond, Synthetic Moissanite,
CVD / HPHT Synthetic Diamond
Time Duration part test 3 sec.Avg.
Bluetooth V 4.0 BLE
5.PRODUCT SPECIFICATIONS
18

6. DEVICE ACCESSORIES AND OVERVIEW
1. OPTIMUM-I Tester

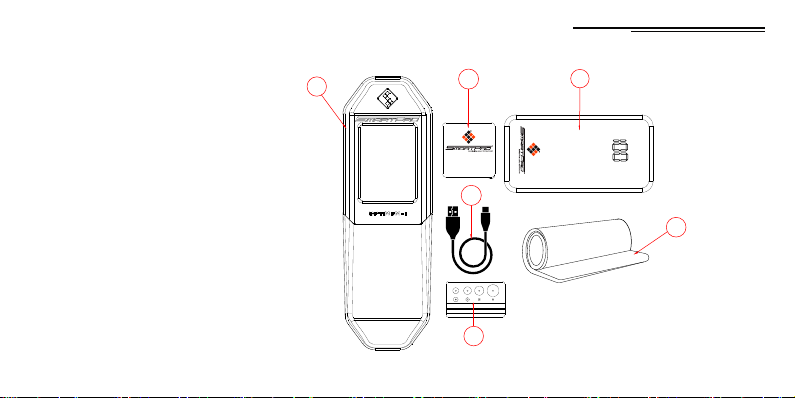

6.1) Device Accessories
2. Power adaptor
3. Power bank
4. USB cable
5. Cleaning cloth
6. Stone tray
12
4
3
5
6
6. DEVICE ACCESSORIES AND OVERVIEW
19

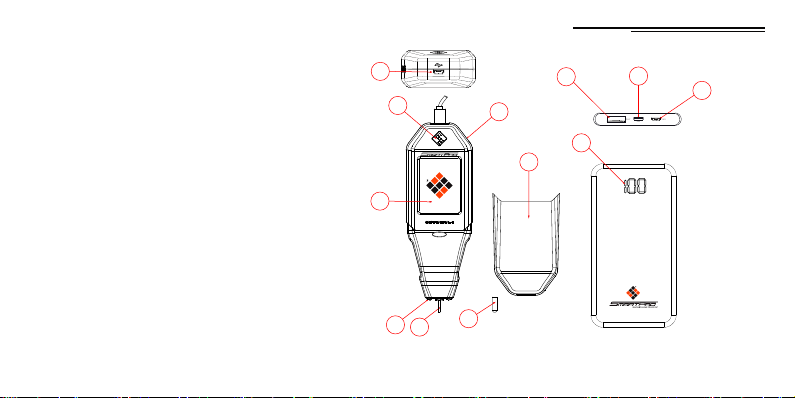

6.2) Device Overview
1. Micro USB port
2. Power switch
3. Buzzer
4. LCD touch screen
5. LED light source
6. Test probe
7. Probe tip protector
8. Battery Percentage
9. USB type A Output Port
10. Lightning Input Port
11. Micro USB Input port
6. DEVICE ACCESSORIES AND OVERVIEW
8
1
23
57
6
9
11
10
IN2
IN1
OUT
4
7
20

6.3) Display Overview
3. UV Torch
2. Status and Results
4. Rotate display
5. Bluetooth Connectivity
1. Start/Stop Testing
6. DEVICE ACCESSORIES AND OVERVIEW
Press Start!
T
A
R
T
S
Bluetooth UV Torch
2
3
5
4
1
