SmartRG WR100 User manual

WR100
300Mbps Wireless-N Repeater
User Manual
Release 1.0
November 29, 2012

SmartRG WR100 – User Manual
Page 2 of 25
Table of Contents
About the Device .............................................................................................................. 3
Minimum System Requirements ................................................................................................ 3
Package Contents .................................................................................................................... 3
Device Overview ..................................................................................................................... 4
Front Panel .................................................................................................................................... 4
Top Panel ....................................................................................................................................... 5
Bottom Panel ................................................................................................................................. 5
Accessing the User Interface .............................................................................................. 6
Quick Connect ......................................................................................................................... 7
Setup ..................................................................................................................................... 8
Wireless ................................................................................................................................ 10
Wireless Basic Settings ................................................................................................................. 10
Wireless Security Settings ............................................................................................................ 11
MAC Filter Settings ...................................................................................................................... 12
System .................................................................................................................................. 14
Device Information ...................................................................................................................... 14
LAN Configuration ........................................................................................................................ 15
Configuration Settings .................................................................................................................. 16
Firmware Upgrade ....................................................................................................................... 17
System Password ......................................................................................................................... 18
Installing the Device ....................................................................................................... 19
Wireless Repeater .................................................................................................................. 20
Wireless Access Point ............................................................................................................. 22
Wireless Bridge ...................................................................................................................... 24
WPS ...................................................................................................................................... 25
Configure WR100 to Wireless Router via WPS ............................................................................... 25
Configure WR100 to Wireless client via WPS................................................................................. 25
Safety Precautions .......................................................................................................... 25

SmartRG WR100 – User Manual
Page 3 of 25
About the Device
The SmartRG WR100 is a Wall-plugged 300Mbps Wireless-N Repeater, which supports wireless
802.11b/g/n, and one 10/100 Base-T Ethernet port.
Repeat and Extend the WiFi Network
The WR100 supports robust 802.11n technology with up to 300Mbps data transfer rate. The
extender can take an existing 802.11n wireless signal, repeat and extend it to a longer range
where it is too far away for the router or access point to reach. It eliminates the cable wires
while providing the same reliable network connection. It can repeat and extend the wireless signal
from virtually any 802.11n wireless router or access point available on the market. It is
backwards compatible with 802.11b/g routers and access points.
Make an existing Wired Network WiFi Ready
The extender is equipped with 1 x 10/100M Auto MDI/MDIX LAN port that can be used to connect to
an existing wired network to serve as a WiFi Access Point. The Ethernet port can also be used to
configure the WR100 via its web-based GUI, or upgrade the firmware.
MIMO Technology
The device is designed with MIMO technology, which successfully reduces “ dead spots ” , and extends
network coverage within a home or in the building.
Advanced Security
WR100 features WiFi Protected Access (WPA and WPA2) as well as 64/128-bit WEP encryption,
ensuring network security and preventing unauthorized access to you network.
Portable without the Need of External Power Supply
The device is easy to setup. It is portable with no need of any external power adaptor. It comes with
an embedded power supply and power plug, so that users can just plug the device into a power
socket.
Minimum System Requirements
Your computer must meet the following minimum requirements.
Any operating system can be used
Web Browser
233MHz processor
Ethernet network adapter
Or Wireless network adapter
Package Contents
Package contents are listed below. For any missing items, please contact your dealer immediately.
Product contents may vary for different models.
WR100
Ethernet cable
Easy Start Guide
Resource CD

SmartRG WR100 – User Manual
Page 4 of 25
Device Overview
Front Panel
LABEL
STATE
DESCRIPTION
3 BARS
Connected
95% and above RSSI (Excellent)
2 BARS
Connected
55-94% RSSI (Recommended)
1 BAR
Connected
10-54% RSSI (Weak)

SmartRG WR100 – User Manual
Page 5 of 25
Top Panel
Bottom Panel
LABEL
DESCRIPTION
WPS BUTTON
Press to connect WR100 to any WPS capable devices
LABEL
DESCRIPTION
RESET
Press the Reset button for 5 seconds to restore the device to default factory settings
ETHERNET
PORT
Connect to computers/Ethernet devices
WPS
RESET
10/100 Base-T Ethernet
Port

SmartRG WR100 – User Manual
Page 6 of 25
Accessing the User Interface
To access the User Interface open a Web browser (Ex: Internet Explorer, Firefox or Chrome), type
http://10.0.10.254 in the address bar and press enter.

SmartRG WR100 – User Manual
Page 7 of 25

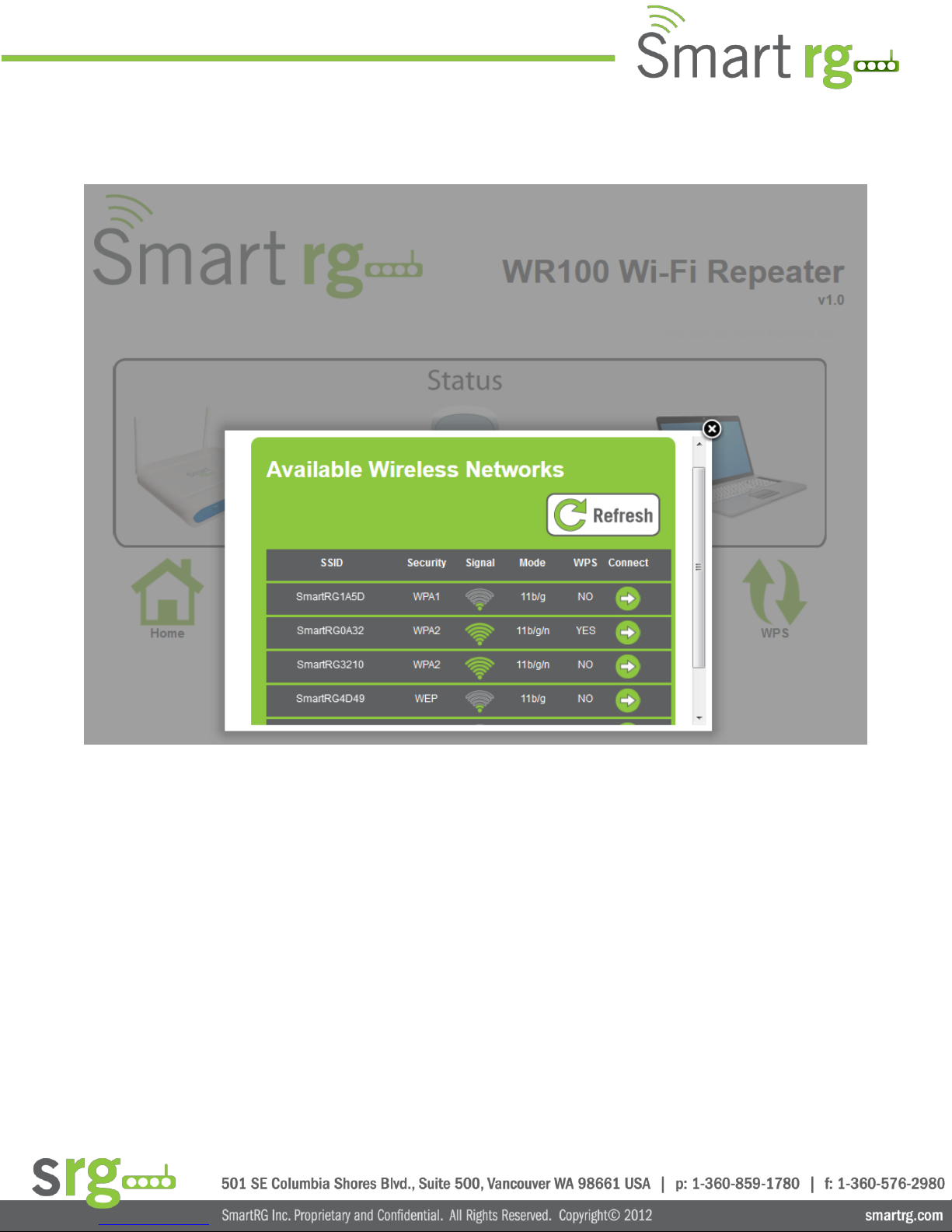

Quick Connect
Press Quick Connect icon to scan for available wireless within the area.

SmartRG WR100 – User Manual
Page 8 of 25
Setup
Mode of Operation
Repeater
The WR100 can act as a wireless repeater to extend the wireless coverage of your wireless router.
Access Point
The WR100 can act as an Access Point to provide wireless network
Bridge
The WR100 can act as a Bridge to act as wireless client to your network device
SSID
Here you can set the name of your wireless network. Select the option Disable on Broadcast SSID
allow you to hide the wireless network name.
Security Mode

SmartRG WR100 – User Manual
Page 9 of 25
Select from the different encryption types list in order to provide security to your wireless
network from unauthorized users. Select from the following:
WEP
Hexadecimal:
64bit – uses 10 characters length of password from A-F and numbers from 0-9
128bit- uses 26 characters length of password from A-F and numbers from 0-9
ASCII:
64bit – uses 5 characters alpha numeric password (A-Z and 0-9)
128bit – uses 13 characters length of password from (A-Z and 0-9)
WPA
Uses strong encryption, some legacy devices may not be able to associate with this type of
encryption
WPA2
Use this encryption for best security, some legacy devices may not associate with this type of
encryption
WPA/WPA2 PSK
Use a balance of strong security and best compatibility for new and legacy devices.

SmartRG WR100 – User Manual
Page 10 of 25
Wireless
Wireless Basic Settings
Enable Wireless
Enable or Disable wireless capability
Broadcast SSID
Set option to disable to hide your wireless network (Enable by default)
SSID
Here you can enter the name of your wifi network

SmartRG WR100 – User Manual
Page 11 of 25
Wireless Mode
This option allows you to select the type of wireless standard you want to allow to connect to your
wireless network.
Channel
Change your wireless channel when you are getting poor reception. Choose the least channel used
in your area for better performance (Only applicable for AP mode)
Channel Bandwidth
Here you can set your Channel Bandwidth to 20MHz and 20/40MHz(Auto)
HT Data Rate and HT Guard Interval
These options are recommended to be set to Auto for maximum efficiency.

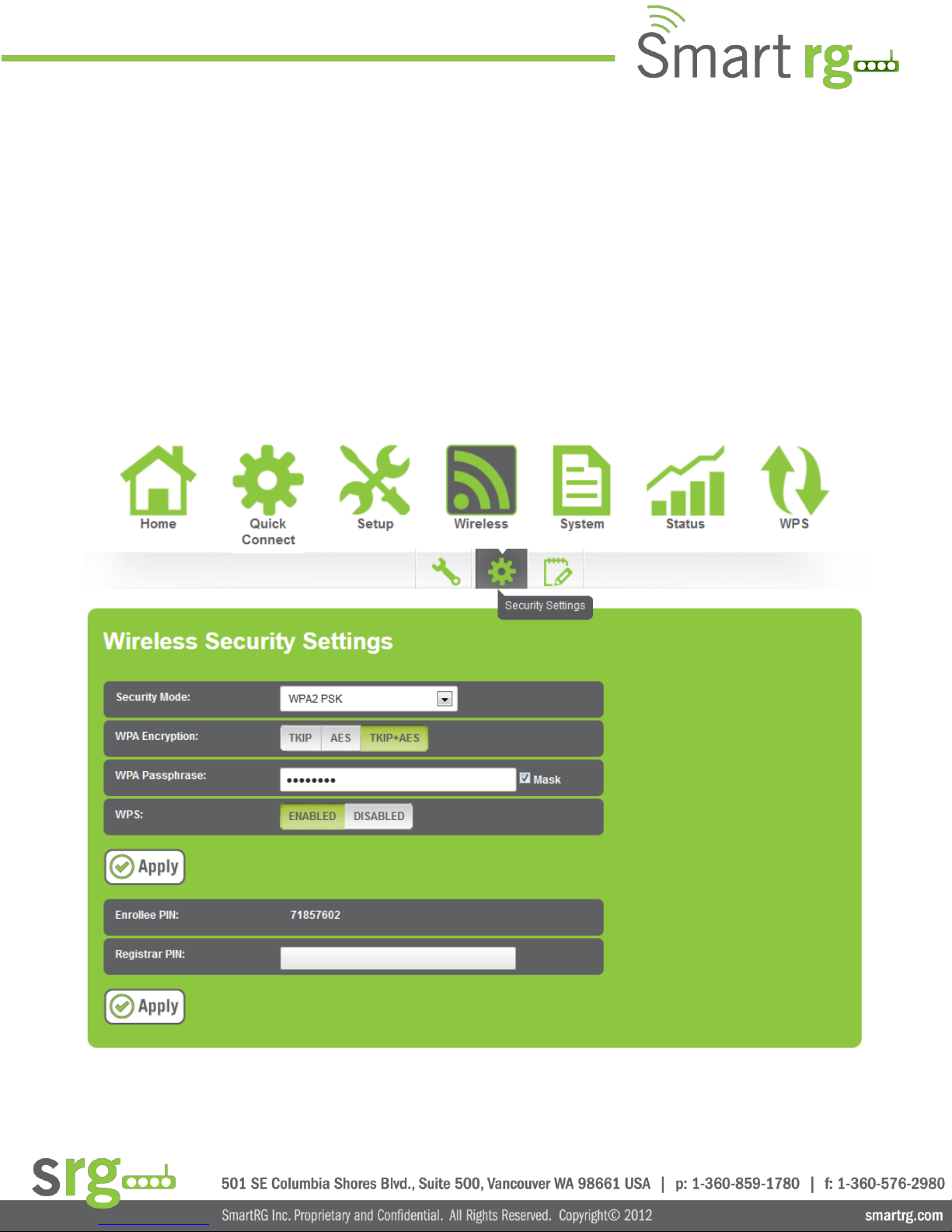

Wireless Security Settings

SmartRG WR100 – User Manual
Page 12 of 25
Security Mode
Select the type of encryption you want for your wireless network
WPS
Set this option to enable or disable WPS (Wifi Protected Setup) feature on this device
Enrollee PIN
Enter this PIN to wireless client that will be connecting to WR100 repeater to automatically
configure the wireless device.
Registrar PIN
Here you can enter the WPS-PIN of wireless clients and click apply for the WR100 to allow access
and configure your wireless client device automatically
Note: WPS will work only for WPA-PSK, WPA2-PSK and WPA/WPA2 encryption. The wireless client must support WPS in order to
use this option.

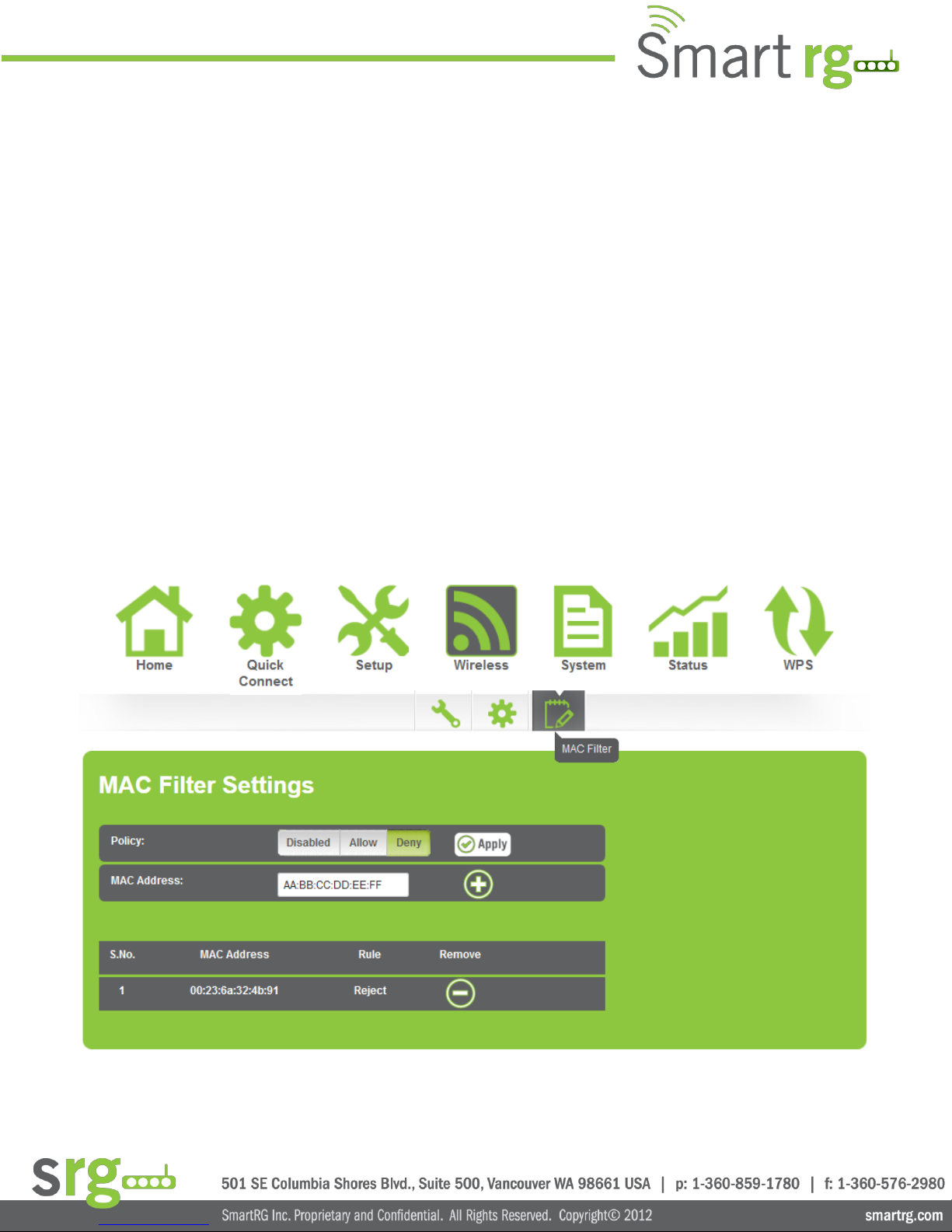

MAC Filter Settings
This feature will provide additional protection to your wireless network. It allows or denies
wireless clients from accessing through the WR100 with the use of the MAC address which is
unique for every network devices.

SmartRG WR100 – User Manual
Page 13 of 25
Policy
Disable
Use this option to disable or disregard the list of MAC address from blocking or allowing access to
the wireless network.
Allow
Allow the list of MAC address to access the wireless network
Deny
Deny the list of MAC address form accessing the wireless network
MAC Address
Type the MAC address of the wireless client here and press the plus icon to add on the list.
Removing a MAC address from the list
Press the minus icon to remove the MAC address from the list

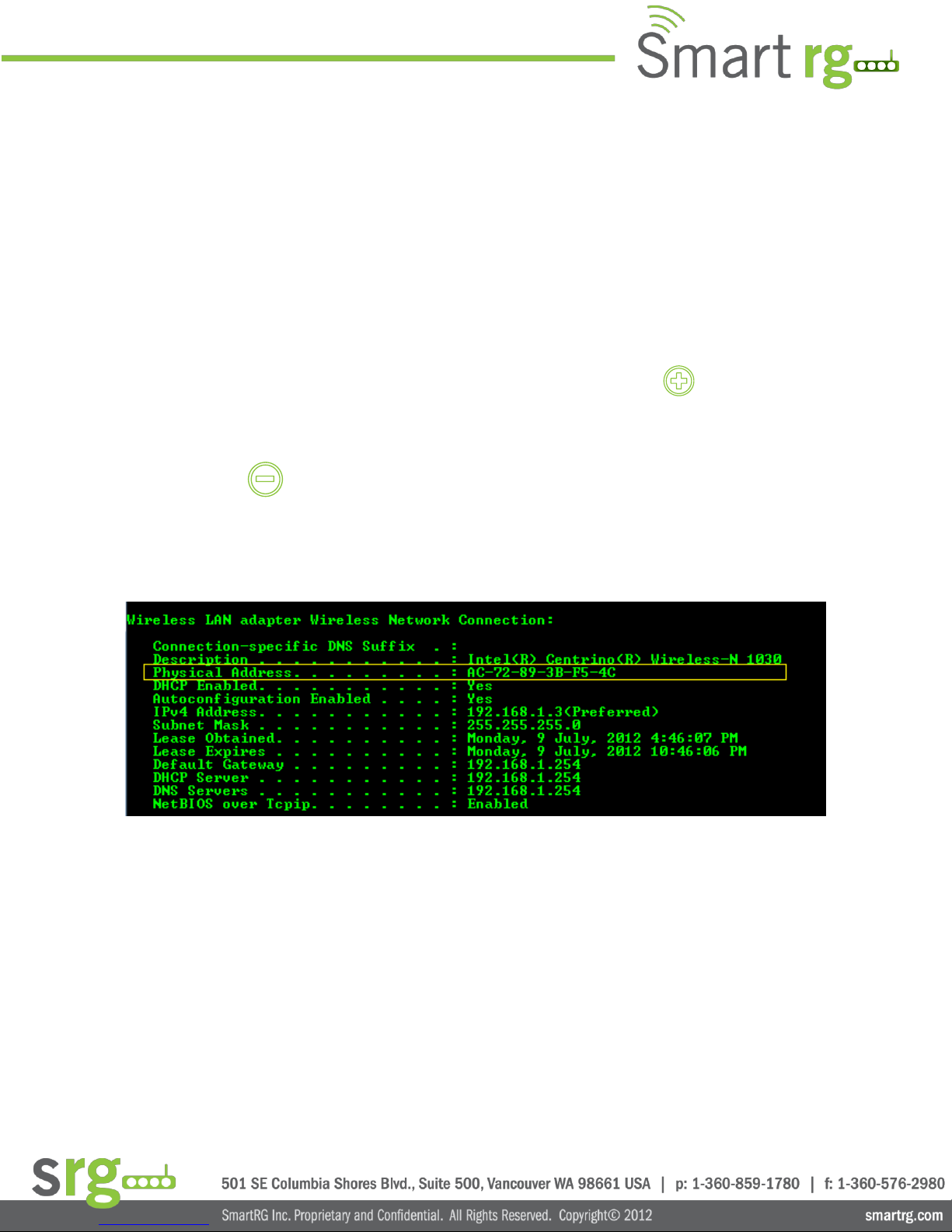

Where can I find the MAC address of my wireless client?
On the Command Prompt type ipconfig/all to show all the network adapter(s) that are available.

SmartRG WR100 – User Manual
Page 14 of 25
System
Device Information
Firmware Version
Shows the current firmware version of the device
Build Date
Shows the date when the firmware was created
Serial Number
Showsthedevice’sserialnumber
ETH/Bridge and Wireless MAC address
Shows the MAC address of each interface
Wireless Status
Showsthewirelessdevice’swirelessstatus

SmartRG WR100 – User Manual
Page 15 of 25

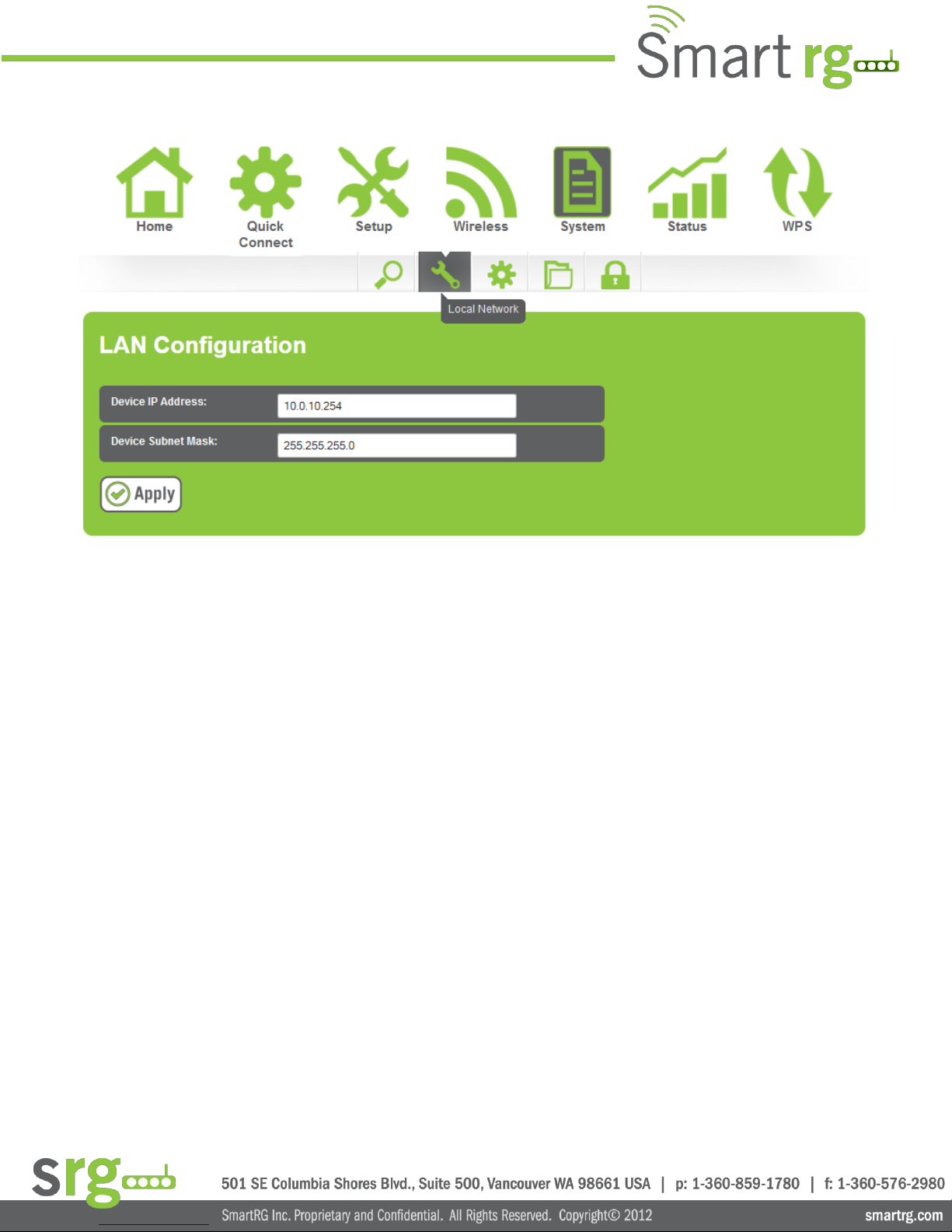

LAN Configuration
Device IP address
Showsthedevice’scurrentIPaddress
Note: Change this IP address if you are using two WR100 on the same network to avoid IP address
conflict within your network. You may configure the 2nd unit with IP address ex: 10.0.10.253

SmartRG WR100 – User Manual
Page 16 of 25
Configuration Settings
Backup Settings
Allow you to save the current configuration of WR100. Default file name for the backup file will be
“RT2880_Settings.dat”. Click Apply to start saving your configuration.
Update
Here you can load the saved configuration of your WR100. Click browse and load the saved
settings by clicking on the apply button.
Restore
Click on the apply button to reset the unit back to its factory settings. Unsaved information will be
lost.

SmartRG WR100 – User Manual
Page 17 of 25

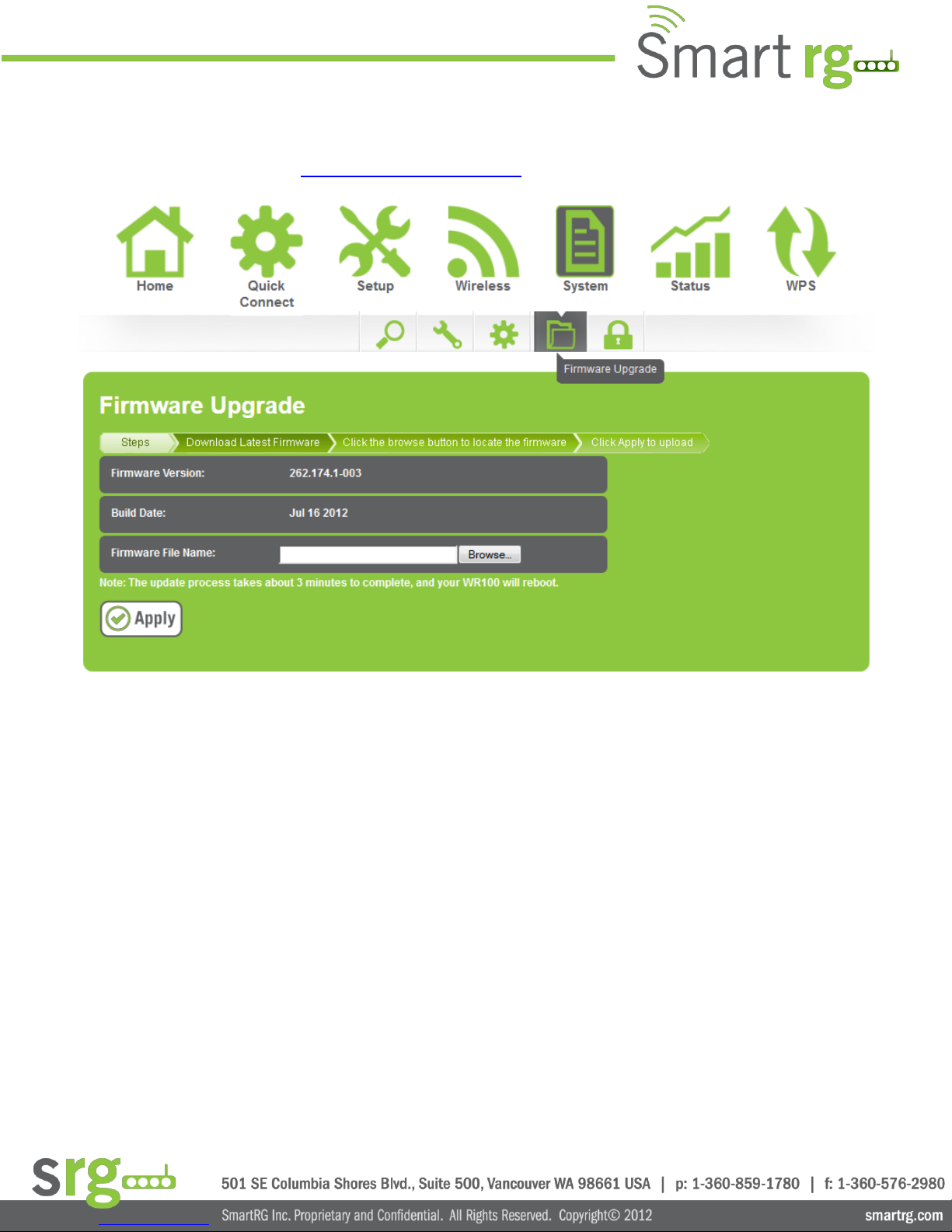

Firmware Upgrade
This option allows you to update the firmware of your device for future changes and enhancement.
Download firmware only at www.smartrg.com/support for future enhancement.
Updating the firmware
a. Connect an Ethernet cable between WR100 and computer
b. Open web browser and type http://10.0.10.254 to access the user interface
c. Click on Setup and select firmware under the sub menu
d. Click on the Browse button and locate and open the firmware for WR100 and click Apply to
start the update.
Note: It is recommended to only use firmware which is officially released by SmartRG. Using third party
firmware will void the warranty of the device.

SmartRG WR100 – User Manual
Page 18 of 25

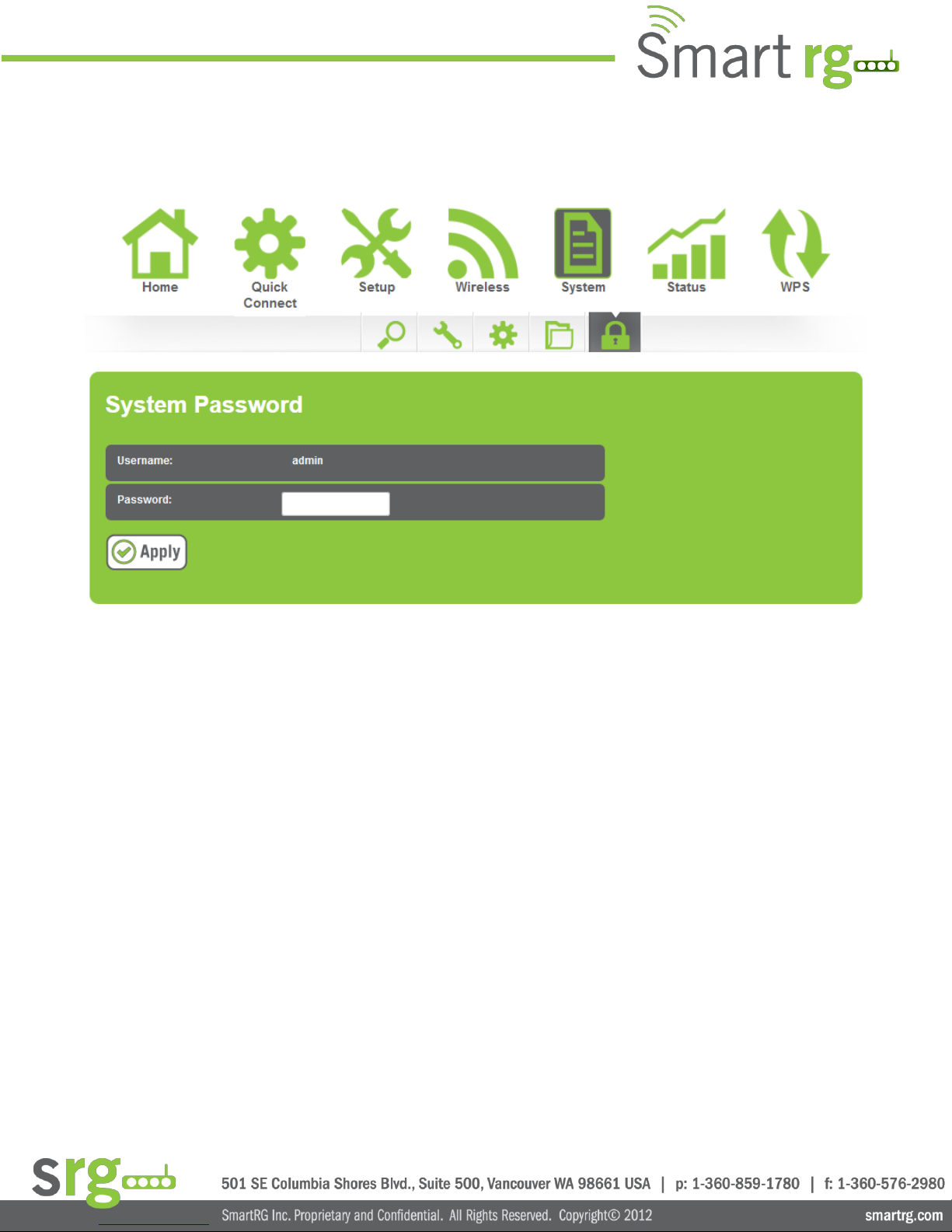

System Password
It is recommended to set a password on the web user interface, in order to prevent other users
from gaining access to the web UI and making unwanted changes to your settings.
System Password
Type your desired password and click on the Apply button to activate this feature. To disable
authentication, simply remove the password and click apply to save your settings.
Note: Forgotten passwords are not recoverable. Reset the device to factory defaults by pressing the reset
button found beside the Ethernet port of the WR100, wait 60 seconds, and reconnect with your web
browser.

SmartRG WR100 – User Manual
Page 19 of 25
Installing the Device
Placement of the Wireless Repeater is crucial to obtain the best possible results for extending your
existing wireless signal. It is ideal for the wireless repeater to be placed in a location where it can
receive good wireless signal from the wireless router/AP so as to avoid disconnection and packet
loss.

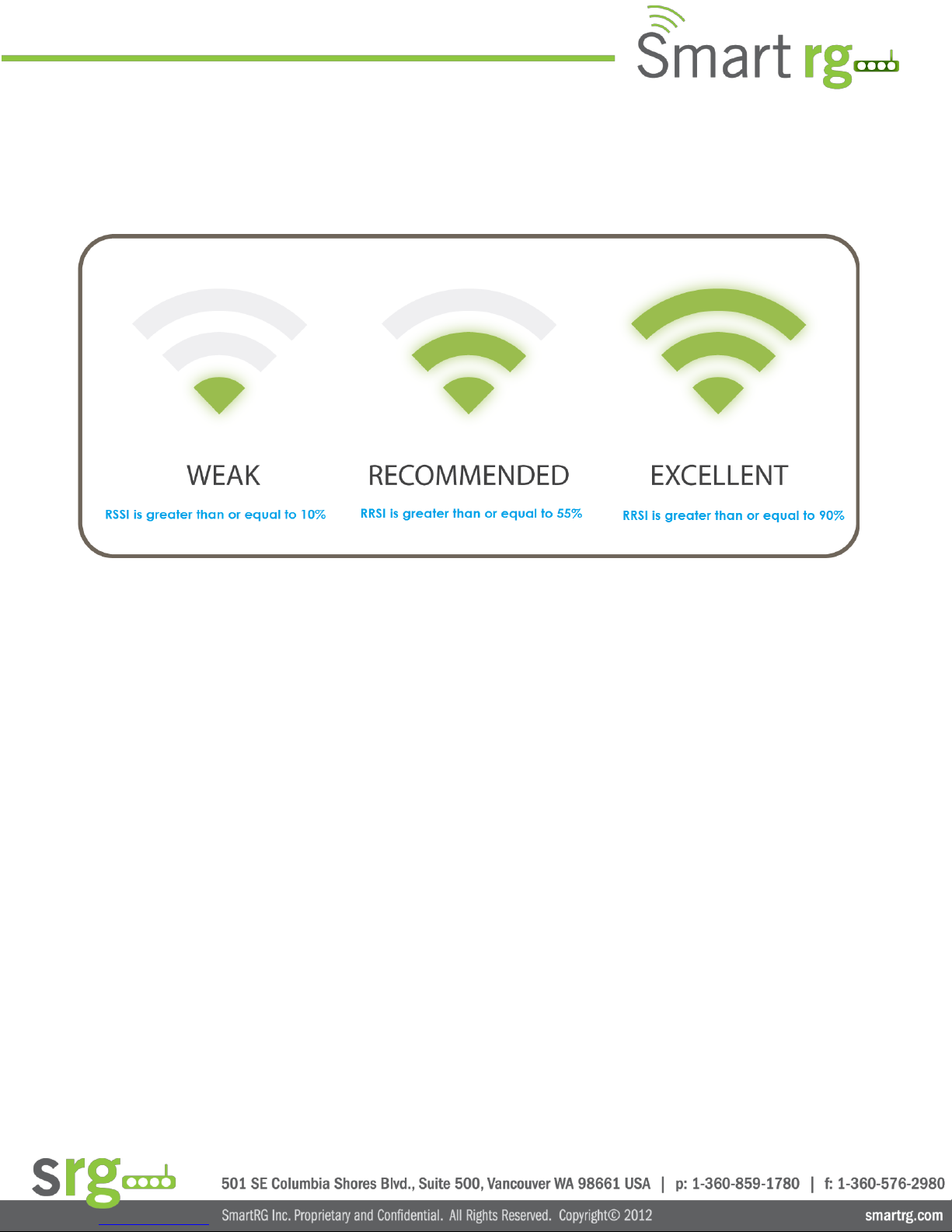

The LED smart indicator displays the received signal strength from your wireless router.
Wireless reception and throughput may vary according to the number of wireless clients that are
in use at the same time, other nearby wireless devices, structure type, building materials and other
interference present.

SmartRG WR100 – User Manual
Page 20 of 25

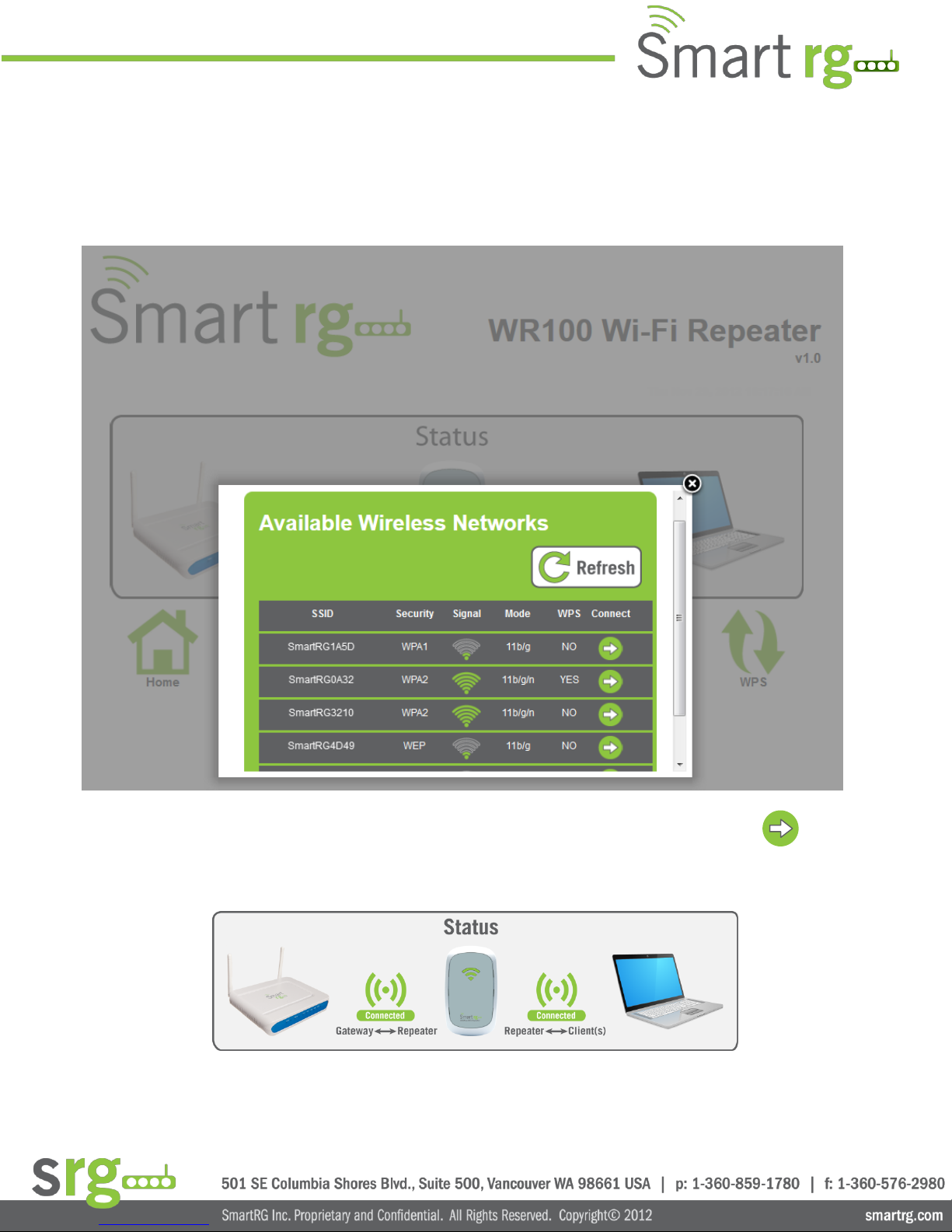

Wireless Repeater
a. Plug your WR100 to a power outlet, switch it ON and connect the Ethernet cable between
your WR100 and Computer
b. Launch web browser and you will be directed to the User Interface (In case it does not open
type 10.0.10.254 and hit enter)
c. Select your SSID (wireless network/wifi name) from the list and click connect
d. Type the password for the wireless network of your router and click apply. The WR100 will
reboot and will redirect to the user interface with the following status.
e. Disconnect the Ethernet cable from WR100 and computer then place the device at the
location, where it can get sufficient reception from your wireless router.
