Series PA3000/5000
Process Pump
Automatically Operated Type (Internal Switching Type)/Air Operated Type (External Switching Type)
Automatically
operated type
Switching valve Air supply port
Air exhaust port
Discharge port
Suction port
Compatible with a wide
variety of fluids
• PA3000: Max. discharge rate 20 l/min
• PA5000: Max. discharge rate 45 l/min
Air operated type
5 port solenoid valves
Air supply port
Discharge port
Suction
port
Transferring liquid by suction Transferring liquid by pressureAtomizing liquid Stirring liquid
• Prevents sticking of liquids
Application Example
Control with external switching valve
makes constant cycling possible
• Easily control the discharge rate.
Easily adjust the flow with the external solenoid valve's ON/OFF cycle.
• Easy to operate, even for minute flow, low press operation or
operation involving air.
• Can be used for operation with repetitive stopping.
669
High abrasion resistance and low particle generation
No sliding parts in wetted areas.
Self-priming makes priming unnecessary
Exhausts the air inside the suction pipe to suck up liquid.
PA
PAP
PAX
PB
PAF
PA첸
PB
212-PA.qxd 10.7.16 11:42 AM Page 1

Specifications
0
Option
Automatically operated type
Air operated type
PA3000
JIS Symbol
Symbol
03
Port size
Port size
3/8"
Symbol
Nil
N
F
T
Type
Rc
NPT
G
NPTF
Thread type
Symbol
1
2
Diaphragm material
Diaphragm
material
PTFE
NBR
Automatically
operated
앬
앬
Applicable actuation
Air operated
앬
—
Actuation
Symbol
1
2
Material of body wetted areas
Material of body wetted areas
ADC12 (Aluminum)
SCS14 (Stainless steel)
Model PA3110 Automatically operated
1 to 20 l/min
0 to 0.6 MPa
0.2 to 0.7 MPa
Max. 200 l/min (ANR) or less
80 dB (A) or less
(Option: with silencer, AN200)
1.05 MPa
—
—
Air operated
PTFE
0.1 to 12 l/min
0 to 0.4 MPa
0.1 to 0.5 MPa
Max. 150 l/min (ANR) or less
0.75 MPa
50 million times
0.20
Rc, NPT, G, NPTF 3/8" Female thread
Rc, NPT, G, NPTF 1/4" Female thread
PTFE, PFA
1 m (Interior of pump dry)
Up to 6 m (liquid inside pump)
0 to 60°C (No freezing)
0 to 60°C (No freezing)
Horizontal (with mounting foot at bottom)
General environment
PA3120 PA3210 PA3220 PA3113
Actuation
Port size
Material
Discharge rate
Average discharge pressure
Pilot air pressure
Air consumption
Note 1)
Noise
Withstand pressure
Diaphragm life
Fluid temperature
Ambient temperature
Recommended operating cycle
Pilot air solenoid valve
recommended Cv factor
Mass
Mounting orientation
Packaging
Main fluid suction discharge port
Pilot air supply/exhaust port
Body wetted areas
Diaphragm
Check valve
Dry
Wet
PTFEADC12NBR NBRPTFESCS14 ADC12 SCS14
1.7 kg 2.2 kg 1.7 kg 2.2 kg
100 million times 50 million times 50 million times 100 million times
PA3213
FLUID OUTAIR SUP
AIR EXH FLUID IN
113PA 03
FLUID OUT
P1
P2
FLUID IN
Made to order specifications
(For details, refer to pages 724 to 726)
Products complying with ATEX
With air operated reset portNote)
With operating cycle counting portNote)
Note) For automatically operated type only.
∗Each of the values above are for normal temperatures and when the transferred fluid is fresh water.
∗Refer to page 727 for maintenance parts.
∗For related products, refer to page 728 and 729.
Note 1) With cycles at 2 Hz or more
Note 2) After initial suction of liquid operating at 1 to 7 Hz, it can be used with operation at lower cycles.
Since a large quantity of liquid will be pumped out, use a suitable throttle in the discharge port if
problems occur.
Note 3) With a low number of operating cycles, even a valve with a small Cv factor can be operated.
Symbol
0
3
Actuation
Automatically operated
Air operated
Process Pump
Automatically Operated Type (Internal Switching Type)
Air OperatedType (External SwitchingType)
Series PA3000
Made to
Order
Suction
lifting
range
Symbol
Nil
N
Option
Body only
With silencer
Automatically
operated
앬
앬
Applicable actuation
Air
operated
앬
—
1 to 7 Hz (0.2 to 1 Hz also possible
depending on conditions)Note 2)
72 dB (A) or less
(excluding the noise from the
quick exhaust and solenoid valve)
Note 3)

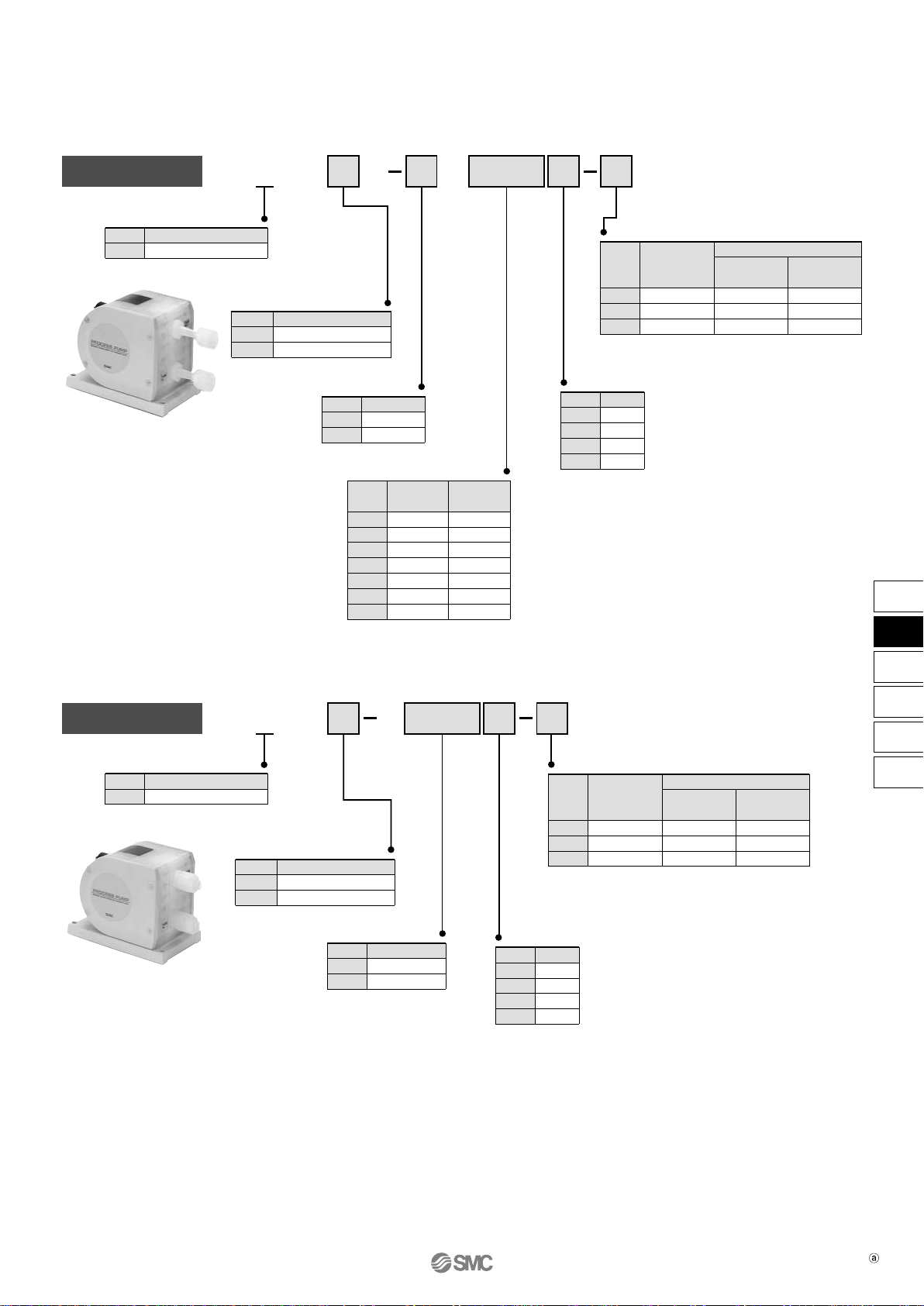

How to Order
670

Specifications
Automatically operated type
Air operated type
JIS Symbol
FLUID OUTAIR SUP
AIR EXH FLUID IN
FLUID OUT
P1
P2
FLUID IN
PA5000
Symbol
04
06
Port size
Port size
1/2"
3/4"
Thread type
Diaphragm material
Material of body wetted areas
Model PA5110 Automatically operated
5 to 45 l/min
0 to 0.6 MPa
0.2 to 0.7 MPa
Max. 300 l/min (ANR) or less
Up to 2 m
(Interior of pump dry)
78 dB (A) or less
(Option: with silencer, AN 200)
1.05 MPa
—
—
Air operated
PTFE
1 to 24 l/min
0 to 0.4 MPa
0.1 to 0.5 MPa
Max. 250 l/min (ANR) or less
Up to 0.5 m
(Interior of pump dry)
0.75 MPa
0.45
Rc, NPT, G, NPTF 1/2", 3/4" Female thread
Rc, NPT, G, NPTF 1/4" Female thread
PTFE, PFA
Up to 6 m (Liquid inside pump)
50 million times
0 to 60°C (No freezing)
0 to 60°C (No freezing)
Horizontal (with mounting foot at bottom)
General environment
1 to 7 Hz (0.2 to 1 Hz also possible
depending on conditions)Note 2)
72 dB (A) or less
(excluding the noise from the
quick exhaust and solenoid valve)
PA5120 PA5210 PA5220 PA5113
Actuation
Port size
Material
Discharge rate
Average discharge pressure
Pilot air pressure
Air consumption
Note 1)
Noise
Withstand pressure
Diaphragm life
Operating fluid temperature
Ambient temperature
Recommended operating cycle
Pilot air solenoid valve
recommended Cv factor
Mass
Mounting orientation
Packaging
Main fluid suction discharge port
Pilot air supply/exhaust port
Body wetted areas
Diaphragm
Check valve
Dry
Wet
PTFEADC12NBR NBRPTFESCS14 ADC12 SCS14
3.5 kg 6.5 kg 3.5 kg 6.5 kg
PA5213
How to Order
011PA5 04
∗Each of the values above are for normal temperatures and when the transferred fluid is fresh water.
∗Refer to page 727 for maintenance parts.
∗For related products, refer to page 728 and 729.
Note 1) With cycles at 2 Hz or more
Note 2) After initial suction of liquid operating at 1 to 7 Hz, it can be used with operation at lower cycles.
Since a large quantity of liquid will be pumped out, use a suitable throttle in the discharge port if
problems occur.
Note 3) With a low number of operating cycles, even a valve with a small Cv factor can be operated.
Process Pump
Automatically Operated Type (Internal Switching Type)
Air OperatedType (External SwitchingType)
Series PA5000
Symbol
1
2
Material of body wetted areas
ADC12 (Aluminum)
SCS14 (Stainless steel)
Suction
lifting
range
Symbol
1
2
Diaphragm
material
PTFE
NBR
Automatically
operated
앬
앬
Applicable actuation
Air operated
앬
—
Symbol
0
3
Actuation
Automatically operated
Air operated
Symbol
Nil
N
F
T
Type
Rc
NPT
G
NPTF
Actuation
Option
Symbol
Nil
N
Option
Body only
With silencer
Automatically
operated
앬
앬
Applicable actuation
Air
operated
앬
—
Made to order specifications
(For details, refer to pages 724 to 726)
Products complying with ATEX
With air operated reset portNote)
With operating cycle counting portNote)
Note) For automatically operated type only.
Made to
Order
Note 3)
671
PA
PAP
PAX
PB
PAF
PA첸
PB
