Smeg Cooker SCB60GB User manual

Contents
3
1INSTRUCTIONS FOR SA
F
E AND PROPER US
E
_
_______________________________
4
2INSTALLATION OF THE APPLIANCE__________________________________________6
3ADAPTATION TO DIFFERENT TYPES OF GAS _________________________________9
4FINAL OPERATIONS______________________________________________________14

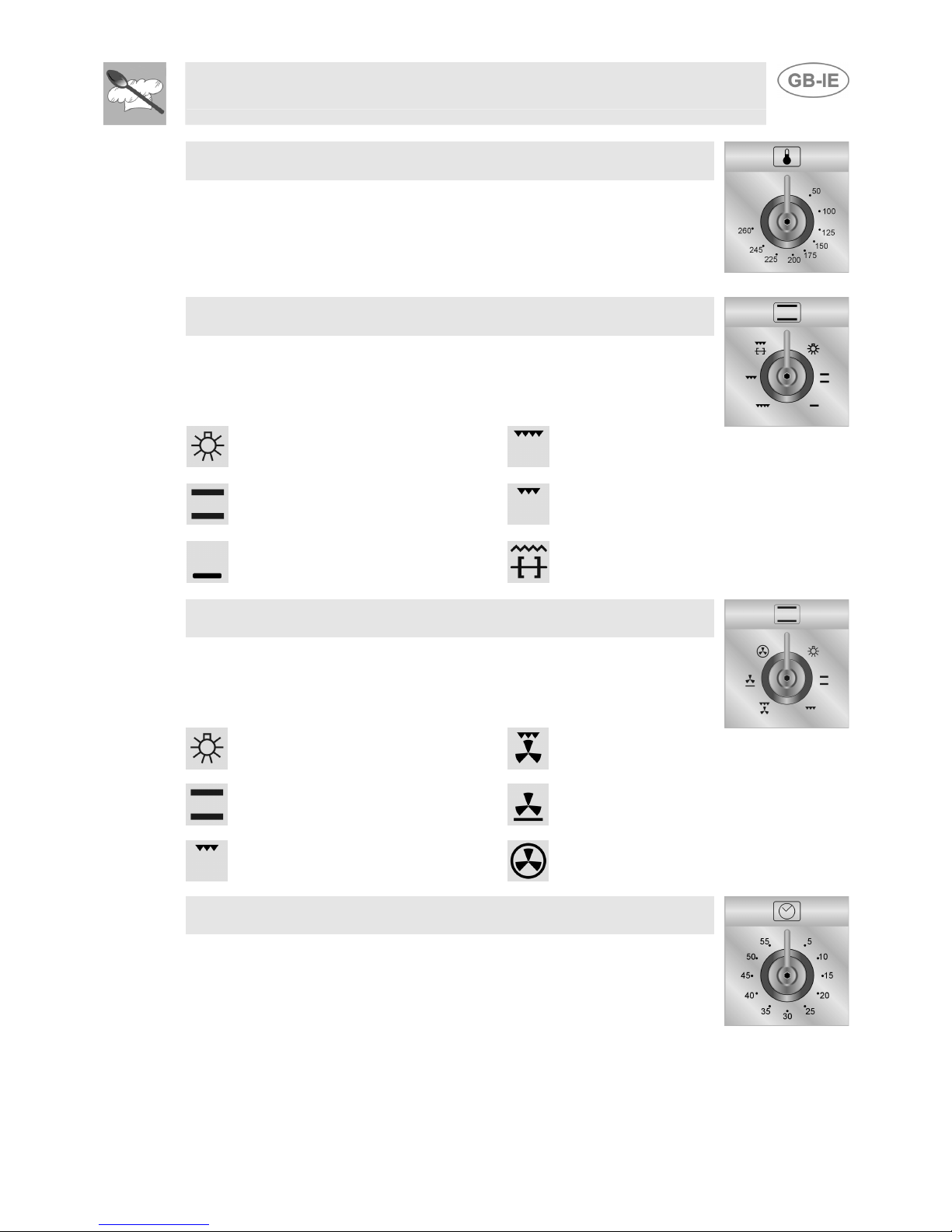

5DESCRIPTION OF FRONT PANEL CONTROLS ________________________________16
6USE OF THE COOKING HOB _______________________________________________18
7USE OF THE OVEN_______________________________________________________21
8ELECTRONIC PROGRAMMER (ONLY ON EQUIPPED MODELS) __________________25
9DIGITAL TIMER (CERTAIN MODELS ONLY) ___________________________________27
10 ANALOGUE CLOCK (ONLY ON EQUIPPED MODELS) _________________________27
11 CLEANING AND MAINTENANCE ___________________________________________28
12 EXTRAORDINARY MAINTENANCE _________________________________________30
THESE INSTRUCTIONS ARE VALID ONLY FOR END USER COUNTRIES WHOSE IDENTIFICATIO
N
SYMBOLS APPEAR ON THE COVER OF THIS MANUAL.
INSTRUCTIONS FOR THE INSTALLER: these are for the qualified technician who must carry out
a
suitable check of the gas system, install the appliance, set it functioning and carry out an inspection test.
INSTRUCTIONS FOR THE USER: these contain user advice, description of the commands and th
e
correct procedures for cleaning and maintenance of the appliance.

Introduction
4
1INSTRUCTIONS FOR SAFE AND PROPER USE
THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE AND THEREFORE MUST BE KEPT
IN ITS ENTIRETY AND IN AN ACCESSIBLE PLACE FOR THE WHOLE WORKING LIFE OF THE
COOKER. WE ADVISE READING THIS MANUAL AND ALL THE INSTRUCTIONS THEREIN
BEFORE USING THE COOKER. ALSO KEEP THE SERIES OF NOZZLES SUPPLIED.
INSTALLATION MUST BE CARRIED OUT BY QUALIFIED PERSONNEL IN ACCORDANCE WITH
THE REGULATIONS IN FORCE. THIS APPLIANCE IS INTENDED FOR DOMESTIC USES AND
CONFORMS TO CURRENT REGULATIONS IN FORCE. THE APPLIANCE HAS BEEN BUILT TO
CARRY OUT THE FOLLOWING FUNCTIONS: COOKING AND HEATING-UP OF FOOD. ALL
OTHER USES ARE CONSIDERED IMPROPER.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR IMPROPER USE.
DO NOT LEAVE THE PACKING IN THE HOME ENVIRONMENT. SEPARATE THE VARIOUS
WASTE MATERIALS AND TAKE THEM TO THE NEAREST SPECIAL GARBAGE COLLECTION
CENTRE.
IT IS OBLIGATORY FOR THE ELECTRICAL SYSTEM TO BE GROUNDED ACCORDING TO THE
METHODS REQUIRED BY SAFETY RULES.
WHEN LINKING UP TO MAINS BY PLUG AND SOCKET, MAKE SURE THAT BOTH ARE
COMPATIBLE AND CONNECT BY MEANS OF A POWER CABLE COMPLYING WITH
APPLICABLE REGULATIONS.
THE SOCKET MUST BE ACCESSIBLE AFTER THE APPLIANCE HAS BEEN BUILT IN.
NEVER UNPLUG BY PULLING ON THE CABLE.
IMMEDIATELY AFTER INSTALLATION CARRY OUT A BRIEF INSPECTION TEST OF THE
APPLIANCE, FOLLOWING THE INSTRUCTIONS BELOW. SHOULD THE APPLIANCE NOT
FUNCTION, DISCONNECT IT FROM THE SUPPLY AND CALL THE NEAREST TECHNICAL
ASSISTANCE CENTRE.
NEVER ATTEMPT TO REPAIR THE APPLIANCE.
WHEN NOT IN USE, MAKE SURE THAT THE CONTROL KNOBS ARE IN THE CORRECT (OFF)
POSITION .
NEVER PUT INFLAMMABLE OBJECTS IN THE OVEN: THEY COULD BE ACCIDENTALLY
LIGHTED AND CAUSE FIRES.
THE I.D. PLATE WITH TECHNICAL DATA, REGISTRATION NUMBER AND BRAND NAME IS
POSITIONED VISIBLY IN THE STORAGE COMPARTMENT.
THE PLATE MUST NOT BE REMOVED.
DO NOT PUT PANS WITHOUT PERFECTLY SMOOTH AND FLAT BOTTOMS ON THE COOKING
hob GRIDS.
DO NOT USE CONTAINERS OR BROILERS THAT EXTEND BEYOND THE OUTER PERIMETER
OF THE HOB.

Introduction
5
LOWER THE GLASS COVER SLOWLY AND BY HAND.
WARNING: THE GLASS COVER MAY SHATTER IF IT OVERHEATS. SWITCH OFF ALL RINGS
AND WAIT FOR THEM TO COOL DOWN BEFORE CLOSING THE COVER.
DURING USE THE APPLIANCE BECOMES VERY HOT. TAKE CARE NOT TO TOUCH THE
HEATING ELEMENTS INSIDE THE OVEN.
THE APPLIANCE IS DESIGNED FOR USE BY ADULTS. DO NOT ALLOW CHILDREN TO GO
NEAR OR PLAY WITH IT.
WHEN OPERATING THE GRILL ALL ACCESSIBLE PARTS COULD BECOME VERY HOT: KEEP
OUT OF THE WAY OF CHILDREN.
IF THE APPLIANCE IS TO BE POSITIONED ON A PLATFORM IT MUST BE INSTALLED IN SUCH
A WAY AS TO PREVENT IT FROM SLIPPING OFF THE FORMER.
INSTALL THE APPLIANCE SO THAT WHEN DRAWERS OR DOORS OF UNITS INSTALLED AT
HOB HEIGHT ARE OPENED, ACCIDENTAL CONTACT WITH PANS ON THE HOB IS NOT
POSSIBLE.
THIS APPLIANCE IS MARKED ACCORDING TO THE EUROPEAN DIRECTIVE 2002/96/EC ON
WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE).
THIS GUIDELINE IS THE FRAME OF A EUROPEAN-WIDE VALIDITY OF RETURN AND
RECYCLING ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT.
BEFORE THE APPLIANCE IS PUT INTO OPERATION, ALL THE LABELS AND PROTECTIVE
FILMS APPLIED INSIDE OR OUTSIDE MUST BE REMOVED.
The manufacturer declines all responsibility for damage to persons or things caused by non-
observance of the above prescriptions or by interference with any part of the appliance or by the use
of non-original spares.

Instruction for the installer
6
2INSTALLATION OF THE APPLIANCE
It is the law that all gas appliances are installed by competent persons. Depending on the type of
installation, it is in class 1 (Fig. A) or class 2 - sub-class 1 (Fig. B-C)
Corgi gas installers are approved to work to safe and satisfactory standards. All gas installation,
servicing and repair work must be in accordance with the gas safety regulations 1984 (installation
and use) as amended 1990.
It can be placed against walls higher than the hob, at a distance of at least 50 mm from the side of
the appliance, as shown in the drawings A and B relating to the installation classes. Wall units or
extractor hoods located above the hob must be at least 750 mm away from it.
AB
Built-in appliance Free-standing installation
AB
Built-in appliance Free-standing installation
C
The appliances with a gas bottle compartment and electric oven can only be installed as
class 1 (see fig. B).

Instruction for the installer
7

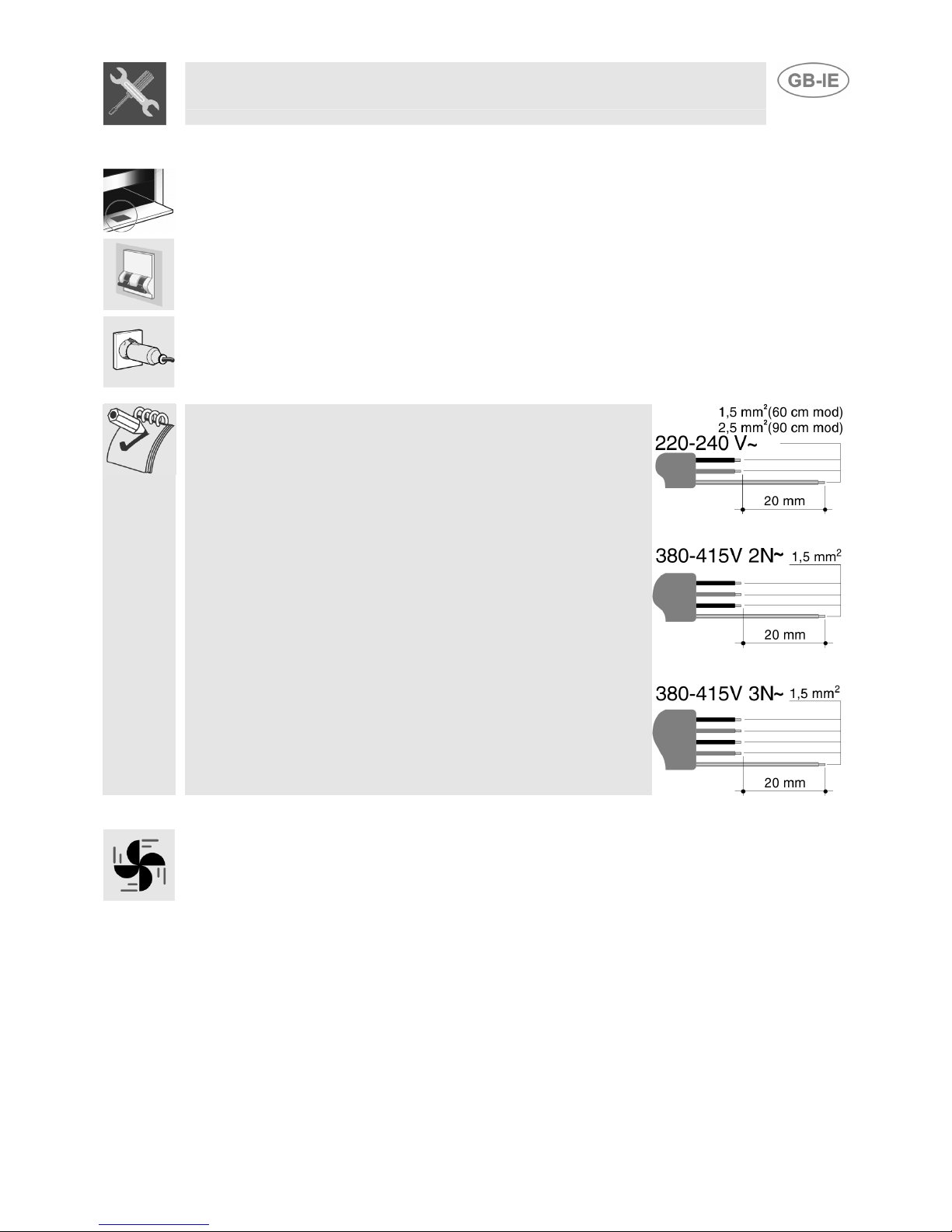

2.1 Electrical connection
Make sure that the power line voltage matches the specifications indicated on the rating plate
located inside the storage compartment.
This rating plate must never be removed.
If the appliance is hooked-up to the supply by means of a fixed connection, install a multipolar cut-
out device on the line, with contact opening distance equal to or greater than 3 mm, located near the
appliance and in an easily reachable position.
Hook-up to the supply may be fixed or with plug and socket. In the latter case the plug and socket
must be suitable for the cable employed and conform with the regulations in force. Regardless of the
type of connection, earthing of the appliance is absolutely obligatory. Before connection make sure
that the supply line is suitably earthed. Avoid the use of reducers, adapters or shunts.1
For operation on 220-240 V ∼ :use an H05RR-F or H05V2V2-F type
three-core cable (3 x 2.5 mm2on 90 cm models or 3 x 1.5 on 60 cm
models).
For operation on 380-415 V 2N ∼ (only for 90 cm models): use an
H05RR-F or H05V2V2-F type four-core cable (4 x 1.5 mm2).
For operation on 380-415 V 3N ∼ (only for 90 cm models): use an
H05RR-F or H05V2V2-F type five-core cable (5 x 1.5 mm2).
The cable end to be connected to the appliance must be provided with
an earth wire (yellow-green) at least 20 mm longer.
2.2 Ventilation requirements
The room containing the appliance should have an air supply in accordance with B.S. 5440 part 2
1989.
1. All rooms require an opening window or equivalent, and some rooms will require a permanent
vent as well.
2. For room volumes up to 5 m3an air vent of 100 cm2is required.
3. If the room has a door that opens directly to the outside, and the room exceeds 1 m3no air vent
is required.
4. For room volumes between 5 m3 3 2
and 10 m an air vent of 50 cm is required.
5. If there are other fuel burning appliances in the same room B.S. 5440 part 2 1989 should be
consulted to determine the air vent requirements.
6. This appliance must not be installed in a bed sitting room of less than 20 m3or in a bathroom or
shower room.
Windows and permanent vents should therefore not be blocked or removed without first consulting a
Corgi gas installer.
Failure to install appliances correctly is dangerous and could lead to prosecution.

Instruction for the installer
8

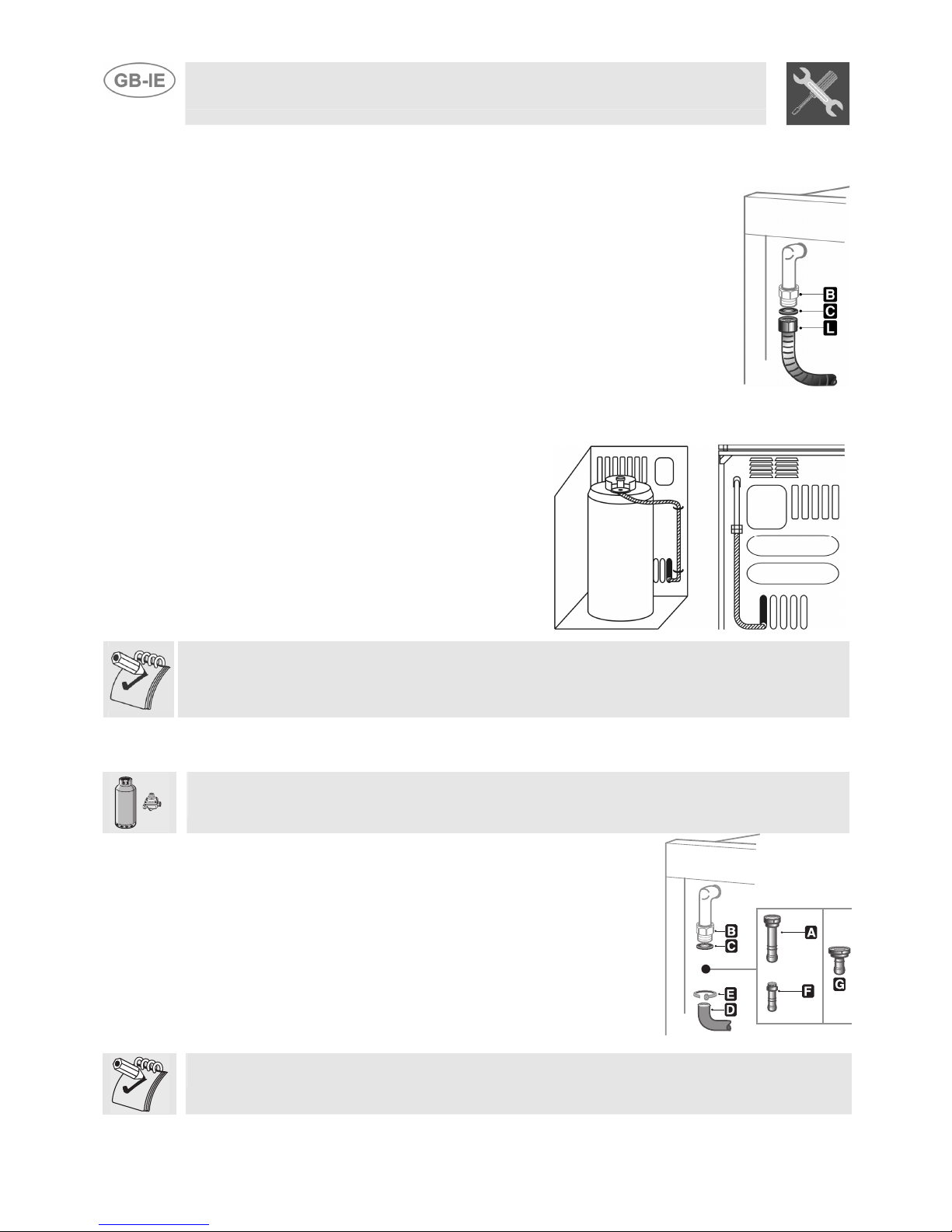

2.3 Connecting to natural and LPG gas
(Please see connection diagram)
Make the connection to the appliance using flexible bayonet style hose in
accordance to B.S. 669. The hose connection at the rear of the appliance has a
½” BSP internal thread. Please use seal Cbetween the flexible connection Land
the appliance supply tube B. When making the connection, make sure that no
stress of any kind is applied to the cooker and that the hose does not touch any
sharp edges.
If connecting to LPG the bayonet hose must have red bands on it.
2.3.1 Connection to the gas bottle inside the compartment in the cooker (on some models
only)
Open the side door and put in a gas bottle (max. 15
kg). Fit one end of the pipe to the pipe holder and fix
it to one of the clamps supplied. Insert the pipe into
the bottle compartment through the hole in the back
of the cooker as shown in the diagram here. Fit the
free end of the pipe to the pressure regulator on the
gas bottle: fix it with the second clamp. Check for
any leaks using a soapy solution, never with a
live flame.
To connect the cooker to a gas bottle, use a piece of regulation rubber pipe 1.4 m ( ± 0.05 m) long
2.3.2 Bottled gas connection (Only on some models)
Use a pressure regulator complaint with the relevant standards and make the connection to the gas cylinder in
accordance with the relevant regulations.
Make sure that the gas supply pressure is as stated in the table in point "3.2/3.3 Burner and Nozzle Data Tables".
Screw the small hose connector Fonto the large hose connector Aand
connect the resulting unit to the gas union B(or use the hose connector
Gfor connection straight to the gas union B) and fit the seal C. Fit the
ends of the rubber hose Honto the hose connector A+F (or G) and to
the outlet union of the pressure reducer on the gas cylinder. Fix the end
of the hose Hto the hose connector A+F (or G) using the regulation
hose clamp I .
The hose connector Gshown is not supplied with the appliance. Use only hose connectors
compliant with the relevant regulations.

Instruction for the installer
9
3ADAPTATION TO DIFFERENT TYPES OF GAS
Before performing any cleaning or maintenance work, detach the appliance from the electrical socket.
The cooker hob is set for natural gas G20 (2H) at a pressure of 20 mbar for cookers with maxi oven,
and for LPG G30/G31 (3+) at a pressure of 28/37 mbar for cookers with gas-bottle compartments. In
the case of functioning with other types of gas the burner nozzles must be changed and the

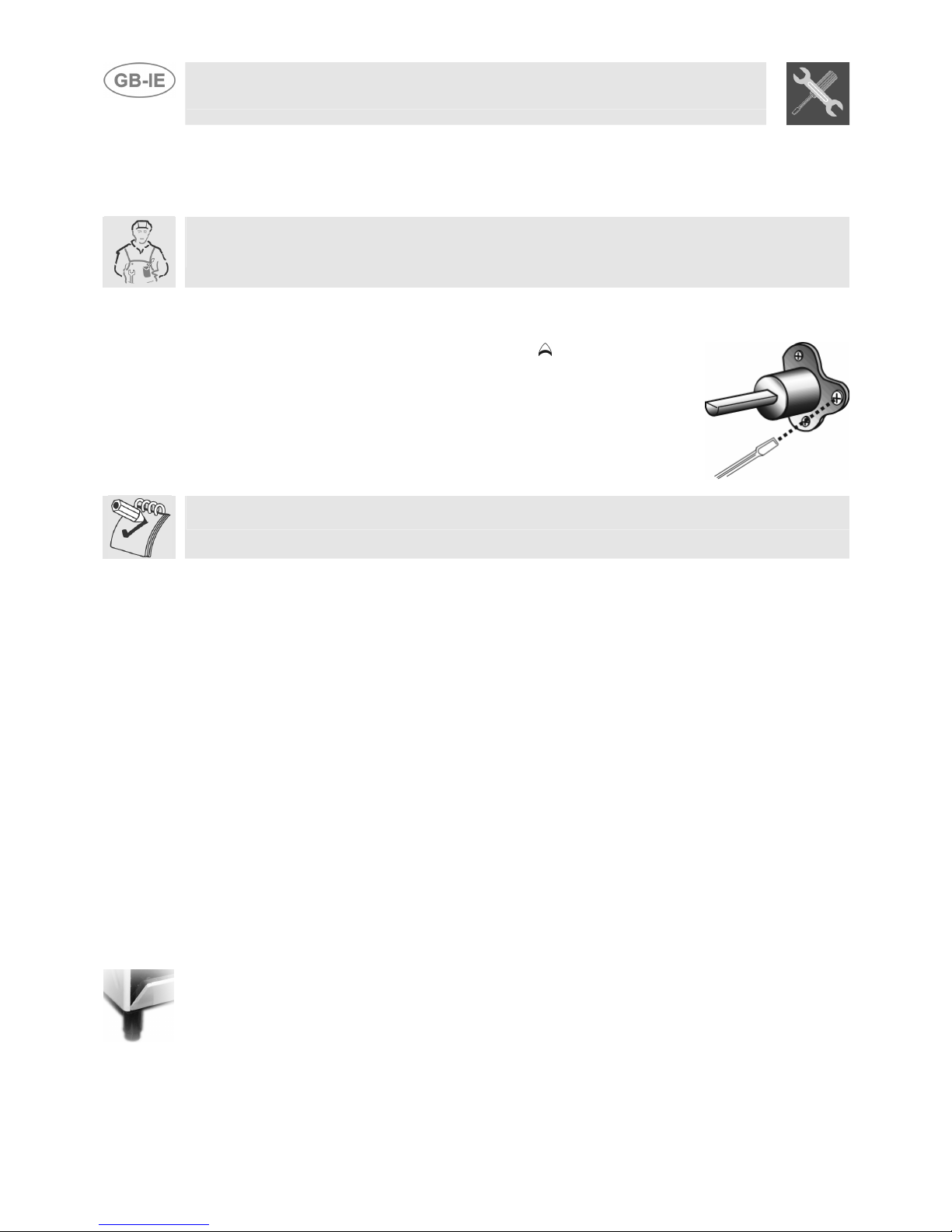

minimum flame adjusted on the gas taps. To change the nozzles, proceed as described below.
3.1 Replacement of nozzles on the hob
This operation requires no primary air regulation.
1. Extract the grids and remove all the caps and flame-spreader crowns;
2. unscrew the burner nozzles with a 7 mm socket wrench;
3. replace the nozzles according to the type of gas to be used and the description in paragraph “3.2
/ 3.3 Burner and nozzle characteristics table”.
4. Replace the burners in the correct position.

Instruction for the installer
10
3.2 Burner and nozzle characteristics table (50-60 cm models)
Burner
Rated
heating
capacity
(kW)
LPG –G30/G31 28/37 mbar
Nozzle
diameter
1/100 mm
By-pass
mm
1/100
Reduced
flowrate
(W)
Flowrate
g/h G30 Flowrate g/h G31
Auxiliary 1.0 50 30 350 73 71
Semi-rapid 1.8 65 33 450 131 129
Rapid (3) 3.0 85 45 800 218 214
Rapid (5) 2.5 79 45 800 182 179
Triple crown 3.2 91 65 1500 233 229
Oven 3.2 87 48 850 233 229
Burner
Rated
heating
capacity
(kW)
NATURAL GAS – G20 20 mbar
Nozzle diameter
1/100 mm
Reduced Flowrate
(W)
Auxiliary 1.0 72 350
Semi-rapid 1.8 97 450
Rapid (3) 3.0 115 800
Rapid (5) 2.5 108 800
Triple crown 3.5 133 1500
Oven 3.2 130 850

Instruction for the installer
11
3.3 Burner and nozzle characteristics table (90 cm models)
Burner
Rated
heating
capacity
(kW)
LPG –G30/G31 28/37 mbar
Nozzle
diameter
1/100 mm
By-pass
mm
1/100
Reduced
flowrate
(W)
Flowrate
g/h G30
Flowrate
g/h G31
Auxiliary 1 50 30 350 73 71
Semi-rapid 1.8 65 33 450 131 129
Rapid 3 85 45 800 218 214
Triple crown 3.2 91 65 1500 233 229
Fish pan 3.5 94 65 1500 255 250
Oven 1.9 68 45 800 138 136
Maxi oven 3.2 87 50 900 233 229
Grill 5.2 110 59 1300 378 372
Maxi grill 2.9 87 // // 211 207
Burner
Rated
heating
capacity
(kW)
NATURAL GAS – G20 20 mbar
Nozzle diameter
1/100 mm
Reduced Flowrate
(W)
Auxiliary 1 72 350
Semi-rapid 1.8 97 450
Rapid 3 115 800
Triple crown (4) 3.5 133 1500
Triple crown (8) 3.5 140 1500
Fish pan 1.9 94 800
Oven 3.2 130 850
Maxi oven 5.2 164 1200
Grill 2.9 130 //
Maxi Grill 4.0 150 //

Instruction for the installer
12

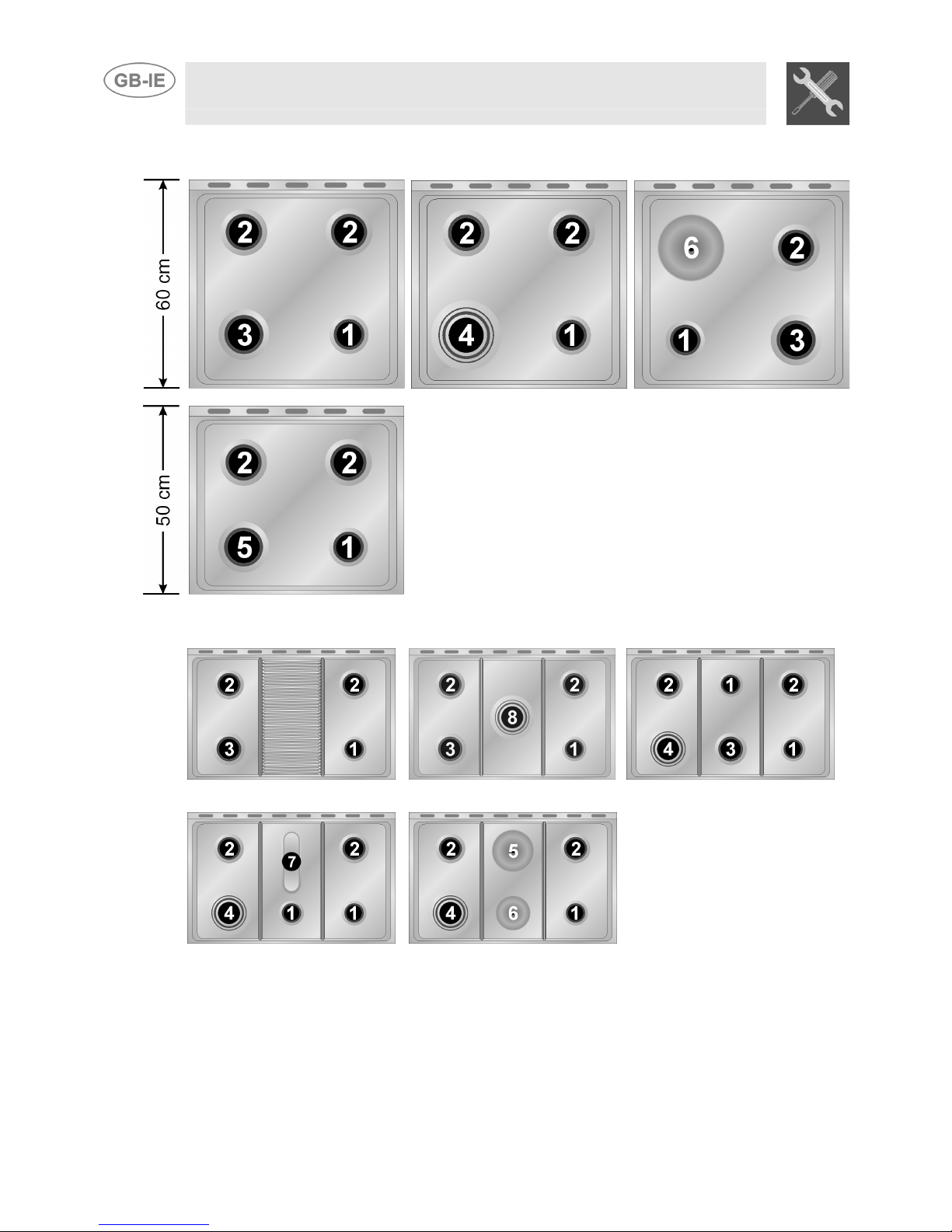

3.4 Arrangement of burners on cooking hob
BURNERS
1. Auxiliary
2. Semi-rapid
3. Rapid (60 X 60)
4. Triple crown
5. Rapid (60 X 50)
3.5 Arrangement of burners on cooking hob
BURNERS
1. Auxiliary
2. Semi-rapid
3. Rapid
4. Triple crown
5. Large electric hob (1500W)
6. Small electric hob (1000W)
7. Fish pan
8. Triple crown

Instruction for the installer
13
3.6 Adjustment of the oven burner (only for gas oven models)
To adjust the oven burners follow the procedure described below from
inside the oven:
•Open the oven door;
•Remove the oven dish and shelf.
•Lift up the oven floor and remove.
3.6.1 Replacement of the oven burner nozzle
•Loosen the fixing screws Aon the oven burner.
•Push the burner Btowards the right to get to the
nozzle.
•Use a 13 socket wrench to change the nozzle, fitting
the one for the type of gas to be used (see point
“3.2/3.3 Table of burner and nozzle characteristics”).
3.6.2 Regulation of the primary air on the oven burner
•Loosen the register screws “A” on the air regulation coupling.
•Turn the register coupling “B” to the position corresponding to the type of
gas to be used according to the table below.
•Tighten the register screws and mount the seals.
•Once the operation is completed reassemble the burner correctly.
G30/G31 (GPL) G30/G31 (GPL)
NATURAL GAS
90cm Oven 60cm Oven
X = 5 mm 10 mm 10 mm
NOTE: INSTALLATION IS ONLY TO BE CARRIED OUT BY A NATIONALLY CERTIFIED
INSTALLER.

Instruction for the installer
14
4FINAL OPERATIONS
After replacing the nozzles, reposition the flame-spreader crowns, the burner caps and the grids.
Following adjustment to a gas other than the preset one, replace the gas adjustment label fixed to
the appliance with the one corresponding to the new gas. This label is in the packet together with the
nozzles.

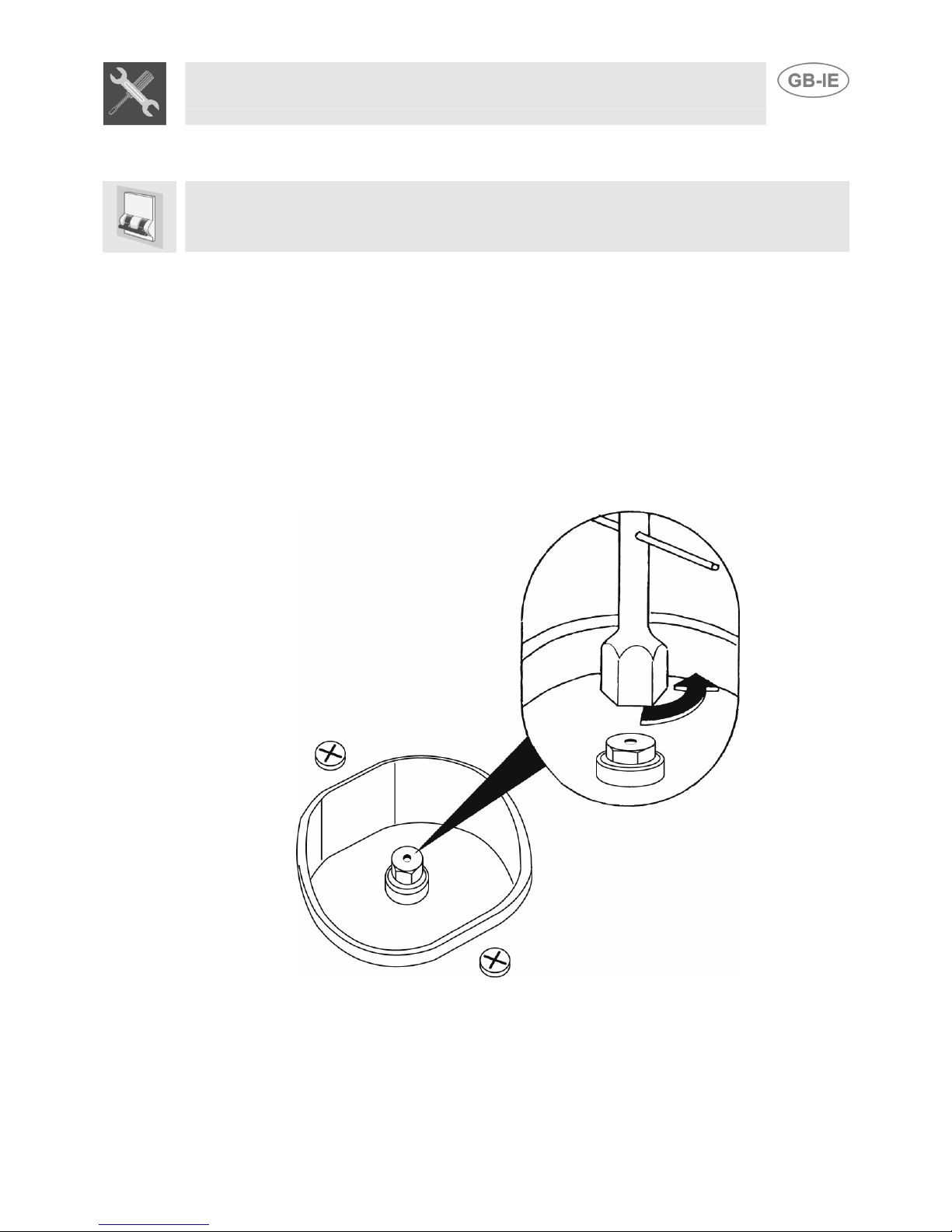

4.1 Regulation of the hob burner minimum level for natural gas
Light the burner and turn it to the minimum position . Extract the gas
tap knob and turn the adjustment screw at the side of the tap rod until the
correct minimum flame is achieved.
Replace the knob and check burner flame stability: (rapidly turning the
knob from maximum to minimum position, the flame should not go out).
Repeat the operation on all the gas taps.
For models with valves, keep the knob at minimum level for about 1 minute to keep the flame lit and
to activate the safety device.
4.2 Regulation of the hob burner minimum level for LPG
For regulating the minimum with LPG, the screw at the side of the tap rod must be turned clockwise
all the way.
The bypass diameters for each individual burner are shown in paragraph “3.2/3.3 Burner and nozzle
characteristics table”. Once the regulation has been completed, replace the seal on the by-passes
using paint or similar materials.
4.3 Regulation of the oven burner minimum level
The oven thermostat is equipped with a by-pass to regulate the minimum level, which is visible
underneath the thermostat knob.
When the gas type is changed, the by-pass should be regulated as follows:
1. Turn on the oven burner to maximum for 10/15 minutes with the door closed and without the
floor. Turn the knob to the minimum temperature, remove the knob and regulate using a flat
screwdriver.
2. For LPG turn the by-pass screw clockwise as far as it will go. The by-pass diameter is shown in
the paragraph “3.2/3.3 Burner and nozzle characteristics table”.
3. For natural gas, regulate the by-pass so that turning the thermostat knob from minimum to
maximum the flame remains stable and constant. Once the regulation has been completed,
replace the seal on the by-pass using paint or similar materials. Close the oven door and make
sure that the burner stays on minimum.
4.4 Positioning and levelling of the appliance
Having carried out the electricity and gas hook-up, level the appliance using the four adjustable legs.
For best cooking the appliance must be perfectly level.

Instruction for the installer
15
4.5 Mounting the rear top skirtboard (where applicable)
•Loosen nuts B.
•Position the skirt above the top, taking care
to align pins Cwith holes D.
•Secure the skirt to the top by tightening
screws A.
4.6 Positioning and levelling of the appliance
Having carried out the electricity and gas hook-up, level the appliance using the four adjustable legs.
For best cooking the appliance must be perfectly level.
Depending on the model you have purchased, the foot height adjustment range may vary from 70 to
95 mm and from 110 to 160 mm. These heights refer to the distance between the highest point of
the foot (fixed part) and the lowest point (movable part which rests on the floor).

Instruction for the user
16
5DESCRIPTION OF FRONT PANEL CONTROLS
All the oven controls are grouped together on the front panel. The table below provides a description
of the symbols used.
CENTRAL BURNER
FRONT RIGHT BURNER
GAS OVEN THERMOSTAT KNOB
BACK RIGHT BURNER
OVEN LIGHT / ROTISSERIE / GRILL
SWITCH
BACK LEFT BURNER
ELECTRIC OVEN FUNCTION KNOB
FRONT LEFT BURNER
OVEN FUNCTION
BACK CENTRAL BURNER
FRONT CENTRAL BURNER
If the cooker is equipped with an electronic programmer, before using the oven make sur
e
that the symbol ; appears on the display. See paragraph “8.1 Clock adjustment”.
COOKING HOB BURNER COMMAND KNOB
The flame is lit by pressing the knob and turning it anticlockwise to minimum
flame . To adjust the flame turn the knob between maximum ( ) and
minimum ( ). The burner goes out when the knob is returned to the position
.
GAS OVEN THERMOSTAT KNOB
(CERTAIN MODELS ONLY)
This knob is used to ignite the gas burner inside the oven. The cooking
temperature is selected by turning the knob anticlockwise to the desired setting,
between Min. and 275°C.
For information on how to ignite the gas oven, see point “ 7.3 Use of the gas oven ”.
OVEN LIGHT / ROTISSERIE / GRILL SELECTOR KNOB
(CERTAIN MODELS ONLY)
This knob allows the user to activate the Grill / Rotisserie function or to switch
on the light inside the oven to check the point reached in cooking the food.
CAUTION: IT IS NOT POSSIBLE TO OPERATE THE GAS OVEN AND THE
GRILL / ROTISSERIE SIMULTANEOUSLY.

Instruction for the user
17
ELECTRIC OVEN THERMOSTAT KNOB
(CERTAIN MODELS ONLY)
Selection of cooking temperature is carried out by turning the knob clockwise to
the required temperature, between 50° and 260°C.
The tell-tale light comes on to indicate that the oven is warming up. When it
goes out it means that the required temperature has been reached. Regular
flashing means that oven temperature is being constantly maintained at the
programmed level.
STATIC ELECTRIC OVEN CONTROL KNOB
(CERTAIN MODELS ONLY)
The various electric oven functions are suitable for different cooking modes.
After selecting the function required, set the cooking temperature using the
thermostat knob.
LARGE GRILL FUNCTION
OVEN LIGHT
SMALL GRILL FUNCTION
STATIC OVEN FUNCTION
SMALL GRILL FUNCTION +
ROTISSERIE (IN THOSE MODELS WITH
ROTISSERIE)
LOWER RESISTANCE FUNCTION
VENTILATED ELECTRIC OVEN FUNCTION KNOB
(CERTAIN MODELS ONLY)
The various electric oven functions are suitable for different cooking modes.
After selecting the function required, set the cooking temperature using the
thermostat knob.
GRILL AND VENTILATOR FUNCTION
OVEN LIGHT
LOWER RESISTANCE AND
VENTILATOR FUNCTION
STATIC OVEN FUNCTION
VENTILATED OVEN FUNCTION
GRILL FUNCTION
MINUTE COUNTER KNOB
(CERTAIN MODELS ONLY)
Turn clockwise to wind up the alarm and set to the desired time.
Time is expressed in minutes (maximum 55 minutes).
Adjustment is continuous so that intermediate times between markings can also
be set. Alarm activation at end of pre-set time does not turn off the oven (no
end of cooking).

Instruction for the user
18
6USE OF THE COOKING HOB

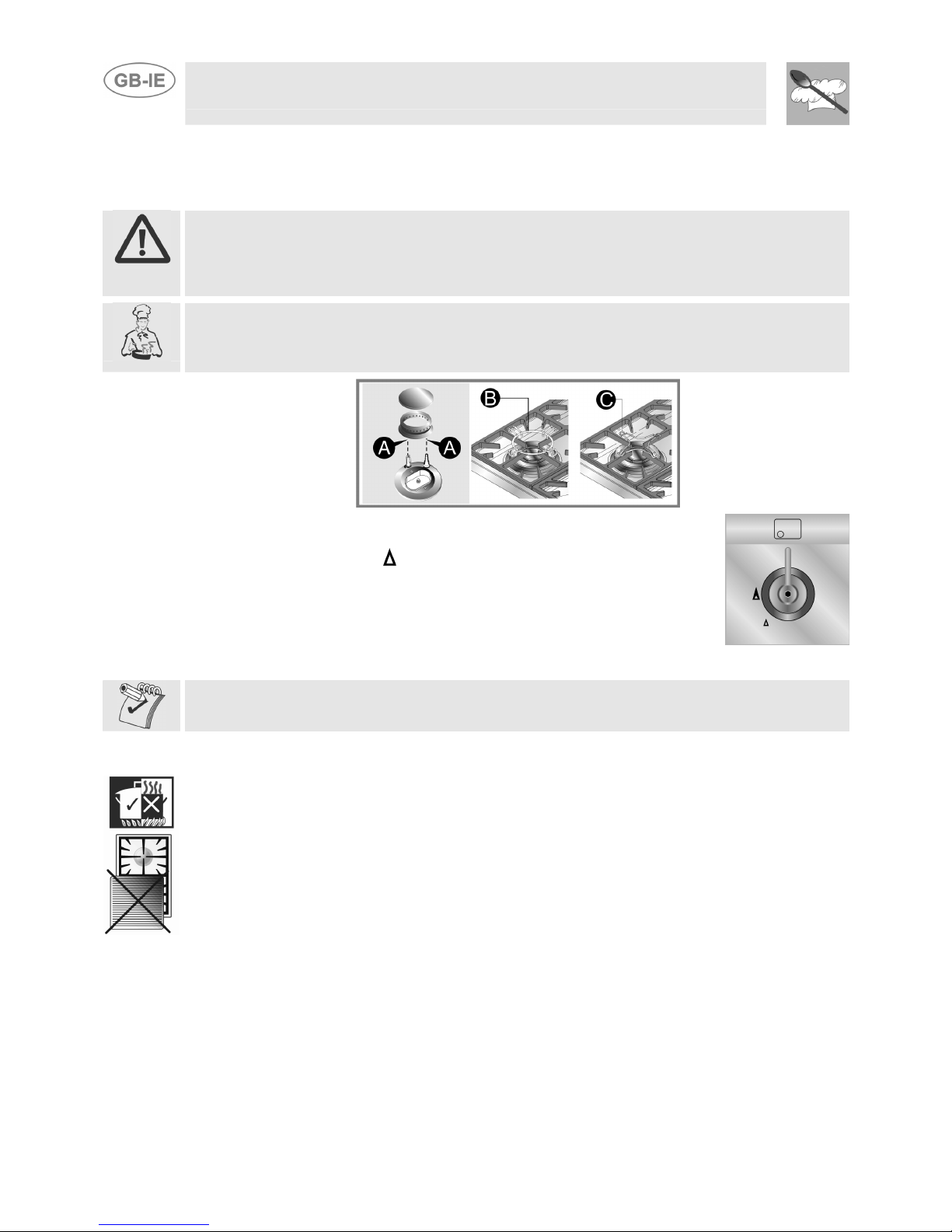

6.1 Lighting of the cooking hob burners
Before lighting the hob burners check that the flame caps are in the correct position and that their
burner caps are in place, making sure that the holes Ain the flame caps correspond to the spark
plugs and thermocouples.
Before lighting the burners lift the glass cover; before lowering the cover, turn off all the burners
and wait for them to cool down.
The optional grid Bis for use with “woks” (Chinese pans).
To prevent deterioration of the hob we have equipped the cooker with a raised pan stand Cto be
placed underneath pans more than 26 cm in diameter.
The supplied reduction rest Cis also used for small pans.
The drawing next to each knob shows the corresponding burner. The appliance
has an electronic lighting device. Simply press and turn the knob anticlockwise
to the minimum flame symbol , until the ring is lit. If it does not light within the
first 15 seconds, turn the knob to 0 and wait at least 60 seconds before trying to
light the burner again. Hold the knob down for a few seconds to allow the
thermocouples to heat up. The burner may go out when the knob is released:
this is because the thermocouple has not been sufficiently heated. Repeat the
operation holding down the knob for a little longer. This operation is not
necessary for burners without thermocouples.
For models with thermocouples, if the burner should accidentally go out, a safety device will be
activated which stops the gas flow even if the tap is open. In this case, turn the knob back to the off
position and wait at least 60 seconds before trying to relight the burner.
6.2 Practical advice for using the cooking hob burners
For better use of the burners and lower gas consumption, use covered containers that are
proportional in size to the burner to prevent the flame from licking the sides (see paragraph “6.3/6.4
Diameter of containers”). When water reaches the boiling point, lower the flame so that it doesn’t
overflow. To avoid burns or damage to the hob, all recipients or griddle plates must be placed within
the perimeter of the cooking hob. All containers have to have a flat and smooth bottom. When using
fats or oils, be extremely careful that they don’t overheat and catch fire.
If the flame accidentally goes out, turn off the control knob and wait at least 1 minute before trying to
re-light the burner.

Instruction for the user
19
6.3 Diameter of containers (60 cm models)
BURNERS
(60 X 50)
Ø min. and
max. (in cm.)
BURNERS
(60 X 60)
Ø min. and
max. (in cm.)
1. Auxiliary 1. Auxiliary12 – 14 12 – 14
2. Semi-rapid 2. Semi-rapid16 – 22 16 – 24
5. Rapid 3. Rapid18 – 24 18 – 26
4. Triple crown 18 – 26
6.4 Diameter of containers (90 cm models)
BURNERS Ø min. and
max. (in cm.)
1. Auxiliary 12 – 14
2. Semi-rapid 16 – 22
3. Rapid 18 – 26
4. Triple crown 18 – 26
7. Fish Burner Special oval-
shaped
vessels

Instruction for the user
20
6.5 Switching on the electric hob
6.5.1 Switching on the electric hobs
The cookers are equipped with hobs of different diameters. These are controlled by a switch and are
turned on by turning the knob to the desired position. On the front panel above each knob a small
drawing shows which hob corresponds to each knob. A yellow warning light lights up when the hob
is switched on.
6.5.2 How to use the electric hobs
The rapid hobs offer the advantage of ultra-rapid cooking. Purely as an example the regulation table
for the hobs is shown below.
RAPID HOBS HEAT INTENSITY POSSIBLE COOKING
0 Off -
1 Weak To melt butter, chocolate, etc.
To heat small amounts of liquid.
2 Soft To heat larger amounts of liquid.
3 Slow To defrost frozen food and prepare stews, cooking at
or just below boiling point.
4 Medium To cook food which has to reach boiling point, to roast
delicate meat or fish.
Strong For roasts, steaks and large boiled joints.
5
To boil large amounts of water, to fry.
6 Very strong
WARNING
When switching on the hob for the first time, or if the hob has not been used for
a long time, to remove any humidity from the insulating material it should be
dried out by placing the hob on position 1 for 30 minutes.
To use correctly remember to:
•Switch the hob only after having placed the pan on it.
•Use flat and thick bottomed pans.
•Never use pans which are smaller than the hob.
•Dry the bottom of the pan before placing it on the hob.
•After use, to make sure that the surfaces are clean and long lasting, the
electric hob must be treated with specific cleaning products which are
available on the market. This necessary operation prevents oxidisation (rust
formation).
•When cooking with flammable oils and fats, never leave the appliance.
•The hobs will stay hot for a long time after use: do not touch them or place
any objects on them.
•Before switching on the electric hobs, lift up the glass cover on the cooker;
before closing it, switch off the hobs and wait for them to cool down.
•If any dents appear in the hob surface, switch it off immediately and contact
the nearest authorised servicing centre.

Instruction for the user
21
7USE OF THE OVEN
For those models with electronic programmer, before using the oven make sure that the
display shows the symbol .
For those models with analogue clock and timer, place on the symbol .
7.1 Warnings and general advice
Using the oven and the grill for the first time, heat them to the maximum temperature (260°C for
electric oven and 275°C for gas oven) for as long as it takes to burn off any production oil residues
which could give a nasty flavour to the food. After a power cut, the oven display will flash
intermittently and show . To adjust refer to paragraph "8 ELECTRONIC PROGRAMMER (ONLY
ON EQUIPPED MODELS)”.
The oven accessories which may come into contact with food are made from materials which
conform to the standing directives.
WARNING: the gas oven is lit with the door open. The oven is equipped
with a safety system which stops the burners being lit when the door is
closed. If this is done wrongly, open the door and wait for a few moments
before lighting once more.
To prevent any steam in the oven creating problems, open the door in two
stages: half open (5 cm approx.) for 4-5 seconds and then fully open. To
access food, always leave the door open as short a time as possible to prevent
the temperature in the oven from falling and ruining the food.
7.2 Cooling system
The oven is equipped with a cooling system which automatically comes on upon a few minutes after
the oven has been turned on.
Fans cause a steady outflow of air from above the door which may continue for a brief period of time
even after the oven has been turned off.
7.3 Use of the gas oven
7.3.1 Electronic spark lighting
Open the oven door completely, press the thermostat knob and turn it clockwise
to max. temperature. The electronic spark lighting device will be enabled
automatically. Once the oven is lit, hold the knob down for a few seconds to
allow the thermocouple to heat up.
This device should not be enabled for more than 15 seconds; if after this time
the burner has not come on, stop, fully open the oven door and try again after
one minute.
7.3.2 Manual lighting
Open the oven door completely and turn the thermostat knob. Place a
lit match to the mouth of the flame pipe Ain the centre of the oven
floor and press the thermostat knob. Once the oven is lit, hold the knob
down for a few seconds to allow the thermocouple to heat up and
check that the oven is lit through the inspection hole B. Choose the
cooking temperature by turning the knob clockwise to the desired
temperature, between 50° and 275°C.
If the burner is accidentally switched off, turn the knob to the off position ( ) and wait for one minut
e
before lighting again.

Instruction for the user
22
7.4 Use of the electric grill
7.4.1 Using the grill in cookers with electric oven
For short cooking procedures, such as the final crisping of meat which is already cooked, select the
static grill function and turn the thermostat knob to the maximum temperature. The fan grill
function (certain models only) allows actual cooking procedures to be carried out, thanks to the fan
function which ensures that the heat penetrates into the food. For this cooking mode, select the fan
grill function and turn the thermostat knob to the ideal cooking temperature (never set at more
than 200° C).
7.4.2 Using the grill in gas cookers
To activate this function, the oven burner must first be switched off by turning
the relative knob back to the position; the switch must then be turned to .
CAUTION: IT IS NOT POSSIBLE TO OPERATE THE GAS OVEN AND THE
GRILL / ROTISSERIE SIMULTANEOUSLY.
7.4.3 Operation of the grill + rotisserie
Both the static and the fan grill functions can be used for cooking in combination with the rotisserie.
Fit the spit rod into the rotisserie bushing, select the or or fan grill function and turn the
thermostat knob to the temperature of choice (never set at more than 200° C).
7.4.4 Using the rotisserie in cookers with maxi oven
Fit the supporting frame onto the second
runner up from the bottom so that the seat to
take the rod projects outside the oven. Place
the rod as shown in the diagram (1) and push
the frame into the oven until the end of the rod
reaches the hole in the rotisserie motor. Now
push the rotisserie rod to the left until it
reaches the position shown in the diagram (2).
To activate this function, turn the switch to
(
).
These operations must be carried out with
the oven switched off and cold. 2
1
When cooking is over, use the tool provided to
extract the rod from the hole (3) and remove
the frame (4) to bring the rotisserie rod out of
the oven cavity.
34
7.4.5 Using the rotisserie in cookers with standard ovens
Place the rotisserie frame “B” on the second
runners up from the bottom and insert the rod
“A” in the hole in the back of the oven.
