Smeg FS60XNG User manual

Contents
1. INSTRUCTIONS FOR SAFE AND PROPER USE________________ 4
2. INSTALLATION OF THE APPLIANCE_________________________ 6
3. ADAPTATION TO DIFFERENT TYPES OF GAS _______________ 10
4. FINAL OPERATIONS_____________________________________ 13
5. DESCRIPTION OF CONTROLS ____________________________ 15
6. ELECTRONIC PROGRAMMER (ONLY ON EQUIPPED MODELS) _ 17
7. DIGITAL TIMER (ONLY ON EQUIPPED MODELS) _____________ 20
8. USE OF THE HOB _______________________________________ 21
9. USE OF THE OVEN ______________________________________ 23
10. AVAILABLE ACC ESSORIES _______________________________ 28
11. COOKING HINTS FOR ELECTRIC OVEN_____________________ 29
12. CLEANING AND MAINTENANCE ___________________________ 32
13. EXTRAORDINARY MAINTENANCE _________________________ 34
14. PROBLEMS AND CAUSES ________________________________ 36
3
Thank you for choosing our product.
We advise you to read this manual carefully. It contains all necessary
instructions for maintaining unaltered the appearance and functional
qualities of the cooker.
INSTRUCTIONS FOR THE INSTALLER: these are for the authorised
person who must carry out a suitable check of the gas system, install
the appliance, set it functioning and carry out an inspection test.
INSTRUCTIONS FOR THE USER: these contain user advice,
description of the commands and the correct procedures for cleaning
and maintenance of the appliance.

Introduction
4
1. INSTRUCTIONS FOR SAFE AND PROPER USE
THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE AND
THEREFORE MUST BE KEPT IN ITS ENTIRETY AND IN AN ACCESSIBLE
PLACE FOR THE WHOLE WORKING LIFE OF THE COOKER. WE ADVISE
READING THIS MANUAL AND ALL THE INSTRUCTIONS THERE IN BEFORE
USING THE COOKER.
INSTALLATION MUST BE CARRIED OUT BY QUALIFIED PERSONNEL IN
ACCORDANCE WITH THE REGULATIONS IN FORCE. THIS APPLIANCE IS
INTENDED FOR DOMESTIC USES AND CONFORMS TO CURRENT
REGULATIONS IN FORCE. THE APPLIANCE HAS BEEN BUILT TO CARRY
OUT THE FOLLOWING FUNCTIONS: COOKING AND HEATING-UP OF
FOOD. ALL OTHER USES ARE CONSIDERED IMPROPER.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR IMPROPER
USE.
DO NOT LEAVE THE PACKING IN THE HOME ENVIRONMENT. SEPARATE
THE VARIOUS WASTE MATERIALS AND TAKE THEM TO THE NEAREST
SPECIAL GARBAGE COLLECTION CENTRE.
IT IS OBLIGATORY FOR THE ELECTRICAL SYSTEM TO BE GROUNDED
ACCORDING TO THE METHODS REQUIRED BY SAFETY RULES.
IMMEDIATELY AFTER INSTALLATION CARRY OUT A BRIEF INSPECTION
TEST OF THE APPLIANCE, FOLLOWING THE INSTRUCTIONS BELOW.
SHOULD THE APPLIANCE NOT FUNCTION, DISCONNECT IT FROM THE
SUPPLY AND CALL THE NEAREST TECHNICAL ASSISTANCE CENTRE.
NEVER ATTEMPT TO REPAIR THE APPLIANCE.
ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE POSITION
(OFF) WHEN YOU FINISH USING THE HOB.
NEVER PUT INFLAMMABLE OBJECTS INTO AN OVEN: IF THEY CATCH
FIRE THEY COULD CAUSE A FIRE IN THE HOME.
THE I.D. PLATE WITH TECHNICAL DATA, REGISTRATION NUMBER AND
BRAND NAME IS POSITIONED VISIBLY IN THE STORAGE COMPARTMENT.
THE PLATE MUST NOT BE REMOVED.

Introduction
DO NOT PUT PANS WITHOUT PERFECTLY SMOOTH AND FLAT BOTTOMS
ON THE HOB GRIDS.
DURING USE THE APPLIANCE BECOMES VERY HOT. TAKE CARE NOT TO
TOUCH THE HEATING ELEMENTS INSIDE THE OVEN.
DO NOT USE CONTAINERS OR BROILERS THAT EXTEND BEYOND THE
OUTER PERIMETER OF THE HOB.
IF THE APPLIANCE IS TO BE POSITIONED ON A PLATFORM IT MUST BE
INSTALLED IN SUCH A WAY AS TO PREVENT IT FROM SLIPPING OFF THE
FORMER.
THE APPLIANCE IS DESIGNED FOR USE BY ADULTS . DO NOT ALLOW
CHILDREN OR INFIRM PERSONS TO GO NEAR OR PLAY WITH IT.
DURING USE THE APPLIANCE BECOMES HOT. CARE SHOULD BE TAKEN
TO AVOID TOUCHING THE HEATING ELEMENTS INSIDE THE OVEN. KEEP
CHILDREN AWAY FROM THE OVEN.
REPLACED APPLIANCES MUST BE TAKEN TO A SPECIAL GARBAGE
COLLECTION CENTRE.
WHERE THIS APPLIANCE IS INSTALLED IN MARINE CRAFT OR IN
CARAVANS, IT SHALL NOT BE USED AS A SPACE HEATER.
DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE
IT IS IN OPERATION.
The manufacturer declines all responsibility for damage to persons
or things caused by non-observance of the above prescriptions or by
interference with any part of the appliance or by the use of non-original
spares.
5
WHERE THIS APPLIANCE IN INSTALLED IN MARINE CRAFT OR IN
CARAVANS, IT SHALL NOT BE USED AS A SPACE HEATER

Instructions for the installer
6
2. INSTALLATION OF THE APPLIANCE
It is the law that all gas appliances are installed by authorised
persons. Clearance around the cooker must comply with the
requirements of AS5601.
2.1 Electrical connection
Make sure that the power line voltage matches the specifications
indicated on the rating plate located inside the storage compartment.
This rating plate must never be removed.
On the power line, install a two-pole cut-off device with contact cut-off
distance greater than or equal to 3 mm, located in an easily accessible
position near the unit.
The wire section on the cable must not be
less than 1.5 mm2(3 x 1.5 cable), keeping in
mind that the end to be connected to the
cooker must have the ground wire (yellow-
green) longer by at least 20 mm. Use only the
special cables available at our Service
Centres.
The manufacturer declines all responsibility for damage to persons
or things caused by non-observance of the above prescriptions or by
interference with any part of the appliance.

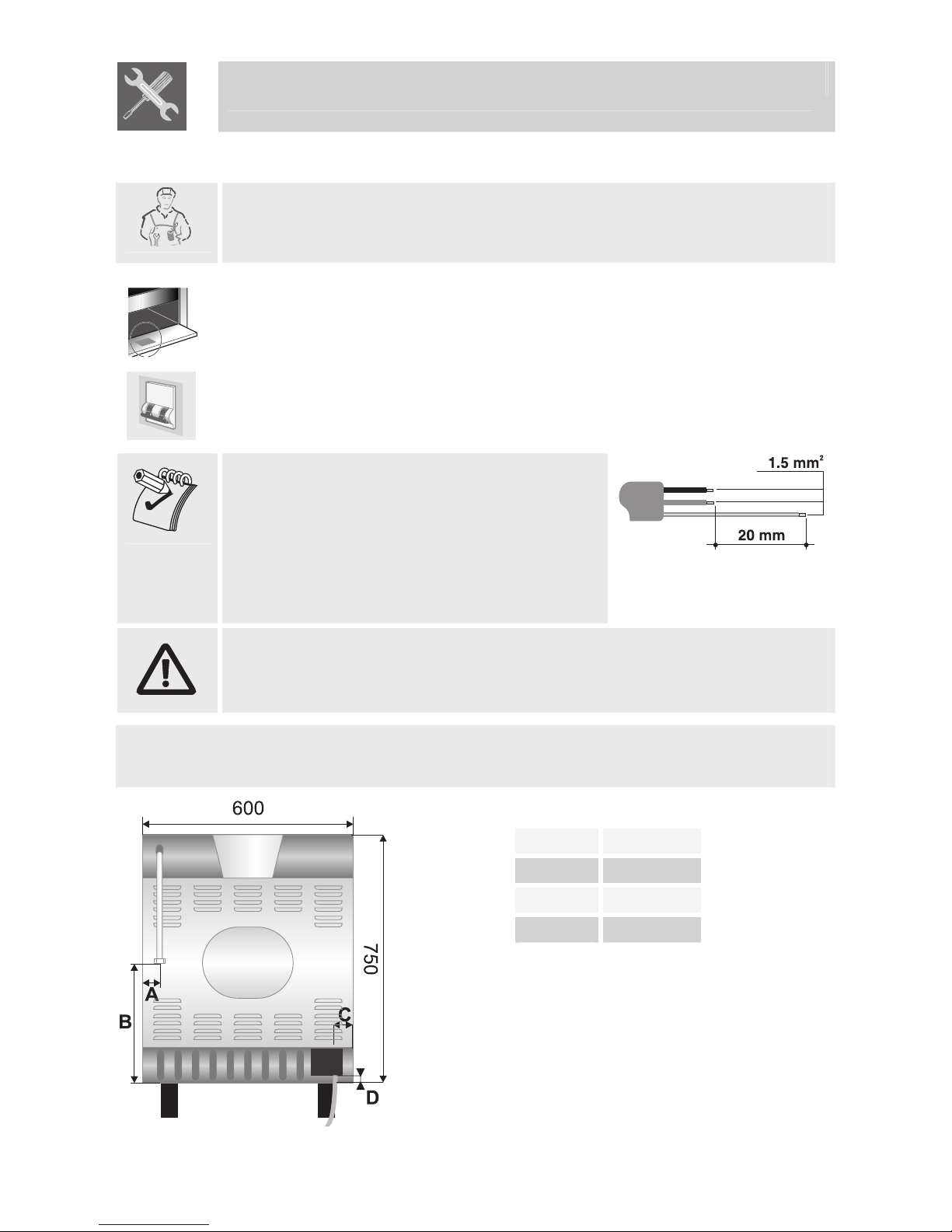

Overall dimensions: location of gasand electrical connection points (all
measures in mm).
A 60
B 410
C 100
D 150

Instructions for the installer
7
2.2 Gas connection
This appliance is suitable for installation with
Natural Gas or ULPG (propane). Refer to
page 12 for the relevant burner pressure and
appropriate injector sizes. When the
appliance is to be connected to Natural Gas
then the pressure regulator supplied must be
fitted to the gas inlet. A test point (for
checking the gas pressure) is supplied either
with the regulator or as a separate fitting in
the case of ULPG (propane) appliances.
Connection of the appliance to the gas
supply must be in accordance with the
requirements of AS5601. A ½” BSP
connector at the inlet is recommended and
the gas supply line to the appliance must be
of adequate length to allow sufficient
withdrawal of appliance for service or
disconnection and be:
1. annealed copper pipe or;
2. flexible hose according to AS/NZ1869 &
be at least Class “B”, 10 mm diameter.
The appliance must be installed with provision to allow the gas to be
turned off and disconnected for servicing and removal of the appliance
as required from the gas supply.
Before the appliance is operated make certain all relevant parts are
placed in the correct position.
When the installation is completed the installation connections of
appliance will require to be leak tested, the burner operating pressure
and flame checked and adjusted.
Warranty service calls do not cover these adjustments!

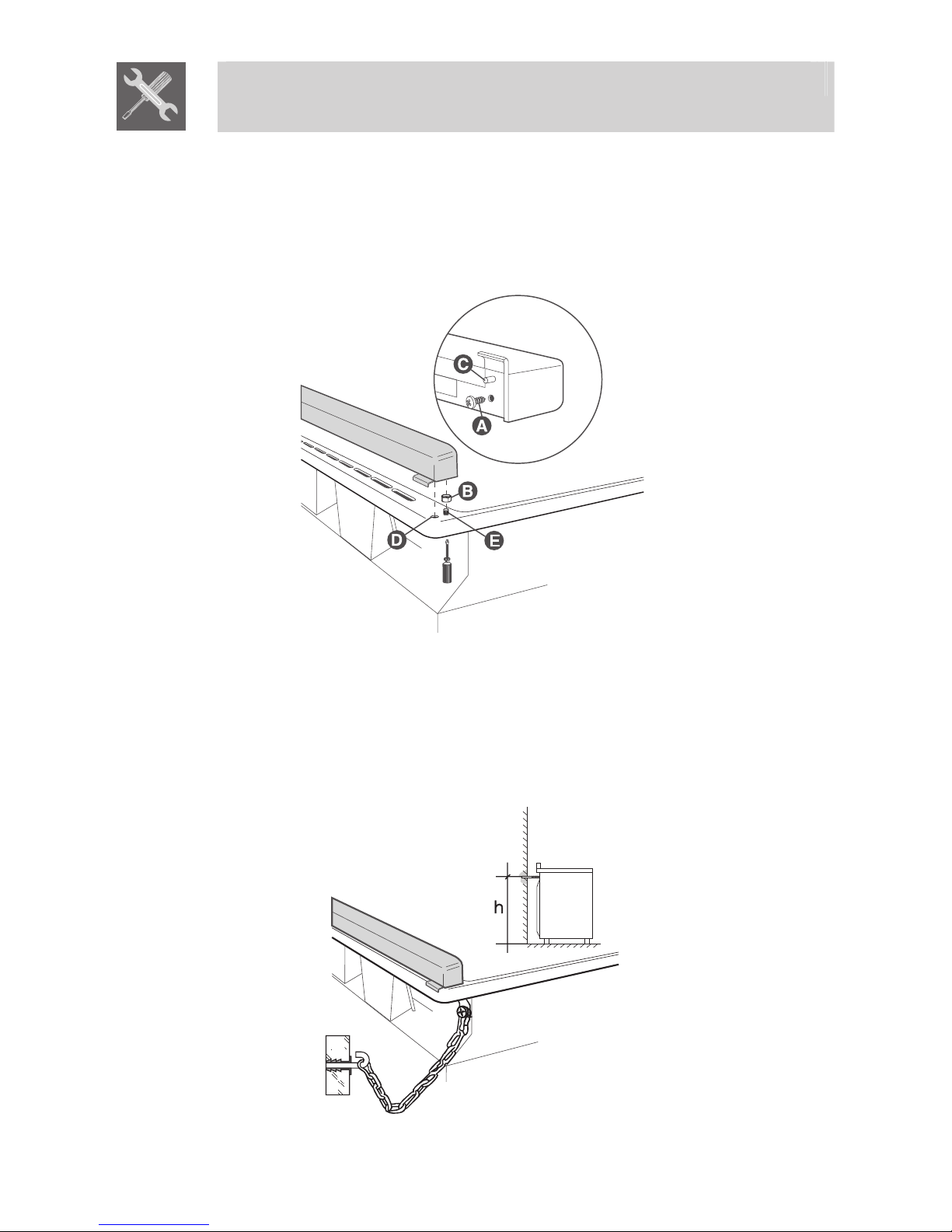

To check the operating pressure of the appliance it is recommended at
least 2 large size burners are used. Ensure appliance is secured to wall
when installation is completed.
N.G. The regulator supplied must be fitted to the ½ BSP thread at the
rear of the appliance. An approved manual shut-off valve must be
installed. The N.G. regulator must be checked and adjusted to 1.0kPa
after installation.
ULPG: Can be connected to the inlet fitting
directly. The pressure must be checked to
ensure it is operating at 2.75kPa. A separate test
point fitting must be installed between the piping
& the appliance for the pressure to be checked
to ensure it is operating at 2.75kPa.

Instructions for the installer
8
2.3 Room ventilation
Caution – This cooker may only be installed and operated in rooms
permanently ventilated in accordance with current regulations. For
proper operation of a gas appliance it is essential for the air necessary
for combustion of the gas to be able to flow naturally into the room. Air
must flow directly into the room through openings in its outside walls.
This (these) opening (s) must have a free passage cross-section of at
2
least 100 cm , or 200 cm2for appliances not equipped with gas safety
device. These openings must be constructed so that they cannot be
obstructed indoors or outdoors, and should preferably be close to the
floor on the side opposite to the combustion gas discharge point. If it is
not possible to make the openings in the room where the cooker is
installed, the necessary air may be taken from an adjoining room,
proveded it is not a bedroom or a room with fire risk.
2.4 Clearance above and around domestic cookers
Extract from AS5601

Instructions for the installer
9

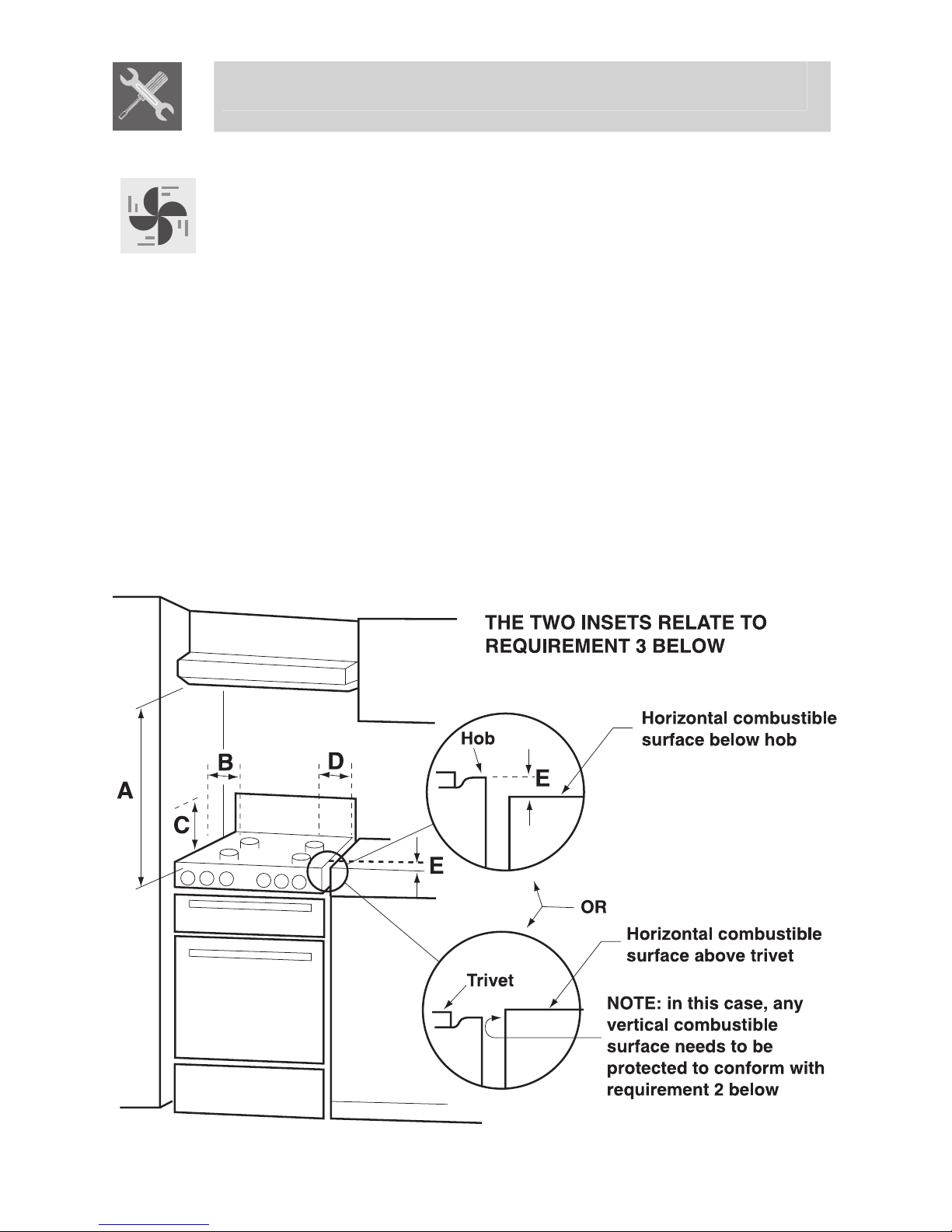

REQUIREMENTS
1Overhead clearances – (Measurement A)
Range hoods and exhaust fans shall be installed in accordance with
the manufacturer’s instructions.However, in no case shall the
clearance between the highest part of the hob of the cooking
appliance and arange hood be less than 600 mm or, for an
overhead exhaust fan, 750 mm.
Any other downward facingcombustible surface less than 600 mm
above the highest part of the hob shall be protected for the full width
and depth of the cooking surface area in accordance with Clause
5.12.1.2. However, in no case shall this clearance to any surface be
less than 450 mm.
2Side clearances – (Measurements B& C)
Where B, measured from the periphery of the nearestburner to any
vertical combustible surface, is less than 200 mm, the surface shall
be protected in accordance with Clause 5.12.1.2 to a height Cof not
less than150 mm above the hob for the full dimension (width or
depth) of the cooking surface area. Where the cooking appliance is
fitted with a ‘splashback’, protection of the rear wall is not required.
3Additional requirements for Freestanding and Elevated Cooking
Appliaces – (Measurements D& E)
Where D, the distance from the periphery of the nearest burner to a
horizontal combustible surface is less than 200 mm, then Eshall be
10 mm or more, or the horizontal surface shall be above the trivet.
See insets above.
NOTES
1Requirement 3 does not apply to a freestanding or elevated
cooking appliance which is designed to prevent flames or the
cooking vessels from extending beyond the periphery of the
appliance.
2The ‘cooking surface area’ is defined as that part of the
appliance where cooking normally takes place and does not
include those parts of the appliance containing control knobs.
3For definition of hob, see Clause 1.4.64.
4For definition of trivet, see Clause 1.4.109.
5Consideration is to be given to window treatments when
located near cooking appliances. See Clause 5.3.4.

Instructions for the installer
10
3. ADAPTATION TO DIFFERENT TYPES OF GAS
Before performing any cleaning or maintenance work, disconnect the
appliance from the mains.
The hob of the cooker is adjusted for use with either natural gas at a
pressure of 1.0kPa (FS61XNG-FS62XNG-FS60WHNG-FS60XNG) or
LPG (propane) at a pressure of 2.75 kPa (FS61XLPG-FS62XLPG). If
used with other types of gas, you have to replace the nozzles, then
adjust the minimum flame on the gas taps. For nozzle replacement and
burner adjustment operate as described in the following paragraph.
3.1 Replacement of nozzles on the hob
This operation requires no primary air regulation.

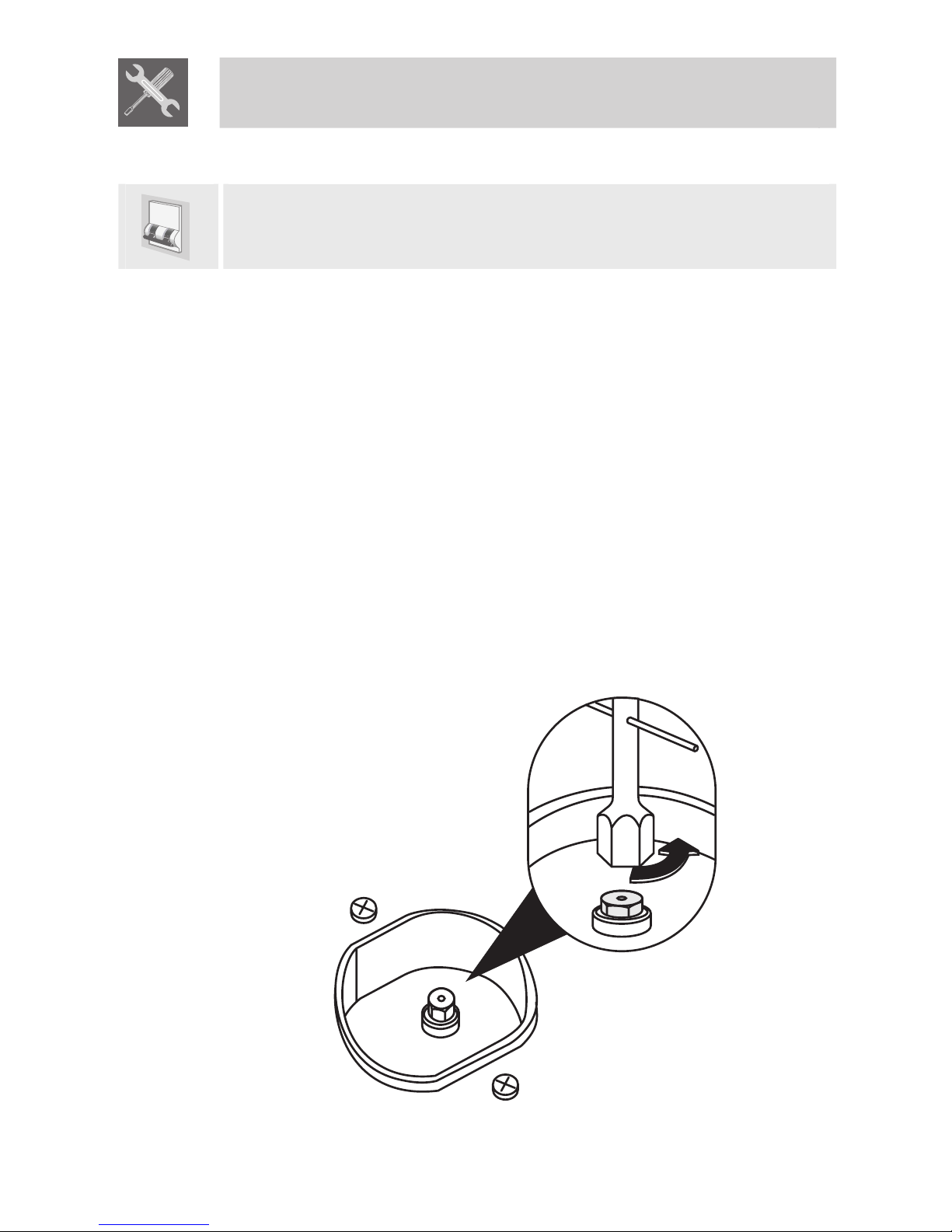

1. Extract the grids and remove all the caps and flame-spreader
crowns;
2. unscrew the burner nozzles with a 7 mm socket wrench;
3. replace the nozzles according to the type of gas to be used and the
description in paragraph "3.2 Burner and nozzle characteristics
table".
4. Replace the burners in the correct position.

Instructions for the installer
11
3.2 Burner and nozzle characteristics table
Burner LPG (PROPANE)–2.75 KPa
Nominal gas
consumption
(MJ/h)
Turn-down gas
consumption
(MJ/h)
Injector
(mm)
Auxiliary 3.9 1.5 0.54
Semi rapid 6.3 1.5 0.68
WOK 12.8 5.4 1.00
Gas Grill 10.8 // 0.94
Gas Oven 11.5 // 0.94
Burner NG –1.0 KPa
Nominal gas
consumption
(MJ/h)
Turn-down gas
consumption
(MJ/h)
Injector
(mm)
Auxiliary 3.9 1.5 0.90
Semi rapid 7.5 1.5 1.20
WOK 15 5.4 1.75
Gas Grill 10.4 // 1.55
Gas Oven 11.5 // 1.55

Instructions for the installer
12
3.3 Adjustment of the oven burner(only for gas oven models)
To adjust the oven burners follow the procedure
described below from inside the oven:
• Open the oven door;
• Remove the oven dish and shelf.
• Lift up the oven floor and remove.

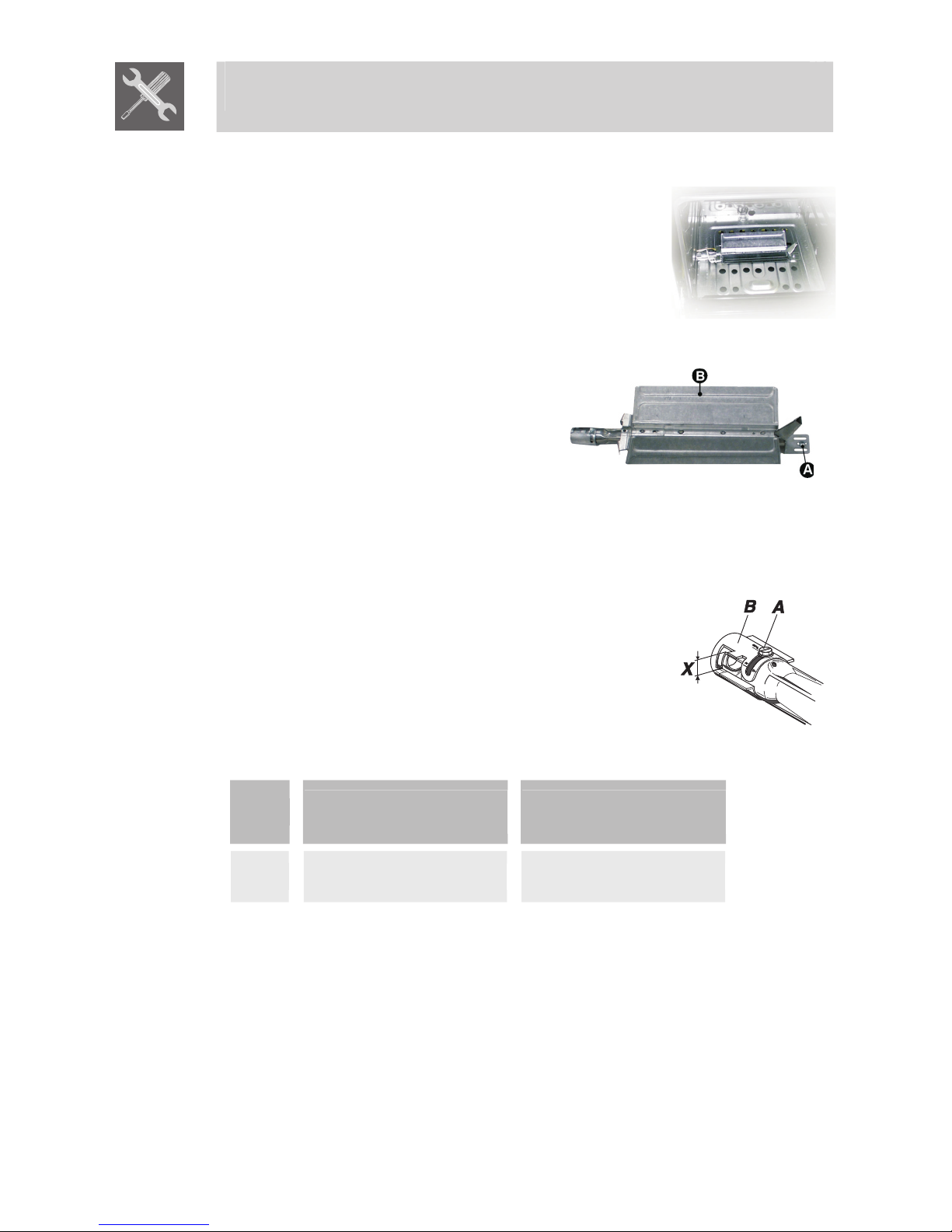

3.3.1 Replacement of the oven and grill burner nozzle
Loosen the fixing screws Aon the
oven burner.
Push the burner Btowards the right to
get to the nozzle.
Use a 13 socket wrench to change the
nozzle, fitting the one for the type of
gas to be used (see point “3.2 Table
of burner and nozzle characteristics”).
3.3.2 Regulation of the primary air on the oven and grill burner
Loosen the register screws “A” on the air regulation
coupling.
Turn the register coupling “B” to the position
corresponding to the type of gas to be used
according to the table below.
Tighten the register screws and mount the seals.
Once the operation is completed reassemble the
burner correctly.
NG LPG (PROPANE)
1.0 KPa 2.75 KPa
X = 10 mm 15 mm
