Smeg TR62IBL User manual

Contents
45
EN
1 Instructions 46
1.1 General safety instructions 46
1.2 Manufacturer liability 51
1.3 Appliance purpose 51
1.4 Disposal 51
1.5 Identification plate 52
1.6 This user manual 52
1.7 How to read the user manual 52
2 Description 53
2.1 General Description 53
2.2 Cooking hob 54
2.3 Control panel 55

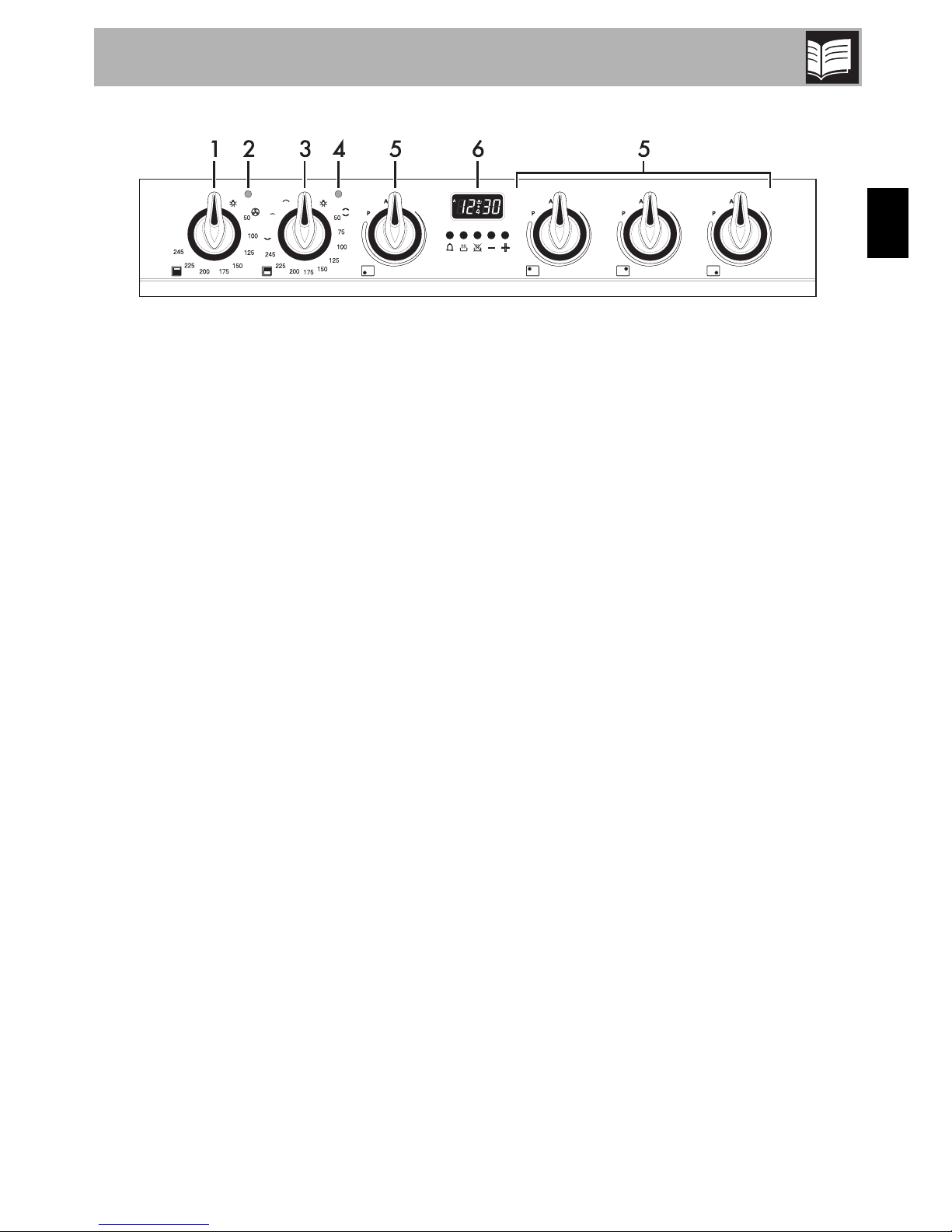

2.4 Other parts 56

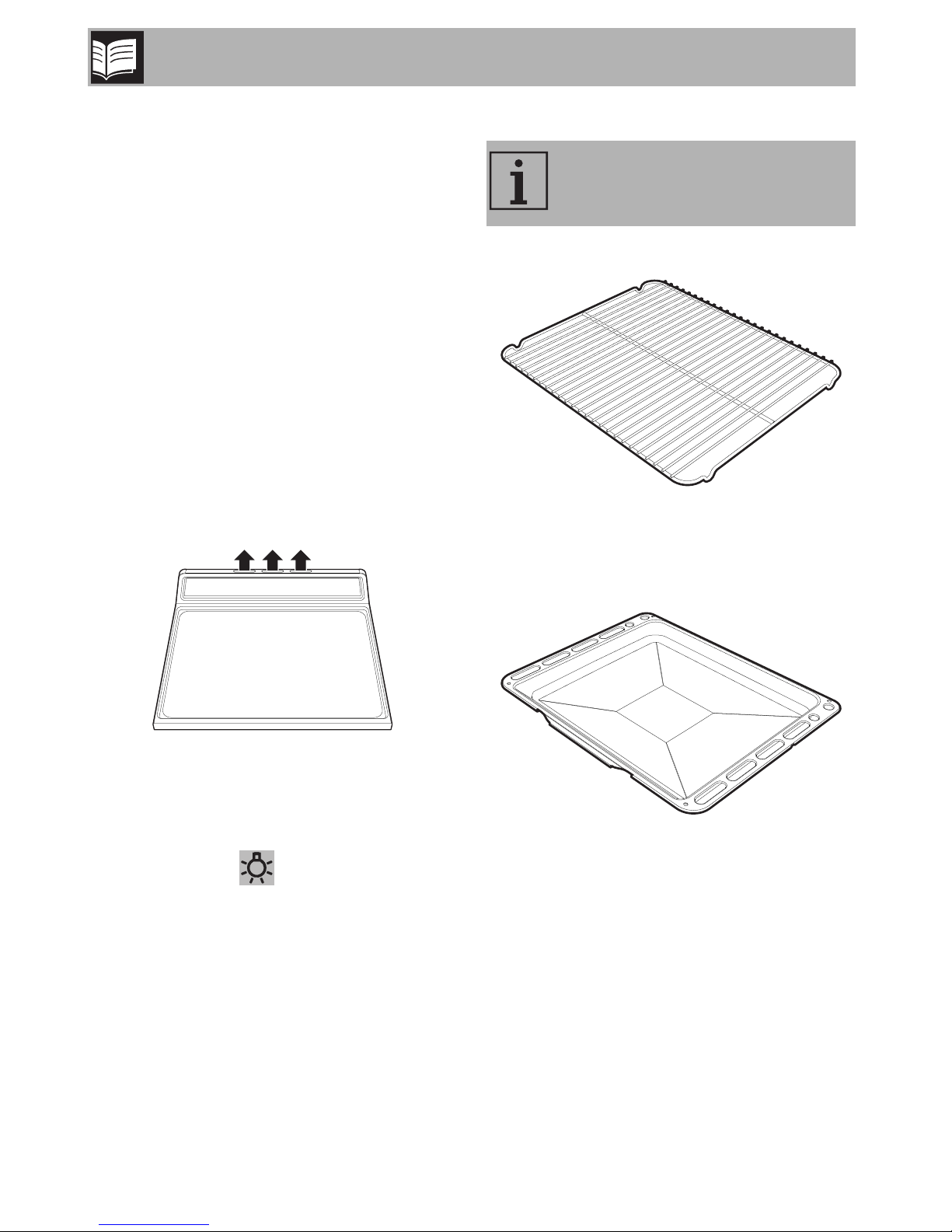

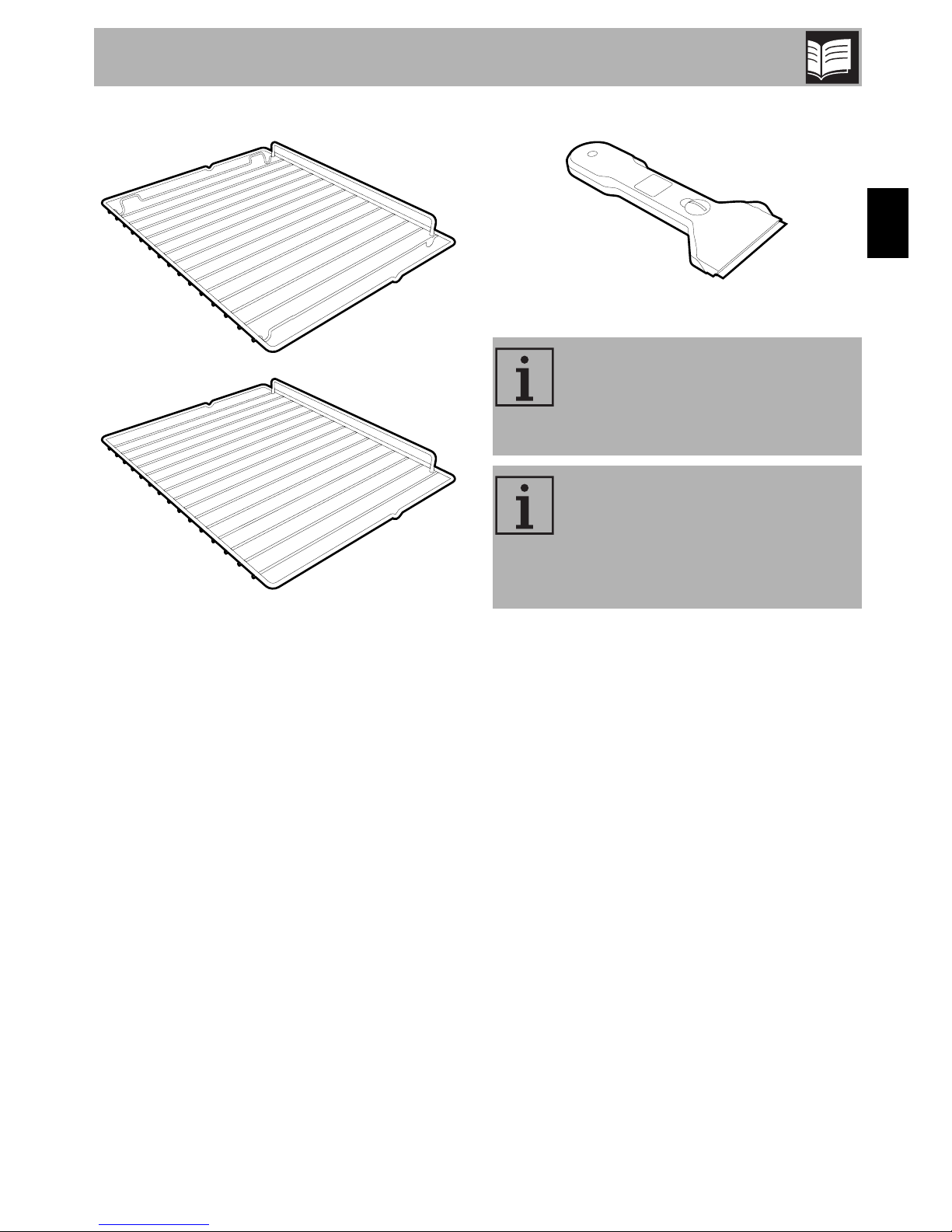

2.5 Available accessories 56
3 Use 58
3.1 Instructions 58
3.2 First use 59

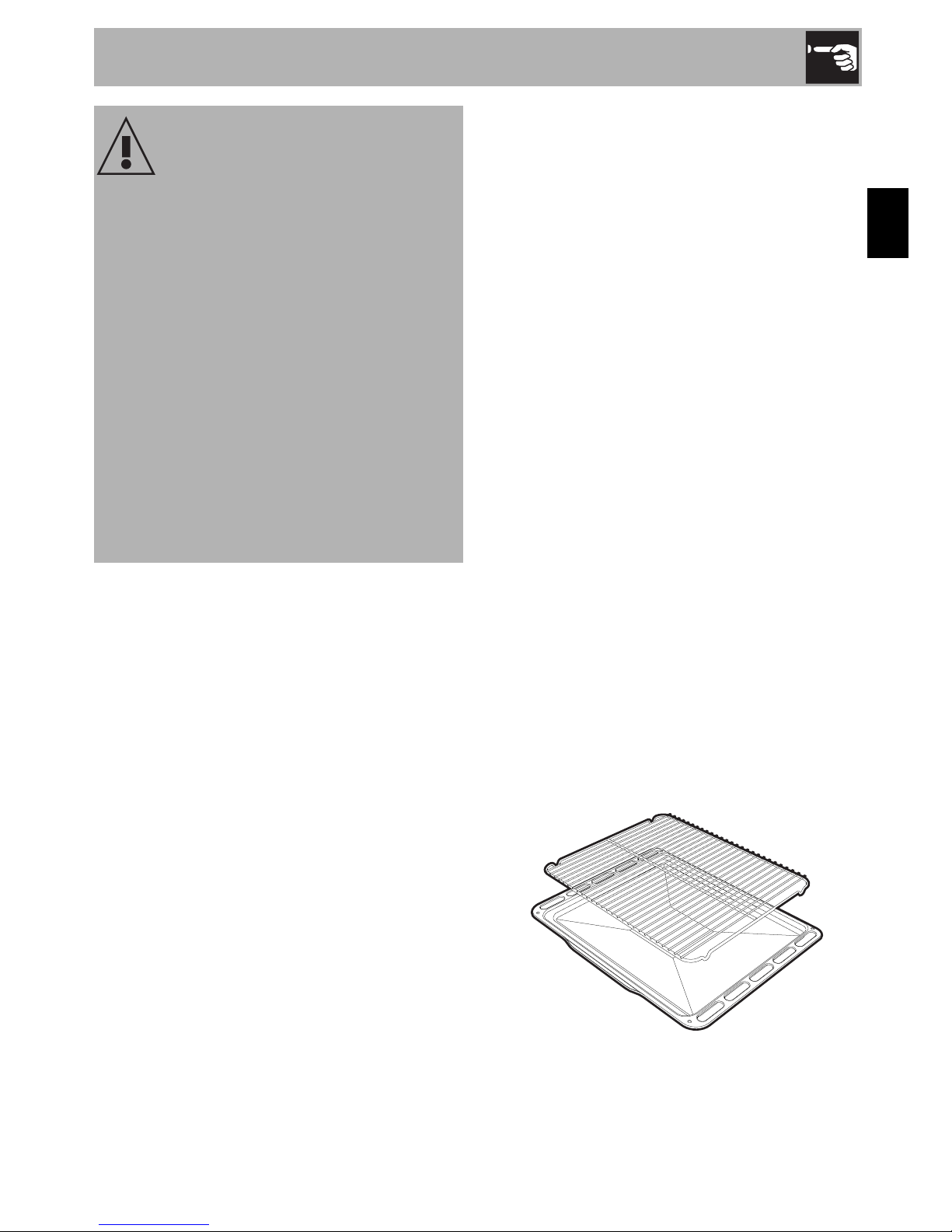

3.3 Using the accessories 59

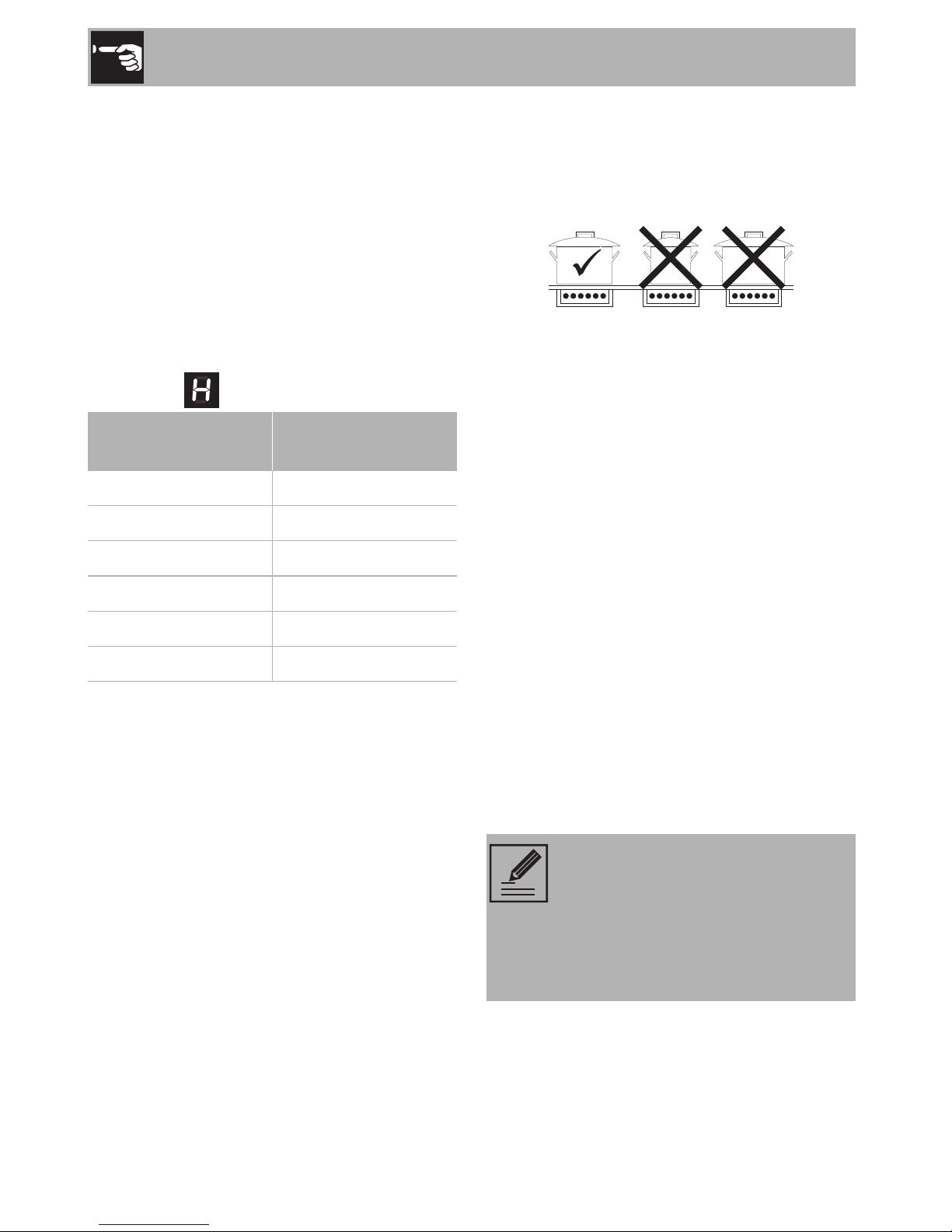

3.4 Using the hob 60
3.5 Using the ovens 66
3.6 Cooking advice 67
3.7 Programmer clock 69
4 Cleaning and maintenance 74
4.1 Instructions 74
4.2 Cleaning the appliance 74
4.3 Removing the door 76
4.4 Extraordinary maintenance 80
5 Installation 82
5.1 Positioning 82
5.2 Electrical connection 85
5.3 Instructions for the installer 86
We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance’s aesthetic and functional qualities.
For further information on the product: www.smeg.com
TRANSLATION OF THE ORIGINAL INSTRUCTIONS

Instructions
46
1 Instructions
1.1 General safety instructions
Risk of personal injury
• During use the appliance and its
accessible parts become very hot.
Never touch the heating elements
during use.
• Protect your hands by wearing
oven gloves when moving food
inside the oven
• Never try to put out a fire or
flames with water: Turn off the
appliance and smother the flames
with a fire blanket or other
appropriate cover.
• This appliance may be used by
children aged at least 8 and by
people of reduced physical,
sensory or mental capacity, or
lacking in experience in the use of
electrical appliances, provided
that they are supervised or
instructed by adults who are
responsible for their safety.
• Children must not play with the
appliance.
• Keep children under the age of
eight at a safe distance unless
they are constantly supervised.
• Keep children under the age of 8
away from the appliance when it
is in use.
• Cleaning and maintenance must
not be carried out by
unsupervised children.
• Be aware of how rapidly the
cooking zones heat up. Do not
place empty pans on the heat.
Danger of overheating.
• Fats and oils can catch fire if they
overheat. Do not leave the
appliance unattended while
preparing foods containing oils or
fats. If fats or oils catch fire, never
put water on them. Place the lid
on the pan and turn off the
relevant cooking zone.

Instructions
47
EN
• The cooking process must always
be monitored. A short cooking
process must be continuously
monitored.
• Do not place metal objects, such
as dishes or cutlery, on the hob
surface during use as they may
overheat.
• Do not insert pointed metal
objects (cutlery or utensils) into the
slots in the appliance.
• Do not pour water directly onto
very hot trays.
• Keep the oven door closed
during cooking.
• If you need to move food or at the
end of cooking, open the door 5
cm for a few seconds, let the
steam come out, then open it fully.
• Do not open the storage
compartment (where present)
when the oven is on and still hot.
• The items inside the storage
compartment could be very hot
after using the oven.
• Do not use or store flammable
materials in the storage
compartment (where applicable)
or near the appliance.
• Do not use aerosols in the vicinity
of this appliance whilst it is in use.
• Switch off the appliance
immediately after use.
• Do not modify this appliance.
• Always use any necessary/
required personal protective
equipment (PPE) before
performing any work on the
appliance (installation,
maintenance, positioning or
movement).
• Before performing any work on
the appliance, switch off the
power supply.
• Have qualified personnel carry
out installation and assistance
interventions according to the
standards in force.
• Do not try to repair the appliance
yourself or without the intervention
of a qualified technician.
• Do not pull the cable to remove
the plug.
• If the power supply cable is
damaged, contact technical
support immediately and they will
replace it.

Instructions
48
Risk of damaging the appliance
• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.
• Use wooden or plastic utensils.

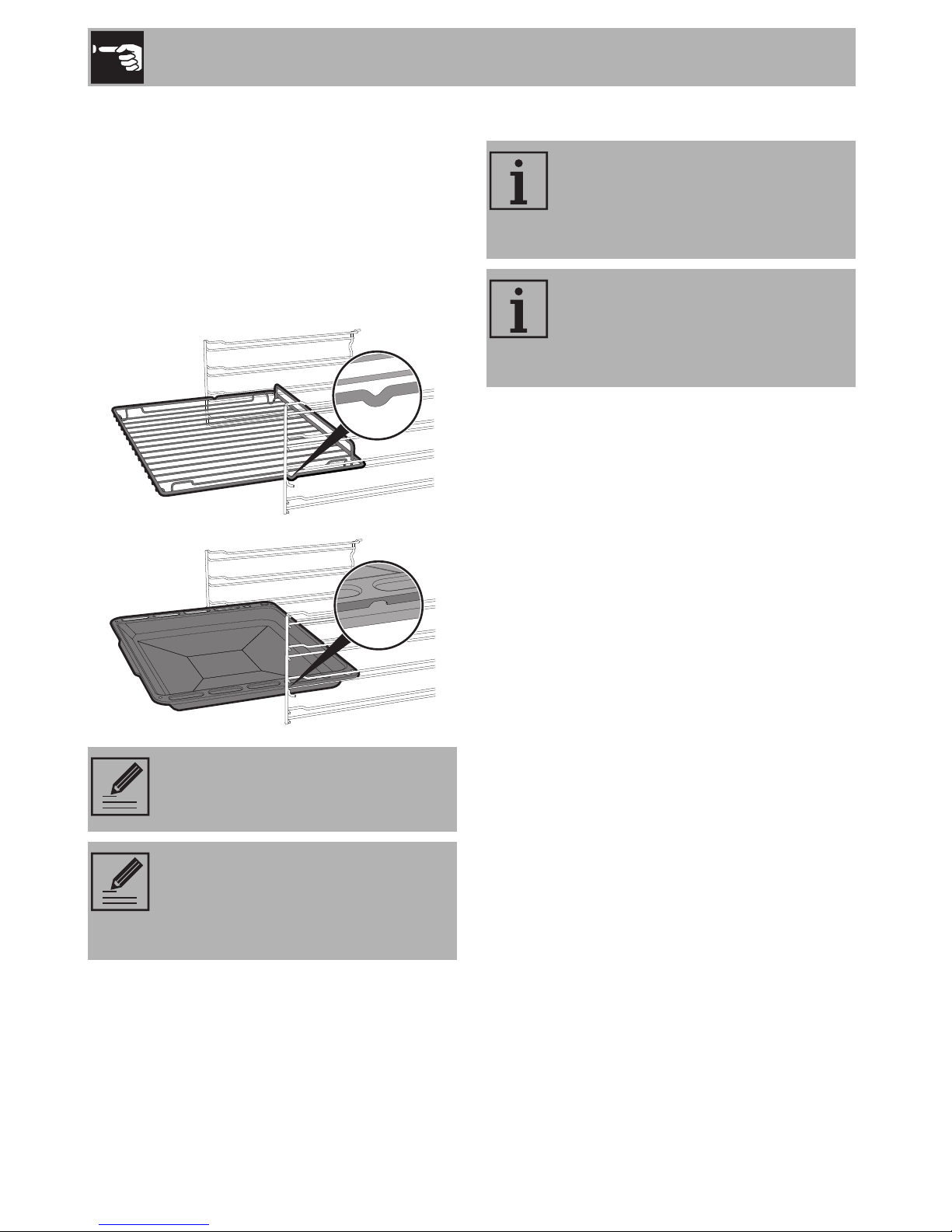

• Racks and trays should be
inserted as far as they will go into
the side guides. The mechanical
safety locks that prevent them from
being removed must face
downwards and towards the
back of the oven
• Do not seat on the appliance.
• Do not use steam jets to clean the
appliance.
• Do not obstruct ventilation
openings and heat dispersal slots.
• Never leave the appliance
unattended during cooking
operations where fats or oils
could be released, as these could
then heat up and catch fire. Be
very careful.
• Never leave objects on the
cooking surface: danger of fire.
• Do not use the appliance to heat
rooms for any reason.
• Do not spray any spray products
near the oven.
• Do not use plastic cookware or
containers when cooking food.
• Do not put sealed tins or
containers in the oven.
• Remove all trays and racks which
are not required during cooking.
• Do not cover the bottom of the
oven cavity with aluminium or tin
foil sheets.
• Do not place pans or trays
directly on the bottom of the oven
cavity.
• If you wish to use greaseproof
paper, place it so that it will not
interfere with the hot air circulation
inside the oven.
• Do not use the open door to rest
pans or trays on the internal glass
pane.
• Cooking vessels or griddle plates
should be placed inside the
perimeter of the hob.
• All pans must have smooth, flat
bottoms.

Instructions
49
EN
• If any liquid does boil over or spill,
remove the excess from the hob.
• Take care not to spill acid
substances such as lemon juice or
vinegar on the hob.
• Do not put empty pans or frying
pans on switched on cooking
zones.
• Do not use steam jets to clean the
appliance.
• Do not use rough or abrasive
materials or sharp metal scrapers.
• Do not use cleaning products
containing chlorine, ammonia or
bleach on parts made of steel or
that have metallic surface finishes
(e.g. anodizing, nickel- or
chromium-plating).
• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.
Installation
• This appliance must not be
installed in a boat or caravan.
• The appliance must not be
installed on a pedestal.
• Position the appliance into the
cabinet cutout with the help of a
second person.
• To avoid potential overheating,
the appliance must not be
installed behind a decorative
door or a panel.
• Have the electrical connection
performed by authorised
technical personnel.
• The appliance must be connected
to earth in compliance with
electrical system safety standards.
• Use cables withstanding a
temperature of at least 90°C.
• The tightening torque of the
screws of the terminal supply
wires must be 1.5 - 2 Nm.

Instructions
50
For this appliance
• After use, turn off the hot plates
used by returning the appropriate
knob to the Oposition. Never rely
solely on the cookware detector.
• Supervise children carefully as
they cannot easily see the residual
heat indicator. The cooking zones
remain hot for a certain period of
time even after they have been
turned off. Make sure that children
never touch the hob.
• Avoid hard, solid objects falling
on the surface of the hob.
• Do not use the hob as a support
surface.
• Use only hob guards designed by
the manufacturer of the cooking
appliance or indicated by the
manufacturer of the appliance in
the instructions for use as suitable
or hob guards incorporated in the
appliance. The use of
inappropriate guards can cause
accidents.
• If cracks or fissures form, or if the
glass ceramic cooking surface
breaks, turn off the appliance
immediately. Disconnect the
power supply and call Technical
Support.
• Ensure that the appliance is
switched off before replacing the
bulb.
• Do not rest any weight or sit on
the open door of the appliance.
• Take care that no objects are
stuck in the doors.
• People who have pacemakers or
other similar devices fitted must
make sure that the operation of
these devices is not jeopardised
by the inductive field, whose
frequency range is between 20
and 50 kHz.
• In conformity with the provisions
regarding electromagnetic
compatibility, the electromagnetic
induction cooking hob comes
under group 2 and class B
(EN 55011).

Instructions
51
EN
1.2 Manufacturer liability
The manufacturer declines all liability
for damage to persons or property
caused by:
• use of the appliance other than
that specified;
• failure to comply with the
instructions in the user manual;
• Tampering with any part of the
appliance;
• the use of non-original spare
parts.
1.3 Appliance purpose
• This appliance is intended for
cooking food in the home
environment. Every other use is
considered inappropriate.
• The appliance is not designed to
operate with external timers or with
remote-control systems.
1.4 Disposal
This appliance must be disposed of
separately from other waste
(Directives 2002/95/EC,
2002/96/EC, 2003/108/EC). The
appliance does not contain substances in
quantities sufficient to be considered
hazardous to health and the environment, in
accordance with current European
directives.
To dispose of the appliance:
• Cut the power supply cable and remove
it along with the plug.
• Deliver the appliance to the appropriate
recycling centre for electrical and
electronic equipment waste, or return it to
the retailer when purchasing an
equivalent product, on a one for one
basis.
Power voltage
Danger of electrocution
• Disconnect the mains power supply.
• Unplug the appliance.

Instructions
52
Our appliances are packaged in non-
polluting and recyclable materials.
• Deliver the packing materials to the
appropriate recycling centre.
1.5 Identification plate
The identification plate bears the technical
data, serial number and brand name of the
appliance. Do not remove the identification
plate for any reason.
1.6 This user manual
This user manual is an integral part of the
appliance and must therefore be kept in its
entirety and within the user’s reach for the
whole working life of the appliance.
Read this user manual carefully before using
the appliance.
1.7 How to read the user manual
This user manual uses the following reading
conventions:
1. Sequence of instructions for use.
• Standalone instruction.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or any part
of it unattended.
• Do not let children play with the plastic
bags.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for the qualified
technician: Installation, operation
and inspection.
Safety instructions
Information
Advice

Description
53
EN
2 Description
2.1 General Description
1 Upstand
2 Cooking hob
3 Control panel
4 Auxiliary oven light
5 Auxiliary oven seal
6 Auxiliary oven door
7 Main oven light
8 Main oven seal
9 Main oven door
10 Fan
Rack/tray support frame shelf

Description
54
2.2 Cooking hob
* Power levels are approximate and can vary according to the pan used or the settings made.
Advantages of induction cooking • Energy saving thanks to the direct
transmission of energy to the pan
(suitable magnetisable cookware is
required) compared to traditional
electric cooking.
• Improved safety as the energy is only
transmitted to the pan placed on the hob.
• High level of energy transmitted from the
induction cooking zone to the base of
the pan.
• Rapid heating speed.
• Reduced danger of burns as the cooking
surface is only heated under the base of
the pan; foods which overflow do not
stick.
Zone Outside diameter (mm) Max. power draw (W)* Power draw in
booster function (W) *
1 145 1400 2200
2 180 1850 3000
3 210 2300 3700
The hob is equipped with an
induction generator for each
cooking zone. Each generator
located under the glass ceramic
cooking surface creates an
electromagnetic field which
induces a thermal current in the
base of the pan. This means the
heat is no longer transmitted from
the hob to the pan but created
directly inside the pan by the
inductive current.

Description
55
EN
2.3 Control panel
1 Main oven knob
Allows you to turn on the light inside the
main oven or set a fan-assisted cooking
temperature between 50°C and 245°C.
2 Main oven indicator light
The indicator light comes on to indicate that
the oven is heating up. It turns off as soon as
it reaches the set temperature. It flashes
regularly to indicate that the temperature set
inside the oven is kept constant.
3 Auxiliary oven knob
Allows you to turn on the light inside the
oven, set a static cooking temperature of
between 50°C and 245°C, or select one
of the other functions at maximum
temperature.
4 Auxiliary oven indicator light
The indicator light comes on to indicate that
the oven is heating up. It turns off as soon as
it reaches the set temperature. It flashes
regularly to indicate that the temperature set
inside the oven is kept constant.
5 Hob cooking zone knobs
Useful for controlling the cooking zones of
the induction hob.
Turn the knobs clockwise to adjust the
operating power of the hot plate from a
minimum of 1to a maximum of 9.
The working power is indicated on the
display on the hob.
6 Programmer clock
Useful for displaying the current time, setting
programmed cooking operations and
programming the minute minder timer.

Description
56
2.4 Other parts
Shelves
The appliance features shelves to position
trays and racks at different heights. The
insertion heights are indicated from the
bottom upwards (see 2.1 General
Description).
Cooling fan
The fan cools the oven and comes into
operation during cooking.
The fan causes a steady outflow of air that
exits from the rear of the appliance and
which may continue for a brief period of
time even after the appliance has been
turned off.
Interior lighting
The appliance’s interior lighting comes on:
• When the oven knob (main or auxiliary)
is turned to the position
• When any function is selected
2.5 Available accessories
Tray rack
To be placed over the top of the tray; for
cooking foods which may drip.
Tray
Useful for collecting fat from foods placed
on the rack above and for cooking pies,
pizzas and baked desserts.
Some models are not provided
with all accessories.

Description
57
EN
Rack
Used for supporting containers with food
during cooking.
Scraper
Useful for cleaning the hob.
The accessories intended to come
into contact with food are made of
materials that comply with the
provisions of current legislation.
Supplied and optional accessories
can be requested to Authorised
Service Centres. Use only original
accessories supplied by the
manufacturer.

Use
58
3 Use
3.1 Instructions
High temperature inside the oven
during use
Danger of burns
• Keep the oven door closed during
cooking.
• Protect your hands by wearing oven
gloves when moving food inside the
oven.
• Do not touch the heating elements inside
the oven.
• Do not pour water directly onto very hot
trays.
• Keep children under the age of 8 away
from the appliance when it is in use.
• If you need to move food or at the end
of cooking, open the door 5 cm for a
few seconds, let the steam come out,
then open it fully.
• Oils and fats could catch fire if
overheated. Be very careful.
Improper use
Risk of damage to surfaces
• Do not cover the bottom of the oven
cavity with aluminium or tin foil sheets.
• If you wish to use greaseproof paper,
place it so that it will not interfere with the
hot air circulation inside the oven.
• Do not place pans or trays directly on
the bottom of the oven cavity.
• Do not use the open door to rest pans or
trays on the internal glass pane.
• The cooking vessels or griddle plates
should be placed inside the perimeter of
the hob.
• All pans must have smooth, flat bottoms.
• If any liquid does boil over or spill,
remove the excess from the hob.
• Never place pans with bases which are
not perfectly flat and smooth.
• Avoid hard, solid objects falling on the
surface of the hob.
• In case you notice cracks or fissures, turn
off the appliance immediately,
disconnect the power supply and
contact Technical Support.
• Do not use the hob as a support surface.

Use
59
EN
3.2 First use
1. Remove any protective film from the
outside or inside of the appliance,
including accessories.
2. Remove any labels (apart from the
technical data plate) from the
accessories and from the oven cavity.
3. Remove and wash all the appliance
accessories (see 4 Cleaning and
maintenance).
Oven cavity
4. Heat the empty oven at the maximum
temperature to burn off any residues left
by the manufacturing process.
Glass ceramic hob
5. Place a pan full of water on each of the
front cooking zones and switch them on
to the maximum power setting for at least
30 minutes.
6. After 30 minutes, switch off the front
cooking zones and repeat this operation
for the rear cooking zones and any
central cooking zone.
7. If after carrying out the above operations
the controls do not work properly, it
might be necessary to extend the
operations until the moisture has
completely evaporated.
3.3 Using the accessories
Tray rack
The tray rack has to be inserted into the tray.
In this way fat can be collected separately
from the food which is being cooked.
High temperatures during use
Danger of fire or explosion
• Do not spray any spray products near
the appliance.
• Do not use or leave flammable materials
near the appliance.
• Do not use plastic cookware or
containers when cooking food.
• Do not put sealed tins or containers in
the oven.
• Never leave the appliance unattended
during cooking operations where fats or
oils could be released.
• Remove all trays and racks which are
not required during cooking.

Use
60
Racks and trays
Racks and trays have to be inserted into the
side guides until they come to a complete
stop.
• The mechanical safety locks that prevent
the rack from being removed
accidentally must face downwards
towards the back of the oven.
3.4 Using the hob
All the appliance’s control and monitoring
devices are located together on the front
panel. The relevant cooking zone is
indicated next to each knob.
Just turn the knob clockwise to the required
power setting.
Cookware suitable for use in induction
cooking
Cookware used on the induction cooking
surface must be made of metal, with
magnetic properties and a sufficiently large
base.
Suitable cookware:
• Enamelled steel cookware with thick
bases.
• Cast iron cookware with an enamelled
base.
• Cookware in multilayer stainless steel,
ferritic stainless steel and aluminium with
a special base.
Unsuitable cookware:
• Copper, stainless steel, aluminium,
fireproof glass, wood, ceramic and
terracotta cookware.
Gently insert racks and trays into
the oven until they come to a stop.
Clean the trays before using them
for the first time to remove any
residues left by the manufacturing
process.
On first connection to the electrical
mains, an automatic check will be
carried out that will switch on all
indicator lights for a few seconds.
After use, turn off the hot plates
used by returning the appropriate
knob to the Oposition. Never rely
solely on the cookware detector.

Use
61
EN
To see whether the pan is suitable, bring a
magnet close to the bottom: if it is attracted,
the pan is suitable for induction cooking. If
you do not have a magnet, you can put a
small amount of water in the pan, place it
on a cooking zone and start the cooking
zone. If the symbol appears on the
display, it means the pan is not suitable.
Cookware recognition
When there is no saucepan on a cooking
zone or if the saucepan is too small, no
energy will be transmitted and the symbol
will appear on the display.
If there is a suitable saucepan on the
cooking zone, the recognition system
notices it and turns on the hob to the power
level set using the knob. Energy transmission
is also interrupted when the saucepan is
removed from the cooking zone (the
symbol will be shown on the display).
If the cookware recognition function is
activated in spite of the saucepan or frying
pan on the cooking zone being smaller
than the zone itself, only the necessary
energy will be transmitted.
Cookware recognition limits: The minimum
diameter of the pan base is indicated by a
circle inside the cooking zone. Pans with
smaller diameters risk not being detected
and therefore not activating the inductor.
Use only cookware with a
perfectly flat bottom which is
suitable for induction hot plates.
Using cookware with an irregular
bottom could jeopardise the
efficiency of the heating system
and prevent cookware from being
detected on the cooking zone.

Use
62
Limiting the cooking duration
The hob has an automatic device which
limits the duration of use.
If the cooking zone settings are not
changed, the maximum duration of
operation for each zone depends on the
power level selected.
When the device for limiting the duration of
use is activated, the cooking zone turns off,
a short alert sounds and, if the zone is hot,
the symbol appears on the display.
Advice on energy-saving
• The diameter of the base of the pan must
correspond to the diameter of the
cooking zone.
• When buying a pan, check whether the
diameter indicated is that of the base or
the top of the pan, as the top is almost
always larger than the base.
• When preparing dishes with long
cooking times, you can save time and
energy by using a pressure cooker,
which also makes it possible to preserve
the vitamins in the food.
• Make sure that the pressure cooker
contains enough liquid as, if there is not
enough and it overheats, this may cause
damage to both the pressure cooker and
the cooking zone.
• If possible, always cover pans with a
suitable lid.
• Choose a pan suitable for the quantity of
food to be cooked. A large, half-empty
pan leads to a waste of energy.
Set power level Maximum cooking
duration in hours
1 - 2 8
3 - 4 6
5 - 6 5
73
82
91½
Under certain circumstances, if the
hob and the oven are being used
at the same time, the maximum
power limit that can be used by the
electrical system might be
exceeded.

Use
63
EN
Protection from overheating
If the hob is used on full power for a long
period, the electronics will have trouble
cooling down if the room temperature is
high.
To avoid excessively high temperatures
forming in the electronics, the power to the
cooking zone is reduced automatically.
Power levels
The power in the cooking zone can be
adjusted to various levels. The table shows
the levels suitable for various types of
cooking.
* see booster function
Residual heat
If the cooking zone is still hot after being
switched off, the symbol will be
displayed on the display. The symbol clears
once the temperature drops below 60°C.
Keep warm
To activate the keep warm function:
• Turn the knob for the desired cooking
zone until the symbol appears on
the corresponding display.
Power level Suitable for:
0OFFsetting
UKeepwarm
1 - 2 Cooking small amounts of food
(minimum power)
3 - 4 Cooking
5 - 6 Cooking large quantities of
food, roasting larger portions
7 - 8 Roasting, slow frying with flour
9Roasting
P * Roasting / browning, cooking
(maximum power)
Improper use
Danger of burns
• Supervise children carefully as they
cannot easily see the residual heat
indicator. The cooking zones remain hot
for a certain period of time even after
they have been turned off. Make sure
that children never touch the hob.
The Keep warm function allows
you to keep cooked food hot.

Use
64
Heating accelerator
This function allows the selected power to
be achieved in the shortest amount of time.
1. Turn the knob anti-clockwise to position
Aand then release it. The display shows
the symbol .
2. Select the required heating power (1 - 8)
within 3 seconds. The selected power
and symbol will flash alternately on
the display.
The power level can be increased at any
moment. The “maximum power” period will
automatically be modified.
Once the acceleration period is over the
power level will remain the same as the one
previously selected.
Booster function
• Turn the knob clockwise to the Pposition
for two seconds and then release.
The display shows the symbol . After
5 minutes the booster function will
automatically be disabled and cooking will
continue at power level 9(on zones 2
only).
Each cooking zone is equipped
with a heating accelerator that
allows the maximum power to be
delivered for a time that is
proportional to the selected
power.
If the power is reduced, turning the
knob anti-clockwise, the heating
accelerator will automatically be
disabled.
The booster function allows the
cooking zone to be activated at
maximum power for as long as
5 minutes. It can be used to bring a
large quantity of water to a boil
rapidly or to broil meat.
The booster function has priority
over the heating accelerator
function.
