Smeg Portofino User manual

Contents
77
EN
1 Instructions 79
1.1 General safety instructions 79
1.2 Appliance purpose 83
1.3 Manufacturer liability 83
1.4 This user manual 84
1.5 Identification plate 84
1.6 Disposal 84
1.7 How to read the user manual 85
2 Description 86
2.1 General Description 86
2.2 Cooking hob 87
2.3 Control panel 87
2.4 Other parts 88

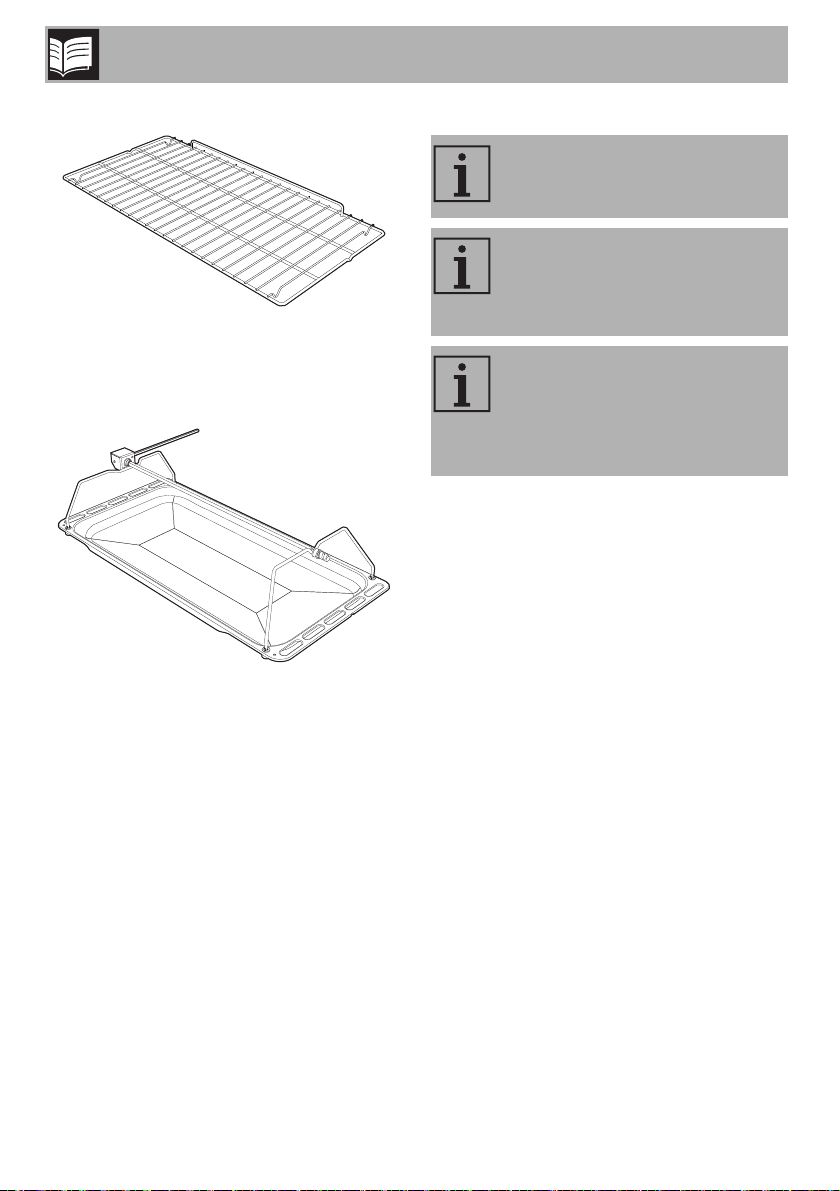

2.5 Available accessories 89
3 Use 91
3.1 Instructions 91
3.2 First use 92

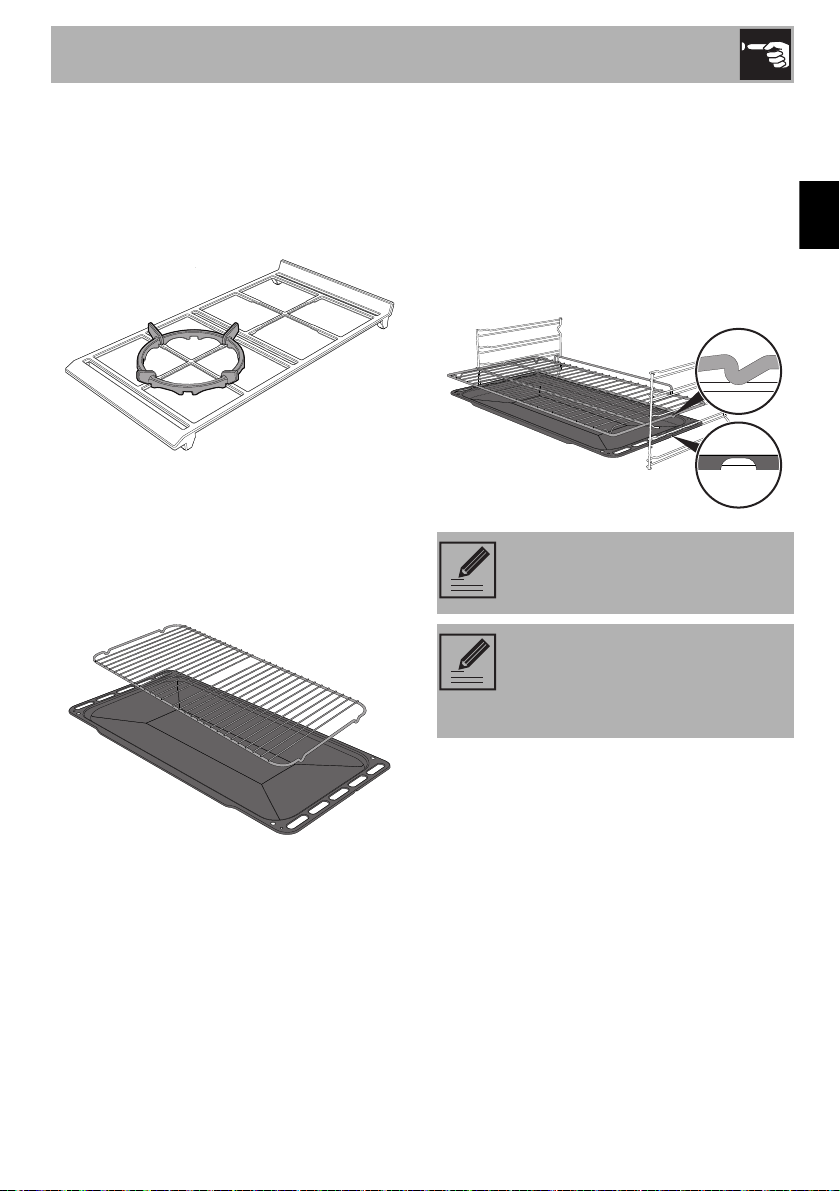

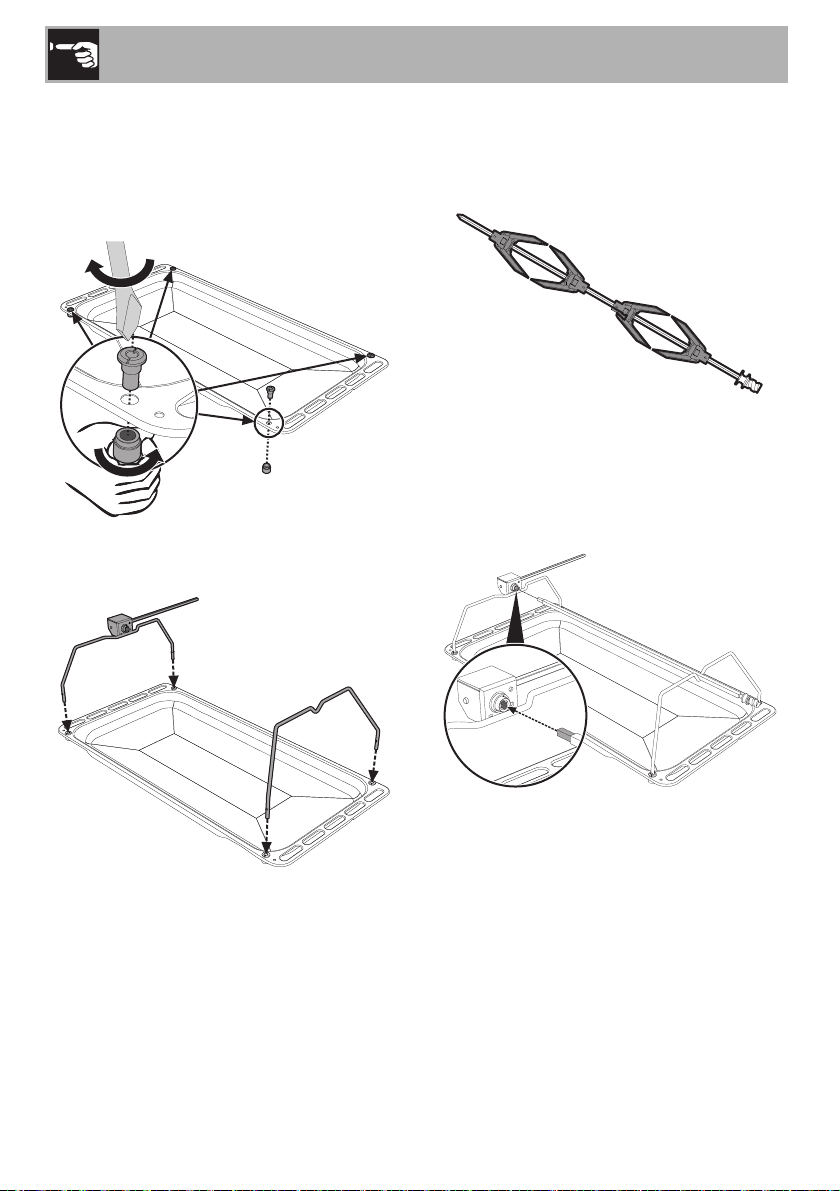

3.3 Using the accessories 93
3.4 Using the hob 96
3.5 Using the oven 97
3.6 Cooking advice 105
3.7 Special functions 107
3.8 Automatic programs 110
3.9 Secondary menu 113
3.10Using the storage compartment 116
4 Cleaning and maintenance 117
4.1 Instructions 117
4.2 Cleaning the appliance 117
4.3 Removing the door 118
4.4 Cleaning the door glazing 119
4.5 Vapor Clean (on some models only) 122
4.6 Pyrolytic (on some models only) 125
4.7 Extraordinary maintenance 127
We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance’s aesthetic and functional qualities.
For further information on the product: www.smeg.com

Contents
78
5 Installation 130
5.1 Gas connection 130
5.2 Adaptation to different types of gas 135
5.3 Positioning 140
5.4 Electrical connection 147
5.5 Instructions for the installer 149

Instructions
79
EN
1 Instructions
1.1 General safety instructions
Risk of personal injury
• During use the appliance and its
accessible parts become very hot.
Never touch the heating elements
during use.
• Protect your hands by wearing
oven gloves when moving food
inside the oven
• Never try to put out a fire or
flames with water: Turn off the
appliance and smother the flames
with a fire blanket or other
appropriate cover.
• This appliance may be used by
children aged at least 8 and by
people of reduced physical,
sensory or mental capacity, or
lacking in experience in the use of
electrical appliances, provided
that they are supervised or
instructed by adults who are
responsible for their safety.
• Children must not play with the
appliance.
• Keep children under the age of
eight at a safe distance unless
they are constantly supervised.
• Keep children under the age of 8
away from the appliance when it
is in use.
• Cleaning and maintenance must
not be carried out by
unsupervised children.
• Make sure that the flame-
spreader crowns are correctly
positioned in their housings with
their respective burner caps.
• Be aware of how rapidly the
cooking zones heat up. Do not
place empty pans on the heat.
Danger of overheating.
• Fats and oils can catch fire if they
overheat. Do not leave the
appliance unattended while
preparing foods containing oils or
fats. If fats or oils catch fire, never
put water on them. Place the lid
on the pan and turn off the
relevant cooking zone.

Instructions
80
• The cooking process must always
be monitored. A short cooking
process must be continuously
monitored.
• Do not place metal objects, such
as dishes or cutlery, on the hob
surface during use as they may
overheat.
• Do not insert pointed metal
objects (cutlery or utensils) into the
slots in the appliance.
• Do not pour water directly onto
very hot trays.
• Keep the oven door closed
during cooking.
• If you need to move food or at the
end of cooking, open the door 5
cm for a few seconds, let the
steam come out, then open it fully.
• Do not open the storage
compartment (where present)
when the oven is on and still hot.
• The items inside the storage
compartment could be very hot
after using the oven.
• Do not use or store flammable
materials in the storage
compartment (where applicable)
or near the appliance.
• Do not use aerosols in the vicinity
of this appliance whilst it is in use.
• Switch off the appliance
immediately after use.
• Do not modify this appliance.
• Always use any necessary/
required personal protective
equipment (PPE) before
performing any work on the
appliance (installation,
maintenance, positioning or
movement).
• Before performing any work on
the appliance, switch off the
power supply.
• Have qualified personnel carry
out installation and assistance
interventions according to the
standards in force.
• Do not try to repair the appliance
yourself or without the intervention
of a qualified technician.
• Do not pull the cable to remove
the plug.
• If the power supply cable is
damaged, contact technical
support immediately and they will
replace it.

Instructions
81
EN
Risk of damaging the appliance
• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.
• Use wooden or plastic utensils.
• Racks and trays should be
inserted as far as they will go into
the side guides. The mechanical
safety locks that prevent them from
being removed must face
downwards and towards the
back of the oven
• Do not seat on the appliance.
• Do not use steam jets to clean the
appliance.
• Do not obstruct ventilation
openings and heat dispersal slots.
• Never leave the appliance
unattended during cooking
operations where fats or oils
could be released, as these could
then heat up and catch fire. Be
very careful.
• Never leave objects on the
cooking surface.
• Do not use the appliance to heat
rooms for any reason.
• Do not spray any spray products
near the oven.
• Do not use plastic cookware or
containers when cooking food.
• Do not put sealed tins or
containers in the oven.
• Remove all trays and racks which
are not required during cooking.
• Do not cover the bottom of the
oven cavity with aluminium or tin
foil sheets.
• Do not place pans or trays
directly on the bottom of the oven
cavity.
• If you wish to use greaseproof
paper, place it so that it will not
interfere with the hot air circulation
inside the oven.
• Do not use the open door to rest
pans or trays on the internal glass
pane.
• Cooking vessels or griddle plates
should be placed inside the
perimeter of the hob.
• All pans must have smooth, flat
bottoms.

Instructions
82
• If any liquid does boil over or spill,
remove the excess from the hob.
• Take care not to spill acid
substances such as lemon juice or
vinegar on the hob.
• Do not put empty pans or frying
pans on switched on cooking
zones.
• Do not use steam jets to clean the
appliance.
• Do not use rough or abrasive
materials or sharp metal scrapers.
• Do not use cleaning products
containing chlorine, ammonia or
bleach on parts made of steel or
that have metallic surface finishes
(e.g. anodizing, nickel- or
chromium-plating).
• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.
• Do not wash removable parts
such as the hob grids, flame-
spreader crowns and burner caps
in a dishwasher.
• Never use the oven door to lever
the appliance into place when
fitting.
• Avoid exerting too much pressure
on the oven door when open.
• Do not use the handle to lift or
move the appliance.
Installation
• This appliance must not be
installed in a boat or caravan.
• The appliance must not be
installed on a pedestal.
• Position the appliance into the
cabinet cutout with the help of a
second person.
• To avoid potential overheating,
the appliance must not be
installed behind a decorative
door or a panel.
• Have the gas connection
performed by authorised
technical personnel.
• Installation using a hose must be
carried out so that the length of
the hose does not exceed 2
metres when fully extended for
steel hoses and 1.5 metres for
rubber hoses.

Instructions
83
EN
• The hoses should not come into
contact with moving parts and
should not be crushed in any way.
• If required, use a pressure
regulator that complies with
current regulations.
• After carrying out any operation,
check that the tightening torque of
gas connections is between 10
Nm and 15 Nm.
• At the end of the installation,
check for any leaks with a soapy
solution, never with a flame.
• Have the electrical connection
performed by authorised
technical personnel.
• The appliance must be connected
to earth in compliance with
electrical system safety standards.
• Use cables withstanding a
temperature of at least 90°C.
• The tightening torque of the
screws of the terminal supply
wires must be 1.5 - 2 Nm.
For this appliance
• Ensure that the appliance is
switched off before replacing the
bulb.
• Do not rest any weight or sit on
the open door of the appliance.
• Take care that no objects are
stuck in the doors.
1.2 Appliance purpose
• This appliance is intended for
cooking food in the home
environment. Every other use is
considered improper.
• The appliance is not designed to
operate with external timers or
with remote-control systems.
1.3 Manufacturer liability
The manufacturer declines all liability
for damage to persons or property
caused by:
• Use of the appliance other than
that specified;
• Failure to comply with the
instructions in the user manual;
• Tampering with any part of the
appliance;
• The use of non-original spare
parts.

Instructions
84
1.4 This user manual
This user manual is an integral part of the
appliance and must therefore be kept in its
entirety and within the user’s reach for the
whole working life of the appliance.
Read this user manual carefully before using
the appliance.
1.5 Identification plate
The identification plate bears the technical
data, serial number and brand name of the
appliance. Do not remove the identification
plate for any reason.
1.6 Disposal
This appliance must be disposed of
separately from other waste
(Directives 2002/95/EC, 2002/
96/EC, 2003/108/EC). The appliance
does not contain substances in quantities
sufficient to be considered hazardous to
health and the environment, in accordance
with current European directives.
To dispose of the appliance:
• Cut the power supply cable and remove
it along with the plug.
• Deliver the appliance to the appropriate
recycling centre for electrical and
electronic equipment waste, or return it to
the retailer when purchasing an
equivalent product, on a one for one
basis.
Our appliances are packaged in non-
polluting and recyclable materials.
• Deliver the packing materials to the
appropriate recycling centre.
Power voltage
Danger of electrocution
• Disconnect the mains power supply.
• Unplug the appliance.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or any part
of it unattended.
• Do not let children play with the plastic
bags.

Instructions
85
EN
1.7 How to read the user manual
This user manual uses the following reading
conventions:
1. Sequence of instructions for use.
• Standalone instruction.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories,
cooking advice.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for the qualified
technician: Installation, operation
and inspection.
Safety instructions
Information
Advice

Description
86
2 Description
2.1 General Description
1 Cooking hob
2 Control panel
3 Oven light
4 Seal
5 Door
6 Fan
7 Storage compartment
Rack/tray support frames

Description
87
EN
2.2 Cooking hob
AUX = Auxiliary
SR = Semi-rapid
R = Rapid
DUAL = Ultra-rapid
2.3 Control panel
1 Hob burner knobs
Used for lighting and adjusting the hob
burners.
Press and turn the knobs anti-clockwise to
in order to light the relative burners. Turn the
knobs to the zone between the maximum
and minimum setting to adjust the
flame.
Return the knobs to the position to turn
off the burners.
2 Temperature knob
This knob allows you to select the cooking
time and temperature, set programmed
cooking and the current time as well as turn
the light inside the oven on and off.

Description
88
3 Display
Displays the current time, the selected
cooking temperature and function and any
time set.
4 Function knob
This knob allows you to turn the appliance
on and off and select the cooking function.
2.4 Other parts
Cooling fan
The fan cools the oven and comes into
operation during cooking.
The fan causes a steady outflow of air that
exits from the rear of the appliance and
which may continue for a brief period of
time even after the appliance has been
turned off.
Interior lighting
The appliance’s interior lighting comes on:
• When the door is opened.
• When any function is selected, apart
from the + and functions
(multifunction models), and the and
functions (pyrolytic models).
• When the temperature knob is briefly
turned to the right (manual activation and
deactivation).
Shelves
The appliance features shelves to position
trays and racks at different heights. The
insertion heights are indicated from the
bottom upwards (see 2.1 General
Description).
Do not obstruct ventilation
openings and heat dispersal slots.
When the door is open, it is not
possible to turn off the interior
lighting.

Description
89
EN
2.5 Available accessories
WOK ring
Useful when using a wok.
Tray rack
To be placed over the top of the oven tray;
for cooking foods which may drip.
Oven tray
Useful for collecting fat from foods placed
on the rack above.
Deep tray
Useful for collecting fat from foods placed
on the rack above and for cooking pies,
pizzas and baked desserts.

Description
90
Rack
Useful for supporting containers with food
during cooking.
Rotisserie (on some models only)
Useful for cooking chicken and all foods
which require uniform cooking over their
entire surface.
Some models are not provided
with all accessories.
The accessories intended to come
into contact with food are made of
materials that comply with the
provisions of current legislation.
Supplied and optional accessories
can be requested to Authorised
Assistance Centres. Use only
original accessories supplied by
the manufacturer.

Use
91
EN
3 Use
3.1 Instructions
High temperature inside the oven
during use
Danger of burns
• Keep the oven door closed during
cooking.
• Protect your hands by wearing oven
gloves when moving food inside the
oven.
• Do not touch the heating elements inside
the oven.
• Do not pour water directly onto very hot
trays.
• Keep children under the age of 8 away
from the appliance when it is in use.
• If you need to move food or at the end
of cooking, open the door 5 cm for a
few seconds, let the steam come out,
then open it fully.
Improper use
Danger of burns
• Make sure that the flame-spreader
crowns are correctly positioned in their
seats with their respective burner caps.
• Oils and fats could catch fire if
overheated. Be very careful.
Improper use
Risk of damage to surfaces
• Do not cover the bottom of the oven
cavity with aluminium or tin foil sheets.
• If you wish to use greaseproof paper,
place it so that it will not interfere with the
hot air circulation inside the oven.
• Do not place pans or trays directly on
the bottom of the oven cavity.
• Do not use the open door to rest pans or
trays on the internal glass pane.
• Do not pour water directly onto very hot
trays.
• Cooking vessels or griddle plates
should be placed inside the perimeter of
the hob.
• All pans must have smooth, flat bottoms.
• If any liquid does boil over or spill,
remove the excess from the hob.
High temperature inside the
storage compartment
Danger of burns
• Do not open the storage compartment
when the appliance is on and still hot.
• The items inside the storage
compartment could be very hot after
using the appliance.

Use
92
A gas leak can cause an explosion.
If you smell gas or there are faults in the gas
system:
• Immediately turn off the gas supply or
close the valve on the gas cylinder.
• Extinguish all naked flames and
cigarettes.
• Do not turn on power switches or
appliances and do not remove plugs
from power sockets. Do not use phones
or mobile phones inside the building.
• Open the window in order to ventilate
the room.
• Call customer assistance services or your
gas supplier.
Malfunctions
Any of the following indicate a malfunction
and you should contact a service centre.
• Yellowing of the burner plate.
• Damage to kitchen utensils.
• The burners do not ignite properly.
• It is difficult to keep the burners lit.
• The burners go out when the appliance
is in use.
• It is difficult to turn the gas valves.
If the appliance does not work properly,
contact your local Authorised Service
Centre.
3.2 First use
1. Remove any protective film from the
outside or inside of the appliance,
including accessories.
2. Remove any labels (apart from the
technical data plate) from the
accessories and from the oven cavity.
3. Remove and wash all the appliance
accessories (see 4 Cleaning and
maintenance).
4. Heat the empty appliance to the
maximum temperature to burn off any
residues left by the manufacturing
process.
High temperature inside the oven
during use
Danger of fire or explosion
• Do not spray any spray products near
the appliance.
• Do not use or leave flammable materials
near the appliance or the storage
compartment.
• Do not use plastic cookware or
containers when cooking food.
• Do not put sealed tins or containers in
the oven.
• Do not leave the appliance unattended
during cooking operations where fats or
oils could be released.
• Remove all trays and racks which are
not required during cooking.

Use
93
EN
3.3 Using the accessories
Ring reducers
The ring reducers must be placed on the
hob grids. Make sure they are placed
properly.
Tray rack
The tray rack has to be inserted into the tray.
In this way fat can be collected separately
from the food which is being cooked.
Racks and trays
Racks and trays have to be inserted into the
side guides until they come to a complete
stop.
The mechanical safety locks that prevent the
rack from being taken out accidentally have
to face downwards and towards the oven
back.
Gently insert racks and trays into
the oven until they come to a stop.
Clean the trays before using them
for the first time to remove any
residues left by the manufacturing
process.

Use
94
Rotisserie (on some models only)
1. Insert the 4 supplied bushings in the 4
corner holes of the deep tray and screw
them onto the ring nuts with a suitable
tool (such as a screwdriver).
2. Position the rotisserie supports in the
bushings as shown in the figure below.
3. Prepare the rotisserie rod with the food
using the clip forks provided. The clip
forks can be tightened using the
fastening screws.
4. Once you have prepared the rotisserie
rod, place it on the supports. Insert the tip
of the rod in the housing of the
mechanism on the left-hand support until
it stops.

Use
95
EN
5. Place the tray on the first runner (see
“General Description”).
6. Insert the tip of the rod in the rotisserie
motor housing on the left of the rear wall
of the oven.
7. To activate the rotisserie, turn the function
knob to select the +
function and use the temperature knob to
set a cooking temperature.
8. When cooking is complete, remove the
tray with the rotisserie.
9. Screw on the handle provided so that
you can handle the rotisserie rod more
easily.
These operations must be
performed with the oven off and
cold.
Pour a little water into the tray to
prevent smoke from forming.

Use
96
3.4 Using the hob
All the appliance’s control and monitoring
devices are located together on the front
panel. The burner controlled by each knob
is shown next to the knob. The appliance is
equipped with an electronic ignition device.
Simply press the knob and turn it anti-
clockwise to the maximum flame symbol,
until the burner ignites. If the burner does not
light in the first 15 seconds, turn the knob
to and wait 60 seconds before trying
again. After lighting, keep the knob pressed
in for a few seconds to allow the
thermocouple to heat up.
The burner may go out when the knob is
released: In this case, the thermocouple has
not heated up sufficiently. Wait a few
moments and repeat the operation. Keep
the knob pressed in longer.
Correct positioning of the flame-
spreader crowns and burner caps
Before lighting the hob burners, make sure
that the flame-spreader crowns are
correctly positioned in their seats with their
respective burner caps. Make sure that the
holes 1of the flame-spreader crowns are
aligned with the thermocouples 2and
igniters 3.
Practical tips for using the hob
For better burner efficiency and to minimise
gas consumption, use pans with lids and of
suitable size for the burner, so that the
flames do not reach up the sides of the pan.
Once the contents come to the boil, turn
down the flame far enough to ensure that
the liquid does not boil over.
In case of an accidental switching
off, a safety device will be tripped,
cutting off the gas supply, even if
the gas cock is open. Return the
knob to and wait at least
60 seconds before lighting it
again.
Cookware diameters:
• AUX: 12 - 14 cm.
• SR: 16 - 24 cm.
• R: 18 - 26 cm.
• DUAL: 18 - 28 cm.
