Instructions
70
1 Instructions
1.1 General safety instructions
Risk of personal injury
• During use the appliance and its
accessible parts become very hot.
Never touch the heating elements
during use.
• Protect your hands by wearing
oven gloves when moving food
inside the oven.
• Never try to put out a fire or
flames with water: Turn off the
appliance and smother the flames
with a fire blanket or other
appropriate cover.
• This appliance may be used by
children aged at least 8 and by
people of reduced physical,
sensory or mental capacity, or
lacking in experience in the use of
electrical appliances, provided
that they are supervised or
instructed by adults who are
responsible for their safety.
• Children must not play with the
appliance.
• Keep children under the age of
eight at a safe distance unless
they are constantly supervised.
• Keep children under the age of 8
away from the appliance when it
is in use.
• Cleaning and maintenance must
not be carried out by
unsupervised children.
• Be aware of how rapidly the
cooking zones heat up. Do not
place empty pans on the heat.
Danger of overheating.
• Fats and oils can catch fire if they
overheat. Do not leave the
appliance unattended while
preparing foods containing oils or
fats. If fats or oils catch fire, never
put water on them. Place the lid
on the pan and turn off the
relevant cooking zone.

Instructions
71
EN
• The cooking process must always
be monitored. A short cooking
process must be continuously
monitored.
• Do not place metal objects, such
as dishes or cutlery, on the hob
surface during use as they may
overheat.
• Do not insert pointed metal
objects (cutlery or utensils) into the
slots in the appliance.
• Do not pour water directly onto
very hot trays.
• Keep the oven door closed
during cooking.
• If you need to move food or at the
end of cooking, open the door 5
cm for a few seconds, let the
steam come out, then open it fully.
• Do not open the storage
compartment (where present)
when the oven is on and still hot.
• The items inside the storage
compartment could be very hot
after using the oven.
• Do not use or store flammable
materials in the storage
compartment (where applicable)
or near the appliance.
• Do not use aerosols in the vicinity
of this appliance whilst it is in use.
• Switch off the appliance
immediately after use.
• Do not modify this appliance.
• Always use any necessary/
required personal protective
equipment (PPE) before
performing any work on the
appliance (installation,
maintenance, positioning or
movement).
• Before performing any work on
the appliance, switch off the
power supply.
• Have qualified personnel carry
out installation and assistance
interventions according to the
standards in force.
• Do not try to repair the appliance
yourself or without the intervention
of a qualified technician.
• Do not pull the cable to remove
the plug.
• If the power supply cable is
damaged, contact technical
support immediately and they will
replace it.

Instructions
72
Risk of damaging the appliance
• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.
• Use wooden or plastic utensils.
• Racks and trays should be
inserted as far as they will go into
the side guides. The mechanical
safety locks that prevent them from
being removed must face
downwards and towards the
back of the oven cavity.
• Do not seat on the appliance.
• Do not use steam jets to clean the
appliance.
• Do not obstruct ventilation
openings and heat dispersal slots.
• Never leave the appliance
unattended during cooking
operations where fats or oils
could be released, as these could
then heat up and catch fire. Be
very careful.
• Never leave objects on the
cooking surface.
• Do not use the appliance to heat
rooms for any reason.
• Do not spray any spray products
near the oven.
• Do not use plastic cookware or
containers when cooking food.
• Do not put sealed tins or
containers in the oven.
• Remove all trays and racks which
are not required during cooking.
• Do not cover the bottom of the
oven cavity with aluminium or tin
foil sheets.
• Do not place pans or trays
directly on the bottom of the oven
cavity.
• If you wish to use greaseproof
paper, place it so that it will not
interfere with the hot air circulation
inside the oven.
• Do not use the open door to rest
pans or trays on the internal glass
pane.
• Cooking vessels or griddle plates
should be placed inside the
perimeter of the hob.
• All pans must have smooth, flat
bottoms.

Instructions
73
EN
• If any liquid does boil over or spill,
remove the excess from the hob.
• Take care not to spill acid
substances such as lemon juice or
vinegar on the hob.
• Do not put empty pans or frying
pans on switched on cooking
zones.
• Do not use steam jets to clean the
appliance.
• Do not use rough or abrasive
materials or sharp metal scrapers.
• Do not use cleaning products
containing chlorine, ammonia or
bleach on parts made of steel or
that have metallic surface finishes
(e.g. anodizing, nickel- or
chromium-plating).
• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.
• Do not wash removable parts
such as the hob pan support
grids, flame-spreader crowns and
burner caps in the dishwasher.
Installation
• This appliance must not be
installed in a boat or caravan.
• The appliance must not be
installed on a pedestal.
• Position the appliance into the
cabinet cut-out with the help of a
second person.
• Never use the oven door to lever
the appliance into place when
fitting.
• Avoid exerting too much pressure
on the oven door when open.
• Do not use the handle to lift or
move the appliance.
• To avoid potential overheating,
the appliance must not be
installed behind a decorative
door or a panel.
• Have the electrical connection
performed by authorised
technical personnel.
• The appliance must be connected
to earth in compliance with
electrical system safety standards.

Instructions
74
• Use cables withstanding a
temperature of at least 90°C.
• The tightening torque of the
screws of the terminal supply
wires must be 1.5 - 2 Nm.
For this appliance
• After use, switch off the plates.
Never rely solely on the
cookware detector.
• Supervise children carefully as
they cannot readily see the
residual heat indication. After use
the cooking zones remain hot for
a certain period of time even if
they have been turned off. Keep
children away from the cooking
zones.
• The glass ceramic surface is
highly resistant to impact.
However, prevent hard, solid
objects from falling on the
cooking surface as they may
cause it to break if they are sharp.
• Do not use the glass ceramic
cooking surface as a support
surface.
• If cracks or fissures form, or if the
glass ceramic cooking surface
breaks, turn off the appliance
immediately. Disconnect the
power supply and call Technical
Support.
• Ensure that the appliance is
switched off before replacing the
bulb.
• Do not rest any weight or sit on
the open door of the appliance.
• Take care that no objects are
stuck in the doors.
• People who have pacemakers or
other similar devices fitted must
make sure that the operation of
these devices is not jeopardised
by the inductive field, whose
frequency range is between 20
and 50 kHz.
• In conformity with the provisions
regarding electromagnetic
compatibility, the electromagnetic
induction cooking hob comes
under group 2 and class B (EN
55011).

Instructions
75
EN
1.2 Appliance purpose
• This appliance is intended for
cooking food in the home
environment. Every other use is
considered improper.
• The appliance is not designed to
operate with external timers or
with remote-control systems.
1.3 Manufacturer’s liability
The manufacturer declines all liability
for damage to persons or property
caused by:
• Use of the appliance other than
that specified
• Failure to comply with the
instructions in the user manual
• Tampering with any part of the
appliance
• The use of non-original spare
parts.
1.4 This user manual
This user manual is an integral part of the
appliance and must therefore be kept in its
entirety and within the user’s reach for the
whole working life of the appliance.
Read this user manual carefully before using
the appliance.
1.5 Identification plate
The identification plate bears the technical
data, serial number and brand name of the
appliance. Do not remove the identification
plate for any reason.
1.6 Disposal
This appliance must be disposed of
separately from other waste
(Directives 2002/95/EC, 2002/
96/EC, 2003/108/EC). The appliance
does not contain substances in quantities
sufficient to be considered hazardous to
health and the environment, in accordance
with current European directives.
To dispose of the appliance:
• Cut the power supply cable and remove
it along with the plug.
Power voltage
Danger of electrocution
• Disconnect the mains power supply.
• Unplug the appliance.

Instructions
76
• Deliver the appliance to the appropriate
recycling centre for electrical and
electronic equipment waste, or return it to
the retailer when purchasing an
equivalent product, on a one for one
basis.
Our appliances are packaged in non-
polluting and recyclable materials.
• Deliver the packing materials to the
appropriate recycling centre.
1.7 How to read the user manual
This user manual uses the following reading
conventions:
1. Sequence of instructions for use.
• Standalone instruction.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or any part
of it unattended.
• Do not let children play with the plastic
bags.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories,
cooking advice.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for the qualified
technician: Installation, operation
and inspection.
Safety instructions
Information
Advice

Description
77
EN
2 Description
2.1 General Description
1 Hob
2 Control panel
3 Oven light
4 Seal
5 Door
6 Fan
7 Storage compartment
Rack/tray support frames

Description
78
2.2 Hob
* Power levels are approximate and can vary according to the pan used or the settings made.
Advantages of induction cooking • Energy saving thanks to the direct
transmission of energy to the pan
(suitable magnetisable cookware is
required) compared to traditional
electric cooking.
• Improved safety as the energy is only
transmitted to the pan placed on the hob.
• High level of energy transmitted from the
induction cooking zone to the base of
the pan.
• Rapid heating speed.
• Reduced danger of burns as the cooking
surface is only heated under the base of
the pan; foods which overflow do not
stick.
Zone Outer diameter
(mm)
Max. power draw
(W)*
Power draw
with Booster function
(W)*
1 145 1400 2200
2 180 1850 3000
3 210 2300 3700
4 270 2600 3700
The hob is equipped with an
induction generator for each
cooking zone. Each generator
located under the glass ceramic
cooking surface creates an
electromagnetic field which
induces a thermal current in the
base of the pan. This means the
heat is no longer transmitted from
the hob to the pan but created
directly inside the pan by the
inductive current.

Description
79
EN
2.3 Control panel
1 Hob cooking zone knobs
Useful for controlling the cooking zones of
the induction hob.
Turn the knobs clockwise to adjust the
operating power of the hot plate from a
minimum of 1to a maximum of 9.
The working power is indicated on the
display on the hob.
2 Temperature knob
This knob allows you to select the cooking
time and temperature, set programmed
cooking and the current time as well as turn
the light inside the oven on and off.
3 Display
Displays the current time, the selected
cooking temperature and function and any
time set.
4 Function knob
This knob allows you to turn the appliance
on and off and select the cooking function.
2.4 Other parts
Cooling fan
The fan cools the oven and comes into
operation during cooking.
The fan causes a steady outflow of air that
exits from the rear of the appliance and
which may continue for a brief period of
time even after the appliance has been
turned off.
Do not obstruct ventilation
openings and heat dispersal slots.

Description
80
Interior lighting
The appliance’s interior lighting comes on:
• When the door is opened.
• When any function is selected, apart
from the + and functions
(multifunction models), and the and
functions (pyrolytic models).
• When the temperature knob is briefly
turned to the right (manual activation and
deactivation).
Shelves
The appliance features shelves to position
trays and racks at different heights. The
insertion heights are indicated from the
bottom upwards (see 2.1 General
Description).
2.5 Available accessories
Tray rack
To be placed over the top of the oven tray;
for cooking foods which may drip.
Deep tray
Useful for collecting fat from foods placed
on the rack above and for cooking pies,
pizzas and baked desserts.
When the door is open, it is not
possible to turn off the interior
lighting.

Description
81
EN
Rack
Useful for supporting containers with food
during cooking.
Rotisserie
Useful for cooking chicken and all foods
which require uniform cooking over their
entire surface.
Some models are not provided
with all accessories.
The accessories intended to come
into contact with food are made of
materials that comply with the
provisions of current legislation.
Supplied and optional accessories
can be requested to Authorised
Assistance Centres. Use only
original accessories supplied by
the manufacturer.

Use
82
3 Use
3.1 Instructions
High temperatures during use
Danger of burns
• Keep the oven door closed during
cooking.
• Protect your hands by wearing oven
gloves when moving food inside the
oven.
• Do not touch the heating elements inside
the oven.
• Do not pour water directly onto very hot
trays.
• Keep children under the age of 8 away
from the appliance when it is in use.
• If you need to move food or at the end
of cooking, open the door 5 cm for a
few seconds, let the steam come out,
then open it fully.
High temperature inside the
storage compartment
Danger of burns
• Do not open the storage compartment
when the appliance is on and still hot.
• The items inside the storage
compartment could be very hot after
using the appliance.
Improper use
Risk of damage to surfaces
• Do not cover the bottom of the oven
cavity with aluminium or tin foil sheets.
• If you wish to use greaseproof paper,
place it so that it will not interfere with the
hot air circulation inside the oven.
• Do not place pans or trays directly on
the bottom of the oven cavity.
• Do not use the open door to rest pans or
trays on the internal glass pane.
• Do not pour water directly onto very hot
trays.
• Cooking vessels or griddle plates
should be placed inside the perimeter of
the hob.
• All pans must have smooth, flat bottoms.
• If any liquid does boil over or spill,
remove the excess from the hob.
• Never place pans with bases which are
not perfectly flat and smooth.
• Avoid hard, solid objects falling on the
surface of the hob.
• In case you notice cracks or fissures, turn
off the appliance immediately,
disconnect the power supply and
contact Technical Support.
• Do not use the hob as a support surface.

Use
83
EN
3.2 First use
1. Remove any protective film from the
outside or inside of the appliance,
including accessories.
2. Remove any labels (apart from the
technical data plate) from the
accessories and from the oven cavity.
3. Remove and wash all the appliance
accessories (see 4 Cleaning and
maintenance).
4. Heat the empty appliance to the
maximum temperature to burn off any
residues left by the manufacturing
process.
3.3 Using the accessories
Tray rack
The tray rack has to be inserted into the tray.
In this way fat can be collected separately
from the food which is being cooked.
Improper use
Danger of burns
• Do not touch or clean the hob surface
during operation or when the residual
heat indicator lights are still on.
• Activate the controls lock when you
have children or pets which could reach
the hob.
• After use the cooking zones remain hot
for a certain period of time after they
have been turned off. Do not touch the
hob surfaces.
• Oils and fats could catch fire if
overheated. Be very careful.
High temperatures during use
Danger of fire or explosion
• Do not spray any spray products near
the appliance.
• Do not use or leave flammable materials
near the appliance or the storage
compartment.
• Do not use plastic cookware or
containers when cooking food.
• Do not put sealed tins or containers in
the oven.
• Do not leave the appliance unattended
during cooking operations where fats or
oils could be released.
• Remove all trays and racks which are
not required during cooking.

Use
84
Racks and trays
Racks and trays have to be inserted into the
side guides until they come to a complete
stop.
The mechanical safety locks that prevent the
rack from being taken out accidentally have
to face downwards and towards the oven
back.
Rotisserie (on some models only)
1. Insert the 4 supplied bushings in the 4
corner holes of the deep tray and
screw them onto the ring nuts with a
suitable tool (such as a screwdriver).
2. Position the rotisserie supports in the
bushings as shown in the figure below.
Gently insert racks and trays into
the oven until they come to a stop.
Clean the trays before using them
for the first time to remove any
residues left by the manufacturing
process.

Use
85
EN
3. Prepare the rotisserie rod with the food
using the clip forks provided. The clip
forks can be tightened using the
fastening screws.
4. Once you have prepared the rotisserie
rod, place it on the supports. Insert the
tip of the rod in the housing of the
mechanism on the left-hand support
until it stops.
5. Place the tray on the first runner (see
“General Description”).
6. Insert the tip of the rod in the rotisserie
motor housing on the left of the rear
wall of the oven.
These operations must be
performed with the oven off and
cold.

Use
86
7. To activate the rotisserie, turn the
function knob to select the +
function and use the
temperature knob to set a cooking
temperature.
8. When cooking is complete, remove the
tray with the rotisserie.

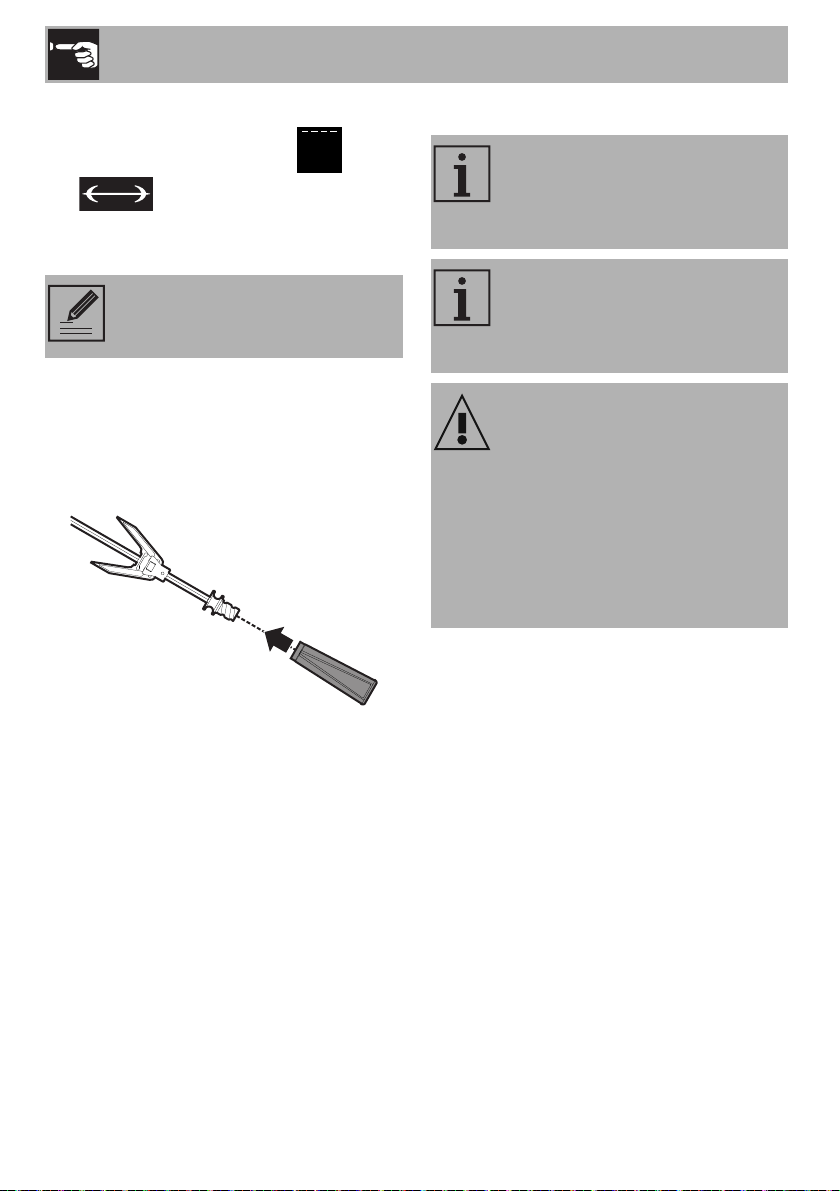

9. Screw on the handle provided so that
you can handle the rotisserie rod more
easily.
3.4 Using the hob
All the appliance’s control and monitoring
devices are located together on the front
panel. The relevant cooking zone is
indicated next to each knob.
Just turn the knob clockwise to the required
power setting.
Cookware suitable for use in induction
cooking
Cookware used on the induction cooking
surface must be made of metal, with
magnetic properties and a sufficiently large
base.
Pour a little water into the tray to
prevent smoke from forming.
On first connection to the electrical
mains, an automatic check will be
carried out that will switch on all
indicator lights for a few seconds.
After use, turn off the hot plates
used by returning the appropriate
knob to the Oposition. Never rely
solely on the cookware detector.
Improper use
Danger of burns
• WARNING: The pyrolytic cycle
deactivates the hob, if in use.
• WARNING: If a pyrolytic cycle is
carried out when the cooking zones are
still hot, the indications on the hob
display are deactivated.

Use
87
EN
Suitable cookware:
• Enamelled steel cookware with thick
bases.
• Cast iron cookware with an enamelled
base.
• Cookware in multilayer stainless steel,
ferritic stainless steel and aluminium with
a special base.
Unsuitable cookware:
• Copper, stainless steel, aluminium,
fireproof glass, wood, ceramic and
terracotta cookware.
To see whether the pan is suitable, bring a
magnet close to the bottom: if it is attracted,
the pan is suitable for induction cooking. If
you do not have a magnet, you can put a
small amount of water in the pan, place it
on a cooking zone and start the hot plate. If
the symbol appears on the display, it
means the pan is not suitable.
Cookware recognition
When there is no saucepan on a cooking
zone or if the saucepan is too small, no
energy will be transmitted and the
symbol will appear on the display.
If there is a suitable saucepan on the
cooking zone, the recognition system
notices it and turns on the hob to the power
level set using the knob. Energy transmission
is also interrupted when the saucepan is
removed from the cooking zone (the
symbol will be shown on the display).
If the cookware recognition function is
activated in spite of the saucepan or frying
pan on the cooking zone being smaller
than the zone itself, only the necessary
energy will be transmitted.
Cookware recognition limits: The minimum
diameter of the pan base is indicated by a
circle inside the cooking zone. Pans with
smaller diameters risk not being detected
and therefore not activating the inductor.
Use only cookware with a
perfectly flat bottom which is
suitable for induction hot plates.
Using cookware with an irregular
bottom could jeopardise the
efficiency of the heating system
and prevent cookware from being
detected on the cooking zone.

Use
88
Limiting the cooking duration
The hob has an automatic device which
limits the duration of use.
If the cooking zone settings are not
changed, the maximum duration of
operation for each zone depends on the
power level selected.
When the device for limiting the duration of
use is activated, the cooking zone turns off,
a short alert sounds and, if the zone is hot,
the symbol appears on the display.
Protection from overheating
If the hob is used on full power for a long
period, the electronics will have trouble
cooling down if the room temperature is
high.
To avoid excessively high temperatures
forming in the electronics, the power to the
cooking zone is reduced automatically.
Advice on energy-saving
• The diameter of the base of the pan must
correspond to the diameter of the
cooking zone.
• When buying a pan, check whether the
diameter indicated is that of the base or
the top of the pan, as the top is almost
always larger than the base.
• When preparing dishes with long
cooking times, you can save time and
energy by using a pressure cooker,
which also makes it possible to preserve
the vitamins in the food.
• Make sure that the pressure cooker
contains enough liquid as, if there is not
enough and it overheats, this may cause
damage to both the pressure cooker and
the cooking zone.
• If possible, always cover pans with a
suitable lid.
• Choose a pan suitable for the quantity of
food to be cooked. A large, half-empty
saucepan leads to a waste of energy.
Set power level Maximum cooking
duration in hours
1 8
26
3 - 4 5
54
6 - 7 - 8 - 9 1 ½
Under certain circumstances, if the
hob and the oven are being used
at the same time, the maximum
power limit that can be used by the
electrical system might be
exceeded.
