Smeg STU8623 User manual

CONTENTS
Contents
EN
1 INTRODUCTION .................................................................................
2 ................................................................... SAFETY INFORMATION
3 INSTALLATION MATERIAL..................................................................
3.1 Kit supplied dishwasher (fully integrated)............................................
3.2 Kit supplied dishwasher (integrated)....................................................
4 DIMENSIONS OF DISHWASHER........................................................
5 INSTALLATION AND HOOK-UP ..........................................................
5.1 Levelling................................................................................................
5.2 Connections .........................................................................................
5.2.1 Connection to the water supply.............................................................
5.2.1.1 Connection to the water tap...............................................................
5.2.1.2 Connection to the drain hose.............................................................
5.2.2 Electrical connections and warnings ....................................................
5.3 Commissioning......................................................................................
5.3.1 Installation procedure (all models)........................................................
5.3.2 Door panel assembly procedure (fully integrated).................................
5.3.3 Door panel assembly procedure (integrated)........................................
5.3.4 Door screwing procedure......................................................................
5.3.5 Completion of installation.......................................................................
5.4 Apply the gaskets - type A.....................................................................
5.5 Apply the gaskets - type B.....................................................................
5.6 Testing ...................................................................................................
3
4
7
8
9
10
11
12
13
14
14
16
22
23
23
25
27
29
30
32
34
36
1

Thank you for choosing one of our products. To install this dishwasher
correctly and safely, please read this manual carefully. The manual is
divided into sections giving you a step-by-step guide to installation of the
appliance. The texts are easy to understand and are complete with
detailed illustrations. This user-friendly manual will provide answers to all
your questions about installation of the dishwasher.
This manual comprises the following sections:
INTRODUCTON: general information about the manual.
WARNINGS: a list of warnings concerning safety during installation.
INSTALLATION INSTRUCTIONS: for the qualified technician who must
carry out the installation, hook-up and testing of the appliance.
INTRODUCTION
1 INTRODUCTION
DANGER. This symbol highlights information and warnings which, if not
observed, may compromise personal safety or damage the appliance.
Simbols used in this manual
DANGER OF ELECTROCUTION. This symbol highlights information and
warnings of an electrical nature which, if not observed, may compromise
personal safety or damage the appliance.
This symbol highlights general information and warnings.
EN
3

WARNINGS
2 SAFETY INFORMATION
THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE: IT
MUST ALWAYS BE KEPT INTACT TOGETHER WITH THE
DISHWASHER. BEFORE USING THE APPLIANCE, CAREFULLY
READ ALL THE INSTRUCTIONS CONTAINED IN THIS MANUAL.
INSTALLATION MUST BE PERFORMED BY A QUALIFIED
TECHNICIAN, IN COMPLIANCE WITH THE REGULATIONS IN
FORCE. THIS APPLIANCE IS INTENDED FOR DOMESTIC USE AND
SIMILAR APPLICATIONS SUCH AS THE STAFF KITCHENS OF
SHOPS, OFFICES AND OTHER WORPLACES, INSTITUTIONS, AND
FOR THE USE OF GUESTS AT HOTELS, HOSTELS, BED AND
BREAKFAST ESTABLISHMENTS AND OTHER RESIDENTIAL
FACILITIES AND COMPLIES WITH DIRECTIVES CURRENTLY IN
FORCE, INCLUDING THE PREVENTION AND ELIMINATION OF
RADIO FREQUENCY INTERFERENCE. THE APPLIANCE IS
DESIGNED FOR THE FOLLOWING PURPOSE: WASHING AND
DRYING OF DISHES; ANY OTHER USE SHALL BE CONSIDERED
IMPROPER. THE MANUFACTURER DECLINES ALL
RESPONSABILITY FOR USES OTHER THAN THOSE DESCRIBED
ABOVE.
INSTALLATION, REPAIRS AND SERVICING MUST BE
PERFORMED BY QUALIFIED AND AUTHORIZED TECHNCIANS.
AS WELL AS INVALIDATING THE WARRANTY, WORK CARRIED
OUT BY UNAUTHORIZED PERSONS MAY GENERATE HAZARDS.
INSTALLATION MUST BE PERFORMED IN COMPLIANCE WITH ALL
THE DIRECTIVES IN FORCE IN THE COUNTRY OF INSTALLATION
AND, IF THESE DO NOT EXIST: IN THE UNITED STATES THE
NATIONAL ELECTRIC CODE C22.1 - LATEST EDITION/PROVINCIAL
AND MUNICIPAL CODES AND/OR LOCAL CODES.
THE NAME PLATE FEATURING THE TECHNICAL DATA, SERIAL
NUMBER AND MARKINGS IS VISIBLY POSITIONED ON THE INNER
EDGE OF THE DOOR . THE NAMEPLATE ON THE INNER EDGE OF
THE DOOR MUST NEVER BE REMOVED.
THIS APPLIANCE IS NOT SUITABLE FOR USE ON BOATS,
CARAVANS OR THE LIKE. DISHWASHERS CERTIFIED FOR
DOMESTIC USE ARE NOT SUITABLE FOR AUTHORISED FOOD
FACTORIES.
EN
4

CHECK THAT THE VOLTAGE, FREQUENCY AND PROTECTION OF THE
DOMESTIC MAINS POWER SUPPLY MATCH THE RATINGS ON THE NAME
PLATE OF THE APPLIANCE.
TWO PEOPLE WEARING SAFETY GLOVES ARE REQUIRED TO LIFT THE
DISWASHER.
DO NOT LEAVING DISCARDED PACKAGING MATERIALS UNSUPERVISED
WITHIN THE HOME. SEPARATE THE VARIOUS PACKAGING MATERIALS
AND TAKE THEM TO THE NEAREST SORTED WASTE COLLECTION
CENTRE. KEEP CHILDREN, PHYSICALLY AND/OR MENTALLY IMPAIRED
ADULTS, AND ANIMALS AWAY FROM PACKAGING WASTE; DANGER OF
SUFFOCATION.
BEFORE PROCEEDING WITH INSTALLATION, DISCONNECT THE MAINS
POWER SUPPLY FROM THE WORK AREA.
DURING INSTALLATION, TAKE CARE NOT TO INJURE YOURSELF ON
THE SHARP EDGES OF THE APPLIANCE; WEAR SAFETY GLOVES.
THE APPLIANCE MUST BE PROVIDED WITH A GROUND CONNECTION IN
ACCORDANCE WITH THE ELECTRICAL SAFETY REGULATIONS IN
FORCE. IF IN DOUBT, HAVE THE SYSTEM CHECKED BY A QUALIFIED
ELECTRICIAN.
THE MANUFACTURER DECLINES ALL RESPONSABILITY FOR DAMAGE
TO PERSONS OR PROPERTY RESULTING FROM THE FAILURE TO
GROUND THE APPLIANCE OR FROM A DEFECTIVE GROUND
CONNECTION.
DO NOT USE APPLIANCES WHICH HAVE BEEN DAMAGED DURING
TRANSIT! IF IN DOUBT, CONSULT YOUR DEALER. THE APPLIANCE
MUST BE INSTALLED AND CONNECTED IN ACCORDANCE WITH THE
INSTRUCTIONS PROVIDED BY THE MANUFACTURER OR BY A
QUALIFIED TECHNICIAN.
WARNINGS
EN
5

DO NOT OPERATE THE DISHWASHER UNLESS ALL THE OUTER
PANELS HAVE BEEN POSITIONED CORRECTLY. IMMEDIATELY
AFTER INSTALLATION, BRIEFLY TEST THE APPLIANCE
FOLLOWING THE INSTRUCTIONS INDICATED BELOW. IF THE
DISHWASHER FAILS TO OPERATE CORRECTLY, DISCONNECT IT
FROM THE ELECTRICAL POWER SUPPLY AND CALL THE
NEAREST TECHNICAL SERVICE CENTRE.
DO NOT ATTEMPT TO REPAIR THE APPLIANCE.
DO NOT USE EXTENSION CORDS, ADAPTORS OR SHUNT
CONNECTIONS IN ORDER TO AVOID THE POSSIBILITY OF OVER
HEATING OR BURNING, WITH CONSEQUENT FIRE HAZARD.
THE MANUFACTURER DECLINES ALL RESPONSABILITY FOR
DAMAGE TO PERSONS, ANIMALS OR PROPERTY RESULTING
FROM FAILURE TO OBSERVE THE ABOVE PRECAUTIONS,
FROM TAMPERING WITH EVEN A SINGLE COMPONENT OF THE
APPLIANCE, OR FROM THE USE OF UNORIGINAL SPARE
PARTS. IF IN DOUBT ABOUT THE CONTENTS OF THIS MANUAL,
CONTACT THE TECHNICAL ASSISTANCE SERVICE.
WARNINGS
EN
6

INSTALLATION INSTRUCTION
3 INSTALLATION MATERIAL
To install the dishwasher correctly, the following materials are
required:
Ÿphillips screwdriver ( rif. A Fig. 1);
Ÿspirit level (rif. B Fig. 1);
Ÿtape measure ( rif. C Fig. 1);
Ÿcompass saw ( rif. D Fig. 1);
Ÿpencil ( rif. E Fig. 1);
Ÿfile (rif. F Fig. 1);
Ÿ13mm open-ended whrench( rif. G Fig. 1);
Ÿplumbing pliers ( rif. H Fig. 1);
Ÿdrill (rif. I Fig. 1);
Ÿsafety gloves ( rif . L Fig. 1).
Fig. 1
EN
7

INSTALLATION INSTRUCTION
*The adhesive protection is suitable for kitchens with worktops that do not
allow the steel protection to be fixed with screws (e.g.+ marble or
masonry), but it can be also used with other materials.
Fig. 2
3.1 Kit supplied with dishwasher
The kit supplied with the dishwasher comprises:
1 adhesive steam guard or 1 steel steam guard (ref. A or B fi g. 2)*;
1 template for door panel (ref. C fi g. 2);
2 hooks for door panel (ref. D fi g. 2);
8 screws for securing the door panel hooks (ref. E fi g. 2);
2 screws for securing the door (ref. F fi g. 2);
2 screws for fi xing the dishwasher to the adjacent walls (ref.G fi g.2);
2 screw caps (ref. H fi g.2).
2 adjustment feet (only for some models) (ref. I fi g.2);
•
•
•
•
•
•
•
•
(fully integrated)
Ÿ2 nuts (only for some models) (ref. L fig. 2);
EN
8

Fig. 3
3.2 Kit supplied with dishwasher
(integrated)
*The adhesive protection is suitable for kitchens with worktops that do not
allow the steel protection to be fixed with screws (e.g.+ marble or
masonry), but it can be also used with other materials.
The kit supplied with the dishwasher comprises:
1 adhesive steam guard or 1 steel steam guard (ref. A or B fi g. 2)*;
1 template for door panel (ref. C fi g.3);
2 hooks for door panel (ref. D fi g.3);
8 screws for securing the door panel hooks (ref. E fi g.3);
2 screws for securing the door (ref. F fi g.3);
2 screws for fi xing the dishwasher to the adjacent walls (ref. G fi g.3);
2 screw caps (ref. H fi g.3).
3 compensation strips (ref. I fi g.3).
•
•
•
•
•
•
•
•
INSTALLATION INSTRUCTION
EN
9

INSTALLATION INSTRUCTION
4 DIMENSION OF DISHWASHER
A height
B width
C depth
Fig. 4
Fig. 4a
Fig. 4b
Fig. 4a
Fig. 4b
81.8 cm ÷ 88.8 cm
32-13/64"÷ 34-61/64" 59.7 cm ÷ 59.9 cm
23-1/2"÷ 23-37/64"
Fig. 4
55 cm - 21-21/32"
57 cm - 22-7/16"
60 cm - 23-5/8"
86 cm ÷ 93 cm
33-35/64"÷ 36-39/64"
Integrated with steel
door
Integrated
dishwasher
Fully integrated
integrated
Integrated with
steel door
Fully
integrated
EN
10

INSTALLATION INSTRUCTION
5 INSTALLATION AND HOOK-UP
DURING INSTALLATION, TAKE CARE NOT TO INJURE YOURSELF ON
THE SHARP EDGES OF THE APPLIANCE.
Remove the polystyrene rack blocks. Position the appliance in the chosen
installation position. The sides and rear of the appliance can lie against
kitchen units or walls. If the dishwasher is installed next to a heat source,
separate it with a heat insulating panel in order to prevent overheating and
malfunctions.
To assure stability, only install built-in appliances under continuous
worktops, securing them to the adjacent kitchen units or worktop with
screws.
BUILDING-IN A DISHWASHER UNDERNEATH A CERAMIC HOB IS
ABSOLUTELY FORBIDDEN. A DISHWASHER CAN BE BUILT-IN
UNDERNEATH A CONVENTIONAL HOB PROVIDED THERE IS NO
BREAK IN THE KITCHEN WORKTOP, AND THE DISHWASHER AND
HOB ARE INSTALLED AND SECURED CORRECTLY, SO THAT NO
HAZARDS ARE GENERATED.
MAKE SURE THE DISHWASHER HAS BEEN CORRECTLY INSTALLED
AND GROUNDED BY A QUALIFIED FITTER. THIS
SAFETY REQUIREMENT MUST BE MET. IN CASE OF DOUBT,
CALL IN A QUALIFIED FITTER. THE MANUFACTURER DECLINES
ALL RESPONSIBILITY FOR DAMAGE TO PERSONS
OR PROPERTY RESULTING FROM THE FAILURE TO GROUND
THE APPLIANCE OR FROM A DEFECTIVE GROUND CONNECTION.
BEFORE PROCEEDING WITH INSTALLATION, DISCONNECT
THE MAINS POWER SUPPLY FROM THE WORK AREA.
EN
11

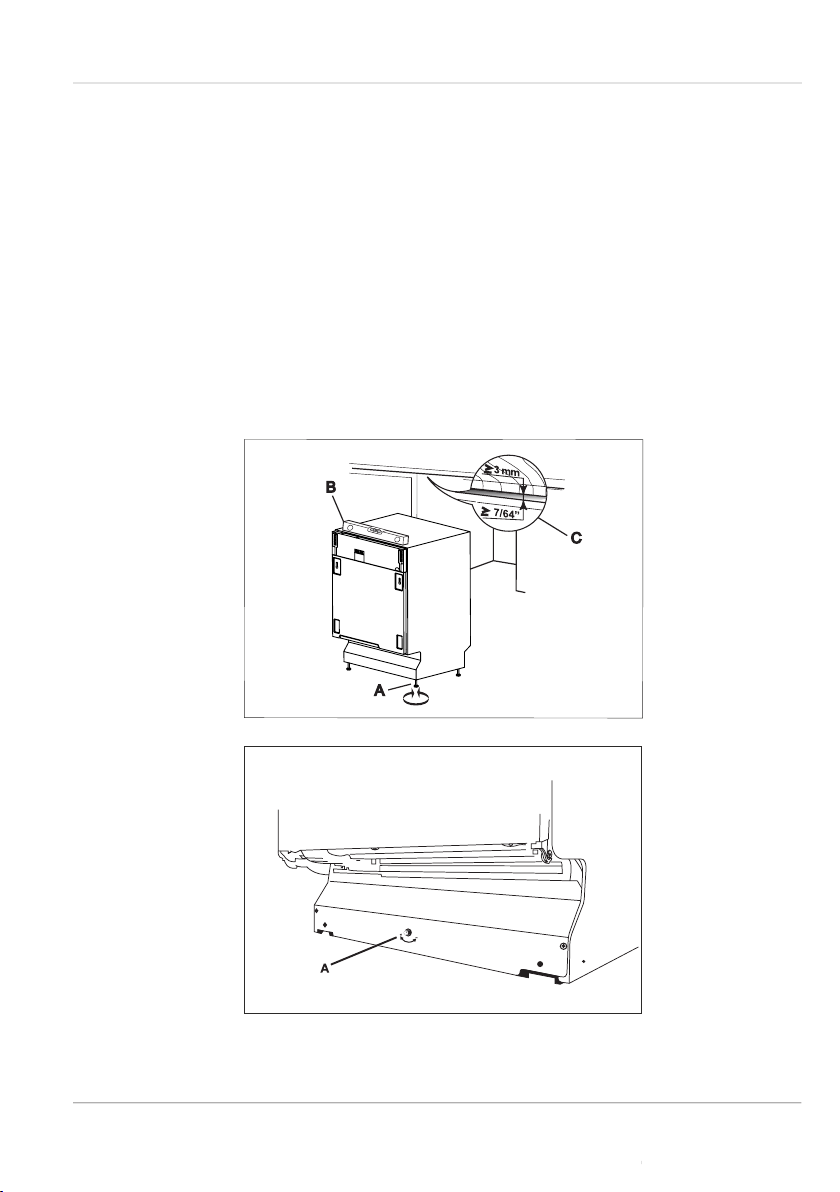

Level the appliance using the relative adjustable feet (e.g.: ref. A fig. 5);
use an open-ended wrench to rotate the feet until the dishwasher is
perfectly level. Some models are fitted with just one rear foot which can be
adjusted with a screw located at the bottom front of the appliance (ref. A
fig. 6); use a suitable Phillips screwdriver to turn the screw until the
dishwasher is perfectly level.
Use a spirit level to check the appliance is perfectly level (ref. B fig.
6).Leveling is vital for assuring correct dishwasher operation.
Make sure to leave a gap of at least 3 mm (7/64”) between the top of the
dishwasher and the worktop (ref. C fig. 6).
INSTALLATION INSTRUCTION
Fig. 6
Fig. 5
5.1 Leveling
EN
12

5.2 Connections
Install the dishwasher so as to allow ease of access to the electrical and
hydraulic connections through the adjacent unit. These connections must
never
be behind the dishwasher. The inlet and drain hoses can be pointed in all
directions. make sure that they are not bent, crushed or too tight. Tighten
the ring nut after pointing the hoses in the required direction.
Figure 7 indicates the distances to maintain between the dishwasher and
the various connections.
FIRE HAZARD!
DO NOT COVER OR CRUSH THE CORD PLUG.
A through hole with a diameter of at least 8 cm (5/32”) is required to pass
the hoses and power cord (ref. A fig. 8). Make sure there area no rough
edges that could damage the power cord or hoses. If the dishwasher is
installed in a metal unit protect the edge of the through hole for the hoses
and power cord with a gasket. Do not use extension cords when making
the electrical connection as these do not guarantee safety.
ATTENTION!
INSTALLING THE DISHWASHER IN A NARROW SPACE MAY BEND
OR CRUSH THE POWER CORD. TAKE GREAT CARE IN ORDER TO
REDUCE THE POSSIBILITY OF DAMAGING THE POWER CORD
WHEN INSTALLING OR REMOVING THE APPLIANCE.
INSTALLATION INSTRUCTION
Fig.7 Fig.8
EN
13

5.2.1 Connecting to the water supply
PREVENTING THE RISK OF CLOGGING OR DAMAGE: IF THE
WATER PIPE IS NEW OR HAS NOT BEEN USED FOR A LONG
TIME, BEFORE CONNECTING TO THE WATER SUPPLY CHECK
THAT THE WATER IS CLEAR AND FREE OF IMPURITIES, TO
PREVENT DAMAGE TO THE APPLIANCE. THE DISHWASHER
MUST ALWAYS BE CONNECTED TO THE WATER SYSTEM WITH
NEW HOSES; OLD OR USED HOSES MUST NEVER BE REUSED.
5.2.1.1 Connecting to the water tap
Connect the inlet hose to a threaded ¾” gas cold water tap, fitting the
supplied filter (ref. A fig.9). Firmly secure the hose by tightening the
relative ring nut with your hands (ref. B fig. 9); fi nish by tightening
another ¼ turn using a pair of plumbing pliers. For models fi tted with
ACQUASTOP (ref. C fig. 9) the fi lter is already present in the threaded
ring nut.
The dishwasher can be fi lled with water at a temperature of less than
60°C (140°F).
If the appliance is fi lled with hot water, washing times will be reduced by
about 20 minutes, but effi ciency will be slightly impaired. Make the
connection to the domestic hot water tap using the same methods
described for connecting the appliance to the cold water tap.
Recommended temperature: 49°C (120°F), max. 60°C (140°F).
Recommended water pressure: 0.5 - 9 bar (7 -130 PSI).
If the pressure is too high, fi t a pressure reducer.
A rubber hose connected to a sink spray may burst if installed on the
same pipes feeding the dishwasher. If your sink is fi tted with this
accessory, remove the hose and plug the hole.
INSTALLATION INSTRUCTION
EN
14
Fig. 9

Do not cut the inlet hose (see fig. 10). If the hose is cut, the dishwasher will
not work, water will leak and you may be injured. If the hose is too long,
wind it up tidily and place it behind the appliance. The cable harness and
electrical components must not come into contact with the hydraulic
system and the water inlet and drain hoses.
When connecting the dishwasher drain hose to the sink make sure that the
hose is not bent (ref. A fig. 11) in order to prevent cracks or breakages that
could damage it.
INSTALLATION INSTRUCTION
Fig. 10
Fig. 11
EN
15

INSTALLATION INSTRUCTION
5.2.1.2 Connecting to a drain hose
Insert the relative hose into a drain with a minimum diameter of 4 cm
(1-37/64") (ref. A fig.12); alternatively, place the hose on the sink
(ref. B fig. 11) using the supplied hose support (see fig.13), but taking care to
avoid obstructions or excessive curving. Make sure the hose cannot fall out.
For this purpose, the hose support is fi tted with a hole (ref. A fig. 13) which
can be used to fi x it to the wall or the tap with a piece of string.
The free end must lie at a height ranging from of 30 to 100 cm (from of 1-
7/32" to 3-59/64") (see fig.12) and must never be immerged in water.
If horizontal extension hoses with a maximum length of 3m are used, position
the drain hose at a maximum height of 85 cm (3-11/32") above the floor.
Fig. 12
Fig. 13
EN
16

Do not cut the inlet hose (see Fig. 14)
If the hose is cut, the dihwasher will not work, water will leak and you may
be injured. If the hose is too long, wind it up tidily and place it behind the
appliance. The cable harness and electrical components must not come
into contact with the hydraulic system and the water inlet and drain hoses.
When connecting the dishwasher drain hose to the sink make sure that the
hose is not bent (ref. A fig. 15) in order to prevent cracks or breakages
that could damage it.
INSTALLATION INSTRUCTION
Fig. 14
Fig. 15
EN
17

INSTALLATION INSTRUCTION
MAKE THE CONNECTION UPLINE FROM THE SIPHON OF THE
DRAIN LINE AND AT LEAST 400 mm
(15-3/4 ") ABOVE THE FLOOR ON WHICH THE DISHWASHER WILL
BE INSTALLED.
1. Connect the dishwasher drain hose (ref. A Fig. 16) to the «T» union (ref.
B Fig.16) of the drain circuit using a 38 mm to 50 mm
(1-1/2" a 2") screw clamp* (ref.C fig 15); if necessary, cut the end of the
dishwasher drain hose (ref. D Fig. 16) (do not cut the corrugate section).
* Available from any plumbing stockist.
AAAA
BC
D
Fig. 16
Connecting to a «T» union of the drain circuit
EN
18

INSTALLATION INSTRUCTION
Connecting to a waste disposal unit with an air gap
1. Remove the cover of the waste disposal unit ( ref. A Fig. 17).
2. Connect the dishwasher drain hose (ref. B Fig.17) to the air gap
(ref.C Fig. 16) using the wide spring clamp (ref. D Fig. 17); if necessary,
cut the end of the dishwasher drain hose (ref. E Fig. 17) (do not cut
the corrugated section). If the drain hose has been cut, use a 38 to 50 mm
( da 1-1/2" a 2") screw clamp*.
3. To connect the air gap (ref.C Fig. 17) to the waste disposal unit inlet
(ref. A Fig 17),use a rubber union * ( ref. G Fig 17) with spring or
screw clamps* (ref. H Fig. 17).
* Available from any plumbing stockist.
MAKE THE CONNECTION UPLINE FROM THE SIPHON OF THE
DRAIN LINE AND AT LEAST 400 mm (15-3/4 ") ABOVE THE FLOOR
ON WHICH THE DISHWASHER WILL BE INSTALLED.
A
Fig. 17
B
C
D
G
D
H
EN
19

Connecting to the air gap (no waste disposal unit)
IMAKE THE CONNECTION UPLINE FROM THE SIPHON OF THE
DRAIN LINE AND AT LEAST 400 mm (15-3/4 ") ABOVE THE FLOOR
ON WHICH THE DISHWASHER WILL BE INSTALLED.
1. Connect the dishwasher drain hose (ref. A Fig. 18) to the air gap
(ref. B Fig. 18) using the wide spring clamp(ref. C Fig. 18); if necessary,
cut the end of the dishwasher drain hose (ref. D Fig. 18) (do not cut the
corrugated section). If the drain hose has been cut, use a 38 to 50 mm
(from 1-1/2" to 2") screw clamp*.
2. To connect the air gap (ref. B Fig. 18) to the « T» union
(ref. E Fig. 18) of the drain line, use a rubber union* (ref. F Fig. 18) with
spring or screw clamps* (ref. G Fig.18).
* Available from any plumbing stockist.
Fig. 18
B
C
E
A
G
F
D
INSTALLATION INSTRUCTION
EN
20
