Smeg STA6539L3 User manual

Contents
1
1. Description of the controls _______________________________2
2. Operating instructions__________________________________16
3. Cleaning and maintenance______________________________31
4. Troubleshooting ______________________________________35
Thank you for choosing one of our products.
You are advised to read this manual carefully; it contains all the
information you need use your dishwasher safely, correctly and in the
most satisfactory manner.
Following the cleaning instructions provided here will keep your
dishwasher's performance at peak levels in the long term.
USER INSTRUCTIONS: these consist of recommendations for using the
appliance, a description of its controls and of the correct cleaning and
maintenance procedures.

User instructions
2
1. Description of the controls

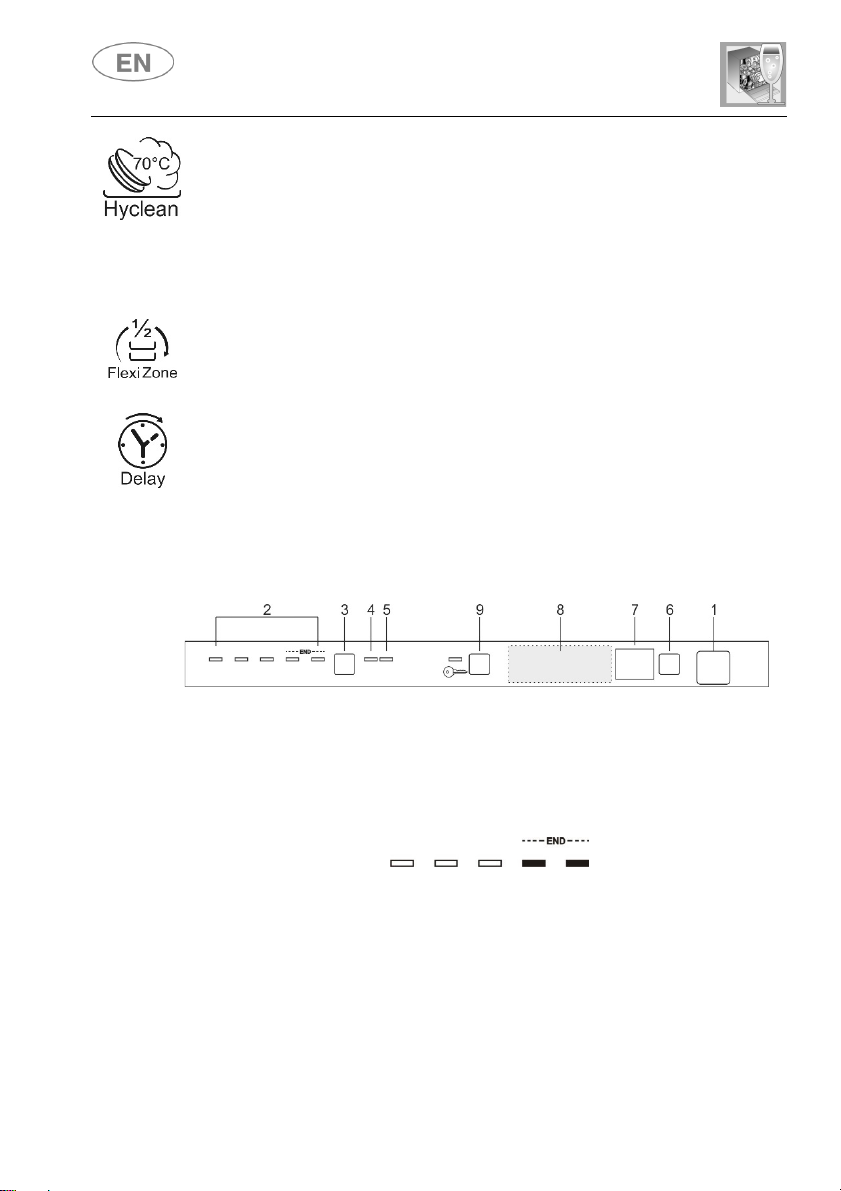

1.1 Upper panel
All the dishwasher controls are grouped on the upper panel. Switch-on,
programming, switch-off, etc. procedures are only possible when the door is open.
The panel shown is only a guideline example: the form of the lights and
buttons may vary depending on the model.
1 ON/OFF BUTTON
Press this button to switch the dishwasher on/off.
2
SELECTED PROGRAM INDICATOR LIGHTS
Illumination of this light denotes the program selected and the
occurrence of a fault (troubleshooting).
3
PROGRAM SELECTION BUTTON
+ADJUSTING THEWATER SOFTENING SYSTEM
Used to select the washing program required and adjust the water
softening system.
4
WATER HARDNESS ADJUSTMENT ON INDICATOR LIGHT
The light flashes to indicate that the appliance is in “water hardness
adjustment” mode.
SALT WARNING LIGHT
If the symbol is present, illumination of this light denotes a
regenerating salt warning level.
5 RINSE AID WARNING LIGHT
Illumination of this light denotes a rinse aid warning level in the tank.

User instructions
3
6 PROGRAM DELAY BUTTON
Press this button to delay the start of the program.
7 INFORMATION DISPLAY (1 or 3 digits depending on model)
8 OPTIONS (on some models only)
9 CHILD SAFETY DEVICE (on some models only)
Information displayed
no Scheduled program
duration yes
no Remaining program
time yes
1 - 9 hours Delayed start 1 - 24 hours
E
Error message
Err
<<OPTIONS(8)>>
Depending on the model, this zone may contain one or more of the
following options, identified by the relative symbols and described in more
detail in the relevant sections of the manual.
It is not possible to select any options when the soak program is being
used. All options except "Flexi Tabs" are disabled at the end of the wash
cycle. To disable the “Flexi Tabs” option, press the relative button (the
light goes out).

User instructions
4
Flexi Tabs
Option recommended for the use of multi-function tablet
detergent.
HYCLEAN
Adds a final antibacterial rinse to theselected program.
Spread HALF LOAD WASH
Allows washing of just a few dishes placed in both baskets.
PROGRAM DELAY
Allows the program to beset to start with a delay of 9, 12 or 24
hours depending on the model.
QUICK TIME OPTION
Select this option together with any washing program (except
the soak program) to SHORTEN the cycle.
ENERSAVE
Indicated option for save energy.

User instructions
5
PROGRAMS TABLE
The manual contains the programs table for several models. To find the
table for your dishwasher, compare the program symbols at the top of the
table with those on your control panel.
SETTING THE WASHING PROGRAM AND SWITCHING ON
After identifying the most suitable program with the aid of the programs
table:
Press the ON/OFF button (1) and wait for the PROGRAM
INDICATOR LIGHT (2) to illuminate;
Keep pressing the PROGRAM SELECTION button (3) until the
indicator light corresponding to the desired program illuminates;
select the option required (if any and if the model provides options);
close the door; after about 2" the program will start LIGHT will
flashing (indicating that the program is being executed).
PROGRAM IN PROGRESS INDICATOR LIGHT
(on some models only)
When a program is running, a flashing light is projected onto the floor
under the right-hand corner of the door. At the end of the program, the
light goes out to reduce sleep mode electricity consumption.

User instructions
6
PROGRAMS TABLE
PROGRAMME
NUMBER
& SYMBOL
LOAD CROCKERY AND
CUTLERY PROGRAM PROGRESS
DURATION
CONSUMPTION
MINUTES
(1)
WATER
LITRES POWER
kWh (1)
1RAPID 27’
Dishes with light dirt,
washed immediately after
use
Wash at 38°C
Rinse at 50°C
27 (3)
6,5 0,70
2 GLASS
Glass, china and mixed
dishes with light dirt.
Wash at 45°C
Cold rinse
Rinse at 70°C
Dry
65 (3)
9,5 1,10
3 ECO (*)
EN 50242
Dishes with normal dirt,
even with dried-on
residues
Wash at 45°C
Cold rinse
Rinse at 55°C
Dry
**
** **
4
AUTO 45-65
IEC/DIN***
Pans and dishes with
normal dirt, even with
dried-on residues.
When the "AUTO" program is selected, the dishwasher
recognises the type of dirt and automatically adjusts the
washing parameters as appropriate.
5 SUPER
****
Very dirty pans and
dishes, even with dried-on
residues.
Hot prewash
Wash at 70°C
Cold rinse (2)
Rinse at 70°C
Dry
150 (3)
15,5 1,70
IMPORTANT: see “NOTES AND REFERENCES” table on the following pages.
If the dishwasher door is open or not properly closed, the washing cycle
will not start.

User instructions
7
QUICK TIME PROGRAMS
(see relevant section for explanation of functioning modes)
PROGRAMME
NUMBER E
SYMBOL
LOAD CROCKERY AND
CUTLERY PROGRAM
PROGRESS
DURATION
CONSUMPTION
MINUTI
(1)
WATER
LITRES
POWER
kWh (1)
6SOAK
+
Pans and dishes awaiting
completion of the load Cold prewash 15 (3) 3,5 0,02
7 DELICATE
QUICK
+
Delicate dishes with normal
dirt.
Cold prewash
Wash at 50°C
Cold rinse
Rinse at 70°C
65 (3)
12,5 1,15
8 ECO
QUICK
+
Dishes with normal dirt,
washed immediately after
use.
Cold prewash
Wash at 60°C
Cold rinse
Rinse at 70°C
80 (3)
12,5 1,25
9
NORMAL
QUICK
+
Dishes with normal dirt,
washed immediately after
use.
Cold prewash
Wash at 70°C
Cold rinse
Rinse at 70°C
85 (3)
13 1,40
10
STRONG
and FAST
+
Mixed dishes with normal
dirt without dried-on
residues.
Wash at 65°C
Cold rinse
Rinse at 70°C
50 (3)
10 1,20
IMPORTANT: see “NOTES AND REFERENCES” table on the following pages.
If the dishwasher door is open or not properly closed, the washing cycle
will not start.

User instructions
8
PROGRAMS TABLE
PROGRAMME
NUMBER
& SYMBOL
LOAD CROCKERY AND
CUTLERY PROGRAM PROGRESS
DURATION
CONSUMPTION
MINUTES
(1)
WATER
LITRES POWER
kWh (1)
1RAPID 27’
Dishes with light dirt,
washed immediately after
use
Wash at 38°C
Rinse at 50°C
27 (3)
6,5 0,70
2 GLASS
Glass, china and mixed
dishes with light dirt.
Wash at 45°C
Cold rinse
Rinse at 70°C
Dry
65 (3)
9,5 1,10
3 ECO (*)
EN 50242
Dishes with normal dirt,
even with dried-on
residues
Wash at 45°C
Cold rinse
Rinse at 55°C
Dry
**
** **
4 NORMAL
IEC/DIN***
Dishes with normal dirt,
even with dried-on
residues
Cold prewash
Wash at 65°C
Cold rinse
Rinse at 70°C
Dry
105 (3)
13,5 1,35
5 SUPER
****
Very dirty pans and
dishes, even with dried-on
residues.
Hot prewash
Wash at 70°C
Cold rinse (2)
Rinse at 70°C
Dry
150 (3)
15,5 1,70
IMPORTANT: see “NOTES AND REFERENCES” table on the following pages.
If the dishwasher door is open or not properly closed, the washing cycle
will not start.

User instructions
9
QUICK TIME PROGRAMS
(see relevant section for explanation of functioning modes)
PROGRAMME
NUMBER E
SYMBOL
LOAD CROCKERY AND
CUTLERY PROGRAM
PROGRESS
DURATION
CONSUMPTION
MINUTI
(1)
WATER
LITRES
POWER
kWh (1)
6SOAK
+
Pans and dishes awaiting
completion of the load Cold prewash 15 (3) 3,5 0,02
7 DELICATE
QUICK
+
Delicate dishes with normal
dirt.
Cold prewash
Wash at 50°C
Cold rinse
Rinse at 70°C
65 (3)
12,5 1,15
8 ECO
QUICK
+
Dishes with normal dirt,
washed immediately after
use.
Cold prewash
Wash at 60°C
Cold rinse
Rinse at 70°C
80 (3)
12,5 1,25
9 NORMAL
QUICK
+
Dishes with normal dirt,
washed immediately after
use.
Cold prewash
Wash at 70°C
Cold rinse
Rinse at 70°C
85 (3)
13 1,40
10 STRONG
and FAST
+
Mixed dishes with normal
dirt without dried-on
residues.
Wash at 65°C
Cold rinse
Rinse at 70°C
50 (3)
10 1,20
IMPORTANT: see “NOTES AND REFERENCES” table on the following pages.
If the dishwasher door is open or not properly closed, the washing cycle
will not start.

User instructions
10
NOTES AND REFERENCES
Only
run the soak program with half loads.
Options cannot be used with the soak program.
The ENERSAVE option cannot be used with soak, ultra clean, or any programs
which do not include the final drying stage.
* Standard programme under
EN 50242
. The
ENERSAVE
option must
be
enabled.
** See information sheet provided
***
IEC/DIN
reference programme. The
ENERSAVE
option must
be enabled
.
**** Reference program for laboratories: Detergent:
20g
in the
dispenser
+
10g
in
the door or tablet. Configuration: see photo in “Using the baskets”.
(1) Programconsumption and durationfigures havebeen measured in accordance
with the EN 50242 standard. Values may vary depending on intake water and
room temperatures and the type and quantity of dishes loaded.
(2) 1 or 2 cold rinses depending on the model.
REFERENCES for the ENERGY LABEL supplied with the dishwasher:
- Annual energy consumption is based on 280 standard wash cycles with cold
water and consumption of low-energy operating modes. Actual consumption
depends on the way in which the appliance is used.
- Water consumption is based on 280 standard wash cycles. Actual
consumption depends on the way in which the appliance is used.
- Information refers to the EN 50242 STANDARD programme (identified in the
programmes table), which is the most effective in terms of combined energy
and water consumption. The programme is recommended for dishes with a
normal level of dirt.
- Drying efficiency class on a scale from “G” (minimum efficiency) to “A”
(maximum efficiency).

User instructions
11
1.2 Washing programs
Before starting a washing program make sure that:
The water supply tap is open.
The softener container contains regenerating salt.
The correct amount of detergent has been added to the
dispenser.
The baskets have been correctly loaded.
The spray arms are able to rotate freely and without
obstruction.
The dishwasher door is securely closed.
Warning:
during the initial phase of the washing program, the operation of sprayers
is not perceived because they start rotating about 5 minutes after the start.
This is the normal operation of the washing cycle.
CHILD SAFETY DEVICE
(on some models only)
Press the button to activate this device (the light comes on). When it is
active, the beeper sounds three times to confirm that the door is about to
open. So in this case, to open the door keep pressing until the 3rd beep,
then release at once. If the pressure is continued after the third beep, the
door does not open and the operation has to be repeated.
OPTION SELECTION
Options are selected by pressing the relative button by the symbol of the
option required; the light comes on to confirm that the option has been
activated.
It is not possible to select any options when the soak program
is being used.
All options except "Flexi Tabs" are disabled at the end of the
wash cycle. To disable the “Flexi Tabs” option, press the
relative button (the light goes out).
All options, including "Flexi Tabs" are disabled when a program
is CANCELLED after it has begun.

User instructions
12
ADDITIONAL OPTIONS
Some models feature additional options, activated by pressing two
buttons simultaneously. In this case, two lines in the control panel
graphics link the symbol of the additional option to the two buttons to be
pressed simultaneously to enable it. (e.g. “Flexi Tabs” in this illustration)
QUICK TIME OPTION
Select this option together with any washing program (except the soak
program)toSHORTENthecycle. To activatethis option, press button (light
comes on) after selecting the program required.
The option is automatically deactivated at the end of the program.
ENERSAVE OPTION
This option further reduces energy consumption by opening the door at
the end of the cycle for more effective drying. At the end of the wash an
automatic device releases the door, which slowly opens by a few
centimetres. This allows optimal drying even with low rinsing
temperatures, for significant energy saving.
The dishwasher remains in an idle state between the rinse stage and the
end of the cycleto allowproper drying (thedisplayshowsthe timeleft until
the end of the cycle). Opening the door at this stage causes the cycle to
stop and ends the program.
The program end is signalled by a short beep and the flashing of the
indicator lights for programs 4 and 5.
Enersave
is activated automatically if the selected program is
compatible with the option. It can be deactivated before the program is
started.
When the function is activated, opening of the door
must notbe impeded
in any way; do not leave anything in the necessary space in front of the
door to allow it to open. Do not force the door lock before the end of the
cycle is signalled, as this would damage the mechanism.

User instructions
13
ULTRA CLEAN
The "ULTRA CLEAN" program prolongs the final hot rinse to ensure a
further reduction in the bacteria level. If the temperature in the tank falls
during this stage of theprogram (e.g. because thedoor is opened or dueto
a power blackout), the light of the option and the program lights (2) flash to
warn that the additional washing phase has not been completed
successfully. This does not mean that the wash program has been less
effective than usual.
SPREAD HALF LOAD
Suitable when there are not many dishes to be washed, it saves energy
andreduces theprogram duration. Placedishes in both basketsthenload
the detergent dispenser than less than the normal amount for a full load.
Flexi Tabs
Specifically for washing with combination detergents intablets, which also
contain salt and rinse aid (3in1) or other agents such as glass protector,
steel rinse aids, etc. (4in1, 5in1…). When this option is selected, salt and
rinse aid will not be dispensed even if the relative compartments contain
them. If the containers are empty, the lights will remain on.
If the option is not provided, we recommend the use of conventional
products (separate detergent, salt and rinse aid), because with
conventional washing cycles, combined products might create problems
such as a white deposit, poor drying results and residues left on dishes.
For further information, refer to the detergent pack.
IMPORTANT:
when no longer required, the optionmust be deactivated by pressing the
relative button (the light goes out).
These products
are not suitable
for use with
excessively “hard”
water.
If the hardness level set is higher than H3, when the option is activated
the relative light flashes to indicate that the product is being used
incorrectly; the dishwasher will still work, but washing results may be
poor.

User instructions
14
ULTRA CLEAN
The "ULTRA CLEAN" program prolongs the final hot rinse to ensure a
further reduction in the bacteria level. If the temperature in the tank falls
during this stage of theprogram (e.g. because thedoor is opened or dueto
a power blackout), the light of the option and the program lights (2) flash to
warn that the additional washing phase has not been completed
successfully. This does not mean that the wash program has been less
effective than usual.
SPREAD HALF LOAD
Suitable when there are not many dishes to be washed, it saves energy
andreduces theprogram duration. Placedishes in both basketsthenload
the detergent dispenser than less than the normal amount for a full load.
DELAYED START
Thestart of thewashingprogram can be delayedtoprogram thedishwasher
to operate at the preferred time of day (e.g. overnight). Press the
PROGRAM DELAY button to activate the option and display a 1 hour
delay. Keep pressingto select thedelayrequired, which maybeup to 9, 12
or 24 hours depending on the model.
When the door is closed, the appliance will prewash the dishes, after
which the "program delay" set will come into effect.
CANCELLING THE CURRENT PROGRAM
To cancel the currently selected program open the door and hold
down the PROGRAM SELECTION (3) button for a few seconds until
the indicator lights for programs 4and 5 illuminate simultaneously
(marked "end").
Close the door.
After approximately 1 minute the dishwasher will advance to the end
of cycle.
CHANGING THE PROGRAM
To change the program in progress, simply open the door and select a
new program. When the door is closed the dishwasher will automatically
select the new program.

User instructions
15
TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT
Always use the dishwasher with a full load.
Do not wash the dishes in running water.
Use the washing program that is most appropriate for each type of
load.
Do not carry out any preliminary rinsing.
If available, connect the dishwasher to a hot water supply up to 60°C.
TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTECT
THE ENVIRONMENT
The phosphates contained in dishwasher detergents are harmful to the
environment. To avoid using excessive amounts of detergent and to save
on electricity, observe the following:
separate the more delicate items from dishes that are more resistant
to aggressive detergents and high temperatures;
do not pour the detergent directly on the dishes.
If the door has to be opened while washingis in progress, theprogram will
be interrupted. The relative light will keep flashing and a beeper will signal
that the cycle has not been completed. You must wait about 1 minute
before closing the door to restart the program. When the door is closed
the program will continue from where it was interrupted. This operation
should only be carried out if strictly necessary, because it might cause
problems in execution of the program.
SWITCHING OFF
At the end of the program the beeper sounds
briefly and the lights of programs no. 4and 5
(marked "end") flash.
To switchoff thedishwasher, open thedoor andpress the
ON/OFF
button
(1).
ENERGY MANAGEMENT
After 5 minutes of waiting (washing cycle completed, stopped or set but
not started) the dishwasher switches to a standby state to reduce energy
consumption.
In this state, the dishwasher indicator panel (lights or display depending
on model) functions more slowly (switch-on once every 5 seconds).
REMOVING THE DISHES
At the end of the washing program, wait at least 20 minutes before
removing the dishes, to allow them to cool. To ensure that any drops of
water left in the top basket cannot drip onto the dishes still in the bottom
basket, you are advised always to empty the bottom basket first.

User instructions
16
2. Operating instructions
Once the dishwasher has been correctly installed, prepare for use as
follows:
Adjust the water softening system;
Add the regenerating salt;
Add the rinse aid and detergent.
2.1 Using the water softening system
The amount of scale contained in the water
(water hardness index) can cause whitish
staining on the dry dishes, which tend to
become dull over time. The dishwasher is
equipped with an automatic softening
system which uses a special regenerating
salt to reduce the hardness of the water.
The dishwasher is factory set for water
hardness level 3 (average hardness 41-
60°dF – 24-31°dH).
When using water of medium hardness, the regenerating salt container
should be refilled after approximately 20 washing cycles. The salt
container can hold approximately 1.7 Kg of salt in grains. Some models
are equipped with an optical no-salt indicator. In thesemodels, the cap of
the salt container contains a green float which descends as the salt
concentration in the water drps. When the green float can no longer be
seen through the transparent cap, the container must be topped up with
regenerating salt. The container is situated at the bottom of the
dishwasher. After removing the lower basket, unscrew the salt container
cap by turning it anticlockwise and pour in the salt using the funnel
supplied with the dishwasher. Before replacing the cap, remove any salt
residues from around the opening.

When using the dishwasher for the first time, in addition to the salt it
is also necessary to add one litre of water to the container.
Each time the salt container is refilled, make sure that the cap is
securely closed. The mixture of water and detergent must never
penetrate the salt container, as this would compromise the operation
of theregeneration system. In theevent ofthis occurring, thewarranty
will be invalidated.
Only use regenerating salt specially formulated for domestic
dishwashers. If using salt tablets, do not fill the container
completely.
SALT

User instructions
17
Donot use table salt as it contains insoluble substanceswhich, over
time, may damage the water softening system.
When necessary, refill the regenerating salt container before
starting the washing program. In this way, the excess saline
solution will be immediately removed by the water; the prolonged
presence of salt water inside the tank may lead to corrosion.
Be careful not to confuse the salt and detergent packages; adding
detergent to the salt container will damage the water softening system.
ADJUSTING THE WATER SOFTENING SYSTEM
The dishwasher is equipped with a device which allows the softener
setting to be varied to suit the hardness of the mains water. The hardness
is set using the PROGRAM SELECTION BUTTON (3).
To access the setting function, hold the button down for more than 15
seconds. The WATER HARDNESS ADJUSTMENT INDICATOR LIGHT
(4) flashes, while the SELECTED PROGRAM INDICATOR LIGHTS (2)
show the current setting. Each pressure on the button changes the
setting following the sequence in the table below:
>

User instructions
18
WATER HARDNESS TABLE
WATER HARDNESS SETTING
German
degrees (°dH) French Degrees (°dF)
0 - 6 0 - 11 All lights off
(no salt)
7 - 10 12 - 18 One light on
11 - 15 19 - 27 Two lights on
16 - 21 28 - 37 Three lights on
22 - 28 38 - 50 Four lights on
29 - 35 51 - 62 Five lights on
36 - 50 63 - 90 Two lights on
Contact your local water board for information on the hardness of your
water supply.
After adjustment or display of the current setting, simply do not touch the
button for a few seconds; the dishwasher will automatically return to
standard mode, quitting the adjustment mode.
2.2 Using the rinse aid and detergent dispensers
The detergent and rinse aid
dispensers are situated on the inner
part of the door: the detergent
dispenser is ontheleft, andtherinse
aid dispenser is on the right.
With the exception of the SOAK program, before everywashing cycle it is
necessary to add the required amount of detergent to the detergent
dispenser. The rinse aid, on the other hand, should only be added as
required.

User instructions
19
ADDING THE RINSE AID
The rinse aid helps the dishes dry faster and
prevents the formation of scale deposits and
staining; it is automatically added to the water
during the final rinse cycle, from the container
situated on the inner side of the door.
To add rinse aid:
Open the door.
Rotate the container cap anticlockwise by ¼ of a turn and remove it.
Add therinse aiduntil thecontainer isfull (approximately 140 cc). The
optical level indicator on the side of the cap should be completely
obscured. Refill the rinse aidwhen theoptical level indicator becomes
clear again, or when the rinse aid warning light illuminates.
Replace the cover and turn it in a clockwise direction.
Use a cloth to remove any spillage of rinse aid which might lead to
the formation of excess foam.
ADJUSTING THE RINSE AID DISPENSER SETTING
The dishwasher is factory set for medium water hardness. However it
possible to change the setting by turning the dispenser’s selector to the
desired position: the amount of rinse aid dispensed is proportional to the
selector position.
To adjust the rinse aid setting, rotate the dispenser cap through a
quarter turn in an anticlockwise direction and remove it.
Then use a screwdriver to rotate the rinse aid selector to the desired
position.
Replace the cap, turning it clockwise.
The amount of rinse aid must be increased if the washed dishes
appear dull or feature circular stains.
If, on the other hand, the dishes are sticky or have white streaks, it is
necessary to reduce the rinse aid setting.

User instructions
20
ADDING THE DETERGENT
To open the detergent dispenser cap, lightly press the
button P. Add the detergent and close the cap
carefully.
During the washing cycle, the dispenser will be
opened automatically.
When a program with hot prewash is selected (see program table),
extra detergent must be placed in the cavity G/H (depending on
models).
Use only detergents specially formulated for dishwashers. For optimal
washing results it is important to use a good quality detergent.
The detergent packs must be sealed and stored in a dry place to
prevent the formation of lumps which may negatively affect washing
results. Once opened the detergent packs should not be kept for too
long, otherwise the detergent loses its effectiveness.
Do not usedetergentsformulatedfor washing dishesby hand,because
they produce a great deal of foam and may negatively affect the
operation of the dishwasher.
Add the correct amount of detergent. An insufficient amount of
detergent willresult ina partialremovalof dirt fromthe dishes, whereas
an excessive amount is wasteful and does not improve the washing
results.
The market offers liquid and powder detergents with differing chemical
compositions, which may contain phosphates, or be phosphate-free
but contain natural enzymes.
- Detergents containing phosphates are more effective against grease
and starch at temperatures above 60°C.
- Enzyme detergents, on the other hand, are also effective at lower
temperatures (from 40 to 55°C) andaremore easily biodegradable.
With enzyme detergents it is possible to obtain at low temperatures
comparable results to those which can only be achieved at 65°C
using traditional detergents.
For the safeguarding of the environment we recommend the use of
phosphate- and chlorine free detergents.
