Smeg BQ61T-1 User manual

Contents
1. INSTRUCTIONS FOR USE ................................................................................................................................. 26
2. INSTRUCTIONS FOR DISPOSAL – OUR CONCERN FOR THE ENVIRONMENT........................................... 27
3. SAFETY INSTRUCTIONS ................................................................................................................................... 28
4. INTENDED USE OF THE APPLIANCE .............................................................................................................. 30
4.1 Examples of outdoor use ...................................................................................................................................................30
5. KNOW YOUR APPLIANCE................................................................................................................................. 31
6. BEFORE INSTALLATION................................................................................................................................... 32
7. INSTALLATION................................................................................................................................................... 32
7.1 Installation on a support.....................................................................................................................................................32
7.2 Built-in installation..............................................................................................................................................................32
7.3 Connecting the gas cylinder to the appliance ....................................................................................................................34
7.4 Burner, nozzle and gas consumption characteristics tables ..............................................................................................34
7.5 Check for any gas leaks ....................................................................................................................................................34
8. THE CONTROL PANEL ...................................................................................................................................... 35
9. USING THE BARBECUE .................................................................................................................................... 37
9.1 Insertion and replacement of the battery ...........................................................................................................................37
9.2 Fitting and using the rotisserie motor.................................................................................................................................37
9.3 Rack and plate positions....................................................................................................................................................38
9.4 Lighting ..............................................................................................................................................................................39
9.5 Using the SMOKER tray ....................................................................................................................................................40
10. STANDARD ACCESSORIES............................................................................................................................ 41
11. COOKING HINTS .............................................................................................................................................. 42
11.1 Meat.................................................................................................................................................................................42
11.2 Vegetables .......................................................................................................................................................................42
11.3 Cooking table...................................................................................................................................................................43
11.4 Cooking recommendations ..............................................................................................................................................43
12. CLEANING AND MAINTENANCE .................................................................................................................... 45
12.1 Cleaning the exterior (stainless steel)..............................................................................................................................45
12.2 Cleaning the internal components of the hob ..................................................................................................................45
12.3 Cleaning the dripping pans ..............................................................................................................................................46
12.4 Cleaning the glass of the lid.............................................................................................................................................46
INSTRUCTIONS FOR THE USER: these instructions contain user recommendations, description of the
commands and the correct procedures for cleaning and maintenance of the appliance.
INSTRUCTIONS FOR THE INSTALLER: these are intended for the qualified technician who must
install the appliance, set it functioning and carry out an inspection test.
25

Instructions for use
26
1. INSTRUCTIONS FOR USE
THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE AND MUST THEREFORE BE KEPT IN
ITS ENTIRETY AND IN AN ACCESSIBLE PLACE FOR THE WHOLE WORKING LIFE OF THE
APPLIANCE.
WE ADVISE YOU TO READ THIS MANUAL AND ALL THE INSTRUCTIONS THEREIN CAREFULLY
BEFORE USING THE PRODUCT. INSTALLATION MUST BE CARRIED OUT BY QUALIFIED
PERSONNEL IN ACCORDANCE WITH THE REGULATIONS IN FORCE. THIS APPLIANCE IS
INTENDED FOR DOMESTIC USE AND IN OPEN ENVIRONMENTS. IT CONFORMS TO THE EEC
DIRECTIVES CURRENTLY IN FORCE. THE APPLIANCE HAS BEEN BUILT TO CARRY OUT THE
FOLLOWING FUNCTIONS: COOKING AND HEATING UP FOOD; ALL OTHER USES ARE
CONSIDERED UNSUITABLE.
THE MANUFACTURER CANNOT BE HELD LIABLE FOR USES OTHER THAN THOSE INDICATED.
DO NOT USE THIS APPLIANCE FOR HEATING ROOMS.
DO NOT DISCARD PACKAGING IN THE HOME ENVIRONMENT. SEPARATE THE VARIOUS
WASTE MATERIALS AND TAKE THEM TO THE NEAREST DIFFERENTIATED WASTE
COLLECTION CENTRE.
DO NOT OBSTRUCT THE OPENINGS, THE VENTILATION AND HEAT DISPERSAL SLITS LOCATED
ON THE SIDES AND IN THE BOTTOM PART OF THE PRODUCT.
THE I.D. PLATE WITH TECHNICAL DATA, SERIAL NUMBER AND BRAND NAME IS POSITIONED
VISIBLY ON THE BACK OF THE APPLIANCE.
DO NOT REMOVE THIS PLATE FOR ANY REASON.
NEVER LEAVE THE APPLIANCE UNATTENDED DURING USE.
THE INTERNAL BURNERS AND RADIATING GRILL BURNER MUST NEVER BE USED
SIMULTANEOUSLY.
DO NOT USE METALLIC SPONGES OR SHARP SCRAPERS ON THE EXTERNAL
SURFACES: THEY WILL DAMAGE THE SURFACES.
USE NORMAL NON-ABRASIVE PRODUCTS AND A WOODEN OR PLASTIC TOOL IF
NECESSARY. RINSE THOROUGHLY AND DRY WITH A SOFT CLOTH OR CHAMOIS
LEATHER.
DO NOT USE WATER JET CLEANERS TO CLEAN THE PRODUCT, SINCE THE POWER OF THE
WATER JET MAY CAUSE SERIOUS DAMAGE TO THE SAFETY AND APPEARANCE OF THE
PRODUCT.
IF THE KNOB BECOMES DIFFICULT TO TURN, YOU ARE ADVISED TO GET THE TAPS
INSPECTED BY AN AUTHORISED SERVICE CENTRE.
IF THE APPLIANCE IS NOT USED FOR A PERIOD OF TIME, CLOSE THE GAS SUPPLY TAP. IF THE
APPLIANCE BREAKS DOWN OR DOES NOT WORK CORRECTLY, PLEASE CONTACT CUSTOMER
SERVICES.
ALL FAULT REPAIR OPERATIONS MUST BE CARRIED OUT BY AN AUTHORISED SERVICE
CENTRE.
The manufacturer cannot be held liable for damage to persons or things caused by failure to
observe the above instructions, by interference with any part of the appliance or by the use of
non-original spare parts.

Instructions for disposal
27
2. INSTRUCTIONS FOR DISPOSAL – OUR CONCERN FOR THE
ENVIRONMENT
Our product's packing is made of non-polluting materials, which are therefore compatible with the
environment and recyclable. Please help by disposing of the packaging correctly. You can obtain the
addresses of collection, recycling and disposal centres from your retailer or from the competent local
organisations.
Do not throw the packing or any part of it away. It can constitute a suffocation hazard for children,
especially the plastic bags.
Your old appliance also needs to be disposed of correctly.
Important: hand over your appliance to the local agency authorised for the collection of electrical
appliances no longer in use. Correct disposal enables intelligent recovery of valuable materials.

Safety instructions
28
3. SAFETY INSTRUCTIONS
REFER TO THE INSTALLATION INSTRUCTIONS FOR THE SAFETY REGULATIONS FOR
ELECTRIC OR GAS APPLIANCES AND VENTILATION FUNCTIONS.
IN YOUR INTERESTS AND FOR YOUR SAFETY THE LAW REQUIRES THAT THE INSTALLATION
AND SERVICING OF ALL ELECTRICAL APPLIANCES ARE CARRIED OUT BY QUALIFIED
PERSONNEL IN ACCORDANCE WITH THE REGULATIONS IN FORCE.
OUR APPROVED INSTALLERS GUARANTEE A SATISFACTORY JOB.
GAS OR ELECTRICAL APPLIANCES MUST ALWAYS BE DISCONNECTED BY SUITABLY SKILLED
PEOPLE.
BEFORE THE APPLIANCE IS PUT INTO OPERATION, THE PROTECTIVE FILMS APPLIED INSIDE
OR OUTSIDE MUST BE REMOVED.
IMMEDIATELY AFTER INSTALLATION, CARRY OUT A QUICK TEST ON THE APPLIANCE
FOLLOWING THE INSTRUCTIONS PROVIDED LATER IN THIS MANUAL. SHOULD THE
APPLIANCE NOT FUNCTION CALL THE NEAREST TECHNICAL SUPPORT CENTRE. NEVER
ATTEMPT TO REPAIR THE APPLIANCE.
THIS PRODUCT IS FACTORY SET FOR THE USE OF LPG GAS SOLD IN APPROPRIATE
CYLINDERS AT AUTHORISED CENTRES. SHOULD IT BE NECESSARY TO USE A DIFFERENT
TYPE OF GAS, YOU MUST CONTACT THE NEAREST AUTHORISED SERVICE CENTRE.
A GAS CYLINDER, EVEN IF IT APPEARS TO BE EMPTY, MUST ALWAYS BE HANDLED WITH
CARE AND IN COMPLIANCE WITH THE SAFETY RULES PROVIDED WITH THE INSTRUCTIONS.
NEVER USE GAS CYLINDERS WITH DENTS OR RUSTED AREAS.
NEVER USE A FLAME TO CHECK THAT GAS IS FLOWING CORRECTLY OUT OF THE BURNERS,
OR TO SEARCH FOR ANY GAS LEAKS IN THE APPLIANCE.
DO NOT KEEP A SPARE CYLINDER IN THE VICINITY OF THE APPLIANCE.
NEVER DISCONNECT THE CYLINDER FROM THE PRODUCT WHILE THE PRODUCT IS
FUNCTIONING AND IN ANY CASE ALWAYS REMAIN AT A DISTANCE FROM THE PRODUCT FOR
ANY OPERATION INVOLVING THE CYLINDER.
NEVER PLACE PANS OR CONTAINERS WITH BOTTOMS WHICH ARE NOT PERFECTLY FLAT AND
SMOOTH ON THE HOB RACKS.
THE APPLIANCE BECOMES VERY HOT DURING USE. OVEN GLOVES SHOULD BE WORN IN
ORDER TO AVOID BURNS.
NEVER USE PANS OR GRIDDLES WHICH PROJECT BEYOND THE OUTSIDE EDGE OF THE HOB.
NEVER REST INFLAMMABLE OBJECTS ON THE PRODUCT: IF IT SHOULD ACCIDENTALLY BE
SWITCHED ON, THIS MIGHT CAUSE A FIRE.
DURING USE THE APPLIANCE BECOMES VERY HOT. TAKE CARE NEVER TO TOUCH THE
HEATING ELEMENTS INSIDE THE APPLIANCE.
TO AVOID OVERHEATING, DO NOT USE TWO STAINLESS STEEL/CAST IRON PLATES AT THE
SAME TIME.
ALWAYS KEEP HOLD OF THE LID WHEN LOWERING IT.
OBSERVE THE THERMOMETER PROVIDED ON THE LID: WHEN THE READING EXCEEDS 300°C
(RED ZONE) THE LID MUST BE RAISED TO PREVENT DANGEROUS OVERHEATING.

Safety instructions
29
THE APPLIANCE IS INTENDED FOR USE BY ADULTS. DO NOT ALLOW CHILDREN TO GO NEAR
IT OR PLAY WITH IT.
WHEN THE PRODUCT IS FUNCTIONING IT MAY BECOME VERY HOT: KEEP CHILDREN AWAY.
ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE (OFF) POSITION WHEN YOU FINISH
USING THE APPLIANCE.
NEVER USE THIS APPLIANCE IN A CLOSED SPACE, CAR, VAN, CAMPER OR CARAVAN.
WHEN HOOKING UP THE APPLIANCE TO THE CYLINDER, USE ONLY THE FITTINGS AND
REGULATORS SUPPLIED WITH THE APPLIANCE. THESE PRODUCTS ARE ALSO AVAILABLE
FROM OUR AUTHORISED SERVICE CENTRES. USING ANY OTHER PRODUCTS CAN SERIOUSLY
COMPROMISE THE SAFETY OF THE APPLIANCE.
IF THE BARBECUE HAS BEEN OUT OF USE FOR SOME TIME, BEFORE REUSING IT CHECK THAT
THE GAS OUTLET HOLES ARE NOT CLOGGED WITH DUST OR SPIDER'S WEBS.
FOR THE CORRECT PROCEDURE, SEE “12.2.3 THE BURNERS”.
THIS APPLIANCE MAY ONLY BE USED OUTDOORS IN THE PRESENCE OF NATURAL
VENTILATION, OUTSIDE ANY STAGNANT AREAS, WHERE GAS LEAKS AND COMBUSTION
PRODUCTS CAN BE RAPIDLY DISPERSED BY THE WIND AND BY THE NATURAL CONVECTION
OF THE AIR.
NEVER USE THE APPLIANCE OUTDOORS IN BAD WEATHER. ANY CONTACT WITH WATER
COULD SERIOUSLY DAMAGE THE APPLIANCE AND PUT ITS SAFETY AT RISK.
TAKE CARE NOT TO ALLOW THE GLASS OF THE BARBECUE LID TO COME INTO CONTACT
WITH
WATER WHILE IT IS STILL HOT.
CAUTION: DO NOT EXPOSE THE ROTISSERIE MOTOR TO BAD WEATHER AS THIS COULD
DAMAGE THE DEVICE AND REDUCE ITS SAFETY LEVEL.
ONLY LIGHT THE BURNERS WITH THE LID RAISED.
DURING COOKING, TAKE CARE NOT TO OBSTRUCT THE FAT DRAINAGE HOLE IN THE FRONT
OF THE APPLIANCE. IF NECESSARY, CLEAN IT THOROUGHLY WITH THE AID OF A WOODEN
OR PLASTIC UTENSIL.
THESE INSTRUCTIONS ARE VALID ONLY FOR THE DESTINATION COUNTRIES WHOSE
IDENTIFYING SYMBOLS ARE INCLUDED ON THE COVER OF THIS MANUAL.
The manufacturer cannot be held liable for damage to persons or things caused by failure to observe
the above instructions, by tampering with any part of the appliance or by the use of non-original spare
parts.

Instructions for the user
30
4. INTENDED USE OF THE APPLIANCE
The appliance is specifically constructed for domestic use outdoors and is therefore suitable for
cooking and heating foods. The appliance was not designed and manufactured for professional use.
Smeg cannot be held liable for damage arising from incorrect use of the appliance.
THIS APPLIANCE MAY ONLY BE USED OUTDOORS IN THE PRESENCE OF NATURAL
VENTILATION, OUTSIDE ANY STAGNANT AREAS, WHERE GAS LEAKS AND COMBUSTION
PRODUCTS CAN BE RAPIDLY DISPERSED BY THE WIND AND BY THE NATURAL CONVECTION
OF THE AIR.

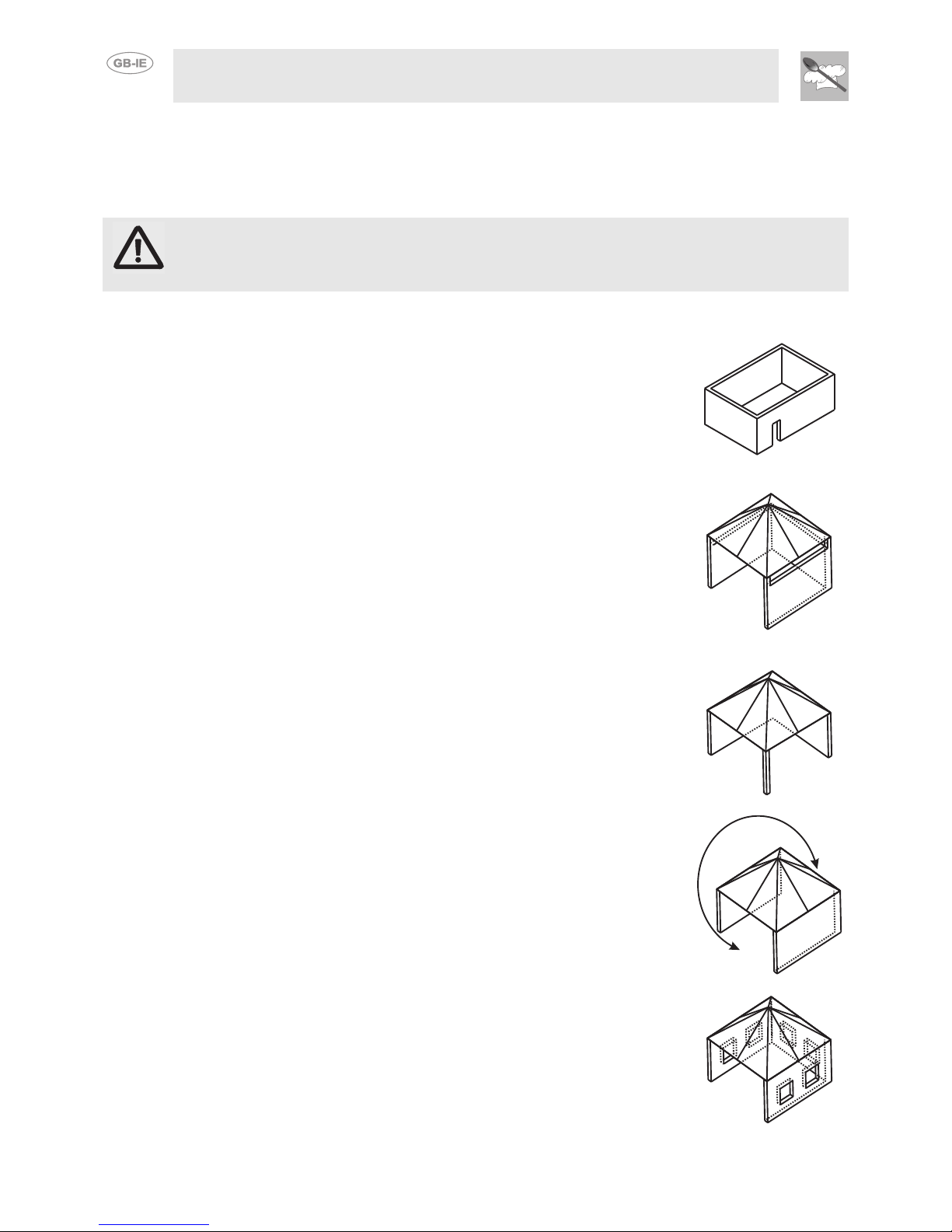

4.1 Examples of outdoor use
Any delimited area in which the appliance is positioned must comply with the
following requirements:
• An area delimited by walls on all four sides, but with at least one permanent
opening on the ground and no roof covering.
• Inside a delimited area that includes a roof covering but which has no more
than two walls.
• With a partial enclosure that includes a roof covering but no more than two
walls with the following restrictions:
At least 25% of the total surface area of the wall must be completely
open.
At least 30% of the remaining surface area is open and not delimited.
• In the case of terraces, at least 20% of the total surface areas of the walls,
back and front must be open.

Instructions for the user
31
5. KNOW YOUR APPLIANCE
BQ61T-1
BQ91T-1
CONTROL PANEL
SMOKER
DRIP TRAY
HEAT DISPERSAL
VENTS
HOLES FOR LIGHTING
THE RIGHT AND LEFT
BURNERS BY HAND
RACKS
CERAMIC STONES
(UNDER THE RACKS
ONLY)
RADIANT GRILL
BURNER
GLASS LID
THERMOMETER FOR
TEMPERATURE WITH
LID CLOSED
ROTISSERIE MOTOR
AUXILIARY BURNER
STAINLESS STEEL /
CAST IRON PLATE

Instructions for the installer
32
6. BEFORE INSTALLATION
7. INSTALLATION
Do not discard packing in the home environment. Separate the various waste materials and take them to
the nearest differentiated collection centre.
In order to remove all manufacturing residues, we recommend cleaning the inside of the appliance. For
further information on cleaning see 12. CLEANING AND MAINTENANCE.
Choose carefully the location where the product will be installed:
1 it must not be too dusty: over time, the dust could block the burners making the use of the product
hazardous;
2 it must not be too exposed to the wind: during use, an excessively strong wind may compromise the
correct operation of the product;
3 when the appliance is installed on its trolley, it must be placed on a flat, level surface to ensure it is
level and stable.
This product may be installed in free-standing mode, on a small table or shelf, or built into a masonry or
wooden structure. Otherwise, it may be installed on a special trolley available for separate purchase.
In all cases, the instructions provided below must be complied with.
7.1 Installation on a support

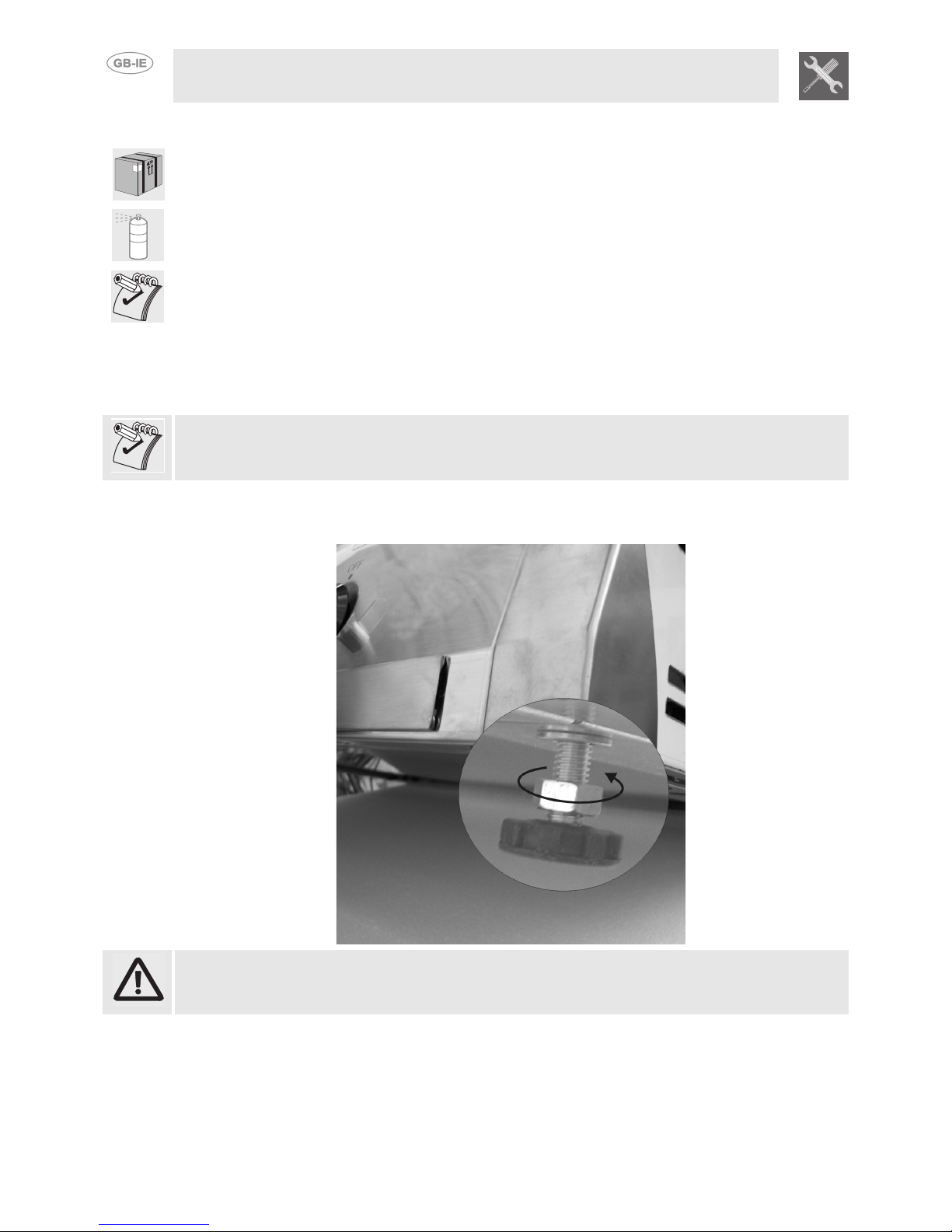

The barbecue comes complete with 4 feet already screwed into its sides. Place the barbecue on a flat
surface and ensure that it is level, screwing in or unscrewing the feet as necessary.
Never use the appliance if the feet supplied are not screwed properly into place.
This would cause an overheating hazard which might put the user's safety at risk and damage the
appliance's appearance.
7.2 Built-in installation
Once the barbecue has been levelled with the aid of the 4 feet, it can be installed in compliance with the
dimensions supplied and the instructions below:

Instructions for the installer
33

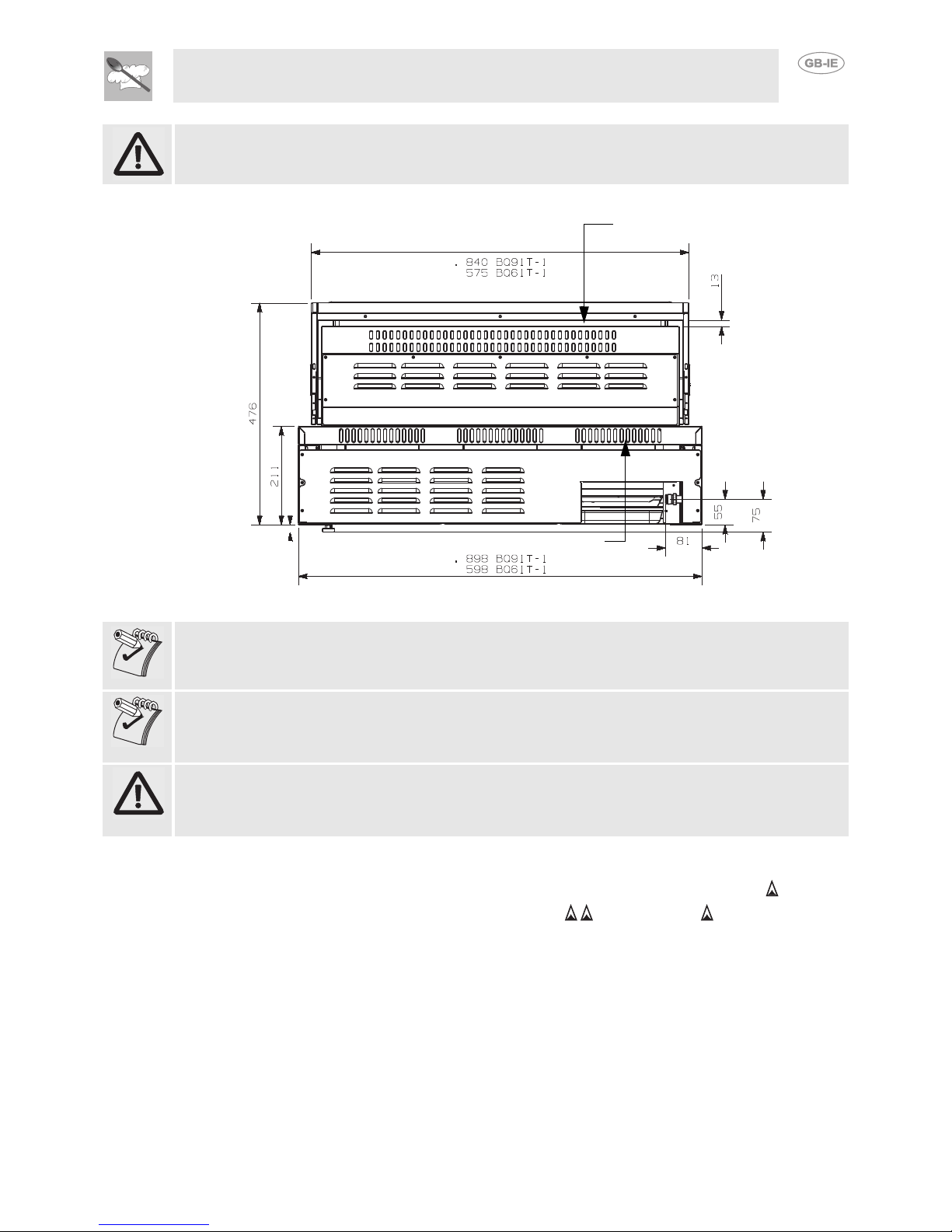

DIMENSIONS FOR BUILT-IN INSTALLATION OF THE BARBECUE
MODELS
MATERIAL HEIGHT BQ61T-1 BQ91T-1
NOT COMBUSTIBLE A610910
C150150
COMBUSTIBLE B620920
D200200
Distances less than those indicated can cause risks to the structure and the
user.
The gas cylinder may be accessed through a hole made in the structure
(taking care to protect the edge of the hole to avoid damaging the gas
connection hose).
The gas cylinder may be accessed through a hole made in the structure
(taking care to protect the edge of the hole to avoid damaging the gas
connection hose).

Instructions for the installer
34
7.3 Connecting the gas cylinder to the appliance
All the adjustments necessary to allow the appliance to function correctly are made in the factory. The
only procedure required for correct operation is connection of the hose supplied with the appliance, as
described below.
This product is designed to use only LPG gas sold in suitable cylinders obtainable from specialist
outlets. The appliance comes complete with a rubber hose with pressure regulator and connectors. The
pressure regulator is adjusted in the factory to provide optimum operation of the product.
The product is factory-set to work with LPG. Should it be necessary to change the type of gas, and
therefore the diameter of the nozzles, contact the nearest Authorised Service Centre.
Nozzles and instructions for setting the product to operate with NATURAL gas are provided. Contact the
nearest Authorised Service Centre.
If operation is not optimal, DO NOT ATTEMPT TO REPAIR THE APPLIANCE, but contact the nearest
Authorised Service Centre.
For assembling or replacing the hose (periodically check its expiration date), you must refer to the
applicable regulations.
7.4 Burner, nozzle and gas consumption characteristics tables
Burner
Rated
heating
capacity (kW)
LPG – G30/G31 30/37 mbar
Nozzle
diameter
1/100 mm
By-pass
1/100 mm
Reduced
capacity
(W)
Capacity
g/h G30
Capacity
g/h G31
Left 4.5 100 85 2200 327 321
Centre (BQ91T-1) 4.5 100 85 2200 327 321
Right 4.5 100 85 2200 327 321
Radiant grill (BQ61T-1) 3.8 95 Reg. 2500 276 271
Radiant grill (BQ91T-1) 4.5 105 Reg. 2700 327 321
7.5 Check for any gas leaks
These operations must be carried out when the barbecue is connected for the first time and
every time that it is disconnected and reconnected to the gas supply.
Once the barbecue hose has been connected to the gas supply (LPG), proceed as follows:
1 Open the gas valve on the LPG cylinder (or rotate the tap for the Natural Gas supply), BUT DO NOT
ATTEMPT TO LIGHT THE BURNERS.
2 With gas pressure in the hose, check for any leaks on all the connections using a soap and water
solution. Never use a naked flame to check for leaks.
3 In the event that there is a leak, bubbles will appear on the faulty connection where the gas is
escaping.
4 Close the gas tap of the gas cylinder, tighten the leaking connection and then repeat the test.
5 If the gas leak persists, contact the nearest supplier.
NEVER USE A FLAME TO DETECT LEAKS.

Instructions for the user
35

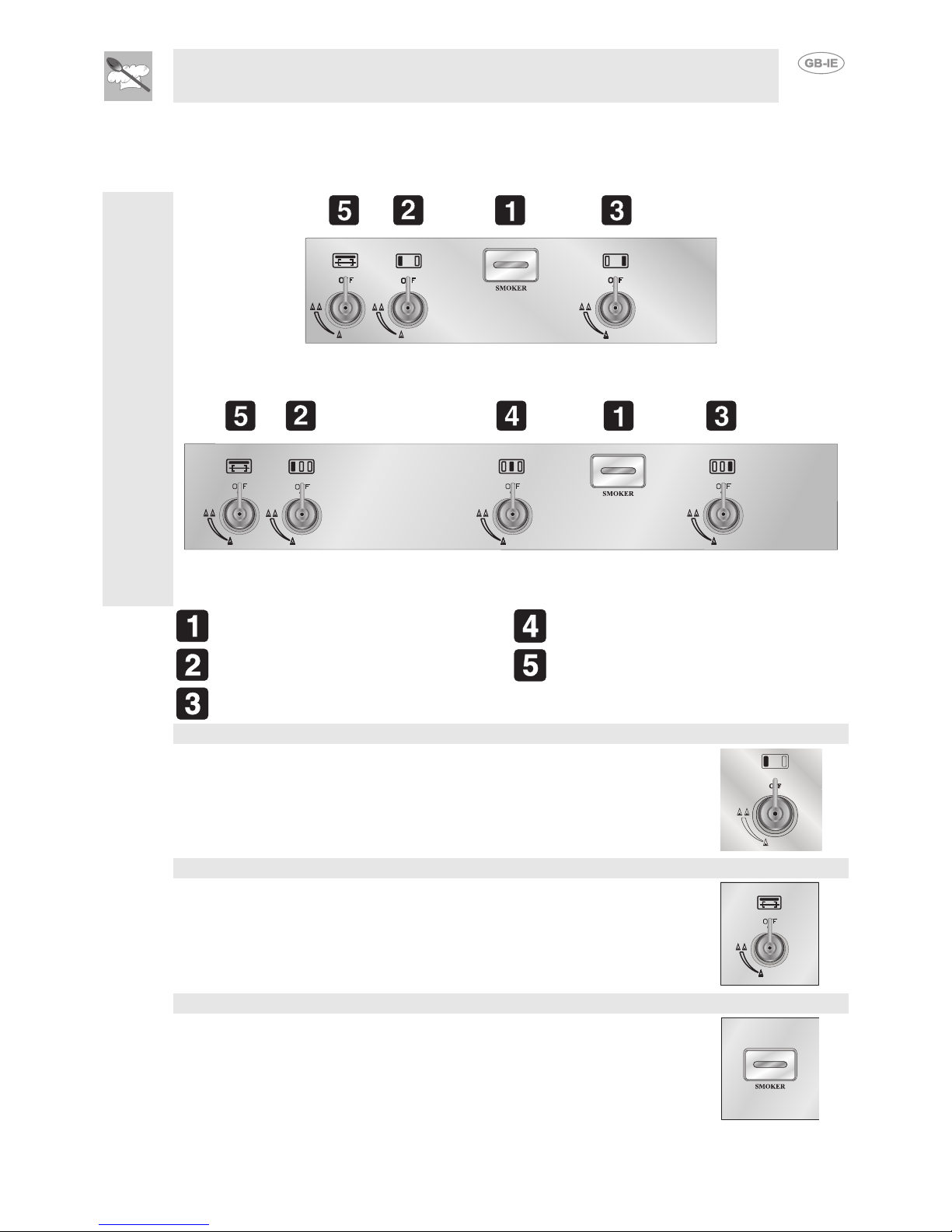

8. THE CONTROL PANEL
All the appliance's control and monitoring devices are located together on the front panel. The symbols
used are described in the table below.
TOP RANGE
BQ61T-1
BQ91T-1
"SMOKER" TRAY CENTRAL BURNER IGNITION KNOB
LEFT BURNER IGNITION KNOB RADIANT BURNER IGNITION KNOB
RIGHT BURNER IGNITION KNOB
BURNER CONTROL KNOB
These knobs can be used to light the burners inside the barbecue.
To light the flame, proceed as described in “9.4.1 Electronic lighting of the
burners”. Burners can also be lit by hand; see “9.4.2 Manual burner ignition (for
internal burners only)” for further details.
RADIANT BURNER CONTROL KNOB
This knob can be used to light the radiant burner for use when cooking with the
rotisserie.
To light the flame, proceed as described in “9.4.1 Electronic lighting of the
burners”.
SMOKER TRAY
The SMOKER tray is designed to give the meat special fragrances by using
pieces of aromatic wood, available from specialist outlets. When preparing
wood for this purpose, always follow the instructions provided on the pack.

Instructions for the user
36

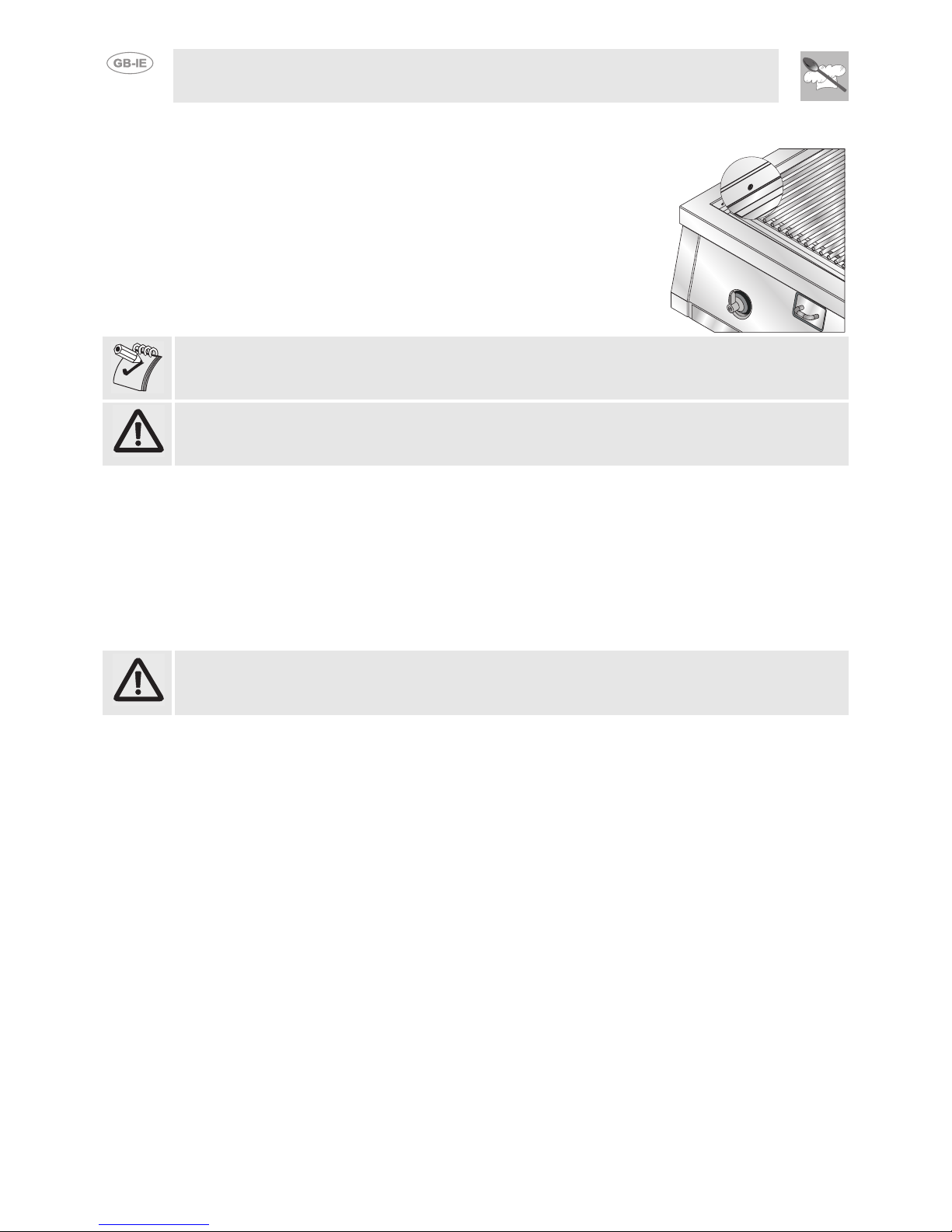

This appliance is not fitted with a safety valve. It must therefore never be left unattended when in
operation. If you notice that the flames have gone out, turn the knobs to the OFF position AT ONCE and
wait a few minutes before attempting to ignite the burners again.
The lid must always be kept open while the burners are being lit. It can be lowered once they have
ignited and must be raised as soon as the thermometer fitted on it reaches 300°C. Take care not to
obstruct the combustion gas outlet flue in the back of the lid.
When the appliance is used for the first time, operate all the burners for 10 minutes with nothing on them
and with the lid open to burn off any oils and manufacturing residues.
WARNING: DO NOT LIGHT THE RADIANT BURNER WHEN THE BURNERS INSIDE THE
BARBECUE ARE IN OPERATION.
WARNING: TO PREVENT COMBUSTION OF RESIDUES FROM PREVIOUS USE OF THE
BARBECUE, CLEAN THE DRIPPING PAN, BURNER COMPARTMENT, CERAMIC PLATES AND
THE BURNERS THEMSELVES BEFORE EACH USE.

Instructions for the user
37
9. USING THE BARBECUE

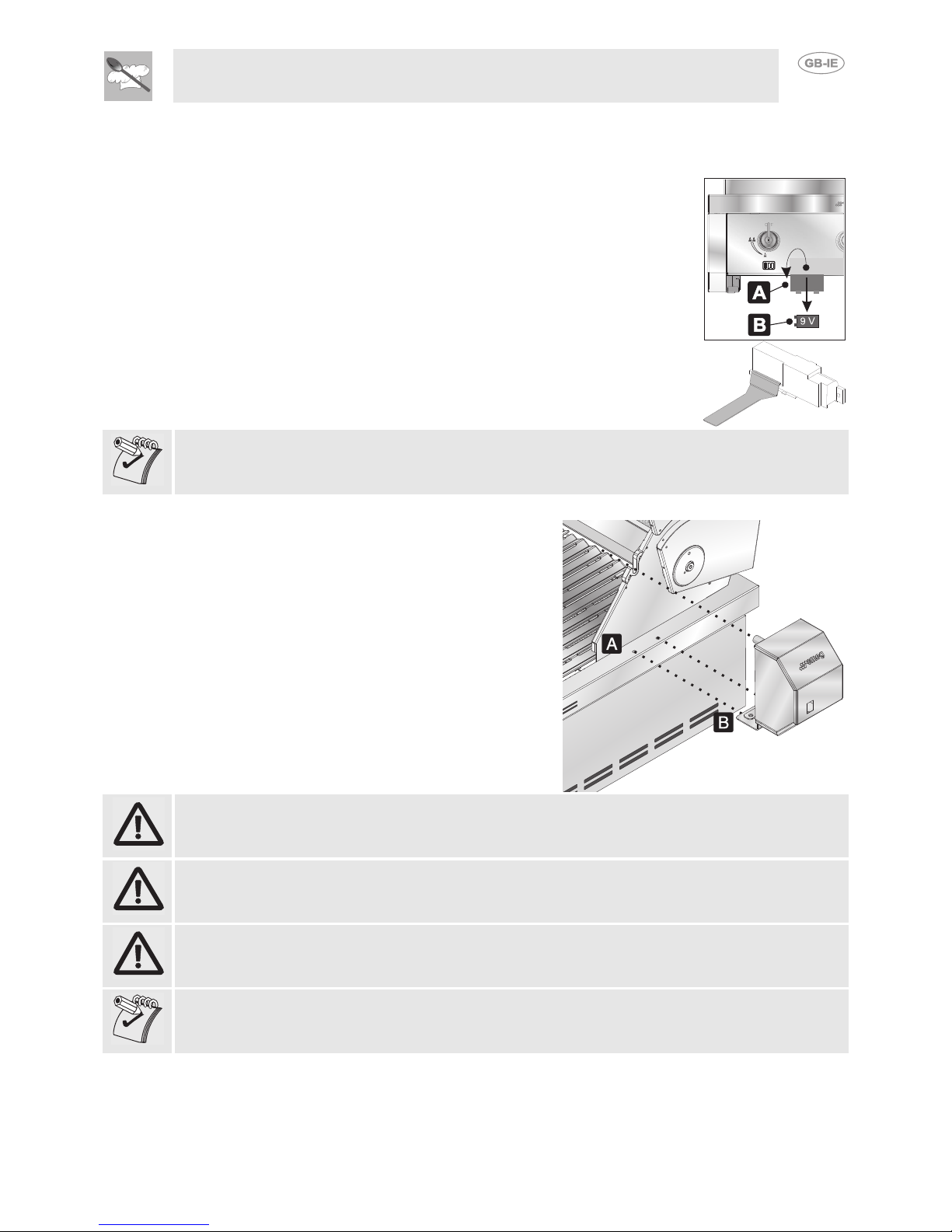

9.1 Insertion and replacement of the battery
Models in this range are equipped with a compartment for a 9 V (3LR61) battery,
which lights the burner igniters.
To insert or replace the battery, follow the instructions provided below, referring
to the drawing:
• remove the dripping pan;
• access the battery compartment through the opening in the front panel (see
diagram);
• using the tool provided, detach panel Afrom the box with the battery door;
• replace the battery Bwith one of the same type;
• put the battery back into its housing and close the panel;
Warning: Used batteries may not be dumped in the environment or thrown out with other objects. They
must be collected separately and brought to the local company authorised for refuse disposal or
disposed of in suitable used battery collection containers.
9.2 Fitting and using the rotisserie motor
The rotisserie motor is supplied dismantled. To fit it, simply
screw the two screws (supplied) into the holes provided on
the right-hand side of the barbecue.
Line up the holes in the barbecue (ref. A) with the holes in
the rotisserie motor (ref. B). Then screw in the two screws
to join the two parts together. (See diagram on the right.)
To use the rotisserie motor, simply connect the plug to the
electrical mains and set the switch on I to turn it on. To
switch it off, simply return the switch to 0.
Before connecting the rotisserie motor to the electrical mains, make sure the mains voltage type
corresponds with the information provided on the plate on the rotisserie motor.
CAUTION: do not expose the rotisserie motor to bad weather as this could damage the device
and reduce its safety level. If necessary, remove the device from the barbecue by unscrewing its
fixing screws and store it in a place protected from the weather.
CAUTION, in case of damage to the rotisserie motor power supply cable, do not attempt to repair
or replace it yourself; contact an authorised service centre immediately.
Disconnect the plug from the electrical mains before cleaning the rotisserie motor. Do not place the
rotisserie in water to clean it.

Instructions for the user
38
9.3 Rack and plate positions
Before starting to cook, always check that the racks, refractory stones and stainless steel / cast iron
plate are correctly positioned. The diagram illustrates the correct positions for the stones Aand racks B.
The self-cleaning refractory stones (A) must be fitted on the front and rear rests 1and 2shown below.
The racks (B) or the stainless steel / cast iron plate (C) have two rests of different heights at the rear (3
and 4) on which they can be placed.
This means they can be tilted to a greater or lesser extent for draining fat, depending on the type of
cooking.
Cooking can only take place in the conditions shown in the illustration, with all the stones and racks
mounted correctly. Any other configuration is a source of hazard to the user and can compromise the
proper operation of the appliance.
The refractory stones (A) must only be fitted underneath the racks (B) and not underneath the
stainless steel/cast iron plate (C).
TO AVOID OVERHEATING, DO NOT USE TWO STAINLESS STEEL/CAST IRON PLATES (C) AT
THE SAME TIME.
TILTED UPPER LEVEL
RACK/PLATE SUPPORT
LOWER LEVEL
RACK/PLATE SUPPORT
GAS OUTLET FLUE
REAR SUPPORT
REFRACTIVE STONES
LOWER BASIN
FAT COLLECTION
A
4
1
2
5C
3

Instructions for the user
39
Take care not to obstruct the combustion gas outlet flue in the back of the lid.
9.4 Lighting
To check that the burners inside the barbecue have ignited, hold one of your hands about 10 cm above
the racks: you should feel a gradually increasing amount of heat.
When lighting the radiant grill or rapid or auxiliary burners, keep the knob pressed down for about 5
seconds to allow the thermocouple to heat up. The burner may go out when the knob is released: this
means that the thermocouple has not warmed up enough. Repeat the operation, keeping the knob
pressed down for longer.
If the burners have not ignited after several attempts, wait 5 minutes before attempting to light the
appliance again. This pause is necessary to allow any gas which has built up inside the appliance to
disperse. If no flame is obtained even after numerous attempts, contact your nearest authorised service
centre.
9.4.1 Electronic lighting of the burners
Next to each knob the corresponding burner is indicated ( See “The control panel” on page 35). To light
the flame, simply push down and turn the knob anti-clockwise to the minimum flame setting . To adjust
the flame, turn the knob to the zone between the maximum ( ) and minimum ( ) settings. To turn off
the burner, turn the knob to the OFF position.
GAS OUTLET FLUE
GAS OUTLET FLUE
BQ ON TROLLEY
BQ FREE-STANDING

Instructions for the user
40
9.4.2 Manual burner ignition (for internal burners only)
The burner it controls is shown next to each knob (See “The control panel”
on page 35).
Each model has holes in the side (see right) to allow the burners to be lit by
hand.
To ignite the two side burners by hand, turn the knob to the highest setting
and place a lit match close to the ignition hole. The central burner can be lit
in manual mode from another burner: light the right or left-hand burner and
turn the central burner knob to the maximum setting. If the burner does not
light within 10-15 seconds, wait a few minutes and repeat the procedure.
If no spark is produced when any of the burner control knobs is pressed, it may be necessary to replace
the power battery.
For instructions on this operation see “9.1 Insertion and replacement of the battery”.
If the battery is new but no spark is generated, do not attempt to use the appliance and contact the
nearest authorised service centre.
9.5 Using the SMOKER tray
The SMOKER tray is designed to give the meat special fragrances by using pieces of aromatic wood,
available from specialist outlets. When preparing wood for this purpose, always follow the instructions
provided on the pack.
It is very easy to use. Pull out the tray, taking care not to drop it, fill it with your chosen aromatic wood (do
not overfill to prevent pieces falling out of the tray when it is opened or closed), close it and light the
burners as described in “9.4.1 Electronic lighting of the burners” and “9.4.2 Manual burner ignition (for
internal burners only)”. Remember to set the burners at minimum heat and keep the wood damp as long
as cooking is in progress.
The wood in the SMOKER tray is heated directly by the heat generated by the burners close to the tray.
The SMOKER tray may become hot during use. Do not touch it with unprotected hands.

Instructions for the user
41
10.STANDARD ACCESSORIES

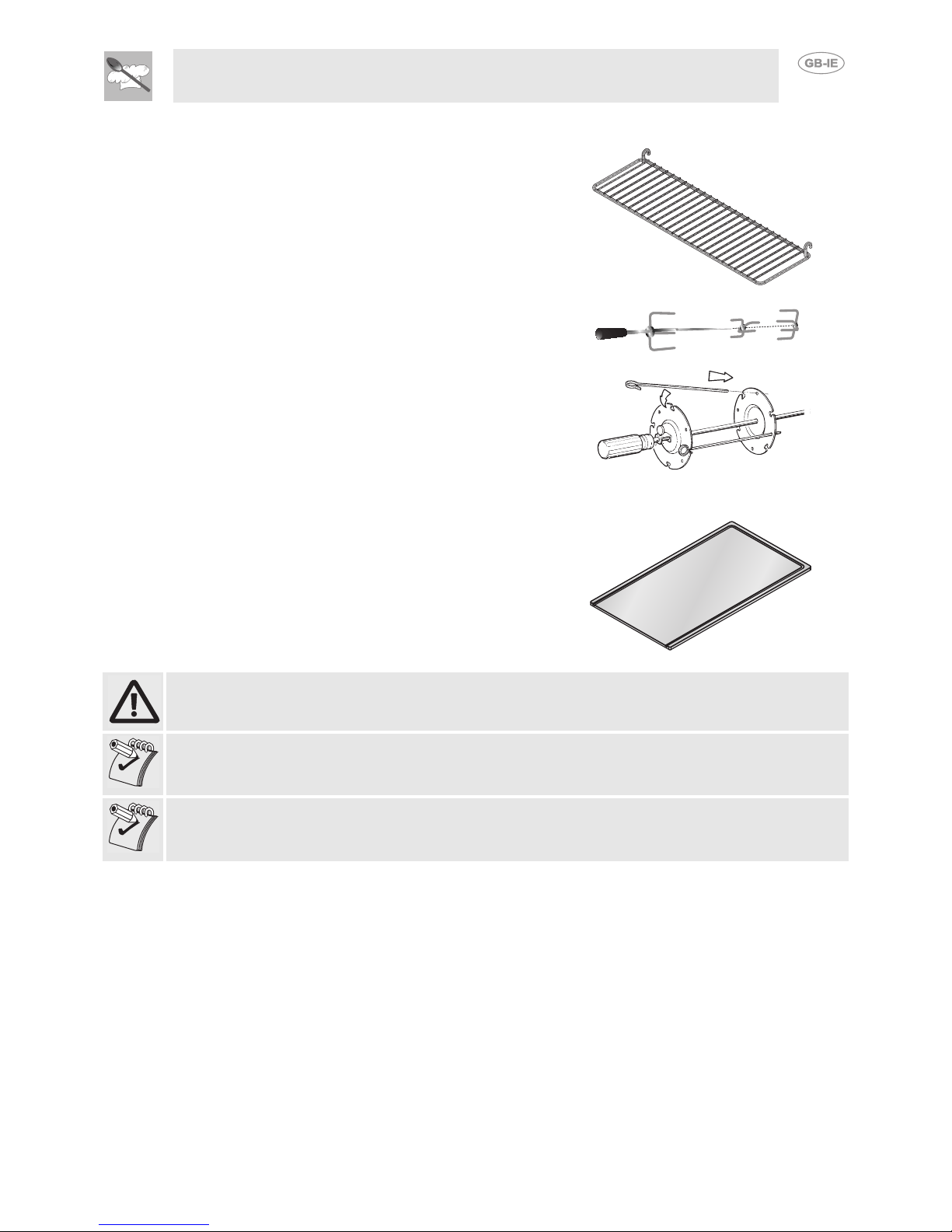

Food warmer shelf: useful for keeping food hot after
cooking. Hang this shelf on the back of the barbecue,
above the burners.
Rotisserie rod: for cooking chicken and all foods which
require uniform cooking over their entire surface.
INSTRUCTIONS FOR USE: Prepare the rotisserie rod with
the food, tightening the screws A(for both prongs and
kebab spits). Set the rotisserie rod on the barbecue so that
it fits into the seats provided. Then fit the rod into the
rotisserie motor. When the food is cooked, if you wish to
remove the rod from its place, use the handle provided,
screwing it onto the thread. Take care when removing the
rod since it might still be hot; wear heat-proof gloves if
necessary.
Stainless steel plate: for use during specific cooking
processes to eliminate the grilling effect (for more details of
cooking procedures, see “11. COOKING HINTS” on page
42.
TO AVOID OVERHEATING, DO NOT USE TWO STAINLESS STEEL/CAST IRON PLATES (C) AT
THE SAME TIME.
Some models are not provided with all accessories.
Additional optional accessories are also available from our authorised service centres.

Instructions for the user
42
11.COOKING HINTS
Some hints and recommendations for getting the best results from your barbecue are provided below.
However, remember that cooking times and heat levels have to be modified to suit the user's taste.
Direct cooking: when the meat or vegetables are cooked directly on the rack underneath which the
burner is lit.
Indirect cooking: when the meat or vegetables are cooked on the rack next to the lit burner.
During indirect cooking the lid must be left closed and only opened if the temperature exceeds 300°C.
Close it again after 5 minutes have passed.
Water should be poured into the dripping pan for more succulent cooking results and to simplify cleaning
of the barbecue after use.
11.1 Meat
Before any meat cooking procedures, the racks must be preheated with the burners lit at the maximum
setting for at least 5-10 minutes, depending on the thickness of the meat. Quick preheating (about 5
minutes) is recommended for thin pieces of meat (chops, slices of bacon, spare ribs, etc.). Lengthier
preheating (about 10 minutes) is recommended for thicker pieces of meat (large, fatty steaks, whole
chickens, etc.). In both cases, the lid must be kept closed during preheating.
11.1.1 Direct cooking
In general, when cooking meat over direct heat the burners must be set on the maximum setting, while
for fish and vegetables they must be set on medium / minimum power.
The cooking time varies depending on the thickness of the food and personal taste.
For best results when grilling, brown the outside at maximum heat then use the knobs to turn the burners
down to a medium / minimum setting to allow the meat to cook right through without burning on the
outside.
The appearance of flames, when cooking pork (i.e. fatty foods) in particular, is normal and is caused by
fat dripping onto the stones. Do not worry, but move the food being cooked to another part of the rack.
To allow this, it is best not to fill the whole rack with food for cooking.
11.1.2Indirect cooking
After preheating the racks with the burners at the maximum setting and the lid closed, place the meat on
a rack next to the lit burner. On the 90 cm barbecue, for example, the meat can be placed on the central
rack after the side burners have been ignited.
The advantage of indirect cooking is that the heat is less fierce. Start cooking with the burners on the
minimum setting then gradually increase over time.
Naturally, it takes considerably longer than direct cooking, but excellent results will be assured.
Indirect cooking is suitable for large cuts of meat or fish, such as: roasts, whole chickens, lamb or
especially thick and/or fatty foods which could result in high flaming if cooked directly due to the fat
dripping onto the refractory stones.
11.2 Vegetables
In the same way as for meat, when cooking vegetables it is best to preheat the burners at the maximum
setting with the lid closed. However, in this case the racks must always be preheated for 5-10 minutes.
11.2.1 Direct cooking
After preheating, turn the burners down to the minimum setting and arrange the vegetables on the rack.
Given the type of food, the knobs should be kept turned to the minimum setting.

Instructions for the user
43
11.3 Cooking table
HEAT TEMPERATURE BURNER
SETTING
BARBECUE
PREPARATION USE
High 230 - 250°C Maximum setting
()
230-250°C on
barbecue thermometer
(if fitted).
For preheating before cooking starts.
Medium-High 200°C Medium-
maximum setting
200°C on barbecue
thermometer (if fitted).
For direct cooking of thin cuts of
meat, fish and vegetables.
Medium 160-180°C Intermediate
setting
160-180°C on
barbecue thermometer
(if fitted).
For direct cooking of medium-sized
cuts of meat such as half chickens or
chicken joints. Also suitable for
indirect cooking.
Medium-Low 150°C Medium-
minimum setting
150°C on barbecue
thermometer (if fitted).
For indirect cooking and smoking, or
for keeping food which has already
been grilled warm.
Low 110-120°C Minimum setting
()
110-120°C on
barbecue thermometer
(if fitted).
For smoking and indirect cooking of
large pieces of fatty or delicate foods,
or for keeping food which has already
been grilled warm.
11.4 Cooking recommendations
• Always preheat at the minimum setting.
• When cooking with the plate, preheating for 15 minutes is recommended.
• For processes requiring fiercer grilling, preheat the burners for 15 minutes.
• Preheat for indirect cooking by igniting the burner where the food is to be placed for 5 minutes at the
minimum setting and the other burners at the maximum setting for 10 minutes.
• Keep the lid closed during cooking.
• During direct cooking (meat or fish), if the fierce heat burns the food, turn the burners down using the
knob or move the food.

Instructions for the user
44
BARBECUE COOKING
Miscellaneous / advice
Flame at maximum setting
Medium / high flame Medium / high flame
Burners on minimum setting
Burners on medium / minimum setting
Medium / minimum flame
Tilt the racks to drain the liquid
Start cooking at the minimum then gradually increase Start cooking at the minimum then gradually increase Start cooking at the minimum then gradually increase
Rotate pieces with a medium / minimum flame
Burners on medium / minimum setting
Cooking procedure requiring stainless steel plate
Cooking procedure requiring preheated stainless steel plate
Medium flow flame
Flame at maximum setting
Medium flow flame
Medium / minimum flame
Medium flow flame
Medium / minimum flame
Minimum flame
Cooking procedure with stainless steel plate and flame at
maximum setting
Medium / minimum flame
Minimum flame Minimum flame Minimum flame
Only burner underneath the stainless steel plate lit
The 2 burners underneath the pizza plate lit at maximum setting The 2 burners underneath the pizza plate lit at maximum setting
The 2 burners underneath the pizza plate lit at minimum setting
Burners at maximum setting
Medium / minimum flame Medium / minimum flame
Minimum flame
Medium / minimum flame
Medium / high flame
Medium / minimum flame
Cooking time
3 ‘ / 5 ‘
4 minutes per side
40 ‘ / 50 ‘
45 ‘
150 ‘
15 ‘ / 18 ‘
5 ‘ / 7 ‘
4 h
150 ‘
70 ‘
30’ / 40 ‘
13 ‘ / 15 ‘
150 ‘ / 180 ‘
10 ‘ / 15 ‘
8 ‘ / 13’
90’ / 110 ‘
80 ‘ / 90’
15 ‘ / 18 ‘ 13 ‘ / 15 ‘ 10 ‘ / 12 ‘
18 ‘
4 minutes per side
40 ‘ 15 ‘ 40 ‘
8 ‘ 7 ‘
4 ‘ / 6’
20 ‘ / 25 ‘
4-5 minutes per side 6-8 minutes per side
80 ‘ ‘
180 ‘
50 ‘ / 60 ‘
50 ‘
70 ‘ / 80 ‘
Preheating
15 ‘ 15 ‘ 15 ‘ 15 ‘ 15 ‘ 15 ‘ 15 ‘ 15 ‘ 15 ‘ 15 ‘ 15 ‘ 15 ‘ 15 ‘ 15 ‘ 10 ‘ 10 ‘ 10 ‘ 10 ‘ 10 ‘ 10 ‘ 10 ‘ 15 ‘ 10 ‘ 10 ‘ 10 ‘ 10 ‘ 15 ‘ 15 ‘ 15 ‘
5 ‘
10 ‘
5 ‘
- - - - -
Weight (kg) / N°
0.5 kg
2.0 kg = 4 pcs
1.5 kg 2.0 kg 3.0 kg 1.0 kg 0.5 kg 2.5 kg 2.5 kg 1.0 kg 2.0 kg 1.0 kg 2.5 kg
600 g 500 g
1.0 kg 1.0 kg 0.5 kg
3 pcs
750 g
1.0 kg 0.3 kg 3.0 kg 0.5 kg 1.0 kg 0.8 kg 0.4 kg 0.4 kg 0.4 kg
200 g rolls
1.0 kg
2 pcs = 2 kg
2.5 kg 1.6 kg 2.8 kg 1.0 kg
Cooking mode
Direct Direct Direct Direct
Indirect
Direct Direct
Indirect Indirect Indirect
Direct Direct
Indirect
Direct Direct
Indirect Indirect
Direct Direct Direct Direct Direct
Indirect
Direct Direct Direct Direct Direct Direct Direct Direct Direct
Grill Grill Grill Grill Grill
TYPES OF FOOD
Beef steaks
T-bone steaks
Fillet steak
Chicken joints
Grilled whole chicken
Chops
Belly pork
Whole neck of pork
Stuffed roast pork
Pork shank
Spare ribs
Sausages
Leg
Sliced onion
Sliced aubergine
Whole potatoes
Diced potatoes
Courgettes
Peppers
Prawns
Trout
Herring fillets (small fish)
Gilthead
Salmon slices
Sea-bass
Pineapple
Ready-made dough
Home-made flour and yeast dough
Ready-made canned products
Home-made flour and yeast dough
READY-COOKED POLENTA SLICES
SLICED BREAD FOR TOASTING
Spit-roast chicken
Neck of pork
Kebabs (with accessory)
Chestnuts (with accessory)
Potatoes (with accessory)
BEEF
CHICKEN
PORK
LAMB
MEAT
VEGETABLES
FISH
FRUIT
PIZZA PIZZA PIZZA
BREAD
GRILL
COOKING
PROCEDURES
