Smeg CSK4BMIC User manual

CSK4BMIC
CART FOR INSTRUMENT BASKETS WITH
CONNECTOR FOR MINIMALLY-INVASIVE
SURGERY BASKETS
INSTRUCTION MANUAL
ORIGINAL INSTRUCTIONS

CSK4BMIC
INSTRUCTION MANUAL
2
READ CAREFULLY
This document is related to Smeg’s device “CSK4BMIC CART”.
This appliance can be mounted exclusively on Smeg’s devices.
For correct and safe use, this manual has to be used in accordance with the manual of the device, instrument washer
or glassware washer, on which the device is installed.
If not read, possible incomprehension or wrong interpretation of the instructions included in this manual might
damage the appliance, as well as represent a source of danger to the operator and considerably reduce the machine’s
performance.
The manufacturer shall not be held liable for uses which are different from those specified in
this manual.
Installation, maintenance and possible repair operations must be carried out exclusively by
personnel authorized by the manufacturer.
In case the machine is used without complying with the specifications stated by the
manufacturer, its warranty might be affected.
The material included in this manual is meant for information. The content and the device described might be subject
to changes without any notification.
INFORMATION AND SUPPORT FOR THE PRODUCTS OF
SMEG INSTRUMENTS DEPARTMENT
Our Sales Department staff will give you information about prices and offers.
Our Technical Services Department will give you directions for a proper functioning of the appliance and will direct
you to the closest authorized service centre.
[email protected] –[e-mail]
Our full product range can be viewed on the website:
www.smeg-instruments.com
International customers, please contact your local SMEG distributor.
19 390 6200 00
06/06/2016
Rev.
Date

CSK4BMIC
INSTRUCTION MANUAL
3
Table of Contents
1DESCRIPTION.............................................................................................................................................................. 4
2DIMENSIONS .............................................................................................................................................................. 4
3COMPATIBILITY OF THE ACCESSORY –DEVICES......................................................................................................... 5
4EQUIPMENT IN THE BOX............................................................................................................................................ 5
5ASSEMBLY INSTRUCTIONS ......................................................................................................................................... 5
6CART START UP .......................................................................................................................................................... 6
6.1 CART’S SPRAY ARMS.......................................................................................................................................... 6
6.2 CART’S WATER SUPPLY...................................................................................................................................... 7
6.3 DRYING OF THE INSTRUMENTS......................................................................................................................... 8
7PRECAUTIONS FOR USE.............................................................................................................................................. 8
8USE ............................................................................................................................................................................. 9
9RESOLUTION OF PROBLEMS .................................................................................................................................... 11
10 MANUFACTURER’S REFERENCE ............................................................................................................................... 11

CSK4BMIC
INSTRUCTION MANUAL
4
1DESCRIPTION
CSK4BMIC is a cart designed to process surgical instruments through thermal disinfection, using baskets.
2DIMENSIONS

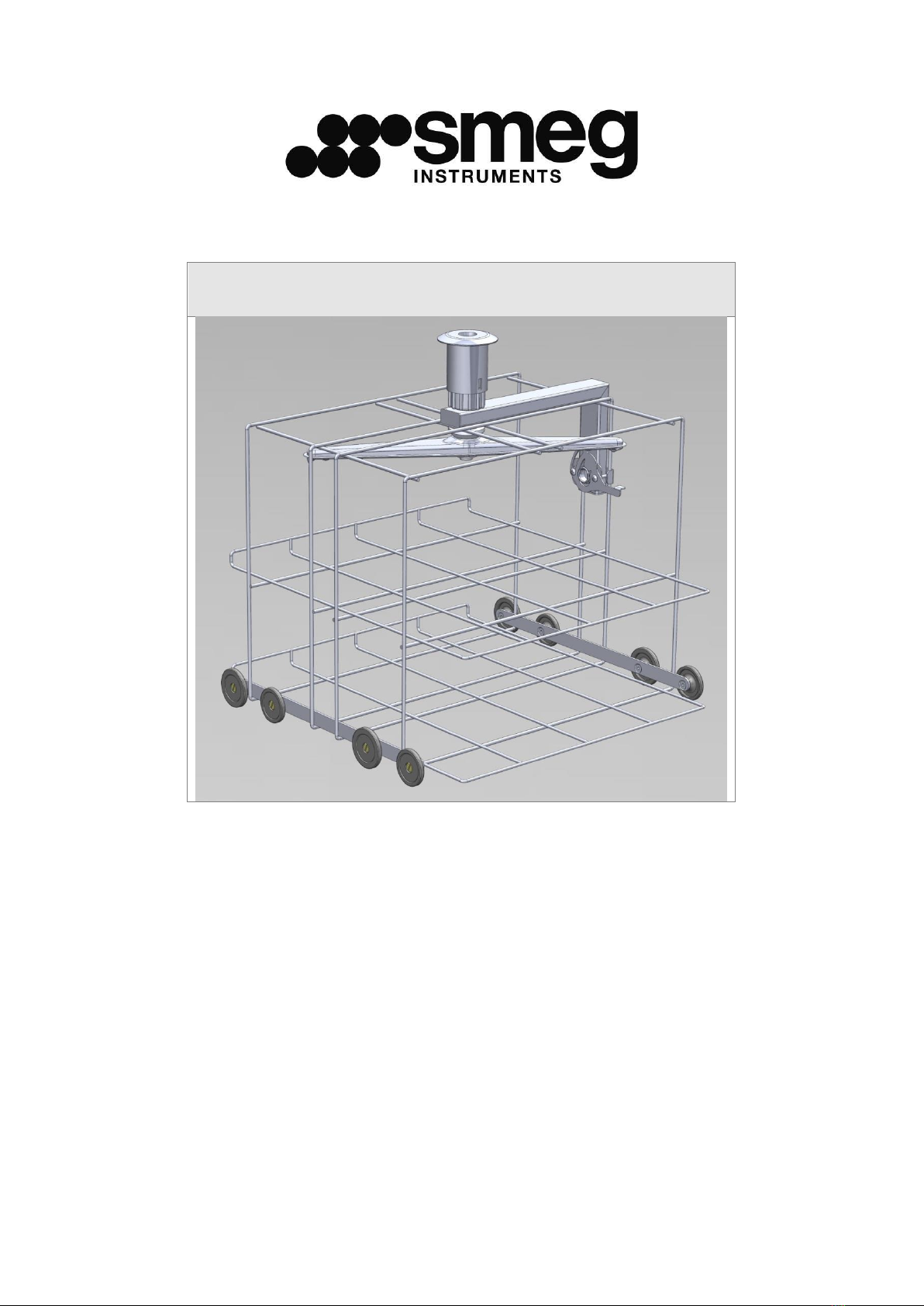

1. Space occupied
2. Dimensions occupied by the washing compartments
QUICK CONNECTOR
for KITMIC10 device

CSK4BMIC
INSTRUCTION MANUAL
5
3COMPATIBILITY OF THE ACCESSORY –DEVICES
The accessory can be mounted on the following devices:
GAMMA WD –INSTRUMENT WASHER HOSPITAL SECTOR
WD1160
WD3060
WD4060
WD4190
WD5090
4EQUIPMENT IN THE BOX
N.1 cart CSK4BMIC
5ASSEMBLY INSTRUCTIONS
GENERAL WARNINGS FOR THE INSTALLATION
Carefully read both warnings and indications on safety for thermal disinfection devices where
this cart is used, as well as the warnings indicated by the manufacturer of the instruments or
any other component which is meant to be processed with this cart.
Badly positioned objects or potential breaking of glassware during the wash cycle might affect
the efficiency of the process and cause serious injury.
If needed, the washing performance may be verified through both visual and other kind of
tests, on the basis of the cycle used, the load processed, and the supports used.
FREE SPACE: It is necessary to have a free space of about 1m2in front of the machine to be able
to correctly work on it.
PROTECTION DEVICES: Use personal protective equipment, if necessary.

CSK4BMIC
INSTRUCTION MANUAL
6
6CART START UP
6.1 CART’S SPRAY ARMS
After inserting the instruments, it is important to make sure that the spray arms are able to
rotate freely. Failing that, a correct washing performance is not guaranteed and the machine
cannot report this fault.
NOTES
Opposite is a schematic example of how a
surgical instrument can block the correct
rotation of the spray arm and, consequently,
reduce the washing performance of all
instruments.
The figure opposite shows that the
instruments, if correctly positioned in the
basket, do not interfere with the spray arm.
INTERFERENCE

CSK4BMIC
INSTRUCTION MANUAL
7

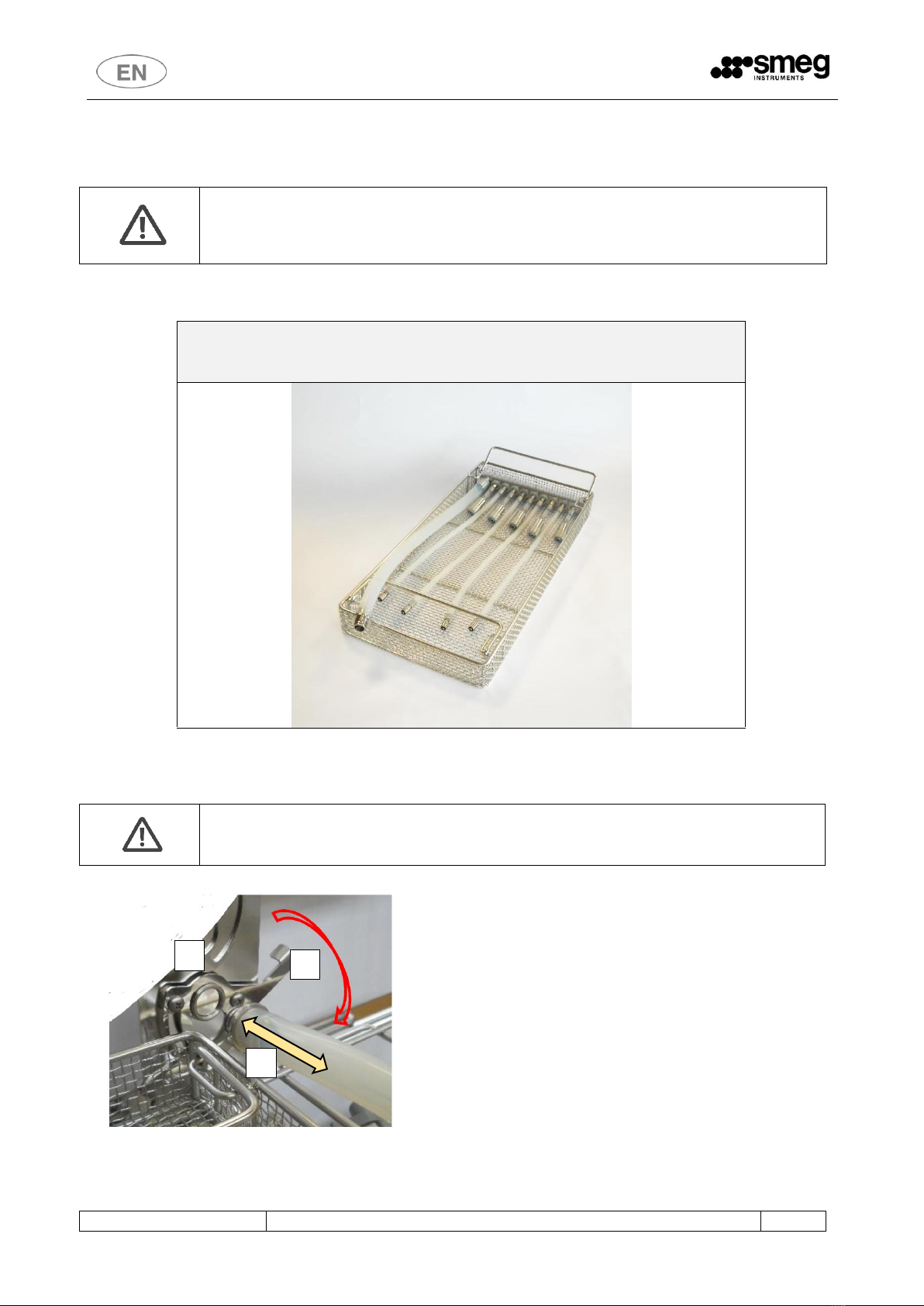

Every time the cart is loaded, it is necessary to manually test the spray arms to check that ALL are able to rotate freely
(see photo below).
6.2 CART’S WATER SUPPLY
Another important step for the correct use of the CSK4B cart and for a correct rotation, is checking that the
cart’s supply nozzle and that of the machine are coupled correctly. Adjust the position if necessary.

CSK4BMIC
INSTRUCTION MANUAL
8
6.3 DRYING OF THE INSTRUMENTS
Some models of thermal disinfection devices are equipped with a drying system, which can be distinguished by
the central hole placed inside, on the back of the tank (see photo).
It is extremely important that the air inlet is neither fully nor partially obstructed by any instruments at the
moment of loading. This may result in an improper drying of the instruments.
7PRECAUTIONS FOR USE
For a correct washing performance, particular attention should be paid to the following aspects:
An efficient washing performance is given by the correct loading of the baskets, inserts, supports etc. Jointed
instruments must be positioned open.
Baskets must not be overloaded, in order to allow a proper rinsing of the instruments.
Large instruments must be placed in the baskets so that “grey areas” are avoided and the cleaning of other
instruments is not impeded.
Instruments must be placed and arranged taking into account their mechanical sensitivity so as to prevent
any damage.
CSK4BMIC is a cart designed to clean surgical instruments through thermal disinfection; it is therefore necessary to
make sure that the instruments inserted in the machine are suitable for the thermal disinfection treatment.
AIR INLET

CSK4BMIC
INSTRUCTION MANUAL
9
8USE
The CSK4BMIC cart alone cannot be used as a support to wash surgical instruments. Baskets
must always be used together with the CSK4BMIC cart.
Please find below the baskets recommended by SMEG:
KITMIC10 cod. 903499
Dimensions lxpxh mm 240 x 480 x 52
How to connect the KITMIC to the quick joint: rotate the “L” lever following the arrow and make sure that the joint is
hooked with the movement indicated by “X”.
Once the KITMIC is removed, make sure that the hole “F” is closed again by the lever “L”.
X
L
F

CSK4BMIC
INSTRUCTION MANUAL
10

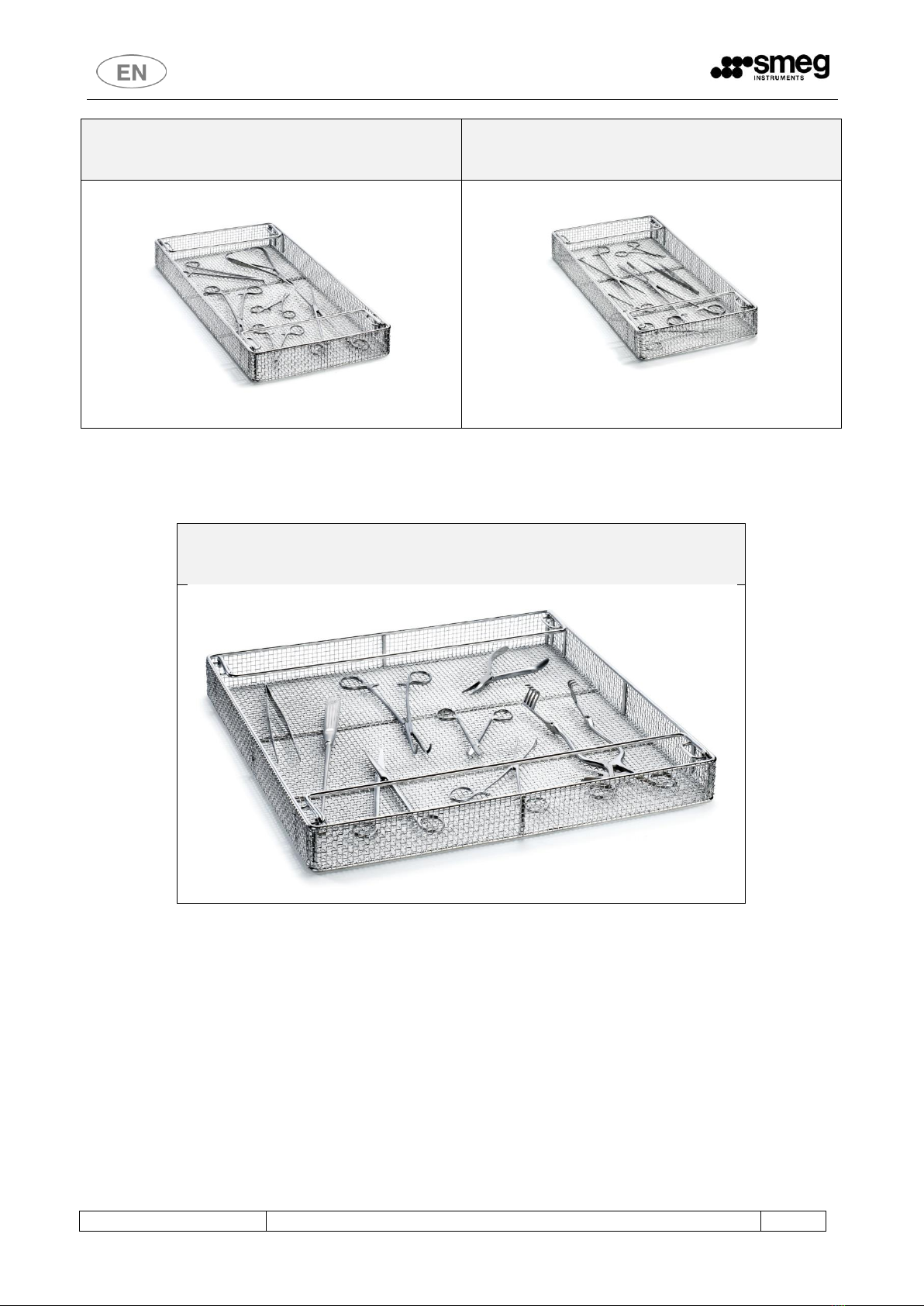

CSKDIN cod. 900018
Dimensions lxpxh mm 245 x 480 x 50
CSK2 cod. 900020
Dimensions lxpxh mm 160 x 435 x 50
CSK1 cod. 900019
Dimensions lxpxh mm 450 x 450 x 55
The CSK4BMIC cart can be configured with the instrument baskets according to the user’s needs.
Standard configurations suggested:
Configuration with n°1 basket KITMIC10 and n°3 baskets CSKDIN.
Configuration with n°1 basket KITMIC10 and n°3 baskets CSK2.
Configuration with n°4 baskets CSKDIN.
Configuration with n°4 baskets CSK2.
Configuration with n°2 baskets CSK1.

CSK4BMIC
INSTRUCTION MANUAL
11
9RESOLUTION OF PROBLEMS
In the case of poor quality wash performance:
1. Verify the cleanliness of the nozzles / sprayers –according to the described procedure.
2. Check the instructions for the correct procedure, as supplied by the manufacturer of the instruments.
3. Verify that the correct cycle has been selected.
4. Verify the functioning of the machine, check the manual.
5. Check the quantity and quality of the available detergent.
6.
10 MANUFACTURER’S REFERENCE
Smeg S.p.A.
Instruments Division
Via Leonardo da Vinci, 4 –42016 Guastalla (RE) Italy
Tel. [phone] –Fax [phone]
E-Mail: [e-mail] - service.instrument[email protected]
www.smeg-instruments.com
