Smeg C9CMXA1 User manual

Contents
3
EN
1 Instructions 4
1.1 General safety instructions 4
1.2 Identification plate 5
1.3 Manufacturer liability 5
1.4 Appliance purpose 5
1.5 Disposal 5
1.6 This user manual 6
1.7 How to read the user manual 6
2 Description 7
2.1 General description 7
2.2 Cooking hob 7
2.3 Control panel 8
2.4 Other parts 8
2.5 Available accessories 9
3 Use 10
3.1 Instructions 10
3.2 First use 11
3.3 Using the accessories 11
3.4 Preliminary operations 13
3.5 Using the hob 14
3.6 Using the storage compartment 14
3.7 Using the oven 15
3.8 Cooking advice 16
3.9 Programmer clock 17
4 Cleaning and maintenance 21
4.1 Instructions 21
4.2 Cleaning the appliance 21
4.3 Removing the door 22
4.4 Cleaning the door glazing 23
4.5 Cleaning the inside of the oven 23
4.6 Extraordinary maintenance 24
5 Installation 25
5.1 Clearances above and around domestic appliances 25
5.2 Electrical connection 26
5.3 Positioning 28
We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance's aesthetic and functional qualities.
For further information on the product: www.smeg.com.au

Instructions
4
1 Instructions
1.1 General safety instructions
Risk of personal injury
• During use the appliance and its
accessible parts become very hot.
• Never touch the heating elements
during use.
• Keep children under eight years
of age at a safe distance if they
are not constantly supervised.
• Children must never play with the
appliance.
• This appliance may be used by
children aged at least 8 and by
people of reduced physical and
mental capacity, or lacking in
experience in the use of electrical
appliances, as long they are
supervised or instructed by adults
who are responsible for their
safety.
• Never rest metallic objects such
as knives, forks, spoons and lids
on the appliance during use.
• Switch the appliance off
immediately after use.
• Never try to put out a fire or
flames with water: Turn off the
appliance and smother the flames
with a fire blanket or other
appropriate cover.
• The appliance must never be
cleaned by unsupervised children.
• Have qualified personnel carry
out installation and assistance
interventions according to the
standards in force.
• Do not modify this appliance.
• Do not insert pointed metal
objects (cutlery or utensils) into the
slots in the appliance.
• Do not try to repair the appliance
yourself or without the intervention
of a qualified technician.
• If the power supply cable is
damaged, contact technical
support immediately and they will
replace it.
• Do not open the storage
compartment when the oven is on
and still hot.
• The items inside the storage
compartment could be very hot
after using the oven.
Risk of damaging the appliance
• Do no t use abrasive or corrosive
detergents on glass parts (e.g.
powder products, stain removers
and metallic sponges).
• Racks and trays have to be
inserted into the side guides until
they come to a complete stop.
The mechanical safety locks that
prevent the rack from being taken
out accidentally have to face
downwards and towards the
oven back.
• Use wooden or plastic utensils.
• Do not seat on the appliance.

Instructions
5
EN
• Do not use steam jets for cleaning
the appliance.
• Do not obstruct ventilation
openings and heat dispersal slots.
• Never leave the appliance
unattended during cooking
operations where fats or oils
could be released.
• Never leave objects on the
cooking surface.
• Do not use the appliance to heat
rooms for any reason.
• Remove any food residues or
large spills from previous cooking
operations from the inside of the
oven.
For this appliance
• Befor e replacing the bulb, switch
off the power supply to the
appliance.
• Do not rest any weight or sit on
the open door of the appliance.
• Take care that no objects are stuck
in the doo rs.
• If cracks or fissures form, or if the
glass ceramic cooking surface
breaks, turn off the appliance
immediately. Disconnect the
power supply and call Technical
Support.
1.2 Identification plate
• The identification plate bears the
technical data, serial number and brand
name of the appliance. Do not remove
the identification plate for any reason.
1.3 Manufacturer liability
The manufacturer declines all liability for
damage to persons or property caused by:
• Use of the appliance other than the one
envisaged;
• Non-observance of the user manual
provisions;
• Tampering with any part of the
appliance;
• Use of non-original spare parts.
1.4 Appliance purpose
• This appliance is intended for cooking
food in the home environment. Every
other use is considered improper.
• The appliance is not designed to
operate with external timers or with
remote-control systems.
1.5 Disposal
This appliance must be disposed of
separately from other waste
(Directives 2002/95/EC, 2002/
96/EC, 2003/108/EC). The appliance
does not contain substances in quantities
sufficient to be considered hazardous to
health and the environment, in accordance
with current European directives.
To dispose of the appliance:
• Cut the power supply cable and remove
it along with the plug.
Power voltage
Danger of electrocution
• Disconnect the main power supply.
• Disconnect the power cable from the
electrical system.

Instructions
6
• Consign the appliance to the
appropriate selective collection centres
for electrical and electronic equipment
waste, or deliver it back to the retailer
when purchasing an equivalent product,
on a one for one basis.
Our appliances are packed in non-
polluting and recyclable materials.
• Consign the packing materials to the
appropriate selective collection centres.
1.6 This user manual
This user manual is an integral part of the
appliance and must therefore be kept in its
entirety and within the user's reach for the
whole working life of the appliance.
Read this user manual carefully before using
the appliance.
1.7 How to read the user manual
This user manual uses the following reading
conventions:
1. Use instruction sequence.
• Single use instruction.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or any part
of it unattended.
• Do not let children play with the
packaging plastic bags.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories,
cooking advice.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for the Authorized
Person: installation, operation and
inspection.
Safety instructions
Information
Advice

Description
7
EN
2 Description
2.1 General description
1 Cooking hob
2 Control panel
3 Oven light
4 Seal
5 Door
6 Fan
7 Storage compartment
Rack/tray support frame shelf
2.2 Cooking hob
* power levels are indicative and can vary according to the pan used or the settings made.
Zone Outer diameter
(mm)
Max. consumed power
(W) *
Inner diameter
(mm)
Max. consumed power
(W) *
1 150 1200 --
2 210 2200 120 750
3 oval plate 2200 170 1400
4 195 2000 --

Description
8

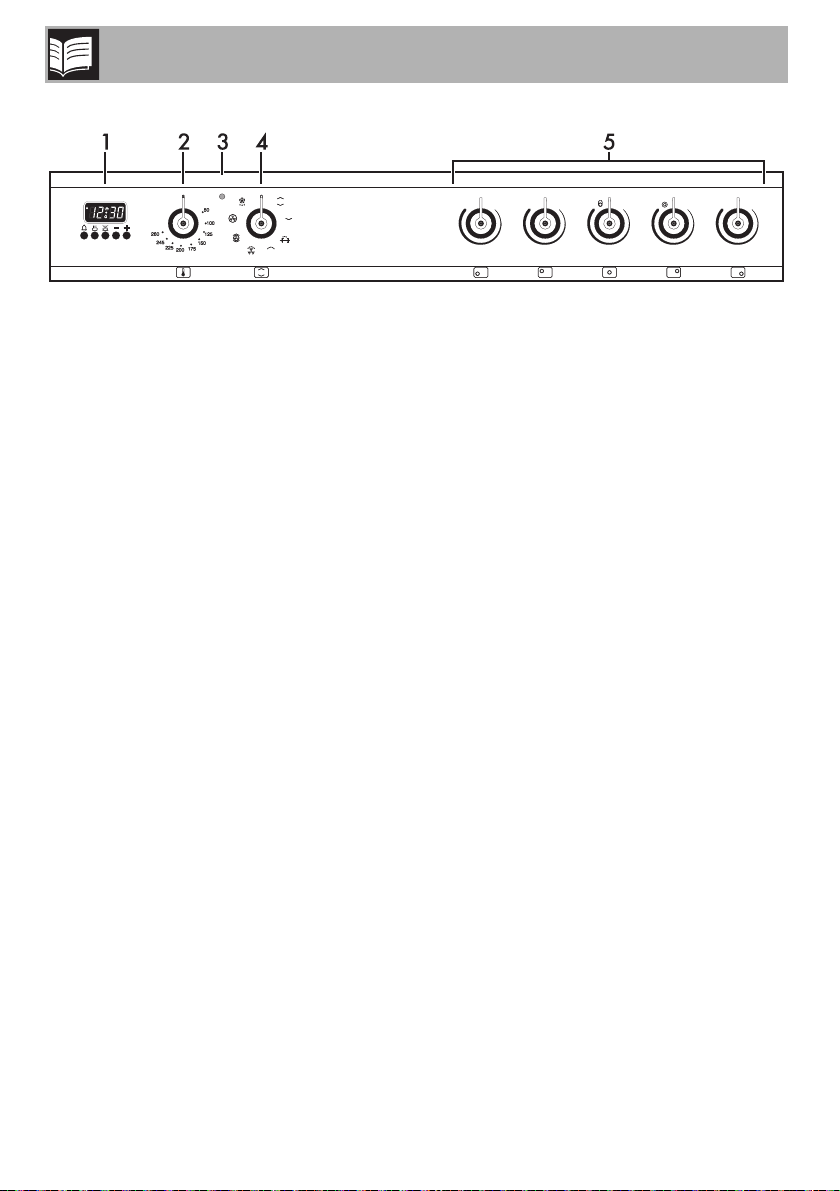

2.3 Control panel
1 Programmer clock
Useful for displaying the current time, setting
programmed cooking operations and
programming the minute minder timer.
2 Temperature knob
This knob allows you to select the cooking
temperature. Turn the knob clockwise to the
required value, between the minimum and
maximum settings.
3 Indicator light
The indicator light comes on to indicate that
the oven is heating up. It turns off as soon as
it reaches the set temperature. It flashes
regularly to indicate that the temperature set
inside the oven is kept constant.
4 Function knob
The oven's various functions are suitable for
different cooking modes. After selecting the
required function, set the cooking
temperature using the temperature knob.
5 Cooking zone control knobs
Useful for controlling the cooking zones of
the hob.
Push and turn the knob clockwise to adjust
the operating power of the hot plate from a
minimum to a maximum.
2.4 Other parts
Oven shelves
The oven features shelves for positioning
trays and racks at different heights. The
insertion heights are indicated from the
bottom upwards (see 2.1 General
description).
Cooling fan
The fan cools the ovens and comes into
operation during cooking. The fan causes a
steady outflow of air from above the door
and which may continue for a brief period
of time even after the appliance has been
turned off.
Internal light
The internal light of the ovens comes on
when any function is selected.

Description
9
EN
2.5 Available accessories
Scraper
Useful for cleaning the Teppanyaki plate.
Do not use on other surfaces.
Rack
Useful for holding cooking containers.
Tray
Useful for collecting fat from foods placed
on the rack above and for cooking pies,
pizzas and baked desserts.
Rotisserie rod
Useful for cooking chicken and all foods
which require uniform cooking over their
entire surface.
Rotisserie support
To be used to support the rotisserie rod.
Rotisserie handle
Useful for taking the rotisserie rod out of the
oven.
Some models are not provided
with all accessories.
The accessories intended to come
into contact with food are made of
materials that comply with the
provisions of current legislation.
Original and optional accessories
can be requested to Authorised
Assistance Centres. Use only
original accessories supplied by
the manufacturer.

Use
10
3 Use
3.1 Instructions
High temperature inside the oven
during use
Danger of burns
• Keep the oven door closed during
cooking.
• Protect your hands wearing heat
resistant gloves when moving food
inside the oven.
• Do not touch the heating elements inside
the oven.
• Do not pour water directly onto very hot
trays.
• Do not allow children younger than 8
years old to come near the appliance
when in operation.
• If you need to move food or at the end
of cooking, open the door 5 cm for a
few seconds, let the steam come out,
then open it fully.
High temperature inside the
storage compartment
Danger of burns
• Do not open the storage compartment
when the oven is on and still hot.
• The items inside the storage
compartment could be very hot after
using the oven.
Improper use
Danger of burns
• Oils and fats could catch fire if
overheated. Be very careful.
• Never place metal objects, such as
dishes or cutlery, on the induction hob
surface as they may overheat.
High temperature inside the oven
during use
Danger of fire or explosion
• Do not spray any spray products near
the oven.
• Do not use or leave flammable materials
near the oven or the storage
compartment.
• Do not use plastic kitchenware or
containers when cooking food.
• Do not put sealed tins or containers in
the oven.
• Do not leave the oven unattended
during cooking operations where fats or
oils could be released.
• Remove all trays and racks which are
not required during cooking.

Use
11
EN
3.2 First use
1. Remove any protective film from the
outside or inside of the appliance,
including accessories.
2. Remove any labels (apart from the
technical data plate) from the
accessories and from the cooking
compartments.
3. Remove all the accessories from the
appliance and clean them (see 4
Cleaning and maintenance).
4. Heat the empty ovens at the maximum
temperature to burn off any residues left
by the manufacturing process.
3.3 Using the accessories
Racks and trays
Racks and trays have to be inserted into the
side guides until they come to a complete
stop.
• The mechanical safety locks that prevent
the rack from being taken out
accidentally have to face downwards
and towards the oven back.
Improper use
Risk of damage to surfaces
• Do not cover the bottom of the oven
cavity with aluminium or tin foil sheets.
• If you wish to use greaseproof paper,
place it so that it will not interfere with the
hot air circulation inside the oven.
• Do not place pans or trays directly on
the bottom of the oven cavity.
• Do not use the open door to rest pans or
trays on the internal glass pane.
• Do not pour water directly onto very hot
trays.
• Cooking vessels or griddle plates
should be placed inside the perimeter of
the hob.
• All pans must have smooth, flat bottoms.
• If any liquid does boil over or spill,
remove the excess from the hob.
• Avoid hard, solid objects falling on the
surface of the hob.
• In case you notice cracks or fissures, turn
off the appliance immediately,
disconnect the power supply and
contact the Assistance Centre.
• Do not use the hob as a support surface.
Gently insert racks and trays into
the oven until they come to a stop.

Use
12
Tray rack
The tray can be used two different ways:
• Inside the rack (with the anti-tip stop
facing upwards) to collect grease during
cooking.
• Resting on the rack (with the anti-tip stop
facing downwards) to cook sweets,
biscuits, pastries etc.
Rotisserie rod
1. Prepare the rotisserie rod with the food
using the clip forks provided.
2. Screw on the handle provided so that
you can handle the rod with the food on
it readily.
3. Once you have prepared the rotisserie
rod, place it on the rotisserie support.
Insert the rod into the hole so that it
connects with the rotisserie motor. Make
sure that the contoured part is placed
correctly on the guide frame and remove
the handle.
Clean the trays before using them
for the first time to remove any
residues left by the manufacturing
process.

Use
13
EN
4. To activate the rotisserie, turn the function
knob to position .
5. At the end of cooking, use the rotisserie
handle provided to extract the rod from
the hole and remove the frame in order
to take the rotisserie rod out of the oven
cavity.
3.4 Preliminary operations
In order to remove any moisture that could
have accumulated during the manufacturing
process and for the electronic circuits and
control keypad to work properly:
1. Remove the protective films from the
external surfaces of the appliance and
accessories.
2. Remove any labels (apart from the
technical data plate).
3. Place a pan full of water on each of the
front cooking zones and switch them on
to the maximum power setting for at least
30 minutes.
4. After 30 minutes, switch off the front
cooking zones and repeat this operation
for the rear cooking zones and any
central cooking zone.
5. If after carrying out the above operations
the controls do not work properly, it
might be necessary to extend the
operations until the moisture has
completely evaporated.
Grill + rotisserie cooking must
never exceed 240°C and must
not last more than 30 minutes.
These operations must be
performed with the oven off and
cold.
On first connection to the electrical
mains, an automatic check will be
carried out that will switch on all
indicator lights for a few seconds. It
might happen that on the displays
the text appears to indicate
that during factory testing the hob
was switched off with residual heat
active. After 5 minutes this
indications deactivates
automatically.

Use
14
3.5 Using the hob
All the appliance's control and monitoring
devices are located together on the front
panel. The circle next to each knob
indicates the cooking position that will be
put into operation. Heating within the
smaller circle is adjusted pressing and
turning the knob to one of the positions
between minimum and maximum.
To heat double zones turn the knob to the
symbol or . Releasing the knob
will return it to the maximum position. To
adjust heating turn the knob anticlockwise
to the required position. To return to heat the
smaller circle only, turn the knob to 0and
then to a position between minimum and
maximum.
To turn off, return the knob to the 0position.
Residual heat
The signal lamps located between the
cooking zones come on when the
temperature of one or more of the heating
zones exceeds 60°C. The lamps go off
upon temperature dropping to below
approximately 60°C.
Advice on energy-saving
• The diameter of the base of the pan must
correspond to the diameter of the
cooking zone.
• Choose a pan suitable for the quantity of
food to be cooked. A large, half-empty
pan leads to a waste of energy.
• The bottom of the receptacles must be
very thick and perfectly flat; before
placing on the cooking hob, make sure
that it, as well as the cooking hob itself,
are perfectly clean and dry.
• To avoid scratching of the cooking hob,
never use cast-iron receptacles or
receptacles with a rough bottom.
3.6 Using the storage compartment
The storage compartment is at the bottom of
the cooker. To open it, pull the handle
towards you. It can be used to store
cookware or metallic objects necessary
when using the appliance.
Improper use
Danger of burns
• Supervise children carefully as they
cannot readily see the residual heat
indicator. The cooking zones remain hot
for a certain period of time even after
they have been turned off. Make sure
that children never touch the hob.

Use
15
EN
3.7 Using the oven
Switching on the oven
To switch the oven on:
1. Select the cooking function using the
function knob.
2. Select the temperature using the
temperature knob.
Functions list
Static
As the heat comes from above and
below at the same time, this system
is particularly suitable for certain
types of food. Traditional cooking,
also known as static cooking, is
suitable for cooking just one dish at
a time. Perfect for all types of roasts,
bread and cakes and in any case
particularly suitable for fatty meats
such as goose and duck.
Bottom
The heat coming just from the
bottom allows you to complete the
cooking of foods that require a
higher bottom temperature, without
affecting their browning. Perfect for
cakes, pies, tarts and pizzas.
Small grill + rotisserie
The rotisserie works in combination
with the central grill heating element
and allows food to be perfectly
browned.
Grill
The heat coming from the grill
element gives perfect grilling results
above all for thin and medium
thickness meat and in combination
with the rotisserie (where present)
gives the food an even browning at
the end of cooking. Perfect for
sausages, ribs and bacon. This
function enables large quantities of
food, particularly meat, to be grilled
evenly.
Fan-assisted grill
The air produced by the fan softens
the strong heatwave generated by
the grill, grilling perfectly even very
thick foods. Perfect for large cuts of
meat (e.g. shin of pork).
Turbo
The combination of fan assisted
cooking and traditional cooking
allows different foods to be cooked
on several levels extremely quickly
and efficiently, without odours and
flavours mingling. Perfect for large
volumes that call for intense
cooking.

Use
16
3.8 Cooking advice
General advice
• Use a fan-assisted function to achieve
uniform cooking at several levels.
• It is not possible to shorten cooking times
by increasing the temperature (the food
could be overcooked on the outside and
undercooked on the inside).
• Using more ovens at the same time might
affect the final cooking results.
Advice for cooking meat
• Cooking times vary according to the
thickness and quality of the food and to
consumer taste.
• Use a meat thermometer when roasting
meat, or simply press on the roast with a
spoon. If it is hard, it is ready; if not, it
needs another few minutes cooking.
Advice for cooking with the Grill and the
Fan-assisted grill
• Meat can be grilled even when it is put
into the cold oven or into the preheated
oven if you wish to change the effect of
the cooking.
• With the Fan-assisted grill function, we
recommend that you preheat the oven
before grilling.
• We recommend placing the food at the
centre of the rack.
• With the Grill function, we recommend
that you turn the temperature knob to the
maximum value near the or
symbol to optimise cooking.
• Foods should be seasoned before
cooking. Foods should also be coated
with oil or melted butter before cooking.
• Use the oven tray on the first bottom shelf
to collect fluids produced by grilling.
• Grilling processes should never last more
than 60 minutes using multifunction
ovens, 30 minutes inside the auxiliary
oven.
Advice for cooking desserts and biscuits
• Use preferably dark metal moulds: they
help to absorb the heat better.
• Temperature and cooking time depend
on the quality and consistency of the
dough.
Fan-assisted circular
The combination of the fan and the
circular element (incorporated in the
rear of the oven) allows you to cook
different foods on several levels, as
long as they need the same
temperatures and same type of
cooking. Hot air circulation ensures
instant and uniform distribution of
heat. It will be possible, for instance,
to cook fish, vegetables and biscuits
simultaneously (on different levels)
without mixing odours and flavours.
Defrosting
Rapid defrosting is helped by
switching on the fan provided and
the top heating element that ensure
uniform distribution of low
temperature air inside the oven.

Use
17
EN
• To check whether the dessert is cooked
right through: at the end of the cooking
time, put a toothpick into the highest point
of the dessert. If the dough does not stick
to the toothpick, the dessert is cooked.
• If the dessert collapses when it comes
out of the oven, on the next occasion
reduce the set temperature by about
10°C, selecting a longer cooking time if
necessary.
• While cooking desserts or vegetables,
excessive condensation may form on the
glass. In order to avoid this, open the
door very carefully a couple of times
while cooking.
Advice for defrosting and proving
• Place frozen foods without their
packaging in a lidless container on the
first shelf of the oven.
• Avoid overlapping the food.
• To defrost meat, use the rack placed on
the second level and a tray on the first
level. In this way, the liquid from the
defrosting food drains away from the
food.
• The most delicate parts can be covered
with aluminium foil.
• For successful proving, a container of
water should be placed in the bottom of
the oven.
To save energy
• Stop cooking a few minutes before the
time normally used. Cooking will
continue for the remaining minutes with
the heat which has accumulated inside
the oven.
• Reduce any opening of the door to a
minimum to avoid heat dispersal.
• Keep the inside of the appliance clean
at all times.
3.9 Programmer clock
1 Minute minder timer key
2 Cooking duration key
3 End of cooking key
4 Value decrease key
5 Value increase key
Please make sure the programmer
clock shows the cooking duration
symbol , otherwise the oven will
not switch on.
Press keys and at the same
time to reset the programmer
clock.

Use
18
Setting the time
On the first use, or after a power failure, the
digits will be flashing on the
appliance's display.
1. Press the and keys at the same
time. The dot between the hours and the
minutes flashes.
2. The time can be set using or .
Keep the key pressed in to increase or
decrease rapidly.
3. Press the key or wait 5 seconds. The
dot between the hours and the minutes
stops flashing.
4. The symbol on the display indicates
that the appliance is ready to start
cooking.
Timed cooking
1. After selecting a cooking function and
temperature, press key . The display
will shows the digits and the
symbol displayed between the hours
and the minutes.
2. Use the or key to set the required
minutes.
3. Wait approx. 5 seconds without pressing
any key in order for the function to
activate. The current time and the
symbols and will appear on the
display.
4. At the end of cooking the heating
elements will be deactivated. On the
display, symbol turns off, symbol
flashes and the buzzer sounds.
5. To turn off the buzzer just press any key
of the programmer clock.
6. Press keys and at the same time
to reset the programmer clock.
If the time is not set, the oven will
not switch on.
Timed cooking is the function which
allows a cooking operation to be
started and then ended after a
specific length of time set by the
user.
It is not possible to set a cooking
time of more than 10 hours.
After the setting, to display the
cooking time left press the key.
To reset the set program, press
keys and at the same time
and switch off the oven manually.

Use
19
EN
Programmed cooking
1. Set the cooking time as described in the
previous point “Timed cooking”.
2. Press . The sum of the current time plus
the pre-set cooking duration will appear
on the display.
3. Use the or key to set the required
minutes.
4. Wait approx. 5 seconds without pressing
any key in order for the function to
activate. The current time and the
symbols and will appear on the
display.
5. At the end of cooking the heating
elements will be deactivated. On the
display, symbol turns off, symbol
flashes and the buzzer sounds.
6. To turn off the buzzer just press any key
of the programmer clock.
7. Press keys and at the same time
to reset the programmer clock.
Minute minder timer
The minute minder timer can be activated at
any time.
1. Press . The display shows the digits
and the indicator light
flashing between the hours and the
minutes.
2. Use the or key to set the required
minutes.
3. Wait approx. 5 seconds without pressing
any key to finish setting the minute
minder. The current time and the symbols
and appear on the display.
Adjusting the buzzer volume
The buzzer volume can be set to 3 different
levels. When the buzzer is in operation,
press to change the setting.
Deleting the set data
Press keys and at the same time to
reset the programs set.
Then switch off the oven manually if cooking
is in progress.
Programmed cooking is the
function which allows a cooking
operation to be started at a set
time and then ended after a
specific length of time set by the
user.
After the setting, to display the
cooking time left press the key.
To display the end of cooking time,
press the key.
The minute minder timer does not
stop the cooking operation but
rather informs the user when the set
time has run out.
It is not possible to set a cooking
time of more than 24 hours.
After the minute minder timer has
been programmed, the display will
go back to showing the current
time; to display the remaining time,
press .

Use
20
Cooking information table
Food Weight
(Kg) Function
Runner posi-
tion from the
bottom
Temperature
(°C) Time (minutes)
Lasagne 3 - 4 Static 1 220 - 230 45 - 50
Pasta bake 3 - 4 Static 1 220 - 230 45 - 50
Roast veal 2 Turbo 2 180 - 190 90 - 100
Pork 2 Turbo 2 180 - 190 70 - 80
Sausages 1.5 Fan with grill 4 260 15
Roast beef 1 Turbo 2 200 40 - 45
Roast rabbit 1.5 Circulaire 2 180 - 190 70 - 80
Turkey breast 3 Turbo 2 180 - 190 110 - 120
Roast pork neck 2 - 3 Turbo 2 180 - 190 170 - 180
Roast chicken 1.2 Turbo 2 180 - 190 65 - 70
1st surface 2nd surface
Pork chops 1.5 Fan with grill 4 260 15 5
Spare ribs 1.5 Fan with grill 4 260 10 10
Bacon 0.7 Grill 5 250 - 260 7 8
Pork fillet 1.5 Fan with grill 4 250 - 260 10 5
Beef fillet 1 Grill 5 250 - 260 10 7
Salmon trout 1.2 Turbo 2 150 - 160 35 - 40
Monkfish 1.5 Turbo 2 160 60 - 65
Turbot 1.5 Turbo 2 160 45 - 50
Pizza 1 Turbo 2 260 8 - 9
Bread 1 Circulaire 2 190 - 200 25 - 30
Focaccia 1 Turbo 2 180 - 190 20 - 25
Bundt cake 1 Circulaire 2 160 55 - 60
Jam tart 1 Circulaire 2 160 35 - 40
Ricotta cake 1 Circulaire 2 160 - 170 55 - 60
Jam tarts 1 Turbo/Circulaire 2 160 20 - 25
Paradise cake 1.2 Circulaire 2 160 55 - 60
Profiteroles 1.2 Turbo/Circulaire 2 180 80 - 90
Sponge cake 1 Circulaire 2 150 - 160 55 - 60
Rice pudding 1 Turbo/Circulaire 2 160 55 - 60
Brioches 0.6 Circulaire 2 160 30 - 35
The times indicated in the table do not include preheating times and are provided as a guide only.

Cleaning and maintenance
21
EN
4 Cleaning and maintenance
4.1 Instructions
4.2 Cleaning the appliance
To keep the oven surfaces in good
condition, they should be cleaned regularly
after use. Let them cool first.
Ordinary daily cleaning
Always use only specific products that do
not contain abrasives or chlorine-based
acids.
Dirt which may have fallen on the hob
while cleaning lettuce or potatoes can
scratch the hob when moving pans.
Consequently, remove any dirt from the
cooking surface immediately.
Pour the product onto a damp cloth and
wipe the surface, rinse thoroughly and dry
with a soft cloth or a microfibre cloth.
Food stains or residues
Do not use metallic sponges or sharp
scrapers as they will damage the surfaces.
Use ordinary non-abrasive products with
the aid of wooden or plastic utensils if
necessary. Rinse thoroughly and dry with a
soft cloth or a microfibre cloth.
Do not allow residues of sugary foods (such
as jam) to set inside the oven. If left to set for
too long, they might damage the enamel
lining of the oven.
Cleaning the glass ceramic hob
Smudges from aluminium-based pans can
be easily cleaned off with a cloth
dampened in vinegar.
After cooking, remove any burnt residues
with the provided scraper; rinse with water
and dry thoroughly with a clean cloth.
Regular use of the scraper considerably
reduces the need for chemical detergents
for the daily cleaning of the hob.
Changes in colour do not affect the
operation and stability of the glass. These
are not alterations to the material of the hob
but just residues which have not been
removed and have then carbonised.
Improper use
Risk of damage to surfaces
• Do not use a steam cleaner to clean the
cooker.
• Do not use cleaning products containing
chlorine, ammonia or bleach on steel
parts or parts with metallic finishes on the
surface (e.g. anodizing, nickel- or
chromium-plating).
• Do not use abrasive or corrosive
detergents on glass parts (e.g. powder
products, stain removers and metallic
sponges).
• Do not use harsh abrasive cleaners or
sharp metal scrapers to clean the oven
glass door since they can scratch the
surface, which may result in shattering of
the glass.
• Do not use rough or abrasive materials
or sharp metal scrapers.
• Do not wash the removable
components such as the hob pan stands,
flame-spreader crowns and burner caps
in a dishwasher.

Cleaning and maintenance
22
Shiny surfaces can form due to the bases
of pans, especially aluminium ones, rubbing
on the surface, and due to the use of
unsuitable detergents. They are difficult to
remove using conventional cleaning
products. It may be necessary to repeat the
cleaning process several times. Using
aggressive detergents, or friction with the
base of pans, can wear away the
decoration on the hob over time and
contribute to the formation of stains.
Weekly cleaning
Clean and maintain the hob once a week
using an ordinary glass ceramic cleaning
product. Always follow the manufacturer's
instructions. Silicon in these products creates
a protective, water-repellent membrane
which also resists dirt. All marks stay on the
membrane and can therefore be easily
removed. After cleaning, dry the surface
with a clean cloth. Make sure that there is
no detergent left on the cooking surface as
it might undergo an aggressive reaction
when heated up and could modify the
structure of the cooking surface.
4.3 Removing the door
For easier cleaning, the door can be
removed and placed on a canvas.
To remove the door proceed as follows:
1. Open the door completely and insert two
pins into the holes on the hinges
indicated in the figure.
2. Grasp the door on both sides with both
hands, lift it forming an angle of around
30° and remove it.
3. To reassemble the door, put the hinges in
the relevant slots in the oven, making sure
that grooved sections Aare resting
completely in the slots. Lower the door
and once it is in place remove the pins
from the holes in the hinges.
