Smeg Electric Multifunction Oven SE290X-6 User manual

Index
1. PRECAUTIONS FOR SAFETY AND USE _____________________ 29
2. INSTALLATION _________________________________________ 31

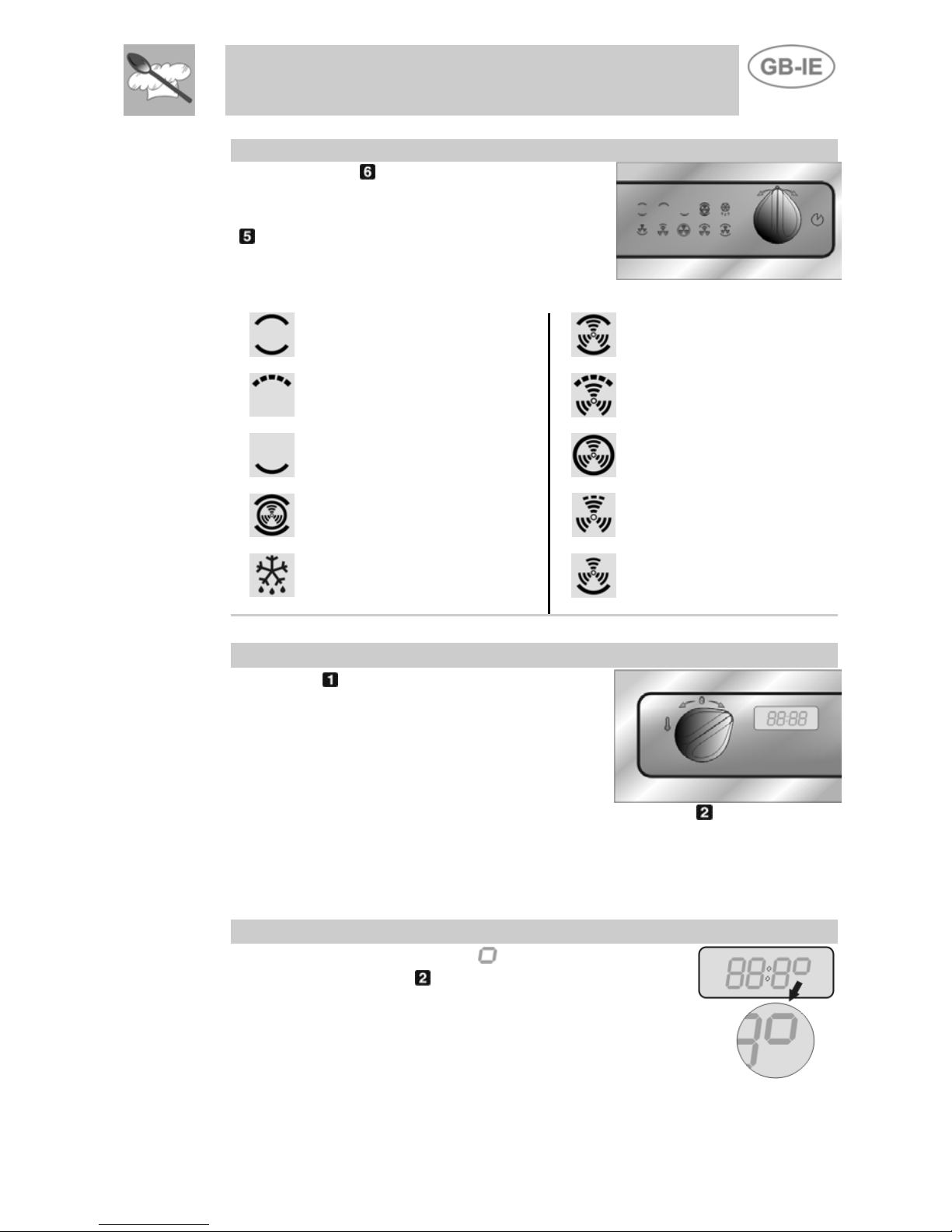

3. DESCRIPTION OF CONTROLS ____________________________ 34
4. USING THE OVEN_______________________________________ 40
5. ACCESSORIES AVAILABLE _______________________________ 41
6. COOKING ADVICE ______________________________________ 42
7. CLEANING AND MAINTENANCE ___________________________ 47
8. EXTRAORDINARY MAINTENANCE _________________________ 51
INSTRUCTIONS FOR THE INSTALLER: these are intended for the
qualified engineer who is to install, commission and test the
appliance.
INSTRUCTIONS FOR THE USER: these provide recommendations for
use, a description of the controls and the correct procedures for
cleaning and maintaining the appliance.
28

Presentation
1. PRECAUTIONS FOR SAFETY AND USE
THIS MANUAL CONSTITUTES AN INTEGRAL PART OF THE APPLIANCE:
TAKE GOOD CARE OF IT AND KEEP IT TO HAND THROUGHOUT THE
OVEN'S LIFE CYCLE. USERS ARE ADVISED TO READ THIS MANUAL AND
ALL THE INSTRUCTIONS IT CONTAINS BEFORE USING THE OVEN.
INSTALLATION MUST BE CARRIED OUT BY QUALIFIED STAFF IN
COMPLIANCE WITH THE RELEVANT REGULATIONS. THIS APPLIANCE IS
INTENDED FOR HOUSEHOLD USE AND COMPLIES WITH THE EEC
DIRECTIVES CURRENTLY IN FORCE. THE APPLIANCE IS BUILT TO
PROVIDE THE FOLLOWING FUNCTION: COOKING AND HEATING FOODS;
ALL OTHER USES ARE TO BE CONSIDERED IMPROPER.
THE MANUFACTURER DECLINES ALL LIABILITY FOR USES OTHER THAN
THOSE STATED ABOVE.
NEVER LEAVE PACKAGING RESIDUES UNATTENDED IN THE HOME.
SEPARATE THE VARIOUS PACKAGING MATERIALS BY TYPE AND
CONSIGN THEM TO THE NEAREST SEPARATE DISPOSAL CENTRE.
THE APPLIANCE MUST BE CONNECTED TO EARTH IN COMPLIANCE WITH
ELECTRICAL SYSTEM SAFETY REGULATIONS.
IF THE MAIN ELECTRICAL CONNECTION IS TO BE MADE BY MEANS OF A
PLUG AND SOCKET, THEY MUST BOTH BE OF THE SAME TYPE AND MUST
BE CONNECTED TO THE POWER SUPPLY LEAD IN ACCORDANCE WITH
THE RELEVANT REGULATIONS.
THE POWER SUPPLY SOCKET MUST BE ACCESSIBLE EVEN AFTER THE
APPLIANCE HAS BEEN BUILT-IN.
NEVER DISCONNECT THE PLUG BY PULLING ON THE POWER SUPPLY
LEAD.
NEVER OBSTRUCT THE OPENINGS AND SLITS PROVIDED FOR
VENTILATION AND HEAT DISPERSAL.
IMMEDIATELY AFTER INSTALLATION, CARRY OUT A QUICK TEST ON THE
OVEN FOLLOWING THE INSTRUCTIONS PROVIDED LATER IN THIS
MANUAL. IF THE APPLIANCE FAILS TO OPERATE, DISCONNECT IT FROM
THE ELECTRICAL MAINS AND CONTACT YOUR NEAREST SERVICE
CENTRE.
NEVER ATTEMPT TO REPAIR THE APPLIANCE YOURSELF.
29

Presentation
EVER PLACE INFLAMMABLE OBJECTS IN THE OVEN: IF IT SHOULDN
ACCIDENTALLY BE SWITCHED ON, THIS MIGHT CAUSE A FIRE.
THE APPLIANCE BECOMES VERY HOT DURING USE. TAKE CARE NOT TO
TOUCH THE HEATING ELEMENTS INSIDE THE OVEN.
THE NAMEPLATE WITH THE TECHNICAL DATA, SERIAL NUMBER AND
MARK IS IN A VISIBLE POSITION ON THE OVEN DOOR FRAME.
THE NAMEPLATE MUST NEVER BE REMOVED.
HE APPLIANCE IS INTENDED FOR USE BY ADULTS. KEEP CHILDREN ATT
A SAFE DISTANCE AND NEVER ALLOW THEM TO PLAY WITH IT.
THIS APPLIANCE IS TAGGED UNDER EUROPEAN DIRECTIVE 2002/96/EC
ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE).
THIS DIRECTIVE CONTAINS THE REGULATIONS GOVERNING THE
COLLECTION AND RECYCLING OF DECOMMISSIONED APPLIANCES
THROUGHOUT THE EUROPEAN UNION.
BEFORE THE APPLIANCE IS PUT INTO OPERATION, ALL THE LABELS AND
PROTECTIVE FILMS APPLIED INSIDE OR OUTSIDE MUST BE REMOVED.
The manufacturer declines all responsibility for injury or damage
caused by failure to comply with the above regulations or deriving from
tampering with even just one part of the appliance and the use of non-
original spare parts.
30

Instructions for the Installer
2. INSTALLATION
2.1 Electrical connection
Check that the power supply voltage and size are as specified on the
nameplate on the oven door frame. This nameplate must never be
removed.
The appliance must be connected to earth in compliance with electrical
system safety regulations.
If a socket and plug connection is used, check that they are of the same
type. Do not use reducers, adapters or junctions since they may cause
overheating or burns.
If a permanent connection is used, the appliance's power supply line
must be fitted with an omnipolar breaking device with contact gap of at
least 3 mm, located in an easily accessible position close to the
appliance itself.
Operation at 220-240 V ∼ use a type
H05RR-F or H05RN-F three-wire cable
(cable of 3 x 1.5 mm2).
The earth wire (yellow-
g
reen) must be at
least 20 mm longer than the other wires at
the end for connection to the appliance.
31

Instructions for the Installer
2.2 Positioning the oven

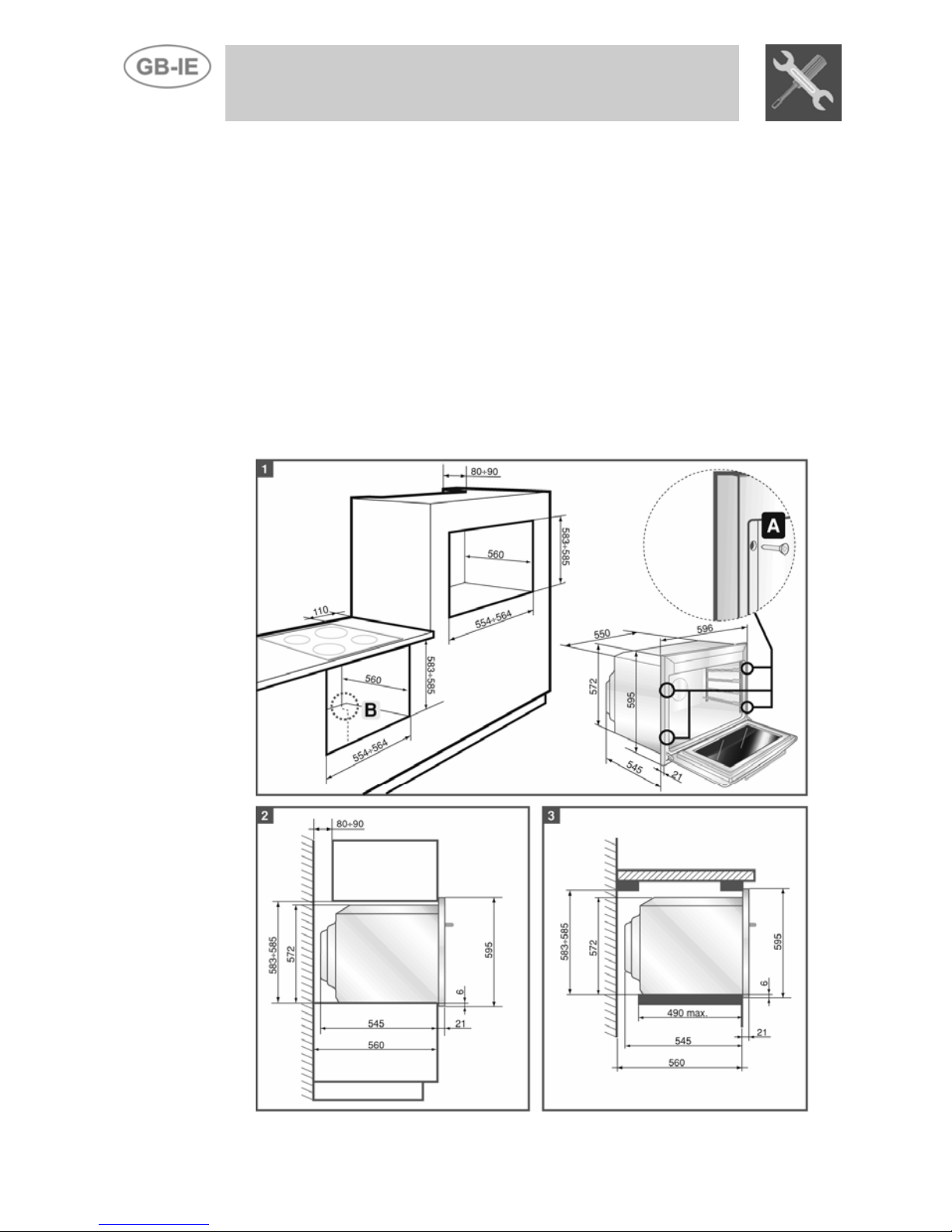

The appliance is designed for building-in to cabinets made from any heat-
resistant material. Comply with the dimensions shown in figures 1, 2, and 3.
When installing under worktops, comply with the dimensions shown in figure
1-3.
When installing under worktops incorporating combined hobs, a gap of at
least 110 mm must be left from any side wall, as shown in figure 1.
When installing in tall units, comply with the dimensions shown in figure 1-2,
bearing in mind that the top/rear of the unit must have an opening 80-90 mm
deep.
Screw the 4 screws Ainto the inside of the frame (fig. 1).
For installation under tops, make sure that the rear/bottom of the unit has an
opening similar to that shown in figure 1(ref. B). See the instructions supplied
with the hob for the relative positioning and fixing procedures.
