Smeg SI800AO User manual

33
Table of Contents
INSTRUCTIONS FOR THE USER: these provide recommendations for
use, a description of the controls and the correct procedures for cleaning
and maintaining the appliance
INSTRUCTIONS FOR THE INSTALLER: these are intended for the
qualified engineer who is to install, commission and test the appliance
1. PRECAUTIONS FOR USE ................................................................... 34
2. DISPOSAL INSTRUCTIONS - OUR ENVIRONMENT POLICY ........... 35
3. SAFETY PRECAUTIONS ..................................................................... 36
4. GET TO KNOW YOUR OVEN .............................................................. 37
5. BEFORE INSTALLATION..................................................................... 37
6. DESCRIPTION OF FRONT PANEL CONTROLS ................................ 38
7. USING THE OVEN ............................................................................... 45
8. ACCESSORIES AVAILABLE................................................................ 47
9. COOKING ADVICE............................................................................... 48
10. CLEANING AND MAINTENANCE ........................................................ 54
11. EXTRAORDINARY MAINTENANCE .................................................... 57
12. INSTALLING THE APPLIANCE............................................................ 59

34
Precautions for Use
1. PRECAUTIONS FOR USE
THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE. TAKE GOOD CARE
OF IT AND KEEP IT TO HAND THROUGHOUT THE OVEN'S LIFE CYCLE.
WE URGE YOU TO READ THIS MANUAL AND ALL THE INFORMATION IT
CONTAINS CAREFULLY BEFORE USING THE APPLIANCE. INSTALLATION
MUST BE CARRIED OUT BY QUALIFIED STAFF IN COMPLIANCE WITH THE
RELEVANT REGULATIONS. THIS APPLIANCE IS INTENDED FOR HOUSEHOLD
USE AND COMPLIES WITH THE EEC DIRECTIVES CURRENTLY IN FORCE.
THE APPLIANCE IS BUILT TO PROVIDE THE FOLLOWING FUNCTION:
COOKING AND HEATING FOODS; ALL OTHER USES ARE TO BE
CONSIDERED IMPROPER.
THE MANUFACTURER DECLINES ALL LIABILITY FOR USES OTHER THAN
THOSE STATED ABOVE.
NEVER USE THIS APPLIANCE FOR HEATING ROOMS.
NEVER USE PACKAGING RESIDUES UNATTENDED IN THE HOME.
SEPARATE THE VARIOUS PACKAGING MATERIALS BY TYPE AND CONSIGN
THEM TO THE NEAREST SEPARATE DISPOSAL CENTRE.
THIS APPLIANCE IS MARKED ACCORDING TO THE EUROPEAN DIRECTIVE
2002/96/EC ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE).
THIS GUIDELINE IS THE FRAME OF A EUROPEAN-WIDE VALIDITY OF
RETURN AND RECYCLING ON WASTE ELECTRICAL AND ELECTRONIC
EQUIPMENT.
NEVER OBSTRUCT THE OPENINGS AND SLITS PROVIDED FOR
VENTILATION AND HEAT DISPERSAL.
THE NAMEPLATE WITH THE TECHNICAL DATA, SERIAL NUMBER AND MARK
ARE IN A VISIBLE POSITION ON THE OVEN DOOR FRAME.
THE NAMEPLATE MUST NEVER BE REMOVED.
NEVER USE METAL SCOURING PADS OR SHARP SCRAPERS;
THEY WILL DAMAGE SURFACES.
USE ORDINARY NON-ABRASIVE PRODUCTS WITH THE AID OF
WOODEN OR PLASTIC UTENSILS IF NECESSARY. RINSE
THOROUGHLY AND DRY WITH A SOFT CLOTH OR CHAMOIS
LEATHER.
DO NOT ALLOW SPILLS OF FOODS WITH HIGH SUGAR CONTENT
(E.G. JAM) TO DRY INSIDE THE OVEN. IF THEY DRY FOR TOO
LONG, THEY MIGHT DAMAGE THE ENAMEL COATING OF THE
INSIDE OF THE OVEN.

35
Disposal instructions
2. DISPOSAL INSTRUCTIONS - OUR ENVIRONMENT
POLICY
Our products are only packaged using non-pollutant, environment-friendly,
recyclable materials. We urge you to cooperate by disposing of the
packaging properly. Contact your local dealer or the competent local
organisations for the addresses of collection, recycling and disposal
facilities.
Never leave all or part of the packaging lying around. Packaging parts, and
especially plastic bags, may represent a suffocation hazard for children.
Your old appliance must also be disposed of properly.
Important: deliver the appliance to your local organisation authorised to
collect scrapped appliances. Proper disposal allows the intelligent
recovery of valuable materials.
Before scrapping your appliance it is important to remove doors and leave
shelves in position as for use, to ensure that children cannot accidentally
become trapped inside the oven during play. Also, cut the power supply
lead and remove it and the plug.

36
Safety Precautions
3. SAFETY PRECAUTIONS
SEE INSTALLATION INSTRUCTIONS FOR SAFETY REGULATIONS FOR
ELECTRIC OR GAS APPLIANCES AND FOR VENTILATION FUNCTIONS.
IN YOUR INTEREST AND TO ENSURE YOUR SAFETY, BY LAW ALL ELECTRIC
APPLIANCES MUST ONLY BE INSTALLED AND SERVICED BY QUALIFIED
STAFF, IN ACCORDANCE WITH THE RELEVANT REGULATIONS.
OUR APPROVED INSTALLATION ENGINEERS GUARANTEE YOU A JOB WELL
DONE.
GAS OR ELECTRIC APPLIANCES MUST ALWAYS BE DISCONNECTED BY
SUITABLY SKILLED PEOPLE.
THE PLUG TO BE CONNECTED TO THE POWER SUPPLY LEAD AND THE
RELATIVE SOCKET MUST BE OF THE SAME TYPE AND COMPLY WITH THE
RELEVANT REGULATIONS.
THE POWER SUPPLY SOCKET MUST BE ACCESSIBLE EVEN AFTER THE
APPLIANCE HAS BEEN BUILT-IN.
NEVER DISCONNECT THE PLUG BY PULLING ON THE POWER SUPPLY
LEAD.
THE APPLIANCE MUST BE CONNECTED TO EARTH IN COMPLIANCE WITH
ELECTRICAL SYSTEM SAFETY REGULATIONS.
IMMEDIATELY AFTER INSTALLATION, CARRY OUT A QUICK TEST ON THE
APPLIANCE FOLLOWING THE INSTRUCTIONS PROVIDED LATER IN THIS
MANUAL. IF THE APPLIANCE FAILS TO OPERATE, DISCONNECT IT FROM
THE ELECTRICAL MAINS AND CONTACT YOUR NEAREST SERVICE CENTRE.
NEVER ATTEMPT TO REPAIR THE APPLIANCE.
NEVER PLACE FLAMMABLE OBJECTS IN THE OVEN: IF IT SHOULD
ACCIDENTALLY BE SWITCHED ON, THIS MIGHT CAUSE A FIRE.
THE APPLIANCE BECOMES VERY HOT DURING USE. TAKE CARE NOT TO
TOUCH THE HEATING ELEMENTS INSIDE THE OVEN.
THE APPLIANCE IS INTENDED FOR USE BY ADULTS. KEEP CHILDREN AT A
SAFE DISTANCE AND NEVER ALLOW THEM TO PLAY WITH IT.
WHEN THE GRILL IS IN OPERATION, ACCESSIBLE PARTS MAY BECOME
VERY HOT: KEEP CHILDREN AT A SAFE DISTANCE.
BEFORE THE APPLIANCE IS PUT INTO OPERATION, ALL THE LABELS AND
PROTECTIVE FILMS APPLIED INSIDE OR OUTSIDE MUST BE REMOVED.
AFTER EACH USE, ALWAYS CHECK THAT THE CONTROL KNOBS ARE
TURNED TO 0 (OFF).
The manufacturer declines all responsibility for injury or damage caused
by failure to comply with the above regulations or deriving from tampering
with even just one part of the appliance and the use of non-original spare
parts.

37
Instructions for the User

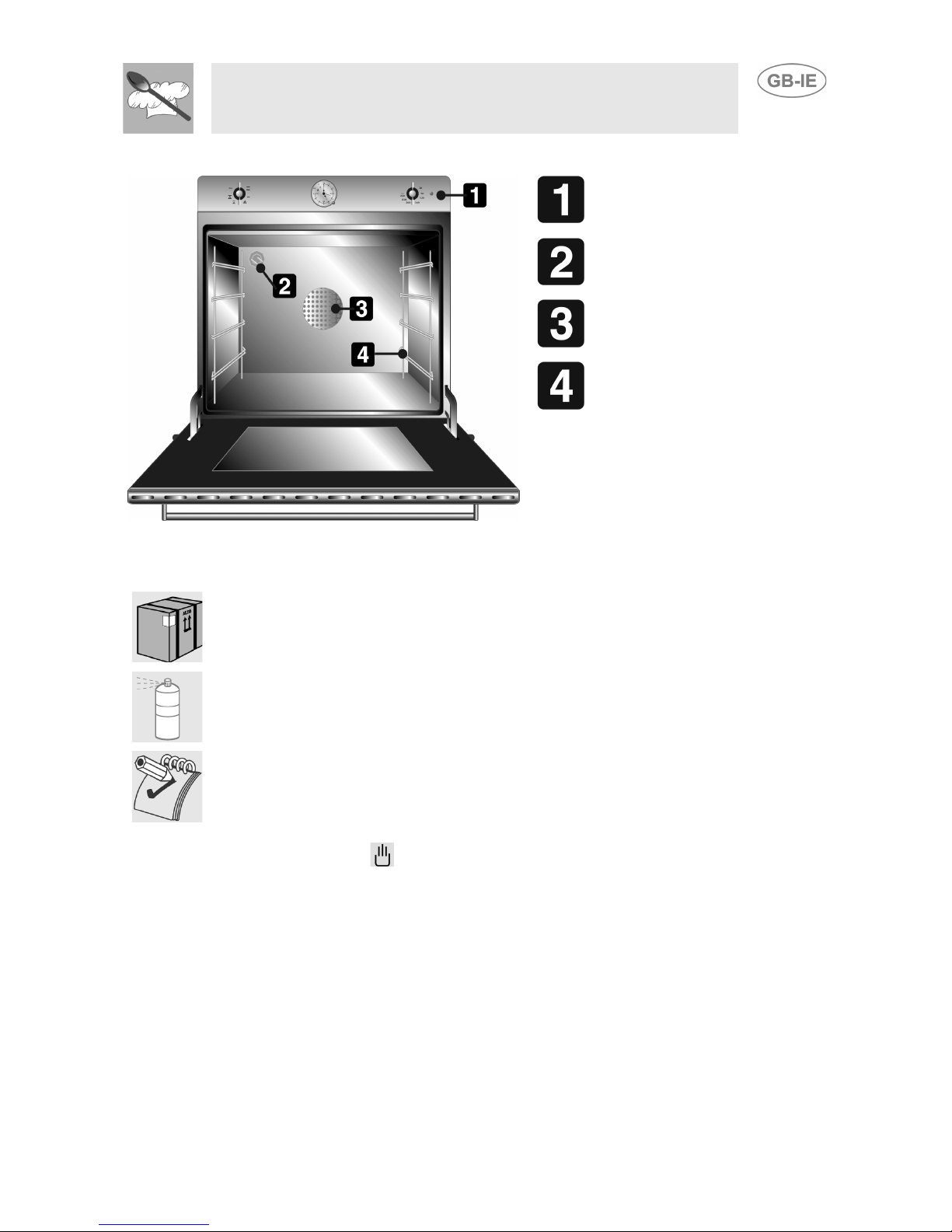

4. GET TO KNOW YOUR OVEN
5. BEFORE INSTALLATION
CONTROL PANEL
OVEN LIGHT
HOT AIR FAN (ON SOME
MODELS ONLY)
SHELF AND TRAY RUNNERS
Never leave packaging residues unattended in the home. Separate waste
packaging materials by type and consign them to the nearest separate
disposal centre.
The inside of the appliance should be cleaned to remove all manufacturing
residues. For further information, see "10. CLEANING AND
MAINTENANCE".
When the oven and grill are used for the first time, they should be heated
to the maximum temperature for long enough to burn off any oily residues
left by the manufacturing process, which might contaminate foods with
unpleasant smells. Before operating the oven, make sure the clock has
been turned to the “Manual cooking” setting. (See points “6.2.2 Manual
cooking” and “6.3.5 Manual cooking”.

38
Instructions for the User
6. DESCRIPTION OF FRONT PANEL CONTROLS
All the cooker's control and monitoring devices are placed together on the
front panel. The table below provides the key to the symbols used.

39
Instructions for the User
FUNCTION SELECTOR KNOB (STATIC OVEN)
The cooking temperature is selected by turning the
knob clockwise to the value required, between 50°
and 250°C. For different heating effects, users can
switch on only the bottom heating element ( ) or
only the grill element ( ).
At the end of the knob rotation scale, the symbol switches on the
rotisserie motor and the grill top heating element.
THERMOSTAT KNOB (MULTIFUNCTION OVEN)
The cooking temperature is selected by turning the
knob clockwise to the value required, between 50°
and 250°C
THERMOSTAT LIGHT
Illuminates to indicate that the oven is heating up. Goes out
when the set temperature is reached; flashes at regular
intervals to indicate that the temperature inside the oven is
being kept constantly at the set level.

40
Instructions for the User
FUNCTION SELECTOR KNOB
Turn the knob either way to select one of the
following functions:
NO FUNCTION SET THAWING
INSIDE LIGHT (NO HEATING
ELEMENTS ON)
TOP+BOTTOM HEATING
ELEMENTS+FAN
TOP+BOTTOM HEATING
ELEMENTS
GRILL ELEMENT + FAN
GRILL ELEMENT IN OPERATION
ALTERNATING WITH BOTTOM
HEATING ELEMENT + FAN
FAN HEATING ELEMENT
WIDE GRILL ELEMENT SMALL GRILL ELEMENT + FAN
BOTTOM HEATING ELEMENT BOTTOM HEATING ELEMENT +
FAN
GRILL ELEMENT TOP+BOTTOM HEATING
ELEMENTS + FAN HEATING
ELEMENT
FAN HEATING ELEMENT

41
Instructions for the User
HOB CONTROL KNOB
Used to regulate heating of the hob by turning the knob
clockwise to the required setting, between 2 and 12.
DUAL HEATING HOB CONTROL KNOB
Used to regulate heating of the hob in
dual heating zones. Turning the knob
clockwise to between 2 and 12 heats
only the smaller diameter area. Turning
the knob
to the or symbol and releasing it (it returns to 12 ) heats both the
larger and smaller diameter areas. To regulate the heating level, turn the
knob anti-clockwise to the setting required. To return to heating of the
smaller diameter area only, turn the knob to
0 and then to between 2 and 12 .
6.1 Clock + minute minder
6.1.1 Minute minder button
To set the correct time, press or pull (depending on models) the knob Aand
turn it clockwise.
6.1.2 Minute minder
To set it, turn the knob Ain either direction until the hand is on the time
required (max. 55 minutes). Once the time set is over, a buzzer will sound.
To stop it, move the hand back to the symbol by turning the knob A.
When the buzzer sounds the oven is not automatically switched off.

42
Instructions for the User
6.2 Clock + end of cooking minute minder
Enables manual cooking or the timer to be selected, or the cooking time to
be set.
Knob A must always be turned CLOCKWISE.
Select the function and cooking temperature before setting the cooking
time.
6.2.1 Setting the time
To set the correct time, PULL OUT knob A and turn it clockwise.
6.2.2 Manual cooking
To use the oven with manual cooking, turn knob A clockwise until pointer B
is aligned with .
6.2.3 Timed cooking:
To set the cooking time, turn knob A clockwise until pointer B reaches the
desired length of
time (maximum 180 minutes).
6.2.4 End of cooking
The oven will switch off automatically and simultaneously a buzzer will
start to sound.
6.2.5 Stopping the buzzer
To switch off the buzzer, turn knob A clockwise until pointer B is aligned
with .

43
Instructions for the User
6.3 Analogue programmer
Allows selection of manual cooking or the minute minder function, or
setting of the cooking start and end times.
6.3.1 Setting the time
To set the correct time, press or pull the knob A(depending on the model)
and turn it anticlockwise.
6.3.2 Semiautomatic cooking
This function only switches the oven off automatically at the end of the
cooking time (maximum programmable time 3 hours and 30 minutes).
1 Turning the outer knob B clockwise will start to move the inner disc; the
red hand C must be on the end of cooking time required.
2 Turning the outer knob B anticlockwise will regulate the size of the red
zone D which must correspond to the current time on the clock
(cooking start).
At the end of the set time, the oven will switch off automatically, an 0 will
appear in the window E while a buzzer will also sound: to stop it, turn the
outer knob B clockwise until the symbol appears in window E.

44
Instructions for the User
6.3.3 Automatic cooking
This setting allows the oven to be switched on and off in fully automatic
mode (maximum programmable time 3 hours and 30 minutes).
3 Turning the outer knob Bclockwise will start to move the inner disc; the
red hand C must be on the end of cooking time required.
4 Turning the outer knob B anticlockwise will regulate the size of the red
zone D corresponding to the cooking duration; the point where the
knob B is released corresponds to the cooking start time.
At the end of the set time, the oven will switch off automatically, an 0 will
appear in the window E while a buzzer will also sound: to stop it, turn the
outer knob B clockwise until the symbol appears in window E.
6.3.4 MInute minder
The minute minder can be used on its own or together with the
programmer. To set it, turn the inner knob A clockwise until the hand is in
line with the time required (up to 55 minutes). After the set time, the buzzer
starts to sound: to stop it, turn the inner knob A anticlockwise until the
hand is on the symbol.
The buzzer does not stop operation of the oven.
6.3.5 Manual cooking
To use the oven in manual mode without time limits, bring the symbol
into window Eby turning the outer knob B.

45
Instructions for the User
7. USING THE OVEN
Before operating the oven, make sure the clock has been turned to the
“Manual cooking” setting. (See points “6.2.2 Manual cooking” and “6.3.5
Manual cooking”

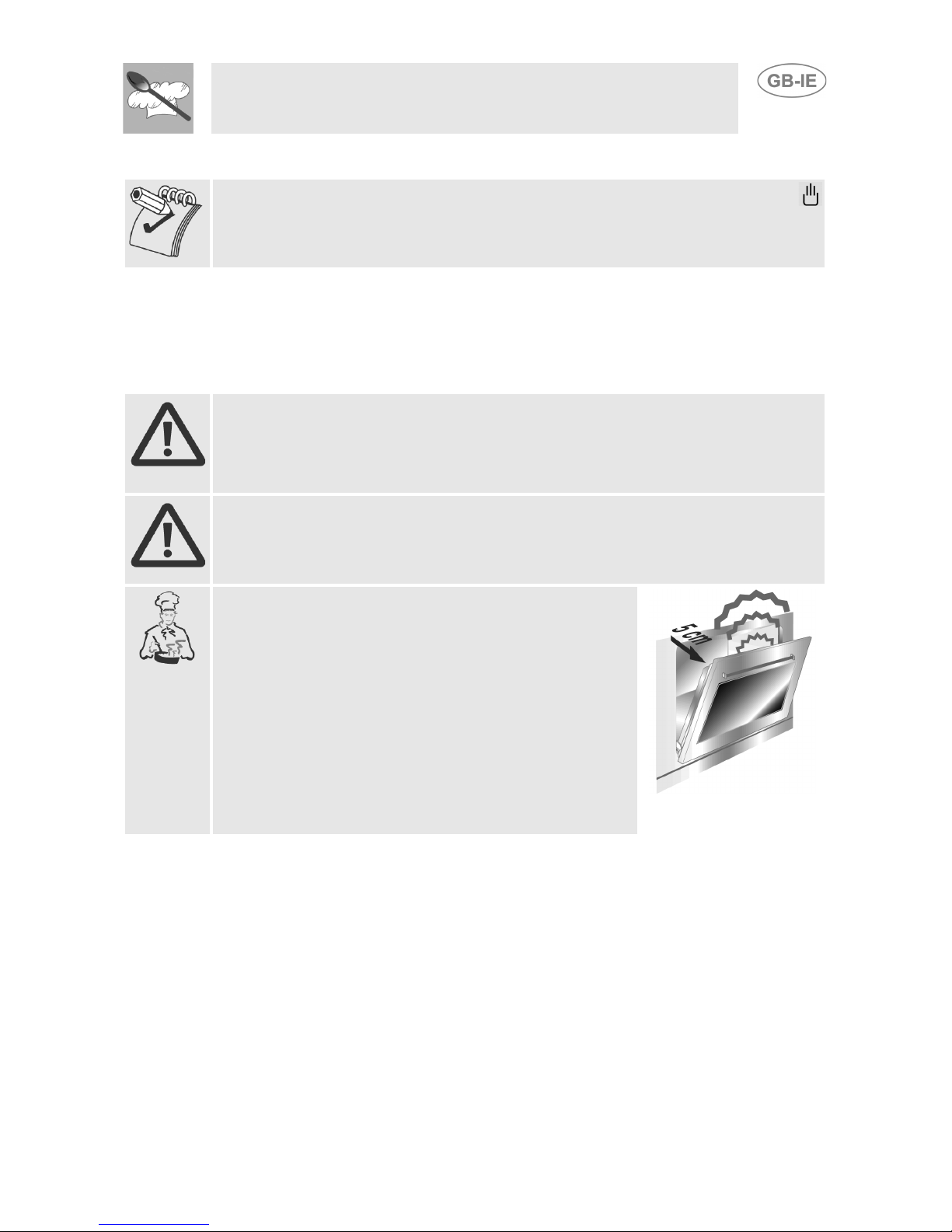

7.1 Precautions and General Advice
When the oven and grill are used for the first time, they should be heated
to the maximum temperature for long enough to burn off any oily residues
left by the manufacturing process, which might contaminate foods with
unpleasant smells.
During cooking, do not cover the bottom of the oven with aluminium or tin
foil, and do not place pans or oven dishes on it; this may damage the
enamel coating. If you wish to use greaseproof paper, position it so that it
does not interfere with the hot air circulation inside the oven.
Oven accessories which may come into contact with foods are made from
materials compliant with EEC directive 89/109 of 21/12/88 and national
relevant regulations.
To avoid unpleasant contact with any steam inside
the oven, open the door in two stages; hold it open
just a little (about 5 cm) for 4-5 seconds, then open
it completely. If you have to check or carry out
other procedures on food during cooking, leave the
door open for as short a time as possible to prevent
a drop in the oven temperature which will impair
the cooking results. When the door is opened the
oven's internal fan cuts out automatically; it starts
up again when the door is closed.

46
Instructions for the User

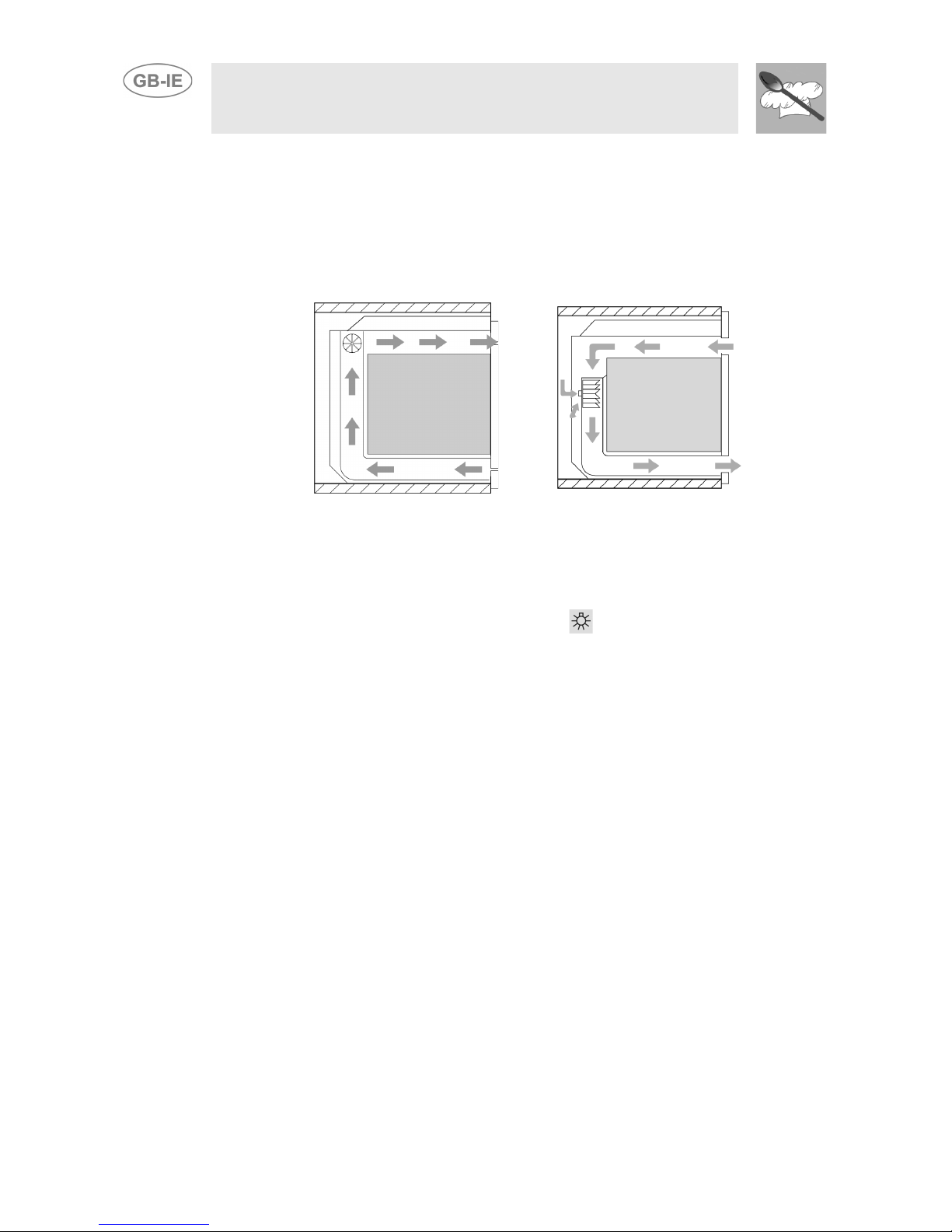

7.2 Cooling fan system (on some models only)
The appliance is equipped with a cooling system which comes into
operation a few minutes after the oven is switched on. The operation of the
fans generates a normal air flow which comes out above (Fig 1) or below
(Fig 2) the door depending on the model, and may continue for a short
time even after the oven is switched off.
1) 2)
7.3 Inside light (Depending on models)
Depending on the model, the oven light switches on:
• when the oven door is opened, or;
• when function knob is turned to any function, or;
• when the function knob is turned to the symbol.

47
Instructions for the User
8. ACCESSORIES AVAILABLE
The oven is fitted with 4 runners for placing
trays and shelves at different heights.
Shelf: useful to support pans containing the
food for cooking.
Tray grid: for placing on top of a tray for
cooking foods which may drip.
Oven tray: useful for collecting fat from foods
placed on the grid above.
Pastry tray: useful for cooking cakes, pizza
and confectionery.
Roof liner: remove it to simplify cleaning
inside the oven.
Rotisserie shelf (models with static oven
only): for fitting onto the oven runners before
the rotisserie rod is used.
Rotisserie rod (models with static oven
only): useful for cooking chicken, sausages
and all foods which require uniform cooking
over their entire surface.
Chromium-plated gripper: useful for
removing hot shelves and trays.
Not all accessories are provided on some models.
Optional accessories
Original accessories can be ordered through our Authorised Service
Centres.

48
Instructions for the User
9. COOKING ADVICE
The oven should always be preheated in fan mode to 30/40°C above the
cooking temperature. This considerably shortens cooking times and
reduces electricity consumption, as well as giving better results.
The oven door must be closed during cooking operations.

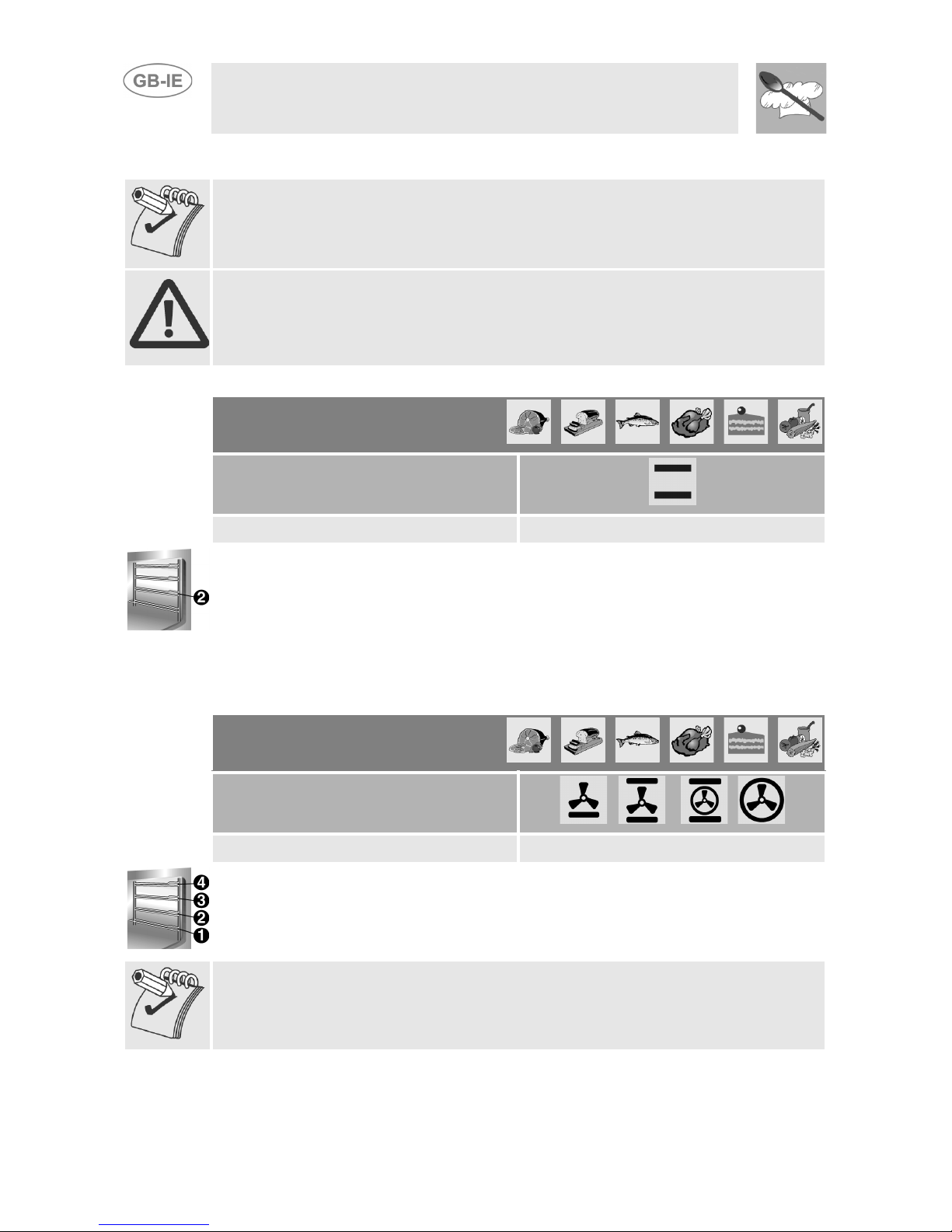

9.1 Conventional cooking
FUNCTION SELECTOR
THERMOSTAT 50 ÷ 250 °C
This conventional cooking method, with heat from above and below, is
suitable for cooking food on just one shelf. The oven must be preheated to
the chosen temperature. Do not place the food in the oven until the
thermostat light goes out. Place frozen meat in the oven directly, without
thawing. The only precaution required is to set temperatures about 20°C
lower and cooking times about 1/4 longer than for fresh meat.
9.2 Hot air cooking
FUNCTION SELECTOR
THERMOSTAT 50 ÷ 250 °C
This system is suitable for cooking on several shelves, even with foods of
different kinds (fish, meat, etc.) without cross-contamination of flavours or
smells. The air circulation inside the oven ensures uniform heat
distribution.
Multiple cooking is possible provided that all foods require the same
temperature.

49
Instructions for the User
9.3 Delicate cooking
FUNCTION SELECTOR
THERMOSTAT 50 ÷ 250 °C
This type of cooking, for which it is extremely important to preheat the
oven in fan mode, is particularly suitable for finishing cooking of foods
underneath, or for processes which require heat mainly from below. The
tray should be placed on the bottom runner.
9.4 Grilling
FUNCTION SELECTOR
THERMOSTAT
Used for quick browning of foods. For short processes and small amounts,
place the shelf on the fourth runner from the bottom. For longer cooking
times and grilling, place the shelf on lower runners, depending on the size
of the food.
Keep the door closed during grilling. Grilling with the door open may
permanently damage the oven and reduce operating safety.

50
Instructions for the User
9.5 Hot air grilling
FUNCTION SELECTOR
THERMOSTAT 200 °C
Allows uniform heat distribution with better penetration to the core of
foods. Foods are lightly browned on the outside but still soft on the inside.
During cooking the oven door must be closed, and the maximum heating
time must not exceed 60 minutes.
Keep the door closed during grilling. Grilling with the door open may
permanently damage the oven and reduce operating safety.
9.6 Thawing
FUNCTION SELECTOR
THERMOSTAT 0
The air movement provided by the hot air fan alone thaws foods more
quickly. The air circulating inside the oven is at room temperature.
Thawing at room temperature has the advantage that the food's flavour
and appearance are retained intact.

51
Instructions for the User
9.7 Rotisserie cooking (models with static oven only)
THERMOSTAT
Prepare the rotisserie rod with the food, tightening the screws A of the
prongs. Fit the shelf B onto the third runners from the bottom. Remove the
handle D and position the rotisserie rod so that the pulley E is still in the
guides on the shelf B. Push the shelf B fully in until the tip of the rotisserie
rod enters the hole C on the rear of the oven. Place a drip tray F on the
bottom runner and pour a little water into it to prevent smoke from forming.
It is normal for the thermostat light to switch on and off at regular intervals
during cooking; it indicates that the temperature inside the oven is being
kept constant.

52
Instructions for the User
9.8 Recommended cooking tables
Cooking times, for meat in particular, vary depending on the food's
thickness and quality and personal preference. All times are calculated
with the oven preheated.
CONVENTIONAL COOKING
RUNNER POSITION FROM
THE BOTTOM
TEMPERATURE
°C.
TIME IN MINUTES
PASTA
LASAGNE
PASTA BAKES
2 - 3
2 - 3
210 - 230
210 - 230
30
40
MEAT
ROAST VEAL
ROAST BEEF
ROAST PORK
CHICKEN
DUCK
GOOSE-TURKEY
RABBIT
LEG OF LAMB
2
2
2
2
2
2
2
2
170 - 200
210 - 240
170 - 200
170 - 200
170 - 200
140 - 170
170 - 200
170 - 200
30 - 40 PER Kg.
30 - 40 PER Kg.
30 - 40 PER Kg.
45 - 60
45 - 60
45 - 60
50 - 60
40 - 50
FISH 1 - 2 170 - 200 Depending on size
PIZZA 1 - 2 210 - 240 40 - 45
CONFECTIONERY
PASTRY
SPONGE CAKE
CROISSANTS
FRUIT CAKE
ANGEL CAKE
APPLE CAKE
RICE CAKE
1 - 2
1 - 2
1 - 2
1 - 2
1 - 2
1 - 2
1 - 2
170 - 200
165
170 - 200
170 - 200
170
190
180
15 - 20
35 - 45
40 - 45
20 - 30
60
60
60
GRILLING
RUNNER POSITION
FROM THE BOTTOM
TIME IN MINUTES
1ST SIDE 2ND SIDE
PORK CHOP
PORK FILLET
FILLET STEAK
SLICED LIVER
VEAL ESCALOPES
HALF CHICKEN
SAUSAGE
MEATBALLS
FISH FILLET
TOASTED SANDWICHES
4
3
3
4
4
3
4
4
4
4
7 - 9
9 - 11
9 - 11
2 - 3
7 - 9
9 - 14
7 - 9
7 - 9
5 - 6
2 - 4
5 - 7
5 - 9
9 - 11
2 - 3
5 - 7
9 - 11
5 - 6
5 - 6
3 - 4
2 - 3
