Smeg Oven PIRO10NE User manual

Contents
27
7.2 DOOR GLASS ____________________________________________ 46
1. Preliminary instructions ____________________________________ 29
1.1 DISPOSING OF PACKAGING __________________________________ 30
1.2 DISPOSING OF OLD APPLIANCES ______________________________ 30
2. Description of controls_____________________________________ 31
2.1 FRONT CONTROL PANEL ____________________________________ 31

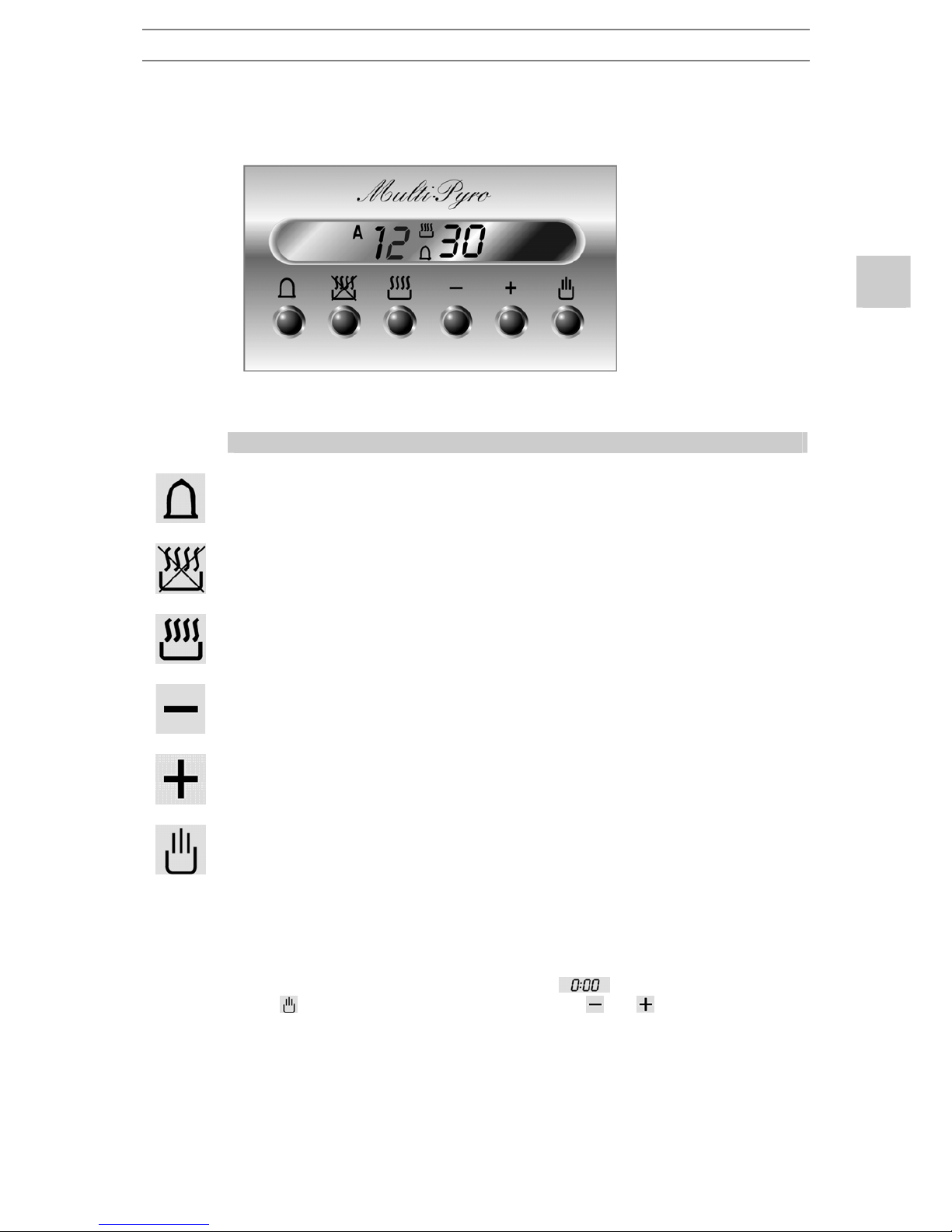

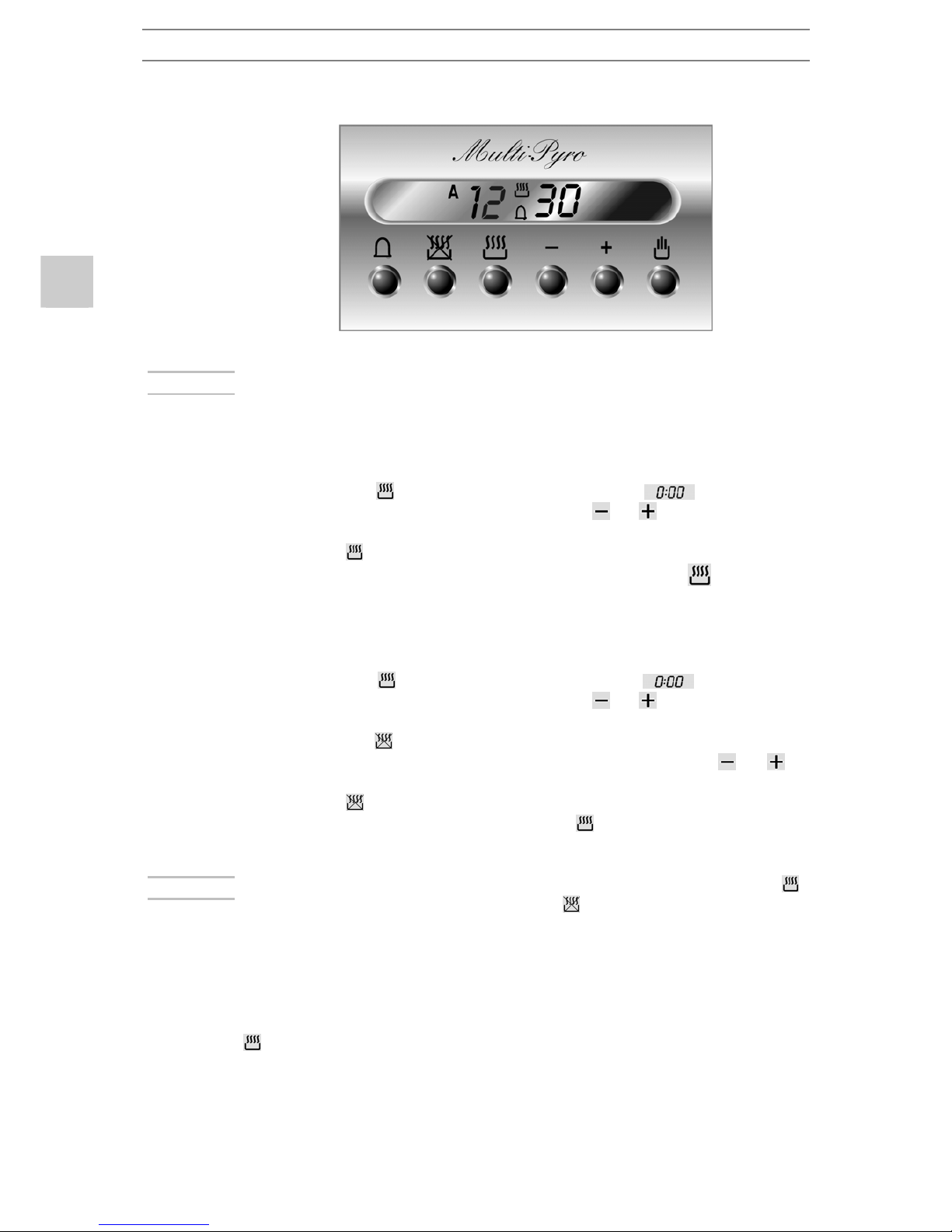

2.2 ELECTRONIC PROGRAMMER _________________________________ 33

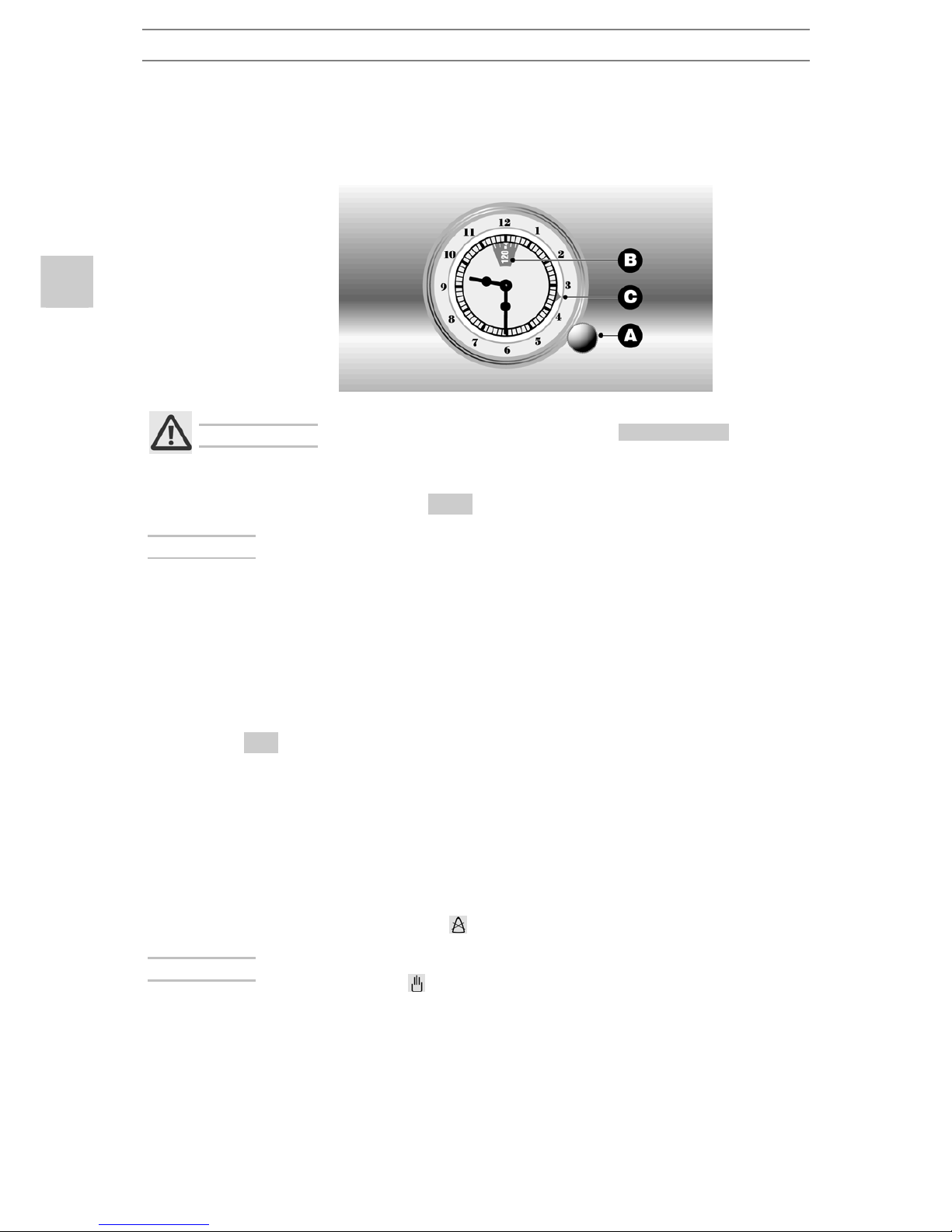

2.3 CLOCK AND PROGRAMMER __________________________________ 36
3. Using the oven ___________________________________________ 37
3.1 WARNINGS AND GENERAL ADVICE _____________________________ 37
3.2 OVEN LIGHT ____________________________________________ 37

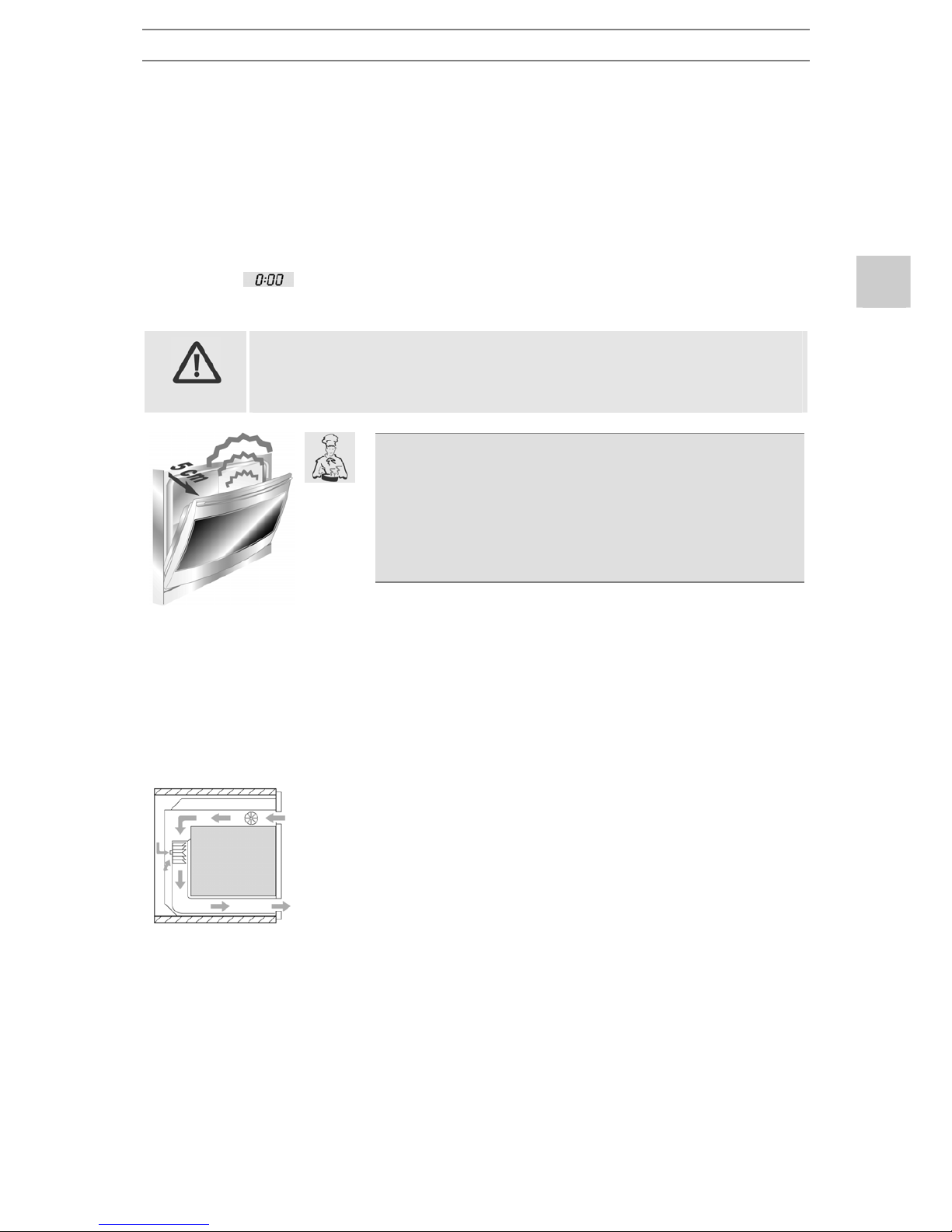

3.3 COOLING VENTILATION _____________________________________ 37

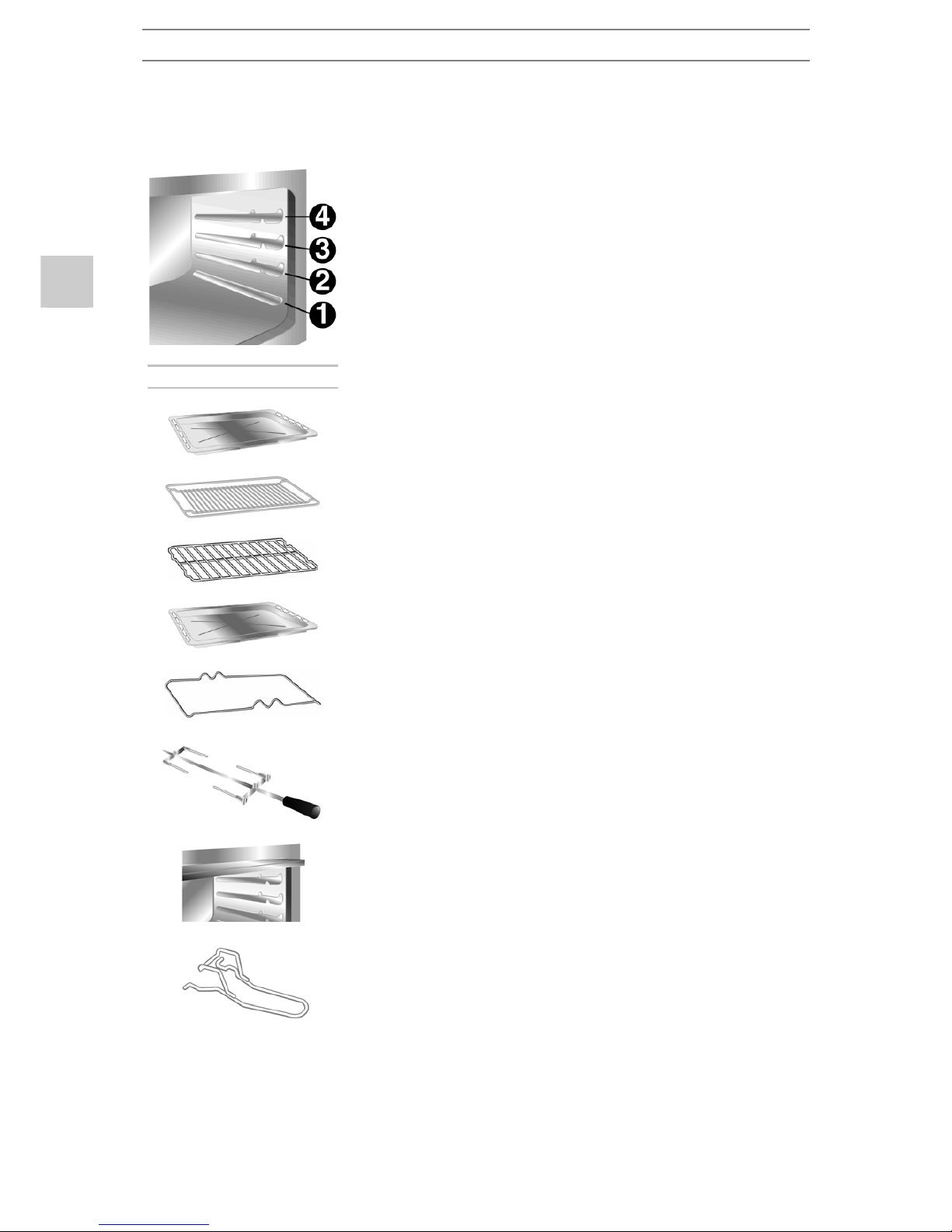

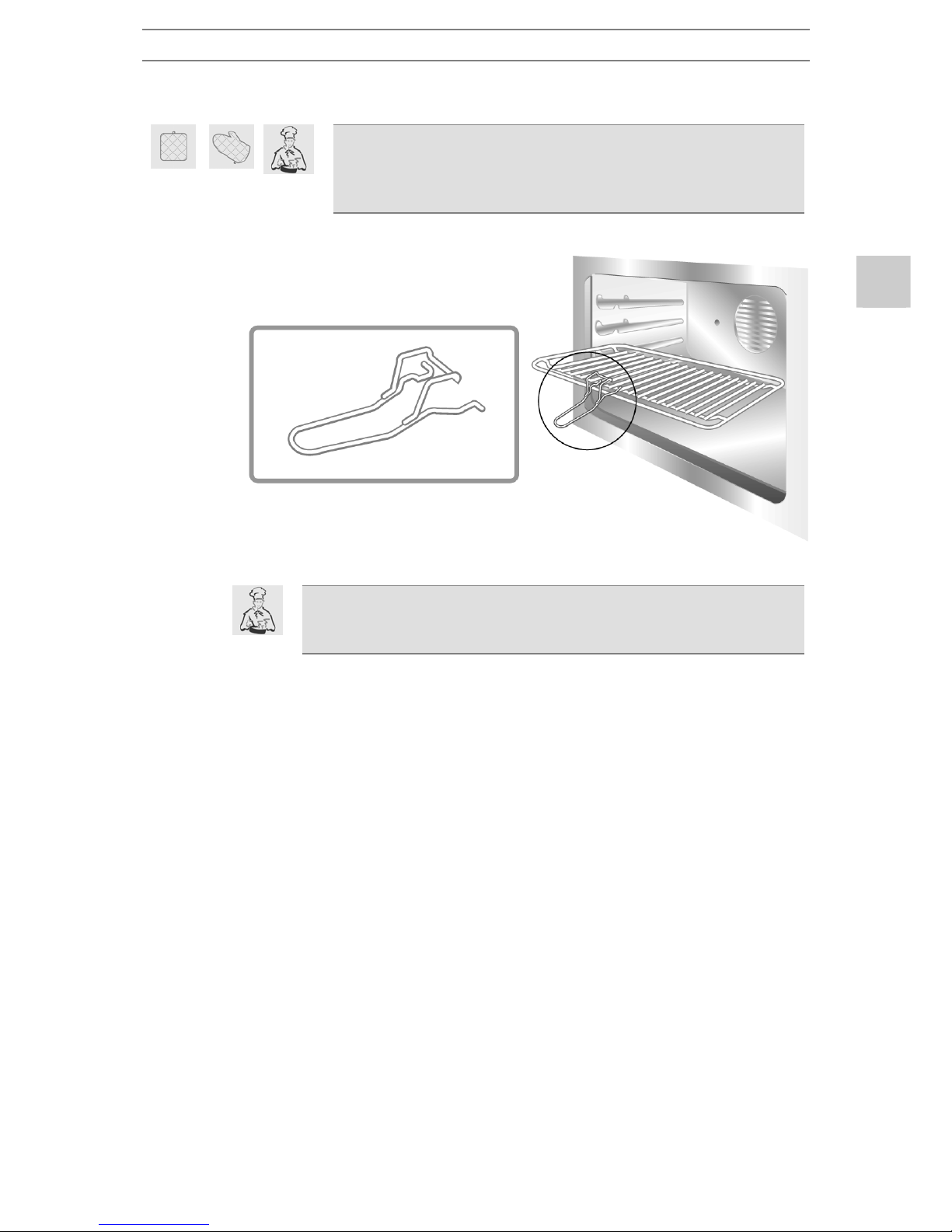

4. Available accessories______________________________________ 38

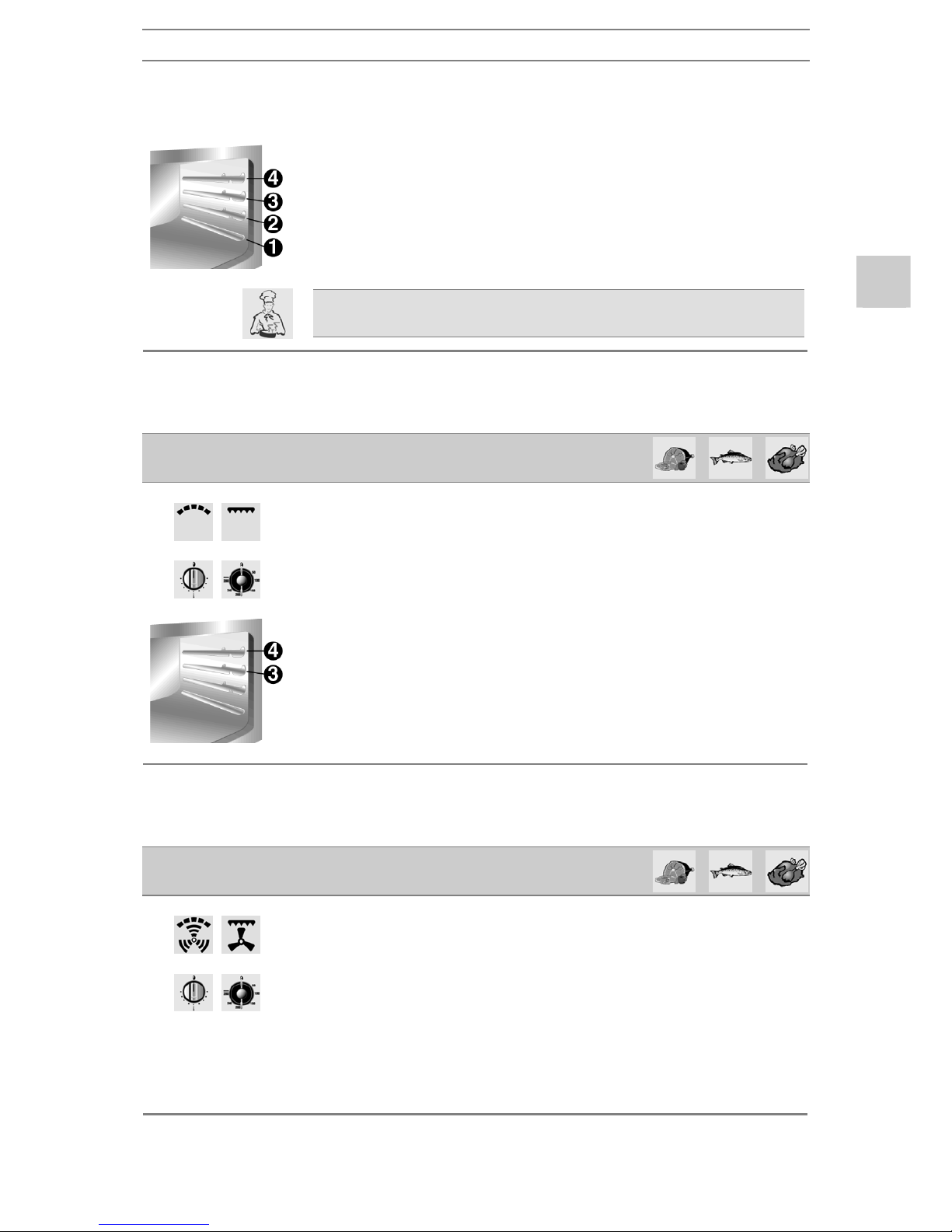

5. Cooking hints ____________________________________________ 40

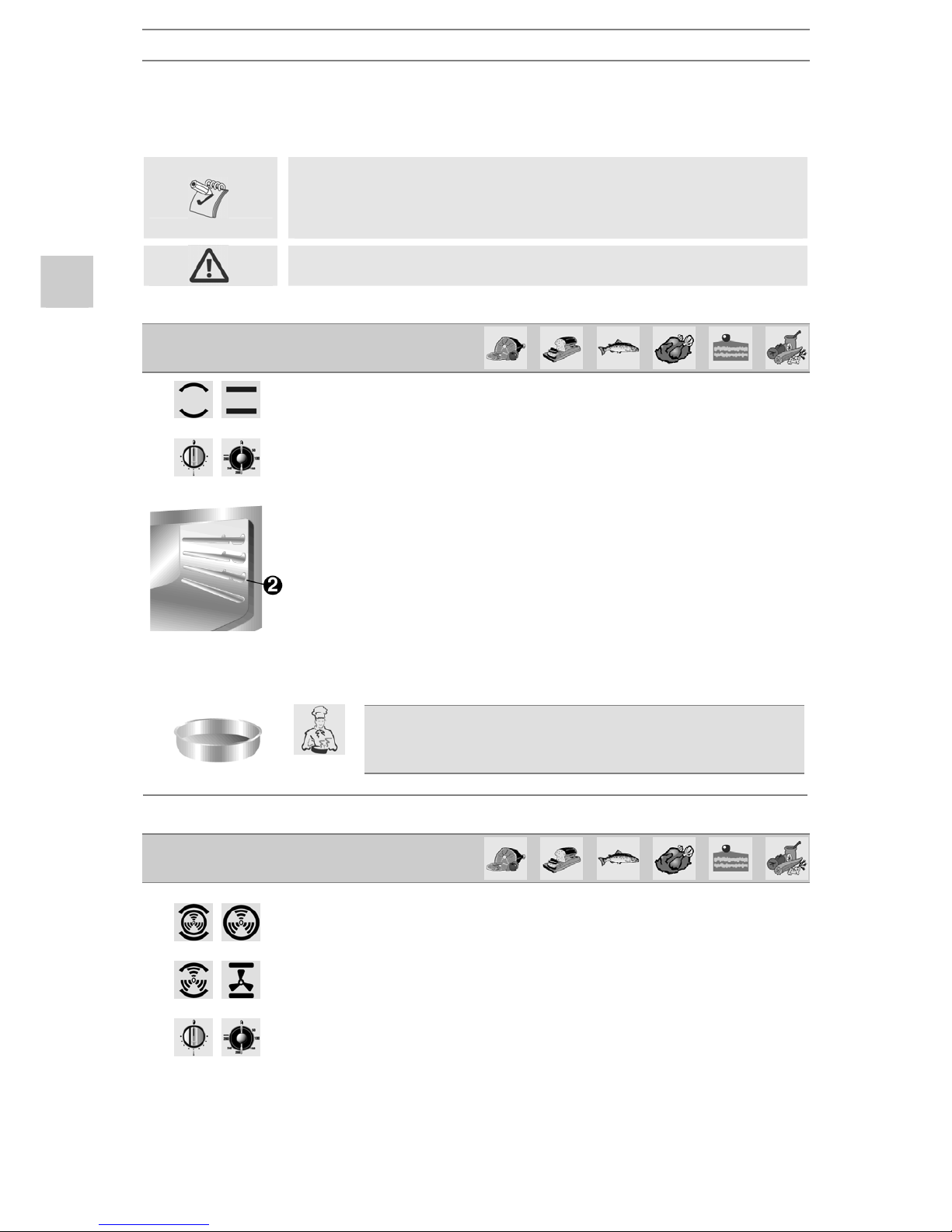

5.1 TRADITIONAL COOKING_____________________________________ 40
5.2 HOT-AIR COOKING ________________________________________ 40
5.3 GRILL COOKING __________________________________________ 41
5.4 HOT-AIR GRILLING ________________________________________ 41
5.5 DELICATE COOKING _______________________________________ 42
5.6 DEFROSTING ____________________________________________ 42

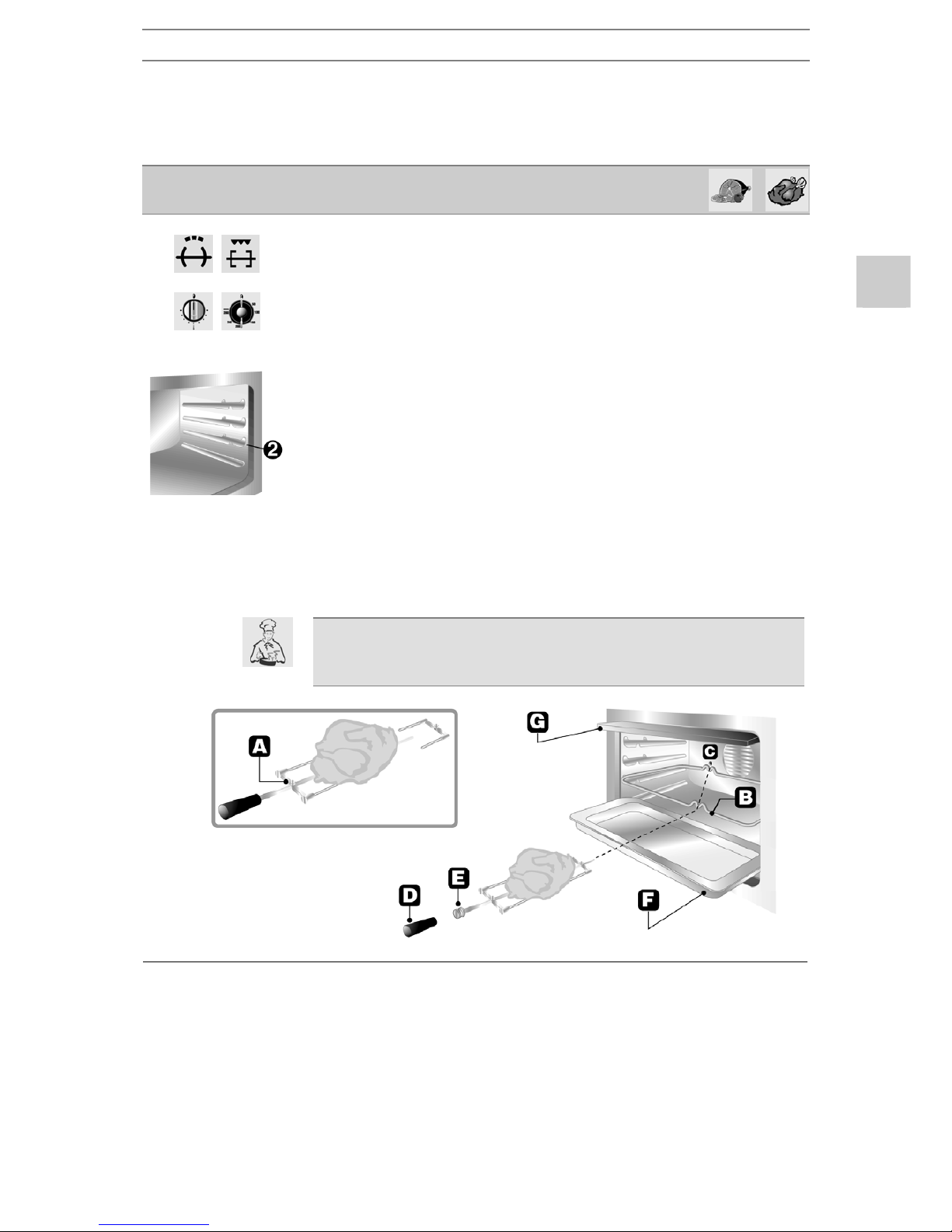

5.7 SPIT ROASTING __________________________________________ 43
6. Recommended cooking table _______________________________ 44
7. Maintenance and cleaning __________________________________ 46
7.1 ENAMELLED PARTS _______________________________________ 46
7.3 OUTER OVEN STRUCTURE __________________________________ 46
7.4 PYROLYSIS:AUTOMATIC OVEN CLEANING________________________ 46
8. Extraordinary maintenance _________________________________ 50
8.1 REPLACING THE LIGHT BULB _________________________________ 50
8.2 DISMANTLING THE DOOR ___________________________________ 50

Introduction
28
Thank you for having preferred our product. From now on we
feel sure you will enjoy creatively using your new oven.
We recommend you carefully read the instructions in this
manual. A lot of room has been given to the best and most
correct way of using the oven. These instructions will also make
it easier for you to become acquainted with each single
component or accessory.
Useful hints are provided on how to use pans and cooking
utensils, on correct guide positions and control settings.
Be sure to follow the cleaning instructions carefully. That way
your oven will give you many long years of reliable service.
The single paragraphs illustrate oven operation, step by step.
The text is easy to understand and completed with pictures and
some of the most commonly used pictograms.
By reading this manual carefully, you will find all the answers to
your oven operation queries.

Preliminary instructions
1. Preliminary instructions
29
WE ADVISE YOU READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE
USING THE OVEN.
THIS APPLIANCE HAS BEEN DESIGNED FOR THE FOLLOWING PURPOSES:
- COOKING AND HEATING FOOD -
ANY OTHER USE IS TO BE CONSIDERED IMPROPER.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR IMPROPER USE.
NEVER TRY TO REPAIR THE APPLIANCE BY YOURSELF!
IN CASE OF ONGOING FAULTS, TURN THE MAIN SWITCH OFF, DISCONNECT
THE POWER SUPPLY AND CONTACT YOUR NEAREST DEALER.
ALWAYS INSIST ON ORIGINAL SPARE PARTS.
THE MANUFACTURER CANNOT BE HELD RESPONSIBLE FOR ANY INJURIES
TO PERSONS OR DAMAGE TO THINGS CAUSED BY FAILURE TO FOLLOW THE
ABOVE INSTRUCTIONS OR BY TAMPERING WITH ANY APPLIANCE
COMPONENTS.
THE IDENTIFICATION PLATE, WITH TECHNICAL DETAILS, THE SERIAL NUMBER
AND MARK ARE LOCATED ON THE OVEN DOOR FRAME.
DO NOT REMOVE THE PLATE.
NEVER LEAVE PACKAGING AROUND THE HOME.
THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE AND SHOULD
THEREFORE BE KEPT INTACT IN A SAFE PLACE FOR THE ENTIRE LIFE CYCLE
OF THE OVEN.
INSTALLATION MUST BE DONE BY QUALIFIED PERSONNEL IN ACCORDANCE
WITH CURRENT REGULATIONS.
THIS APPLIANCE CONFORMS TO ALL CURRENT LEGAL PROVISIONS
CONCERNING RADIO DISTURBANCES.
EARTHING THE APPLIANCE IN COMPLIANCE WITH WIRING SYSTEM SAFETY
REGULATIONS IS MANDATORY.
THE PLUG TO BE CONNECTED TO THE POWER CABLE AND RELEVANT
SOCKET MUST BE OF THE SAME TYPE AND CONFORM WITH REGULATIONS IN
FORCE.
THE SOCKET MUST BE ACCESSIBLE AFTER THE APPLIANCE HAS BEEN BUILT
IN.
NEVER DISCONNECT THE PLUG BY JERKING THE CABLE.
DO NOT OBSTRUCT OPENINGS OR AIR AND HEATING VENTS.
AFTER USING THE OVEN, ALWAYS MAKE SURE THE CONTROL KNOBS ARE AT
"ZERO" POSITION (OFF).

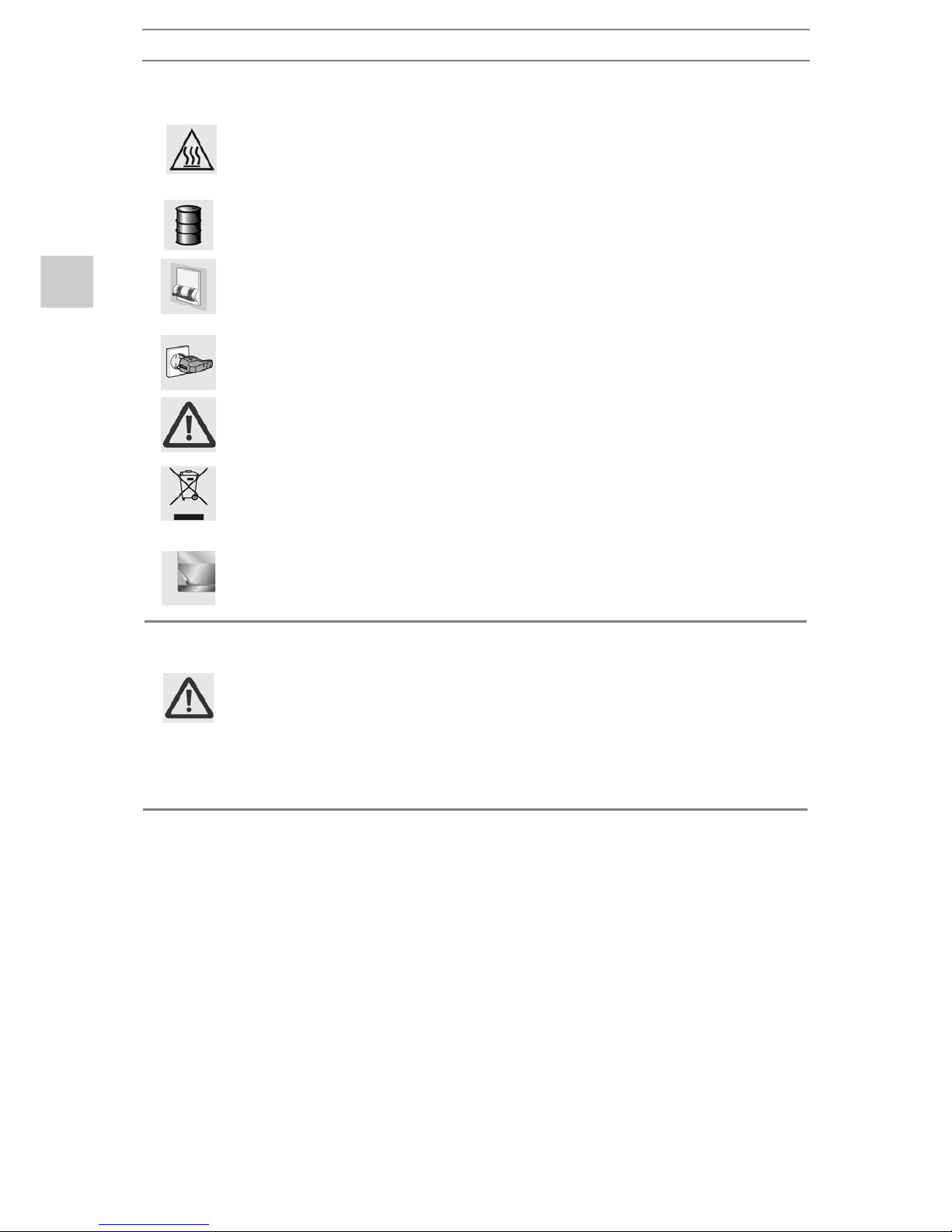

Preliminary instructions
PARTS OF THE APPLIANCE MAY BE HOT DURING OR IMMEDIATELY AFTER USE.
CARE SHOULD BE TAKEN TO AVOID TOUCHING HEATING ELEMENTS INSIDE
THE OVEN. ALLOW SUFFICIENT TIME FOR THE APPLIANCE TO COOL AFTER
SWITCHING OFF.
WHEN THROWING AWAY AN OLD APPLIANCE, ALWAYS MAKE SURE ANY
PARTS WHICH COULD INJURE PERSONS OR DAMAGE THINGS ARE
RENDERED HARMLESS.
30
IF A FIXED CONNECTION IS BEING USED FIT POWER LINE WITH AN
OMNIPOLAR CIRCUIT BREAKER WITH A CONTACT OPENING GAP EQUAL TO
OR GREATER THAN 3 MM IN AN EASILY ACCESSIBLE POSITION IN PROXIMITY
TO THE OVEN.
IF A PLUG AND SOCKET CONNECTION IS BEING USED MAKE SURE THAT THE
PLUG AND SOCKET ARE COMPATIBLE. AVOID USE OF ADAPTERS AND
SHUNTS AS THESE COULD CAUSE OVERHEATING AND RISK OF BURNS.
THE POWER LEAD MUST BE CHANGED BY THE MANUFACTURER OR BY AN
AUTHORISED SERVICE CENTRE TO PREVENT ANY RISKS.
THE NEW CABLE MUST BE OF TYPE FG40R3G (3 X 1.5 MM2).
THIS APPLIANCE IS MARKED ACCORDING TO THE EUROPEAN DIRECTIVE
2002/96/EC ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE).
THIS GUIDELINE IS THE FRAME OF A EUROPEAN-WIDE VALIDITY OF RETURN
AND RECYCLING ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT.
BEFORE THE APPLIANCE IS PUT INTO OPERATION, ALL THE LABELS AND
PROTECTIVE FILMS APPLIED INSIDE OR OUTSIDE MUST BE REMOVED.
NEVER ALLOW THE OVEN TO BE USED BY CHILDREN WITHOUT ADULT
SUPERVISION.
DURING THE AUTOMATIC CLEANING CYCLE (PYROLYSIS) THE OUTER DOOR
WINDOW COULD BECOME HOTTER THAN NORMAL. KEEP CHILDREN AT A
DISTANCE.
NEVER PUT INFLAMMABLE OBJECTS IN THE OVEN. IF THIS WERE
ACCIDENTALLY LIT IT COULD CAUSE A FIRE.
1.1 DISPOSING OF PACKAGING
Always dispose of packaging in a proper manner. The best thing is to
get rid of it through a pre-sorted waste collection centre.
1.2 DISPOSING OF OLD APPLIANCES
Before throwing away an old appliance, make sure this is rendered
harmless and dispose of it through a pre-sorted waste collection centre.

Description of controls
2. Description of controls

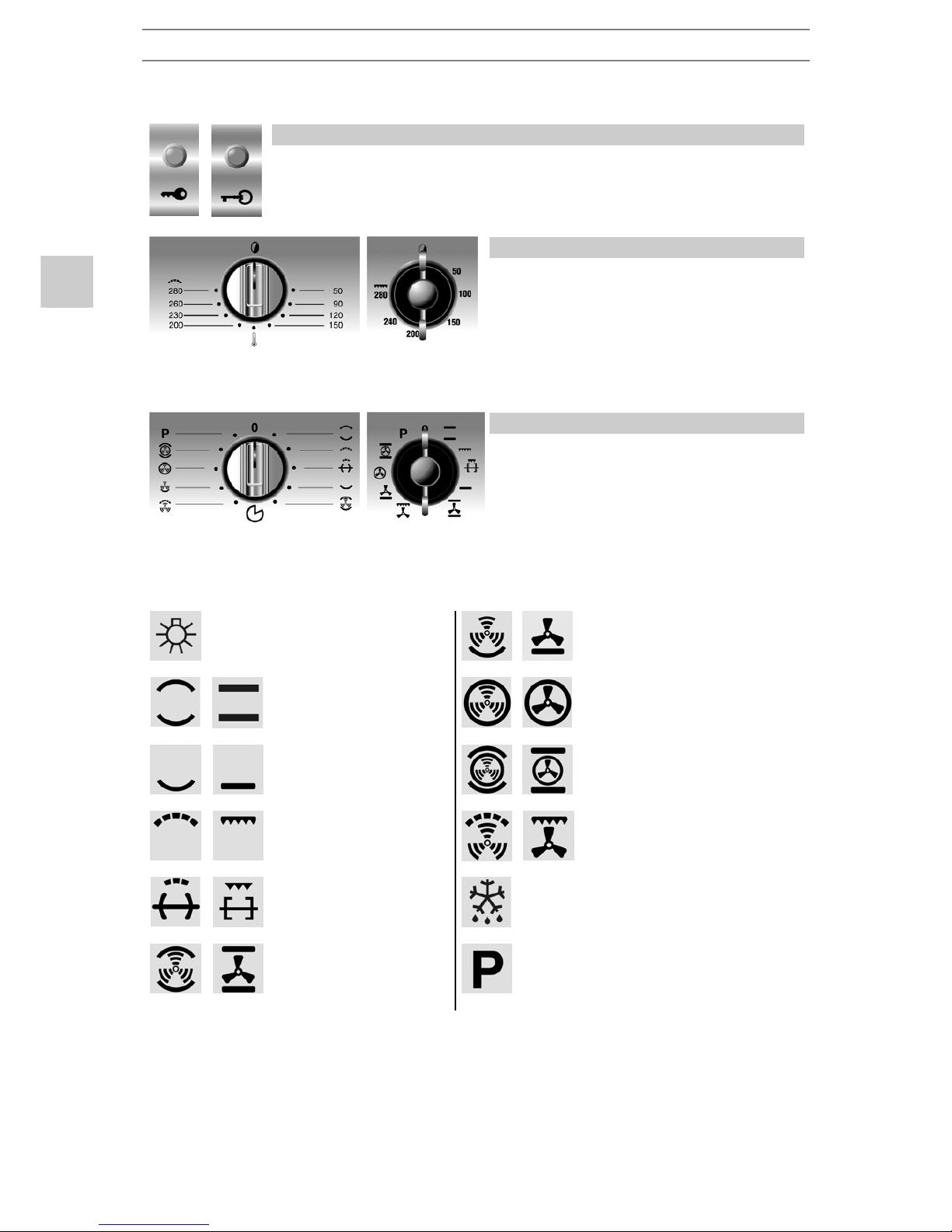

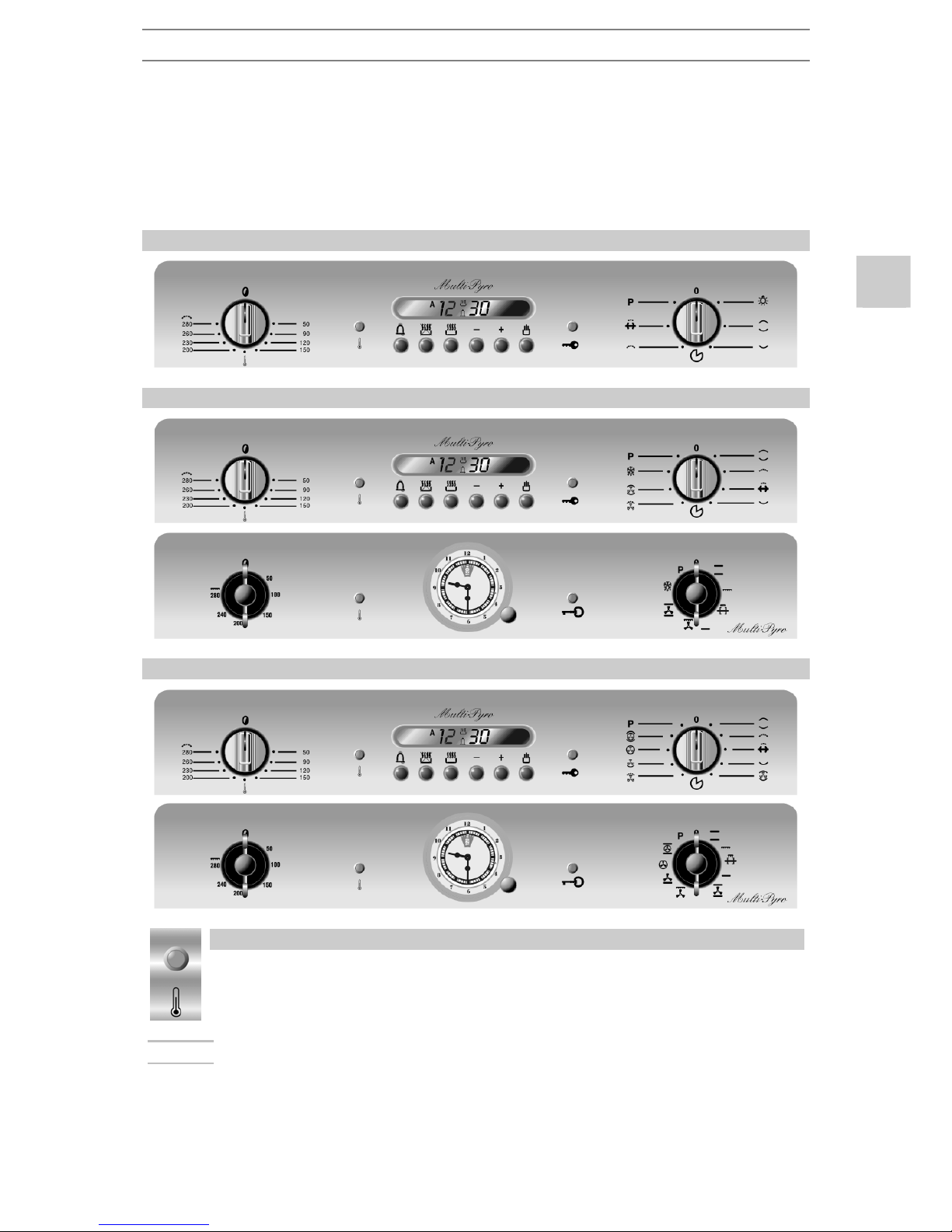

2.1 FRONT CONTROL PANEL
All the oven controls are grouped together on the front panel.
STATIC MODEL
31
8-FUNCTIONS MODEL
10-FUNCTIONS MODEL
THERMOSTAT INDICATOR LIGHT
When this light comes on, the oven is heating up. When this light goes out,
the preset heating temperature has been reached. When the light flashes,
the temperature inside the oven is steady at the set temperature.
NOTE : THIS LIGHT ALSO COMES ON DURING THE AUTOMATIC CLEANING CYCLE
(PYROLYSIS) AND GOES OUT WHEN THE SET TIME HAS PASSED.
