Smeg SFA106N User manual

Contents
3
EN
1 Instructions 4
1.1 General safety instructions 4
1.2 Appliance purpose 7
1.3 Manufacturer liability 7
1.4 This user manual 7
1.5 Identification plate 7
1.6 Disposal 7
1.7 How to read the user manual 8
2 Description 9
2.1 General Description 9
2.2 Control panel 11
2.3 Other parts 12
2.4 Available accessories 13
3 Use 15
3.1 Instructions 15
3.2 First use 15
3.3 Using the accessories 16
3.4 Using the oven 17
3.5 Cooking advice 24
3.6 Special functions 26
3.7 Secondary menu 29
4 Cleaning and maintenance 32
4.1 Instructions 32
4.2 Cleaning the appliance 32
4.3 Removing the door 32
4.4 Cleaning the door glazing 33
4.5 Vapour clean (on some models only) 37
4.6 Pyrolytic (on some models only) 40
4.7 Extraordinary maintenance 42
5 Installation 44
5.1 Electrical connection 44
5.2 Cable replacement 44
5.3 Positioning 45
We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance’s aesthetic and functional qualities.
For further information on the product: www.smeg.com
TRANSLATION OF THE ORIGINAL INSTRUCTIONS

Instructions
4
1 Instructions
1.1 General safety instructions
Risk of personal injury
• During use the appliance and its
accessible parts become very hot.
Never touch the heating elements
during use.
• Protect your hands by wearing
oven gloves when handling food
inside the oven cavity.
• Never try to put out a fire or flames
with water: turn off the appliance
and smother the flames with a fire
blanket or other appropriate
cover.
• This appliance may be used by
children aged at least 8 and by
people of reduced physical,
sensory or mental capacity, or
lacking in experience in the use of
electrical appliances, as long they
are supervised or instructed by
adults who are responsible for
their safety.
• Children must not be allowed to
play with the appliance.
• Keep children under eight years of
age at a safe distance if they are
not constantly supervised.
• Do not allow children younger
than 8 years old to come near the
appliance when in operation.
• Cleaning and maintenance must
not be carried out by unsupervised
children.
• The cooking process must always
be monitored. Short cooking
processes must be monitored
continuously.
• Never leave the appliance
unattended during cooking
operations in which fats or oils
could be released that could
overheat and catch fire. Be very
careful
• Do not insert pointed metal objects
(cutlery or utensils) into the slots in
the appliance.
• Do not pour water directly onto
very hot trays.
• Keep the oven door closed during
cooking.
• If you need to move food or at the
end of cooking, open the door
5 cm for a few seconds, let the
steam come out, then open it fully.

Instructions
5
EN
• Do not use or store flammable
materials near the appliance.
• Never use aerosol cans near the
appliance while it is in operation.
• Switch the appliance off
immediately after use.
Risk of damaging the appliance
• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.
Use wooden or plastic utensils.
• Do not use cleaning products
containing chlorine, ammonia or
bleach on steel parts or parts with
metallic surface finishes (e.g.
anodizing, nickel- or chromium-
plating).
• Do not use rough or abrasive
materials or sharp metal scrapers.
• Racks and trays must be inserted
as far as they will go into the side
guides. The mechanical safety
locks that prevent them from being
removed must face downwards
and towards the back of the oven
cavity.
• Do not seat on the appliance.
• Do not use steam jets to clean the
appliance.
• Do not spray any spray products
near the appliance.
• Do not obstruct ventilation
openings and heat dispersal slots.
• Never leave objects on the
cooking surface.
• Do not use the appliance to heat
rooms for any reason.
• Do not use plastic kitchenware or
containers when cooking food.
• Do not put sealed tins or
containers in the oven.
• Remove all trays and racks which
are not required during cooking.
• Do not cover the bottom of the
oven cavity with aluminium or tin
foil sheets.
• Do not place pans or trays directly
on the bottom of the oven cavity.
• If you wish to use greaseproof
paper, place it so that it will not
interfere with the hot air circulation
inside the oven.

Instructions
6
• Do not use the open door to rest
pans or trays on the internal glass
panel.
• Never use the oven door to lever
the appliance into place when
fitting.
• Avoid exerting too much pressure
on the oven door when open.
• Do not use the handle to lift or
move the appliance.
Installation and maintenance
• This appliance must not be
installed in boats or caravans.
• The appliance must not be
installed on a stand.
• Position the appliance into the
cabinet cutout with the help of a
second person.
• To prevent overheating, the
appliance must not be installed
behind a decorative door or a
panel.
• Have authorised persons carry out
installation and assistance
interventions according to the
standards in force.
• Have the electrical connection
performed by authorised persons.
• The appliance must be connected
to earth in compliance with
electrical system safety standards.
• Use cables withstanding a
temperature of at least 90 °C.
• The tightening torque of the screws
of the terminal supply wires must
be 1.5 - 2 Nm.
• If the power supply cable is
damaged, contact technical
support immediately and they will
replace it.
• Before carrying out any work on
the appliance (installation,
maintenance, positioning or
moving), wear personal protective
equipment.
• Before carrying out any work on
the appliance, disconnect the
mains power supply.
• Do not modify this appliance.
• Do not try to repair the appliance
yourself or without the intervention
of authorised persons.
• Do not pull the cable to remove
the plug.

Instructions
7
EN
For this appliance
• Ensure that the appliance is
switched off before replacing the
bulb.
• Do not rest any weight or sit on the
open door of the appliance.
• Take care that no objects are stuck
in the doors.
1.2 Appliance purpose
• This appliance is intended for
cooking food in the home
environment. Every other use is
considered improper.
• The appliance is not designed to
operate with external timers or with
remote-control systems.
1.3 Manufacturer liability
The manufacturer declines all liability
for damage to persons or property
caused by:
• use of the appliance other than the
one envisaged;
• failure to comply with the
instructions in the user manual;
• tampering with any part of the
appliance;
• the use of non-original spare parts.
1.4 This user manual
This user manual is an integral part of the
appliance and must therefore be kept in its
entirety and in an accessible place for the
whole working life of the appliance.
Read this user manual carefully before using
the appliance.
1.5 Identification plate
The identification plate bears the technical
data, serial number and brand name of the
appliance. Do not remove the identification
plate for any reason.
1.6 Disposal
This appliance must be disposed of
separately from other waste
(Directives 2002/95/EC, 2002/
96/EC, 2003/108/EC). The appliance
does not contain substances in quantities
sufficient to be considered hazardous to
health and the environment, in accordance
with current European directives.
To dispose of the appliance:
• Cut the power supply cable and remove
it along with the plug.
Power voltage
Danger of electrocution
• Disconnect the mains power supply.
• Unplug the power cable from the
socket.

Instructions
8
• Deliver the appliance to the appropriate
recycling facility for electrical and
electronic equipment waste, or deliver it
back to the retailer when purchasing an
equivalent product, on a one for one
basis.
Our appliances are packaged in non-
polluting and recyclable materials.
• Deliver the packing materials to the
appropriate recycling facility.
1.7 How to read the user manual
This user manual uses the following reading
conventions:
1. Sequence of instructions for use.
• Standalone instruction.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or any part
of it unattended.
• Do not let children play with the plastic
bags.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories,
cooking advice.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for authorised persons:
installation, operation and
inspection.
Safety instructions
Information
Advice

Description
9
EN
2 Description
2.1 General Description
Multifunction/Pyrolytic models
1 Control panel
2 Oven light
3 Seal
4 Door
5 Fan
6 Rack/tray support frames
Frame shelf

Description
10
Models with pizza stone
1 Control panel
2 Oven light
3 Seal
4 Door
5 Fan
6 Rack/tray support frames
7 Pizza stone
Frame shelf

Description
11
EN
2.2 Control panel
1 Programming knob
This knob can be used to select:
• The cooking temperature
• The duration of a function
• Programmed cooking
• The current time
• The switching on or off of the lamp inside
the appliance.
2 Display
Displays the current time, the selected
cooking function, power, temperature and
any time that has been set.
3 Function knob
This knob can be used to:
• Switch the appliance on/off
• Select a function
• Temporarily start or stop a function.
Keep the function knob pressed for
approximately 3 seconds to
immediately end any cooking
operation.

Description
12
2.3 Other parts
Interior lighting
The appliance’s interior lighting comes on:
• When the door is opened (on some
models only)
• When any function is selected, except
for the , and
functions (where present)
• When no function is selected, turn the
programming knob briefly to the right to
activate or deactivate internal lighting.
Shelves
The appliance features shelves to position
trays and racks at different heights. The
insertion heights are indicated from the
bottom upwards (see 2.1 General
Description).

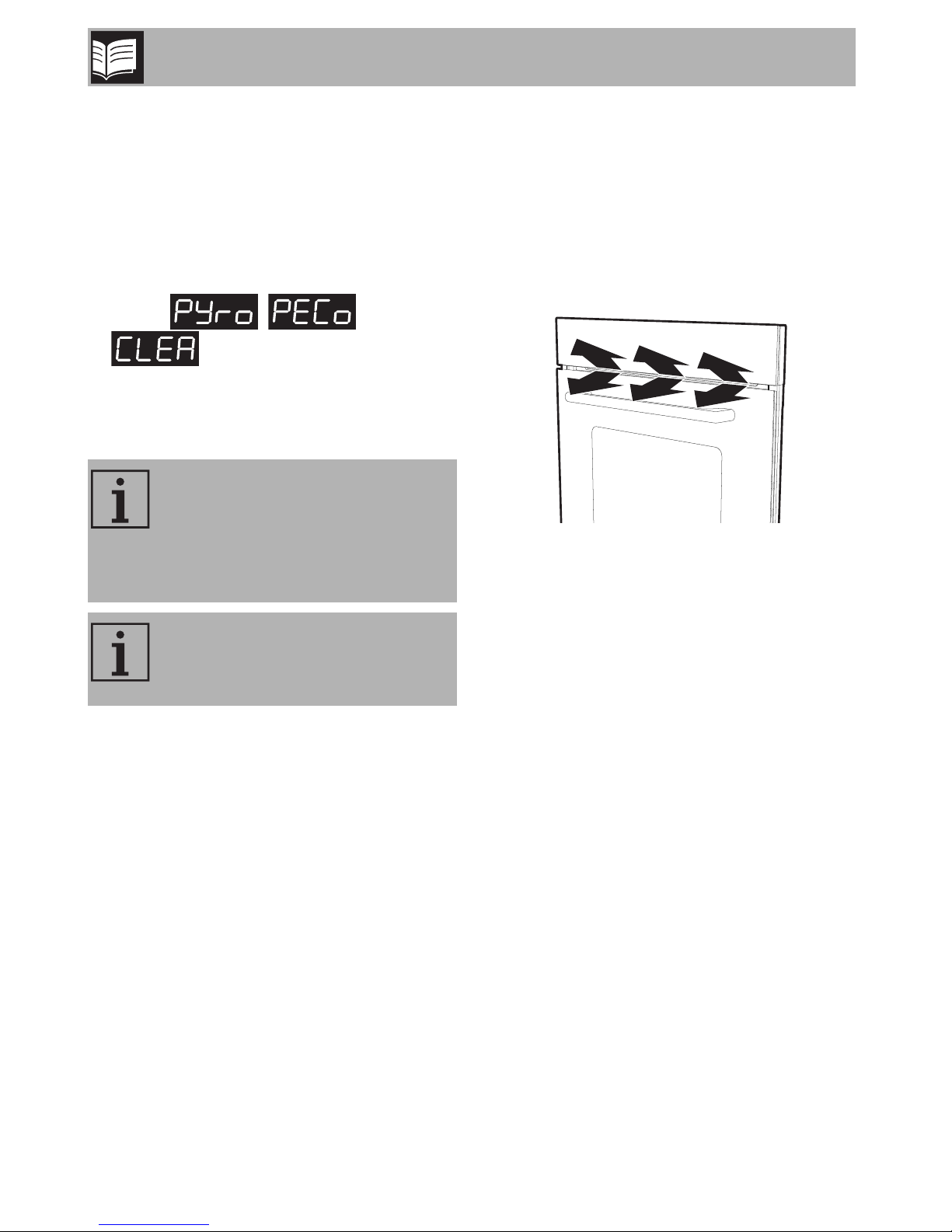

Cooling fan
The fan cools the appliance and comes into
operation during cooking.
The fan causes a steady outflow of air from
above the door which may continue for a
brief period of time even after the appliance
has been turned off.
In order to save energy, the light
turns off after a minute at the start of
cooking (this function can be
deactivated via the secondary
menu).
When the door is open, it is not
possible to turn off the interior
lighting (on some models only).

Description
13
EN
2.4 Available accessories
Rack
Used for supporting containers with food
during cooking.
Tray rack (on some models only).
To be placed over the top of the oven tray;
for cooking foods which may drip.
Oven tray (on some models only)
Used for collecting fat from foods placed
on the rack above and for cooking
desserts/pastries, biscuits, etc.
Deep tray
Useful for collecting fat from foods placed
on the rack above and for cooking pies,
pizzas and baked desserts.
Some models are not provided
with all accessories.

Description
14
Pizza stone (on some models only)
Specially designed for cooking pizza and
similar dishes.
Pizza spatula (on some models only)
For easily placing the pizza on the pizza
stone.
Pizza stone cover (on some models only)
To place in the recess on the bottom of the
oven cavity instead of the pizza stone when
the latter is not being used.
Self-cleaning panels (on some models
only)
Useful for absorbing small grease residues.
The accessories intended to come
into contact with food are made of
materials that comply with the
provisions of current legislation.
Original supplied and optional
accessories can be requested to
Authorised Assistance Centres.
Use only original accessories
supplied by the manufacturer.

Use
15
EN
3 Use
3.1 Instructions
3.2 First use
1. Remove any protective film from the
outside or inside of the appliance,
including accessories.
2. Remove any labels (apart from the
technical data plate) from the
accessories and from the oven cavity.
3. Remove and wash all the appliance
accessories (see 4 Cleaning and
maintenance).
4. Heat the empty oven cavity at
maximum temperature to burn off any
residues left by the manufacturing
process.
High temperature inside the oven
during use
Danger of burns
• Keep the oven door closed during
cooking.
• Protect your hands by wearing oven
gloves when moving food inside the
oven.
• Do not touch the heating elements inside
the oven.
• Do not pour water directly onto very hot
trays.
• Do not allow children to approach the
appliance when it is in operation.
Improper use
Risk of damage to surfaces
• Do not cover the bottom of the oven
cavity with aluminium or tin foil sheets.
• If you wish to use greaseproof paper,
place it so that it will not interfere with the
hot air circulation inside the oven.
• Do not place pans or trays directly on
the bottom of the oven cavity.
• Do not pour water directly onto very hot
trays.
High temperature inside the oven
during use
Danger of fire or explosion
• Do not spray any spray products near
the appliance.
• Do not use or leave flammable materials
near the appliance.
• Do not use plastic kitchenware or
containers when cooking food.
• Do not put sealed tins or containers in
the oven.
• Do not leave the appliance unattended
during cooking operations where fats or
oils could be released.
• Remove all trays and racks which are
not required during cooking.

Use
16
3.3 Using the accessories
Racks and trays
Racks and trays have to be inserted into the
side guides until they come to a complete
stop.
• The mechanical safety locks that prevent
the rack from being removed
accidentally must face downwards and
towards the back of the oven cavity.
Tray rack (on some models only).
The tray rack has to be inserted into the tray.
In this way, fat can be collected separately
from the food that is being cooked.
Cover and pizza stone (on some models
only)
Carefully insert the racks and trays
as far as they will go into the oven
cavity.
Clean the trays before using them
for the first time to remove any
residues left by the manufacturing
process.
Improper use
Risk of burns and damage to
surfaces
• The stone remains hot for a long time
after cooking has ended. Ensure it is
handled with due caution.
• Do not use the pizza stone other than as
described, for example do not use it on
gas or glass ceramic hobs or in ovens
which are not designed for this purpose.
• If you like oil on your pizza, it is best to
add it after having removed the pizza
from the oven cavity since oil stains on
the pizza stone are unsightly and may
reduce its efficiency.
• If the pizza stone is not going to being
used, remove it from the oven cavity and
cover the bottom of the oven with the
cover provided.

Use
17
EN

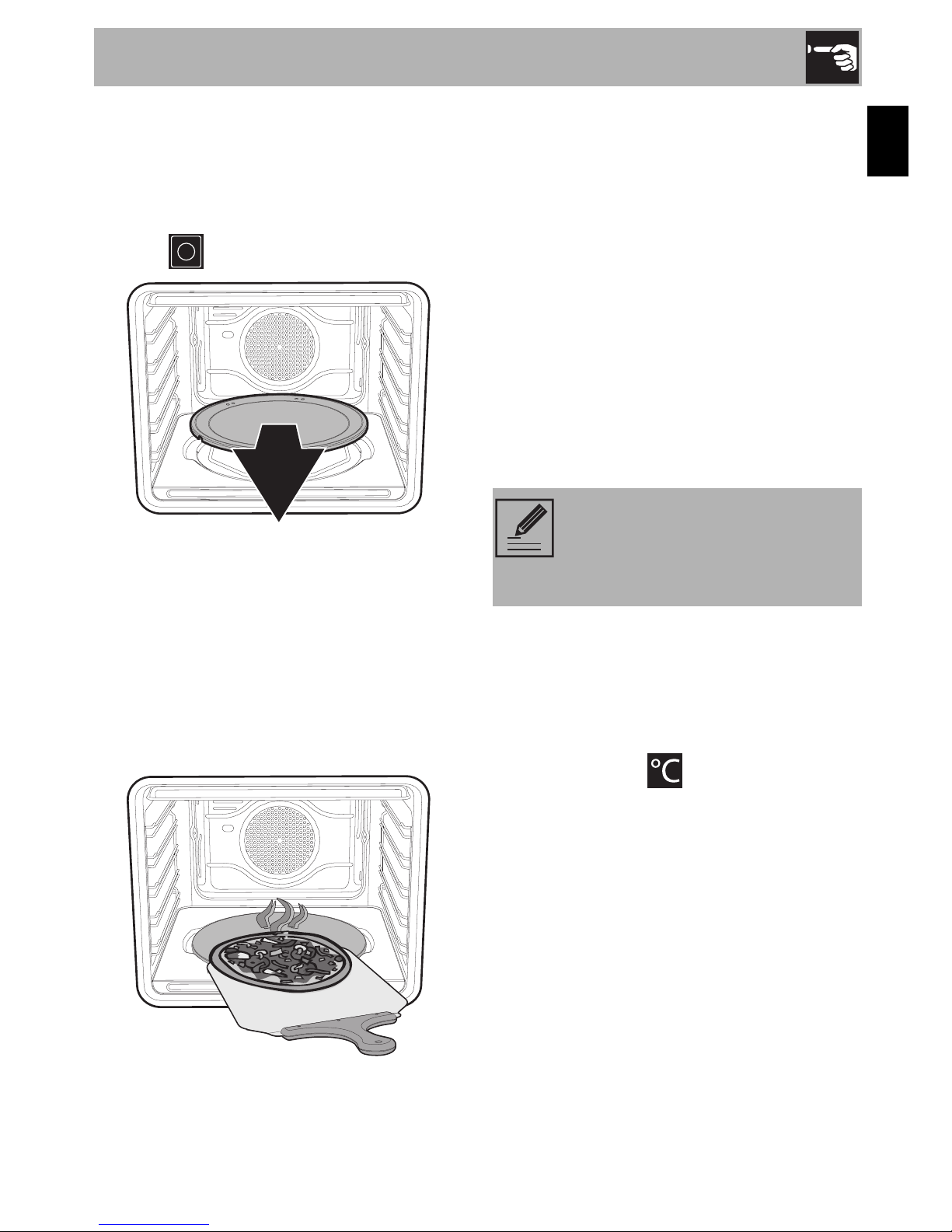

When the appliance is cold, remove the
cover from the bottom and insert the pizza
stone. Make sure that the plate is inserted
correctly in the recess provided.
For cooking, use the special pizza
function .
Pizza spatula (on some models only)
To avoid being burnt, always hold the pizza
spatula by the handle when moving food. It
is recommended to lightly dust the steel
surface with flour to make it easier to slide
fresh products on and off, as they could
stick to the steel due to their moisture
content.
3.4 Using the oven
Switching the oven on
1. Press the function knob to activate the
display.
2. Turn the function knob to the right or left
to select the required function.
3. Press the programming knob.
4. Turn the programming knob to set the
temperature.
5. Press the programming knob or wait 3
seconds.
6. Press the function knob to start cooking.
Preheating stage
The actual cooking is preceded by a
preheating stage that allows the appliance
to reach the cooking temperature more
quickly.
The indicator light flashes to indicate
that this stage is in progress.
Keep the function knob pressed for
approximately 3 seconds to
immediately end any cooking
operation.

Use
18
When the preheating stage is over, the
indicator light remain lit steadily and a
buzzer will sound to indicate that food can
be placed in the oven cavity.
List of cooking functions
Cooking can be interrupted at any
time by keeping the function knob
pressed for at least 3 seconds.
Eco
This low energy consumption
function is particularly suitable for
cooking on a single shelf.
Ideal when cooking meat, fish and
vegetables. It is not recommended
for foods that require proving.
For greater energy savings and to
reduce the time required, it is
recommended to put foods in the
oven cavity without preheating it.
When using the ECO function,
avoid opening the oven door
during cooking.
When using the ECO function,
cooking times (and pre-heating, if
used) are longer.
Convection
As the heat comes from above and
below at the same time, this system
is particularly suitable for cooking
certain types of food. Traditional
cooking, also known as static
cooking, is suitable for cooking just
one dish at a time. Perfect for all
types of roasts, bread and cakes
and in any case particularly suitable
for fatty meats such as goose and
duck.
Grill
The heat coming from the grill
element gives perfect grilling results
above all for thin and medium
thickness meat and, in combination
with the rotisserie (where fitted),
gives the food an even browning at
the end of cooking. Perfect for
sausages, ribs and bacon. This
function enables large quantities of
food, particularly meat, to be grilled
evenly.
Bottom (on some models only)
The heat coming just from the
bottom allows you to complete the
cooking of foods that require a
higher bottom temperature, without
affecting their browning. Perfect for
cakes, pies, tarts and pizzas.

Use
19
EN
Fan assisted
The operation of the fan, combined
with traditional cooking, ensures
consistent cooking even with
complex recipes. Perfect for biscuits
and cakes, even when cooked
simultaneously on several levels.
(For multiple-level cooking, we
recommend using the 2nd and 4th
shelves.)
Fan grill
The air produced by the fan softens
the strong heatwave generated by
the grill, grilling perfectly even very
thick foods. Perfect for large cuts of
meat (e.g. pork shank).
Baker’s function (on some models
only)
The combination of the fan with just
the bottom heating element allows
cooking to be completed more
rapidly. This system is
recommended for sterilising or for
finishing off the cooking of foods
which are already well-cooked on
the surface, but not inside, which
therefore need a little more heat.
Perfect for any type of food.
In pyrolytic models, the special
defrost and proving functions are
brought together under the same
function.
Supercook (on some models only)
The combination of fan assisted
cooking and traditional cooking
allows different foods to be cooked
on several levels extremely quickly
and efficiently, without odours and
flavours mingling. Perfect for large
volumes that call for intense
cooking. (For multiple-level cooking,
we recommend using the 1st and 4th
shelves.)
Fan forced (on some models only)
The combination of the fan and the
circular heating element
(incorporated in the rear of the oven
cavity) allows you to cook different
foods on several levels, as long as
they require the same temperatures
and same type of cooking. Hot air
circulation ensures instant and even
distribution of heat. It will be
possible, for instance, to cook fish,
vegetables and biscuits
simultaneously (on different levels)
without odours and flavours
mingling.
Pizza (on some models only)
The operation of the fan, combined
with the grill and the bottom heating
element, ensures consistent cooking
even with complex recipes. Perfect
not just for pizzas, but also for
biscuits and cakes.

Use
20

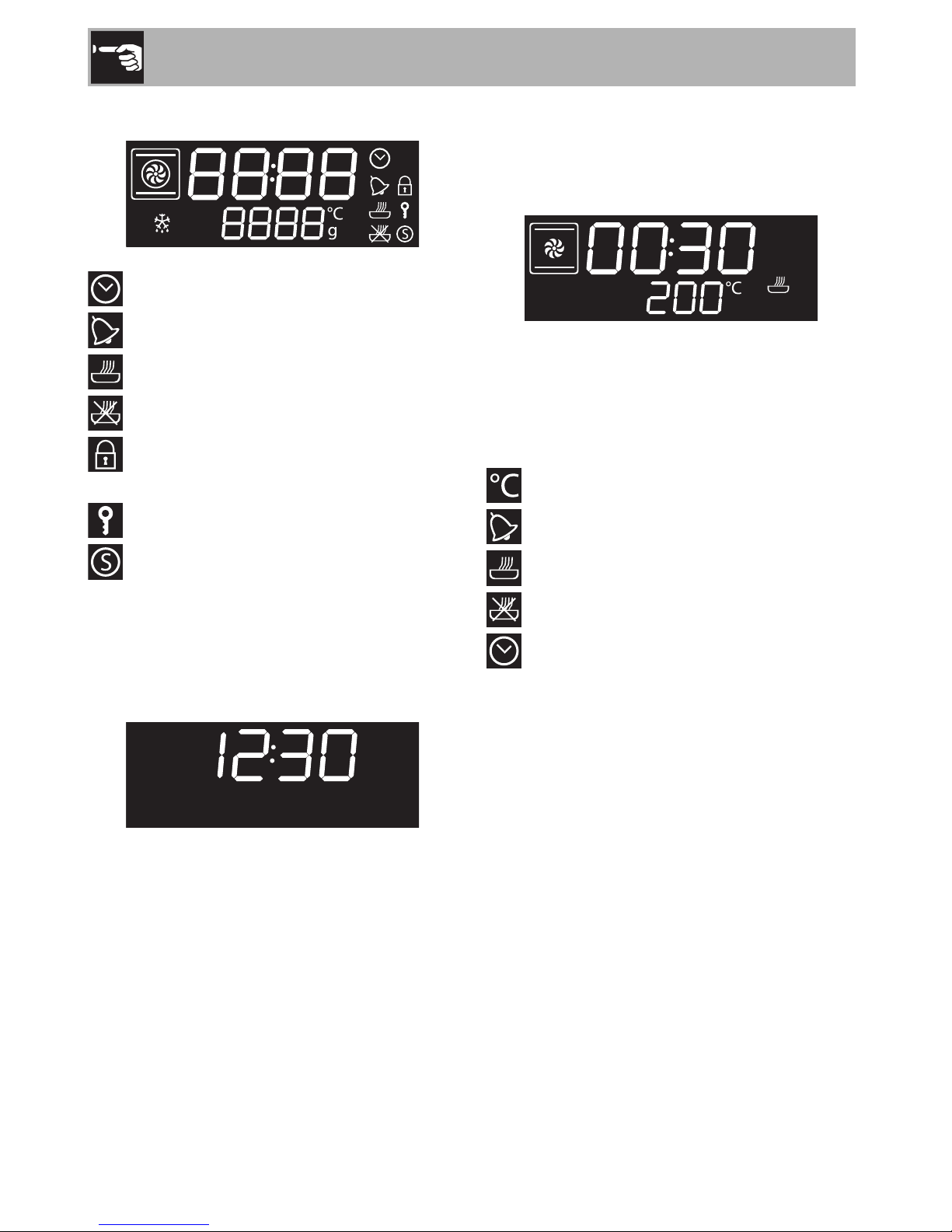

Display
Clock indicator light
Minute minder timer indicator light
Programmed cooking indicator light
Timed cooking indicator light
Door lock indicator light (on pyrolytic
models only)
Child lock indicator light
Showroom indicator light
Operating modes
Standby: When no function is selected, the
display shows the current time.
ON: When any function is activated, the
display shows the set parameters such as
the temperature, duration and temperature
reached.
Each time the programming knob is pressed
during a function, the parameters will be
cycled through in the following order.
Temperature
Minute minder timer duration
Programmed cooking duration
Timed cooking duration
Time display
The value can be changed in any mode by
turning the programming knob to the left or
right. Keep the knob turned to produce a
faster increase or decrease.

Use
21
EN

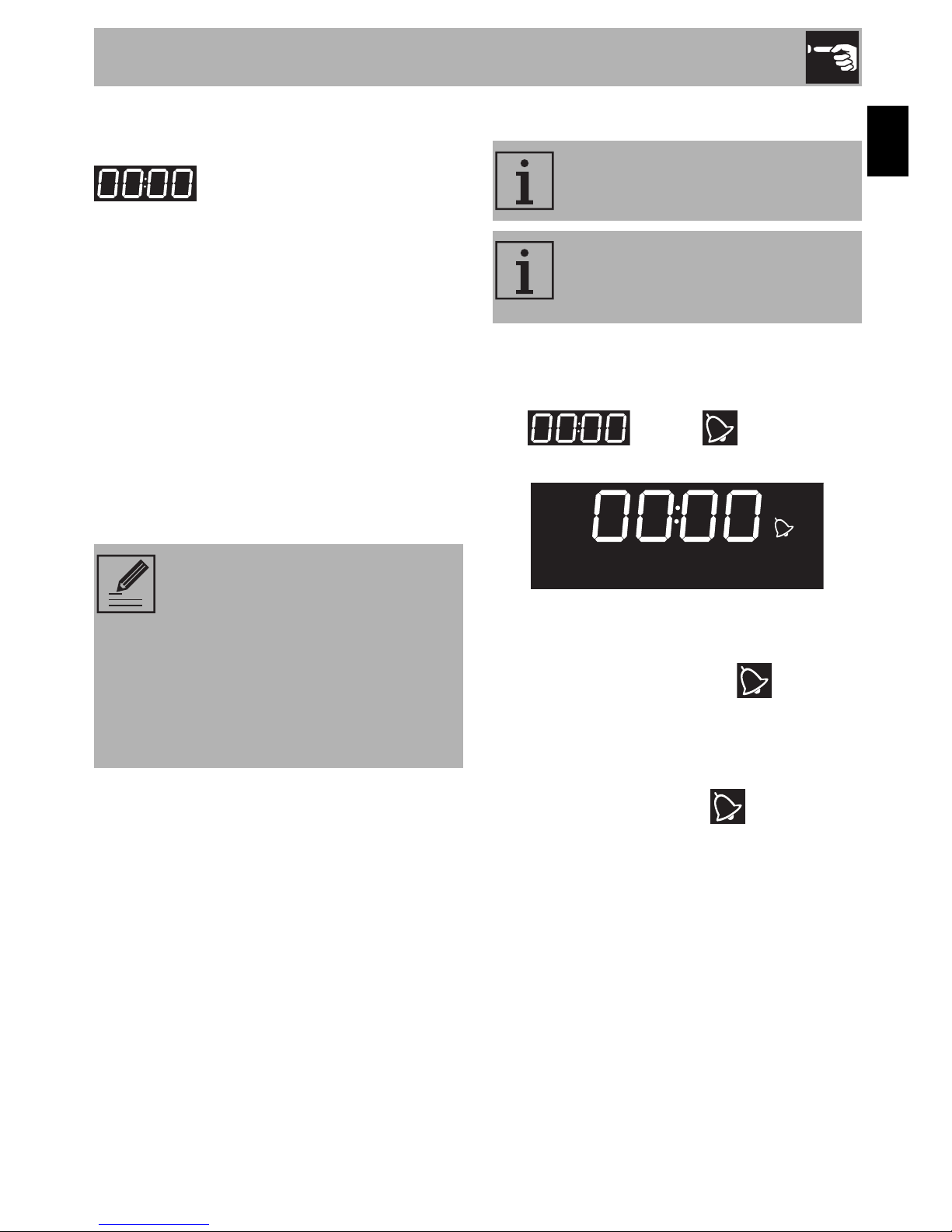

Setting the time
On the first use, or after a power failure,
will flash on the appliance’s
display. To be able to start any cooking
function, the current time must be set.
1. Turn the programming knob to set the
time displayed (keep the knob turned to
increase or decrease it more quickly).
2. Press the programming knob.
3. Turn the programming knob to set the
number of minutes (keep the knob
turned to increase or decrease it more
quickly).
4. Press the programming knob to end the
adjustment.
Minute minder
1. Press the programming knob once
(twice if cooking is already in
progress). The display shows the digits
and the indicator light
flashes.
2. Turn the programming knob to set the
duration (from 1 minute to 4 hours).
After a few seconds, the indicator
light stops flashing and the countdown
starts.
3. Wait for the buzzer to indicate that the
time has finished. The indicator
light flashes.
4. Turn the programming knob to select
another minute minder. Or press the
programming knob to stop the buzzer.
It may become necessary to
change the current time, for
example for daylight saving time.
From the standby position, keep
the programming knob turned to
the right or left until the time flashes.
It is not possible to change the time
if the appliance is ON.
This function only activates the
buzzer, without stopping cooking.
The minute minder can be
activated both during cooking and
when the appliance is in standby.

Use
22
Timed cooking
1. After selecting a cooking function and
temperature, press the programming
knob three times. The display shows the
digits and the
indicator light flashes.
2. Turn the programming knob to set the
cooking duration from 00:01 to 13:00.
Keep the knob turned to increase or
decrease it more quickly.
3. A few seconds after the required
duration has been set, the
indicator light stops flashing. Press the
function knob to start timed cooking.
4. At the end of cooking, “STOP” flashes
on the display and a buzzer will sound
that can be deactivated by opening the
door or pressing/turning one of the two
knobs.
Timed cooking is the function
which allows a cooking operation
to be started and then ended after
a specific length of time set by the
user.
Activation of timed cooking
cancels any minute minder timer
which may previously have been
set. To select another timed cooking,
turn the programming knob right or
left again.
To extend the cooking time
manually, press the programming
knob again. The appliance will
resume its normal operation with
the previously selected cooking
settings.
At the end of cooking, a new
function can be selected by turning
the function knob.
To turn off the appliance, press
and hold the function knob.
