Smeg SCT105 User manual

44
1. INSTRUCTIONS FOR USE..................................................... 45
2. SAFETY PRECAUTIONS........................................................ 47
3. ENVIRONMENTAL RESPONSIBILITY ................................... 49
4. GET TO KNOW YOUR OVEN ................................................ 50
5. AVAILABLE ACCESSORIES .................................................. 51
6. USING THE OVEN.................................................................. 52
7. COOKING WITH THE OVEN .................................................. 64
8. CLEANING AND MAINTENANCE .......................................... 71
9. EXTRAORDINARY MAINTENANCE ...................................... 77
10. INSTALLING THE APPLIANCE .............................................. 82
Contents
INSTRUCTIONS FOR THE USER: these instructions contain user
recommendations, a description of the controls and the correct
procedures for cleaning and maintenance of the appliance.
INSTRUCTIONS FOR THE INSTALLER: these are intended for the qualified
technician who must install the appliance, set it functioning and carry out
an inspection test.
Further product information is available from the website www.smeg.com
@

General instructions
45
1. INSTRUCTIONS FOR USE
THIS MANUAL CONSTITUTES AN INTEGRAL PART OF THE APPLIANCE. IT SHOULD
BE KEPT INTACT AND AT HAND FOR THE APPLIANCE’S ENTIRE LIFE CYCLE.
IT IS IMPORTANT TO CAREFULLY READ THIS MANUAL AND ALL THE
INSTRUCTIONS CONTAINED HEREIN BEFORE USING THE APPLIANCE.
INSTALLATION MUST BE CARRIED OUT BY COMPETENT PERSONS IN
ACCORDANCE WITH THE REGULATIONS IN FORCE. THIS APPLIANCE IS
INTENDED FOR HOUSEHOLD USE AND COMPLIES WITH THE EEC DIRECTIVES
CURRENTLY IN FORCE. THE APPLIANCE HAS BEEN BUILT TO CARRY OUT THE
FOLLOWING FUNCTIONS: COOKING FOOD; IT IS CONSIDERED UNSUITABLE FOR
ANY OTHER USE.
THE MANUFACTURER CANNOT BE HELD LIABLE FOR USE OTHER THAN AS
INDICATED.
IF THE APPLIANCE IS INSTALLED ON BOATS OR IN CARAVANS, DO NOT USE IT AS
A ROOM HEATER.
DO NOT USE THIS APPLIANCE FOR HEATING ROOMS.
THIS APPLIANCE IS MARKED ACCORDING TO EUROPEAN DIRECTIVE 2002/96/EC
ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE).
THIS DIRECTIVE DEFINES THE STANDARDS FOR THE COLLECTION AND
RECYCLING OF WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT APPLICABLE
THROUGHOUT THE EUROPEAN UNION.
NEVER OBSTRUCT THE OPENINGS AND SLITS PROVIDED FOR VENTILATION AND
HEAT DISPERSAL.
DO NOT REST ANY WEIGHT OR SIT ON THE OPEN DOOR OF THE APPLIANCE.
THE IDENTIFICATION PLATE WITH THE TECHNICAL DATA, SERIAL NUMBER AND
BRAND NAME HAS BEEN VISIBLY AFFIXED TO THE APPLIANCE.
DO NOT REMOVE THIS PLATE FOR ANY REASON.
BEFORE THE APPLIANCE IS PUT INTO OPERATION, ALL THE PROTECTIVE FILMS
APPLIED INSIDE OR OUTSIDE MUST BE REMOVED.
TAKE CARE THAT NO OBJECTS ARE STUCK IN THE DOOR OF THE OVEN.
THE APPLIANCE BECOMES VERY HOT INSIDE DURING USE. SUITABLE HEAT-
PROOF GLOVES SHOULD BE WORN FOR ALL OPERATIONS.

General instructions
46
DO NOT USE STEEL SPONGES AND SHARP SCRAPERS AS THEY WILL
DAMAGE THE SURFACE.
USE NORMAL NON-ABRASIVE PRODUCTS, INCLUDING WOODEN OR
PLASTIC UTENSILS IF NECESSARY. RINSE THOROUGHLY AND DRY
USING A SOFT CLOTH OR A MICROFIBRE CLOTH.
DO NOT ALLOW RESIDUES OF SUGARY FOODS (SUCH AS JAM) TO SET
INSIDE THE OVEN. IF THEY ARE ALLOWED TO SET FOR TOO LONG,
THEY COULD RUIN THE ENAMEL COVERING THE INSIDE OF THE OVEN.
DO NOT USE PLASTIC KITCHENWARE OR CONTAINERS. THE HIGH
TEMPERATURES INSIDE THE OVEN COULD MELT THE PLASTIC, DAMAGING THE
APPLIANCE.
DO NOT USE SEALED TINS OR CONTAINERS IN THE APPLIANCE. OVERPRESSURE
MAY OCCUR INSIDE THE CONTAINERS DURING COOKING, CREATING A DANGER
OF EXPLOSION.
DO NOT LEAVE THE APPLIANCE UNATTENDED DURING COOKING PROCESSES
WHERE FATS OR OILS COULD BE RELEASED.
FATS AND OILS MAY CATCH FIRE.
DO NOT COVER THE BOTTOM OF THE OVEN WITH ALUMINIUM OR TINFOIL
SHEETS DURING COOKING AND DO NOT PLACE PANS OR TRAYS ON IT TO AVOID
DAMAGE TO THE ENAMELLED SURFACE.
IF THE SURFACES ARE STILL VERY HOT DURING COOKING, DO NOT POUR WATER
DIRECTLY ONTO THE TRAYS. THE STEAM COULD CAUSE SEVERE BURNS AND
DAMAGE TO ENAMELLED SURFACES.
ALL COOKING OPERATIONS MUST TAKE PLACE WITH THE DOOR CLOSED.

General instructions
47
2. SAFETY PRECAUTIONS
REFER TO THE INSTALLATION INSTRUCTIONS FOR THE SAFETY REGULATIONS
FOR ELECTRIC OR GAS APPLIANCES AND VENTILATION FUNCTIONS.
IN YOUR INTERESTS AND FOR YOUR SAFETY THE LAW REQUIRES THAT THE
INSTALLATION AND SERVICING OF ALL ELECTRICAL APPLIANCES IS CARRIED
OUT BY QUALIFIED PERSONNEL IN ACCORDANCE WITH THE REGULATIONS IN
FORCE.
OUR APPROVED INSTALLERS GUARANTEE A SATISFACTORY JOB.
GAS OR ELECTRICAL APPLIANCES MUST ALWAYS BE DISCONNECTED BY
SUITABLY SKILLED PEOPLE.
BEFORE CONNECTING THE APPLIANCE TO THE POWER GRID, CHECK THE DATA
ON THE PLATE AGAINST THE DATA FOR THE GRID ITSELF.
BEFORE CARRYING OUT INSTALLATION/MAINTENANCE WORK, MAKE SURE THAT
THE APPLIANCE IS NOT CONNECTED TO THE POWER GRID.
THE PLUG TO BE CONNECTED TO THE POWER SUPPLY CABLE AND ITS SOCKET
MUST BE OF THE SAME TYPE AND CONFORM TO THE REGULATIONS IN FORCE.
THE SOCKET MUST BE ACCESSIBLE AFTER THE APPLIANCE HAS BEEN BUILT IN.
NEVER DISCONNECT THE PLUG BY PULLING ON THE CABLE.
IF THE POWER SUPPLY CABLE IS DAMAGED, CONTACT THE TECHNICAL SUPPORT
SERVICE IMMEDIATELY AND THEY WILL REPLACE IT.
IT IS OBLIGATORY FOR ALL ELECTRICAL EQUIPMENT TO BE EARTHED
ACCORDING TO THE METHODS LAID DOWN BY SAFETY REGULATIONS.
IMMEDIATELY AFTER INSTALLATION, CARRY OUT A BRIEF INSPECTION TEST,
FOLLOWING THE INSTRUCTIONS BELOW. SHOULD THE APPLIANCE NOT
FUNCTION, DISCONNECT IT FROM THE ELECTRICITY SUPPLY AND CALL THE
NEAREST TECHNICAL SUPPORT CENTRE.
NEVER ATTEMPT TO REPAIR THE APPLIANCE.
NEVER PUT INFLAMMABLE OBJECTS IN THE OVEN: IF IT IS SWITCHED ON BY
ACCIDENT, IT MAY CAUSE A FIRE.
DURING USE THE APPLIANCE BECOMES VERY HOT. TAKE CARE NOT TO TOUCH
THE HEATING ELEMENTS INSIDE THE OVEN.
THIS APPLIANCE MAY NOT BE USED BY PEOPLE (INCLUDING CHILDREN) OF
REDUCED PHYSICAL AND MENTAL CAPACITY, OR LACKING IN EXPERIENCE IN
THE USE OF ELECTRICAL APPLIANCES, UNLESS THEY ARE SUPERVISED OR
INSTRUCTED BY ADULTS RESPONSIBLE FOR THEIR SAFETY.

General instructions
48
DO NOT LET CHILDREN GO NEAR THE APPLIANCE WHEN IT IS IN OPERATION OR
PLAY WITH IT AT ANY TIME.
DO NOT INSERT POINTED METAL OBJECTS (CUTLERY OR UTENSILS) INTO THE
SLITS IN THE APPLIANCE.
DO NOT USE STEAM JETS FOR CLEANING THE APPLIANCE.
THE STEAM COULD REACH THE ELECTRONICS, DAMAGING THEM AND CAUSING
SHORT-CIRCUITS.
DO NOT MODIFY THIS APPLIANCE.
DO NOT SPRAY ANY SPRAY PRODUCTS NEAR THE ELECTRICAL APPLIANCE
WHILE IT IS IN OPERATION.
DO NOT USE SPRAY PRODUCTS WHILE THE PRODUCT IS STILL HOT.
The manufacturer cannot be held liable for damage to persons or things caused by
failure to observe the above instructions, by interference with any part of the
appliance or by the use of non-original spare parts.

Instructions for disposal
49
3. ENVIRONMENTAL RESPONSIBILITY
3.1 Our environmental responsibility
Pursuant to Directives 2002/95/EC, 2002/96/EC and 2003/108/EC relating to
the reduction of the use of hazardous substances in electrical and electronic
appliances, as well as to the disposal of refuse, the crossed out bin symbol on
the appliance indicates that at the end of the useful life of the product, it must be
collected separately from other refuse. Therefore, at the end of the product’s
working life, the user must deliver it to the appropriate differentiated collection
centres for electrical and electronic waste, or deliver it back to the retailer when
purchasing an equivalent product, on a one-for-one basis. Adequate
differentiated collection for the subsequent forwarding of the decommissioned
product to recycling, processing and ecologically compatible disposal
contributes to avoiding possible negative effects on the environment and on
health, and promotes recycling of the appliance’s constituent materials. Illicit
disposal of the product by the user will lead to the application of administrative
sanctions.
The product does not contain substances in quantities sufficient to be
considered hazardous to health and the environment, in accordance with
current European directives.
3.2 Your environmental responsibility
Our product’s packing is made of non-polluting materials, which are therefore
compatible with the environment and recyclable. Please help by disposing of the
packaging correctly. You can obtain the addresses of collection, recycling and
disposal centres from your retailer or from the competent local organisations.
Do not discard the packaging or any part of it, or leave it unattended. It can
constitute a suffocation hazard for children, especially the plastic bags.
Your old appliance also needs to be disposed of correctly.
Important: hand over your appliance to the local agency authorised for the
collection of electrical appliances no longer in use. Correct disposal enables
intelligent recovery of valuable materials.
Before disposing of your appliance it is important to remove doors and leave
shelves in the same position as for use, to ensure that children cannot
accidentally become trapped inside during play. It is also necessary to cut the
connecting cable to the power supply network, removing it along with the plug.

Instructions for the user
50
4. GET TO KNOW YOUR OVEN

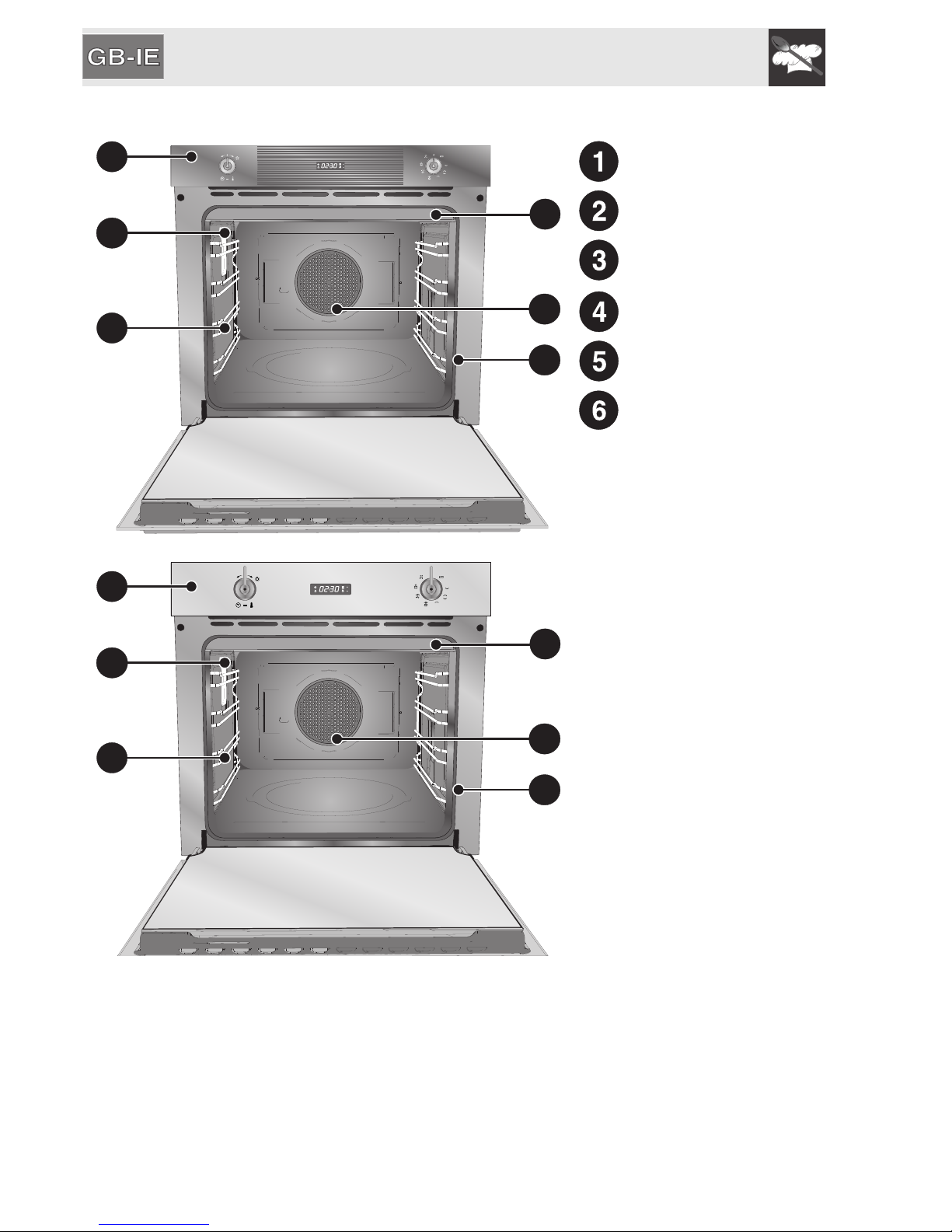

Control panel
Inside lights
Rack and tray support
frames
Roof liner
Oven fan
Oven seal
6
5
3
2
1
4
6
5
3
2
1
4

Instructions for the user
51
5. AVAILABLE ACCESSORIES
NOTE: Some models are not provided with all
accessories.
Rack: for holding cooking containers.
Oven tray: for collecting fat from foods placed
on the rack above.
• Accessories available on request:
Original supplied and optional accessories may be ordered from any
Authorised Support Centre.
• Use original SMEG accessories only.
5.1 Using the rack or tray

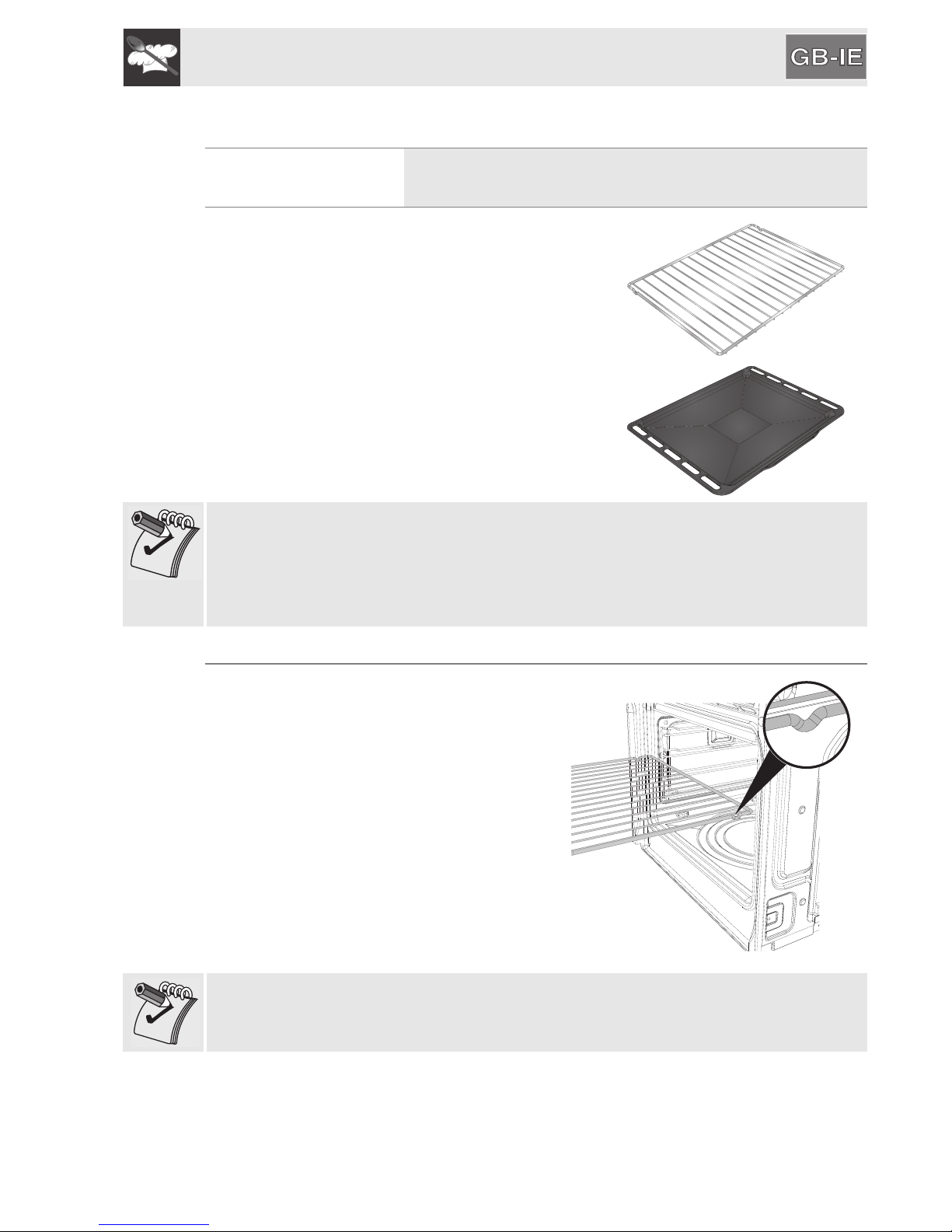

The racks and trays are equipped with a
mechanical safety lock which prevents
them from being taken out accidentally.
To insert the rack or tray correctly, check
that the lock is facing downwards (as
shown in the figure at the side).
To remove the rack or tray, lift the front
slightly.
The mechanical lock must always face
the back of the oven.
Insert racks and trays fully into the oven until they come to a stop.

Instructions for the user
52
6. USING THE OVEN
6.1 Before using the appliance
• Remove any labels (apart from the technical data plate) from trays, dripping
pans and the cooking compartment.
• Remove any protective film from the outside or inside of the appliance,
including from accessories such as trays, dripping pans, the pizza plate or
the base cover.
• Before using the appliance for the first time, remove all accessories from the
oven compartment and wash them as indicated in “8. CLEANING AND
MAINTENANCE”.
Heat the empty appliance to the maximum temperature in order to remove
any manufacturing residues which could affect the food with unpleasant odours.
6.2 General Description
6.2.1 Oven runners

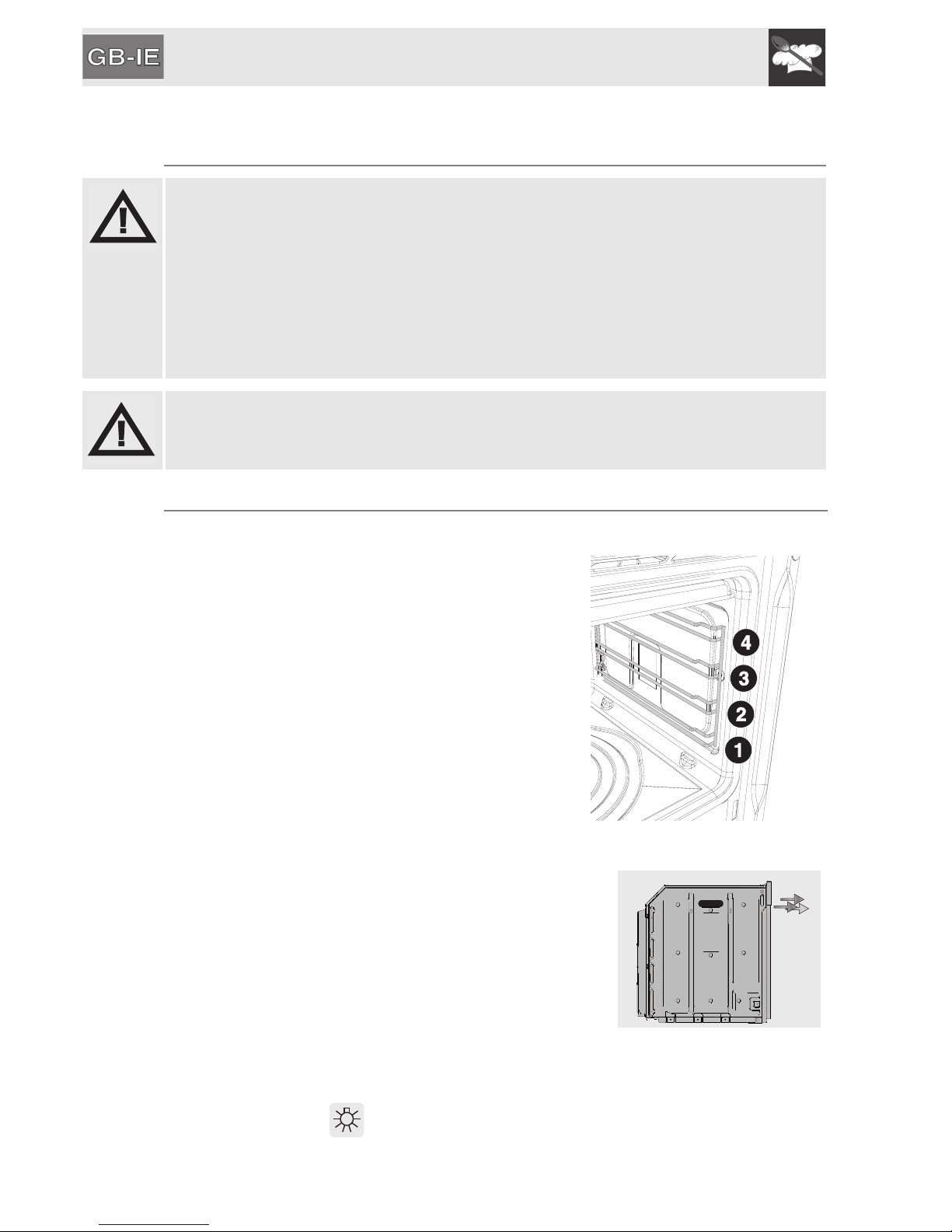

The oven features 4 runners for positioning trays
and racks at different heights. The insertion
heights are numbered from the bottom upwards
(see figure).
6.2.2 Cooling system
The appliance is equipped with a cooling system
which comes into operation as soon as a cooking
function starts. The fan causes a steady outflow of
air from above the door which may continue for a
brief period of time even after the oven has been
turned off.
6.2.3 Oven inside lights
The oven lights come on by selecting any function or setting the thermostat
knob to the symbol .

Instructions for the user
53
6.3 Warnings and general advice for usage
All cooking operations must be carried out with the door closed.
During cooking, do not cover the bottom of the oven with aluminium or tin foil
and do not place pans or oven trays on it as this may damage the enamel
coating. If you wish to use greaseproof paper, place it so that it will not interfere
with the hot air circulation inside the oven.
For the best cooking results, we recommend
placing cookware in the centre of the rack.
To prevent any steam in the oven from causing
problems, open the door in two stages: half
open (5 cm approx.) for 4-5 seconds and then
fully open. If you need to access the food,
always leave the door open for as short a time
as possible to prevent the temperature in the
oven from falling and ruining the food.
To prevent excessive amounts of condensation from forming on the internal
glass, hot food should not be left inside the oven for too long after cooking.

Instructions for the user
54
6.4 Description of the controls on the front panel
All the appliance’s control and monitoring devices are located together on the
front panel.

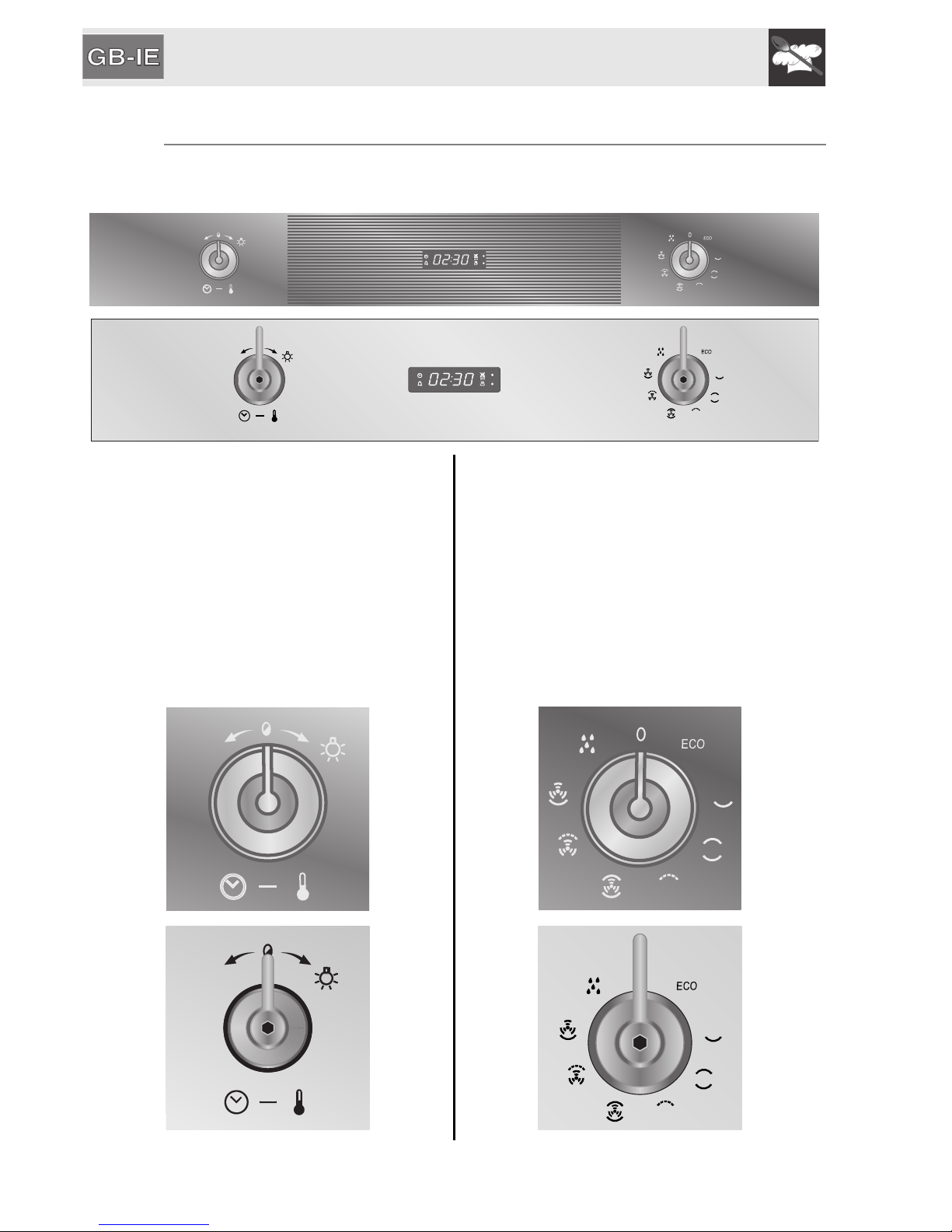

Temperature selection knob Function selection
knob
This knob can be used to: set the
clock, select a temperature and the
cooking time, and set cooking
programmes.
(Temperature knob)
This knob can be used to select a
function or to switch off the oven.
(Function selection knob)

Instructions for the user
55
The display indicates the current time and,
during cooking programmes, it shows the
remaining cooking time or the completion
time.
During cooking, it also shows the cooking
temperature set for the selected function.
Multifunction model
Pyrolytic model

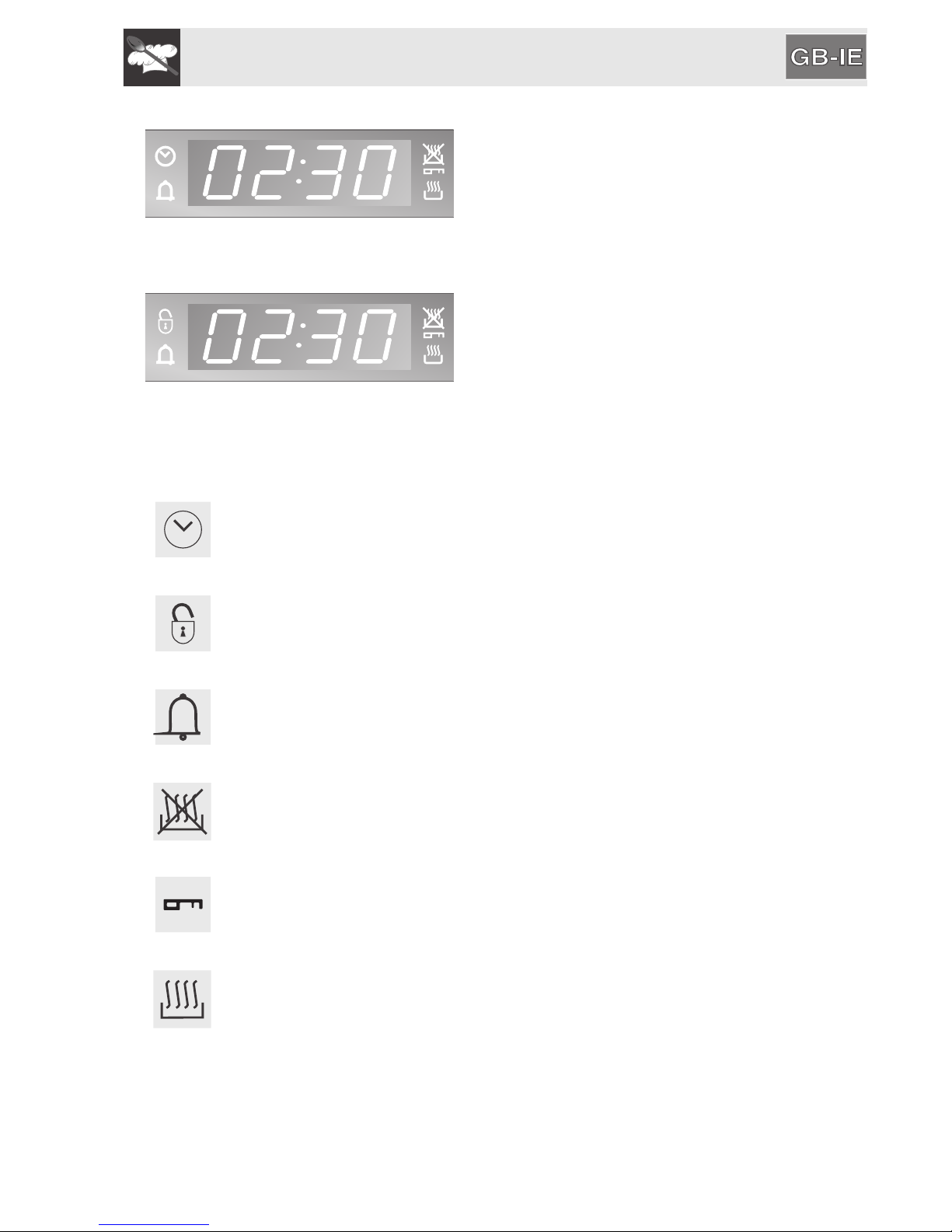

If the symbols to the side of the display are lit up, it means:
If flashing, it indicates that the time is being set; if steady it shows the
normal display (on multifunction models only).
Indicates that the door lock is activated during the automatic cleaning
phase (on pyrolytic models only).
Timer countdown activated.
Delayed-start timed cooking activated.
Child lock function ON (see 6.10 Secondary menu).
Timed cooking activated.

Instructions for the user
56
6.5 Operating modes
This appliance is designed to have two operating modes.
STAND-BY mode: this mode is set when the function
selection knob is positioned on “0”. The appliance
displays the current time.
ON mode: this mode is set when the function selection
knob is turned to any function and the selected
temperature appears on the display, or the message
“PYRO” if pyrolysis is taking place.
6.6 First use
On the first use, or after a power failure, will be flashing on the oven’s
display. To be able to start any cooking function, the current time must be set.
Turn the temperature selection knob right or left
to reduce or increase the displayed time.
Keep it in the turned position to reduce or
increase more rapidly.
(Temperature knob)
A few seconds after the last adjustment is
made, the time display will steady and the colon
separating the hours from the minutes will flash
to indicate the start of the countdown.
It may be necessary to alter the current time, for example due to daylight saving
time; if so, hold the temperature selection knob turned to the right or left until the
value changes.
It is not possible to change the time if the oven is ON.

Instructions for the user
57
6.7 Selecting a cooking function
To select a cooking function, turn the function
selection knob right or left.
(Function selection knob)
Once the desired function has been selected, the oven will begin cooking at the
pre-set temperature. Cooking itself is preceded by a preheating stage, which
allows the oven to heat to the cooking temperature more quickly.
flashes to indicate that this stage is in
progress. When the preheating stage is over,
will remain lit steadily and a buzzer will
sound to indicate that the food can be placed
inside the oven.
A cooking operation can be interrupted at any time by turning the function
selection knob to “0”.
6.7.1 Modifying the preset temperature
The preset temperature for each function can be
changed to suit the user’s requirements.
At any time while cooking is in progress, turn the
temperature selection knob right or left to
increase or decrease the cooking temperature
by 5 degrees at a time. (Keep the knob turned to
produce a faster increase or decrease).
(Temperature knob)

Instructions for the user
58
6.8 Using the timer
Warning: the timer does not stop the cooking process. It only warns the user that the
preset number of minutes have passed.

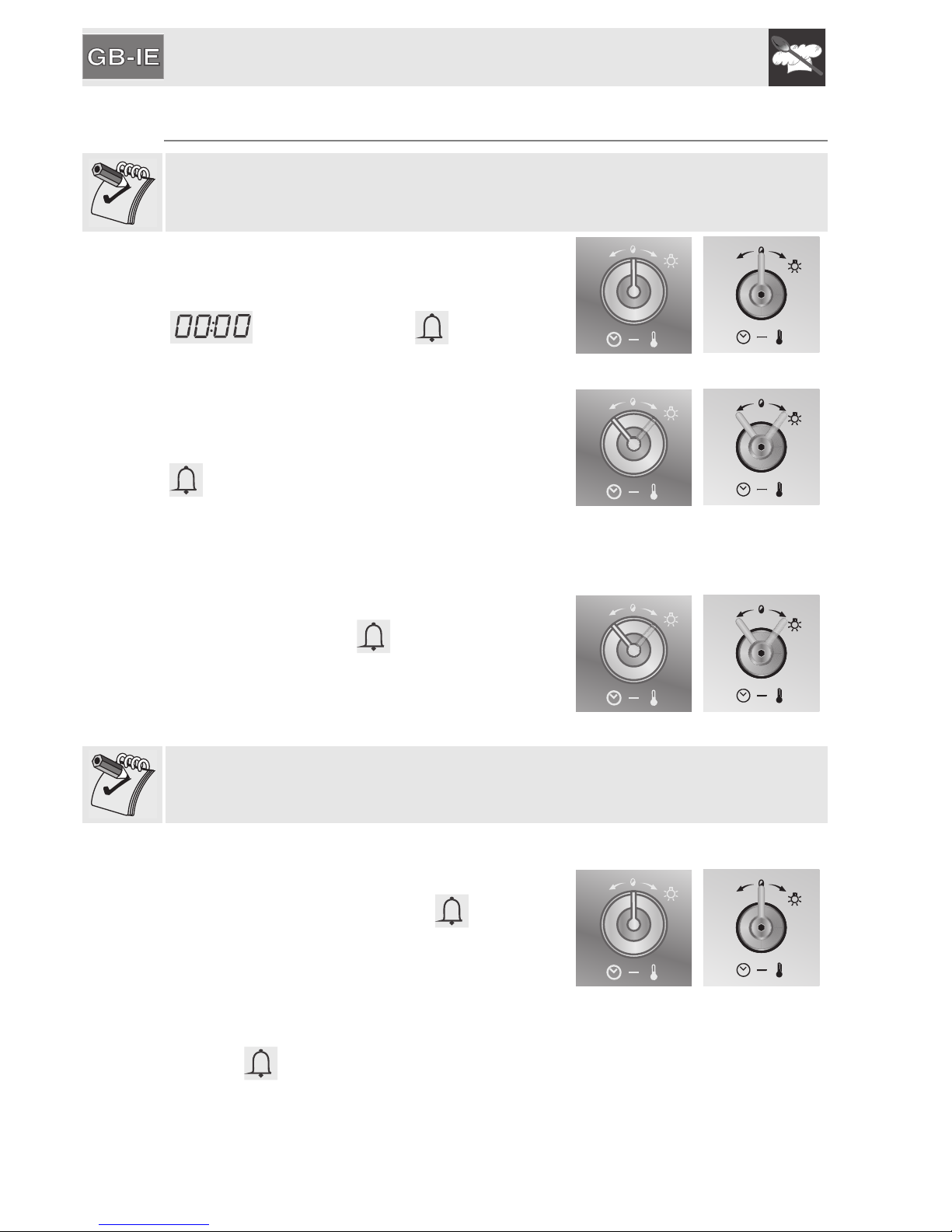

The timer can be activated in any of the
appliance’s modes. Press the temperature
selection knob and the display will show
(lit constantly) and (flashing).
(Temperature knob)
Turn the knob right or left to set the minutes from
00:01 to 04:00.
A few seconds after the required duration is set,
will stop flashing and stay on constantly;
the countdown will start from that moment.
(Temperature knob)
At this point it is possible to select the desired cooking function and wait for the
buzzer to sound, indicating that the cooking time is over.
To switch off the buzzer press the temperature
selection knob, the symbol will flash.
Another time can then be selected by turning
the same knob right or left.
(Temperature knob)
If the timer was set in STAND-BY mode, when the oven is activated in ON mode (selection
of a cooking operation), the counter remains active.
Modifying the set data
Once the countdown has started, press the
temperature selection knob. will start
flashing.
(Temperature knob)
Turn the knob right or left to modify the set period. A few seconds after the last
change, will stop flashing and the countdown will restart from the new
value.

Instructions for the user
59

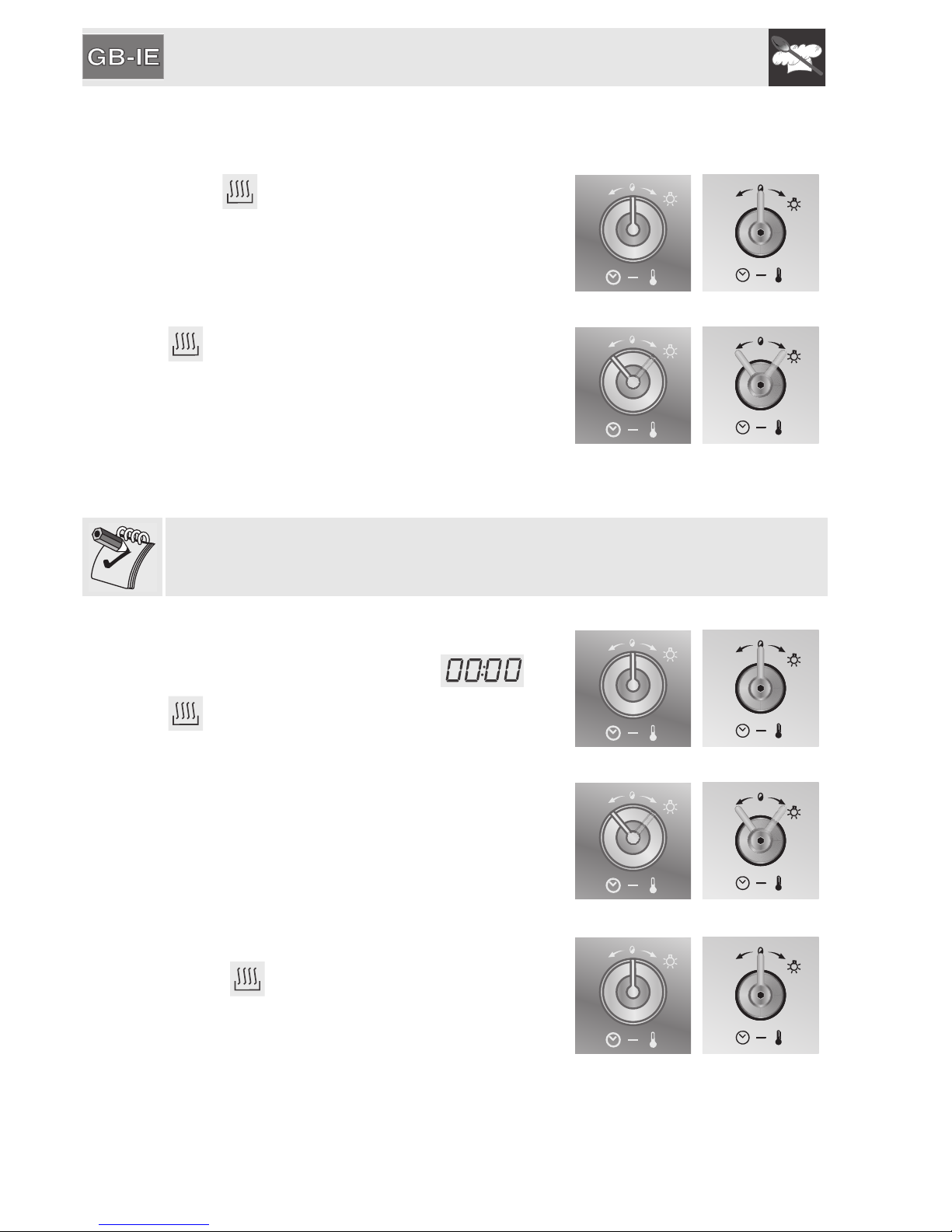

6.9 Programmed cooking

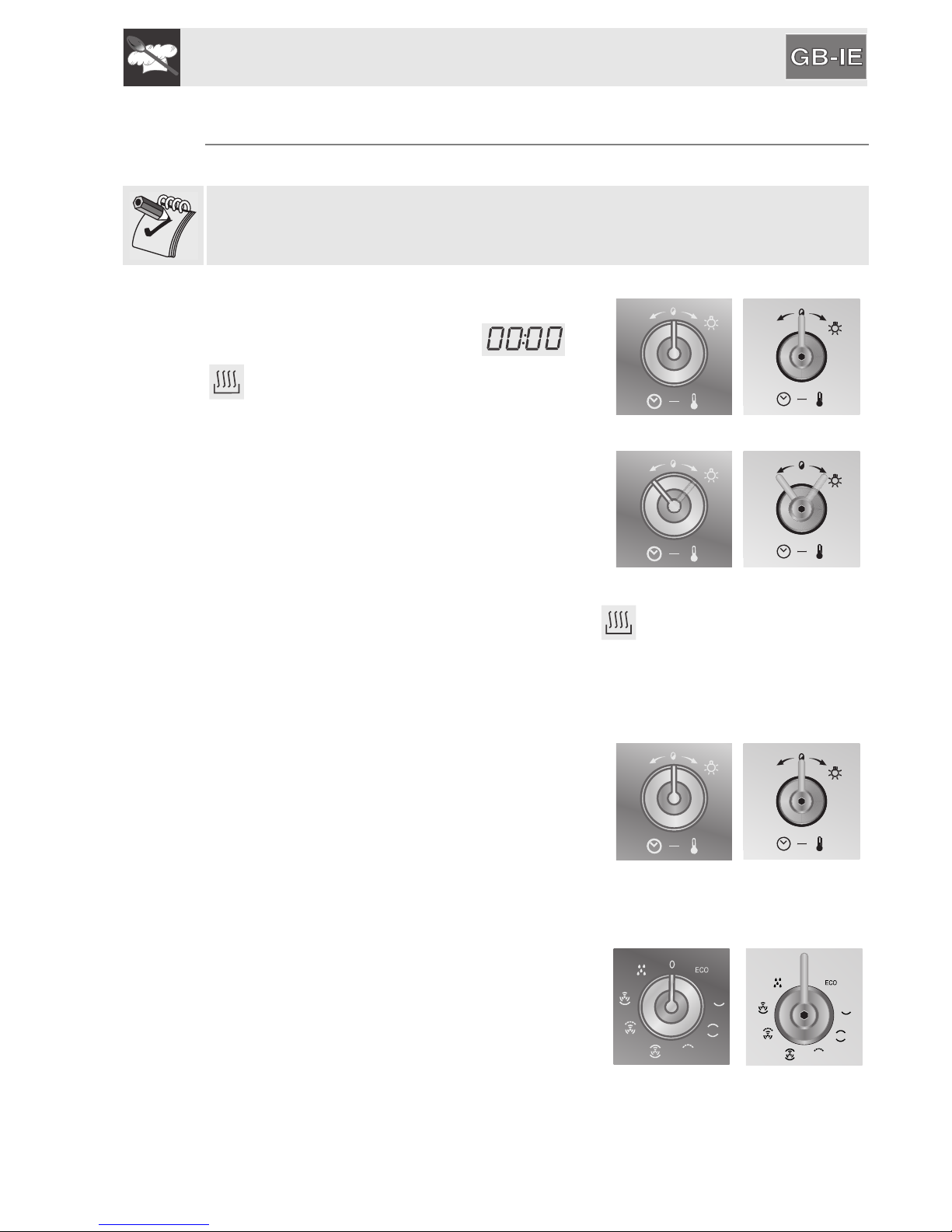

6.9.1 Semi-automatic cooking
Semi-automatic cooking is the function which allows a cooking operation to be
started and then stopped after a specific length of time set by the user when the
oven will switch off automatically.
Select a cooking function as described in "6.7 Selecting a cooking function".
Press the temperature selection knob twice.
The display will show the digits and
(flashing).
(Temperature knob)
Turn the knob right or left to set the number of
minutes of cooking from 00:01 to 12:59 (keep
the knob turned to increase or decrease more
quickly).
(Temperature knob)
A few seconds after the desired duration is set, will stop flashing and semi-
automatic cooking will start from that moment.
At the end, the word STOP will be displayed.
Cooking will be interrupted and a buzzer will
sound which can be deactivated by pressing the
temperature selection knob.
To select another cooking time in semi-
automatic mode turn the same knob right or left.
To extend the cooking time manually (if the food
has not been cooked properly), press the
temperature selection knob again. The
appliance will restart its normal operation with
the previously selected cooking settings.
(Temperature knob)
To switch off the appliance, turn the function
selection knob to “0”.
(Function selection knob)

Instructions for the user
60
Modifying the set data
Once semi-automatic cooking has started, its duration can be changed.
When is steady and the appliance is in the
cooking phase, press the temperature selection
knob.
(Temperature knob)
will start to flash and the preset cooking
time can be changed by turning the knob right
or left.
(Temperature knob)

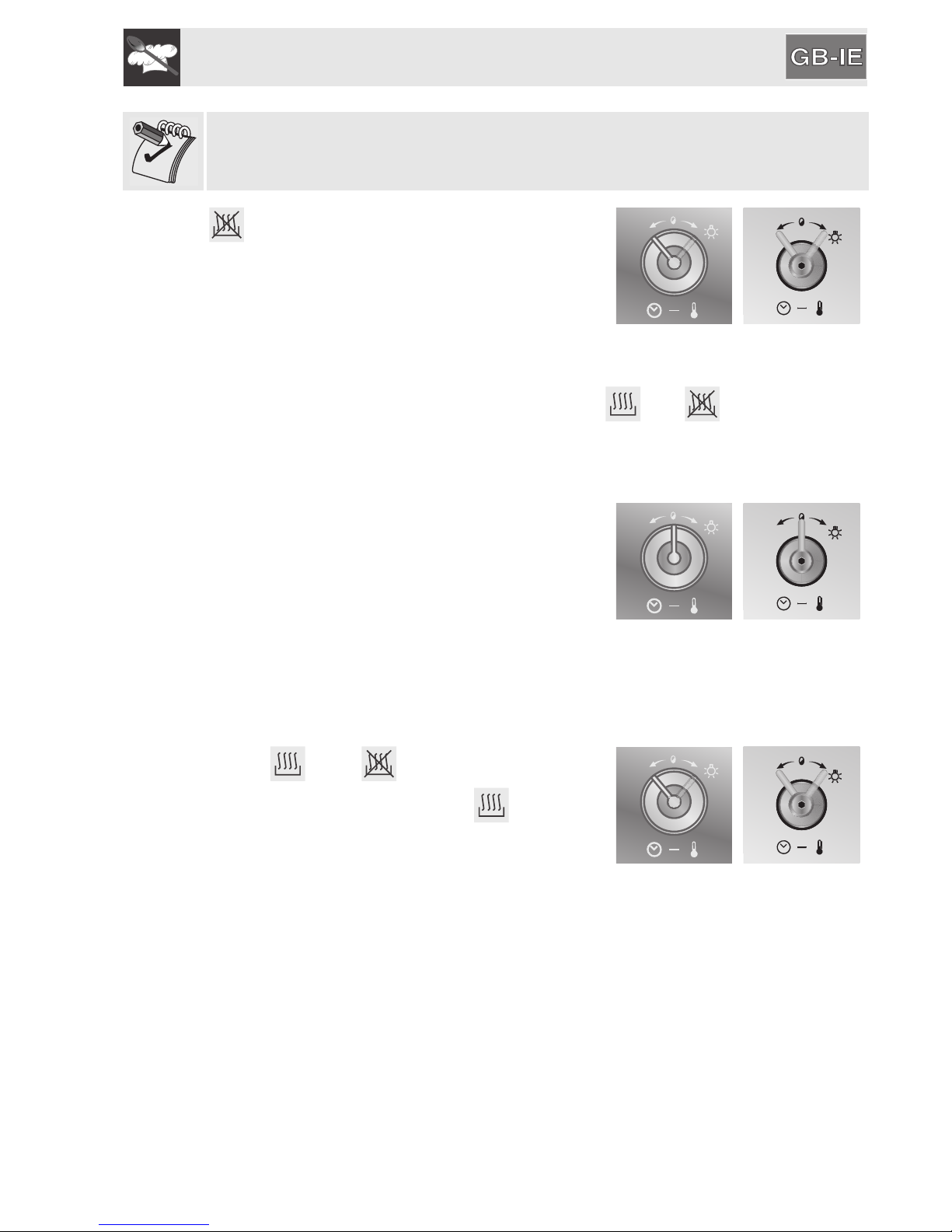

6.9.2 Automatic cooking
Automatic cooking is the function which allows a cooking operation to be
stopped at an established time depending on the time set by the user, after
which the oven will switch off automatically.
Select a cooking function as described in “6.7 Selecting a cooking function”.
Press the temperature selection knob twice.
The display will show the digits and
(flashing).
(Temperature knob)
Turn the knob right or left to set the number of
minutes of cooking from 00:01 to 12:59 (keep
the knob turned to increase or decrease more
quickly).
(Temperature knob)
A few seconds after selecting the desired
period, will stop flashing and from that point
it is possible to press the temperature selection
knob to set the cooking end time.
(Temperature knob)

Instructions for the user
61
For safety reasons, when setting automatic cooking the user must first program
a cooking duration and then set the cooking end time. It is not possible to set the
cooking end time by itself without setting the cooking duration.
will appear together with the cooking end
time. To alter the value, turn the knob right or
left.
(Temperature knob)
A few seconds after the last button is pressed, and will stop flashing
and from that point the appliance will wait for the cooking start time.
When cooking is complete, the word STOP will
appear, cooking will be interrupted and a buzzer
will sound which can be deactivated by pressing
the temperature selection knob.
To extend the cooking time manually (if the food
has not been cooked properly), press the
temperature selection knob. The appliance will
restart its normal operation with the previously
selected cooking settings.
(Temperature knob)
Modifying the set data
When and are steady, press the
temperature selection knob. will start
flashing; turn the knob right or left to change the
set time.
(Temperature knob)

Instructions for the user
62
Press the temperature selection knob again,
will go out, will start flashing and the
cooking end time will be displayed. The cooking
end time can be delayed by turning the knob
right or left.
A few seconds after the last change, and
will appear (in steady mode) and automatic
cooking will restart with the new settings.
(Temperature knob)
(Temperature knob)
Once cooking has been programmed and before it starts, the symbol of the
selected function will remain lit, as will the symbols and .
6.10 Secondary menu
The appliance also has a concealed secondary menu allowing the user to:
• Activate or deactivate the child lock.
• Activate or deactivate Showroom mode (which disables all the heating
elements so that only the control panel works).
• Activate or deactivate low power mode.
When the appliance is in Stand-By mode, hold
down the temperature selection knob for at least
5 seconds.
(Temperature knob)
The setting (ON / OFF) can be changed by
turning the temperature selection knob right or
left.
(Temperature knob)

Instructions for the user
63
Press the temperature selection knob to go to
the next setting.
(Temperature knob)
6.10.1 Child lock mode
By activating this mode, after one minute of
operation without any intervention from the user,
the controls will automatically be locked,
indicated by lighting up.
To temporarily release the lock during cooking,
hold down the temperature selection knob for 5
seconds. One minute after the last setting the
lock will become active again.
(Temperature knob)
If the symbols on touch-sensitive zones are pressed or the positions of the
thermostat knob and function selection knob are changed, the word “BLOC” will
appear for two seconds.
6.10.2 Show room mode (for exhibitors only)
By activating this mode, the oven deactivates all
the heating elements, while keeping the control
panel active. To use the oven normally, set this
mode to OFF.
6.10.3 Low power mode
Activating this mode limits the power used by
the appliance.
HI ; normal power - LO ; low power
Activating low power mode means that preheating and cooking times may be
extended.
