Smeg SFR9390X User manual

Contents
47
EN
1Instructions 48
1.1 General safety instructions 48
1.2 Appliance purpose 51
1.3 Manufacturer’s liability 52
1.4 This user manual 52
1.5 Identification plate 52
1.6 Disposal 52
1.7 How to read the user manual 53
2 Description 54
2.1 General Description 54
2.2 Control panel 55
2.3 Other parts 55
2.4 Available accessories 56
3Use 57
3.1 Instructions 57
3.2 First use 57
3.3 Using the accessories 58
3.4 Using the oven 58
3.5 Cooking advice 66
3.6 Special functions 68
3.7 Automatic programs 71
3.8 Secondary menu 74
4 Cleaning and maintenance 77
4.1 Instructions 77
4.2 Cleaning the appliance 77
4.3 Removing the door 77
4.4 Cleaning the door glazing 78
4.5 Vapor Clean 80
4.6 Extraordinary maintenance 82
5Installation 85
5.1 Electrical connection 85
5.2 Instructions for the installer 85
5.3 Cable replacement 86
5.4 Positioning 86
We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance’s aesthetic and functional qualities.
For further information on the product: www.smeg.com

Instructions
48
1 Instructions
1.1 General safety instructions
Risk of personal injury
• During use the appliance and its
accessible parts become very hot.
Never touch the heating elements
during use.
• Protect your hands by wearing
oven gloves when moving food
inside the oven.
• Never try to put out a fire or flames
with water: Turn off the appliance
and smother the flames with a fire
blanket or other appropriate
cover.
• This appliance may be used by
children aged at least 8 and by
people of reduced physical,
sensory or mental capacity, or
lacking in experience in the use of
electrical appliances, provided
that they are supervised or
instructed by adults who are
responsible for their safety.
• Children must not play with the
appliance.
• Keep children under the age of
eight at a safe distance unless they
are constantly supervised.
• Keep children under the age of 8
away from the appliance when it
is in use.
• Cleaning and maintenance must
not be carried out by unsupervised
children.
• The cooking process must always
be monitored. A short cooking
process must be continuously
monitored.
• Never leave the appliance
unattended during cooking
operations where fats or oils could
be released, as these could then
heat up and catch fire. Be very
careful.
• Do not pour water directly onto
very hot trays.
• Keep the oven door closed during
cooking.
• If you need to move food or at the
end of cooking, open the door
5 cm for a few seconds, let the
steam come out, then open it fully.

Instructions
49
EN
• Do not insert pointed metal objects
(cutlery or utensils) into the slots in
the appliance.
• Switch off the appliance
immediately after use.
• DO NOT USE OR STORE
FLAMMABLE MATERIALS NEAR
THE APPLIANCE.
•DONOTUSEAEROSOLSIN
THE VICINITY OF THIS
APPLIANCE WHILST IT IS IN
USE.
• DO NOT MODIFY THIS
APPLIANCE.
• Have qualified personnel carry out
installation and assistance
interventions according to the
standards in force.
• Do not try to repair the appliance
yourself or without the intervention
of a qualified technician.
• Do not pull the cable to remove
the plug.
Risk of damaging the appliance
• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.
Use wooden or plastic utensils.
• Do not use rough or abrasive
materials or sharp metal scrapers.
• Switch off the burners or the
electric hot plates of the hob
installed above the appliance
during the pyrolytic process
(where available).
• Do not seat on the appliance.
• Do not use cleaning products
containing chlorine, ammonia or
bleach on parts made of steel or
that have metallic surface finishes
(e.g. anodizing, nickel- or
chromium-plating).
• Racks and trays should be inserted
as far as they will go into the side
guides. The mechanical safety
locks that prevent them from being
removed must face downwards
and towards the back of the oven
cavity.
• Do not use steam jets to clean the
appliance.
• Do not spray any spray products
near the appliance.

Instructions
50
• Do not obstruct ventilation
openings and heat dispersal slots.
• Never leave objects on the
cooking surface.
• DO NOT FOR ANY REASON
USE THE APPLIANCE AS A
SPACE HEATER.
• Do not use plastic cookware or
containers when cooking food.
• Do not put sealed tins or
containers in the oven.
• Remove all trays and racks which
are not required during cooking.
• Do not cover the bottom of the
oven cavity with aluminium or tin
foil sheets.
• Do not place pans or trays directly
on the bottom of the oven cavity.
• If you wish to use greaseproof
paper, place it so that it will not
interfere with the hot air circulation
inside the oven.
• Do not use the open door to rest
pans or trays on the internal glass
pane.
• Never use the oven door to lever
the appliance into place when
fitting.
• Avoid exerting too much pressure
on the oven door when open.
• Do not use the handle to lift or
move the appliance.
Installation and maintenance
• THIS APPLIANCE MUST NOT BE
INSTALLED
IN BOATS OR
CARAVANS.
• The appliance must not be
installed on a pedestal.
• Position the appliance into the
cabinet cut-out with the help of a
second person.
• To avoid potential overheating, the
appliance must not be installed
behind a decorative door or a
panel.
• Have qualified personnel carry out
installation and assistance
interventions according to the
standards in force.
• Have the electrical connection
performed by authorised technical
personnel.

Instructions
51
EN
• The appliance must be connected
to earth in compliance with
electrical system safety standards.
• Use cables withstanding a
temperature of at least 90 °C.
• The tightening torque of the screws
of the terminal supply wires must
be 1.5 - 2 Nm.
• If the power supply cable is
damaged, contact technical
support immediately and they will
replace it.
• Always use any necessary/
required personal protective
equipment (PPE) before
performing any work on the
appliance (installation,
maintenance, positioning or
movement).
• Before performing any work on
the appliance, switch off the
power supply.
• This appliance can be used up to
a maximum altitude of 4,000
metres above sea level.
For this appliance
• Take care because steam may not
be visible at certain temperatures.
• Open the appliance door
carefully during or after cooking.
• Dishes must be heat and steam
resistant.
• Ensure that the appliance is
switched off before replacing the
bulb.
•Donotrestanyweight or sit on the
open door of the appliance.
• Take care that no objects are stuck
in the doors.
• Do not install / use the appliance
outdoors.
1.2 Appliance purpose
• This appliance is intended for
cooking food in the home
environment. Every other use is
considered improper.
• The appliance is not designed to
operate with external timers or with
remote-control systems.

Instructions
52
1.3 Manufacturer’s liability
The manufacturer declines all liability
for damage to persons or property
caused by:
• Use of the appliance other than
that specified
• Failure to comply with the
instructions in the user manual
• Tampering with any part of the
appliance
• The use of non-original spare
parts.
1.4 This user manual
This user manual is an integral part of the
appliance and must therefore be kept in its
entirety and within the user’s reach for the
whole working life of the appliance.
Read this user manual carefully before using
the appliance.
1.5 Identification plate
The identification plate bears the technical
data, serial number and brand name of the
appliance. Do not remove the identification
plate for any reason.
1.6 Disposal
This appliance must be disposed of
separately from other waste
(Directives 2002/95/EC, 2002/
96/EC, 2003/108/EC). The appliance
does not contain substances in quantities
sufficient to be considered hazardous to
health and the environment, in accordance
with current European directives.
To dispose of the appliance:
• Cut the power supply cable and remove
it along with the plug.
• Deliver the appliance to the appropriate
recycling centre for electrical and
electronic equipment waste, or return it to
the retailer when purchasing an
equivalent product, on a one for one
basis.
Our appliances are packaged in non-
polluting and recyclable materials.
• Deliver the packing materials to the
appropriate recycling centre.
Power voltage
Danger of electrocution
• Disconnect the mains power supply.
• Unplug the appliance.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or any part
of it unattended.
• Do not let children play with the plastic
bags.

Instructions
53
EN
1.7 How to read the user manual
This user manual uses the following reading
conventions:
1. Sequence of instructions for use.
• Standalone instruction.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories,
cooking advice.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for the qualified
technician: Installation, operation
and inspection.
Safety instructions
Information
Advice

Description
54
2 Description
2.1 General Description
1 Control panel
2 Oven light
3 Seal
4 Door
5 Fan
6 Oven light
Frame shelf

Description
55
EN
2.2 Control panel
1 Temperature knob
This knob allows you to select the cooking
time and temperature, set programmed
cooking and the current time as well as turn
the light inside the oven on and off.
2 Display
Displays the current time, the cooking
parameters and all the appliance’s
functions.
3 Function knob
This knob allows you to turn the appliance
on and off and select the various available
functions.
Turn the knob right or left to change/select
the required item.
2.3 Other parts
Shelves
The appliance features shelves to position
trays and racks at different heights. The
insertion heights are indicated from the
bottom upwards (see 2.1 General
Description).
Cooling fan
The fan cools the appliance and comes into
operation during cooking.
The fan causes a steady outflow of air from
above the door which may continue for a
brief period of time even after the appliance
has been turned off.
Interior lighting
The appliance’s interior lighting comes on:
• When the door is opened.
• When any function is started, apart from
the ECO and Vapor Clean functions
(on some models only).
• When the temperature knob is briefly
turned to the right (manual activation and
deactivation).
Keep the knob pressed in for at
least 5 seconds to immediately
complete any cooking operation.
When the door is open, it is not
possible to turn off the interior
lighting.

Description
56
2.4 Available accessories

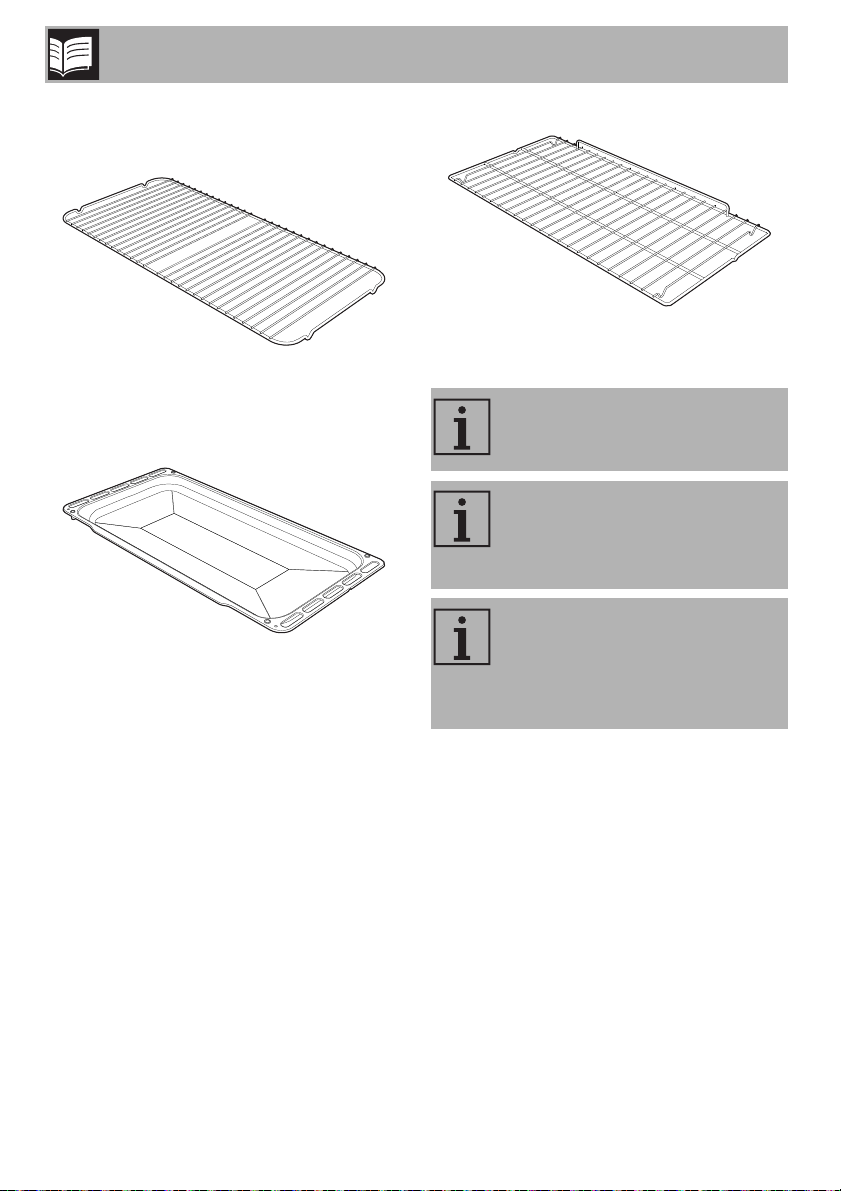

Tray rack
To be placed over the top of the oven tray;
for cooking foods which may drip.
Deep tray
Useful for collecting fat from foods placed
on the rack above and for cooking pies,
pizzas and baked desserts.
Rack
Useful for supporting containers with food
during cooking.
Some models are not provided
with all accessories.
The accessories intended to come
into contact with food are made of
materials that comply with the
provisions of current legislation.
Supplied and optional accessories
can be requested to Authorised
Assistance Centres. Use only
original accessories supplied by
the manufacturer.

Use
57
EN
3 Use
3.1 Instructions
3.2 First use
1. Remove any protective film from the
outside or inside of the appliance,
including accessories.
2. Remove any labels (apart from the
technical data plate) from the
accessories and from the oven cavity.
3. Remove and wash all the appliance
accessories (see 4 Cleaning and
maintenance).
4. Heat the empty oven at the maximum
temperature to burn off any residues left
by the manufacturing process.
Improper use
Risk of damage to surfaces
• Do not cover the bottom of the oven
cavity with aluminium or tin foil sheets.
• If you wish to use greaseproof paper,
place it so that it will not interfere with the
hot air circulation inside the oven.
• Do not place pans or trays directly on
the bottom of the oven cavity.
• Do not pour water directly onto very hot
trays.
High temperature inside the oven
during use
Danger of burns
• Keep the oven door closed during
cooking.
• Protect your hands by wearing oven
gloves when moving food inside the
oven.
• Do not touch the heating elements inside
the oven.
• Do not pour water directly onto very hot
trays.
• Do not allow children to approach the
appliance when it is in operation.
High temperature inside the oven
during use
Danger of fire or explosion
• Do not spray any spray products near
the appliance.
• Do not use or leave flammable materials
near the appliance.
•Donotuseplastic cookware or
containers when cooking food.
• Do not put sealed tins or containers in
the oven.
• Do not leave the appliance unattended
during cooking operations where fats or
oils could be released.
• Remove all trays and racks which are
not required during cooking.

Use
58
3.3 Using the accessories
Tray rack
The tray rack has to be inserted into the tray.
In this way fat can be collected separately
from the food which is being cooked.
Racks and trays
Racks and trays have to be inserted into the
side guides until they come to a complete
stop.
The mechanical safety locks that prevent the
rack from being removed accidentally must
face downwards and towards the back of
the oven cavity.
3.4 Using the oven
Display
Eco-logic indicator light
Showroom indicator light
Minute minder timer indicator light
Timed cooking indicator light
Programmed cooking indicator light
Clock indicator light
Child lock indicator light
Temperature level reached
Gently insert racks and trays into
the oven until they come to a stop.
Clean the trays before using them
for the first time to remove any
residues left by the manufacturing
process.

Use
59
EN
Operating modes
Standby: When no function is selected, the
display shows the current time.
ON: When a function is activated, the
display shows the parameters set such as
temperature, duration and temperature
reached.
Each time the temperature knob is pressed
during a function, the parameters will be
cycled through in the following order.
Temperature
Minute minder timer duration
Function duration
Programmed cooking duration (if timed
cooking has been selected)
Time display
In all modes it is possible to modify the
value by turning the temperature knob to the
left or right. Keep the knob turned to
produce a faster increase or decrease.

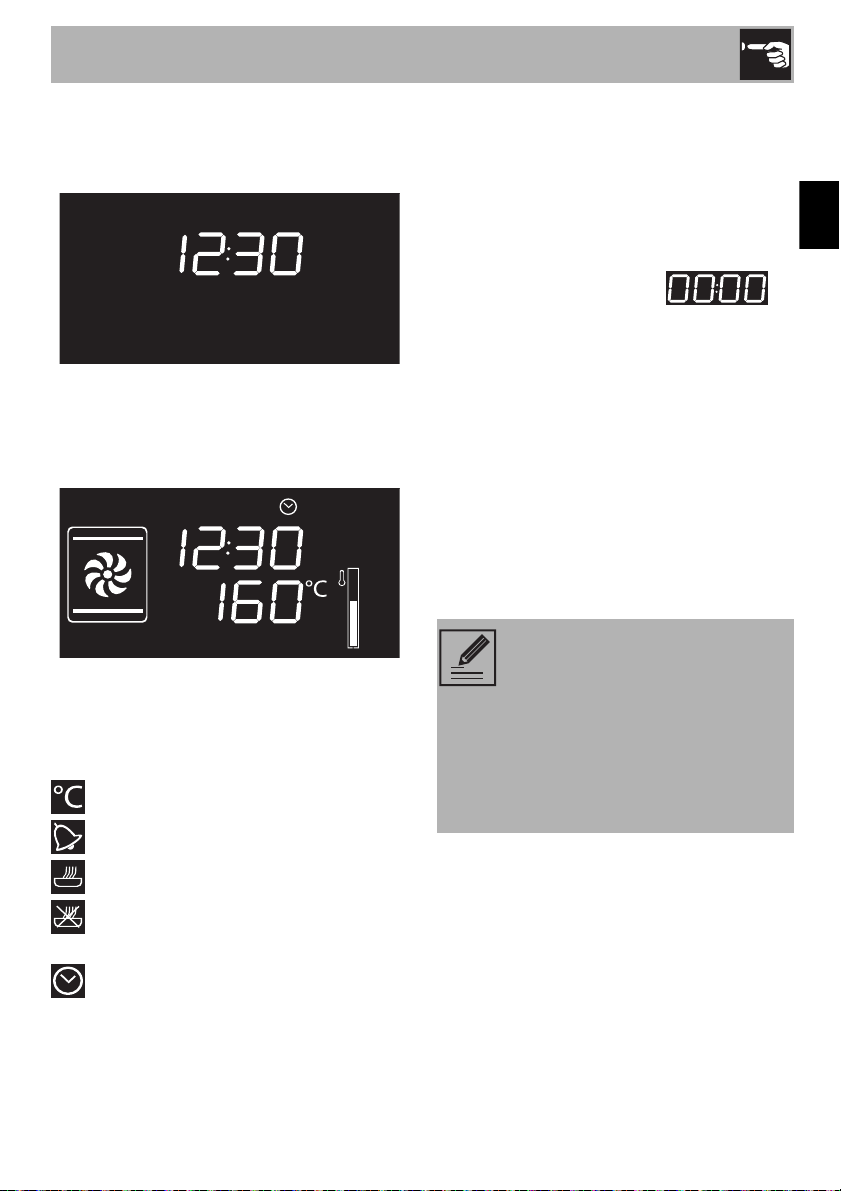

Setting the time
When using the appliance for the first time,
or after a power failure, the
symbol will flash on the display. To be able
to start any cooking function, the current
time must be set.
1. Turn the temperature knob to set the
displayed time (keep the knob turned to
produce a faster increase or decrease).
2. Press the temperature knob.
3. Turn the temperature knob to set the
minutes (keep the knob turned to
produce a faster increase or decrease).
4. Press the temperature knob to finish
adjustment.
It may be necessary to change the
current time, for example for
daylight saving time. From the
stand-by position, keep the
temperature knob turned to the
right or left until the hours flash.
It is not possible to change the time
if the oven is ON.

Use
60
Cooking functions
1. Press and turn the function knob to select
the required cooking function.
2. Press and turn the temperature knob to
modify the cooking temperature.
3. Press the function knob to start traditional
cooking.
Preheating stage
Cooking itself is preceded by a preheating
stage, which allows the appliance to heat
to the cooking temperature more quickly.
The temperature reached flashes to
indicate that this stage is in progress.
When the preheating stage is
complete, temperature level reached
indication will remain lit steadily and a
buzzer sounds to indicate that the food
can be placed inside the oven.
Functions list
A function can be interrupted at
any time by pressing and holding
the function knob for at least 3
seconds.
Eco
This function is particularly suitable
for cooking on a single shelf with
low energy consumption.
Ideal for cooking meat, fish and
vegetables. It is not recommended
for leavened foods.
To obtain maximum energy savings
and reduce cooking times, it is
recommended to place food in the
oven without preheating.
When using the ECO function,
avoid opening the door during
cooking.
Cooking (and preheating) times
are longer with the ECO function.
Static
As the heat comes from above and
below at the same time, this system
is particularly suitable for certain
types of food. Traditional cooking,
also known as static cooking, is
suitable for cooking just one dish at
a time. Perfect for all types of roasts,
bread and cakes, and in any case,
particularly suitable for fatty meats
such as goose and duck.

Use
61
EN
Grill
The heat coming from the grill
element gives perfect grilling results
above all for thin and medium
thickness meat and, in combination
with the rotisserie (where fitted),
gives the food an even browning at
the end of cooking. Perfect for
sausages, spare ribs and bacon.
This function enables large
quantities of food, particularly meat,
to be grilled evenly.
Lower element
The heat coming just from the
bottom allows you to complete the
cooking of foods that require a
higher bottom temperature, without
affecting their browning. Perfect for
cakes, pies, tarts and pizzas.
Fan assisted
The operation of the fan, combined
with traditional cooking, ensures
consistent cooking even with
complex recipes. Perfect for biscuits
and cakes, even when
simultaneously cooked on several
levels. (For multiple-level cooking,
we recommend using the 2nd and
4th shelf).
Fan with grill
The air produced by the fan softens
the strong heatwave generated by
the grill, grilling perfectly even very
thick foods. Perfect for large cuts of
meat (e.g. shin of pork).
Fan + lower element
The combination of the fan with just
the lower heating element allows
cooking to be completed more
rapidly. This system is
recommended for sterilising or for
finishing off the cooking of foods
which are already well-cooked on
the surface, but not inside, which
therefore need a little more heat.
Perfect for any type of food.

Use
62

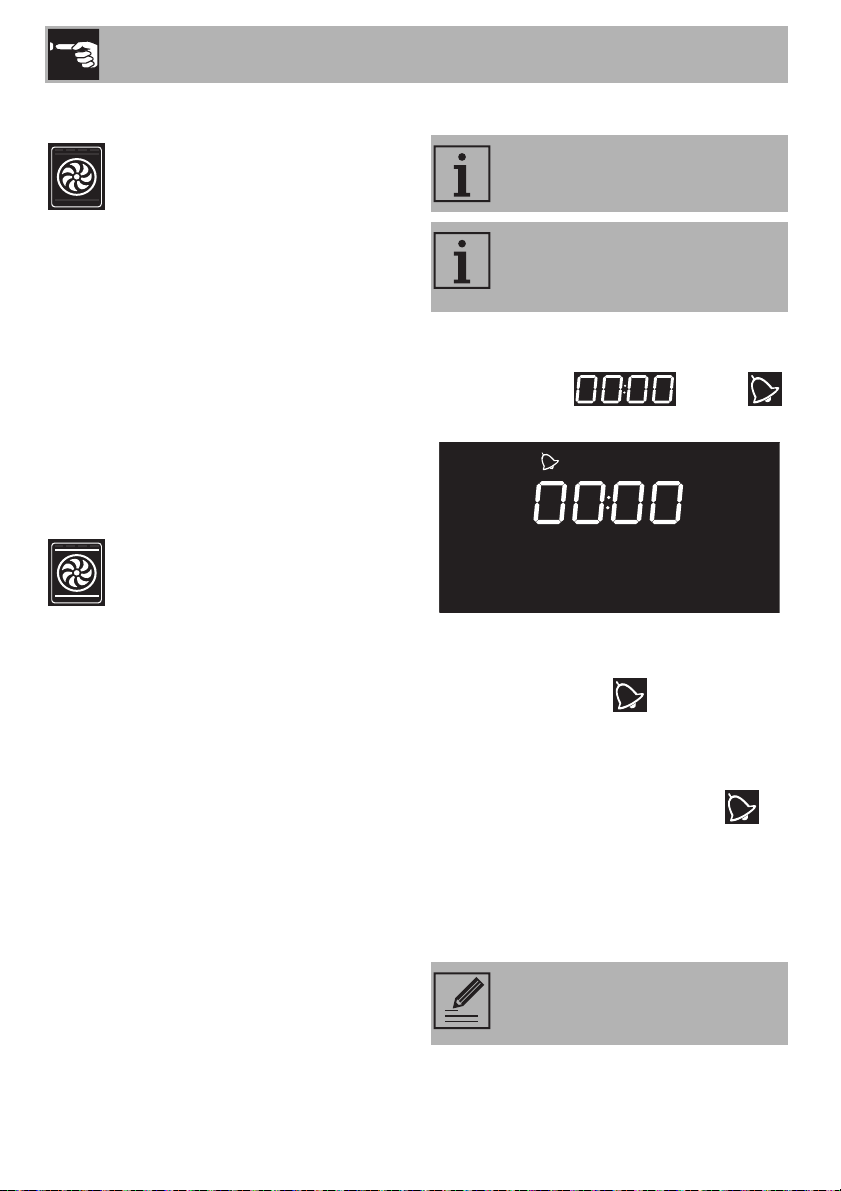

Timer
1. Press the temperature knob once (twice if
cooking is already in progress). The
display shows and the
indicator light flashes.
2. Turn the temperature knob to set the
duration (from 1 minute to 4 hours). After
a few seconds, the indicator light
stops flashing and the countdown starts.
3. Select the required cooking function and
wait for the buzzer to sound, indicating
that the cooking time is over. The
indicator light flashes.
4. To deactivate the buzzer, press or turn
one of the two knobs.
5. To select a further minute minder, turn the
temperature knob.
Circulaire
The combination of the fan and the
circulaire heating element
(incorporated in the rear of the oven
cavity) allows you to cook different
foods on several levels, as long as
they require the same temperature
and type of cooking. Hot air
circulation ensures instant and even
distribution of heat. It will be
possible, for instance, to cook fish,
vegetables and biscuits
simultaneously (on different levels)
without odours and flavours
mingling.
Turbo
The combination of fan assisted
cooking and traditional cooking
allows different foods to be cooked
on several levels extremely quickly
and efficiently, without odours and
flavours mingling. Perfect for large
volumes that call for intense
cooking.
This function only activates the
buzzer, without stopping cooking.
The timer can be activated both
during cooking and when the
appliance is in standby.
You must set the value to zero to
remove the minute minder timer.

Use
63
EN

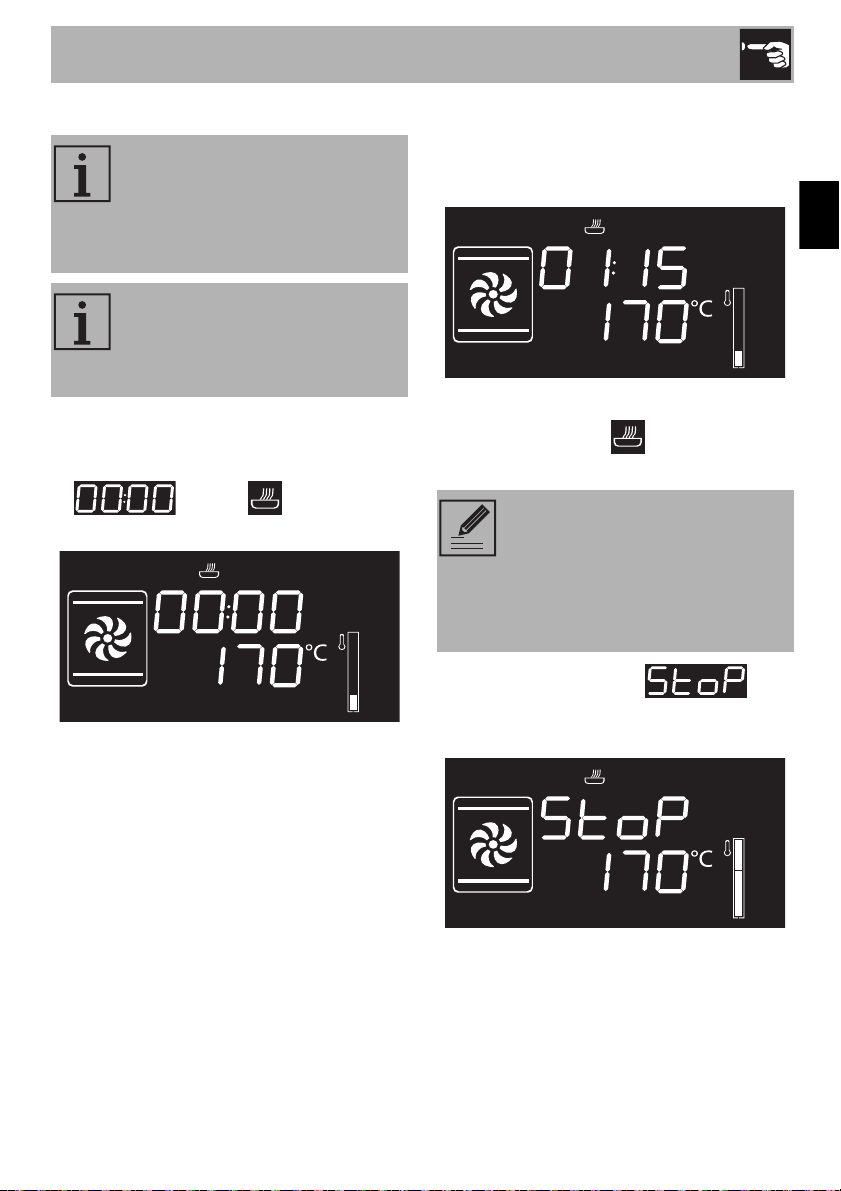

Timed cooking
1. After selecting a cooking function and
temperature, press the temperature knob
three times. The display shows
and the indicator light
flashes.
2. Turn the temperature knob right or left to
set the cooking duration from 00:01 to
12:59. Keep the knob turned to produce
a faster increase or decrease.
3. A few seconds after the required
duration is set, the indicator light
stops flashing and timed cooking starts.
4. At the end of cooking, is
shown on the display and a buzzer
sounds.
Timed cooking is the function
which allows a cooking operation
to be started and then ended after
a specific length of time set by the
user.
Activation of timed cooking
cancels any minute minder timer
which may previously have been
set.
To extend the cooking time
manually, press the temperature
knob again. The appliance will
resume its normal operation with
the previously selected cooking
settings.

Use
64
5. To deactivate the buzzer, press or turn
one of the two knobs or open the door.
Modifying the data set during timed
cooking
During operation, it is possible to modify
timed cooking duration:
1. When the indicator light is steady
and cooking is in progress inside the
appliance, press the temperature knob
twice. The indicator light starts
flashing.
2. Turn the temperature knob right or left to
change the previously set cooking
duration.
Programmed cooking
1. After selecting a cooking function and
temperature, press the temperature knob
three times. The display shows
and the indicator light
flashes.
2. Turn the knob right or left to set the
cooking duration from 00:01 to 12:59.
Keep the knob turned to increase or
decrease it more quickly.
To deactivate the buzzer and
select a further timed cooking, turn
the temperature knob to the right.
To deactivate the buzzer and
select a different cooking function,
turn the function knob to the right or
left.
Press and hold the function knob
down to switch off the appliance.
Programmed cooking is the
function which allows cooking to
be stopped at an established time
depending on the time set by the
user, after which the appliance will
switch off automatically.

Use
65
EN
3. Press the temperature knob a fourth time.
The indicator light flashes. Turn the
knob right or left to set the cooking end
time.
4. After a few seconds the and
indicator lights stop flashing. The
appliance waits for the set start time.
5. At the end of cooking, is
shown on the display and a buzzer
sounds.
6. To deactivate the buzzer, press or turn
one of the two knobs or open the door.
To extend the cooking time
manually, press the temperature
knob again. The appliance will
resume its normal operation with
the previously selected cooking
settings.
With timed cooking, the oven is
switched on ten minutes
beforehand to allow the appliance
to reach cooking temperature
(preheating).
Press and hold the function knob
down to switch off the appliance.
For safety reasons, it is not possible
to set the end of cooking time by
itself without setting the cooking
duration.

Use
66
Modifying the data set during
programmed cooking
During operation, it is possible to modify
programmed cooking duration:
1. When the and indicator lights
are lit steadily and the appliance is
waiting for cooking to start, press the
temperature knob twice. The
indicator light starts flashing.
2. Turn the temperature knob right or left to
change the previously set cooking
duration.
3. Press the temperature knob again. The
indicator light switches off and the
indicator light starts flashing. The
display shows the cooking end time.
4. Turn the temperature knob right or left to
delay the cooking end time.
5. After a few seconds the and
indicator lights stop flashing and
programmed cooking resumes its
operation with the new settings.
3.5 Cooking advice
General advice
• Use a fan assisted function to achieve
consistent cooking at several levels.
• It is not possible to shorten cooking times
by increasing the temperature (the food
could be overcooked on the outside and
undercooked on the inside).
• For the same total weight, cooking time
will be greater for cooking a whole
piece than when it is cut into smaller
pieces.
Advice for cooking meat
• Cooking times vary according to the
thickness and quality of the food and to
consumer taste.
• Use a meat thermometer when roasting
meat, or simply press on the roast with a
spoon. If it is hard, it is ready; If not, it
needs another few minutes cooking.
Advice for cooking with the Grill
• Meat can be grilled even when it is put
into the cold oven or into the preheated
oven if you wish to change the effect of
the cooking.
• With the Fan with grill function, we
recommend that you preheat the oven
before grilling.
• We recommend placing the food at the
centre of the rack.
The end of cooking time must be
re-set after the cooking duration
has been modified.
