Smeg SFP6401TVN1 User manual

Contents
55
EN
1Instructions 56
1.1 General safety instructions 56
1.2 Appliance purpose 60
1.3 Manufacturer’s liability 60
1.4 This user manual 60
1.5 Disposal 61
1.6 Identification plate 61
1.7 How to read the user manual 62
1.8 To save energy 62
2 Description 63
2.1 General description 63
2.2 Control panel 64
2.3 Other parts 65
2.4 Available accessories 65
3Use 67
3.1 Using the accessories 68
3.2 Using the oven 69
3.3 Cooking advice 76
3.4 Special functions 79
3.5 Settings 83
4 Cleaning and maintenance 87
4.1 Cleaning the surfaces 87
4.2 Cleaning the door 87
4.3 Cleaning the oven cavity 90
4.4 Vapor Clean (on some models only) 93
4.5 Pyrolytic function (on some models only) 96
4.6 Extraordinary maintenance 99
5 Installation 101
5.1 Electrical connection 101
5.2 Positioning 102
We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance’s aesthetic and functional qualities.
For further information on the product: www.smeg.com
TRANSLATION OF THE ORIGINAL INSTRUCTIONS

Instructions
56
1 Instructions
1.1 General safety instructions
• During use the appliance and its
accessible parts become very
hot. Never touch the heating
elements during use.
• Protect your hands by wearing
oven gloves when moving food
inside the oven.
• Never try to put out a fire or
flames with water: Turn off the
appliance and smother the
flames with a fire blanket or
other appropriate cover.
• This appliance may be used by
children aged at least 8 and by
people of reduced physical,
sensory or mental capacity, or
lacking in experience in the use
of electrical appliances,
provided that they are
supervised or instructed by
adults who are responsible for
their safety.
• Children must not play with the
appliance.
• Keep children under the age of
eight at a safe distance unless
they are constantly supervised.
• Keep children under the age
of 8 away from the appliance
when it is in use.
• Cleaning and maintenance
must not be carried out by
unsupervised children.
• The cooking process must
always be monitored. A short
cooking process must be
continuously monitored.
• Never leave the appliance
unattended during cooking
operations where fats or oils
could be released, as these
could then heat up and catch
fire. Be very careful.
• Do not pour water directly onto
very hot trays.
• Keep the oven door closed
during cooking.
RISK OF INJURY

Instructions
57
EN
• If you need to move food or at
the end of cooking, open the
door 5 cm for a few seconds,
let the steam come out, then
open it fully.
• Do not insert pointed metal
objects (cutlery or utensils) into
the slots in the appliance.
• Switch off the appliance
immediately after use.
• DO NOT USE OR STORE
FLAMMABLE MATERIALS
NEAR THE APPLIANCE.
• DO NOT USE AEROSOLS IN
THE VICINITY OF THIS
APPLIANCE WHILST IT IS IN
USE.
• DO NOT MODIFY THIS
APPLIANCE.
• Installation and servicing should
be carried out by qualified
personnel in accordance with
current standards.
• Do not try to repair the
appliance yourself or without
the assistance of a qualified
technician.
• Do not pull the cable to unplug
the appliance.
•Donotuseabrasiveor
corrosive detergents (e.g.
scouring powders, stain
removers and metallic sponges)
on glass parts. Use wooden or
plastic utensils.
• Do not use rough or abrasive
materials or sharp metal
scrapers.
• Do not sit on the appliance.
• Do not use cleaning products
containing chlorine, ammonia
or bleach on parts made of
steel or that have metallic
surface finishes (e.g. anodizing,
nickel- or chromium-plating).
RISK OF DAMAGING THE
APPLIANCE

Instructions
58
• Racks and trays should be
inserted as far as they will go
into the side guides. The
mechanical safety locks that
prevent them from being
removed must face downwards
and towards the back of the
oven cavity.
• Do not use steam jets to clean
the appliance.
• Do not spray any spray
products near the appliance.
• (on some models only) Before
starting the pyrolytic cycle,
remove any food residues or
large spills from previous
cooking operations from the
inside of the oven.
• Do not obstruct ventilation
openings and heat dispersal
slots.
• Fire hazard: never leave objects
in the oven cavity.
• DO NOT FOR ANY REASON
USE THE APPLIANCE AS A
SPACE HEATER.
•Donotuseplastic cookware or
containers when cooking food.
• Do not put sealed tins or
containers in the oven.
• Remove all trays and racks
which are not required during
cooking.
• Do not cover the bottom of the
oven cavity with aluminium or tin
foil sheets.
• Do not place pans or trays
directly on the bottom of the
oven cavity.
• If you wish to use greaseproof
paper, place it so that it will not
interfere with the hot air
circulation inside the oven.
• Do not use the open door to rest
pans or trays on the internal
glass pane.
• Never use the oven door to
lever the appliance into place
when fitting.

Instructions
59
EN
• Avoid exerting too much
pressure on the oven door when
open.
• Do not use the handle to lift or
move the appliance.
Installation and maintenance
• THIS APPLIANCE MUST NOT
BE INSTALLED IN BOATS OR
CARAVANS.
• The appliance must not be
installed on a pedestal.
• Position the appliance into the
cabinet cut-out with the help of
a second person.
• To avoid potential overheating,
the appliance must not be
installed behind a decorative
door or a panel.
• Installation and servicing should
be carried out by qualified
personnel in accordance with
current standards.
• Have the electrical connection
performed by authorised
technical personnel.
• The appliance must be
connected to earth in
compliance with electrical
system safety standards.
• Use cables that can withstand
temperatures of at least 90°C.
• The tightening torque of the
screws of the terminal supply
wires must be 1.5 - 2 Nm.
• If the power cable becomes
damaged, contact technical
support immediately to arrange
for it to be replaced in order to
avoid possible hazards.
• Always use any necessary/
required personal protective
equipment (PPE) before
performing any work on the
appliance (installation,
maintenance, positioning or
movement).
• Before performing any work on
the appliance, switch off the
power supply.
• This appliance can be used up
to a maximum altitude of 2,000
metres above sea level.

Instructions
60
For this appliance
• Ensure that the appliance is
switched off before replacing
the bulb.
• Do not rest any weight or sit on
the open door of the appliance.
• Take care that no objects are
stuck in the doors.
• Do not install / use the
appliance outdoors.
• Only use the temperature probe
provided or recommended by
the manufacturer.
1.2 Appliance purpose
This appliance is intended for
cooking food in the home
environment. Every other use is
considered improper. It must also
not be used:
• In kitchen areas provided for
employees in shops, offices and
other work environments
• On farms/farm
accommodation
• By guests in hotels, motels and
other types of residential
environments
• In bed and breakfast
accommodation.
1.3 Manufacturer’s liability
The manufacturer declines all
liability for damage to persons or
property caused by:
• Use of the appliance other than
that specified
• Failure to comply with the
instructions in the user manual
• Tampering with any part of the
appliance
• The use of non-original spare
parts.
1.4 This user manual
• This user manual is an integral part of the
appliance and must therefore be kept in
its entirety and within the user’s reach for
the whole working life of the appliance.
• Read this user manual carefully before
using the appliance.
• The explanations in this manual include
images, which describe all that regularly
appears on the display. However, it
should be kept in mind that the appliance
may be equipped with an updated
version of the system, and as such, all
that appears on the display may differ
from those in the manual.

Instructions
61
EN
1.5 Disposal
This appliance conforms to the
WEEE European directive (2012/
19/EU) and must be disposed of
separately from other waste at the end of its
service life.
The appliance does not contain substances
in quantities sufficient to be considered
hazardous to health and the environment, in
accordance with current European
directives.
To dispose of the appliance:
• Cut the power cable and remove it.
• Deliver the appliance to the appropriate
recycling centre for electrical and
electronic equipment waste, or return it to
the retailer when purchasing an
equivalent product, on a one for one
basis.
Our appliances are packaged in non-
polluting and recyclable materials.
• Deliver the packing materials to the
appropriate recycling centre.
1.6 Identification plate
The identification plate bears the technical
data, serial number and brand name of the
appliance. Do not remove the identification
plate for any reason.
Power voltage
Danger of electrocution
• Disconnect the mains power supply.
• Unplug the appliance.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or any part
of it unattended.
• Do not let children play with the plastic
bags.

Instructions
62
1.7 How to read the user manual
This user manual uses the following reading
conventions:
1.8 To save energy
• Only preheat the appliance if the recipe
requires you to do so.
• Unless otherwise indicated on the
package, defrost frozen foods before
placing them in the oven.
• When cooking several types of food it is
recommended to cook the foods one
after the other to make the best use of the
already hot oven.
• Use dark metal moulds: They help to
absorb the heat better.
• Remove all trays and racks which are not
required during cooking.
• Stop cooking a few minutes before the
time normally used. Cooking will
continue for the remaining minutes with
the heat which has accumulated inside
the oven.
• Reduce any opening of the door to a
minimum to avoid heat dispersal.
• Keep the inside of the oven clean at all
times.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories,
cooking advice.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for the qualified
technician: Installation, operation
and inspection.
Safety instructions
Information / Advice

Description
63
EN
2 Description
2.1 General description
1 Control panel
2 Oven light
3 Seal
4 Door
5 Fan
6 Rack/tray support frames
Frame shelf

Description
64
2.2 Control panel
1 Function knob
This knob can be used to:
• Turn the appliance on and off
• Select a function.
2 Display
Displays the current time, the function, the
selected cooking temperature, power and
any time that has been set.
3 Select knob
This knob can be used to set:
• The cooking temperature
• The duration of a function
• Programmed cooking procedures
• The current time
• Temporarily start or stop a function.
Turn the Function knob to 0
to terminate any cooking
operation immediately.

Description
65
EN

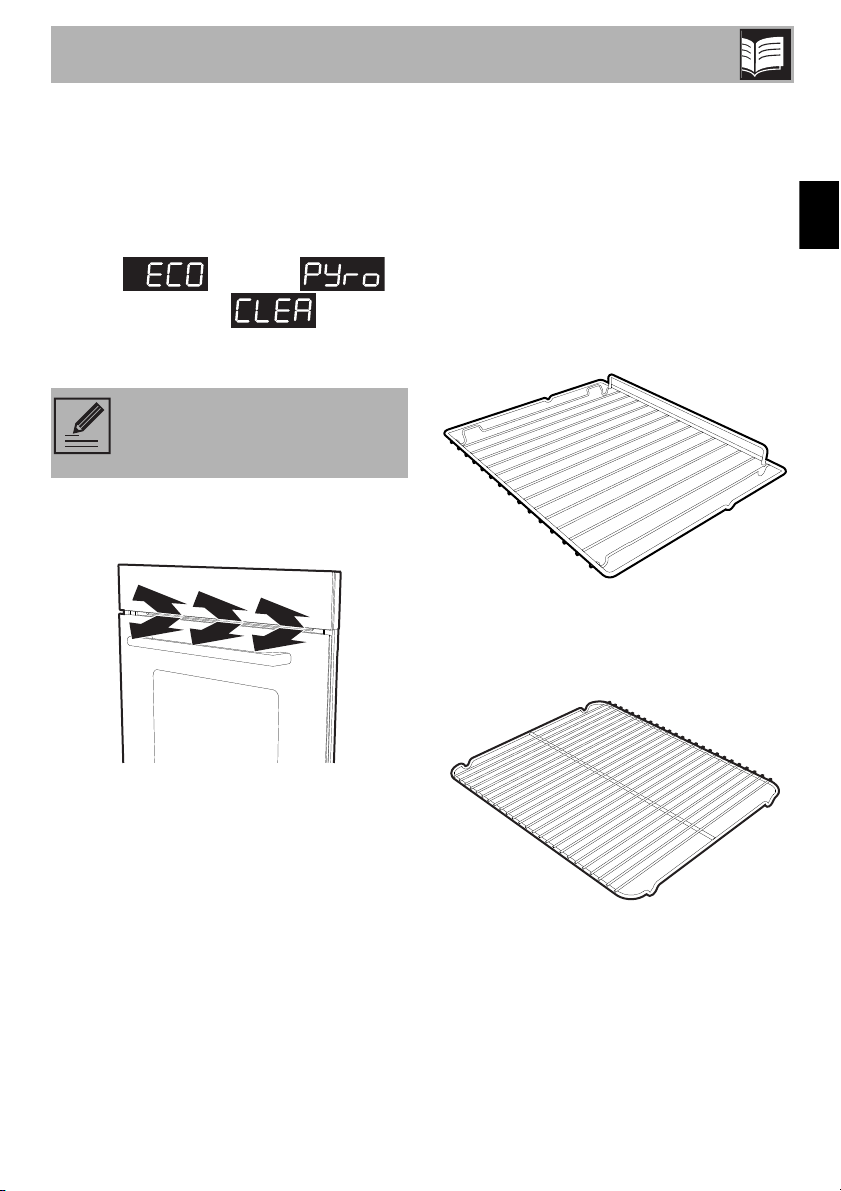

2.3 Other parts
Interior lighting
The appliance’s interior lighting comes on:
• When the door is opened.
• When any function, apart from the
ECO , Pyrolytic
and Vapor Clean functions
are selected (depending on the
model).
Cooling fan
The fan cools the appliance and comes into
operation during cooking.
The fan causes a steady outflow of air from
above the door which may continue for a
brief period of time even after the appliance
has been turned off.
Shelves
The appliance features shelves to position
trays and racks at different heights. The
insertion heights are indicated from the
bottom upwards (see 2.1 General
description).
2.4 Available accessories
Rack
Useful for supporting containers with food
during cooking.
Tray rack (on some models only)
To be placed over the top of the oven tray;
for cooking foods which may drip.
When the door is open, it is not
possible to turn off the interior
lighting.

Description
66

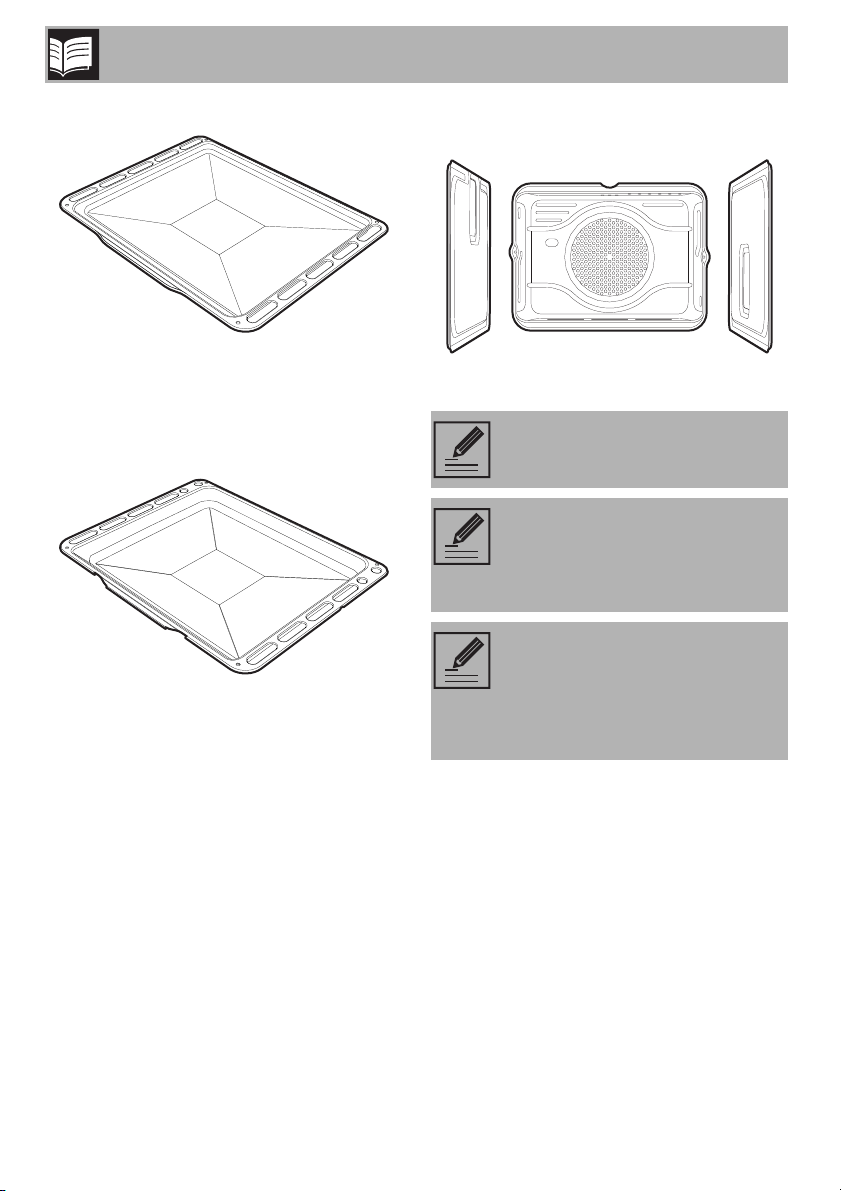

Oven tray (on some models only)
Useful for collecting fat from foods placed
on the rack above and for cooking sweets,
biscuits, etc.
Deep tray
Useful for collecting fat from foods placed
on the rack above and for cooking pies,
pizzas and baked desserts.
Self-cleaning panels (on some models
only)
Useful for absorbing small grease residues.
Some models are not provided
with all accessories.
The oven accessories intended to
come into contact with food are
made of materials that comply with
the provisions of current legislation.
Original supplied and optional
accessories can be requested to
Authorised Assistance Centres.
Use only original accessories
supplied by the manufacturer.

Use
67
EN
3 Use
Instructions
Preliminary operations
1. Remove any protective film from the
outside or inside of the appliance,
including accessories.
2. Remove any labels (apart from the
technical data plate) from the
accessories and from the oven cavity.
3. Remove and wash all the appliance’s
accessories (see 4 Cleaning and
maintenance).
4. Heat the empty oven at the maximum
temperature to burn off any residues left
by the manufacturing process.
High temperature inside the oven
during use
Danger of burns
• Keep the oven door closed during
cooking.
• Protect your hands by wearing oven
gloves when moving food inside the
oven.
• Do not touch the heating elements inside
the oven.
• Do not pour water directly onto very hot
trays.
• Do not allow children to approach the
oven when it is in operation.
Improper use
Risk of damage to enamelled
surfaces
• Do not cover the bottom of the oven
cavity with aluminium or tin foil sheets.
• If you wish to use greaseproof paper,
place it so that it will not interfere with the
hot air circulation inside the oven.
• Do not place pans or trays directly on
the bottom of the oven cavity.
• Do not pour water directly onto very hot
trays.
High temperature inside the oven
during use
Danger of fire or explosion
• Do not spray any spray products near
the appliance.
• Do not use or leave flammable materials
near the appliance.
•Donotuseplastic cookware or
containers when cooking food.
• Do not put sealed tins or containers in
the oven.
• Do not leave the appliance unattended
during cooking operations where fats or
oils could be released.
• Remove all trays and racks which are
not required during cooking.

Use
68

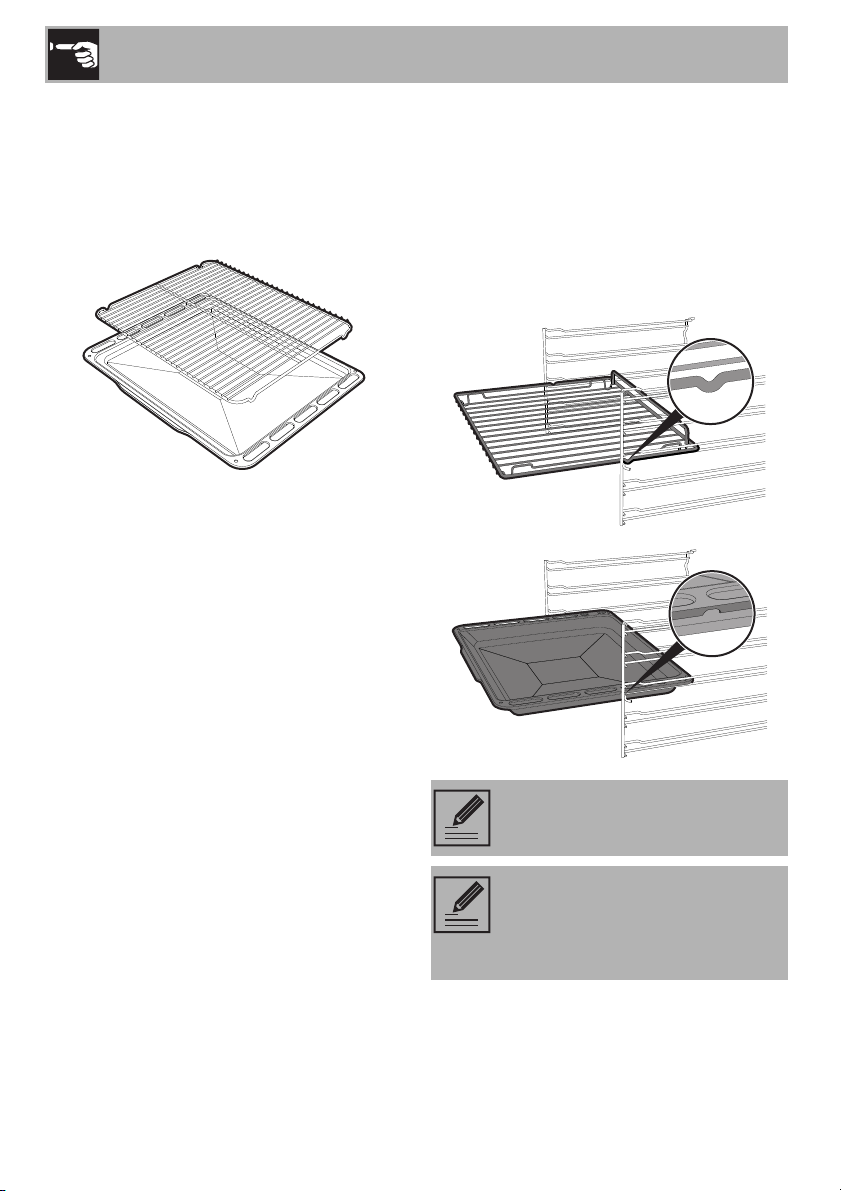

3.1 Using the accessories
Tray rack
The tray rack has to be inserted into the tray.
In this way fat can be collected separately
from the food which is being cooked.
Racks and trays
Racks and trays have to be inserted into the
side guides until they come to a complete
stop.
• The mechanical safety locks that prevent
the rack from being removed
accidentally must face downwards and
towards the back of the oven.
Gently insert racks and trays into
the oven until they come to a stop.
Clean the trays before using them
for the first time to remove any
residues left by the manufacturing
process.

Use
69
EN

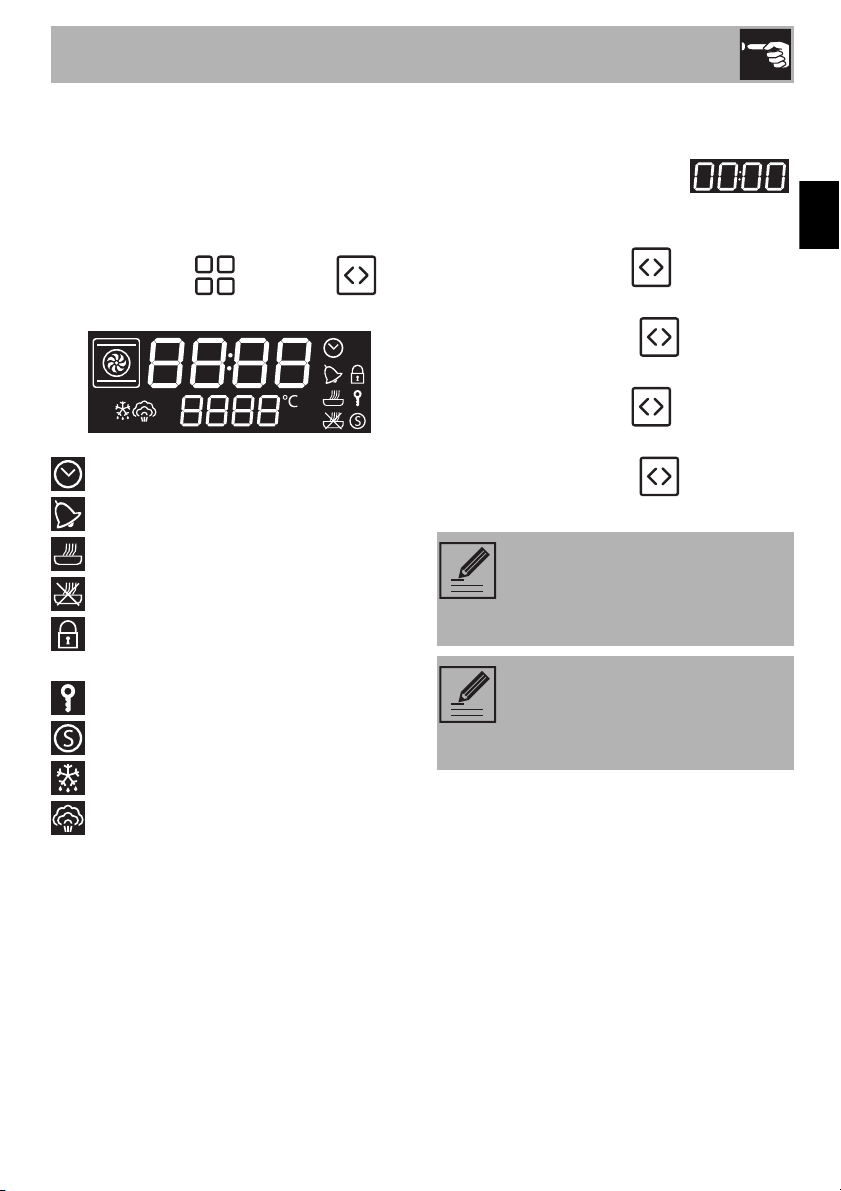

3.2 Using the oven
Display
The parameters and values for the
currently selected function will be
indicated on the display. To use it, simply
turn the Function and Select
knobs to select the values displayed.
Clock indicator light
Timer indicator light
Cooking indicator light
End of cooking indicator light
Door lock indicator light (pyrolytic
models only)
Controls lock indicator light
Showroom indicator light
Defrost indicator light
Vapor Clean indicator light (excluding
pyrolytic models)
First use
When using the appliance for the first time or
after a prolonged power failure,
will flash on the display. In order to start a
cooking function, the current time has to be set.
1. Turn the Select knob to select the
current time.
2. Press the Select knob to set the
hours and go to the minutes.
3. Turn the Select knob to select the
minutes.
4. Press the Select knob to finish
setting the time.
It may be necessary to change the
current time, for example for
daylight saving time. To modify the
current time, see “3.5 Settings”.
When the current time is shown,
the display will be dimmed 2
minutes after the knobs were last
used.

Use
70

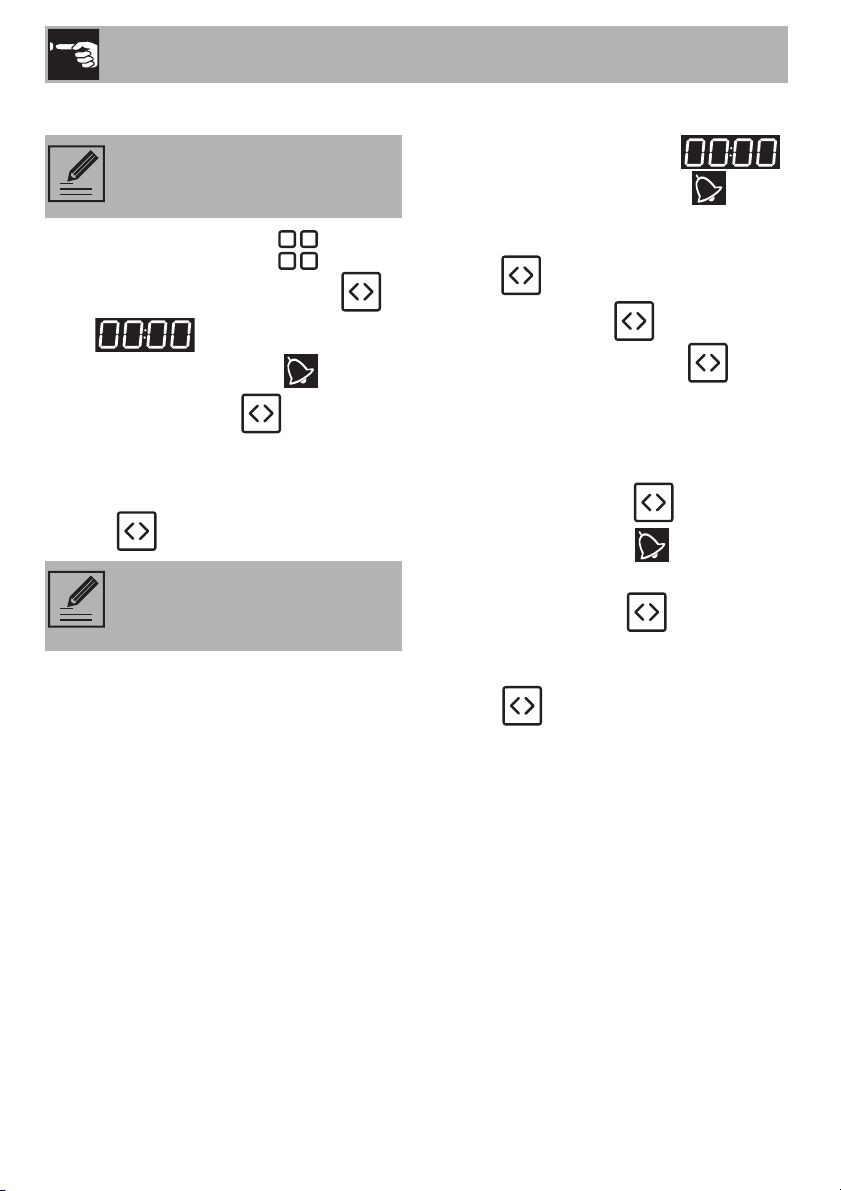

Timer
1. When the Function knob is on
position 0, press the Select knob .
Digits appear on the display
and the Timer indicator light flashes.
2. Turn the Select knob within 3
seconds to set the duration of the Timer
(from 1 minute to 13 hours).
3. Wait 3 seconds or press the Select
knob to start the Timer.
Timer End
4. When the timer ends, digits
and the Timer indicator light flash
and a buzzer will sound briefly that can
be deactivated by pressing the Select
knob or by opening the door.
5. Turn the Select knob to select another
timer or press the Select knob to exit
from the Timer function and go back to the
current time display.
How to clear a Timer
1. Press the Select knob .
The Timer indicator light flashes on the
display.
2. Turn the Select knob anticlockwise
within 3 seconds to reset the timer.
3. Wait 3 seconds or press the Select
knob to exit from the Timer
function and go back to the current time
display.
This function only activates the
buzzer when the countdown ends.
During this function, the display will
be dimmed 2 minutes after the
knobs were last used.

Use
71
EN

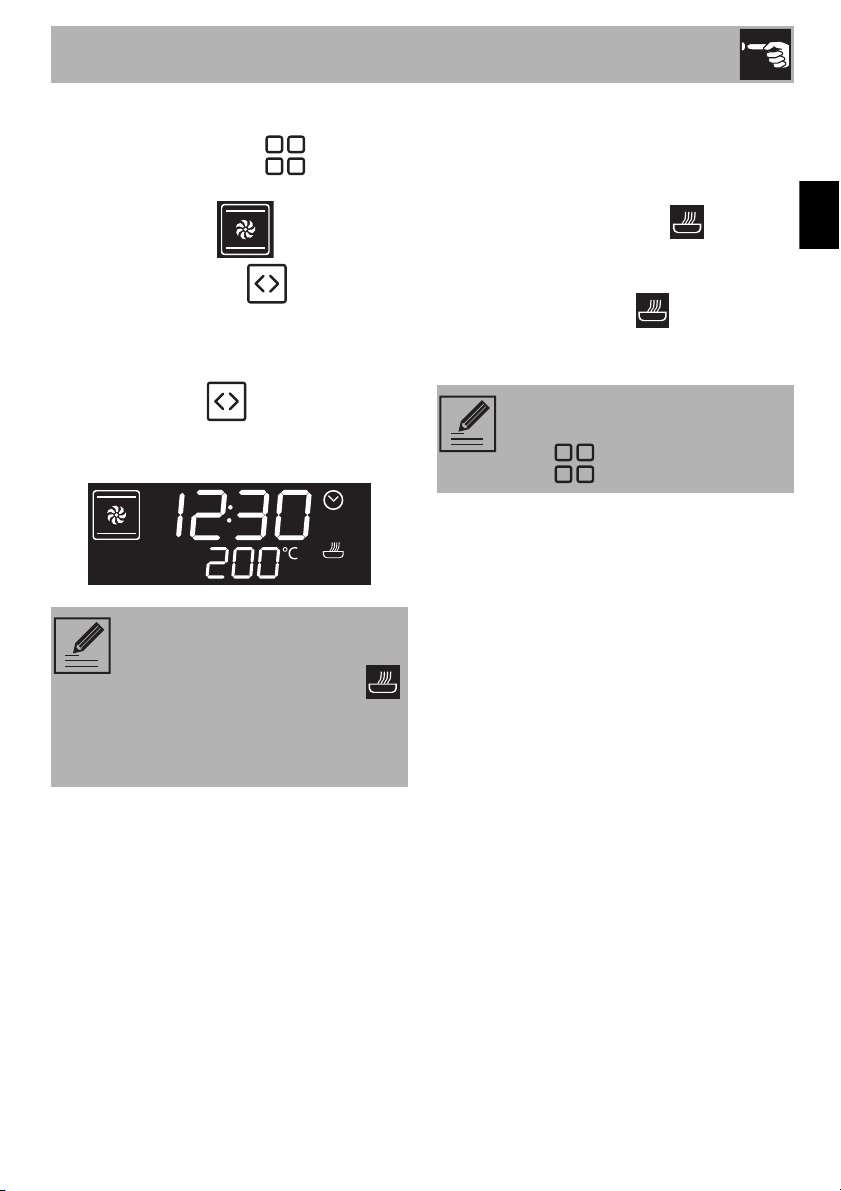

Switching on the oven
1. Turn the Function knob to the right
or left to select the required function (e.g.
“FAN ASSISTED ”).
2. Turn the Select knob to the right or
left to select the required temperature
(e.g. “200°C”).
3. Wait 3 seconds to start cooking or press
the Select knob to enter settings for
the cooking duration or the end of
cooking time.
Pre-heating stage
Cooking is preceded by a preheating
stage, which allows the appliance to heat
to the cooking temperature more quickly.
The Cooking indicator light flashes to
indicate that this stage is in progress.
When the preheating stage is over, the
Cooking indicator light will remain lit
steadily and a buzzer will sound to indicate
that the food can be placed in the oven.
When the door is opened, the
function in progress is stopped
(the Cooking indicator light
turns off).
The function restarts automatically
when the door is closed.
Cooking can be interrupted at
any time by turning the Function
knob to 0.

Use
72
Timed Cooking
1. After having selected a cooking function
and a temperature, press the Select
knob .
Digits appear on the display
and the Cooking and Clock
indicator lights flash.
2. Turn the Select knob within 3
seconds to set the cooking duration
(from 1 minute to 13 hours) (e.g. “25
minutes”).
3. Wait 3 seconds.
The Cooking indicator light stops
flashing and Timed cooking starts.
End of timed cooking
4. At the end of cooking,
flashes on the display and a buzzer will
sound that can be deactivated by
opening the door or pressing/turning
one of the two knobs.
How to clear Timed Cooking
1. Press the Select knob .
The Cooking indicator light flashes on
the display.
2. Turn the Select knob anticlockwise
within 3 seconds to reset the cooking
duration.
3. Wait 3 seconds or press the Select
knob to exit from the Timed
Cooking function and go back to the
current time display.
Timed cooking is the function
which allows you to start cooking
and end it after a specific length of
time set by the user.
If Timed cooking is activated, it
cancels any minute minder timer
that may have been set previously.
Timed cooking does not take pre-
heating times into account.
To select another Timed cooking,
turn the Select knob right or
left again.

Use
73
EN

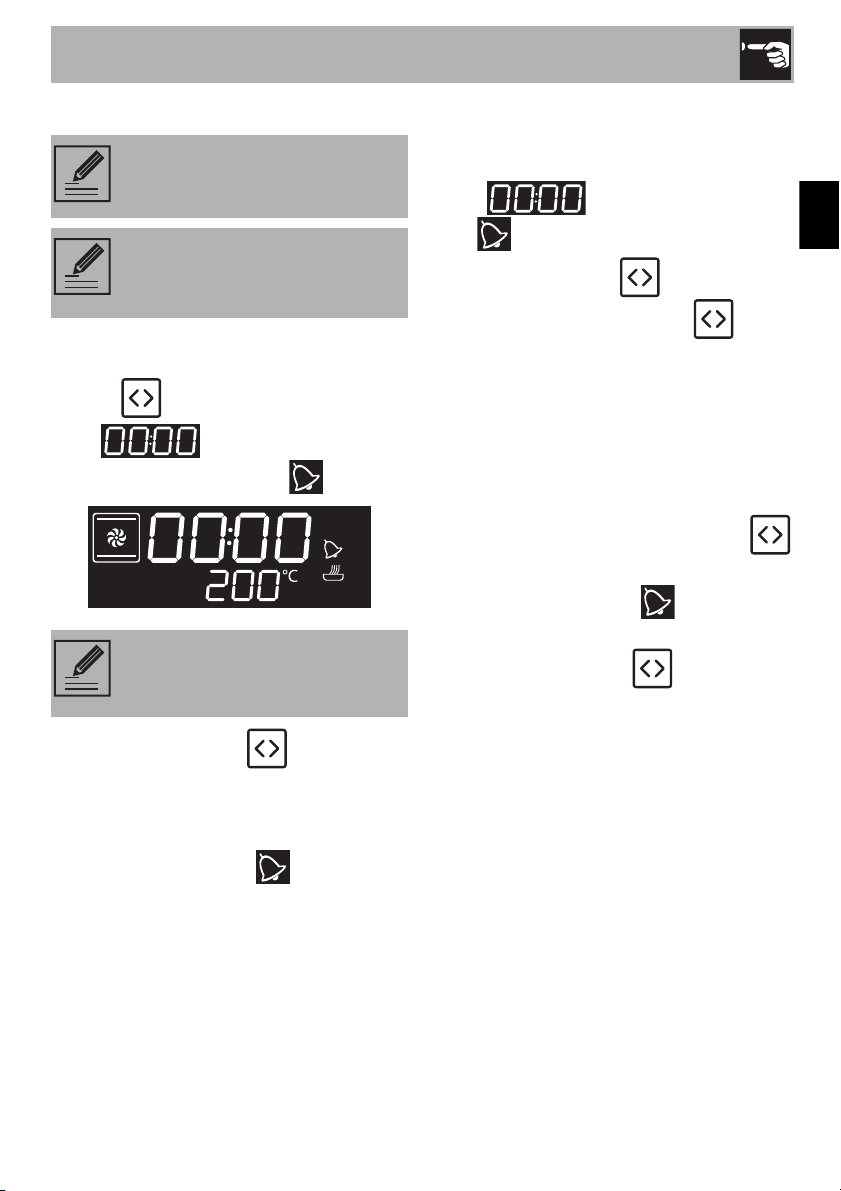

Timer during cooking
1. After having selected a cooking function
and a temperature, press the Select
knob twice.
Digits appear on the display
and the Timer indicator light flashes.
2. Turn the Select knob within 3
seconds to set the duration of the Timer
(from 1 minute to 13 hours).
3. Wait 3 seconds.
The Timer indicator light stops flashing
and the Timer starts.
Timer end during cooking
4. Wait for the buzzer to indicate that the
time has finished.
Digits and the Timer indicator
light flash.
5. Turn the Select knob to select another
timer or press the Select knob to
deactivate the buzzer and exit from the
Timer during cooking function.
After a few seconds, the current time
appears on the display and the cooking in
progress continues.
To clear a Timer during cooking
1. During cooking, press the Select knob
twice.
The Timer indicator light flashes on the
display.
2. Turn the Select knob anticlockwise
within 3 seconds to reset the timer.
3. Wait 3 seconds to exit from the Timer
during cooking function.
This function only activates the
buzzer, without stopping cooking.
It is not possible to set a Timer
during cooking if Timed cooking
has previously been selected.
It is possible to set a Timer even
when cooking has already started.

Use
74
Programmed Cooking
1. After having selected a cooking function
and a temperature, press the Select
knob .
Digits appear on the display
and the Cooking and Clock
indicator lights flash.
2. Turn the Select knob within 3
seconds to set the cooking duration
(from 1 minute to 13 hours) (e.g. “25
minutes”).
3. Press the Select knob .
Digits appear on the display
and the End of Cooking and Clock
indicator lights flash.
4. Turn the Select knob within 3
seconds to set the end of cooking time
(for example “13:15”).
5. Wait 3 seconds.
The End of cooking indicator light and
the appliance wait for the set start time.
Programmed Cooking is the
function that allows Timed
Cooking to be stopped
automatically at a time set by the
user, after which the appliance will
switch off automatically.
For safety reasons, it is not possible
to set the end of cooking time by
itself without setting the cooking
duration.
The minutes required for pre-
heating are already included in the
end-of-cooking time.
