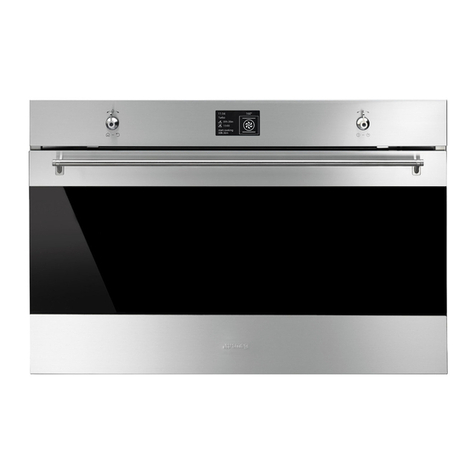

Smeg SFPA6309X User manual

Contents
3
EN
1 Instructions 4
1.1 General safety instructions 4
1.2 Identification plate 5
1.3 Disposal 5
1.4 Identification plate 6
1.5 This user manual 6
1.6 How to read the user manual 6
2 Description 7
2.1 General Description 7
2.2 Control panel 7
2.3 Other parts 8
2.4 Available accessories 9
3 Use 10
3.1 Instructions 10
3.2 First use 10
3.3 Using the accessories 11
3.4 Using the oven 12
3.5 Cooking advice 18
3.6 Special functions 20
3.7 Secondary menu 23
4 Cleaning and maintenance 26
4.1 Instructions 26
4.2 Cleaning the appliance 26
4.3 Removing the door 26
4.4 Cleaning the door glazing 27
4.5 Vapor Clean (on some models only) 28
4.6 Pyrolytic function (on some models only) 31
4.7 Extraordinary maintenance 33
5 Installation 35
5.1 Electrical connection 35
5.2 Cable replacement 35
5.3 Positioning 36
We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance’s aesthetic and functional qualities.
For further information on the product: www.smeg.com

Instructions
4
1 Instructions
1.1 General safety instructions
Risk of personal injury
• During use the appliance and its
accessible parts become very hot.
• Never touch the heating elements
during use.
• Keep children under eight years
of age at a safe distance if they
are not constantly supervised.
• Children must never play with the
appliance.
• This appliance may be used by
children aged at least 8 and by
people of reduced physical and
mental capacity, or lacking in
experience in the use of electrical
appliances, as long they are
supervised or instructed by adults
who are responsible for their
safety.
• Never try to put out a fire or
flames with water: Turn off the
appliance and smother the flames
with a fire blanket or other
appropriate cover.
• The appliance must never be
cleaned by unsupervised children.
• Do not insert pointed metal
objects (cutlery or utensils) into the
slots in the appliance.
• Switch off the appliance
immediately after use.
• Do not modify this appliance.
• Have authorised persons carry
out installation and assistance
interventions according to the
standards in force.
• Do not try to repair the appliance
yourself or without the intervention
of an authorised persons.
• If the power supply cable is
damaged, contact technical
support immediately and they will
replace it.
• Do not open the storage
compartment when the oven is on
and still hot.
• The items inside the storage
compartment could be very hot
after using the oven.
Risk of damaging the appliance
• Do not use abrasive or corrosive
detergents on glass parts (e.g.
powder products, stain removers
and metallic sponges).
• Racks and trays have to be
inserted into the side guides until
they come to a complete stop.
The mechanical safety locks that
prevent the rack from being taken
out accidentally have to face
downwards and towards the
oven back.

Instructions
5
EN
• Use wooden or plastic utensils.
• Do not seat on the appliance.
• Do not use steam jets to clean the
appliance.
• Do not obstruct ventilation
openings and heat dispersal slots.
• Never leave the appliance
unattended during cooking
operations where fats or oils
could be released.
• Never leave objects on the
cooking surface.
• Do not use the appliance to heat
rooms for any reason.
• Remove any food residues or
large spills from previous cooking
operations from the inside of the
oven.
For this appliance
• Before replacing the bulb, switch off
the power supply to the appliance.
• Do not rest any weight or sit on the
open door of the appliance.
• Take care that no objects are stuck in
the doors.
1.2 Identification plate
• The identification plate bears the technical
data, serial number and brand name of the
appliance. Do not remove the identification
plate for any reason.
1.3 Disposal
This appliance must be disposed of
separately from other waste
(Directives 2002/95/EC, 2002/
96/EC, 2003/108/EC). The appliance
does not contain substances in quantities
sufficient to be considered hazardous to
health and the environment, in accordance
with current European directives.
To dispose of the appliance:
• Cut the power supply cable and remove
it along with the plug.
• Deliver the appliance to the appropriate
recycling centre for electrical and
electronic equipment waste, or return it to
the retailer when purchasing an
equivalent product, on a one for one
basis.
Power voltage
Danger of electrocution
• Disconnect the main power supply.
• Disconnect the power cable from the
electrical system.

Instructions
6
Our appliances are packed in non-
polluting and recyclable materials.
• Deliver the packing materials to the
appropriate recycling centre.
1.4 Identification plate
The identification plate bears the technical
data, serial number and brand name of the
appliance. Do not remove the identification
plate for any reason.
1.5 This user manual
This user manual is an integral part of the
appliance and must therefore be kept in its
entirety and within the user’s reach for the
whole working life of the appliance.
Read this user manual carefully before using
the appliance.
1.6 How to read the user manual
This user manual uses the following reading
conventions:
1. Use instruction sequence.
• Single use instruction.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or any part
of it unattended.
• Do not let children play with the
packaging plastic bags.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories,
cooking advice.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for the authorised
persons: Installation, operation and
inspection.
Safety instructions
Information
Advice

Description
7
EN
2 Description

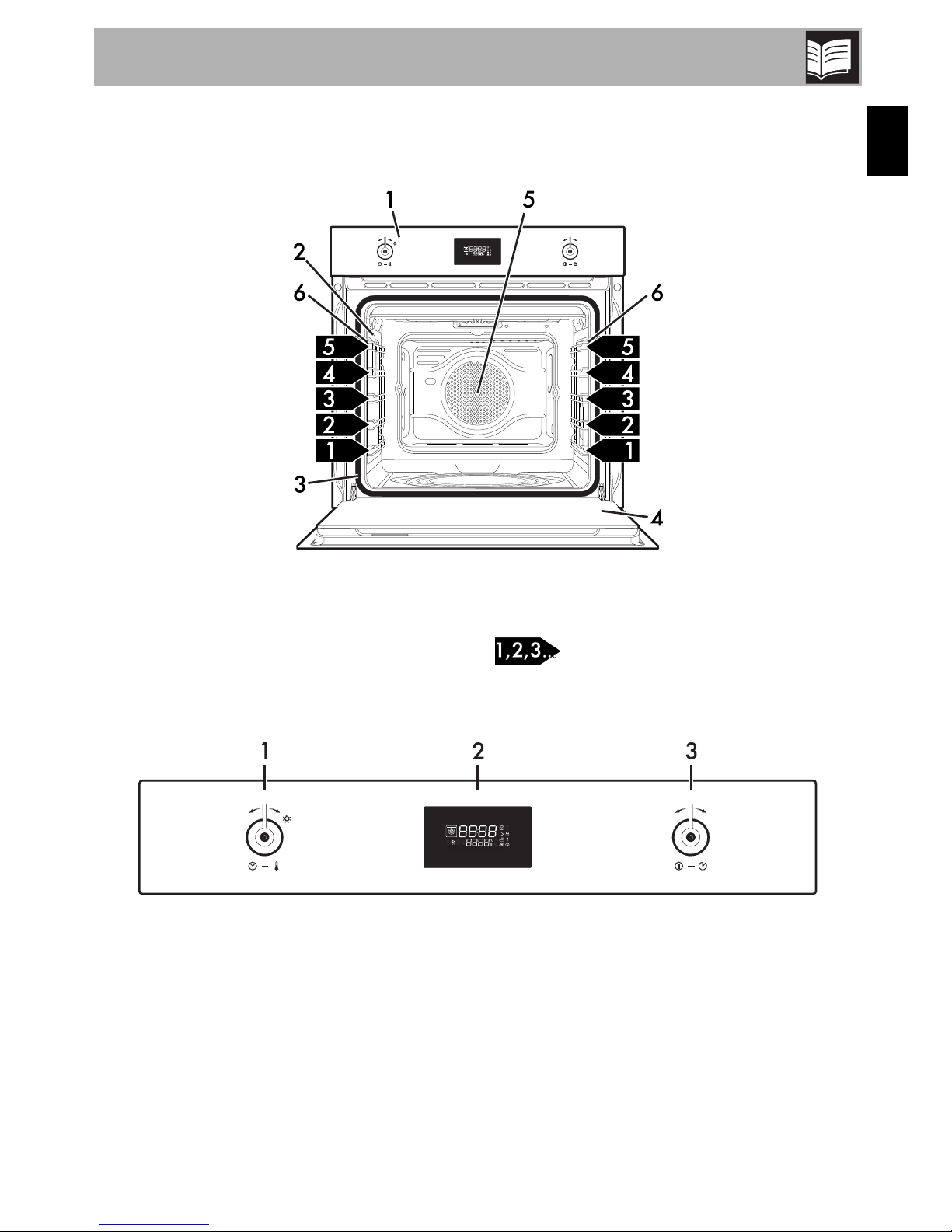

2.1 General Description
1 Control panel
2 Oven light
3 Seal
4 Door
5 Fan
6 Rack/tray support frames
Frame shelf
2.2 Control panel
1 Programming knob
This knob can be used to select:
• The cooking temperature
• The duration of a function
• Programmed cooking procedures
• The current time
• Turning on or off of the light inside the
appliance.
2 Display
Displays the current time, the selected
cooking temperature, power and function
and any time set.

Description
8
3 Function knob
This knob can be used to:
• Turn the appliance on and off
• Select a function
• Temporarily start or stop a function.

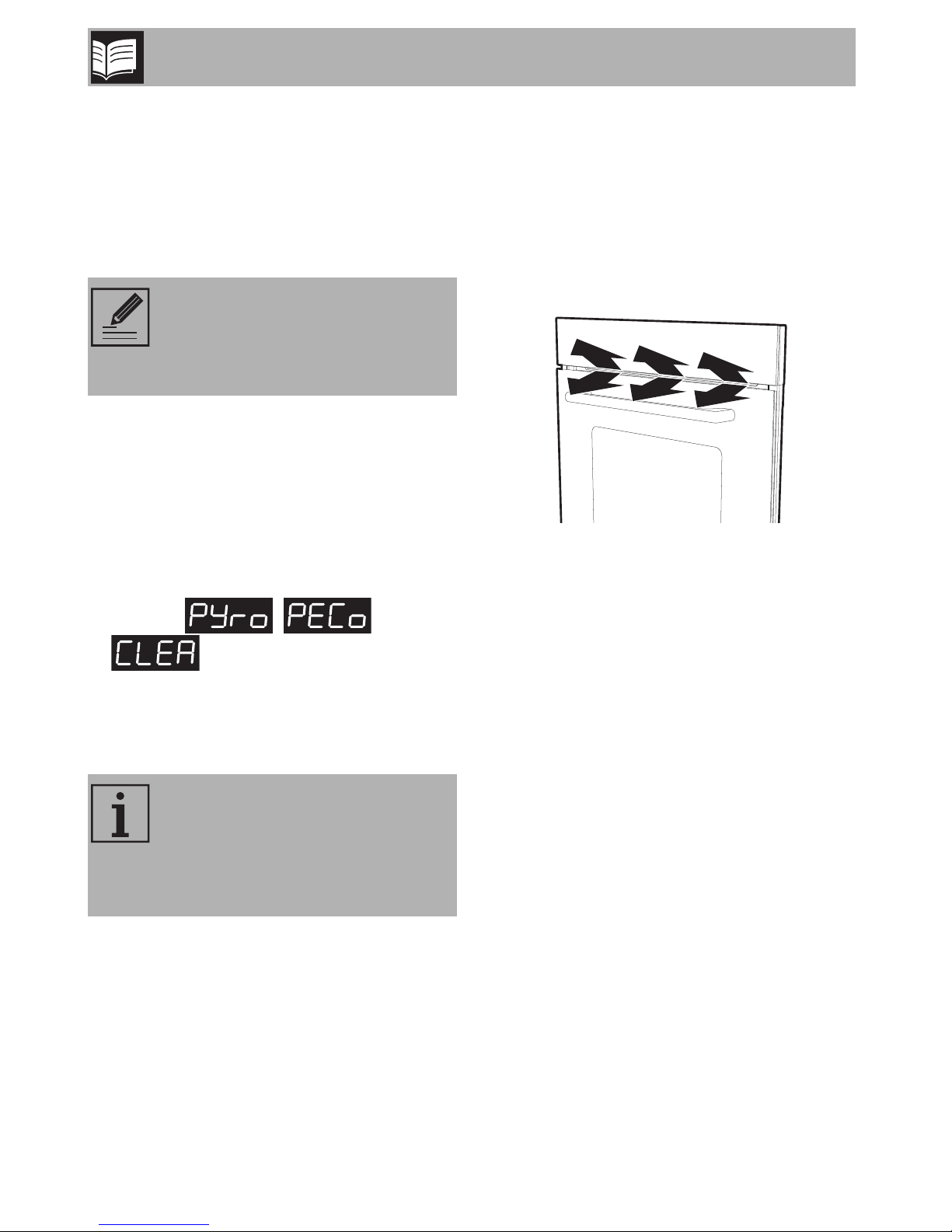

2.3 Other parts
Interior lighting
The appliance interior lighting comes on:
• When the door is opened (on some
models only).
• When any function is selected, apart
from the , and
functions (where present)
• When no function is selected, turn the
programming knob briefly to the right to
activate or deactivate internal lighting.
Shelves
The appliance features shelves to position
trays and racks at different heights. The
insertion heights are indicated from the
bottom upwards (see 2.1 General
Description).
Cooling fan
The fan cools the appliance and comes into
operation during cooking.
The fan causes a steady outflow of air from
above the door which may continue for a
brief period of time even after the appliance
has been turned off.
Press and hold the function knob
down for around 3 seconds to
immediately terminate any cooking
operation.
In order to save energy, the light
turns off after a minute at the start of
cooking (this function can be
deactivated via the secondary
menu).

Description
9
EN

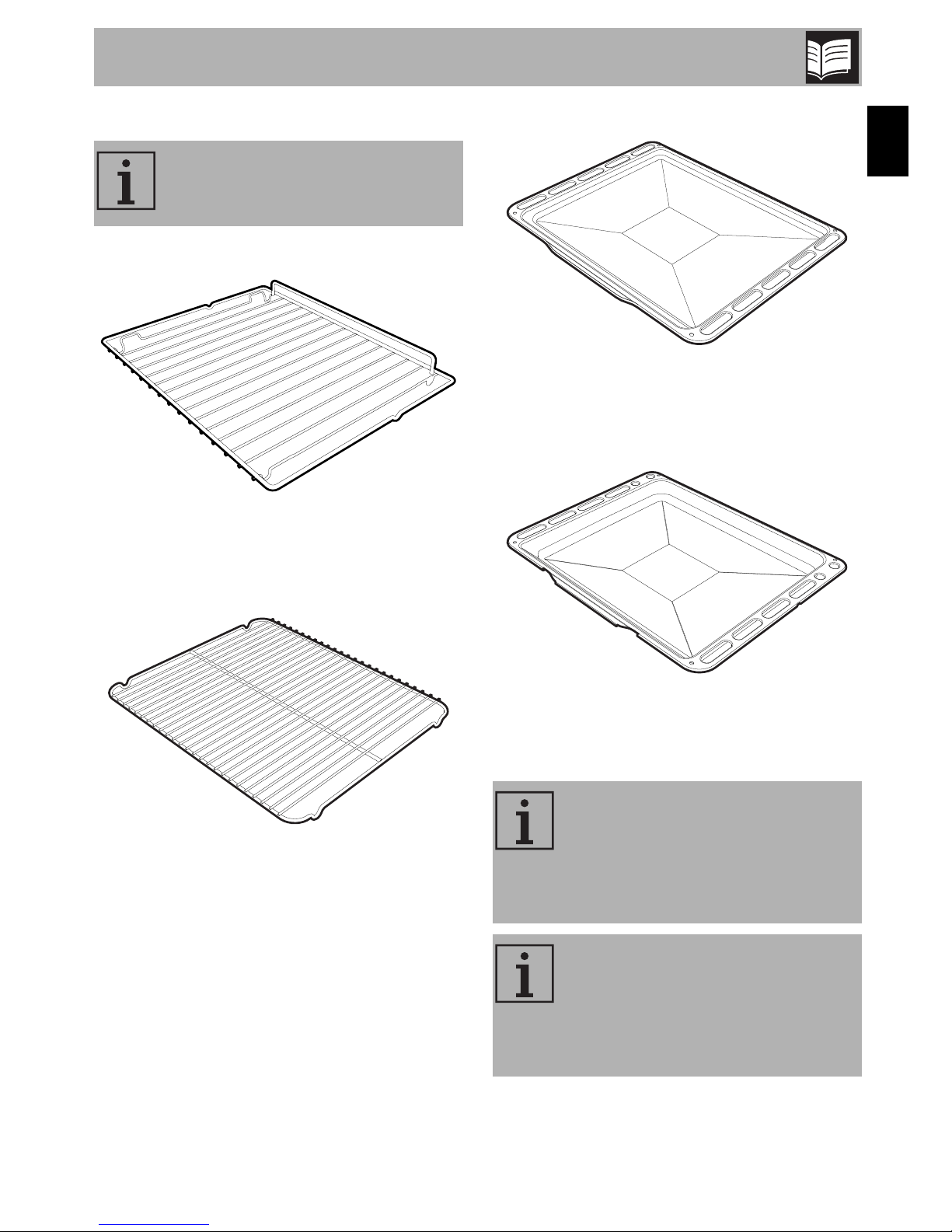

2.4 Available accessories
Rack
Useful for supporting containers with food
during cooking.
Tray rack
To be placed over the top of the oven tray;
for cooking foods which may drip.
Oven tray
Useful for collecting fat from foods placed
on the rack above.
Deep tray
Useful for collecting fat from foods placed
on the rack above and for cooking pies,
pizzas and baked desserts.
Some models are not provided
with all accessories.
The appliance accessories
intended to come into contact with
food are made of materials that
comply with the provisions of
current legislation.
Supplied original and optional
accessories can be requested to
Authorised Assistance Centres.
Use only original accessories
supplied by the manufacturer.

Use
10
3 Use
3.1 Instructions
3.2 First use
1. Remove any protective film from the
outside or inside of the appliance,
including accessories.
2. Remove any labels (apart from the
technical data plate) from the
accessories and from the oven cavity.
3. Remove and wash all the appliance
accessories (see 4 Cleaning and
maintenance).
4. Heat the empty oven at the maximum
temperature to burn off any residues left
by the manufacturing process.
High temperature inside the oven
during use
Danger of burns
• Keep the oven door closed during
cooking.
• Protect your hands by wearing oven
gloves when moving food inside the
oven.
• Do not touch the heating elements inside
the oven.
• Do not pour water directly onto very hot
trays.
• Do not allow children to approach the
appliance when it is in operation.
High temperature inside the oven
during use
Danger of fire or explosion
• Do not spray any spray products near
the appliance.
• Do not use or leave flammable materials
near the appliance.
• Do not use plastic kitchenware or
containers when cooking food.
• Do not put sealed tins or containers in
the oven.
• Do not leave the appliance unattended
during cooking operations where fats or
oils could be released.
• Remove all trays and racks which are
not required during cooking.
Improper use
Risk of damage to enamelled
surfaces
• Do not cover the bottom of the oven
cavity with aluminium or tin foil sheets.
• If you wish to use greaseproof paper,
place it so that it will not interfere with the
hot air circulation inside the oven.
• Do not place pans or trays directly on
the bottom of the oven cavity.
• Do not pour water directly onto very hot
trays.

Use
11
EN
3.3 Using the accessories

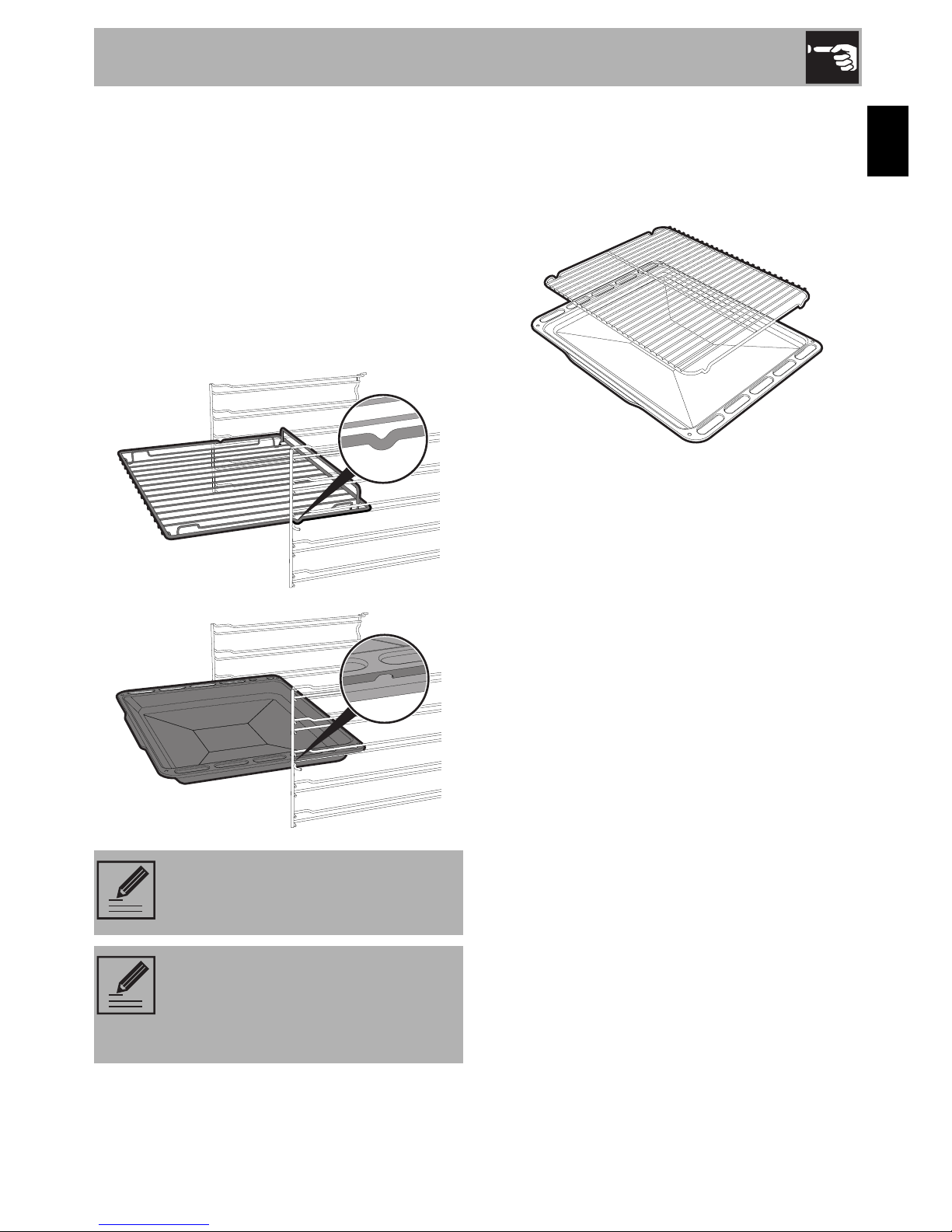

Racks and trays
Racks and trays have to be inserted into the
side guides until they come to a complete
stop.
• The mechanical safety locks that prevent
the rack from being taken out
accidentally have to face downwards
and towards the oven back.
Tray rack
The tray rack has to be inserted into the tray.
In this way fat can be collected separately
from the food which is being cooked.
Gently insert racks and trays into
the oven until they come to a stop.
Clean the trays before using them
for the first time to remove any
residues left by the manufacturing
process.

Use
12
3.4 Using the oven
Switching on the oven
1. Press the function knob to turn on the
display.
2. Turn the function knob to the right or left
to select the required function.
3. Press the programming knob.
4. Turn the knob to set the temperature.
5. Press the programming knob or wait 3
seconds.
6. Press the function knob to start cooking.
Preheating stage
Cooking itself is preceded by a preheating
stage, which allows the appliance to heat
to the cooking temperature more quickly.
The light flashes to indicate that this
stage is in progress.
When the preheating stage is over, the
light will remain lit steadily and a buzzer will
sound to indicate that the food can be
placed inside the oven.
List of cooking functions
Press and hold the function knob
down for around 3 seconds to
immediately terminate any cooking
operation.
Cooking can be interrupted at any
time by pressing and holding the
function knob down for at least 3
seconds.
Eco
The combination of the fan and the
circulaire heating element, in ECO
mode, is particularly indicated for
cooking on a single shelf, with
reduced power consumption.
Static
As the heat comes from above and
below at the same time, this system
is particularly suitable for certain
types of food. Traditional cooking,
also known as static cooking, is
suitable for cooking just one dish at
a time. Perfect for all types of roasts,
bread and cakes and in any case
particularly suitable for fatty meats
such as goose and duck.
Grill
The heat coming from the grill
element gives perfect grilling results
above all for thin and medium
thickness meat and, in combination
with the rotisserie (where fitted),
gives the food an even browning at
the end of cooking. Perfect for
sausages, spare ribs and bacon.
This function enables large
quantities of food, particularly meat,
to be grilled evenly.
Lower element
The heat coming just from the
bottom allows you to complete the
cooking of foods that require a
higher bottom temperature, without
affecting their browning. Perfect for
cakes, pies, tarts and pizzas.

Use
13
EN
Fan assisted
The operation of the fan, combined
with traditional cooking, ensures
consistent cooking even with
complex recipes. Perfect for biscuits
and cakes, even when
simultaneously cooked on several
levels. (For multiple-level cooking,
we recommend using the 2nd and
4th shelves).
Fan with grill
The air produced by the fan softens
the strong heatwave generated by
the grill, grilling perfectly even very
thick foods. Perfect for large cuts of
meat (e.g. shin of pork).
Fan + lower element (on some
models only)
The combination of the fan with just
the lower heating element allows
cooking to be completed more
rapidly. This system is
recommended for sterilising or for
finishing off the cooking of foods
which are already well-cooked on
the surface, but not inside, which
therefore need a little more heat.
Perfect for any type of food.
In pyrolytic models, the special
defrost and proving functions are
brought together under the same
function.
Circulaire
The combination of the fan and the
circulaire heating element
(incorporated in the rear of the
oven) allows you to cook different
foods on several levels, as long as
they need the same temperatures
and type of cooking. Hot air
circulation ensures instant and even
distribution of heat. It will be
possible, for instance, to cook fish,
vegetables and biscuits
simultaneously (on different levels)
without odours and flavours
mingling.
Turbo
The combination of fan assisted
cooking and traditional cooking
allows different foods to be cooked
on several levels extremely quickly
and efficiently, without odours and
flavours mingling. Perfect for large
volumes that call for intense
cooking. (For multiple-level cooking,
we recommend using the 1st and 4th
shelves).

Use
14
Display
Clock indicator light
Minute minder timer indicator light
Programmed cooking indicator light
Timed cooking indicator light
Door lock indicator light (pyrolytic
models only)
Child lock indicator light
Showroom indicator light
Operating modes
Stand-by: When no function is selected, the
display shows the current time.
ON: When a function is activated, the
display shows the parameters set such as
temperature, duration and temperature
reached.
Each time the programming knob is pressed
during a function, the parameters will be
cycled through in the following order.
Temperature
Minute minder timer duration
Programmed cooking duration
Timed cooking duration
Current time display
In all states it is possible to modify the value
by turning the programming knob to the left
or right. Keep the knob turned to produce a
faster increase or decrease.

Use
15
EN
Setting the time
On the first use, or after a power failure, the
message will flash on the
appliance's display. To be able to start any
cooking function, the current time must be
set.
1. Turn the programming knob to set the
displayed hour (keep the knob turned to
produce a faster increase or decrease).
2. Press the programming knob.
3. Turn the programming knob to set the
minutes (keep the knob turned to
produce a faster increase or decrease).
4. Press the programming knob to complete
the setting.
Minute minder
1. Press the programming knob once (twice
if cooking is already in progress). The
display shows and the
indicator light flashes.
2. Turn the programming knob to set the
duration (from 1 minute to 4 hours). After
a few seconds, the indicator light
stops flashing and the countdown starts.
3. Wait for the buzzer to indicate that the
time has finished. The indicator light
flashes.
4. Turn the programming knob to select
another minute minder. Or else press the
programming knob to stop the buzzer.
It may become necessary to
change the current time, for
example for daylight saving time.
From the stand-by position, keep
the programming knob turned to
the right or left until the hours flash.
It is not possible to change the time
if the oven is ON.
This function only activates the
buzzer, without stopping cooking.
The minute minder can be
activated both during cooking and
when the appliance is in standby.

Use
16

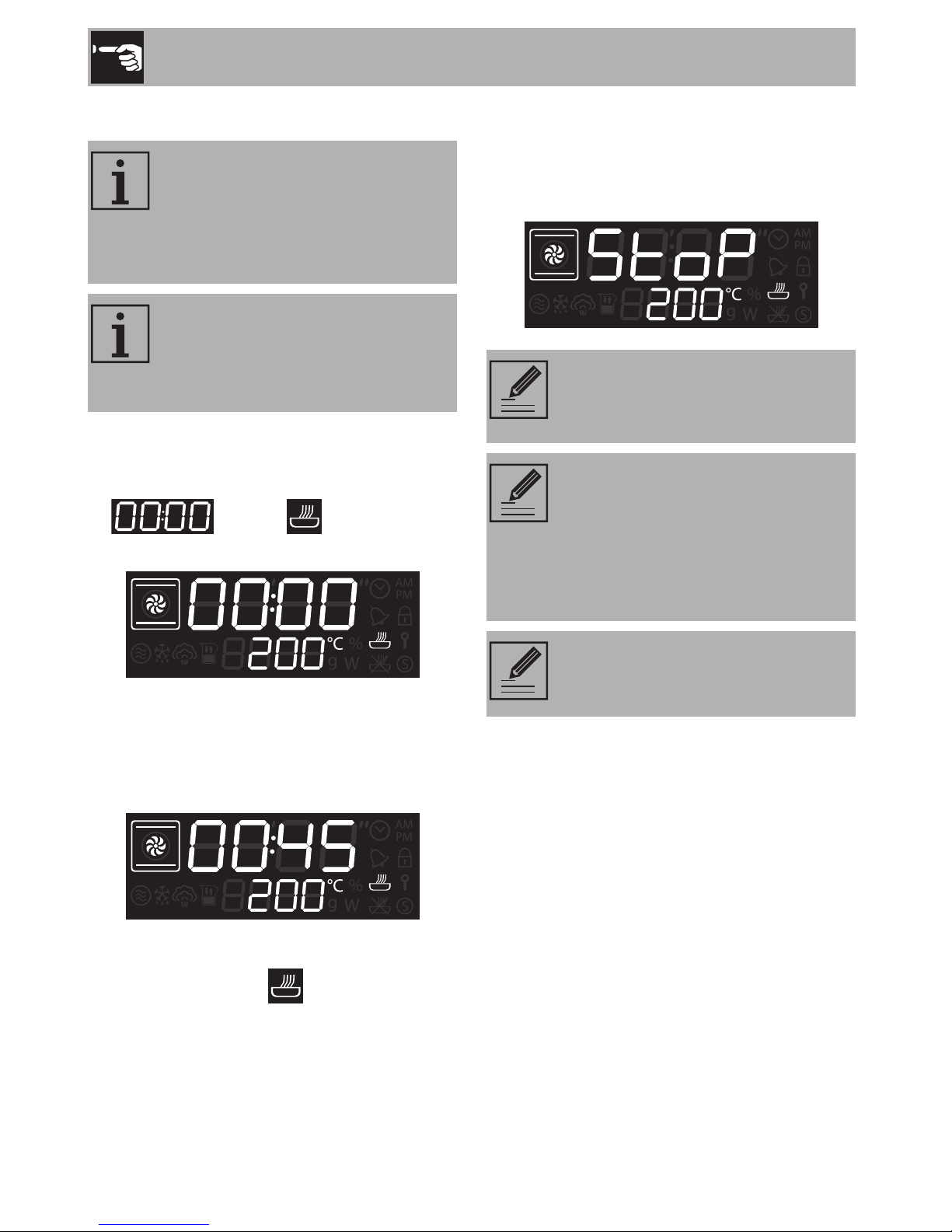

Timed cooking
1. After selecting a cooking function and
temperature, press the programming
knob three times. The display shows
and the indicator light
flashes.
2. Turn the programming knob to set the
cooking time (from 00:01 to 13:00).
Keep the knob turned to produce a
faster increase or decrease.
3. A few seconds after the required
duration is set, the indicator light
stops flashing. Press the function knob to
start timed cooking.
4. At the end of the cooking time STOP
flashes on the display and a buzzer will
sound that can be deactivated by
pressing the function knob.
Timed cooking is the function
which allows a cooking operation
to be started and then ended after
a specific length of time set by the
user.
Activation of timed cooking
cancels any minute minder timer
which may previously have been
set. To select a further timed cooking,
turn the programming knob right or
left again.
To extend the cooking time
manually, press the programming
knob again. The appliance
resumes its normal operation with
the previously selected cooking
settings.
Press and hold the function knob
down to switch off the appliance.

Use
17
EN

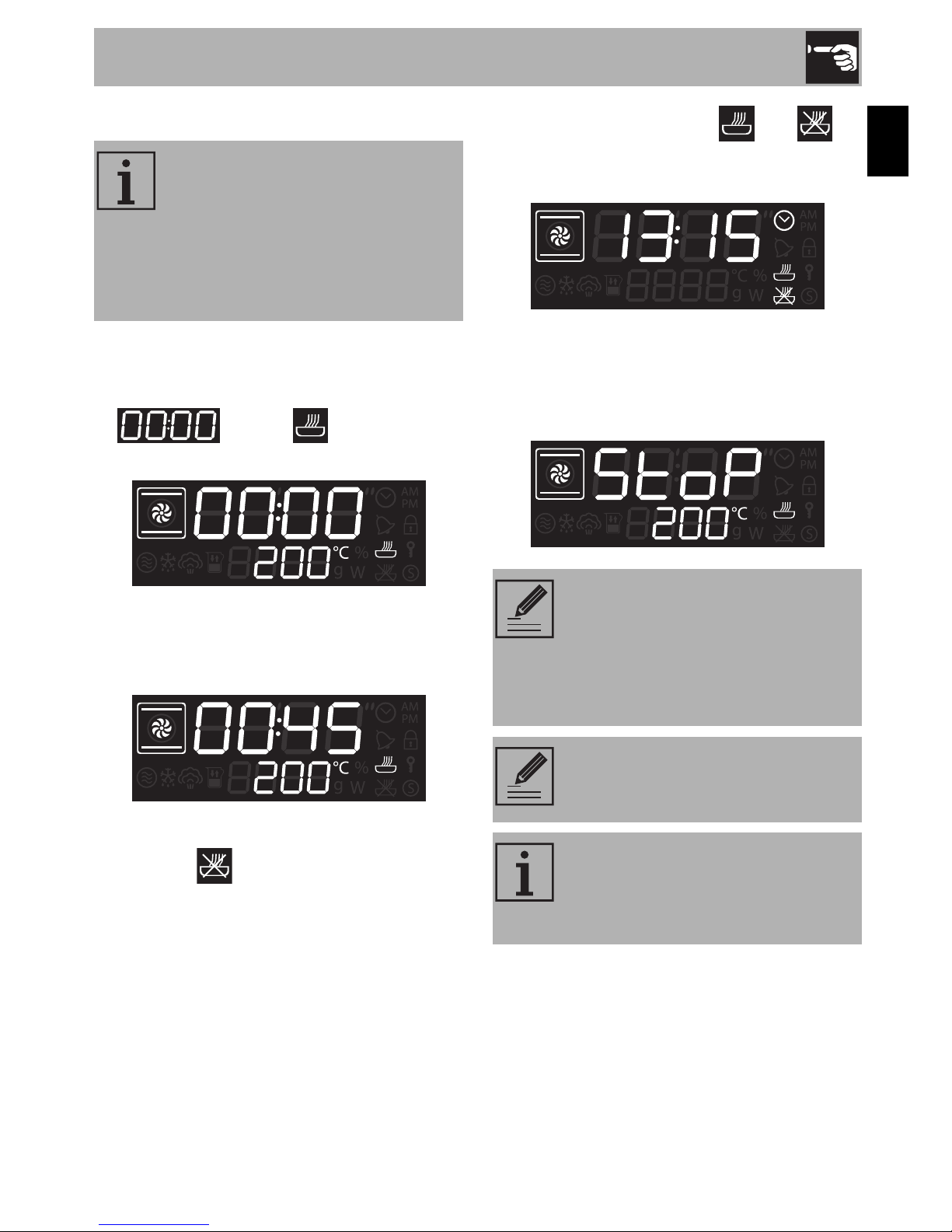

Programmed cooking
1. After selecting a cooking function and
temperature, press the programming
knob three times. The display shows
and the indicator light
flashes.
2. Turn the knob to set the cooking time
(from 00:01 to 13:00). Keep the knob
turned for a fast increase or decrease.
3. Press the programming knob a fourth
time. The indicator light flashes. Turn
the knob to set the cooking end time.
4. After a few seconds the and
indicator lights stop flashing. The
appliance waits for the set start time.
5. At the end of the cooking time STOP
flashes on the display and a buzzer will
sound that can be deactivated by
pressing the function knob.
Programmed cooking is the
function which allows a cooking
operation to be stopped
automatically at an established
time depending on the time set by
the user, after which the oven will
switch off automatically.
To extend the cooking time
manually, press the programming
knob again. The appliance
resumes its normal operation with
the previously selected cooking
settings.
Press and hold the function knob
down to switch off the appliance.
For safety reasons, it is not possible
to set the end of cooking time by
itself without setting the cooking
duration.

Use
18
3.5 Cooking advice
General advice
• Use a fan assisted function to achieve
consistent cooking at several levels.
• It is not possible to shorten cooking times
by increasing the temperature (the food
could be overcooked on the outside and
undercooked on the inside).
Advice for cooking meat
• Cooking times vary according to the
thickness and quality of the food and to
consumer taste.
• Use a meat thermometer when roasting
meat, or simply press on the roast with a
spoon. If it is hard, it is ready; If not, it
needs another few minutes cooking.
Advice for cooking with the Grill and the
Fan with grill
• Meat can be grilled even when it is put
into the cold oven or into the preheated
oven if you wish to change the effect of
the cooking.
• With the Fan with grill function, we
recommend that you preheat the oven
before grilling.
• We recommend placing the food at the
centre of the rack.
• With the Grill function, we recommend
that you set the temperature to the
maximum value to optimise cooking.
Advice for cooking desserts/pastries and
biscuits
• Use dark metal moulds: They help to
absorb the heat better.
• The temperature and the cooking time
depend on the quality and consistency
of the dough.
• To check whether the dessert is cooked
right through: At the end of the cooking
time, put a toothpick into the highest point
of the dessert. If the dough does not stick
to the toothpick, the dessert is cooked.
• If the dessert collapses when it comes
out of the oven, on the next occasion
reduce the set temperature by about
10°C, selecting a longer cooking time if
necessary.
Advice for defrosting and proving
• Place frozen foods without their
packaging in a lidless container on the
first shelf of the oven.
• Avoid overlapping the food.
• To defrost meat, use the rack placed on
the second level and a tray on the first
level. In this way, the liquid from the
defrosting food drains away from the
food.
• The most delicate parts can be covered
with aluminium foil.
• For successful proving, a container of
water should be placed in the bottom of
the oven.
To save energy
• Stop cooking a few minutes before the
time normally used. Cooking will
continue for the remaining minutes with
the heat which has accumulated inside
the oven.
• Reduce any opening of the door to a
minimum to avoid heat dispersal.
• Keep the inside of the appliance clean
at all times.
• (Where fitted) When it is not being used,
remove the pizza plate and put the
cover back in its slot.

Use
19
EN
Cooking information table
Food Weight
(Kg) Function
Runner
position from
the bottom
Temperature
(°C) Time (minutes)
Lasagne 3 - 4 Static 1 220 - 230 45 - 50
Pasta bake 3 - 4 Static 1 220 - 230 45 - 50
Roast veal 2 Turbo/Fan assisted 2 180 - 190 90 - 100
Pork 2 Turbo/Fan assisted 2 180 - 190 70 - 80
Sausages 1.5 Fan with grill 4 280 15
Roast beef 1 Turbo/Fan assisted 2 200 40 - 45
Roast rabbit 1.5 Circulaire/Fan assisted 2 180 - 190 70 - 80
Turkey breast 3 Turbo/Fan assisted 2 180 - 190 110 - 120
Roast pork neck 2 - 3 Turbo/Fan assisted 2 180 - 190 170 - 180
Roast chicken 1.2 Turbo/Fan assisted 2 180 - 190 65 - 70
1st surface 2nd surface
Pork chops 1.5 Fan with grill 4 280 15 5
Spare ribs 1.5 Fan with grill 4 280 10 10
Bacon 0.7 Grill 5 280 7 8
Pork fillet 1.5 Fan with grill 4 280 10 5
Beef fillet 1 Grill 5 280 10 7
Salmon trout 1.2 Turbo/Fan assisted 2 150 - 160 35 - 40
Monkfish 1.5 Turbo/Fan assisted 2 160 60 - 65
Turbot 1.5 Turbo/Fan assisted 2 160 45 - 50
Pizza 1 Turbo/Fan assisted 2 280 8 - 9
Bread 1 Circulaire/Fan assisted 2 190 - 200 25 - 30
Focaccia 1 Turbo/Fan assisted 2 180 - 190 20 - 25
Bundt cake 1 Circulaire/Fan assisted 2 160 55 - 60
Jam tart 1 Circulaire/Fan assisted 2 160 35 - 40
Ricotta cake 1 Circulaire/Fan assisted 2 160 - 170 55 - 60
Jam tarts 1 Turbo/Fan assisted 2 160 20 - 25
Paradise cake 1.2 Circulaire/Fan assisted 2 160 55 - 60
Profiteroles 1.2 Turbo/Fan assisted 2 180 80 - 90
Sponge cake 1 Circulaire/Fan assisted 2 150 - 160 55 - 60
Rice pudding 1 Turbo/Fan assisted 2 160 55 - 60
Brioches 0.6 Circulaire/Fan assisted 2 160 30 - 35
The times indicated in the table do not include preheating times and are provided only as a guide.

Use
20
3.6 Special functions
Defrost by time
1. Place the food inside the oven.
2. Press and turn the function knob to select
the defrost by time function marked by
the indicator light and the
indicator light flashing.
3. Turn the programming knob to adjust the
duration (from 1 minute to 13 hours).
4. Press the programming knob to confirm
the values entered.
5. Press the function knob to start defrosting.
6. At the end of the defrost time STOP
flashes on the display and a buzzer will
sound that can be deactivated by
pressing the function knob.
Defrost by weight
1. Place the food inside the oven.
2. Press and turn the function knob to select
the defrost by weight function, marked by
the indicator light and .
3. Press the function knob to confirm.
4. Turn the function knob to select the type
of food to defrost.
5. Press and turn the programming knob to
select the weight (in grams) of the food
to defrost.
6. Press the function knob to confirm the
parameters and start defrosting.
7. At the end of the defrost time STOP
flashes on the display and a buzzer will
sound that can be deactivated by
pressing the function knob.
This function allows you to defrost
food on the basis of a selectable
time.
This function defrosts foods on the
basis of the type and weight of the
frozen product.

Use
21
EN
Preset parameters: Proving
1. Press and turn the function knob to select
the proving function.
2. Press the function knob to start the
proving function.
3. While the function is in progress, it is
possible to set a minute minder (see
“Minute minder”), a proving duration
(see “Timed cooking”) or delayed
proving (see “Programmed
cooking”). Press the programming knob
to make the desired changes.
4. When the proving function finishes a
buzzer will sound; to stop the buzzer,
press the function knob.
dE Type Weight
(g)
Time
(min)
Meat 500 105
Fish 400 40
Fruit 300 45
Bread 300 20
For successful proving, a container
of water should be placed in the
bottom of the oven.
Unless otherwise set, the proving
will have a maximum duration of
13 hours.
The light inside the oven will
remain off during the proving
function.
It is not possible to modify the
temperature of the proving
function.

Use
22
Sabbath 1. Press and turn the function knob to select
the Sabbath function.
2. Press and turn the programming knob to
select the required temperature (from
60°C to 100°C).
3. Press the programming knob to confirm
the parameters entered.
4. Press the function knob to start the
Sabbath function.
5. To exit this function, press and hold the
function knob down for at least 5
seconds.
The appliance follows some
specific behaviour when operating
in this function:
• Cooking can proceed
indefinitely, it is not possible to
set any cooking duration.
• No preheating will be
performed.
• The cooking temperature which
can be selected varies between
60-100 °C.
• Oven light disabled, any
operation such as opening the
door (where present) or manual
activation with the knob will not
activate the light.
• Oven fan disabled.
• Knob lights and buzzers
disabled.
After activating the Sabbath
function it will no longer be
possible to modify any parameters.
Any action on the knobs will
produce no effect; only the
function knob remains active to
allow you to return to the main
menu.
